Metos 5 User manual

BULK BREWING COFFEE MACHINE
METOS COMBI
CB
TYPE: 5, 1x5R, 1x5L, 2x5, 10, 1x10R, 1x10L, 2x10, 20, 1x20R, 1x20L, 2x20
User Manual
S/N: Rev.: 2.2

13.5.2011 Rev. 2.2
1
Dear Customer,
Congratulations on deciding to choose a Metos appliance for your kitchen activities. You
made an excellent choice. We will do our best to make you a satisfied Metos customer
like thousands of customers we have around the world.
Please read this manual carefully. You will learn correct, safe and efficient working meth-
ods in order to get the best possible benefit from the appliance. The instructions and hints
in this manual will give you a quick and easy start, and you will soon note how nice it is
to use the Metos equipment.
All rights are reserved for technical changes.
You will find the main technical data on the rating plate fixed to the equipment. When you
need service or technical help, please let us know the serial number shown on the rating
plate. This will make it easier to provide you with correct service.
For your convenience, space is provided below for you torecord your local Metos service
contact information.
METOS TEAM
Metos service phone number:...............................................................................................
Contact person:....................................................................................................................

13.5.2011 Rev. 2.2
2

13.5.2011 Rev.
1
1. General .......................................................................................................... 1
1.1 Symbols used in the manual .......................................................................................... 1
1.2 Symbols used on the appliance ...................................................................................... 1
1.3 Checking the relationship of the appliance and the manual .......................................... 1
2. Safety .............................................................................................................. 2
2.1 Warnings ........................................................................................................................ 2
2.1.1 Installation ............................................................................................................. 2
2.1.2 Use ......................................................................................................................... 2
2.1.3 Maintenance and troubleshooting .......................................................................... 2
2.2 Safeguards ..................................................................................................................... 3
2.2.1 On/off switch ......................................................................................................... 3
2.2.2 STOP button .......................................................................................................... 3
2.2.3 Swivel arm and container detection ....................................................................... 3
2.2.4 Dry-boil protection ................................................................................................ 3
2.2.5 Warning indication display .................................................................................... 3
2.3 Disposal of the appliance ............................................................................................... 4
3. Functional description .................................................................................. 5
3.1 General .......................................................................................................................... 5

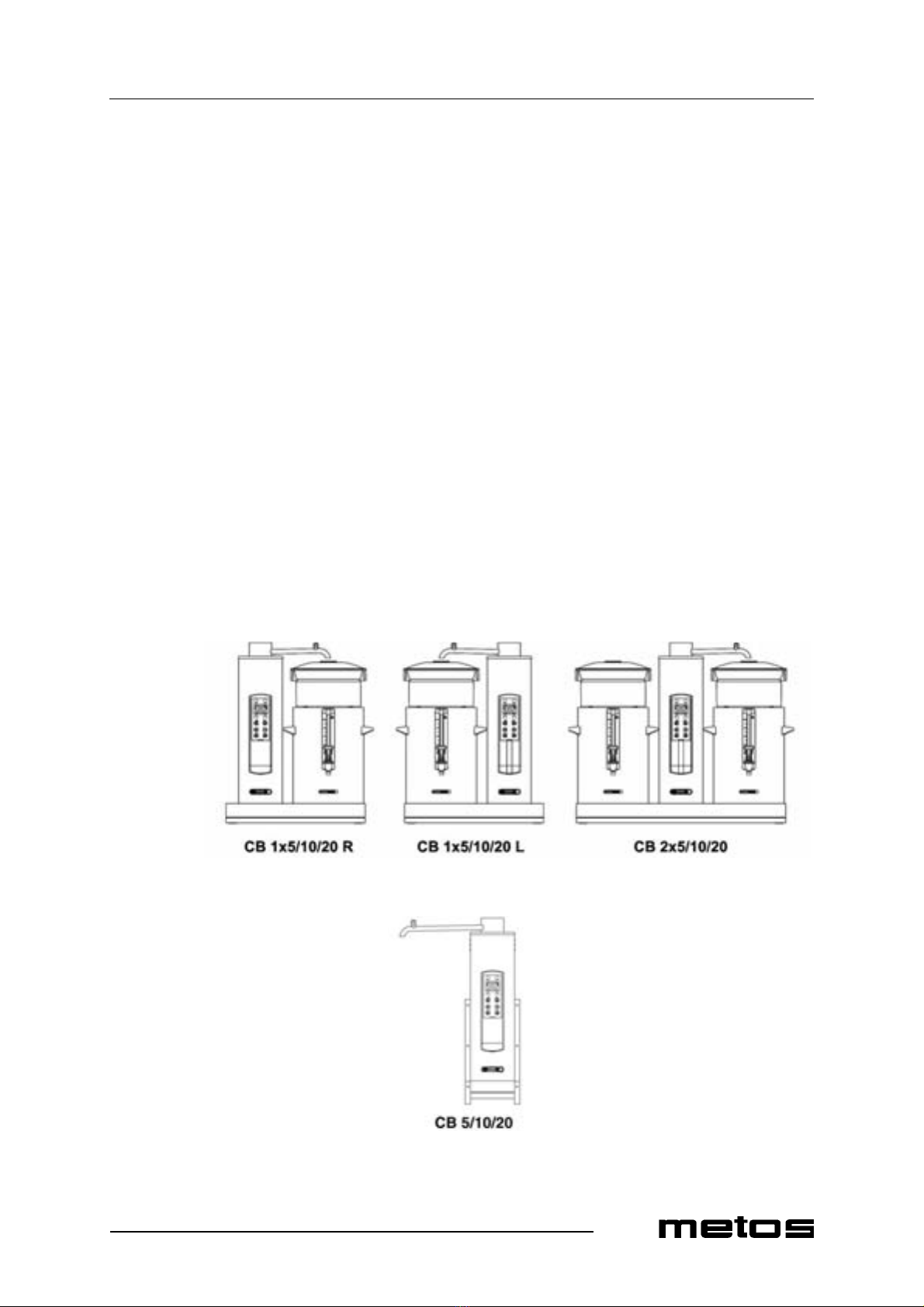

3.2 Models ........................................................................................................................... 5
3.3 Application of the appliance .......................................................................................... 6
3.3.1 Prohibited use/Use for other purposes ................................................................... 6

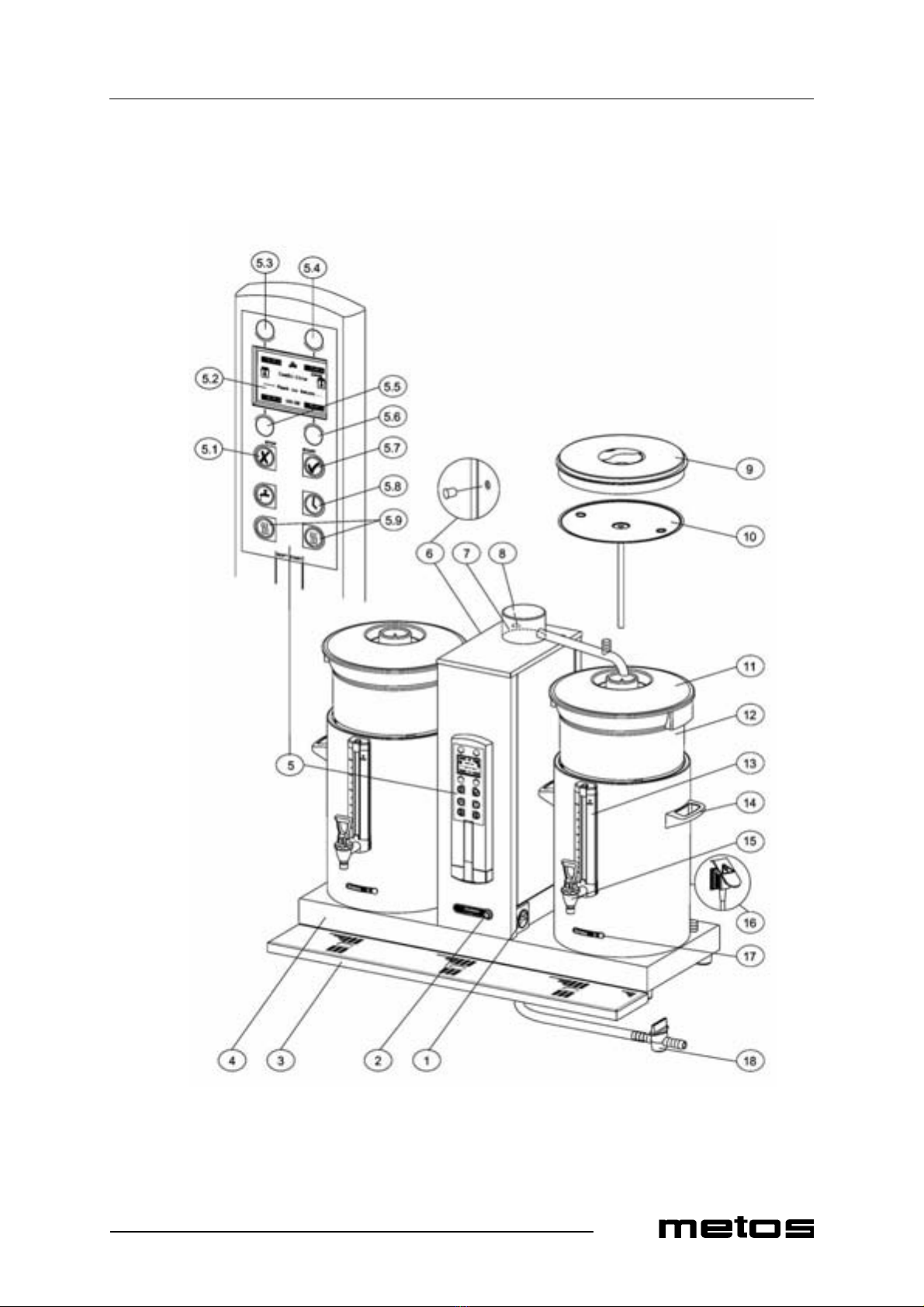

3.4 Construction [1x5, 1x10, 1x20, 2x5, 2x10, 2x20] ........................................................ 7
3.5 Construction [5, 10, 20] ................................................................................................ 9
3.6 Operating switches and indicator lights [5, 10, 20, 1x5, 1x10, 1x20, 2x5, 2x10, 2x20]
11

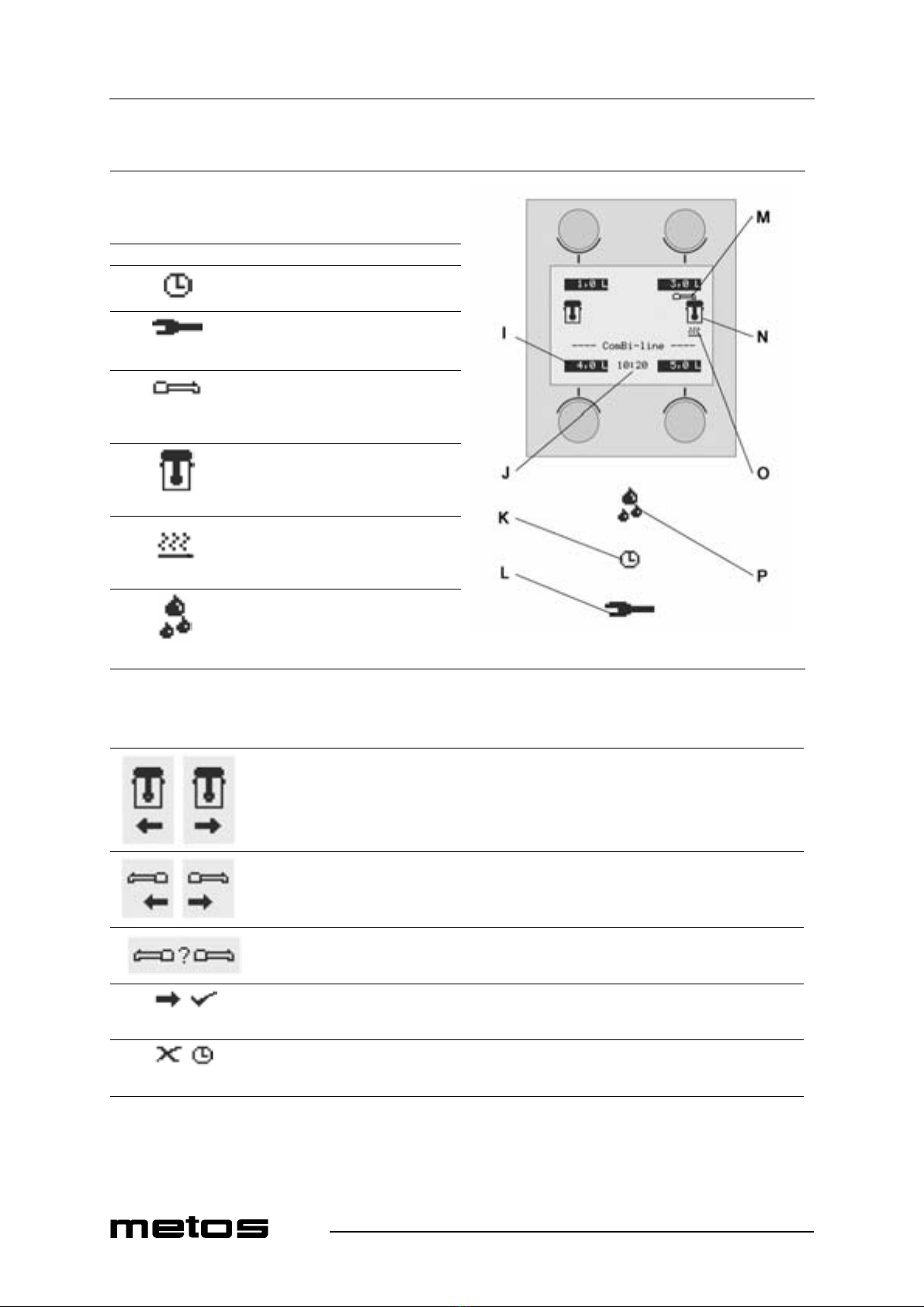

3.7 Display [5, 10, 20, 1x5, 1x10, 1x20, 2x5, 2x10, 2x20] ............................................. 12
3.8 Error reporting symbols ............................................................................................... 12
4. Operation instructions ............................................................................... 13
4.1 Before using the appliance .......................................................................................... 13
4.1.1 Flushing the flow heater system .......................................................................... 13
4.1.2 First settings operator menu ................................................................................. 14
4.2 Operation procedures ................................................................................................... 14
4.2.1 Brewing coffee ..................................................................................................... 15
4.2.2 Brewing tea .......................................................................................................... 17
4.2.3 Timer function ..................................................................................................... 17
4.2.4 The operator menu [5, 1x5, 10, 1x10, 20, 1x20, 2x5, 2x10, 2x20] .................... 19
4.2.5 Menu functions .................................................................................................... 19

13.5.2011 Rev.
2
4.2.6 Settings step by step ............................................................................................. 20
4.3 After use ...................................................................................................................... 35
4.3.1 Cleaning .............................................................................................................. 35
4.3.2 Periodic descaling activities ................................................................................. 37
5. Installation ................................................................................................... 39
5.1 General ........................................................................................................................ 39
5.2 Unpacking [1x5, 1x10, 1x20, 2x5, 2x10, 2x20] .......................................................... 40
5.3 Unpacking [5, 10, 20] .................................................................................................. 41
5.4 Preparation for positioning .......................................................................................... 41
5.5 Water connection ......................................................................................................... 42
5.5.1 Water treatment .................................................................................................... 42
5.6 Water drainage ............................................................................................................. 42
5.7 Electrical connection ................................................................................................... 43
5.8 Connection on a counter [1x5, 1x10, 1x20, 2x5, 2x10, 2x20] .................................... 44
5.9 Mounting on a wall [5, 10, 20] .................................................................................... 44
6. Troubleshooting .......................................................................................... 46
7. Technical specifications .............................................................................. 47

13.5.2011 Rev. 2.2
General
1
1. General
Carefully read the instructions in this manual as they contain important information re-
garding proper, efficient and safe installation, use and maintenance of the appliance.
Keep this manual in a safe place for eventual use by other operators of the appliance.
The installation of this appliance must be carried out in accordance with the manufactur-
er’s instructions and following local regulations. The connection of the appliance to the
electric and water supply must be carried out by qualified persons only.
Persons using this appliance should be specifically trained in its operation.
Switch off the appliance in the case of failure or malfunction. The periodical function
checks requested in the manual must be carried out accordingto theinstructions. Have the
appliance serviced by a technically qualified person authorized by the manufacturer and
using original spare parts.
Not complying with the above may put the safety of the appliance in danger.
1.1 Symbols used in the manual
This symbol informs about a situation where a safety risk might be at hand. Given instruc-
tions are mandatory in order to prevent injury.
This symbol informs about the right way to perform in order to prevent bad results, appli-
ance damage or hazardous situations.
This symbol informs about recommendations and hints that help to get the best perform-
ance out of the appliance.
This symbol informs about a function that has to be taken into account in self-control.
1.2 Symbols used on the appliance
This symbol on a part informs about electrical terminals behind the part. The removal of
the part must be carried out by qualified persons only.
1.3 Checking the relationship of the appliance and the manual
The rating plate of the appliance indicates the serial number of the appliance. If the man-
uals are missing, it is possible to order new ones from the manufacturer or the local rep-
resentative. When ordering new manuals it is essential to quote the serial number shown
on the rating plate.

13.5.2011 Rev. 2.2
Safety
2
2. Safety
2.1 Warnings
2.1.1 Installation
• Place the appliance at buffet height and on a firm, level base, in such a way that it
can be connected to the water supply and power supply.
• Connect the appliance to an earthed wall socket.
• Position the appliance in such a way that no damage can be caused if it leaks.
• Do not tilt the appliance, always position and move the appliance upright.
• Connect an overflow pipe to the drainage tube.
• Water always remains in the heating system: for this reason the appliance must not
be placed in an area where the temperature can fall below freezing point.
• When installing the appliance, always observe the local rules and use approved
materials and parts.
• The Installation chapter must again be followed when repositioning the appliance.
• Connect the appliance to the cold water mains.
2.1.2 Use
• Inspect the appliance before using it and check it for damage.
• Never submerge or spray the appliance.
• Do not press the buttons with a sharp object.
• Protect the controls against dirt and grease.
• During use some parts will become very hot.
• Do not position the container on open fire, or hot plate.
• First disconnect the electric cable before transporting the container.
• It is advisable to take the plug out of the socket and close the water tap if the ap-
pliance is not going to be used for longer periods of time
2.1.3 Maintenance and troubleshooting
• Observe the descaling intervals indicated by the descaling indicator symbol.
• Overdue maintenance to the heating system can result in high repair costs and an-
nulment of the guarantee.
• Do not leave the appliance unattended when maintenance is being performed.

13.5.2011 Rev. 2.2
Safety
3
• When descaling the appliance, it is advisable to wear safety glasses and protective
gloves.
• Wash your hands after descaling.
• Have all repairs carried out by a qualified technician.
• The plug must be taken out of the socket if the appliance has to be opened for
cleaning or repairs.
2.2 Safeguards
The appliance is fitted with the following safe guards
2.2.1 On/off switch
The on/off switch is used to switch the appliance on and off. Remember that the appliance
can still be live after being switched off! For this reason you should always remove the
plug from the socket to render the appliance voltage-free.
2.2.2 STOP button
The coffee making process can be interrupted at any point using the STOP button located
on the control panel.
2.2.3 Swivel arm and container detection
This appliance is equipped with a safety device through which it is only possible to start
the brewing process if the swivel arm and container are in the correct position. If the swiv-
el arm and/or container are moved out of position during the brewing process, the brewing
process is interrupted, a swivel arm and/or container symbol appears in the display and
there is a sound signal (2x short). Once the positioning fault has been resolved the brewing
process can be restored by pressing the START button.
2.2.4 Dry-boil protection
This appliance is equipped with a dry-boil protection. This protection triggers if the heat-
ing elements overheat owing to a fault. Once the fault has been resolved, the dry-boil pro-
tection can be reset at the outside of the appliance. The most common cause of the dry-
boil protection being triggered is not descaling the heating system in time.
2.2.5 Warning indication display
A technical fault is reported by displaying an error code in the display. The relevant prob-
lem can be localised and resolved with the help of this code. In this case see chapter 13-
Troubleshooting.

13.5.2011 Rev. 2.2
Safety
4
2.3 Disposal of the appliance
No appliance lasts forever. When the time comes to discard your appliance it will usually
be possible to return it to your dealer. If this is not the case, ask your municipal council
about the alternatives for recycling the materials. All plastic parts have been given stand-
ard codes. The parts of the appliance such as the printed circuit board and accompanying
parts form electrical and electronic waste. The metal body is made of stainless steel and
can be completely dismantled.
