Metos MELITTA CUP User manual

MELITTA CUP
Installation and Operation Manual
S/N: Rev.: 2.2

24.9.2003 Rev. 2.2
Dear Customer,
Congratulations on deciding to choose a Metos equipment for your kitchen activities. You
made an excellentchoice. We will do our best to make also youa satisfied Metos custom-
er like thousands and thousands of others all over the world.
Please read this manual carefully. You will learn many right, safe and efficient working
methodsin order to get thebest possible benefit from the equipment. The instructions and
hints in this manual will give you a quick and easy start in using this equipment. You will
note very quickly how nice it is to use the Metos equipment.
All rights are reserved for technical changes.
You will find all the main technical data on the rating plate fixed to the equipment.When
you need service or technical help, please let us know the serial number of the equipment.
This will make it easier to provide you with the correct service. Please write the contact
information of your local Metos service in advance on the lines below.
METOS TEAM
Metos service phone number:...............................................................................................
Contact person:....................................................................................................................

24.9.2003 Rev. 2.2

24.9.2003 Rev.
1. General .......................................................................................................... 1
1.1 Symbols used in the manual .......................................................................................... 1
1.2 Symbols used on the appliance ...................................................................................... 1
1.3 Checking the relation of the appliance and the manual ................................................. 1
2. Safety .............................................................................................................. 2
2.1 Safe use of the appliance ............................................................................................... 2
2.2 Safety instructions in case of malfunction ..................................................................... 2
2.3 Disposal of the appliance ............................................................................................... 2
3. Functional description .................................................................................. 3
3.1 Parts of the machine ...................................................................................................... 3
3.2 Display messages ........................................................................................................... 4
3.3 Key operated switch (16) ............................................................................................... 5
3.4 Display, control panel .................................................................................................... 5
3.5 Cup warmer (CW) (option) ........................................................................................... 6
4. Operation instructions ................................................................................. 7
4.1 Using the machine ......................................................................................................... 7
4.1.1 Starting operation ................................................................................................... 7
4.1.2 Dispensing beverages .......................................................................................... 10
4.1.3 Empty signal, filling coffee beans and instant products ...................................... 12
4.1.4 Coffee grounds container ..................................................................................... 13
4.1.5 Cup warmer (option) ............................................................................................ 13
4.2 Cleaning/care ............................................................................................................... 14
4.2.1 External cleaning ................................................................................................. 14
4.2.2 Cleaning time ....................................................................................................... 14
4.2.3 Daily cleaning ...................................................................................................... 15
4.2.4 Weekly cleaning .................................................................................................. 17
4.2.5 Monthly cleaning ................................................................................................. 18
4.2.6 Switching machine off ......................................................................................... 18
4.2.7 Maintenance ......................................................................................................... 19
5. Manager level, settings ............................................................................... 20
5.1 Product counter ............................................................................................................ 21
5.2 Setting products ........................................................................................................... 22
5.3 Menus, sub-menus ....................................................................................................... 23
6. Installation ................................................................................................... 24
6.1 General ........................................................................................................................ 24

24.9.2003 Rev.
6.2 Electrical connection ................................................................................................... 24
6.3 Water supply* .............................................................................................................. 25
6.4 Water drain* ................................................................................................................ 25
7. Technical specifications .............................................................................. 27

24.9.2003 Rev. 2.2
General
1
1. General
Carefully read the instructions in this manual as they contain important information re-
garding proper, efficient and safe installation, use and maintenance of the appliance.
Keep this manual in a safe place for eventual use by other operators of the appliance.
The installation of this appliance must be carried out in accordance with the manufactur-
er’s instructions and following local regulations. The connection of the appliance to the
electric and water supply must be carried out by qualified persons only.
Persons using this appliance should be specifically trained in its operation.
Switch off the appliance in the case of failure or malfunction. The periodical function
checks requested in the manual must be carried out according to the instructions. Have the
appliance serviced by a technically qualified person authorized by the manufacturer and
using original spare parts.
Not complying with the above may put the safety of the appliance in danger.
1.1 Symbols used in the manual
This symbol informs about a situation where a safety risk might be at hand. Given instruc-
tions are mandatory in order to prevent injury.
This symbol informs about the right way to perform in order to prevent bad results, appli-
ance damages or hazardous situations.
This symbol informs about recommendations and hints that help to get the best perform-
ance out of the appliance.
1.2 Symbols used on the appliance
This symbol on a part informs about electrical terminals behind the part. The removal of
the part must be carried out by qualified persons only.
1.3 Checking the relation of the appliance and the manual
The rating plate of the appliance indicates the serial number of the appliance. If the man-
uals are missing, it is possible to order new ones from the manufacturer or the local rep-
resentative. When ordering new manuals it is essential to quote the serial number shown
on the rating plate.

24.9.2003 Rev. 2.2
Safety
2
2. Safety
2.1 Safe use of the appliance
The connection of the machine to the mains supply as well as maintenance and repairs
may only be carried out by qualified personnel using original parts and spares.
The machine must not be operated outdoors.
The built-in and tested safety devices must under no circumstances be repaired, changed
or bridged by non-experts.
Do not put hands into the coffee bean and instant beverage tanks (12), (13) while the ma-
chine is in operation. There is a danger of tripping.
There is a danger of scalding within the area ot the coffee outlet (4).
Never put your hands in the bean chutes (10, 11) with the machine switched on, There is
a danger of being pinched!
In case of freezing temperatures, the machine must be drained of all water to prevent any
damage. Pleace call technical service in this case.
If the machine is to be out of operation for a longer period it must first be cleaned thor-
oughly.
2.2 Safety instructions in case of malfunction
If the machine doesn’t work properly or in case of malfunction, turn off the power and call
for service.
2.3 Disposal of the appliance
The destroying of the appliance when its economical lifetime has been reached may be
harmful to the environment if not properly handled. Utilization of materials that are reus-
able is best done by professional personnel specialized in recycling

24.9.2003 Rev. 2.2
Functional description
3
3. Functional description
3.1 Parts of the machine
1 Control panel
2Door
3Doorlock
4 Beverage outlet
5 Beverage shelf, foldable
6 Drap tray with drip grate
7 Product keys
8Display
9 Hot water key
10 Lid
11 Bean tank lid
12 Coffee bean tank 1 (only for cup 2M)
13 Coffee bean tank 2
14 Opening for cleaning agent
15 Start key for cleaning
16 Key operated switch
17 ON/OFF power switch
18 Coffee grounds container
19 Instant beverage tank 1
20 Instant beverage tank 2
21 Left powder chute
22 Right powder chute
23 Funnel
24 Mixing housing
25 Mixer unit
26 Outlet tube for instant beverages
CW Cup Warmer (option)
27 Upper warming plate
28 Center warming plate
29 Lower warming plate
30 Cup warmer main switch

24.9.2003 Rev. 2.2
Functional description
4
3.2 Display messages
Machine door open
Product selected
Watersupplypressure Water
supply turned on? Water
tank empty
Product selected
Boiler temperature too low.
Wait for machine to heat up
1 espresso being dispensed, 4 es-
pressos selected
Starting program currently in
progress
1 double espresso being dis-
pensed, 3 espressos selected
Water filter used up. Ex-
hange catridge, confirm with
“Esc”
1 double product being dis-
pensed, 8 coffee crèmes selected
Machine ready to dispence
1 double product being dis-
pensed, 8 cups of coffee selected
Product selected
Prompt to clean. Carry out
cleaning program
Beverage being prepared
Cleaning program running
Product selected
Insert cleaning tablet. Confirm
insertion
Product selected
Confirm insertion of cleaning
tablet, Cleaning continues

24.9.2003 Rev. 2.2
Functional description
5
3.3 Key operated switch (16)
• Position 0 = Staff/Operator
• Position 1 = Manager
3.4 Display, control panel
The display (8) shows the machine’s cur-
rent status with the corresponding words
and graphics
The product keys (7), (9) are not only used
for dispensing the relevant products, but
also serve as function keys for all neces-
sary settings. Which key is used for which
function setting is shown on the right and
left, or top and bottom edge of the display
Bean tank 1 nearly empty
Instant tank 2 nearly empty, re-
fill
Bean tank 2 nearly empty
Coffee grounds container miss-
ing
Bean tank 1 empty, refill
Coffeegrounds containeralmost
full
Bean tank 2 empty, refill
Coffee grounds container full.
Empty
Instant tank 1 nearly empty,
refill
Invalid date and/or time. Set

24.9.2003 Rev. 2.2
Functional description
6
3.5 Cup warmer (CW) (option)
The cup warmer is an option used to keep cups and glasses warm.
For service articles like sugar, spoons etc. the CWS module is
available as an option.
The CWS-module is placed on the lower plate of the cup warmer.
For this reason the lower heating element has to be disconnected
from the mains in case this module used The disconnection has to
be made by an electrician at the installation of the cup warmer

24.9.2003 Rev. 2.2
Operation instructions
7
4. Operation instructions
4.1 Using the machine
4.1.1 Starting operation
Switching the machine on
• Open door (2) with key
• Open stop valve of water supply
• Switch on electrical supply at the
mains.
• Set power switch (17) to “ON”
position. The switch lights up
• The display (8) shows the fol-
lowing message
Filling coffee beans
• Open lid (10)
• Open bean lid tank (11)
• Fill in coffee beans (espresso,
schümli; maximum approx 1,25 kg
Please make surethat no beans fall into the
opening for cleaning agent (14)
• Close lids (10) and (11)

24.9.2003 Rev. 2.2
Operation instructions
8
Filling instant products

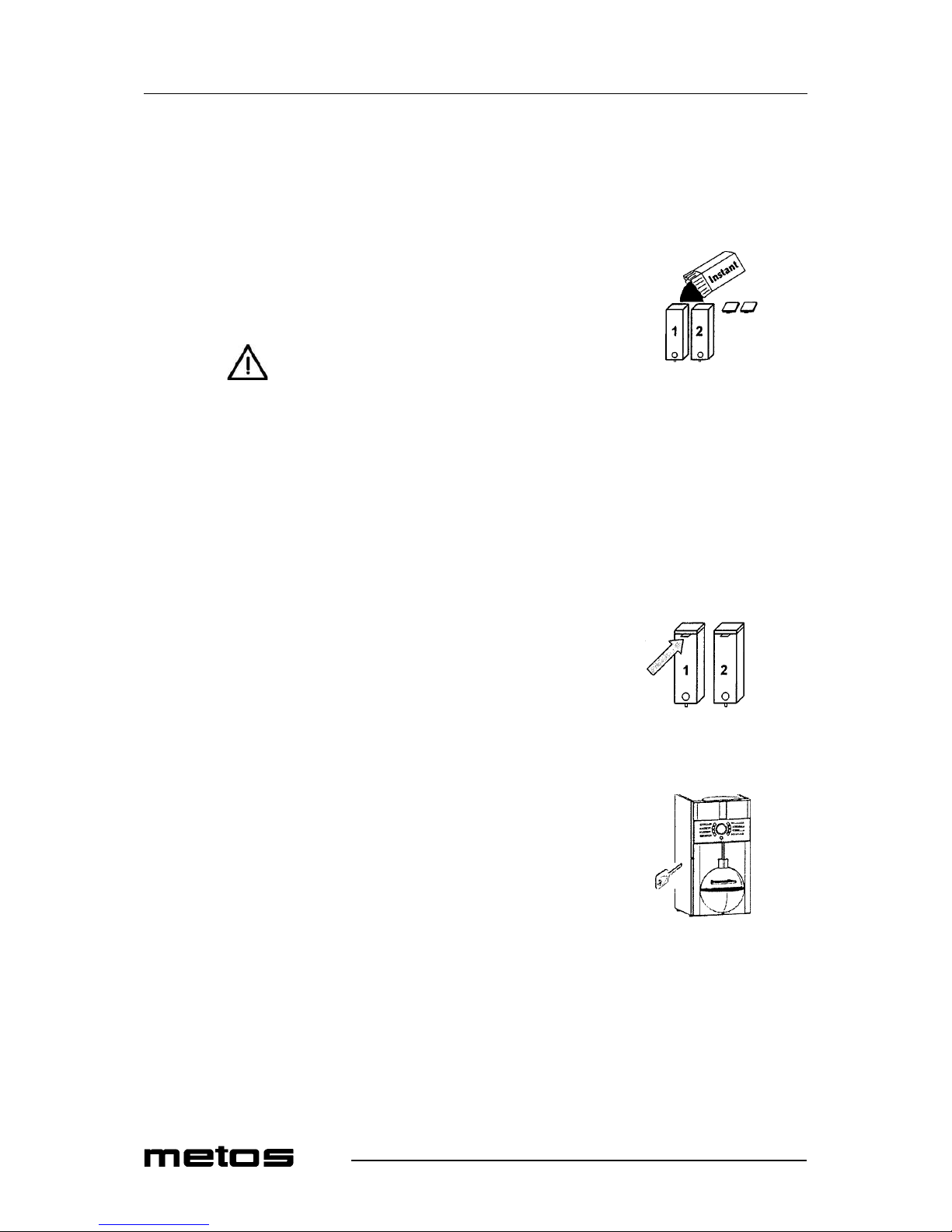

• Turn powder chutes (21) and (22) upwards,
lift left instant beverage tank (19), then right
instant beverage tank (20) slightly, then pull
them forwards out of the machine and take
off their lids.
• Fill in instant powder (machine suitable
products, such as cappuccino topping, hot
chocolate, cappuccino, instant coffee etc.
Max approx. 1,3 kg or approx. 2,0 ltr.) ac-
cording to set product variety.
Do not press down the powder
In the case of drinking chocolate, it is recommended
to use ready mixed Instant Chocolate - cocoa based
drinking powder and for milk beverages Cappucci-
no topping - powder based coffee whitening
Should other products be used, they must conform
to themicrobiological properties of MELITTA arti-
cles
In order to ensure that the powder is sufficiently
fresh, only fill in as much as is required for the same
day
• Place lid on tank with lip facing forward
• Place instant beverage tanks in machine
again. Turn powder chutes (21) and (22) to
face downwards again.
Do not mix up instant beverage tanks! The drive at
the back of the tank must be correctly fitted and the
front-side spigot under the tank must be slotted into
the corresponding opening in the base plate.
• Close and lock the door

24.9.2003 Rev. 2.2
Operation instructions
9
• The display asks which tank was
filled. The following steps must be
carried out consecutively for all 4
tanks
• Use the keys 2 (up) and 3 (down) to
move the cursor to the respective
tank
• Press “Enter” (key 8)
• The display shows how much is
currently in the hopper
• Use keys 6 (+) and 7 (-) to set the
current filling level in 25% steps
• Press “Enter” (key 8) again. the
cursor can now be moved to the
next hopper for setting the filling
level
• After setting is completed, press
“Esc” (key 4), in order to exit the
menu
The machine is now heating up and carry-
ing out its switching on program. The dis-
play shows the following message:
The machine is ready to dispense beverag-
es. The display indicates that the machine
is ready for dispencing

24.9.2003 Rev. 2.2
Operation instructions
10
4.1.2 Dispensing beverages
Individual products
• Place cup on the beverage shelf (5).
• In case of coffee jugs, fold up beverage
shelf (5) and place jug on the drip grate.
• Press briefly the key of the desired bev-
erage (7), (9).
• The chosen product is dispensed. This is
shown by the display.
• When dispensing is completed, the dis-
play once again indicates that the ma-
chine is ready for dispensing the next
product
Repeat selection/twin products
This function is only available, if the “twin
function” is activated. It can be set by the tech-
nical service engineer
This setting is not suitable for self-service op-
eration
Repeat selection
• If the same key is pressed a second time
while the beverage is already being pre-
pared, a further portion is stored and
then dispensed
The number is shown by the display. By press-
ing repeatedly, the number can be set up to 99.
• The selection is cancelled, if any other
product key is pressed. Preparation of
the current portion is completed

24.9.2003 Rev. 2.2
Operation instructions
11
Twin products
The products CUP COFFEE, COFFEE CRÈME
and ESPRESSO can also beprepared as twin prod-
ucts.
• Place two cups or a jug under the beverage
outlet (4).
• A spout extension suitable for filling taller
coffee potsin front of the drip tray is availa-
ble on request. Connect spout extension and
place coffee pot beneath to fill.
• Press the desired product key (7) 2x in
quick succession (within one second - can
be set by technical service engineer)
• The desired product is dispensed. The dis-
play indicates twin product selection.
• If the same key is pressed again, a further
portion is stored and subsequetly dispensed.
The number is shown by the display. By
pressing repeatedly, the number can be set
to up to 99.
• The selection is cancelled, if any other
product key is pressed. Preparation of the
current portion is completed
• When dispensing is completed, the display
once again indicates that the machine is
ready for dispensing the next product

24.9.2003 Rev. 2.2
Operation instructions
12
4.1.3 Empty signal, filling coffee beans and instant products
• If supplies in the coffee bean and instant bev-
erage tanks (12), (13), (19), (20) are running
low (approx 75% consumed), this is indicat-
ed on the display panel.
The tank should be refilled now
• If the coffee bean tank is empty, this is dis-
played and dispensing of the respective cof-
fee product is blocked
The tanks must be now refilled with coffee beans.
Do not mix up coffee types/tank.
Important: Please make sure that no beans fall into
the opening for the cleaning agent (14).
• Fill coffee beans and instant prod-
ucts into the correct tanks as de-
scribed in “Filling coffee beans”
and “Filling instant products”
• The machine is now ready to dis-
pense beverages again
If the door was opened without filling the
tanks, setting confirmation are not re-
quired. Leave the menu by pressing “Esc”

24.9.2003 Rev. 2.2
Operation instructions
13
4.1.4 Coffee grounds container
• If the coffee grounds container
(18) is approx 75% full, this infor-
mation is indicated.
The container should now be emptied.
• When the coffee grounds contain-
er is completelly full, this is indi-
cated in the display. Dispensing of
all coffee products is blocked. In-
stant products can still be dis-
pensed
The coffee grounds container must now
be emptied.
• The display will ask:
• Use the arrow keys 2 (up) and 3
(down) to move the cursor to yes
or no
• Confirm with key 8 (Enter)
• The display for filling confirma-
tion appears (see “Filling coffee
beans/instant products”). If you
have not refilled a tank, press the
key 4 (Esc) to exit the menu
• The display shows that the ma-
chine is now ready to dispense
beverages again.
4.1.5 Cup warmer (option)
Switching on
• As soon as the supply is applied to the cup warmer, the warming plates (27, 28 and
29) can be switched on using the cup warmers main switch (30)
Switching off
• The cup warmer should be switched off if it is not going to be used for some times.
Switch of the warming plates (27, 28 and 29) using the cup warmers main switch
(30)

24.9.2003 Rev. 2.2
Operation instructions
14
4.2 Cleaning/care
When cleaning the machine, parts must not be immersed in wa-
ter or sprayed down with a water hose
Professional coffee machines represent a considerable invest-
ment, whose value should be maintained.
In order to guarantee long-term, trouble-free use, the machine
must be cleaned at least once a day, after no longer than 12
hours of operation. A suitable time would be before switching
off at the end of the day.
In the case of 24-hour operation, the machine must be cleaned at least two times during
the day.
A well-maintained coffee machine not only looks good, italso prepares better coffee over
a longer period of time.
4.2.1 External cleaning
• Wipe down regularly all plastic
parts, painted surfaces and stain-
less steel surfaces with a damp
cloth. Do not use any abrasive sub-
stances or sharp objects.
• For special care of stainless steel
surfaces we recommend cleaning
agents in spray cans.
• Spray stainless steel surfaces light-
ly, leave shortly to sink in and
wipe off with a dry cloth. Do not
spray on plastic parts.
4.2.2 Cleaning time
• Our technical service engineer can
set 2 clean-ing times. When one of
these times has passed, and the
machine has been in operation for
over one hour and dispensed at
least one product since its last
cleaning, the "time to clean" and
"ready for operation" pictures al-
ternate in the display.
No more than max. 50 products can now be dispensed. This display only disappears after
a complete cleaning process has been carried out.
