Metrologic MS1633 FocusBT User manual

METROLOGIC INSTRUMENTS, INC.
MS1633 FocusBT
™
Bluetooth
®
Enabled
Area Imaging Bar Code Scanner
Installation and User’s Guide

Copyright
© 2007 by Metrologic Instruments, Inc. All rights reserved. No part of this
work may be reproduced, transmitted, or stored in any form or by any means
without prior written consent, except by reviewer, who may quote brief
passages in a review, or provided for in the Copyright Act of 1976.
Trademarks
Metrologic is a registered trademark of Metrologic Instruments,
Inc. Products identified in this document are hereby acknowledged as
trademarks, registered or otherwise, of Metrologic Instruments, Inc. or their
respective companies.

ii
T ABLE OF C ONTENTS
Introduction
Product Overview ............................................................................................. 1
Scanner and Accessories................................................................................. 2
Scanner Components....................................................................................... 3
Labels............................................................................................................... 4
Maintenance..................................................................................................... 4
Getting Started
Battery Tips and Cautions ................................................................................ 5
Charger Status Indicators................................................................................. 5
Charging the Battery ........................................................................................ 6
Battery Installation............................................................................................ 7
Low Battery Warning ........................................................................................ 7
Removing the Battery for Charging .................................................................. 7
Driver Installation

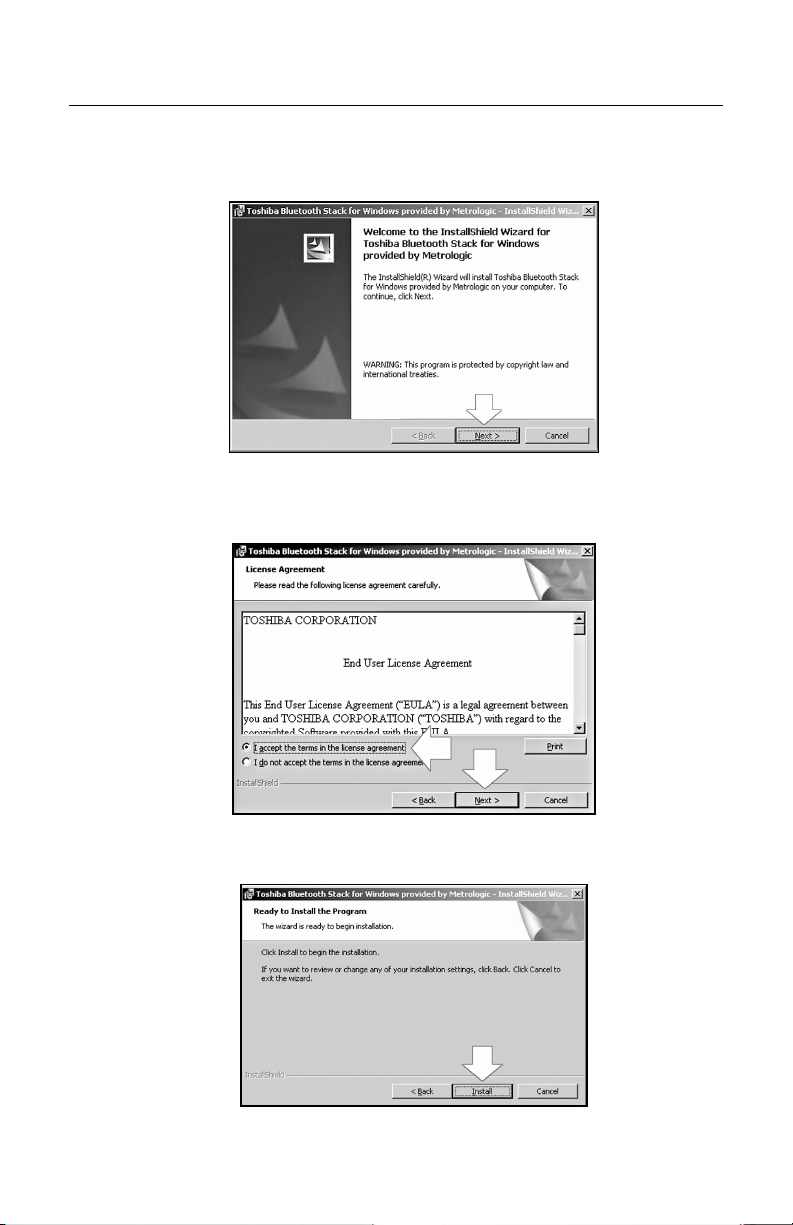

Driver Installation for Bluetooth USB Adapter................................................... 8

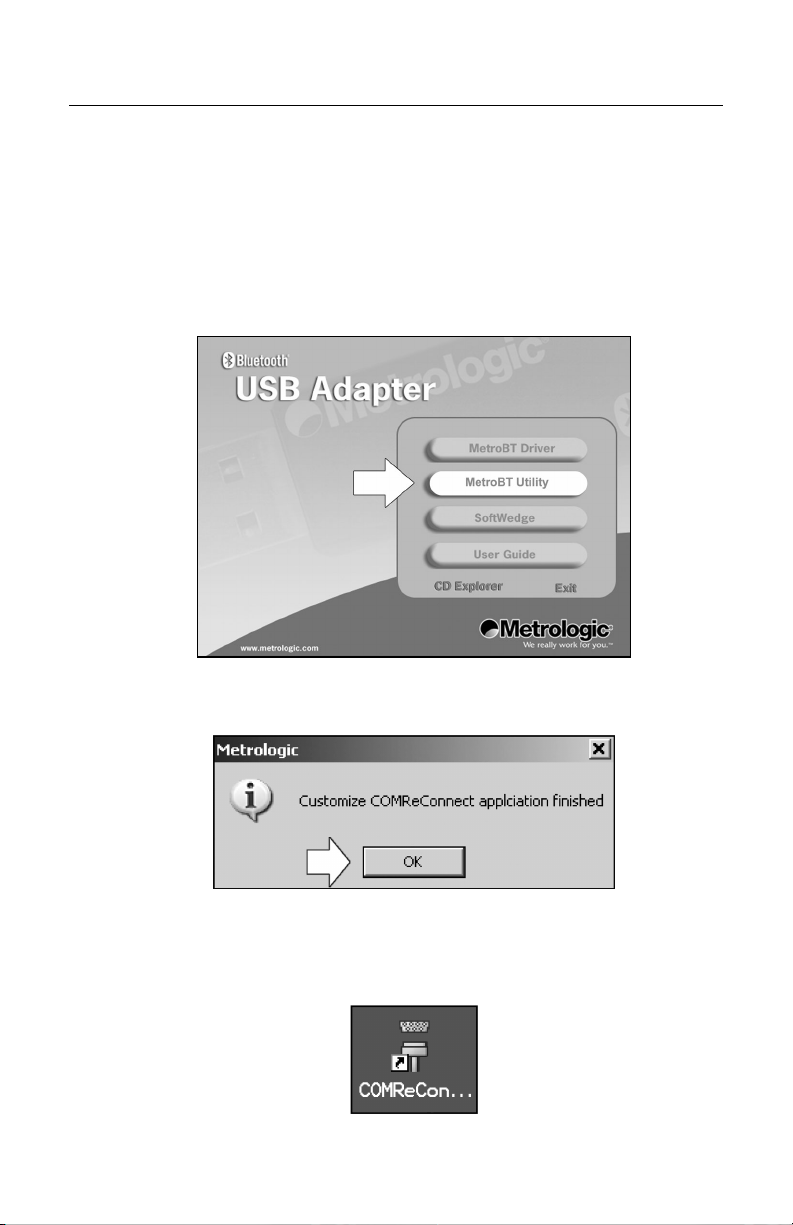

Auto Reconnect Driver Setup......................................................................... 11
FocusBT Connection Configuration................................................................ 13
Establishing Bluetooth Communication
When FocusBT Acts as a Server to Other Bluetooth Devices........................ 15
When FocusBT Acts as a Client to Other Bluetooth Devices ......................... 16
When FocusBT is Used with an MS9535 Cradle............................................ 17
Range Gate Mode .......................................................................................... 17
Inventory Mode............................................................................................... 18
Stand Kits
Stand Components, MLPN 46-00147............................................................. 19
Hard Mounting the Stand................................................................................ 20
Assembling the Stand .................................................................................... 21

iii
T ABLE OF C ONTENTS
Scanner Operation
Two Default Modes of Operation.................................................................... 22
Audible Indicators........................................................................................... 23
Visual Indicators ............................................................................................. 24
Failure Modes................................................................................................. 25
Depth of Field by Minimum Bar Code Element Width .................................... 26
IR Activation Range........................................................................................ 27
Troubleshooting Guide ....................................................................................... 28
Design Specifications ......................................................................................... 32
Default Settings – Communication Parameters.................................................. 34
Configuration Modes .......................................................................................... 36
Upgrading the Flash ROM Firmware.................................................................. 36
Limited Warranty ................................................................................................ 37
Regulatory Compliance
Safety ............................................................................................................. 38
EMC ............................................................................................................... 39
Patents ............................................................................................................... 41
Index .................................................................................................................. 42

1
I NTRODUCTION
Product Overview
FocusBT™ is the Bluetooth enabled Area Imager that outperforms the
competition by integrating advanced features to both hand-held and presentation
mode scanning such as FirstFlash
®
scanning, automatic aim line, object
detection and RangeGate
®
to optimize efficiency and productivity while providing
the freedom of mobility.
FocusBT has been designed with a removable battery pack for remote charging
to decrease down time caused by having a dead battery. Two battery packs are
supplied so the user can simultaneously scan while remotely charging the spare
battery. The benefits of this feature are 24/7 scanning and increased throughput
for all enterprise applications.
FocusBT is the industry leader in Area Imaging and the added benefits of
Bluetooth along with a rich feature set, make it the scanner of choice for 2D
wireless applications.
FocusBT
™Interface
MS1633 – 5 BT Interface 1.2
Bluetooth Profile Supported: SPP (Serial Port Profile)

2
I NTRODUCTION
Scanner and Accessories
B ASIC K IT
Part # Description Qty.
MS1633 MS1633 FocusBT Area Imaging Bar Code Scanner 1
70-72018 Li-Ion Battery Pack 2
46-00358 Battery Charger 1
00-05176 USB BT adaptor 1
00-02544 MetroSelect
®
Single-Line Configuration Guide* 1
00-02281 Supplemental Configuration Guide* 1
46-00374 Software CD 1
00-02280 MS1633 FocusBT Installation and User’s Guide* 1
* Available on the Metrologic website - www.metrologic.com
O PTIONAL A CCESSORIES
Part # Description
AC to DC Power Transformer - 5.2VDC @ 2 A output.
46-46915 120V United States
46-46913 220V-240V Continental European
46-46912 220V-240V United Kingdom
46-46914 220V-240V Australia
46-46911 220V-240V China
00-02001 MS1633 Focus Stand (46-00147) Installation Guide
46-00147 Modular Presentation Stand
Other items may be ordered for the specific protocol being used. To order additional items,
contact the dealer, distributor or call Metrologic’s Customer Service Department at
1-800-ID-METRO or 1-800-436-3876.

3
I NTRODUCTION
Scanner and Charger Components
Figure 1. Scanner and Charger Components
Item Description
1 Yellow LED See Visual Indicators (on page 24)
2 White LED See Visual Indicators (on page 24)
3 Blue LED See Visual Indicators (on page 24)
4 Speaker See Audible Indicators (on page 23)
5 Trigger
6 Red Window LED Aperture
7 Power Button See Charging the Battery (on page 7)
8 Blue Power LED See Charging the Battery (on page 6)
9 Battery Pack See Battery Installation (on page 7)
10 Lock See Battery Installation (on page 7)
11 Power Jack See Battery Installation (on page 7)
12 Charging Contacts See Battery Installation (on page 6)
13 Blue Power LED See Charger Status Indicators (on page 5)
14 White Charge LED See Charger Status Indicators (on page 5)

4
I NTRODUCTION
Labels
Each scanner has a label located on the underside of the head. This label
provides the unit’s model number, date of manufacture, serial number, CE and
caution information. The charger, the Bluetooth USB Adapter and the battery
also have labels with important safety and compliance information. The following
figure provides examples of these labels and their locations.

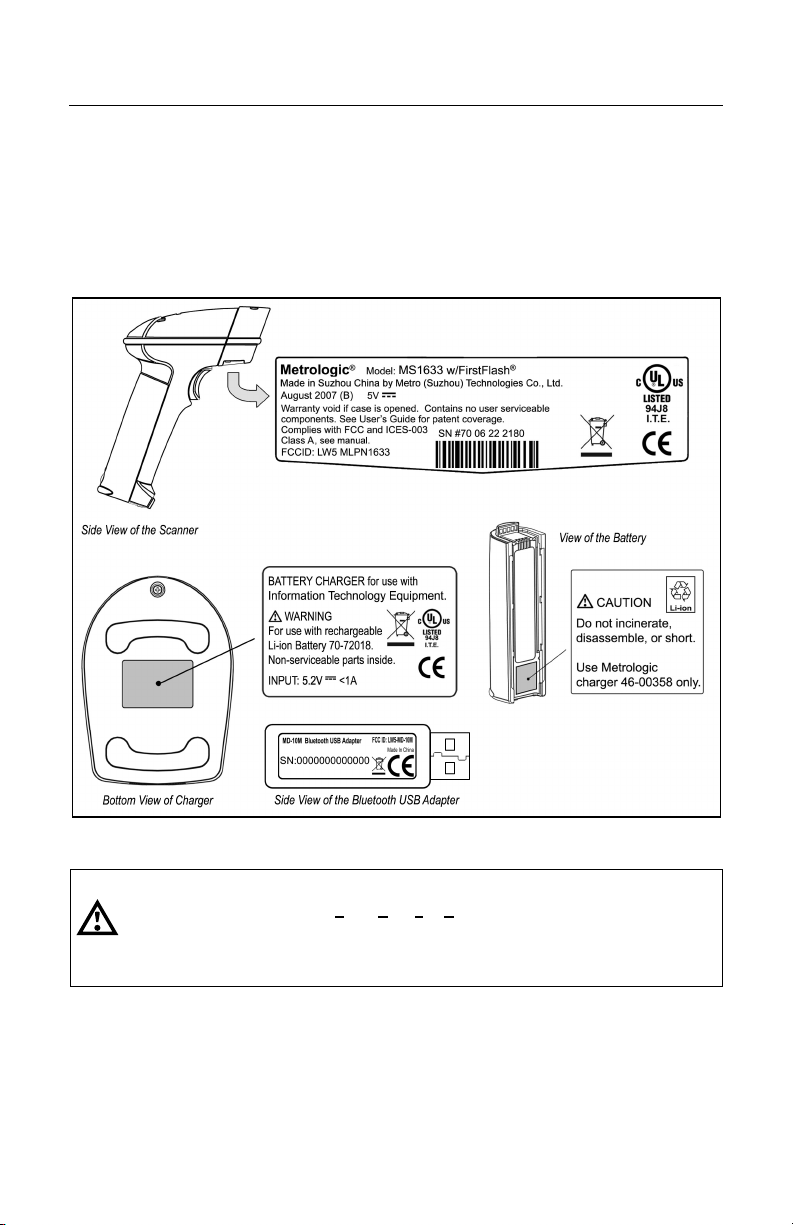

Figure 2. Label Locations and Samples
Caution:
To maintain compliance with applicable standards, all circuits connected to the scanner must
meet the requirements for SELV (Safety Extra Low Voltage) according to EN/IEC 60950-1.
To maintain compliance with standard CSA-C22.2 No. 60950-1/UL 60950-1 and norm
EN/IEC 60950-1, the power source should meet applicable performance requirements for a
limited power source.
Maintenance
Smudges and dirt can interfere with the proper scanning of a bar code.
The output window should be routinely cleaned with glass cleaner sprayed onto a
lint free, non-abrasive cleaning cloth.

5
G ETTING S TARTED
Battery Tips and Cautions
Before the FocusBT can be placed in operation the battery pack must be
charged for a minimum of 8 hours. After the initial preparation charge of 8 hrs,
the battery will only require 6 hrs to come to a full charge when it gives a Low
Battery warning (see page 7). Follow the steps on page 6 to fully charge the
battery.
Once charged, the unit is able to handle 5400 continuous first pass readings over
a period of approximately 9 hours. After 30 seconds of no activity the scanner
will go into a sleep mode to conserve battery life.
Caution
Observe proper precautions when handling batteries.
Batteries may leak or explode if improperly handled. Observe the following
precautions when handling batteries for use in this product:
•Be sure the battery is turned off before replacing the battery.
•Be sure the battery is turned off when installed in the charger.
•Use only batteries approved for use in this equipment.
Do not mix old and new batteries or batteries of different types.
•Do not attempt to insert the battery upside down or backwards.
•Do not short or disassemble the battery.
•Do not expose the battery to flame or excessive heat.
•Do not immerse the battery in water or expose it to water.
•Do not transport or store with metal objects such as necklaces or hairpins.
•Batteries are prone to leakage when fully discharged.
To avoid damage to the product, be sure to remove the battery when no
charge remains.
•When not in use store the battery in a cool dry place.
•Discontinue use immediately should you notice any changes in the
battery, such as discoloration or deformation.
•Please recycle used batteries in accord with local regulations.
Charger Status Indicators
There are two status indicators on the front of the charger located under the
Metrologic Logo. The following table lists how these indicators will illuminate
depending on the status of the charger.
C HARGER S TATUS B LUE LED (PW) W HITE LED (CH)
Charging On Blinking
Fully Charging On Solid
Power On On OFF
Power Off OFF OFF

6
Figure 3
Fi
g
ure 4
Figure 5
Figure 6
G ETTING S TARTED

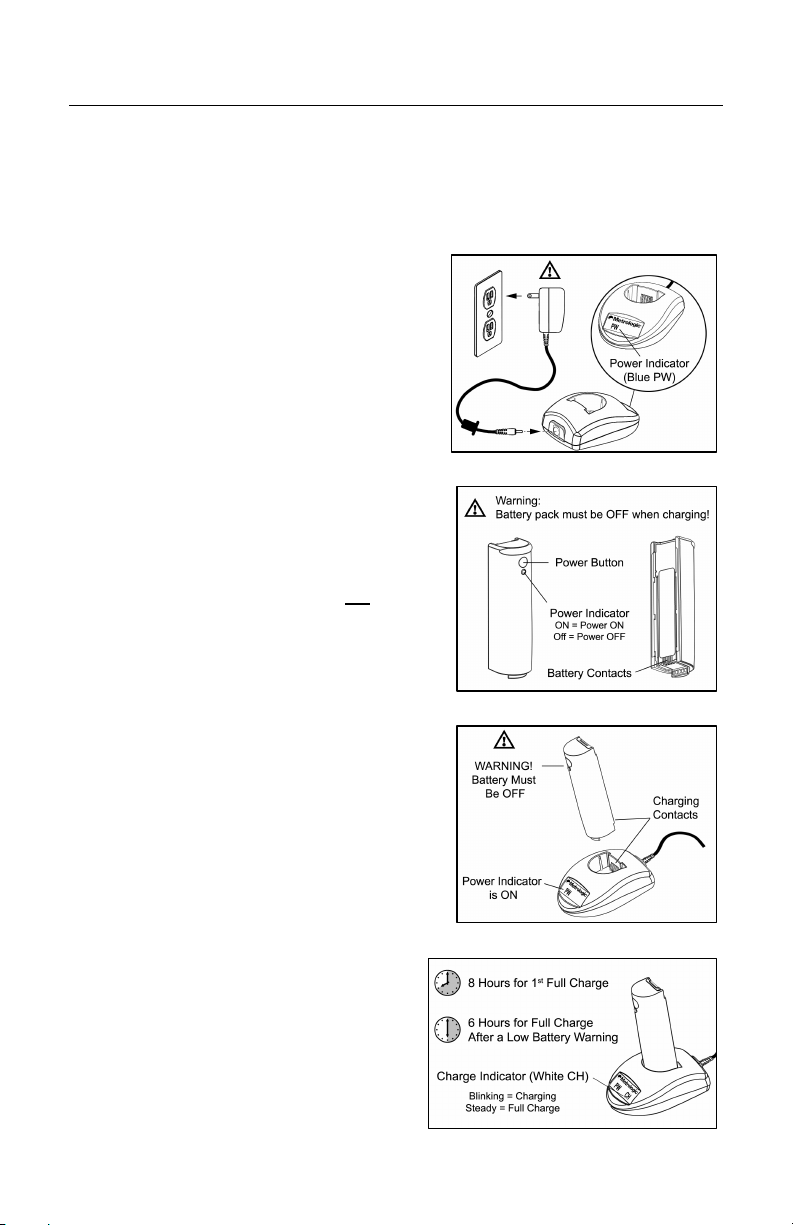

Charging the Battery
Before the FocusBT can be placed in operation for the first time, the battery
must be charged for a minimum of 8 hours. After the initial preparation
charge of 8 hrs, the battery will only require 6 hrs to come to a full charge when it
gives a Low Battery warning (see page 7).
1. Check the AC input requirements of the
power supply to make sure the voltage
matches the AC outlet. The outlet
should be located near the charger and
easily accessible.
2. Plug the power supply into the socket
on the back of the charger.
A blue PW will illuminate near the
Metrologic Logo indicating the charger is
receiving power.
3. Verify that the battery pack is not ON.
The blue power LED on the battery pack
should be OFF.
Warning!
Damage to the battery pack
can occur if it is charged while
turned ON.
4. Insert the battery pack into the charger
as shown in Figure 5.
A white CH will start to flash on and off
on the charger near the Metrologic logo.
If the white CH does not appear,
check to make sure the battery pack
is seated all the way in the charger
with the battery contacts facing the
contacts on the charger.
5. When the battery is completely
charged the charging indicator
(CH) will stop flashing and stay
illuminated.

7
G ETTING S TARTED
Battery Installation
MS1633 FocusBT is a battery powered scanner. Before the FocusBT can be
placed in operation for the first time, the battery must be charged for a
minimum of 8 hours.
To install the battery:
1. Align the tabs of the charged battery pack with the slots on the scanner’s
handle
2. Then, slide the battery pack up toward the top of the scanner. There will be
a snap when the battery is installed correctly.
Figure 7. Steps for Installing the Battery
Low Battery Warning
When the battery is low the unit will add an additional beep after the good scan
beep. The additional beep alerts the user when there is less than 10% of a
charge left on the battery.
Removing the Battery for Charging
In order to charge the battery, it must be disconnected from the scanner.
1. Turn off the battery by pressing the button near the base of the battery.
2. Disengage the lock on end of the scanner handle (see below).
3. Slide the battery pack down away from the head of the scanner.
4. Lift the battery straight off the scanner handle (see below).
Figure 8. Steps for Removing the Battery for Charging

8
D RIVER I NSTALLATION
Driver Installation for Bluetooth
®
USB Adapter
1. Load the included FocusBT CD into the CD-ROM drive on the
host/computer.
2. If the CD-ROM does not automatically open, click on the Window’s Start
button, choose Run, then click Browse to locate and open the CD-ROM
drive. Double-Click on the Metrologic.exe file then click OK.
3. Click on the MetroBT Driver button to begin installation.
Figure 9.
4. Choose a Setup Language then click OK.
Figure 10.

9
D RIVER I NSTALLATION
Driver Installation for Bluetooth
®
USB Adapter
5. At the welcome screen select Next.
Figure 11.
6. After reviewing the end user license agreement, select the, “I accept the
terms in the license agreement” option then, click Next to continue.
Figure 12.
7. Choose Install from the Ready to Install the Program screen.
Figure 13.

10
D RIVER I NSTALLATION
Driver Installation for Bluetooth
®
USB Adapter
8. To continue the installation procedure without showing warnings for
unauthorized drivers, select I accept and click OK.
Figure 14.
9. Plug the Bluetooth USB Adapter into the host device then click OK to
indicate the Bluetooth Adapter has been connected.
Figure 15.
10. After the installation completes click on Yes to restart the host
device/computer. The host/computer must be rebooted at this time in order
for the driver to function properly.
Figure 16.

11
D RIVER I NSTALLATION
Auto Reconnect Driver Setup
1. Load the included FocusBT CD into the CD-ROM drive on the
host/computer.
2. If the CD-ROM does not automatically open, click on the Window’s Start
button, choose Run, then click Browse to locate and open the CD-ROM
drive. Double-Click on the Metrologic.exe file then click OK.
3. Click on the MetroBT Utility button to begin installation.
Figure 17.
4. Click OK to continue.
Figure 18.
5. Locate the COMReConnect icon on the Windows desktop and double click
to open the program.
Figure 19.

12
D RIVER I NSTALLATION
Auto Reconnect Driver Setup
6. The Auto Reconnect Utility will automatically start if any of the Bluetooth
COM ports are checked. When running, the utility window will look like the
figure below.
Clicking the “X” in the corner of the window or clicking on the close button
will disable the auto-reconnect feature. However, if the Place icon in the
taskbar option is checked, the utility will remain active after the window is
closed.
Figure 20.

13
Figure 21.
D RIVER I NSTALLATION
FocusBT Connection Configuration
1. Double-Click on the Bluetooth icon located on the
Windows Start bar in the bottom right corner of the
screen.
2. The new connection wizard will automatically start.
Power up the FocusBT scanner and allow it to boot completely
Three beeps will indicate the scanner is completely booted.
Select Express Mode then click Next.
Figure 22.
3. A search for Bluetooth devices should find the FocusBT. The number(s)
next to FocusBT indicate the serial number of the unit(s) found.
Select the proper device and click Next to continue.
Figure 23.

14
D RIVER I NSTALLATION
FocusBT Connection Configuration
4. The final screen of the New Connection Wizard should indicate the virtual
Bluetooth Com port that was setup. This will usually be a high number, as
seen in the screen shot below. Remember this COM number for
application setup.
Click Next to Continue.
Figure 24.
5. After the FocusBT has been added to the connection list, right click on the
icon and select Connect in order to establish a Bluetooth link between the
FocusBT and your computer.
The FocusBT should emit a connection tone and/or the blue light on the top
of the unit should stop blinking, indicating a connection has been
established.
Figure 25.

15
E STABLISHING B LUETOOTH C OMMUNICATION
Bluetooth communication must be established between the FocusBT and
the host device before the FocusBT can be used for normal operation.
In a Bluetooth network, the FocusBT can operate as a server (service-provide
mode), or as a client.
When FocusBT Acts as a Server to Other Bluetooth Devices
FocusBT’s default is to act as a server to other Bluetooth devices. In this mode,
other Bluetooth-enabled devices can initiate a connection to the scanner.
FocusBT can be configured to always accept incoming connection requests and
not require a valid Bluetooth PIN. Alternatively, FocusBT can be configured to
require a valid Bluetooth PIN. In this case, the PIN used by a remote device while
establishing connection to the FocusBT, must match the one previously stored in
FocusBT.
*Bluetooth PIN Not Required Bluetooth PIN Required
³124306 ³124316
To store a Bluetooth PIN
The FocusBT can be configured to store a Bluetooth PIN so that any remote
device trying to establish a connection with the scanner, must match the stored
PIN before a connection will made. The stored Bluetooth PIN must be numeric
and be between 4 to 16 digits long. A PIN that does not satisfy the criteria will
not be stored.
After scanning the following bar code, the next barcode scanned will be stored
and used as the Bluetooth PIN. This feature is used in conjunction with the
Bluetooth PIN required feature.
Next barcode is Bluetooth PIN
³999918
Scanning the Recall Defaults barcode resets the PIN to the default
value of 0000.

16
E STABLISHING B LUETOOTH C OMMUNICATION
When FocusBT Acts as a Client to Other Bluetooth Devices
In the client device mode of operation, the FocusBT initiates the Bluetooth
connection. The Bluetooth address of the remote device is required to establish
a connection. The remote device must also be configured to accept incoming
connections and must support the Bluetooth Serial Port (SPP) profile.
•If the Bluetooth address of the remote device is headed with FNC3
and consists of a 12-digit hex value (e.g.
3
000CA7000118), scan the
address bar code to establish the communication.
Sample of a 12-digit Bluetooth Address with FNC3
³000CA7000118
•If the Bluetooth address of the remote device is not headed with
FNC3 but is just a common 12-digit hex value (e.g. 000CA7000118),
first scan the Get Bluetooth Address barcode then scan the remote
device’s Bluetooth address bar code.
Get Bluetooth Address
³ 000CA7FFFFFF
•If the Bluetooth address code of the remote device is set to
000CA7000000, FocusBT will automatically go into server mode and
will not attempt to establish an outgoing Bluetooth connection.
To return to service mode:
Scan the bar code below to change FocusBT from client mode to
service mode.
*Provide Bluetooth Service
³000CA7000000
