METRON PC03T User manual

www.eauto.si [email protected] [phone]
PC03T and PC04T
GET STARTED
Blue LED starts blinking slowly, which means the
vehicle is charging. When your electric vehicle is fully
charged the blue LED glows constantly. To unplug
PC03T/PC04T press and hold the “3-function” button
for a second. The TESLA car will unlock the plug (only
if car is unlocked/owner nearby!) and you can unplug
PC03T/PC04T without touching the smart phone or
central screen.
1
USER MANUAL
INTEGRATED REMOTE
CHARGE PORT OPENER &
PLUG UNLOCKER
»BOXLESS« portable
charger design

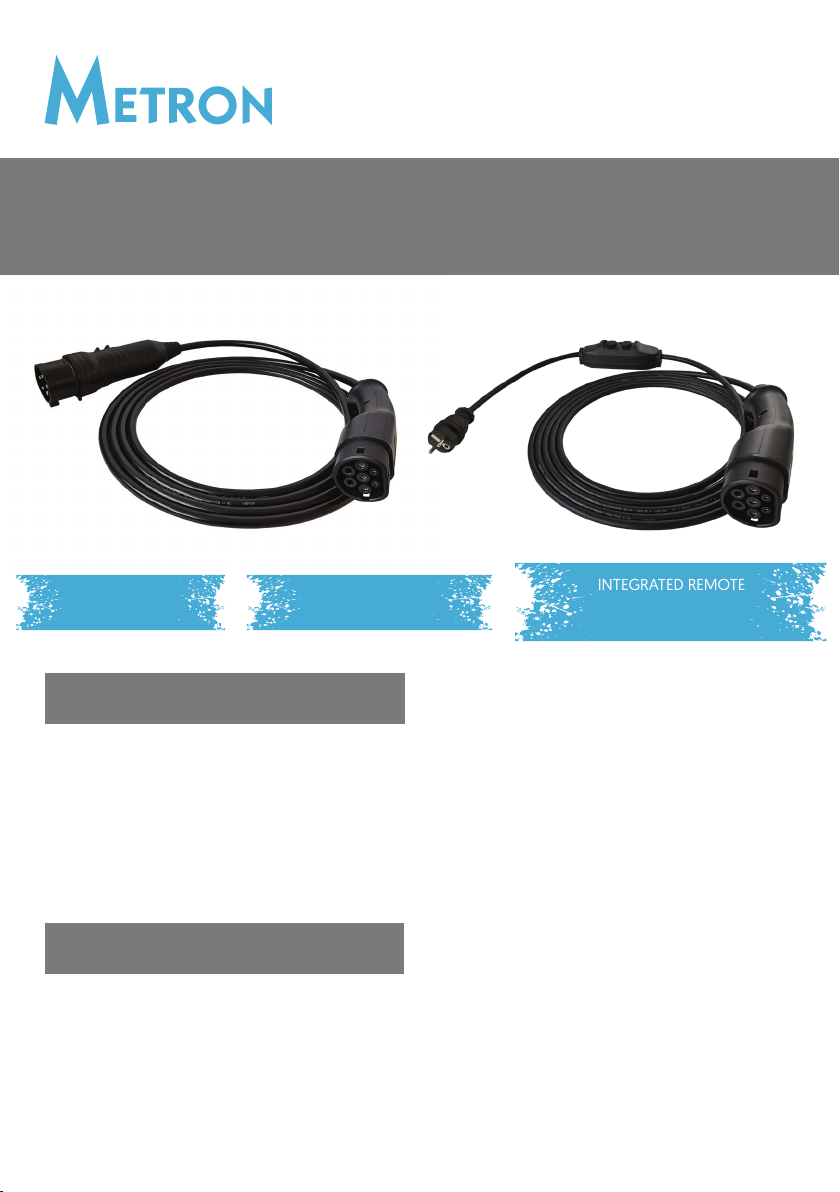

PC03T & PC04T PORTABLE CHARGERS
for TESLA electric vehicles
3,7 kW and 7,4 kW 1-phase METRON EV portable
chargers PC03T and PC04T are designed to charge
TESLA electric vehicles equipped with Type 2
charging sockets (European standard), from 1-phase
16A/32A sockets (or any other 1 or 3 phase outlets by
using appropriate adapter). PC03T and PC04T feature
integrated REMOTE CHARGE PORT OPENER & PLUG
UNLOCKER that works with all TESLA brand cars.
It also offers possibility, to set desired charging
current/power with a simple button press. Where’s
the heavy in-line “bulky box”? It doesn’t exist,
miniaturized portable charger electronics is placed
inside METRON Type 2 charging plug itself! This
makes METRON portable chargers PC03T and PC04T
lighter, easier to install/connect and easier to store in a
carrier case.
First plug the portable charger in the wall outlet.
Immediately blue signal LED starts blinking: number
of blinks indicates saved power setting (see the next
page). Afterwards, LED glows constantly till AC
power is present, indicating standby/ready status.
Next, press the “3-function” button to remotely open
TESLA charge port and insert PC03T/PC04T Type 2
plug into the vehicle Type 2 charging socket.
1-phase
3,7 kW and 7,4 kW

2
REMOTE CHARGE PORT OPEN & PLUG UNLOCK
SETTING THE DESIRED CHARGING CURRENT/POWER
PC03T and PC04T portable chargers allow user to set desired charging current/power, before it’s plugged in
the TESLA electric vehicle Type 2 socket, or even while the vehicle is charging! Procedure is simple:
• press and hold the “3 function” push button: LED turns off immediately,
• after 5 seconds LED starts blinking slowly,
• releasing the push button after a certain number of blinks determines charging
current/power as follows:
LED light
“3-function”
push button
New charging current/power setting is stored in the memory and it stays the same (even
after the power supply is not present anymore) until the next setting change is performed.
All Tesla vehicles also allow users to set charging current manually on the Tesla central screen
or smart phone application. However, if you set PC03T/PC04T charging current to e.g. 10A,
that would immediately LIMIT the max. charging current setting to 10A on Tesla central
screen or smart phone application also.
When PC03T/PC04T is plugged into the wall outlet/socket (power applied), pressing a “3-function” button
sends a remote-control signal to your TESLA vehicle charge port, which then opens remotely. Signal range is
usually between 3 and 15 meters. This feature eliminates user “touching” the smart phone or Tesla central
screen in order to open the charge port.
To unplug PC03T/PC04T while still charging or when charging completed press and hold the “3 function”
button for a second. The car will unlock the plug (only if car is unlocked/owner nearby!) and then you can
unplug PC03T/PC04T. This feature once again eliminates the need for user “touching” the smart phone or
Tesla central screen in order to unlock PC03T/PC04T plug from Tesla charge port.
These are two functions of the “3-function” push button. Third one is described in the next chapter below.
Number of
LED blinks
1 6 A / 1,4 kW
2 8 A / 1,8 kW
3 10 A / 2,3 kW
4 13A / 3,0 kW
5 16A / 3,7 kW
PC03T
Charging current/power
Number of
LED blinks
1 6 A / 1,4 kW
2 8 A / 1,8 kW
3 10 A / 2,3 kW
4 13A / 3,0 kW
5 16A / 3,7 kW
6 20A / 4,6 kW
7 25A / 5,8 kW
8 32A / 7,4 kW
PC04T
Charging current/power

3

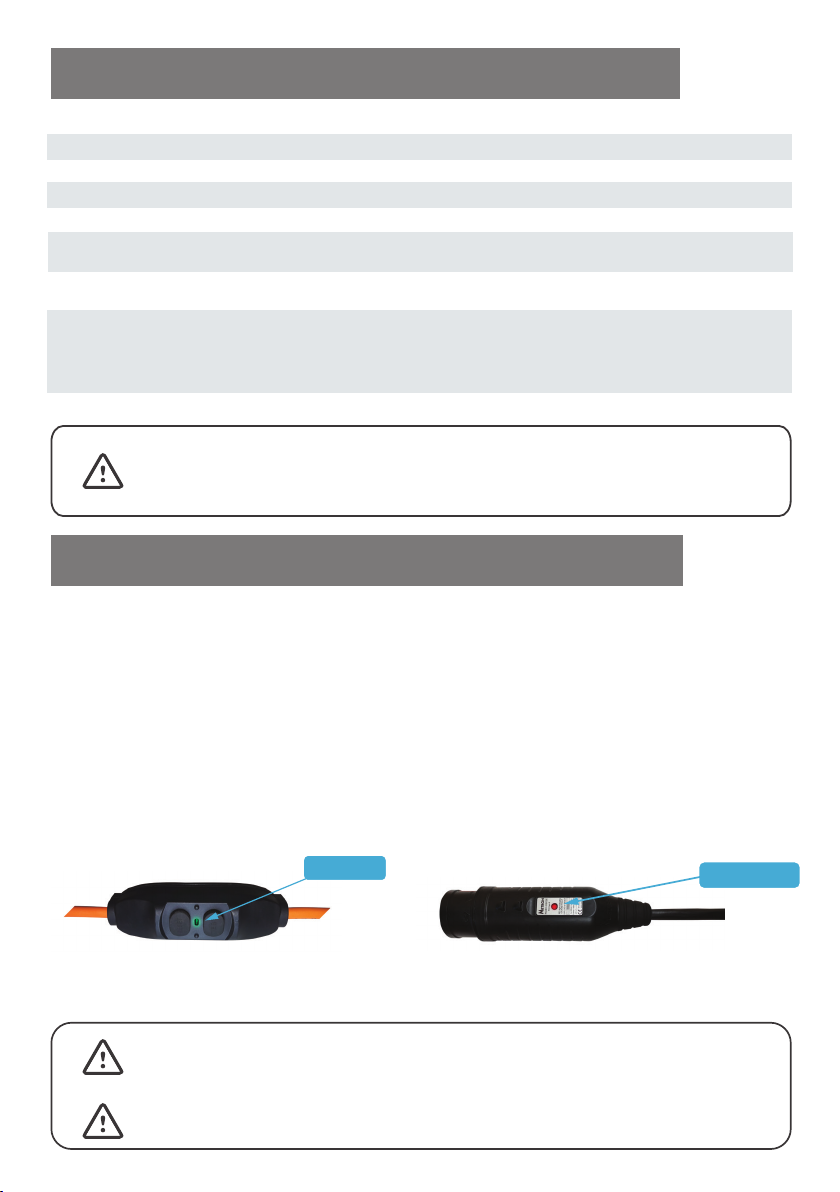

RCD is an acronym for Residual Current Device - sometimes it can be called also Earth Leakage Circuit Breaker or
Safety Switch. Its purpose is to prevent you from getting a fatal electric shock if you touch live part, such as a bare
copper wire under high voltage. RCDs offer a level of personal protection that ordinary fuses/circuit-breakers
cannot provide. RCD constantly monitors the electric current flowing through one or more circuits which it
protects. If it detects electricity flowing down an unintended path, such as through a person who has touched a
live part, the RCD will switch the circuit off very quickly, significantly reducing the risk of death or serious injury.
PC04T is equipped with Metron RCD Type B device called RCDB1-132CEE which represents maximum possible
level of personal protection as it protects users from AC, pulsating DC, pure DC and also high frequency AC
leakage currents. In order to ensure “BOXLESS” design of PC04T portable charger RCD is packed inside 3-phase
32A CEE plug itself what eliminates even the smallest unsafe section found on other portable chargers where
there is at least 30cm of unprotected cable between wall plug and “bulky” in cable control box.
PC04T: Red LED indicates RCD cut-off the power because
of leakage current detection. To reset just unplug,
wait a second, and plug it in again.
WHAT IS RCD AND HOW DOES IT WORK?
STATUS NOTIFICATION BY LED BLINKS
LED STATUS NOTIFICATION
Slow blinking when power supply is applied Indicating previous saved current setting
Electric vehicle requests room ventilation
(no charging)
Portable charger overheated (no charging);
restarts charging automatically when it cools down
Slow blinking 3 times (plugged in or not plugged in)
FaultRapid blinking (plugged in or not plugged in)
Slow blinking 2 times when plugged in
RED LED light
On request PC03T/PC04T can be also supplied without RCDs. The use of
PC03T/PC04T portable charger version without RCD protection is allowed
exclusively on the installations protected by RCD.
In the event the cable has been damaged the product should be removed from
use immediately!
1-phase portable charger PC04T can also charge from domestic 1-phase wall socket
(Schuko) or 1-phase 16A CEE “camper” socket if proper adaptor is used. In such case
be sure to set charging current to 16A or less, otherwise you risk damage to the
socket or even blown fuse!
Constantly on when not plugged in
Slow blinking when plugged in
Constantly on when plugged in Electric vehicle fully charged
Charging
Stand-by / Ready to charge
Slow blinking 5 times (plugged in or not plugged in)
Wall plug overheated (no charging); restarts
charging automatically when it cools down; applies
only to versions with wall plug integrated
over-temperature protection
PC03T is equipped with regular Type A in-cable RCD.
PC03T: To start charging press “RESET” button on RCD.
Green LED should turn on.
LED light

Rev.0 1/2020
4
LIMITED WARRANTY
METRON warrants its product to the original consumer purchaser that it will repair, or replace, any product that is
determined to be defective for the following terms: Two (2) years from date of purchase on all components.
To be eligible for repair or replacement under this warranty, the product in question must be sent back to
METRON within the warranty period and the original consumer purchaser must comply with the following
conditions:
• The product thereof must not have been modified or altered in any way by an unauthorized source.
• The product thereof must have been used in accordance with the user manual.
This limited warranty does not cover:
• Damage due to improper use;
• Accidental or intentional damage;
• Misuse, abuse, corrosion, or neglect;
• Product impaired by severe natural conditions, such as excessive hail storms, lightning strikes,
tornados, flooding, ice or other natural occurrences;
• Damage due to improper packaging on return shipment.
Any and all labor charges for troubleshooting, removal or replacement of the product are not covered by this
warranty and will not be honored by METRON. All shipping costs regarding repair or replacement of the product
is to be pre-paid by the original consumer purchaser.
yes (all parts) yes (all parts)UV resistance
Type 2 (IEC 62196) Female Plug Type 2 (IEC 62196) Female Plug
Schuko – Type F/E, CEE, Type G,
Type H,…
Yes, 30 mA (optionally PC03T
can be supplied without RCD)
1.6 kg (5m cable) + 0.16 kg per
each additional meter of cable
2.3 kg (5m cable) + 0.3 kg per
each additional meter of cable
CEE 32A (3-phase/3P+N+E),
CEE 32A (1-phase/2P+E),…
6/8/10/13/16 A 6/8/10/13/16/20/25/32 A
5m to 12m (or on request) 5m to 12m (or on request)
optional (Schuko only) no
no
yes yes
IP54 (rain water resistant) IP54 (rain water resistant)
from -30°C to +50°C from -30°C to +50°C
TECHNICAL SPECIFICATIONS
EV Side Plug Type
Wall socket/grid side Standard Plug Types
Max. Charging Current 16A (1-phase)
3,7 kW 7,4 kW
32A (1-phase)
Possible charging current settings
Max. Charging Power
Rated Voltage 230 Vac (1-phase) 230 Vac (1-phase)
Operating voltage/frequency range from 90 V to 270 V (50/60 Hz) from 90 V to 270 V (50/60 Hz)
PREMIUM quality polyurethane
compound cable (Made in Germany)
Wall plug integrated OVER-TEMPERATURE
PROTECTION with automatic reset
Cable length
IP Rating
Operating Ambient Air Temperature Range
Type B ground fault protection device (RCD)
Type A ground fault protection device (RCD)
Weight
PC03T PC04T
no
Yes, 30mA, integrated inside
CEE 32A plug (optionally PC04T
can be supplied without RCD)
