MFZ CS 300 User manual

MFZ
CS 300 Gate Controls / rev. 04.06 - 1
2006

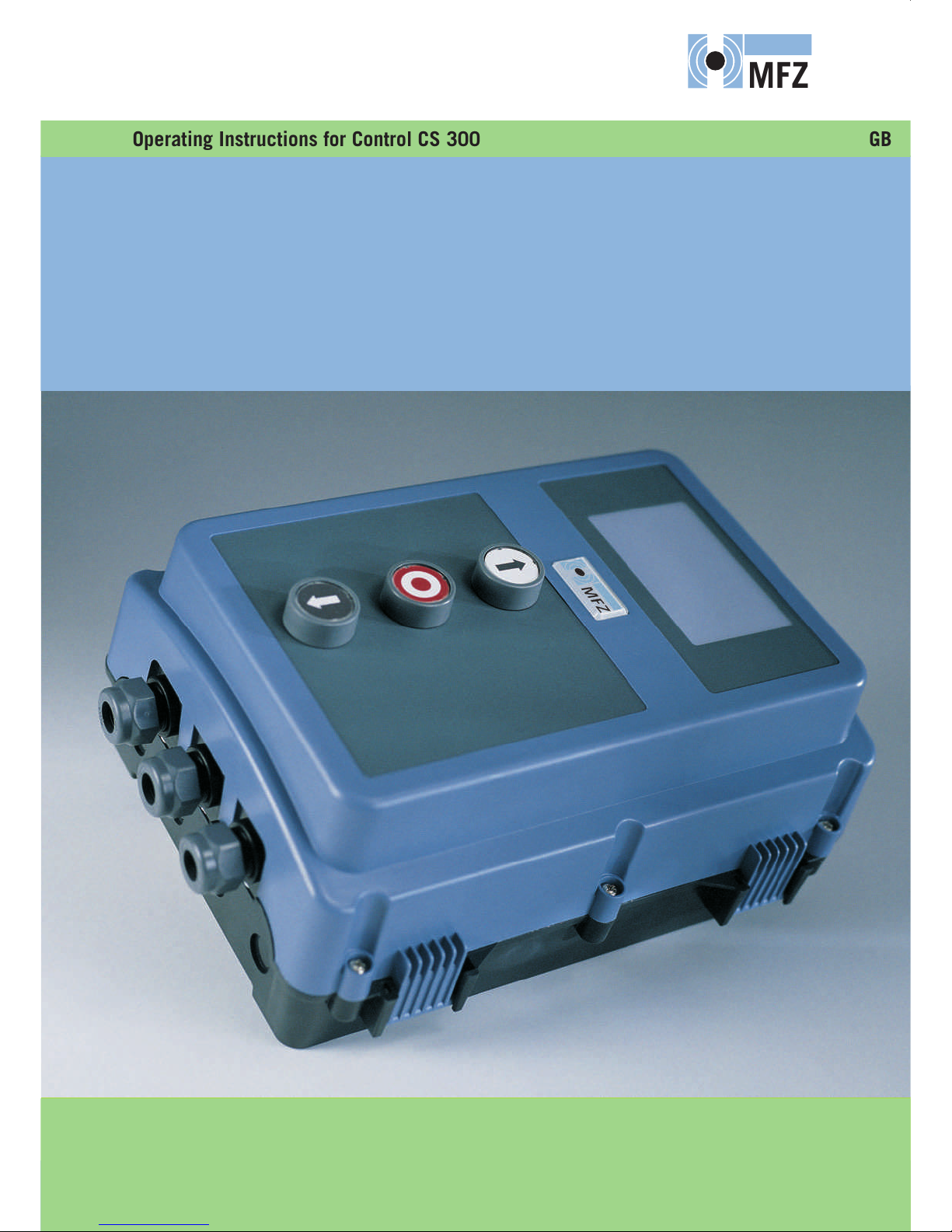

Operating Instructions for Control CS 300 GB

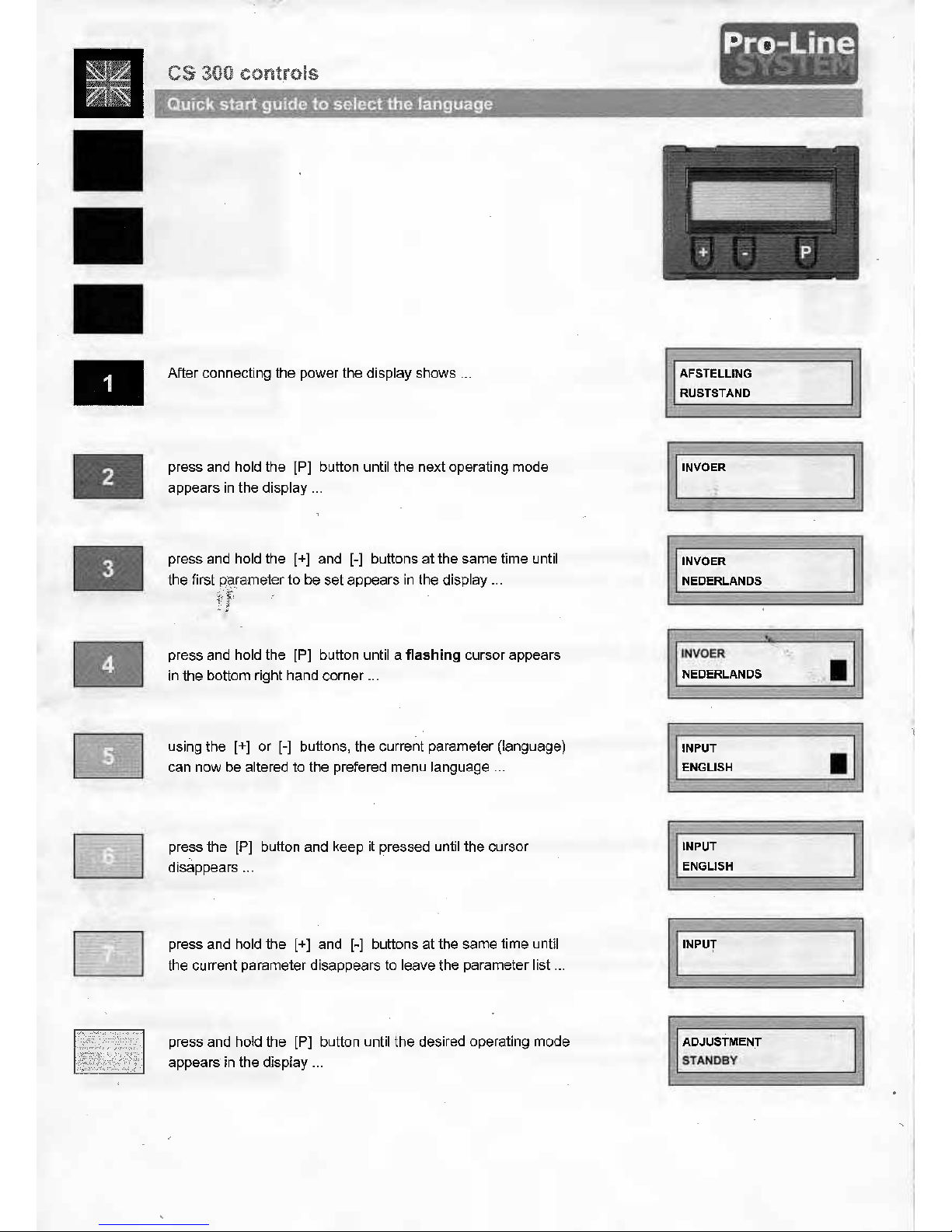

After connecting the power the display shows .. .
press and hold the [P] button until the next operating mode
appears in the display ...
press and hold the [+] and [-] buttons at the same tirne until
the first parameter to be set appears
in the display ...
press and hold the [P] button until a flashing cursor appears
in the bottom right hand corner ...
using the [+] or [-] buttons, the current parameter (language)
can now be altered to the prefered menu language
...
press the [P] button and keep it pressed until the cursor
, .
disappears
...
press and hold the [+] and [-] buttons at the same tirne until
the current parameter disappears to leave the parameter list
...
press and hold the [P] button until the desired operating mode
appears
in the display ...
AFSTELLING
RUSTSTAND
INVOER
NEDERLANDS
INVOER
NEDERLANDS
INPUT
ENGLISH
INPUT
ENGLISH
INPUT
ADJUSTMENT
STANDBY
·
;<·
［ ｾｾＩＮ［｟＠
•

MFZ
2 – CS 300 Gate Controls / rev. 04.06
1. Contents 3. General safety instructions
MFZ
2. Key to symbols
Guarantee
The function and safety of the equipment is only
guaranteed if the warning and safety instructions
included in these operating instructions are adhered
to.
MFZ Antriebe GmbH + Co.KG is not liable for any
personal injury or damage to property that occurs as
a result of the warning and safety instructions being
disregarded.
Using the equipment for its intended purpose
The CS 300 controls are designed only for controlling
gates and doors with digital end position systems.
It is only permitted to operate the equipment in dry
rooms.
Target group
Only qualified and trained electricians may connect,
programme and service the controls.
Qualified and trained electricians meet the following
requirements:
- knowledge of the general and specific safety and
accident prevention regulations,
- knowledge of the relevant electrical regulations,
- trained in the use and care of appropriate safety
equipment,
- capable of recognising the dangers associated with
electricity.
Instructions for installation and connection
- The controls must be disconnected from the
electricity supply before carrying out electrical
works. It must be ensured that the electricity supply
remains disconnected during the works.
- Local protective regulations must be complied with.
- Mains cables and control cables must be laid
separately.
Danger of personal injury!Danger of personal injury!
The safety instructions must be
observed!
Warning! Danger to property!Warning! Danger to property!
The safety instructions must be
observed!
InformationInformation
Reference to other sources of
information.
1. Contents 2
2. Key to symbols 2
3. General safety instructions 2
4. Overview of products 3
5. Initial Operation 5
6. Programming with the LED module 8
7. Programming with the LCD monitor 10
8. Navigator (LCD monitor only) 12
9. Overview of functions 14
10. Error messages and rectification 18
11. Technical data 19
12. EU Declaration of Conformity 19

MFZ
GB
CS 300 Gate Controls / rev. 04.06 – 3
Regulations and bases for testing
For connecting, programming and servicing, the
following regulations must be observed (the list is not
exhaustive).
Construction product standards
- EN 13241-1 (Products without fire resistance or
smoke control characteristics)
- EN 12445 (Safety in use of power operated doors
- Test methods)
- EN 12453 (Safety in use of power operated doors
- Requirements)
- EN 12978 (Safety devices for power operated doors
and gates - Requirements and test methods)
Electromagnetic compatibility
- EN 50081-1 (Radio disturbance, household
appliances)
- EN 50082-1 (Immunity, household appliances)
- EN 50014-1 (Emission, household appliances)
- EN 61000-3-2 (Disturbances in supply systems
- harmonic currents)
- EN 61000-3-3 (Disturbances in supply systems
- voltage fluctuations)
Machinery guidelines
- EN 60204-1 (Safety of machinery, electrical
equipment of machines)
- EN 292-1 (Safety of machinery - Basic concepts,
general principles for design - Basic terminology,
methodology)
Low voltage
- EN 60335-1 (Household and similar electrical
appliances - Safety)
- EN 60335-2-103 (Particular requirements for
drives for gates, doors and windows)
Professional association (D)
- BGR 232 (Directive for Power-driven Windows,
Doors and Gates)
4.1 Various options4.1 Various options
The following package options are available for the
CS 300 controls:
- CS 300 control with LCD monitor
- CS 300 control with LCD monitor in housing
- CS 300 control with LED module for setting
the OPEN and CLOSED door positions (further
adjustment settings are not possible)
- CS 300 control without LED module and without
LCD monitor (module or monitor are required for
adjusting the settings)
All the above options can be fitted with a plug-in
weekly timer and a plug-in radio receiver.
The following options are available for the housing.
- housing with 3-button input unit
- housing with membrane keypad
- housing with key switch ON/OFF
- housing with main switch
- housing with emergency off switch
The operating instructions describe the connection
possibilities and programming procedures for the
different models:
- CS 300 control with LED board
- CS 300 control with attached LCD display board
4. Overview of products GB

MFZ
4 – CS 300 Gate Controls / rev. 04.06

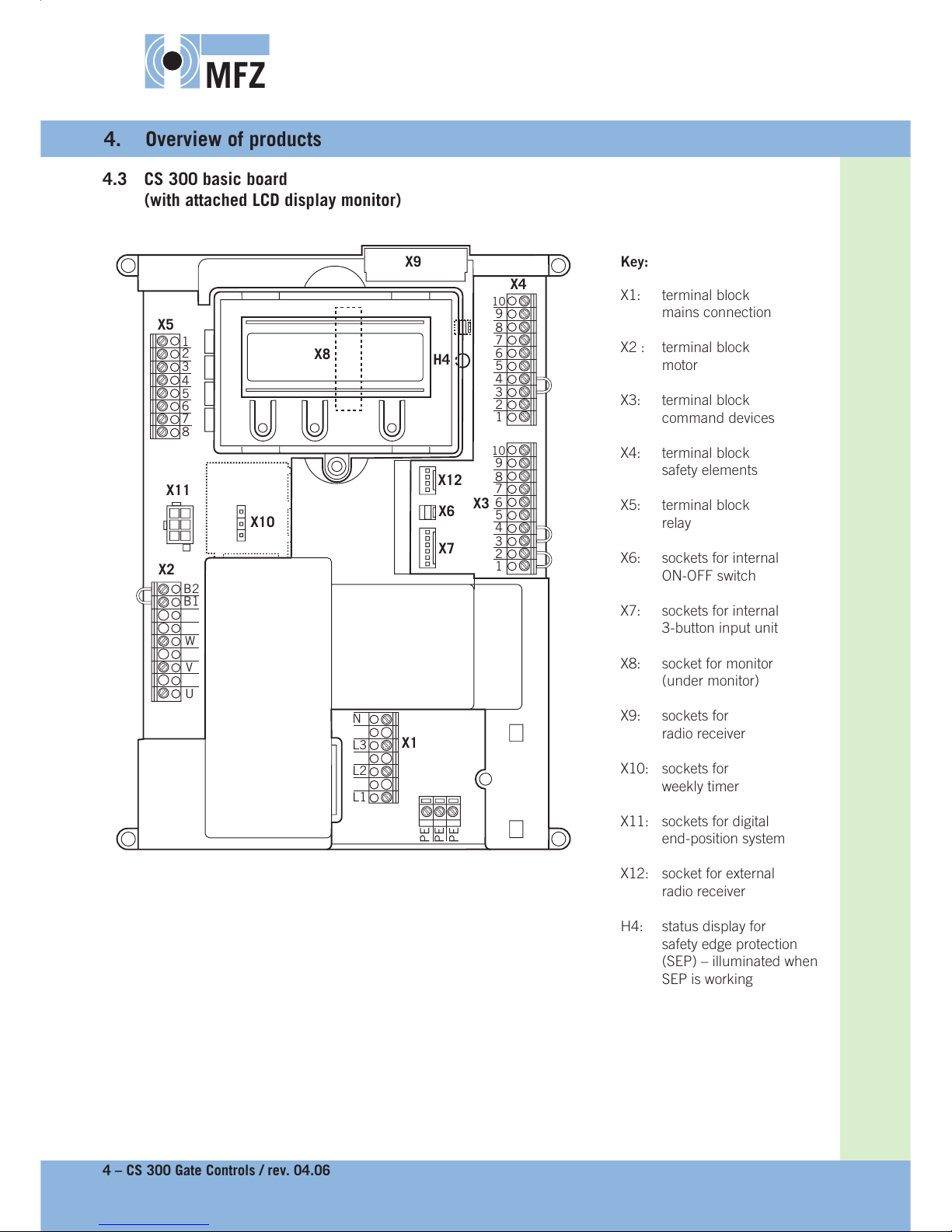

4. Overview of products
4.3 CS 300 basic board4.3 CS 300 basic board
(with attached LCD display monitor)(with attached LCD display monitor)
1
2
3
4
5
6
7
8
B2
B1
W
V
U
1
2
3
4
5
6
7
8
9
10
N
L3
L2
L1
X5
X4
X3
X2
X11
X7
X6
X12
PE PE PE
X1
X10
1
2
3
4
5
6
7
8
9
10
X8
X9
H4
Key:
X1: terminal block
mains connection
X2 : terminal block
motor
X3: terminal block
command devices
X4: terminal block
safety elements
X5: terminal block
relay
X6: sockets for internal
ON-OFF switch
X7: sockets for internal
3-button input unit
X8: socket for monitor
(under monitor)
X9: sockets for
radio receiver
X10: sockets for
weekly timer
X11: sockets for digital
end-position system
X12: socket for external
radio receiver
H4: status display for
safety edge protection
(SEP) – illuminated when
SEP is working

MFZ
GB
CS 300 Gate Controls / rev. 04.06 – 5
5. Initial Operation
5.1 General5.1 General
Warning!Warning!
To guarantee that the equipment
functions properly, the following points
must be ensured:
- The gate or door is installed and ope
rational.
- The MFZ drive motor is installed and
ready for operation.
- The command and safety devices are
installed and ready for operation.
- The control housing with the CS 300
control is installed.
Information:Information:
For the installation of the gate/door,
the MFZ drive motor and the command
and safety devices, the relevant
manufacturer’s instructions are to
be adhered to.
5.2 Mains connection5.2 Mains connection
Danger!Danger!
To guarantee that the controls function
properly, the following points must be
ensured:
- The mains voltage must correspond
to the voltage stated on the type
plate.
- For a three-phase current, a
clockwise rotating field is required.
- For a permanent connection, an
all-pole main switch must be used.
- For a three-phase connection, only
3-way automatic circuit breakers
(10A) may be used.
Detailed circuit diagram for mains connection and
motor
UVWB1B2
L1 L2 L3 N
PE PE PE
13 5 13 5 24 6 24 6
X2
X1
X11
T1
K2
K1
M
M1
Key:
K1: protection, CLOSE
K2: protection, OPEN
M1: motor
T1: transformer
X1: terminal block for mains connection
X2: terminal block for motor
X11: sockets for digital end position system with
safety circuit (STOP CIRCUIT)
Connection:
Connect the digital end-position system to theConnect the digital end-position system to the
control.control.
Connect the control to the mains.Connect the control to the mains.
Connect the control to the motor.Connect the control to the motor.
☞
☞
☞
GB

MFZ
6 – CS 300 Gate Controls / rev. 04.06
5. Initial Operation

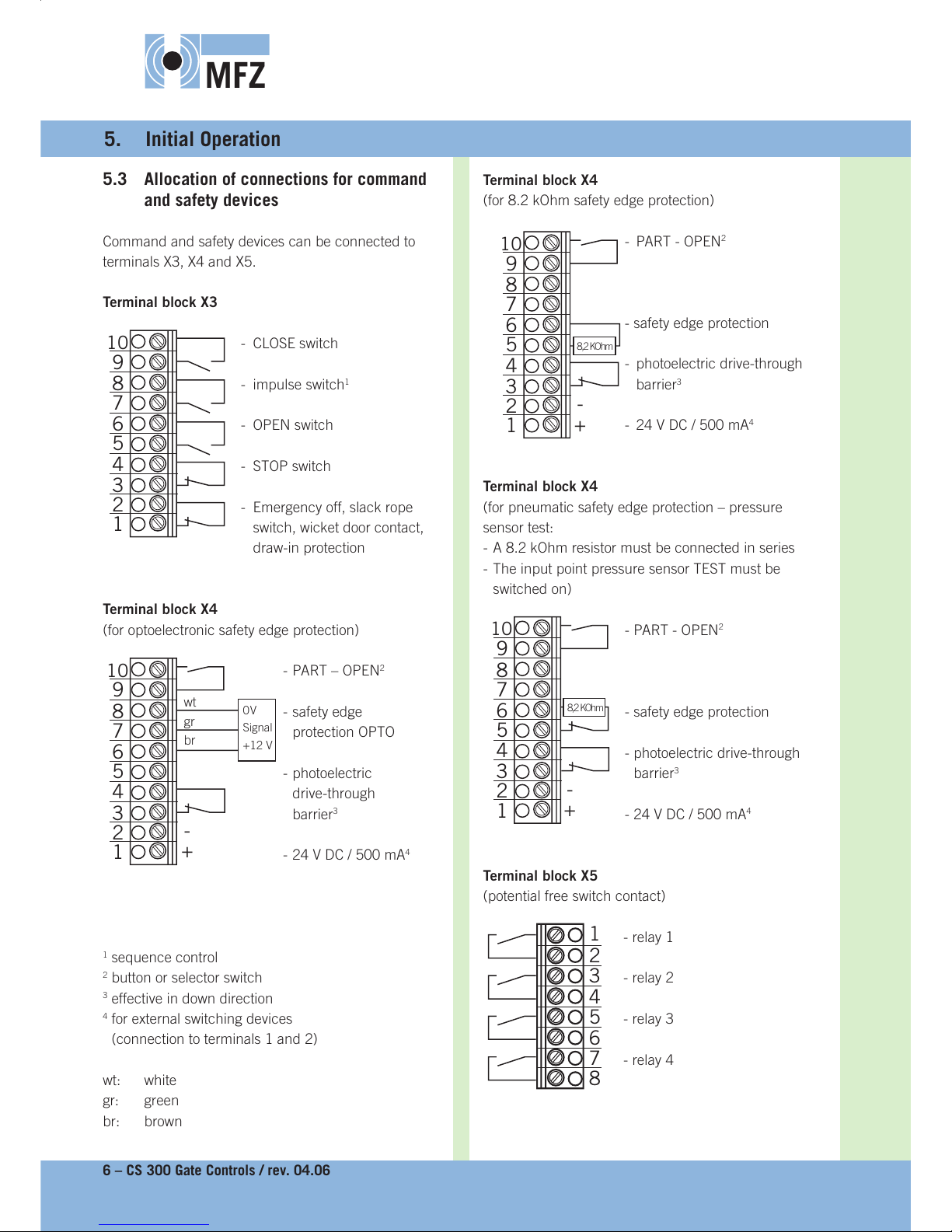

5.3 Allocation of connections for command
and safety devices
Command and safety devices can be connected to
terminals X3, X4 and X5.
Terminal block X3
- CLOSE switch
- impulse switch1
- OPEN switch
- STOP switch
- Emergency off, slack rope
switch, wicket door contact,
draw-in protection
Terminal block X4
(for optoelectronic safety edge protection)
- PART – OPEN2
- safety edge
protection OPTO
- photoelectric
drive-through
barrier3
- 24 V DC / 500 mA4
1sequence control
2button or selector switch
3effective in down direction
4for external switching devices
(connection to terminals 1 and 2)
wt: white
gr: green
br: brown
Terminal block X4
(for 8.2 kOhm safety edge protection)
- PART - OPEN2
- safety edge protection
- photoelectric drive-through
barrier3
- 24 V DC / 500 mA4
Terminal block X4
(for pneumatic safety edge protection – pressure
sensor test:
- A 8.2 kOhm resistor must be connected in series
- The input point pressure sensor TEST must be
switched on)
- PART - OPEN2
- safety edge protection
- photoelectric drive-through
barrier3
- 24 V DC / 500 mA4
Terminal block X5
(potential free switch contact)
- relay 1
- relay 2
- relay 3
- relay 4
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
9
10
1
2
3
4
5
6
7
8
9
10
+
-
wt
gr
br
0 V
Signal
+12 V
1
2
3
4
5
6
7
8
9
10
+
-
8,2 KOhm
1
2
3
4
5
6
7
8
9
10
+
-
8,2 KOhm

MFZ
GB
CS 300 Gate Controls / rev. 04.06 – 7
Impulse button
(sequence control)
- impulse button
Connection:
Connect the command and safety devices to theConnect the command and safety devices to the
control.control.
☞
5.4 Connection examples for command and
safety devices (terminal block X3)
OPEN / STOP / CLOSE buttons
(6-lead solution)
- CLOSE button
- OPEN button
- STOP button
OPEN / STOP / CLOSE buttons
(4-lead solution)
- CLOSE button
- OPEN button
- STOP button
Key switch OPEN / CLOSE
- CLOSE
- OPEN
1
2
3
4
5
6
7
8
9
10
1
2
3
4
5
6
7
8
9
10
1
2
3
4
5
6
7
8
9
10
1
2
3
4
5
6
7
8
9
10

MFZ
8 – CS 300 Gate Controls / rev. 04.06

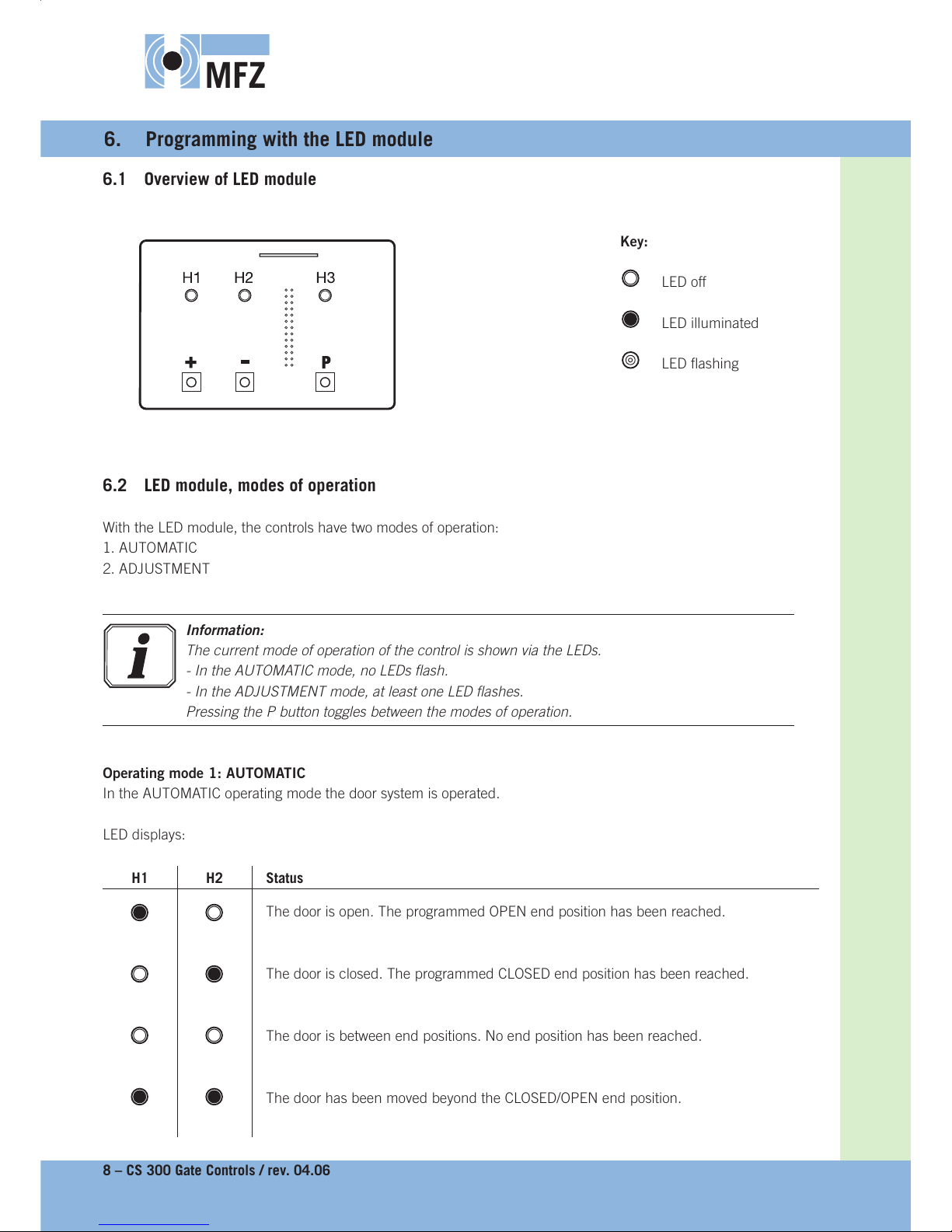

6.1 Overview of LED module6.1 Overview of LED module
Key:
LED off
LED illuminated
LED flashing
6. Programming with the LED module
6.2 LED module, modes of operation6.2 LED module, modes of operation
With the LED module, the controls have two modes of operation:
1. AUTOMATIC
2. ADJUSTMENT
Information:Information:
The current mode of operation of the control is shown via the LEDs.
- In the AUTOMATIC mode, no LEDs flash.
- In the ADJUSTMENT mode, at least one LED flashes.
Pressing the P button toggles between the modes of operation.
Operating mode 1: AUTOMATIC
In the AUTOMATIC operating mode the door system is operated.
LED displays:
H1 H2 Status
The door is open. The programmed OPEN end position has been reached.
The door is closed. The programmed CLOSED end position has been reached.
The door is between end positions. No end position has been reached.
The door has been moved beyond the CLOSED/OPEN end position.

MFZ
GB
CS 300 Gate Controls / rev. 04.06 - 9
Operating mode 2: ADJUSTMENT
In the ADJUSTMENT mode, the OPEN/CLOSED end position settings are adjusted.
Warning!Warning!
In the ADJUSTMENT mode of operation, the drive does not switch off when the end position is
reached. The door can be damaged if driven beyond the end position.
LED displays:
H1 H2 Status
The OPEN end position is programmed at this door position.
The CLOSED end position is programmed at this door position.
The CLOSED and OPEN end positions are not programmed at this door position.
6.3 Setting the end positions6.3 Setting the end positions
Setting the OPEN end position
Change the mode of operation to ADJUSTMENT by pressing the P button.Change the mode of operation to ADJUSTMENT by pressing the P button.
Drive the door into the desired OPEN end position by pressing the + button.Drive the door into the desired OPEN end position by pressing the + button.
Save the end position by pressing simultaneously the P button and the + button.Save the end position by pressing simultaneously the P button and the + button.
Setting the CLOSED end position
Change the mode of operation to ADJUSTMENT by pressing the P button.Change the mode of operation to ADJUSTMENT by pressing the P button.
Drive the door into the desired CLOSED end position by pressing the - button.Drive the door into the desired CLOSED end position by pressing the - button.
Save the end position by pressing simultaneously the P button and the - button.
☞
☞
☞
☞
☞
☞

MFZ
10 – CS 300 Gate Controls / rev. 04.06

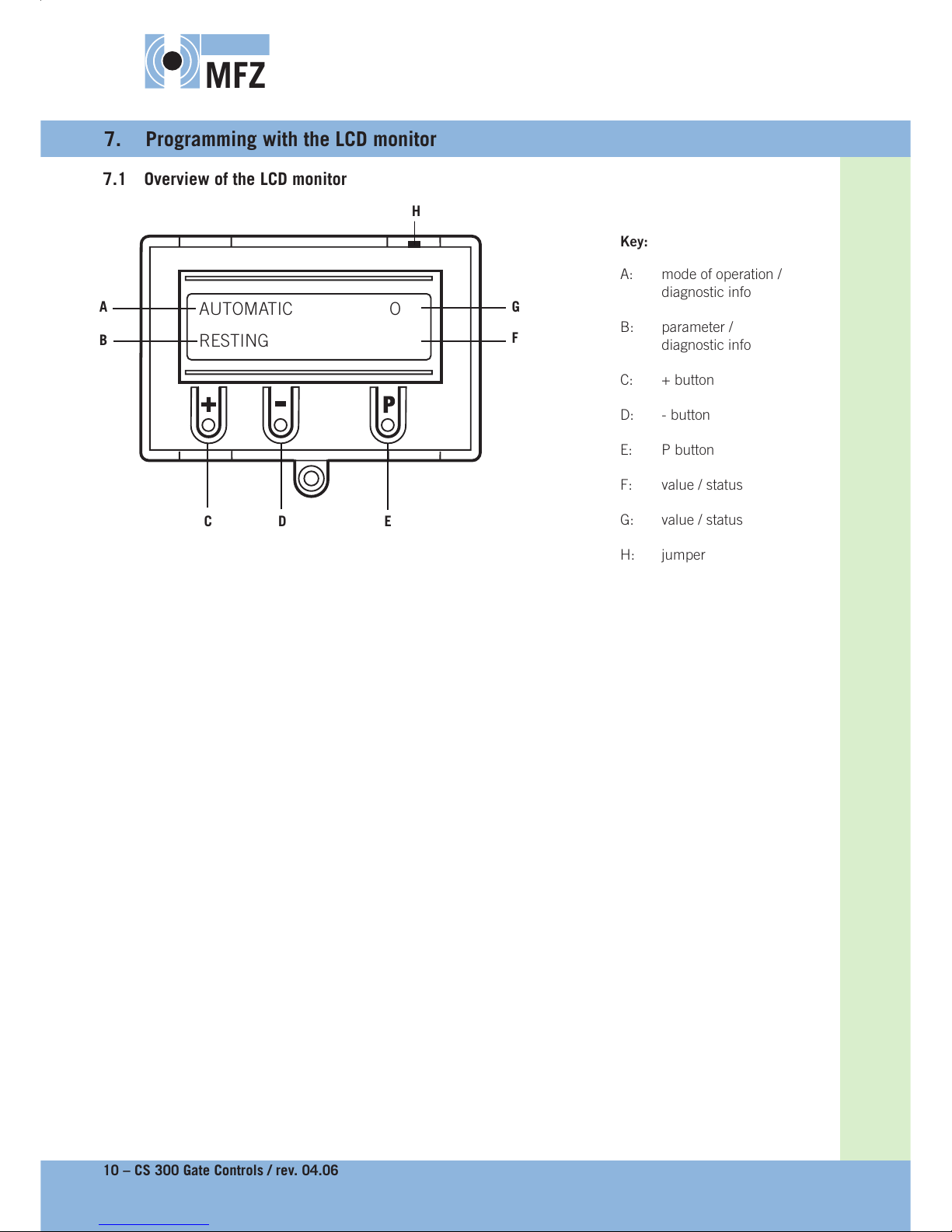

7.1 Overview of the LCD monitor7.1 Overview of the LCD monitor
7. Programming with the LCD monitor
A
B
CD E
F
G
AUTOMATIC O
RESTING
Key:
A: mode of operation /
diagnostic info
B: parameter /
diagnostic info
C: + button
D: - button
E: P button
F: value / status
G: value / status
H: jumper
H

MFZ
GB
CS 300 Gate Controls / rev. 04.06 – 11

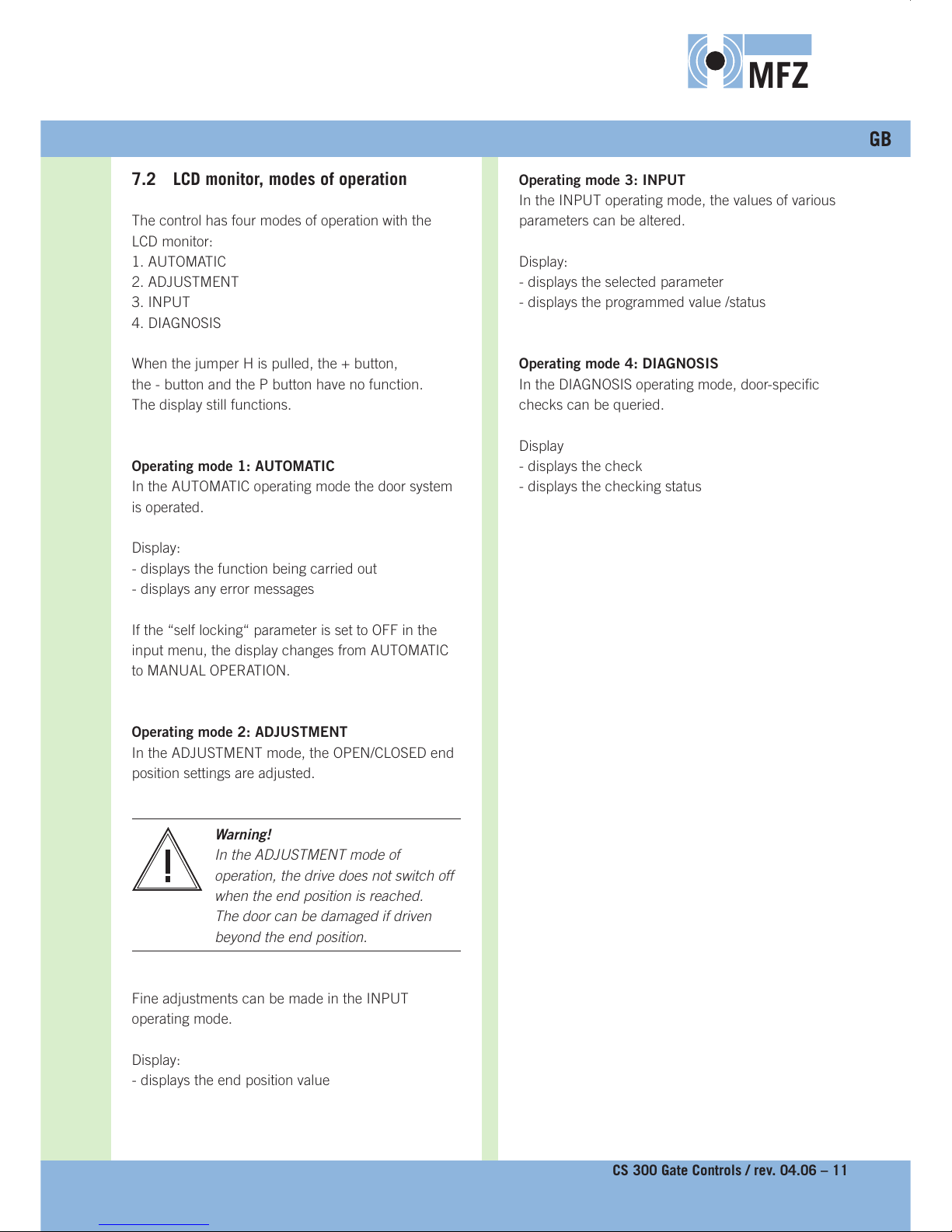

7.2 LCD monitor, modes of operation7.2 LCD monitor, modes of operation
The control has four modes of operation with the
LCD monitor:
1. AUTOMATIC
2. ADJUSTMENT
3. INPUT
4. DIAGNOSIS
When the jumper H is pulled, the + button,
the - button and the P button have no function.
The display still functions.
Operating mode 1: AUTOMATIC
In the AUTOMATIC operating mode the door system
is operated.
Display:
- displays the function being carried out
- displays any error messages
If the “self locking“ parameter is set to OFF in the
input menu, the display changes from AUTOMATIC
to MANUAL OPERATION.
Operating mode 2: ADJUSTMENT
In the ADJUSTMENT mode, the OPEN/CLOSED end
position settings are adjusted.
Warning!Warning!
In the ADJUSTMENT mode of
operation, the drive does not switch off
when the end position is reached.
The door can be damaged if driven
beyond the end position.
Fine adjustments can be made in the INPUT
operating mode.
Display:
- displays the end position value
Operating mode 3: INPUT
In the INPUT operating mode, the values of various
parameters can be altered.
Display:
- displays the selected parameter
- displays the programmed value /status
Operating mode 4: DIAGNOSIS
In the DIAGNOSIS operating mode, door-specific
checks can be queried.
Display
- displays the check
- displays the checking status

MFZ
12 – CS 300 Gate Controls / rev. 04.06
AUTOMATIC RESTING
P
>1 Sec.
ADJUSTMENT RESTING
+-> Position DOOR
OPEN
MANUAL ADJUSTMENT OPEN
Save door position:
P
Hold P pressed and
+
> 1 Sec.
-
-> Position DOOR
CLOSED
MANUAL ADJUSTMENT DOWN
Save door position:
P
Hold P pressed and
-
> 1 Sec.
P
>1 Sec.
INPUT
+
and
-
> 2 Sec. INPUT
GERMAN :
Scroll up through menu:
+
> 2 Sek
Scroll down through menu:
-
> 2 Sec.
Select value:
P
> 1 Sec.
Increase value:
+
Decrease value:
-
Save value:
P
Return to
INPUT:
+
and
-
> 1 Sec.
INPUT RUNNING TIME : 60
P
>1 Sec.
INPUT TIME OPEN : 0 INPUT FOREWARNING : 0 INPUT TURN- AROUND TIME : 0,3 INPUT REL.1 - RESTING : Mod1 INPUT QUICK CLOSE : OFF INPUT RELAY 1 : Mod1 INPUT RELAY 2 : Mod2 INPUT RELAY 3 : Mod3 INPUT RELAY 4 : Mod2 INPUT Pressure sensor TEST : OFF
8. Navigator (LCD monitor only)

MFZ
GB
CS 300 Gate Controls / rev. 04.06 - 13
INPUT DELAY-OPEN : OFF INPUT FINE-OPEN : 4050 INPUT FINE-CLOSE : 3950 INPUT BES-OPEN : 4000 INPUT BES-CLOSE : 4000 INPUT ROT. FIELD : RE INPUT REVERSE OFF : 50 INPUT POWER : 0 INPUT AUTO LEVEL : OFF INPUT SELF LOCK : ON INPUT SU/WI : MOD1
DIAGNOSIS
Scroll up through menu:
+
> 2 Sek
Scroll down through menu:
-
> 2 Sec.
Return to AUTOMATIC operating mode:
P
Only query is possible
ES UP : ON ES DOWN : ON OPEN BUTTON : OFF PART OPEN : OFF CLOSE BUTTON : OFF SEP : ON IMPULS : OFF TIMER : OFF P/E BARRIER : ON STOP CIRCUIT : ON CYCLE : 4 AVE : 2599

MFZ
14 – CS 300 Gate Controls / rev. 04.06
9. Overview of functions

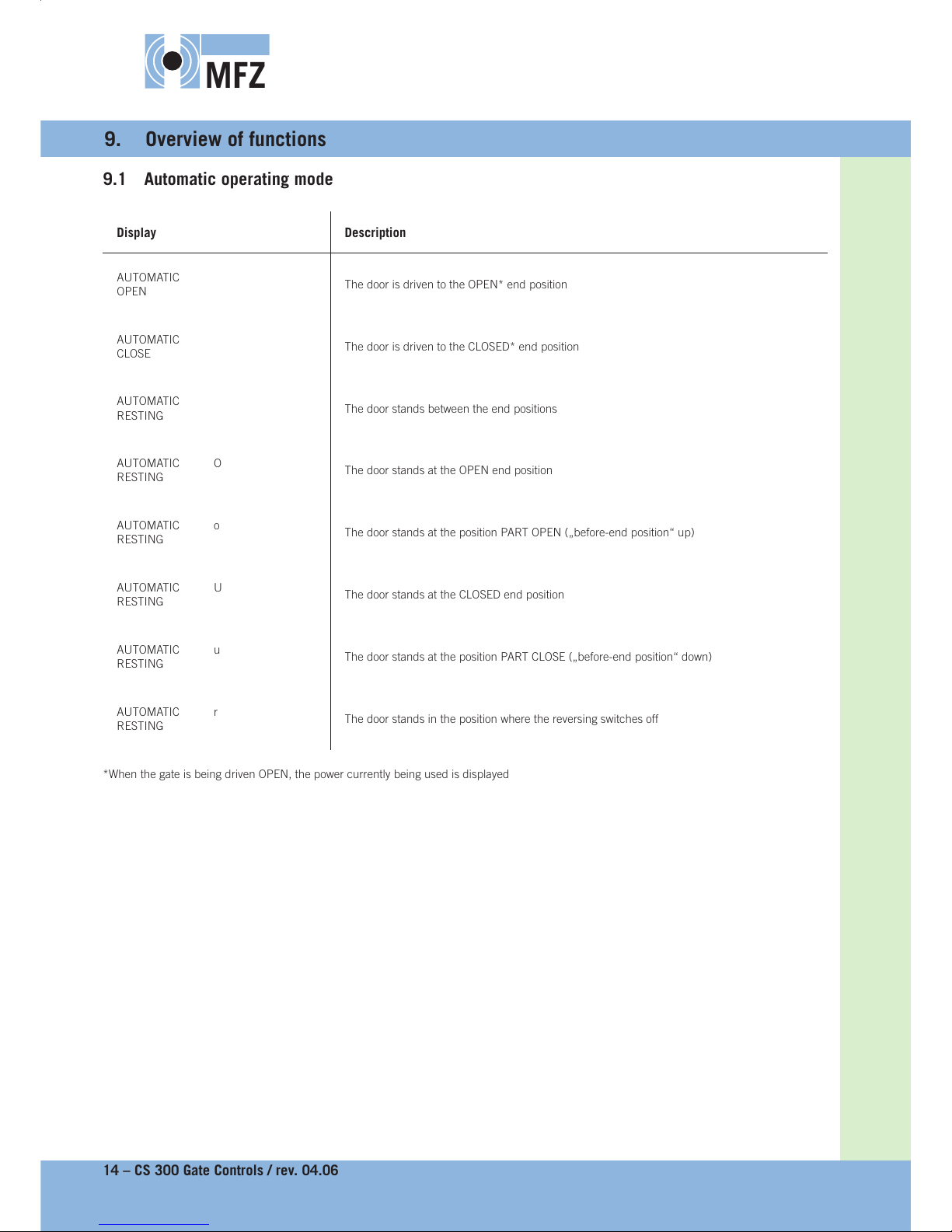

9.1 Automatic operating mode
Display Description
AUTOMATIC
OPEN The door is driven to the OPEN* end position
AUTOMATIC
CLOSE The door is driven to the CLOSED* end position
AUTOMATIC
RESTING The door stands between the end positions
AUTOMATIC O
RESTING The door stands at the OPEN end position
AUTOMATIC o
RESTING The door stands at the position PART OPEN („before-end position“ up)
AUTOMATIC U
RESTING The door stands at the CLOSED end position
AUTOMATIC u
RESTING The door stands at the position PART CLOSE („before-end position“ down)
AUTOMATIC r
RESTING The door stands in the position where the reversing switches off
*When the gate is being driven OPEN, the power currently being used is displayed

MFZ
GB
CS 300 Gate Controls / rev. 04.06 - 15
9.2 Input operating mode9.2 Input operating mode
Function Description Setting options Factory setting
DEUTSCH Select the menu language DEUTSCH
ENGLISH
FRANCAIS
ESPANOL
NEDERLANDS
POLSKI
CESKY
DEUTSCH
RUNNING
TIME
Monitoring the max. running time for an open and close movement 1 – 250 Seconds 60 Seconds
OPEN
TIME
After the door has opened, it runs in the CLOSE direction again after the
set time has elapsed.
Open time > 0 = impulse functions only work in OPEN direction
0 – 600 Seconds 0 =
Auto-close off
ADVANCE
WARNING
TIME
The traffic light flashes before the door starts to move downwards.
The programmed forewarning time is only active if the open time > 0 or if
in radio-impulse operating mode
0 - 120 Seconds 0 = Off
TURNA-
ROUND
TIME
Standing time at every change of direction 0,1 - 2,0 Seconds
(in 1/10 Sec)
0,3 Seconds
REL.1
RESTING
MOD1: Relay 1 resting OFF
MOD2: Relay 1 resting ON
MOD1
MOD2
MOD1
QUICK
CLOSE
ON: The open time is cut short after the photoelectric barrier has
been passed (door closes immediately)
OFF: The open time continues as usual
ON
OFF
OFF
RELAY 1 MOD1: Relay 1 is permanently ON when the door is moving and
flashes for forewarning
MOD2: Relay 1 flashes when the door is moving and as a forewarning
MOD3: Relay 1 is permanently ON when the door is moving and as a
forewarning
MOD1
MOD2
MOD3
MOD1
RELAY 2 MOD1: Relay 2 gives impulse on OPEN command
MOD2: OPEN end position
MOD3: CLOSE end position
MOD4: Before-end position OPEN
MOD5: Before-end position CLOSE
MOD1
MOD2
MOD3
MOD4
MOD5
MOD2
RELAY 3 MOD1: Error message
MOD2: OPEN end position
MOD3: CLOSE end position
MOD4: Before-end position OPEN
MOD5: Before-end position CLOSE
MOD6: From before CLOSE position to CLOSE position
MOD1
MOD2
MOD3
MOD4
MOD5
MOD6
MOD3
RELAY 4 MOD1: Magnetic locking function
MOD2: Brake
MOD3: Brake negated
MOD4: Brake remains ON during open time
MOD5: Brake remains ON during open time and direction turnaround
(relay switches OFF when turnaround initiated by SEP)
MOD1
MOD2
MOD3
MOD4
MOD5
MOD2

MFZ
16 – CS 300 Gate Controls / rev. 04.06

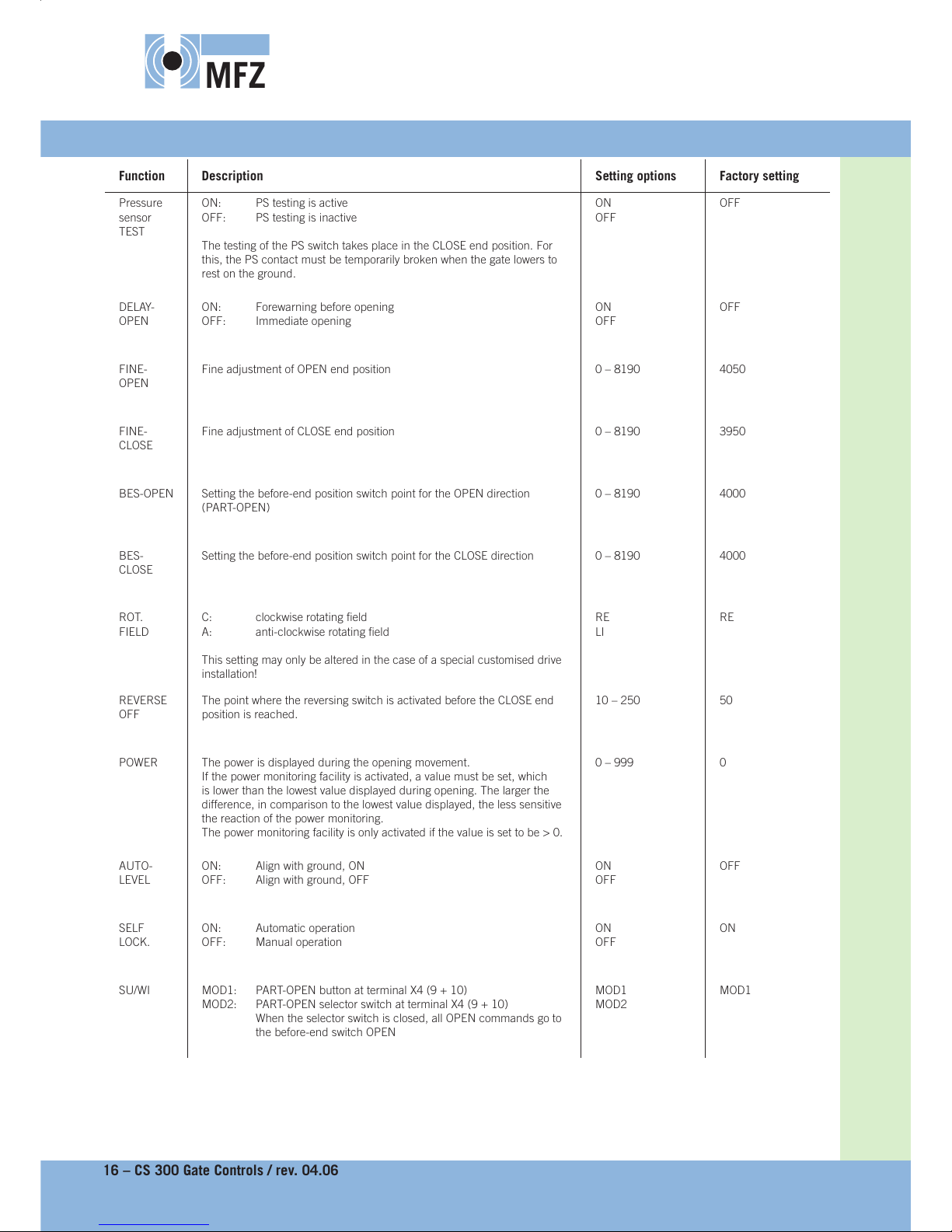

Function Description Setting options Factory setting
Pressure
sensor
TEST
ON: PS testing is active
OFF: PS testing is inactive
The testing of the PS switch takes place in the CLOSE end position. For
this, the PS contact must be temporarily broken when the gate lowers to
rest on the ground.
ON
OFF
OFF
DELAY-
OPEN
ON: Forewarning before opening
OFF: Immediate opening
ON
OFF
OFF
FINE-
OPEN
Fine adjustment of OPEN end position 0 – 8190 4050
FINE-
CLOSE
Fine adjustment of CLOSE end position 0 – 8190 3950
BES-OPEN Setting the before-end position switch point for the OPEN direction
(PART-OPEN)
0 – 8190 4000
BES-
CLOSE
Setting the before-end position switch point for the CLOSE direction 0 – 8190 4000
ROT.
FIELD
C: clockwise rotating field
A: anti-clockwise rotating field
This setting may only be altered in the case of a special customised drive
installation!
RE
LI
RE
REVERSE
OFF
The point where the reversing switch is activated before the CLOSE end
position is reached.
10 – 250 50
POWER The power is displayed during the opening movement.
If the power monitoring facility is activated, a value must be set, which
is lower than the lowest value displayed during opening. The larger the
difference, in comparison to the lowest value displayed, the less sensitive
the reaction of the power monitoring.
The power monitoring facility is only activated if the value is set to be > 0.
0 – 999 0
AUTO-
LEVEL
ON: Align with ground, ON
OFF: Align with ground, OFF
ON
OFF
OFF
SELF
LOCK.
ON: Automatic operation
OFF: Manual operation
ON
OFF
ON
SU/WI MOD1: PART-OPEN button at terminal X4 (9 + 10)
MOD2: PART-OPEN selector switch at terminal X4 (9 + 10)
When the selector switch is closed, all OPEN commands go to
the before-end switch OPEN
MOD1
MOD2
MOD1

MFZ
GB
CS 300 Gate Controls / rev. 04.06 - 17

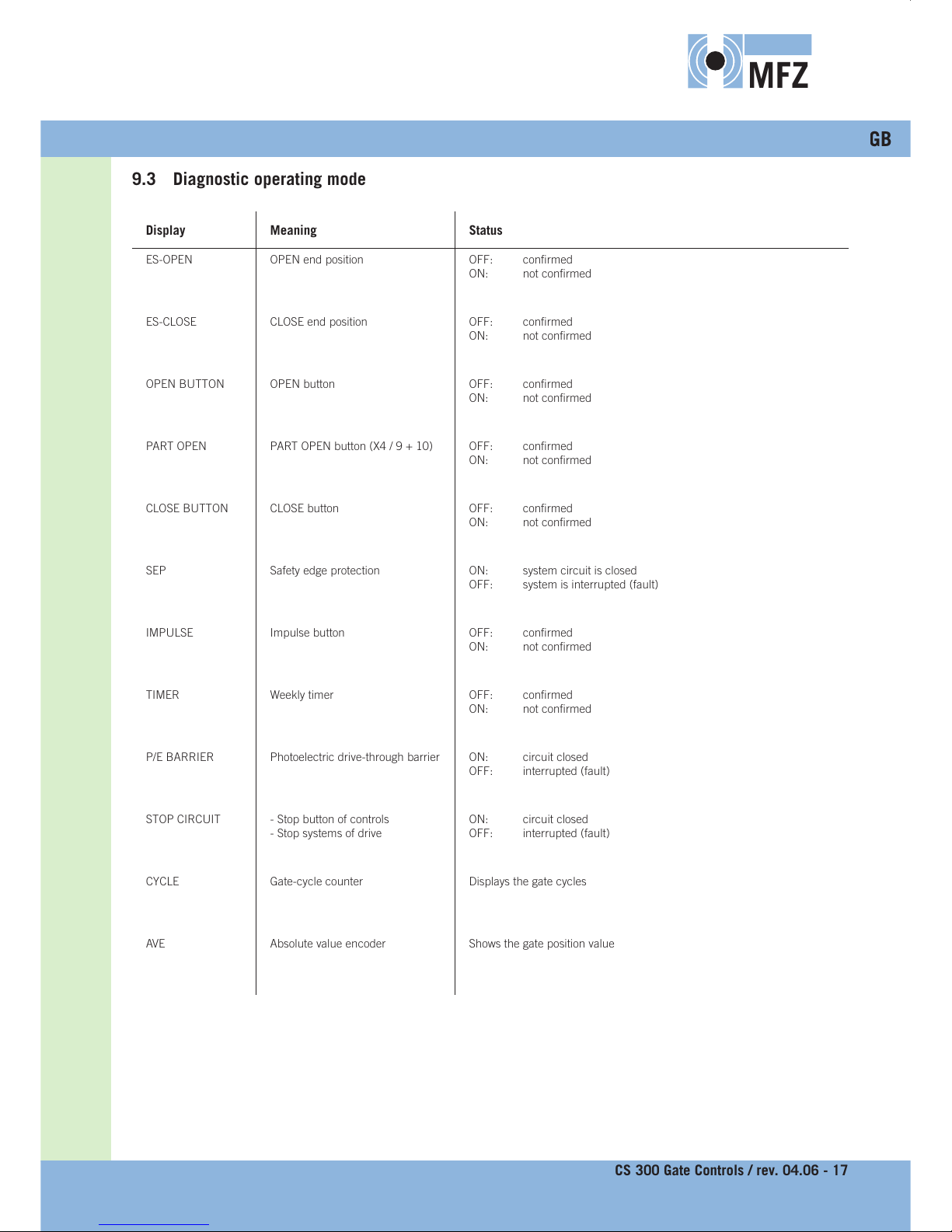

9.3 Diagnostic operating mode
Display Meaning Status
ES-OPEN OPEN end position OFF: confirmed
ON: not confirmed
ES-CLOSE CLOSE end position OFF: confirmed
ON: not confirmed
OPEN BUTTON OPEN button OFF: confirmed
ON: not confirmed
PART OPEN PART OPEN button (X4 / 9 + 10) OFF: confirmed
ON: not confirmed
CLOSE BUTTON CLOSE button OFF: confirmed
ON: not confirmed
SEP Safety edge protection ON: system circuit is closed
OFF: system is interrupted (fault)
IMPULSE Impulse button OFF: confirmed
ON: not confirmed
TIMER Weekly timer OFF: confirmed
ON: not confirmed
P/E BARRIER Photoelectric drive-through barrier ON: circuit closed
OFF: interrupted (fault)
STOP CIRCUIT - Stop button of controls
- Stop systems of drive
ON: circuit closed
OFF: interrupted (fault)
CYCLE Gate-cycle counter Displays the gate cycles
AVE Absolute value encoder Shows the gate position value

MFZ
18 – CS 300 Gate Controls / rev. 04.06
10. Error messages and rectification
Fault / error message Cause Rectification
System does not respond - No voltage supply - Check the voltage supply of the drive
and the controls
Door travels to the CLOSE end position
when the OPEN button is pressed
Door travels to the OPEN end position
when the CLOSE button is pressed
- Rotating field is connected wrongly - Check the rotating field and establish
clockwise rotating field if necessary
ERROR END POSITION - The door has travelled beyond one of
the end positions
- The end positions have not been
programmed yet
- Check the programming of the end
positions and reset them if necessary
ERROR RUN TIME - The programmed running time has
been exceeded
- Check the path of the door
- Re-programme the running time
ERROR SEP - The safety edge protection is faulty - Check the safety edge protection and
the spiral cable
- Safety edge protection was triggered - Remove obstruction from path of door
ERROR PRESSURE SENSOR TESTING - The PS switch is not activated at the
CLOSE end position
- Check the PS switch, spiral cable and
profile
- Check the setting for the CLOSE end
position
ERROR ROT. FIELD - An incorrect rotating field is connected
to terminal X1
- Ensure that a clockwise rotating field is
connected
ERROR RS 485 - Communications fault between the end
position switch and the controls
- Check the cable and socket
connections
ERROR POWER - The power monitoring has been
triggered
- Check that the door can move freely
- Reset the power value
After rectifying the cause of the fault, the controls must be disconnected briefly from the mains!

MFZ
GB
CS 300 Gate Controls / rev. 04.06 – 19
Model CS 300
Voltage 400 / 230 V
Frequency 50 Hz
Current 10 A max.
Protection grade IP 65
Operating
temperature
-10˚ C to +60˚ C
Protection class I
Control voltage 24 V DC
Dimensions 215 mm x 275 mm x 190 mm
Weight 1,8 kg
Manufacturer:
MFZ Antriebe GmbH & Co. Kg, Neue Muehle 4,
48739 Legden, Germany
We hereby declare that, by virtue of their conceptual
development and design, as well as their
manufacture as we have brought them onto the
market, the products cited below:
CS300 Door Controls
conform to the relevant basic health and safety
regulations of the following EU guidelines and
standards:
EU Construction Products Directive 89/106/EU
DIN EN 13241-1
DIN EN 12453
DIN EN 12445
DIN EN 12978
EU Electromagnetic Compatibility Directive
89/336/EU
EN 50081-1
EN 50082-1
EN 55014-1
EN 61000-3-2
EN 61000-3-3
EU Machinery Directive 98/37/EU
EN 60204-1
EN 292-1
EU Low Voltage Directive 73/23/EU
EN 60335-1
EN 60335-2-103
BGR 232 - Directive for Power-driven Windows,
Doors and Gates Directive for Power-driven
Windows, Doors and Gates
Legden, 1 February 2006
Manufacturer‘s signature:
Hans-Joachim Molterer
Position of signatory:
Manager
11. Technical data 12. EU Declaration of Conformity
