Burkert 8840 User manual

Operating Instructions
Bedienungsanleitung
Manuel d‘utilisation
Type 8840
Modular process valve cluster, DN20 and DN25
Modularer Prozessventilknoten, DN20 und DN25
Nœud de vanne de process modulaire, DN20 et DN25

We reserve the right to make technical changes without notice.
Technische Änderungen vorbehalten.
Sous réserve de modifications techniques.
© Bürkert Werke GmbH & Co. KG, 2018
Operating Instructions 1806/00_EU-ML_00810703 / Original DE

3
1 THE OPERATING INSTRUCTIONS....................................... 4
1.1 Denitionofterms ....................................................... 4
1.2 Symbols....................................................................... 4
2 INTENDED USE .................................................................... 5
3 BASIC SAFETY INSTRUCTIONS.......................................... 5
4 GENERAL INFORMATION .................................................... 6
4.1 Contact addresses ...................................................... 6
4.2 Warranty ...................................................................... 6
4.3 InformationontheInternet.......................................... 6
5 PRODUCT DESCRIPTION .................................................... 7
5.1 Structure and description............................................ 7
5.2 Versions ....................................................................... 7
5.3 Function....................................................................... 7
6 TECHNICAL DATA................................................................. 8
6.1 Conformity................................................................... 8
6.2 Standards .................................................................... 8
6.3 Type label .................................................................... 8
6.4 Operating conditions ................................................... 9
6.5 Mechanicaldata .......................................................... 9
6.6 Pneumatic data ........................................................... 9
6.7 Pressure range........................................................... 10
7 INSTALLATION .................................................................... 10
7.1 Preparatory work ....................................................... 11
7.2 Installthevalvebody................................................. 11
7.3 Deviceswithweldendsconnection.......................... 11
7.4 Rotatingtheactuator................................................. 13
7.5 Connectthedevicepneumatically ............................ 13
7.6 Removal .................................................................... 14
8 MAINTENANCE, TROUBLESHOOTING ............................. 15
8.1 Maintenance work ..................................................... 15
8.2 Cleaning .................................................................... 15
8.3 Recommended auxiliary materials ............................ 15
8.4 Malfunction................................................................ 16
9 REPLACEMENT PARTS...................................................... 17
9.1 ReplacementpartsforactuatorCLASSIC ................ 17
9.2 ReplacementpartsforactuatorELEMENT ............... 18
10 TRANSPORT, STORAGE, DISPOSAL................................. 18
Table of contents
Type 8840
english

4
The operating instructions
Type 8840
1 THE OPERATING
INSTRUCTIONS
Theoperatinginstructionsdescribetheentirelifecycleofthedevice.
Keeptheseinstructionsreadytohandattheoperationsite.
Important safety information.
▶Carefullyreadtheseinstructions.
▶Observeinparticularthesafetyinstructions,intendeduse
and operating conditions.
▶Persons,whoworkonthedevice,mustreadandunderstand
theseinstructions.
1.1 Denition of terms
Term in these instructions representative for
Valve cluster,
device
modular process valve cluster Type 8840
Valve body valve body block
Exatmosphere potentiallyexplosiveatmosphere
Exapproval approvalinthepotentiallyexplosive
atmosphere
1.2 Symbols
DANGER
Warns of an immediate danger.
▶Failuretoobservethewarningwillresultinafatalorserious
injury.
WARNING
Warns of a potentially dangerous situation.
▶Failuretoobservethewarningmayresultafatalorserious
injury.
CAUTION
Warns of a possible danger.
▶Failuretoobservethewarningmayresultinamoderateor
minor injury.
NOTE
Warns of damage to property.
Indicatesimportantadditionalinformation,tipsand
recommendations.
Referstoinformationintheseoperatinginstructionsorin
otherdocumentation.
Highlightsinstructionstoavoidadanger.
Designatesaprocedurewhichyoumustcarryout.
english

5
Intended use
Type 8840
2 INTENDED USE
The modular process valve cluster Type 8840 is designed for
controlling the ow rate of liquid and gaseous media, especially
distributing and collecting or mixing and supplying media.
▶Usethedeviceforitsintendedpurposeonly.Non-intended
useofthedevicemaybedangeroustopeople,nearby
equipmentandtheenvironment.
▶Inareasat risk of explosion,only usedevicesapprovedfor
useinthoseareas.Thesedevicesarelabeledwithaseparate
Extypelabel.Whenutilizedinapotentiallyexplosiveatmo-
sphere,alwayspayattentiontothedetailsontheseparateEx
typelabelandtheExadditionalinstructionscontainedinthe
scopeofdelivery.
▶The prerequisites for safe and ecient operation are correct
transport, storage, assembly, installation, start-up, operation,
and maintenance.
▶Whenusingthedevice,observethepermitteddata,operat-
ingconditionsandapplicationconditions.Thisinformation
canbefoundinthecontractualdocuments,theoperating
instructionsandonthetypelabel.
▶Usethedeviceonlyinconjunctionwiththird-partydevices
andcomponentsrecommendedandauthorizedbyBürkert.
▶Makesurethedeviceisinecientworkingorderbeforeuse.
3 BASIC SAFETY INSTRUCTIONS
These safety instructions do not consider any contingencies or
incidentswhichoccurduringassembly,operationandmaintenance.
Theoperatorisresponsibleforobservingthelocation-specicsafety
regulations,alsowithreferencetothepersonnel.
Risk of injury from high pressure and medium leakage.
▶Beforeworkingonthesystemordevice,switchothepressure
and vent or drain lines.
Risk of burns from hot media.
▶Donottouchthedeviceduringoperation.
Risk of injury from moving parts.
▶Donotreachintoopenings.
Risk of injury when opening the actuator due to a tensioned
spring.
Iftheactuatorisopened,thereisariskofinjuryfromthespring
jumping out.
▶TheactuatorType2100mustnotbeopened.
General hazardous situations.
Topreventinjury,ensurethat:
▶Thedevicemaybeoperatedonlywheninperfectcondition
andinconsiderationoftheoperatinginstructions.
english

6
General information
Type 8840
▶Donottransport,installorremoveheavydeviceswithout
theaidofasecondpersonandusingsuitableauxiliary
equipment.
▶Donotmakeanychangesonthedeviceanddonotsubject
ittomechanicalstress.
▶Securethesystemfromunintentionalactuation.
▶Onlytrainedtechniciansmayperforminstallationandmain-
tenance work.
▶Installthedeviceinaccordancewiththeregulationsinforce
inthecountry.
▶Afteraninterruptioninthepowersupply,ensurethatthepro-
cessisrestartedinadenedorcontrolledmanner.
▶Observethegeneralrulesoftechnology.
▶Toattachthevalvecluster,useonlythefactory-provided
fasteningthreads.
▶Feedonlyairorneutralgasesupto60°intothepilotairports.
▶Ensureadequatefreedomofmotionandsucientlylong
pneumatichosesonthepilotairportswhichmoveupand
downasdeterminedbythevalvestroke.
▶Donotremovebodycomponentsfromthevalvecluster.
▶Removethepilotairportsfortransportation.
4 GENERAL INFORMATION
4.1 Contact addresses
Germany
BürkertFluidControlSystems
Sales Center
Christian-Bürkert-Straße13-17
D-74653Ingelngen
Tel.+49(0)7940-10-91111
Fax+49(0)7940-10-91448
E-mail:[email protected]
International
Contactaddressesarefoundonthenalpagesoftheprinted
operating manual.
AndalsoontheInternetat:www.burkert.com
4.2 Warranty
Thewarrantyisonlyvalidifthedeviceisusedasintendedinaccor-
dancewiththespeciedapplicationconditions.
4.3 Information on the Internet
TheoperatinginstructionsanddatasheetsforBürkert products
canbefoundontheInternetat:www.burkert.com
english

7
Product description
Type 8840
5 PRODUCT DESCRIPTION
5.1 Structure and description
Thevalveclusterissuitableforcontrollingliquidandgaseous
media and can be used to distribute, collect, mix or supply
media.
Thevalvecluster,basedonamodularvalvebody,allowsdierent
congurations. The individual parts are joined hermetically tight
and in a very compact way.
Bodysystem
ActuatorCLASSIC
Actuator
ELEMENT
Fig. 1: Structure of the valve cluster
5.2 Versions
Dependingontherequirementandpreferredtypeofautomation,
dierentactuators(ELEMENT,CLASSIC,INOX)canbeselected.
Thefollowingoricesareavailable:
•DN10(screweddownandsealedwithagraphiteseal),
•DN20 and DN25 (welded).
Theorice10isdescribedinseparateoperating
instructions.
5.3 Function

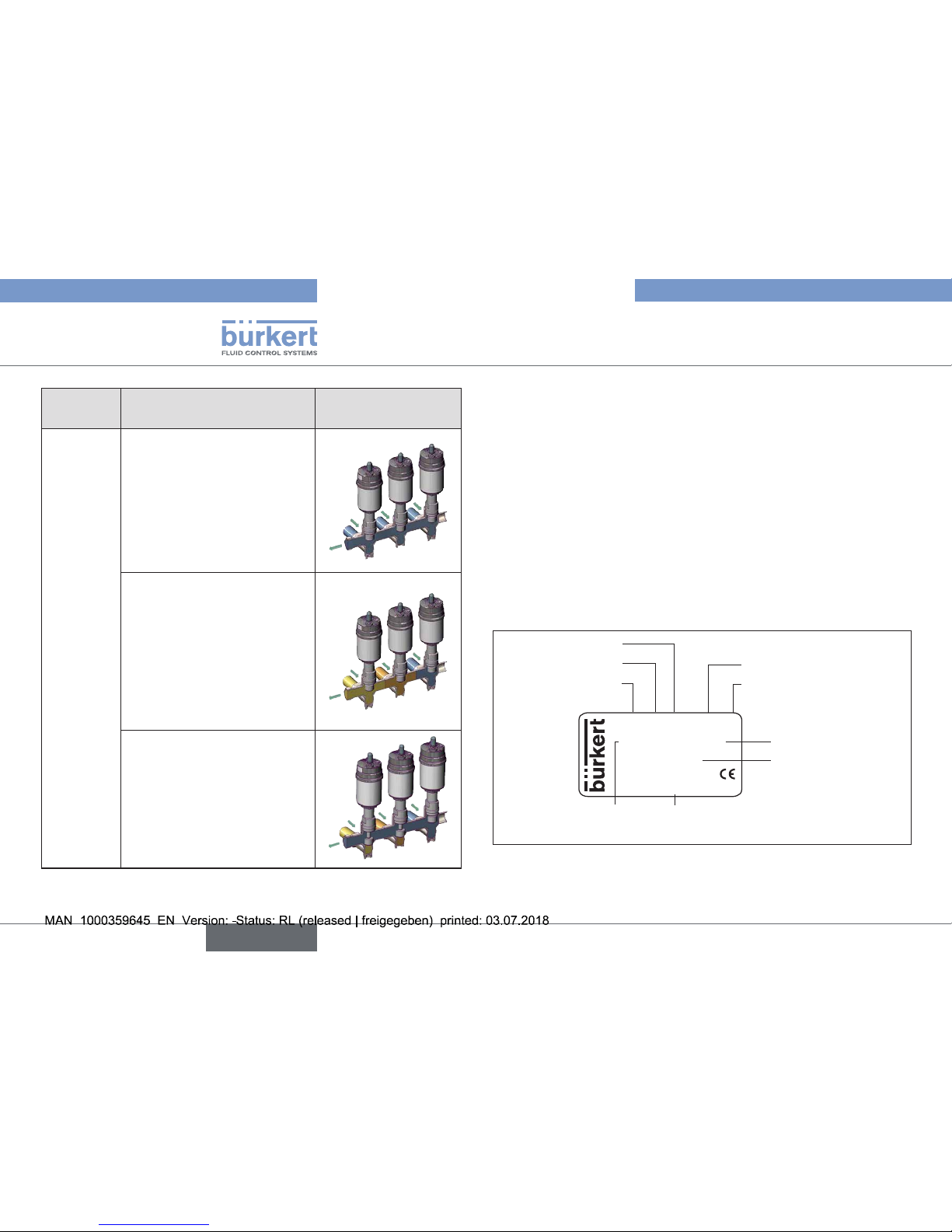

Function Description of the
application
Representation
Distributor Distributing:
Thevalveclusterdistributes
themediumfromafeedline
to several consumers
english

8
Technical data
Type 8840
Function Description of the
application
Representation
Collector Collecting:
Themediumcanbe
collectedfromseveral
consumers
Mixing:
Dierentmedia,e.g.hot
water and cold water or
variouschemicals,canbe
mixed
Supplying:
Dierentmedia,e.g.
various cleaning agents,
can be supplied alternately
to one consumer
6 TECHNICAL DATA
6.1 Conformity
ThedeviceconformswiththeEUDirectivesaccordingtotheEU
DeclarationofConformity(ifapplicable).
6.2 Standards
Theappliedstandards,whichverifyconformitywiththeEUDirec-
tives,canbefoundontheEU-TypeExaminationCerticateand/
ortheEUDeclarationofConformity(ifapplicable).
6.3 Type label
Type
Controlfunction
Orice
Seal material
Function
S=Collector
Pilot pressure
Port connection
Medium pressure
Order no.
Made in Germany
00283928 W1X LU
8840 A 20,0 PTFE S
Pilot 5,2 - 10 bar
G 3/4 Pmed 16 bar
Fig. 2: Description of the type label
english

9
Technical data
Type 8840
6.4 Operating conditions
Operating conditions
Permitted ambient
temperature
CLASSIC ELEMENT
-10...+60°C
(PA-actuator)
+5...+140°C
(PPS-actuator)
0...+60°C
Permitted medium
temperature
-10...+180°C
Flow media Water,alcohols,oils,fuels,hydraulic
uid,salinesolutions,alkalis,organic
solvents, vapor, air, neutral gases
6.5 Mechanical data
Mechanical data
Controlfunction CFA,CFB(onrequest)
Dimensions Dependingonthenumberofvalve
positions
Weight Dependingonthenumberofvalve
positions and installed actuators
Numberofvalveslots 2to5(othersonrequest)
Bodymaterial Stainlesssteelprecisioncover316L
(CF3M)
Seal material Seatseal:PTFE
Sealbetweenactuatorandbody:
graphite
6.6 Pneumatic data
Pneumatic data
Control media Neutral gases, air
Max. pilot pressure 10 bar
Lineconnection Thread:G3/4toG1,NPT3/4to
NPT1
Weld ends according to ISO 4200
(on request)
ClampaccordingtoDIN32676/
SeriesB(onrequest)
Pilot air port CLASSIC:G1/4
ELEMENT:Push-In6/4
english

10
Installation
Type 8840
6.7 Pressure range
6.7.1 Pressure range for actuator CLASSIC
Orice
[mm]
Actuator
size
[mm]
Minimum pilot
pressure
Maximum operating
pressure up to 180 °C
CFA [bar] CFA [bar] CFB [bar]
20 50 3.9 11 16
25 63 4.2 11 16
6.7.2 Pressure range for actuator ELEMENT
Orice
[mm]
Actuator
size
[mm]
Minimum pilot
pressure
Maximum operating
pressure up to 180 °C
CFA [bar] CFA [bar] CFB [bar]
20 50 5.2 16 16
25 70 5.0 16 16
7 INSTALLATION
DANGER
Risk of injury from high pressure and medium leakage.
▶Beforeworkingonthesystemordevice,switchothepressure
and vent or drain lines.
WARNING
Risk of injury from improper installation.
▶Installationmaybecarriedoutonlybytrainedtechnicians
andwiththeappropriatetools.
▶Secure system against unintentional activation.
▶Afterinstallation,ensurethattheprocessisrestartedina
controlled manner.
Risk of burns from hot media.
▶Donottouchthedeviceduringoperation.
Risk of injury from moving parts.
▶Donotreachintoopenings.
CAUTION
Risk of injury due heavy devices.
Duringtransportorduringassembly,aheavydevicemayfall
and cause injury.
▶Donottransport,installorremoveheavydeviceswithoutthe
aidofasecondpersonandusingsuitableauxiliaryequipment.
▶Use appropriate tools.
english

11
Installation
Type 8840
7.1 Preparatory work
Theinstallationpositionisoptional.Preferablywithactuatorface
up.
→Observeowdirection.
→Observetypeofincomingow.
→Removecontaminantsfrompipelines.
→Ensurethatthepipelinesarealigned.
7.1.1 Install dirt traps
DirttrapfordeviceswithapprovalinaccordancewithDINEN161
InaccordancewithDINEN161(Automaticshut-ovalvesfor
gas burners and gas appliances) a dirt trap must be connected
upstreamofthevalveandpreventtheinsertionofa1mmplug
gauge.
Fordeviceswithstainlesssteelbody:
→Installdirttrapsupstreamofthevalve.
7.2 Install the valve body
Deviceswithweldendsconnection:
→Weldvalvebodyinpipelinesystem.Pleaseobservechapter
“7.3”.
Deviceswiththreadorclampconnection:
→Connect valve body to pipeline.
7.3 Devices with weld ends connection
NOTE
Damage to the actuator during welding of the valve body into
the pipeline.
▶Removetheactuatorbeforeweldingintothepipeline.
7.3.1 Remove the actuator
→Clampthevalvebodyinaholdingdevice.
NOTE
Damage to the seat seal or the seat contour.
▶Whenremovingtheactuator,ensurethatthevalveisopen.
→ForactuatorsCLASSICandcontrolfunctionA:
pressurizelowerpilotairportwithcompressedair(5bar):
valve opens.
→ForactuatorELEMENTandcontrolfunctionA:
pressurizethepilotairport1withcompressedair(5bar):
valve opens.
→Counterontheatsofthenipplewithasuitableopen-end
wrench.
→Unscrewtheactuator.
english

12
Installation
Type 8840
7.3.2 Install the actuator
Nipple
Seal
Fig. 3: Install the actuator
→Checkthesealandifrequired,replaceit.Removeresidues
completely.
WARNING
Danger if incorrect lubricants used.
Unsuitablelubricantmaycontaminatethemedium.Inoxygen
applicationsthereisariskofanexplosion.
▶Inspecicapplications,e.g.oxygenoranalysisapplications,
useappropriatelyauthorisedlubricantsonly.
→Greasenipplethreadbeforere-installingtheactuator(e.g.
withKlüberpasteUH196-402fromKlüber).
NOTE
Damage to the seat seal or the seat contour.
▶Wheninstallingtheactuator,ensurethatthevalveisopen.
→ForactuatorsCLASSICandcontrolfunctionA:
pressurizelowerpilotairportwithcompressedair(5bar):
valve opens.
→ForactuatorELEMENTandcontrolfunctionA:
pressurizethepilotairport1withcompressedair(5bar):
valve opens.
→Counterontheatsofthenipplewithasuitableopen-end
wrench.
→Screwactuatorintothevalvebody.
Observetighteningtorque.
7.3.3 Tightening torque
Orice (DN) Tightening torque [Nm]
20 50 ±3
25 60 ±3
Tab. 1: Tightening torque
english

13
Installation
Type 8840
7.4 Rotating the actuator
Thepositionoftheconnectionscanbealignedsteplessly
byrotatingtheactuatorthrough360°.
NOTE
Damage to the seat seal or the seat contour.
▶Whenrotatingtheactuator,ensurethatthevalveisopen.
→Clampthevalvebodyinaholdingdevice.
→ForactuatorsCLASSICandcontrolfunctionA:
pressurizelowerpilotairportwithcompressedair(5bar):
valve opens.
→ForactuatorELEMENTandcontrolfunctionA:
pressurizethepilotairport1withcompressedair(5bar):
valve opens.
→Counterontheatsofthenipplewithasuitableopen-end
wrench.
DANGER
Risk of injury from discharge of medium and pressure.
Ifthedirectionofrotationiswrong,thebodyinterfacemay
becomedetached.
▶Rotatetheactuatorinthespecieddirectiononly.
→Rotatecounter-clockwise(asseenfrombelow)tobringthe
actuatormoduleintotherequiredposition.
7.5 Connect the device pneumatically
DANGER
Risk of injury from unsuitable connection hoses.
▶Useonlyhoseswhichareauthorisedfortheindicatedpressure
and temperature range.
▶Observethedatasheetspecicationsfromthehose
manufacturers.
upper
lower

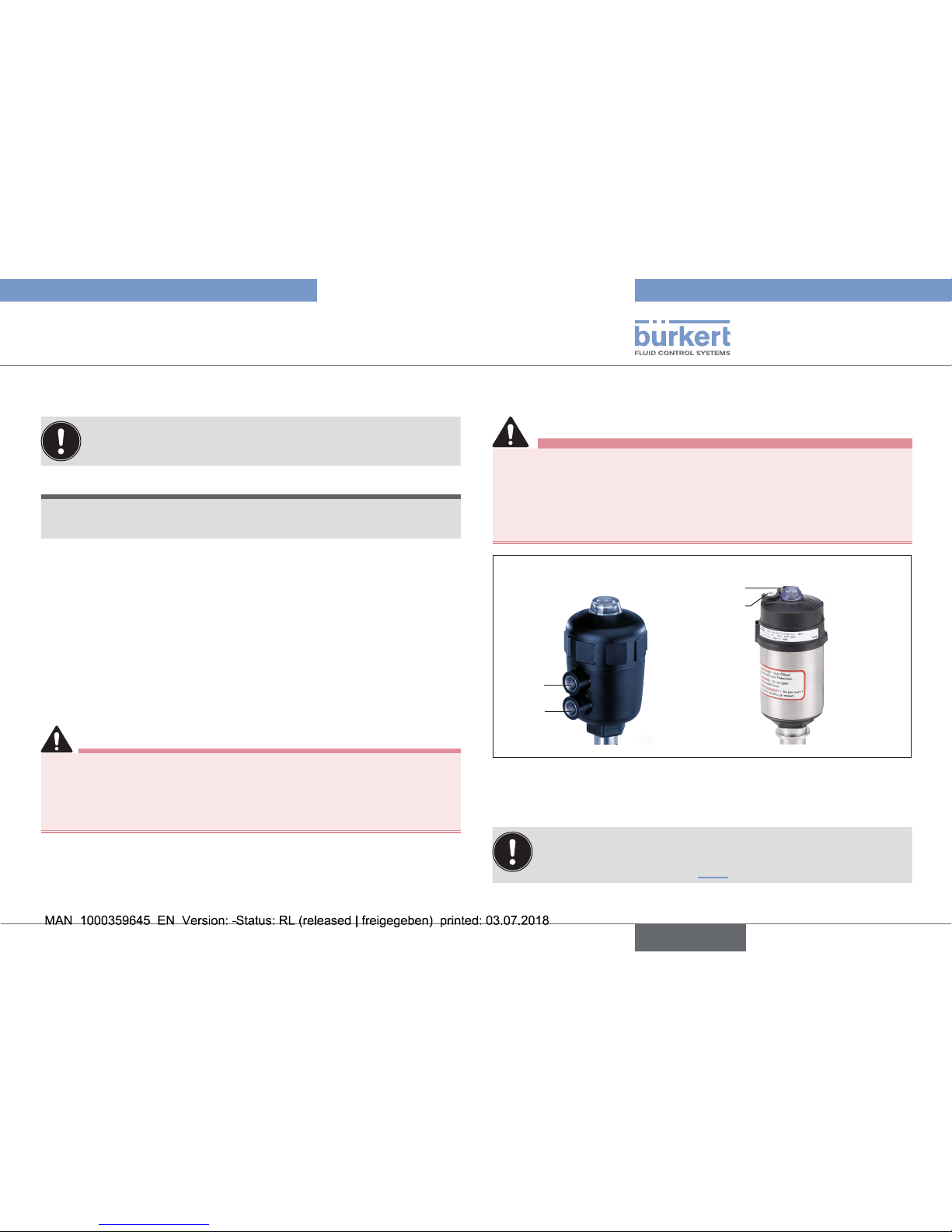

ActuatorCLASSIC ActuatorELEMENT
2
1
Fig. 4: Pilot air ports
7.5.1 Connection of the control medium
Thepositionoftheconnectionscanbealignedsteplessly
by rotating the actuator through 360°. The procedure is
describedinthechapter“7.4”.
english

14
Installation
Type 8840
Connectionofthecontrolmediumfordeviceswithactuator
CLASSIC:
→ControlfunctionA:
Connectthecontrolmediumtothelowerpilotairport.
→ControlfunctionB:
Connectthecontrolmediumtotheupperpilotport.
Connectionofthecontrolmediumfordeviceswithactuator
ELEMENT:
→ControlfunctionAandB:
Connectthecontrolmediumtothepilotairport1.
Ifusedinanaggressiveenvironment,werecommend
conveyingallfreepneumaticconnectionsintoaneutral
atmospherewiththeaidofapneumatichose.
7.6 Removal
DANGER
Risk of injury from high pressure and medium leakage.
▶Beforeworkingonthesystemordevice,switchothepressure
and vent or drain lines.
→Loosenthepneumaticconnection.
→Removetheactuatorfromvalvebody.
english

15
Maintenance, troubleshooting
Type 8840
8 MAINTENANCE,
TROUBLESHOOTING
WARNING
Risk of injury from improper maintenance.
▶Maintenance may only be carried out by trained specialist
personnel using suitable tools.
▶Securesystemfromunintentionalactivation.
▶Following maintenance, ensure a controlled restart.
8.1 Maintenance work
8.1.1 Wearing parts
Partswhicharesubjecttonaturalwear:
Actuator CLASSIC Actuator ELEMENT
•Valveset(swivelplatewith
PTFE-seal,pin,seal)
•Valveset(swivelplatewith
PTFE-seal,pin,seal)
•Sealsetforactuator •Sealsetforthepacking
gland
Theexactprocedureforreplacingthevalvesetandseal
setcanbefoundontheInterneton:
www.burkert.com → Type 2000 www.burkert.com → Type 2100
8.1.2 Visual inspection
Performregularvisualinspectionsaccordingtotheapplication
conditions:
→Checkmediaconnectionsforleaks.
→Checkreleaseboreforleaks.
8.2 Cleaning
Commerciallyavailablecleaningagentscanbeusedtocleanthe
outside.
NOTE
Avoid causing damage with cleaning agents.
▶Beforecleaning,checkthatthecleaningagentsarecompat-
iblewiththebodymaterialsandseals.
8.3 Recommended auxiliary materials
Thefollowingauxiliarymaterialsarerecommendedinthismanual
fortheproperoperation,maintenanceandrepairofthedevice:
Type of aux-
iliary material
Auxiliary material Manufacturer
information
Lubrication
paste
KlüberpasteUH1
96-402
KlüberLubrication
MünchenKG
www.klueber.de
Adhesive Loctite640 MarketingLoctite,
HenkelAG&Co.KGaA
www.loctite.de
english

16
Maintenance, troubleshooting
Type 8840
8.4 Malfunction
Malfunction Reason Remedial action
Actuatordoes
notswitch
Pilot air port
interchanged
CFA:Connectthepilot
air port
CLASSIC:lower,
ELEMENT:1
CFB:Connectthepilot
air port
CLASSIC:upper,
ELEMENT:2
Pilot pressure too
low
Observe pressure
specicationsonthe
type label
Medium pressure
toohigh
Flow direction
reversed
Observethedirection
arrowsinchapter“5.3”
Malfunction Reason Remedial action
Valve is not
sealed
Dirt between seal
and valve seat
Installing dirt trap
Seat seal worn Installing new swivel
plate
Flow direction
reversed
Observethedirection
arrowsinchapter“5.3”
Pilot pressure too
low
Observe pressure
specicationsonthe
type label
Medium pressure
toohigh
Valve is leaking
ontherelease
bore
Packing gland
worn
Replace packing gland
or replace actuator
english

17
Replacement parts
Type 8840
9 REPLACEMENT PARTS
CAUTION
Risk of injury and/or damage by the use of incorrect parts.
Incorrect accessories and unsuitable replacement parts may
causeinjuriesanddamagethedeviceandthesurrounding
area.
▶Use only original accessories and original replacement parts
fromBürkert.
9.1 Replacement parts for actuator
CLASSIC
Thefollowingreplacementpartsareavailablefortheactuator
CLASSIC:
•Sealsetforactuator
consistsofthesealingoftheactuators
•Valve set
consistsofswivelplate,pinandseal
9.1.1 Seal set for PA-actuator
Actuator
size [mm]
Orice
[mm]
Order number
(VA-body)
50 20 233 588
63 25 233 591
9.1.2 Seal set for PPS-actuator
Actuator
size [mm]
Orice
[mm]
Order number
(VA-body)
50 20 233 582
63 25 233 583
9.1.3 Valve set
Actuator
size [mm]
Orice
[mm]
Order number
(PTFE-seal)
50 20 011 171
50 25 011 202
63 25 160 737
english

18
Transport, storage, disposal
Type 8840
9.2 Replacement parts for actuator
ELEMENT
Thefollowingreplacementpartsareavailablefortheactuator
ELEMENT:
•Sealsetforpackinggland
consistsoftheindividualpartsofthepackinggland,sealand
lubricant
•Valve set
consistsofswivelplate,pinandseal
9.2.1 Seal set
Actuator size
[mm]
Orice
[mm]
Spindle
diameter
Order
number
50 20 10 216 433
70 25 10 216 433
9.2.2 Valve set
Actuator size
[mm]
Orice
[mm]
Order number
50 20 011 171
70 25 160 737
10 TRANSPORT, STORAGE,
DISPOSAL
CAUTION
Risk of injury due heavy devices.
Duringtransportorduringassembly,aheavydevicemayfall
and cause injury.
▶Donottransport,installorremoveheavydeviceswithout
theaidofasecondpersonandusingsuitableauxiliary
equipment.
▶Use appropriate tools.
NOTE
Transport damage to inadequately protected devices.
•Duringtransportationprotectthedeviceagainstwetanddirt
inshock-resistantpackaging.
•Maintain permissible storage temperature
Incorrect storage may damage the device.
•Storethedeviceinadryanddust-freelocation.
•Storagetemperature:-20…+65°C.
Damage to the environment caused by device components
contaminated with media.
•Disposeofthedeviceandpackaginginanenvironmentally
friendlymanner.
•Observeapplicableregulationsondisposalandtheenvironment.
english

www.burkert.com
Table of contents
Other Burkert Control Unit manuals

Burkert
Burkert 6013 User manual

Burkert
Burkert 6650 User manual

Burkert
Burkert Robolux 2036 User manual

Burkert
Burkert 2012 User manual

Burkert
Burkert 5411 User manual

Burkert
Burkert 0340 User manual

Burkert
Burkert 8647 AirLINE SP User manual

Burkert
Burkert 0470 User manual

Burkert
Burkert 6126 User manual

Burkert
Burkert 2030 User manual

Burkert
Burkert 2657 User manual

Burkert
Burkert 7011 User manual

Burkert
Burkert 6213 User manual

Burkert
Burkert 5281 EV User manual

Burkert
Burkert 0470 User manual

Burkert
Burkert 0301 User manual

Burkert
Burkert 6026 User manual

Burkert
Burkert PTB 07 ATEX 2063 X User manual

Burkert
Burkert 2060 User manual

Burkert
Burkert 6520 NAMUR User manual
