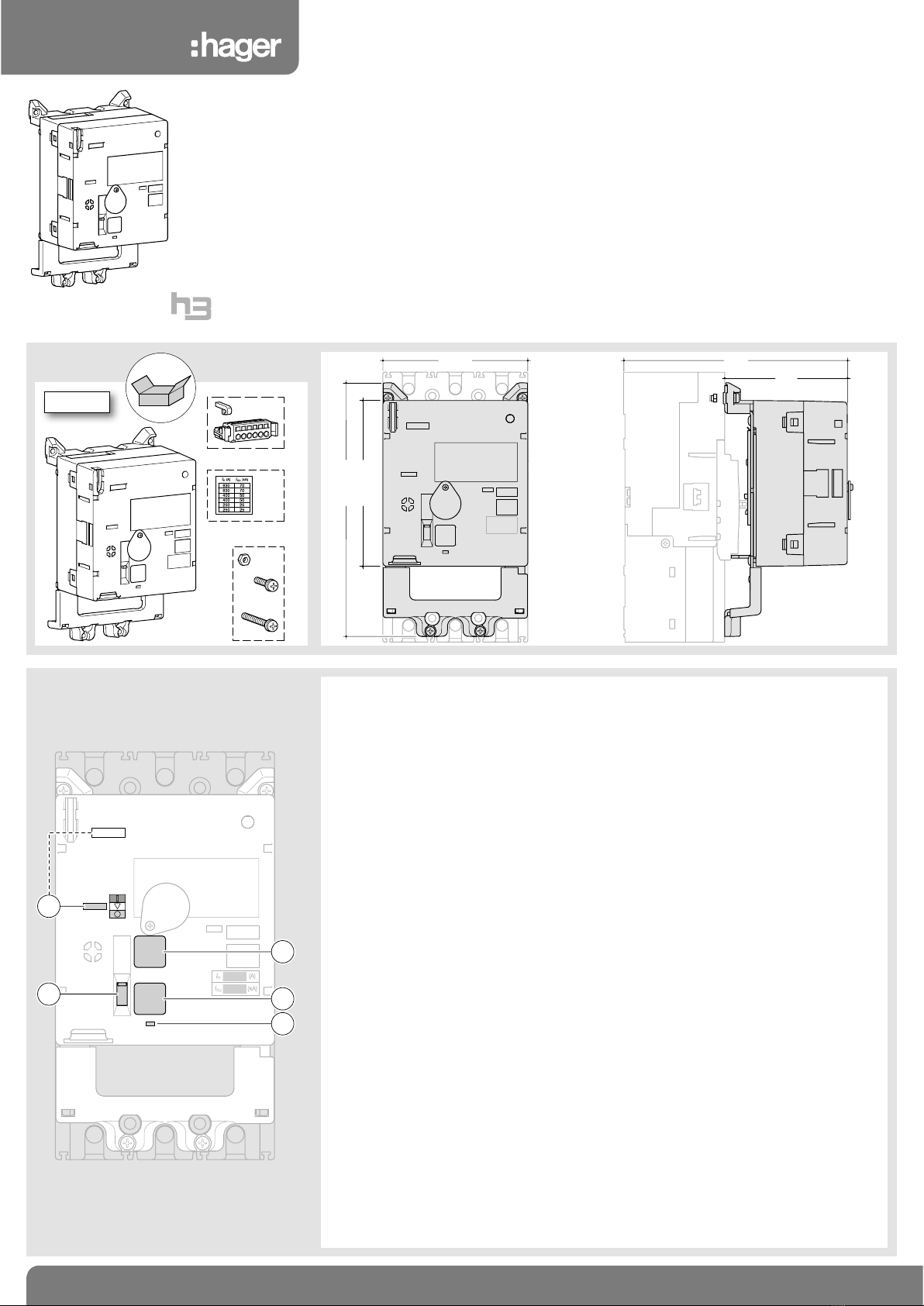

hager h3 h400 User manual

Ech. 30%
Ech. 17%
AI1_h400_Cde motorisée_T1_01
Ech. 25%
AI1_h400_Cde motorisée_T1_03
244 mm
140
160 mm
213
116
Ech. 20%
(vis + connecteur = 30%)
AI1_h400_Cde motorisée_T1_02
x1
x1
x 2
x 2
x 1
aCommande motorisée HXD04.H Notice d’instructions
zMotor operator HXD04.H User instructions
eMotorantrieb HXD04.H Montageanleitung
yComando a motore HXD04.H Istruzioni di montaggio
rMando motor HXD04.H Instrucciones de uso
iMotoraandrijving HXD04.H Gebruiksaanwijzing
tComando motorizado HXD04.H Instruções de instalação
oMotorbetjening HXD04.H Bruksanvisning
uΠιλότoς κινητήρα HXD04.H Oδηγίες χρήσεως
mNapęd silnikowy HXD04.H Instrukcja obsługi
wМотор-привод HXD04.H Руководство по эксплуатации
n电机操作 HXD04.H 用户手册
Ech. 35%
AI1_h400_Cde motorisée_T1_04
CHARGED
PUSH TO
TRIP
PUSH TO
TRIP
1
5
2
3
4
PUSH TO
ON
PUSH TO
ON
1indicateur de position de la manette :
- rouge = ON (discharged)
- blanc = déclenché (charged)
- vert = OFF / Reset (charged)
2bouton d’armement
3bouton de déclenchement
4voyant de bon fonctionnement
5levier de sélection :
- position basse = manuel
- position haute = motorisé
1handle position indicator:
- red = ON (discharged)
- white = trip (charged)
- green = OFF / Reset (charged)
2«put in on» button
3button, Push-to-Trip
4«good work» light indicator
5select lever:
- low position = manual
- top position = motorized
1Position des Schalthebels:
- rot = EIN (discharged)
- weiss = ausgelöst (charged)
- grün = AUS / Reset (charged)
2Startknopf
3Prüftaste, zum auslösen drücken
4Anzeige = in Betrieb
5Auswahlschalter
- Untere Position = Handbetrieb
- Obere Position = Motorbetrieb
1indicatore di posizione della leva di
manovra:
- rosso = ON (discharged)
- bianco = scanciato (charged)
- verde = OFF / Reset (charged)
2pulsante di riarmo
3pulsante di sgancio
4LED = funzionamento corretto
5selettore funzionamento
- posizione bassa = manuale
- posizione alta = mototizzato
1Indicador de posición de la maneta:
- rojo = ON (descargado)
- blanco = disparado (cargado)
- verde = OFF / Reset (cargado)
2botón de rearme
3pulsador de disparo
4piloto indicador de funcionamiento
correcto
5Selector de modo de funcionamiento
- selector arriba = manual
- selector abajo = motorizado
1hendelstand-indicator:
- rood = ON (discharged)
- wit = Uitgeschakeld (charged)
- groen = OFF / Reset (charged)
2bewapeningsknop
3uitschakelknop
4LED = goede werking
5selectiehendel:
- laagstand = manueel
- hoogstand = gemotoriseerd
1indicador de posição do punho:
- encarnado = ON (discharged)
- branco = Disparo (charged)
- verde = OFF / Reset (charged)
2botão para armar / ligar
3botão de disparo
4LED = bom funcionamento
5selector de operação
- posição inferior = manual
- posição superior = motorizado
1bryterknappens posisjon indikerer:
- rød = PÅ (discharged)
- hvit = Utløst (charged)
- grønn = AV / Reset (charged)
2startknapp
3utløserknapp
4LED = i drift
5modusvelger
- nedre stilling = manuell
- øvre stilling = motorisert
1 Oπτική ένδειξη της κατάστασης
τoυ διακόπτη:
- κόκκινo = ON (discharged)
- λευκό = πτώση διακόπτη
ισχύoς (charged)
- πράσινo = OFF / Reset (charged)
2 πλήκτρο ενεργοποίησης
3 Πλήκτρo διακoπής
4 λυχνία ένδειξης καλής λειτουργίας
5 επιλογή κατάστασης του διακόπτη:
- κάτω θέση : χειροκίνητη
- επάνω θέση : αυτόματη
1Wskaźnik pozycji dźwigni:
- czerwony = ON (załączony)
- biały = Trip (wyzwolony)
- zielony = OFF (wyłączony)
2Przycisk załącz
3 Przycisk wyłącz
4Wskaźnik poprawnego działania
5Wybór sterowania:
- pozycja dolna = ręczne
- pozycja górna = silnikowe
1 Положение раб. органа:
- красный = ВКЛ (разряжен)
- белый = расцеплен (взведен)
- зелёный = ВЫКЛ / Готов
(взведен)
2 кнопка «»установить»
3 кнопка «снять»
4 Световой индикатор «работа
нормальная»
5 рычажок выбора:
- внизу = ручное
- вверху = моторизованное
1 手柄位置指示:
- 红 =ON (释能)
- 白 = t r i p ( 储 能 )
- 绿 = OFF/Reset (储能)
2 进入 "ON" 按钮
3 进入 "OFF" 按钮
4 "工作正常" 指示灯
5 选择位 : 低位 = 手动, 高位 = 电动
3 P - 4 P
1
6H5533.d
h400, h630
6H5533.d

Ech. 25%
AI1_h400_Cde motorisée_T1_09
6
Ech. 30%
AI1_h400_Cde motorisée_T1_06
AX
AL
SH
UV V
AX
AL
SH
UV V
Ech. 40%
AI1_h400_Cde motorisée_T1_05
TRIP
AI1_h400_Cde motorisée_T1_07
Ech. 25%
(inclinaison commande : Y=+90°)
Ech. 30%
AI1_h400_Cde motorisée_T1_06a
AX
AL
SH
UV V
400
400
250
250
630
630
50
50
25
25
70
70
• Assemblage de la commande motorisée sur
le disjoncteur
• Fitting the motor operator on MCCB
• Verbinden des Motorantrieb mit dem
Leistungsschalter
• Installazione del comando a motore
sull’interruttore
• Ensamblaje del mando motor sobre el
interruptor automático
• Montage motoraandrijving aan vermogensau
tomaat/-schakelaar
• Montagem do comando motorizado no
disjuntor
• Montering av motorbetjening på effektbryter
• Fitting the motor operator on MCCB
• Montaż napędu silnikowego na wyłączniku
• Установка мотор-привода на
автоматический выключатель
• 安装旋转手柄于MCCB上
Ech. 25%
AI1_h400_Cde motorisée_T1_08
M5 x 45
M5 x 25
Ech. 25%
AI1_h400_Cde_motorisée_T1_08a
M5 x 45
M5 x 25
&
"
è§
é
'
!
Ech. 30%
AI1_H400_cde motorisée_T1_23
ø 5,5-8mm
max.
x3
Ech. 30%
AI1_H400_cde motorisée_T1_23
CHARGED
CHARGED
CHARGED
OFF
(green)
Ech. 30%
AI1_H400_cde motorisée_T1_25
4 P
3,6 - 4,4 Nm
• Verrouillage
• Locking
• Verriegelung
• Blocco
• Bloqueo
• Grendeling
• Bloqueio
• Låsing
• Κλείδωμα
• Blokada
• Фиксировать
• 锁
& é "
A
B
2 6H5533.d

Ech. 30%
AI1_h400_Cde motorisée_T1_16
A
B
C
Ech. 1
AI1_h400_Cde motorisée_T1_14
P1
OFF
ON
CP2 E
Uc
+-
OFF/Reset
ON
Ech. 25%
AI1_h400_Cde motorisée_T1_11
24-48 VDC
100-240 VAC
UC :
HXD040H HXD042H
24-48 VDC
24 VDC
48 VDC
100-110 VAC
200-240 VAC
(ON)
(OFF)
(RESET)
Operating voltage
Operating current/
Starting current
Operating
time
100-240 VAC
Power supply requires
Dielectric properties (1 min)
-/9,2 (ON) 4,3/9,8 (OFF, RESET)
-/3,8 (ON) 2,0/5,2 (OFF, RESET)
-/1,9 (ON) 1,3/3,8 (OFF, RESET)
-/3,3 (ON) 0,9/3,8 (OFF, RESET)
-
-
-
-
0,1 s
1,5 s
1,5 s
300 VA mini
1000 VAC1500 VAC
Peak value (A)
• Connexion
• Connection
• Anschluss
• Connessione
• Conexión
• Aansluiting
• Ligação
• Connection
• σύνδεση
• Podłączenie
• Соединение
• 连线
Ech. 45%
AI1_H400_cde motorisée_T1_10
Ech. 50%
AI1_h400_Cde motorisée_T1_21
P1(+)
LED
OFF(RESET)
ON
ON
OFF
LRC
COM
The "+" and "-"symbols
indicate the polarities of
DC-rated motor operators.
Control power circuit
LCR drive circuit
ON/OFF control circuit
Motor drive circuit
Uc
+
-
P2(-)
E
M
&
"
é
(
'
Ech. 25%
AI1_h400_Cde motorisée_T1_17
PUSH TO
TRIP
PUSH TO
ON
Ech. 25%
AI1_h400_Cde motorisée_T1_17
PUSH TO
TRIP
ON
OFF
PUSH TO
ON
• Fonctionnement mode électrique
• Motorized operation
• Elektrische Bedienung
• Funzionamento modo elettrico
• Funcionamiento eléctrico
• Elektrische modus operatie
• Funcionamento em modo eléctrico
• Elektrisk modus operasjon
• Λειτουργία ηλεκτρική μέθοδος
• Tryb działania elektrycznych
• Режим деятельности электрический
• 操作电方式
& é
3 6H5533.d

Ech. 30%
AI1_h400_Cde motorisée_T1_22
PUSH TO
TRIP
PUSH TO
TRIP
PUSH TO
ON
DISCHARGED
DISCHARGED
Approx. 1/2 turns
Ech. 30%
AI1_h400_Cde motorisée_T1_23
Base pour mode manuel
PUSH TO
TRIP
PUSH TO
TRIP
PUSH TO
ON
PUSH TO
ON
DISCHARGED
Ech. 30%
AI1_h400_Cde motorisée_T1_13
PUSH TO
TRIP
Clack !
Clack !
Push to ON
PUSH TO
ON
CHARGED
CHARGED
ON
(red)
OFF 7ON
Ech. 25%
AI1_h400_Cde motorisée_T1_23a
Power lamp ON:
Steps 4➜9
automatically performed
Power lamp OFF:
Proceed Steps
4➜9
Ech. 30%
AI1_h400_Cde motorisée_T1_21
PUSH TO
TRIP
Clack !
Push to Trip
Check red
1
3
Check green
when power lamp ON
Check white
when power lamp OFF
DISCHARGED
DISCHARGED
ON 7TRIP
Ech. 30% rotation clé : -15
AI1_h400_Cde motorisée_T1_19
Base pour mode manuel
PUSH TO
TRIP
PUSH TO
TRIP
PUSH TO
ON
PUSH TO
ON
DISCHARGED
DISCHARGED
Approx. 2 turns
Ech. 30%
AI1_h400_Cde motorisée_T1_20
Base pour mode manuel
PUSH TO
TRIP
PUSH TO
TRIP
PUSH TO
ON
PUSH TO
ON
CHARGED
CHARGED
OFF
(green)
TRIP 7OFF
• Fonctionnement mode manuel
• Manual operation
• Manuele Bedienung
• Funzionamento modo manuale
• Funcionamiento manual
• Manuele bediening
• Funcionamento em modo manual
• Manuell modus operasjon
• Λειτουργία manuel μέθοδος
• Tryb pracy ręcznej
• Режим деятельности ручной
• 操作指南方式
• Interverrouillage électrique (en option)
• Electrical interlock (optional)
• Elektrische Verriegelung (optional)
• Interblocco elettrico (optional)
• Enclavamiento eléctrico (opcional)
• Elektrische vergrendeling (optioneel)
• Encravamento eléctrico (opcional)
• Elektrisk forrigling (valgfritt)
• ηλεκτρική μανδάλωση (προαιρετικά)
• Blokada elektryczna (opcja)
• Электрическая блокировка (опция)
• 电气联锁（可选）
A
Electrical interlock Motor
operator
h400 h630
Motor operator x250 HXB069H
Motor operator h250 HXB069H
Motor operator h400, h630 HXD068H
Motor operator h800, h1000 HXD068H
A B C
'
é
&
é
"
'
(
§
è
!
ç
&
é
"
'
(
!
§
è
ç
When a UVT is used with a motor operator, design the control circuit so that the UVT is energised before a reset or close signal is sent to the motor
operator. A 40ms time delay in the reset and close signals is suffi cient to allow the UVT to energise.
q
A B
&
é
