MG SOLAR Aluminum Ground Mounting System User manual

XIAMEN MEGAN SOLAR CO., LTD.
Address: No. 999, An Ling Road, Huli District, Xiamen City 361009, China
Web: www.mgsolar.cn E-mail: [e-mail]
Tel: [phone] Fax: [phone]
1/12
Aluminum Ground Mounting System Installation Manual
1.Before Installation
1.1.Engineering drawing
MG SOLAR
MG SOLAR

XIAMEN MEGAN SOLAR CO., LTD.
Address: No. 999, An Ling Road, Huli District, Xiamen City 361009, China
Web: www.mgsolar.cn E-mail: [e-mail]
Tel: [phone] Fax: [phone]
2/12
1.2Tools For Installation
1.3 Component List
8mm Allen key Drill Sleeve(M8~M12) Torque Wrench M8~M12
Rule Spirit level Socket Spanner(M8/M14)
Rope Cordless drill
NO. ITEM NO. Products Name
1 MG-AGM-MB-01 Main Beam
2 MG--AGM-GR-01/02 Grounding Rail 01#/02#
3 MG-AGM-HBC-01 H Connector Kit 1#
4 MG-AGM-P-01 Back Leg
5 MG-AGM-BS Back Support
6 MG-AGM-BB-01/02 Bottom Base 01#/02#
7 MG-AGM-IS Inclined Support
8 MG-AGM-HBC-02 H Connector Kit 2#
9 MG-AGM-GRC-50 Ground Rail Clamp
10 MG-AGM-P-01 Front Leg
11 MG-GS-F76-T3-1600 Screw Pile
12 MG-GS-RGL Grounding Lug
13 MG-GS-GC Grounding Clip
14 MG-MC-C-L40 Mid Clamp
15 MG-EC-C-L40 End Clamp
16 MD-AGM-RC-300 Ground Rail Splice Kit
MG SOLAR
MG SOLAR

XIAMEN MEGAN SOLAR CO., LTD.
Address: No. 999, An Ling Road, Huli District, Xiamen City 361009, China
Web: www.mgsolar.cn E-mail: [e-mail]
Tel: [phone] Fax: [phone]
3/12
1.4 Appearance
Main Beam Grounding Rail 01# Grounding Rail 02# H Connector Kit 1# Back Leg
Back Support H Connector Kit 2# Bottom Base 01# Bottom Base 0# Inclined Support
Ground Rail Clamp Front Leg Screw Pile Grounding Lug Grounding Lug
Mid Clamp End Clamp Ground Rail Splice Kit
2. Installation Guide
2.1Positioning installation foundation
According to the engineering drawing, the distance between base location is as follows:
：
Side View
Plan
View
X
X
XY
MG SOLAR
MG SOLAR

XIAMEN MEGAN SOLAR CO., LTD.
Address: No. 999, An Ling Road, Huli District, Xiamen City 361009, China
Web: www.mgsolar.cn E-mail: [e-mail]
Tel: [phone] Fax: [phone]
4/12
Screw Pile Foundation
On the left side picture is screw pile position side view, distance X we called S/N span. Spiral
pile into the underground shall ensure that at least 1400 mm, flange height should be consisten
t.
On the right side picture is ground screw position Plan view, distance Y is we called E/W spa
n. Be sure to error less than 20mm, otherwise It will affect your installation.
Concrete Foundation
The above picture is concrete embedded bolt positioning, the bolt specification is M12, length ≥15
0 ， more than concrete length 30 ~ 40 mm, embedment Length at least 100mm.
Side View
Plan
View
X
X
MG SOLAR
MG SOLAR

XIAMEN MEGAN SOLAR CO., LTD.
Address: No. 999, An Ling Road, Huli District, Xiamen City 361009, China
Web: www.mgsolar.cn E-mail: [e-mail]
Tel: [phone] Fax: [phone]
5/12
2.2 Installation Guide
In generally, most of mounting part would be pre-assembled at our factory. So you just need to open it
and fixed it with screw and bolt according to drawings. Installation steps please see below:
2.2.1 W Type Pre-assembled Mounting Parts Installation
Spread it and confirm the location, then fix it with screw and bolt, please see below:
Front Leg
Inclined Support
Back Leg
Back Le
g
Front Leg
Inclined Support
MG SOLAR
MG SOLAR

XIAMEN MEGAN SOLAR CO., LTD.
Address: No. 999, An Ling Road, Huli District, Xiamen City 361009, China
Web: www.mgsolar.cn E-mail: [e-mail]
Tel: [phone] Fax: [phone]
6/12

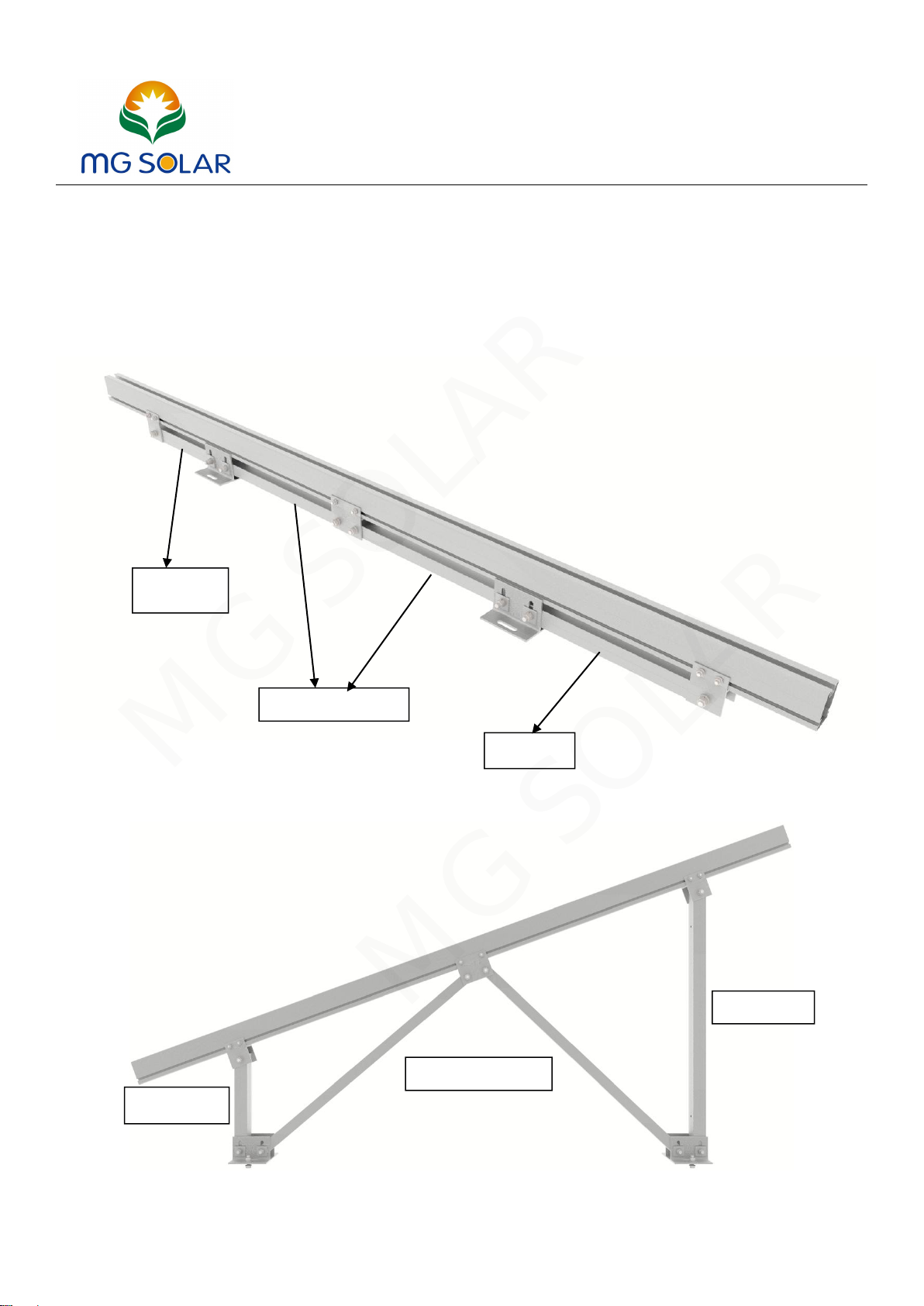

2.2.2 N Type Pre-assembled Mounting Parts Installation
Spread it and confirm the location, then fix it with screw and bolt, please see below:
Back Leg
Inclined Su
pp
ort
Front Leg
Front Leg
Inclined Support
Back Leg
MG SOLAR
MG SOLAR

XIAMEN MEGAN SOLAR CO., LTD.
Address: No. 999, An Ling Road, Huli District, Xiamen City 361009, China
Web: www.mgsolar.cn E-mail: [e-mail]
Tel: [phone] Fax: [phone]
7/12
2.2.3 No Front Leg Type Pre-assembled Mounting Part Installation
Spread it and confirm the location, then fix it with screw and bolt, please see below:
Inclined Su
pp
ort
Back Leg
Inclined Su
pp
ort
Back Su
pp
ort
MG SOLAR
MG SOLAR

XIAMEN MEGAN SOLAR CO., LTD.
Address: No. 999, An Ling Road, Huli District, Xiamen City 361009, China
Web: www.mgsolar.cn E-mail: [e-mail]
Tel: [phone] Fax: [phone]
8/12
2.3 Connect Pre-assembled mounting part with different foundations
Screw Pile Foundation:
Concrete Block Foundation
MG SOLAR
MG SOLAR

XIAMEN MEGAN SOLAR CO., LTD.
Address: No. 999, An Ling Road, Huli District, Xiamen City 361009, China
Web: www.mgsolar.cn E-mail: [e-mail]
Tel: [phone] Fax: [phone]
9/12
After building connection with foundations, you can get below result:
a) Screw Pile Foundation
b) Concrete Block Foundation
MG SOLAR
MG SOLAR

XIAMEN MEGAN SOLAR CO., LTD.
Address: No. 999, An Ling Road, Huli District, Xiamen City 361009, China
Web: www.mgsolar.cn E-mail: [e-mail]
Tel: [phone] Fax: [phone]
10 /12

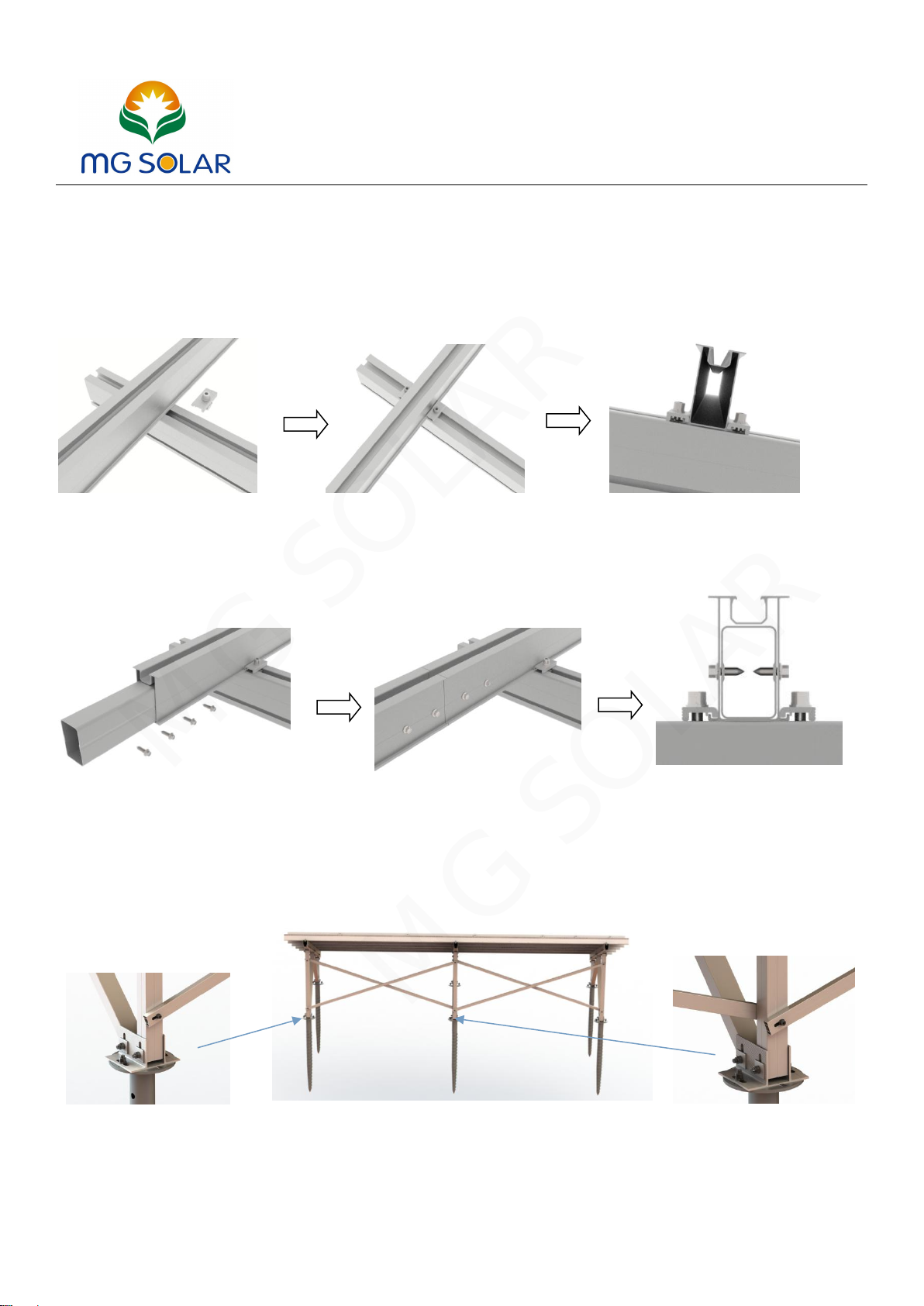

2.4 Grounding Rail Installation
According to the drawing, put the rail on the right position of main beam and use grounding rail clamp to
fix it in the main beam, please see below pictures:
When the length of grounding rail is not enough, we can use grounding rail splice kit to connect them to get
longer rail, please see below pictures:
2.5: Back Support Installation
About the installation details of back support, please see below pictures:
MG SOLAR
MG SOLAR

XIAMEN MEGAN SOLAR CO., LTD.
Address: No. 999, An Ling Road, Huli District, Xiamen City 361009, China
Web: www.mgsolar.cn E-mail: [e-mail]
Tel: [phone] Fax: [phone]
11 /12
2.6 Solar Panel Installation
2.6.1Using End Clamp to fix solar panel
2.6.2 Using Mid Clamp to fix solar panel
2.6.3 Grounding Clip Installation
Put grounding clip
on the grounding rail
Put solar panel on the one
side of grounding clip
Mid clamp installation step
same as 2.62
Put solar panel on the other side
of grounding clip, then locked it.
MG SOLAR
MG SOLAR

XIAMEN MEGAN SOLAR CO., LTD.
Address: No. 999, An Ling Road, Huli District, Xiamen City 361009, China
Web: www.mgsolar.cn E-mail: [e-mail]
Tel: [phone] Fax: [phone]
12 /12

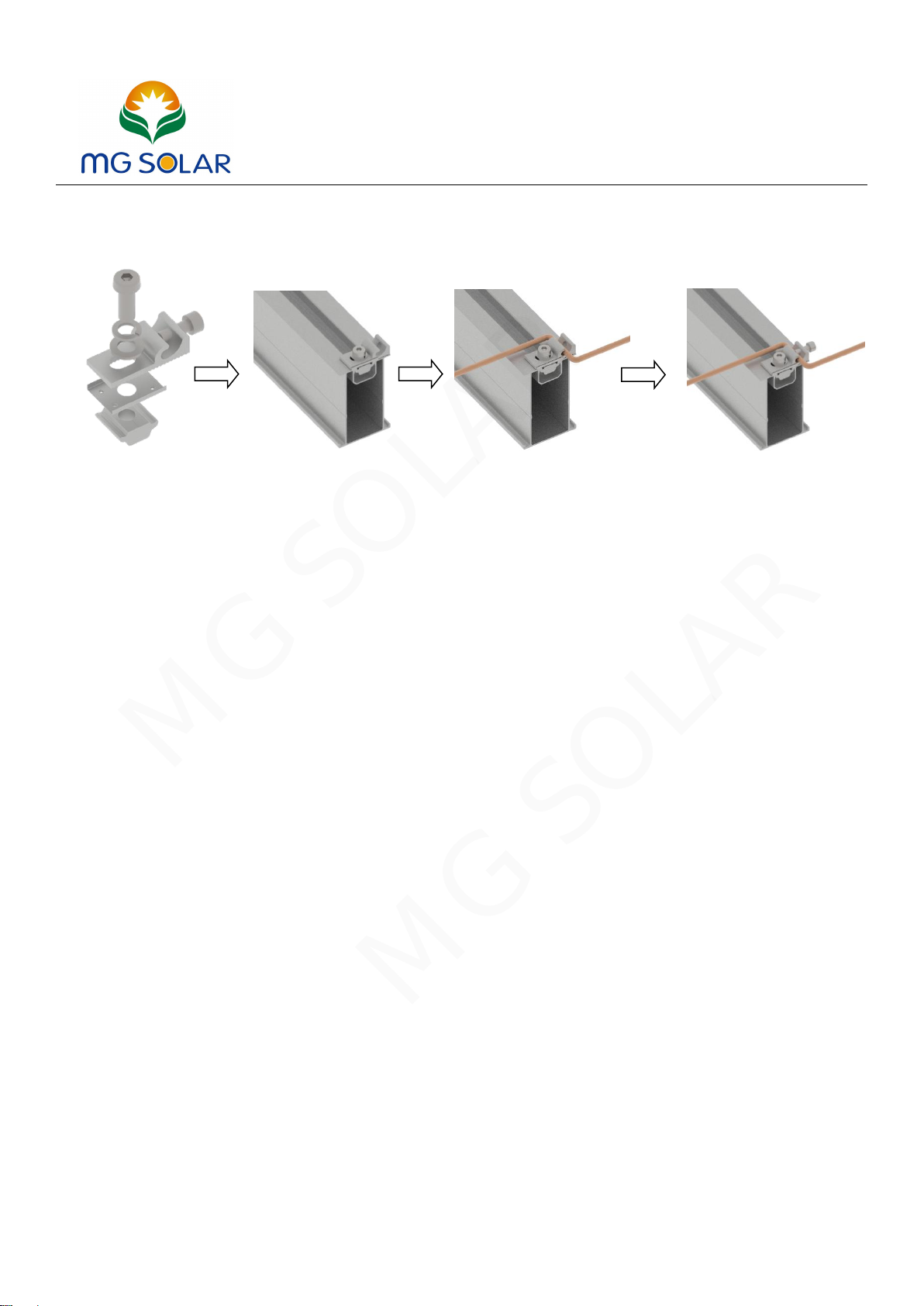

2.7 Grounding Lug Installation
Finished.
MG SOLAR
MG SOLAR
