Vitosol-F/-FM
Type SV and SH
Flat-plate collector for pitched roofs
Above roof installation with rafter flanges
VITOSOL-F/-FM
5698334 GB/en 9/2017 Dispose after installation.

2
Please follow these safety instructions closely to
prevent accidents and material losses.
Safety instructions explained
!Please note
This symbol warns against the risk of material
losses and environmental pollution.
Note
Details identified by the word "Note" contain additional
information.
Target group
These instructions are exclusively intended for author-
ised contractors.
■Work on electrical equipment must only be carried
out by a qualified electrician.
Regulations to be observed
■National installation regulations
■Statutory regulations for the prevention of accidents
■Statutory regulations for the protection of the envi-
ronment
■Codes of practice of the relevant trade associations
■All relevant safety regulations as defined by DIN, EN,
DVGW, VDE and locally applicable standards
aÖNORM, EN and ÖVE
cSEV, SUVA, SVTI, SWKI and SVGW
Working on the system
■Isolate the system from the power supply (e.g. by
removing the separate fuse or by means of a mains
isolator) and check that it is no longer 'live'.
■Safeguard the system against reconnection.
Safety instructions
5698334

3
1. Information Disposal of packaging ............................................................................ 4
Symbols ................................................................................................. 4
Intended use .......................................................................................... 5
2. Preparing for installation Dimensions ............................................................................................ 6
■Horizontal distribution of rafter flanges ............................................... 6
■Dimensions for vertical arrangement of rafter flanges ........................ 8
3. Installation sequence Mounting the fixing system .................................................................... 9
■Components ....................................................................................... 9
Installing the collectors .......................................................................... 12
Connecting the collectors ...................................................................... 13
Covering the collector array ................................................................... 14
Installation .............................................................................................. 14
Commissioning ...................................................................................... 15
Index
5698334

4
Disposal of packaging
Please dispose of packaging waste in line with statu-
tory regulations.
DE: Use the disposal system organised by
Viessmann.
AT: Use the ARA statutory disposal system (Altstoff
Recycling Austria AG, licence number 5766).
CH: Packaging waste is disposed of by the HVAC
contractor.
Symbols
Symbol Meaning
Reference to other document containing
further information
1.
Step in a diagram:
The numbers correspond to the order in
which the steps are carried out.
Warning of material losses and environ-
mental pollution
Live electrical area
Pay particular attention.
■Component must audibly click into place.
or
■Acoustic signal
■Fit new component.
or
■In conjunction with a tool: Clean the sur-
face.
Dispose of component correctly.
Dispose of component at a suitable collec-
tion point. Do not dispose of component in
domestic waste.
Disposal of packaging
5698334

5
The appliance is only intended to be installed and
operated in sealed unvented systems that comply with
EN 12828 / DIN 1988, or solar thermal systems that
comply with EN 12977, with due attention paid to the
associated installation, service and operating instruc-
tions. DHW cylinders are only designed to store and
heat water of potable water quality. Heating water buf-
fer cylinders are only designed to hold fill water of pot-
able water quality. Only operate solar collectors with
the heat transfer medium approved by the manufac-
turer.
Intended use presupposes that a fixed installation in
conjunction with permissible, system-specific compo-
nents has been carried out.
Commercial or industrial usage for a purpose other
than heating the building or DHW shall be deemed
inappropriate.
Any usage beyond this must be approved by the man-
ufacturer for the individual case.
Incorrect usage or operation of the appliance (e.g. the
appliance being opened by the system user) is prohibi-
ted and results in an exclusion of liability.
Incorrect usage also occurs if the components in the
system are modified from their intended use (e.g.
through direct DHW heating in the collector).
Adhere to statutory regulations, especially concerning
the hygiene of potable water.
Intended use
5698334

6
Horizontal distribution of rafter flanges
A specific number of rafter flanges is allocated to each
number of collectors.
A specific number of rafters need to be used for fitting
the rafter hooks. This number depends on the rafter
spacing.
Example:
■2 collectors type SV
■Rafter spacing a 600 mm
■Snow load 0.75 N/m2
Look up the combination in the table for 2 collectors on
page 6 (highlighted grey):
Of the 4 rafters, the following are used:
Rafters 1 and 4
=
A
=
B
Fig. 1
ARafter flange position
BMounting rails
Type SV (vertical collectors)
The following tables detail the rafters on which 2 rafter
flanges respectively should be fitted. Here, the last
digit indicates the number of rafters required.
1 collector
2 rafters are required for all snow loads.
2 collectors
Rafter spacing in mm Snow load in kN/m2
≤ 0.75 ≤ 1.25
≤ 600 1, 4 1, 2, 4
≤ 700 1, 3 1, 2, 3
≤ 800 1, 3 1, 2, 3
3 collectors
Rafter spacing in mm Snow load in kN/m2
≤ 0.75 ≤ 1.25
≤ 600 1, 4, 5, 6 1, 3, 4, 6
≤ 700 1, 3, 4, 5 1, 2, 3, 4, 5
≤ 800 1, 3, 4 1, 2, 3, 4
4 collectors
Rafter spacing in mm Snow load in kN/m2
≤ 0.75 ≤ 1.25
≤ 600 1, 4, 5, 8 1, 3, 4, 5, 7
≤ 700 1, 3, 4, 6 1, 3, 4, 6
≤ 800 1, 3, 4, 6 1, 2, 3, 4, 5, 6
Dimensions
5698334

7
5 collectors
Rafter spacing in mm Snow load in kN/m2
≤ 0.75 ≤ 1.25
≤ 600 1, 4, 5, 6, 9 1, 3, 4, 6, 7, 9
≤ 700 1, 3, 4, 5, 6, 8 1, 2, 3, 4, 5, 6, 7, 8
≤ 800 1, 3, 4, 5, 7 1, 2, 3, 4, 5, 6, 7
6 collectors
Rafter spacing in mm Snow load in kN/m2
≤ 0.75 ≤ 1.25
≤ 600 1, 4, 5, 7, 8, 11 1, 3, 4, 5, 7, 8, 9, 11
≤ 700 1, 3, 4, 7, 8, 10 1, 2, 3, 4, 5, 6, 7, 8, 9
≤ 800 1, 3, 4, 6, 7, 9 1, 2, 3, 4, 5, 6, 7, 8
8 collectors
Rafter spacing in mm Snow load in kN/m2
≤ 0.75 ≤ 1.25
≤ 600 1, 4, 5, 7, 9, 11, 12, 15 1, 3, 4, 6, 7, 9, 10, 12, 13, 15
≤ 700 1, 3, 4, 6, 7, 9, 10, 12 1, 2, 3, 4, 5, 7, 9, 10, 11, 12, 13
≤ 800 1, 2, 4, 5, 7, 8, 10, 11 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11
10 collectors
Rafter spacing in mm Snow load in kN/m2
≤ 0.75 ≤ 1.25
≤ 600 1, 4, 5, 8, 9, 11, 12, 15, 16, 19 1, 3, 4, 6, 7, 9, 10, 11, 12, 13, 15, 16,
18
≤ 700 1, 3, 4, 6, 7, 10, 11, 13, 14, 16 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13,
14, 15, 16
≤ 800 1, 3, 4, 6, 7, 8, 9, 11, 12, 14 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13,
14
Type SH (horizontal collectors)
4 rafter flanges are provided for each collector: 2 at the
top and 2 at the bottom.
Fit the rafter flanges in a row, far enough from each
other that short cantilevers are created.
Dimensions (cont.)
5698334

8

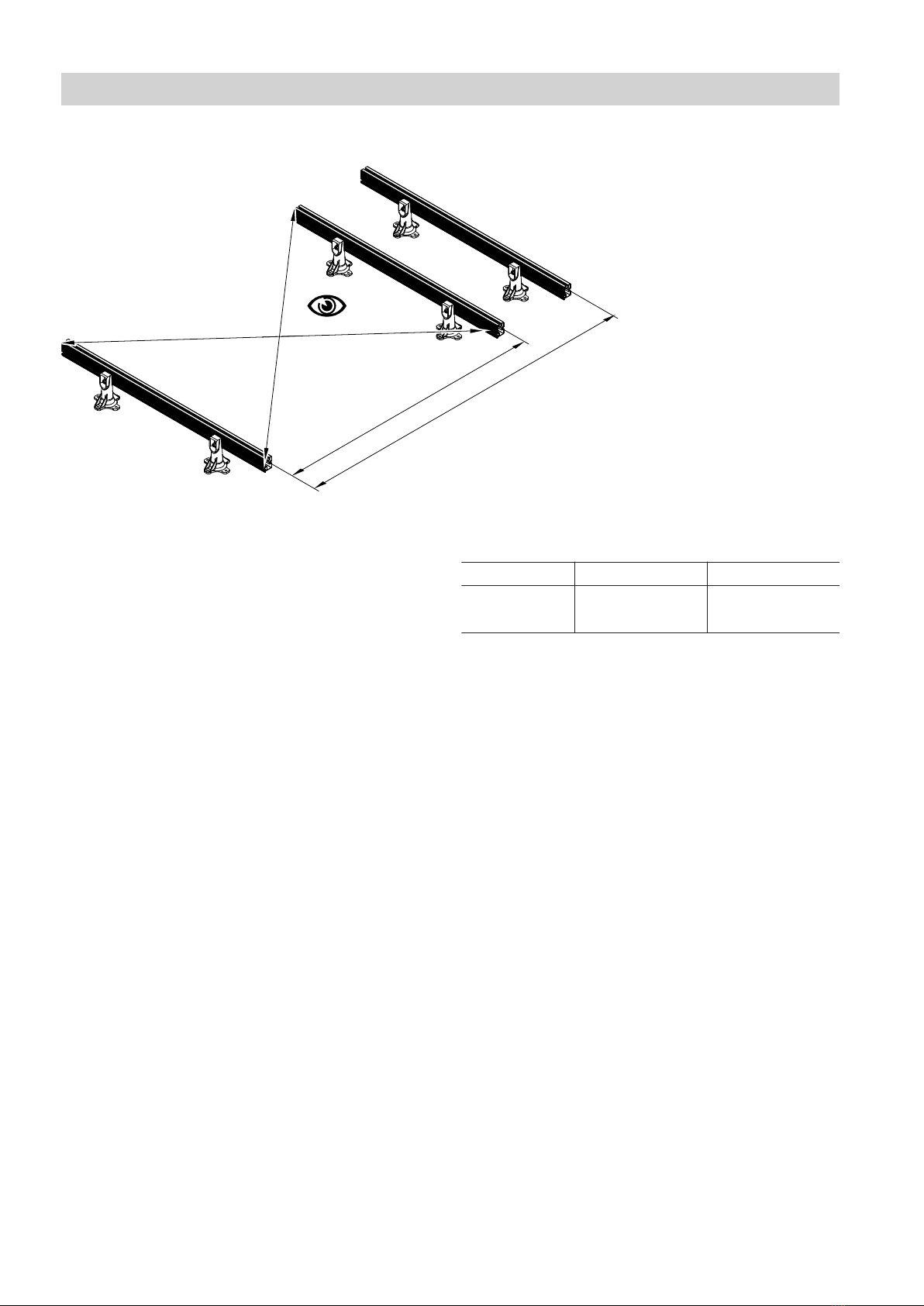

Dimensions for vertical arrangement of rafter flanges
a
b
x
y
Fig. 2 Maximum deviation from dimensions x and y
10 mm
b: distance between the lower mounting rails when
several collectors are installed above each other. Vitosol-F/-FM a in mm b in mm
Type SV 1750–2080 ≥2400
Type SH 540 – 810 ≥1130
Dimensions (cont.)
5698334

9

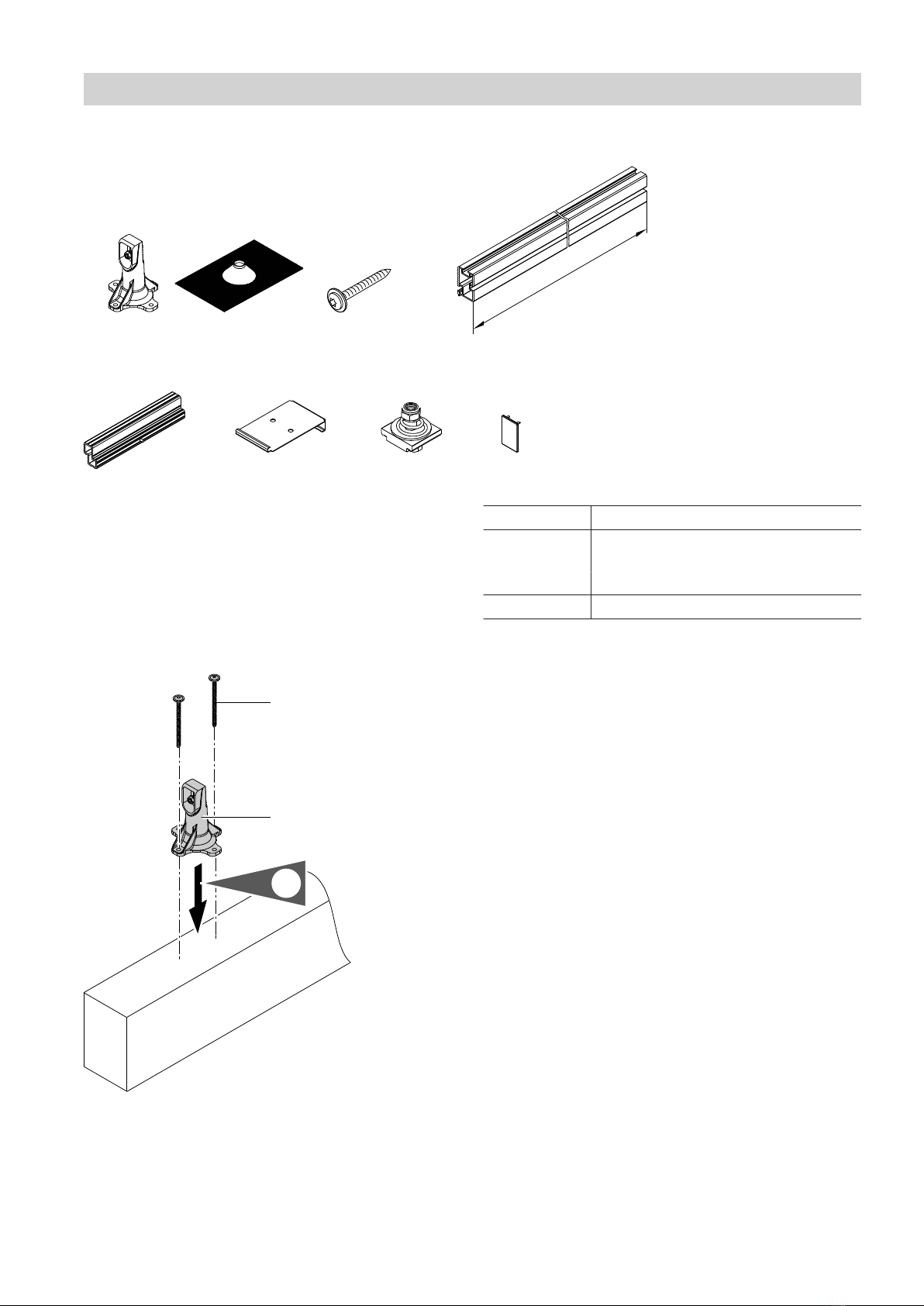

Components
X
1 432
5 6 7 8
Fig. 3
1Rafter flange
2Flashing
3Screws
4Mounting rail
5Rail connectors
6Mounting plate
7Clamping bracket
8Cap
Vitosol-F/-FM x in mm
Type SV Depending on the number of collec-
tors:
1109/2186
Type SH 2433
1.
1
3
Fig. 4
Mounting the fixing system
5698334

10
3.
2.
2
Fig. 5

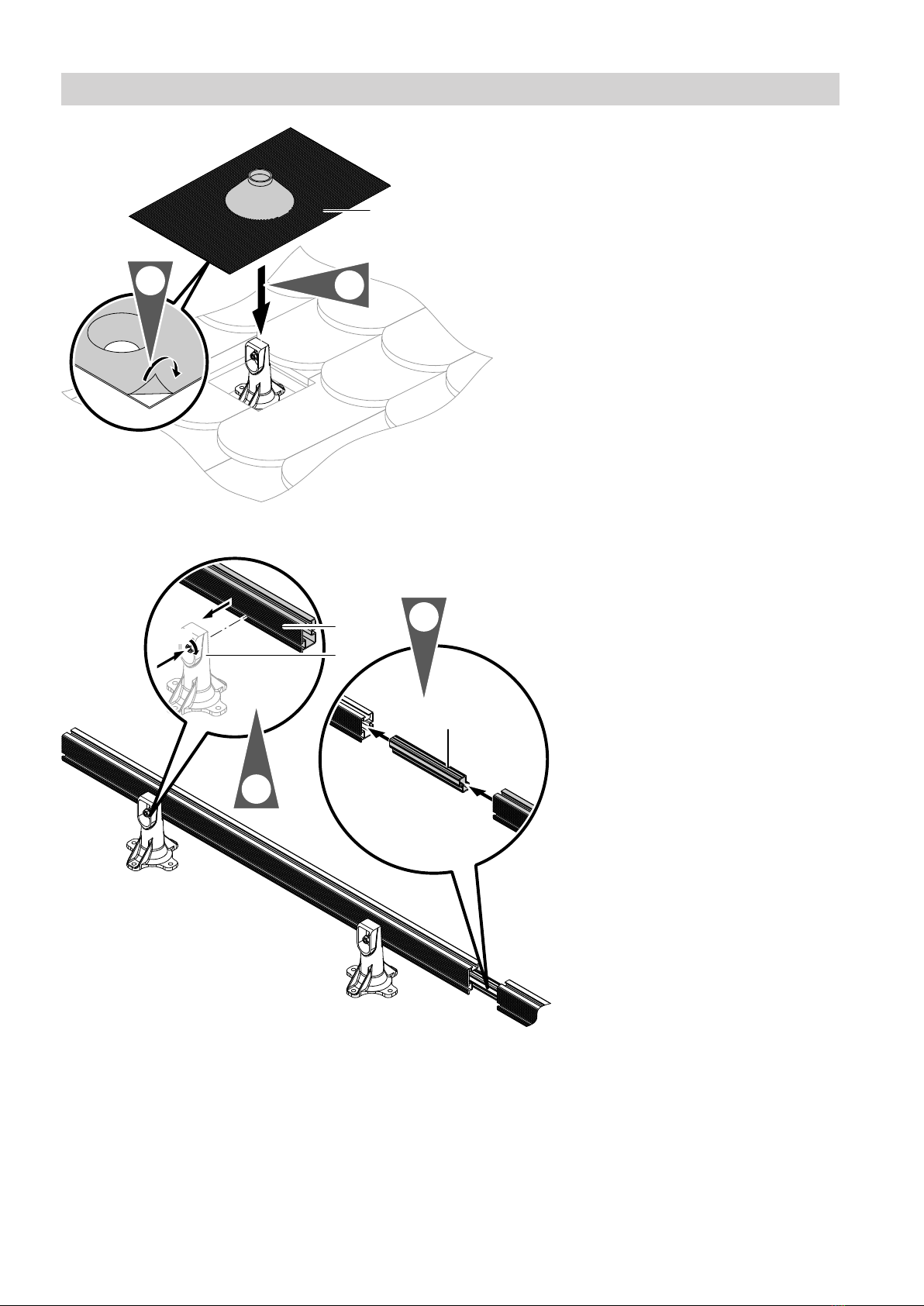

!Please note
Rainwater can cause building damage.
To ensure contact with the entire surface area of
the flashing, make the cut-out in the roof cover
as small as possible. Affix flashing 2 carefully.
5.
5
90°
1
4
4.
Fig. 6
Mounting the fixing system (cont.)
5698334

11

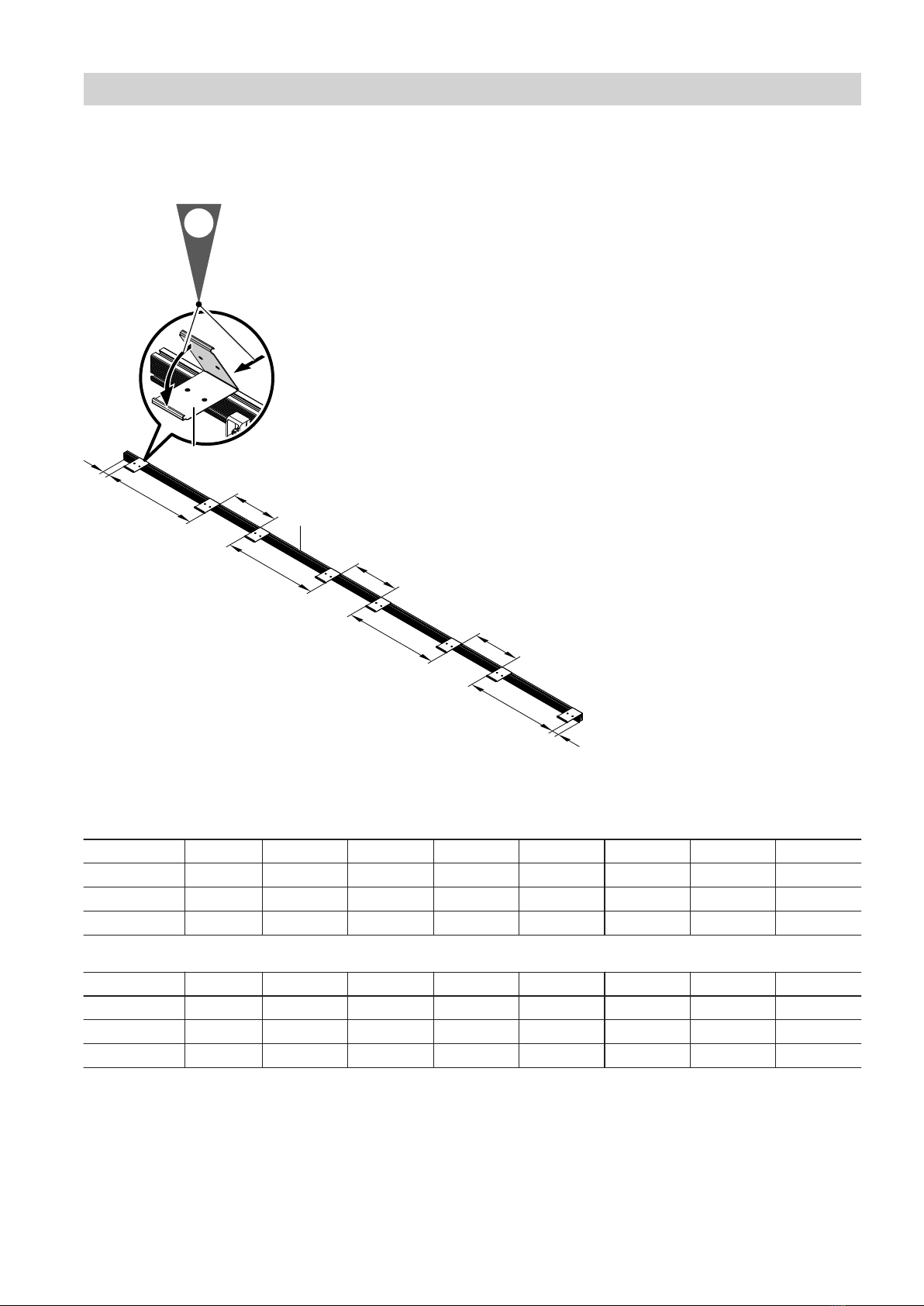

Note on step 5:
From a certain number of collectors upwards, join 2
mounting rails with a rail connector.
c
130 130 130
cdeed
C
6.
6
Fig. 7
CLower mounting rail
Type SV
Quantity 1 2 3 4 5 6 8 10
c mm 184 204 213 213 231 231 250 268
d mm 741 824 834 834 834 834 834 834
e mm — — 947 947 947 947 947 947
Type SH
Quantity 1 2 3 4 5 6 8 10
c mm 84 103 121 140 158 177 211 251
d mm 2265 2268 2268 2268 2268 2268 2268 2268
e mm — — 2271 2271 2271 2271 2271 2271
Mounting the fixing system (cont.)
5698334

12
Armaturenfett
Fig. 8

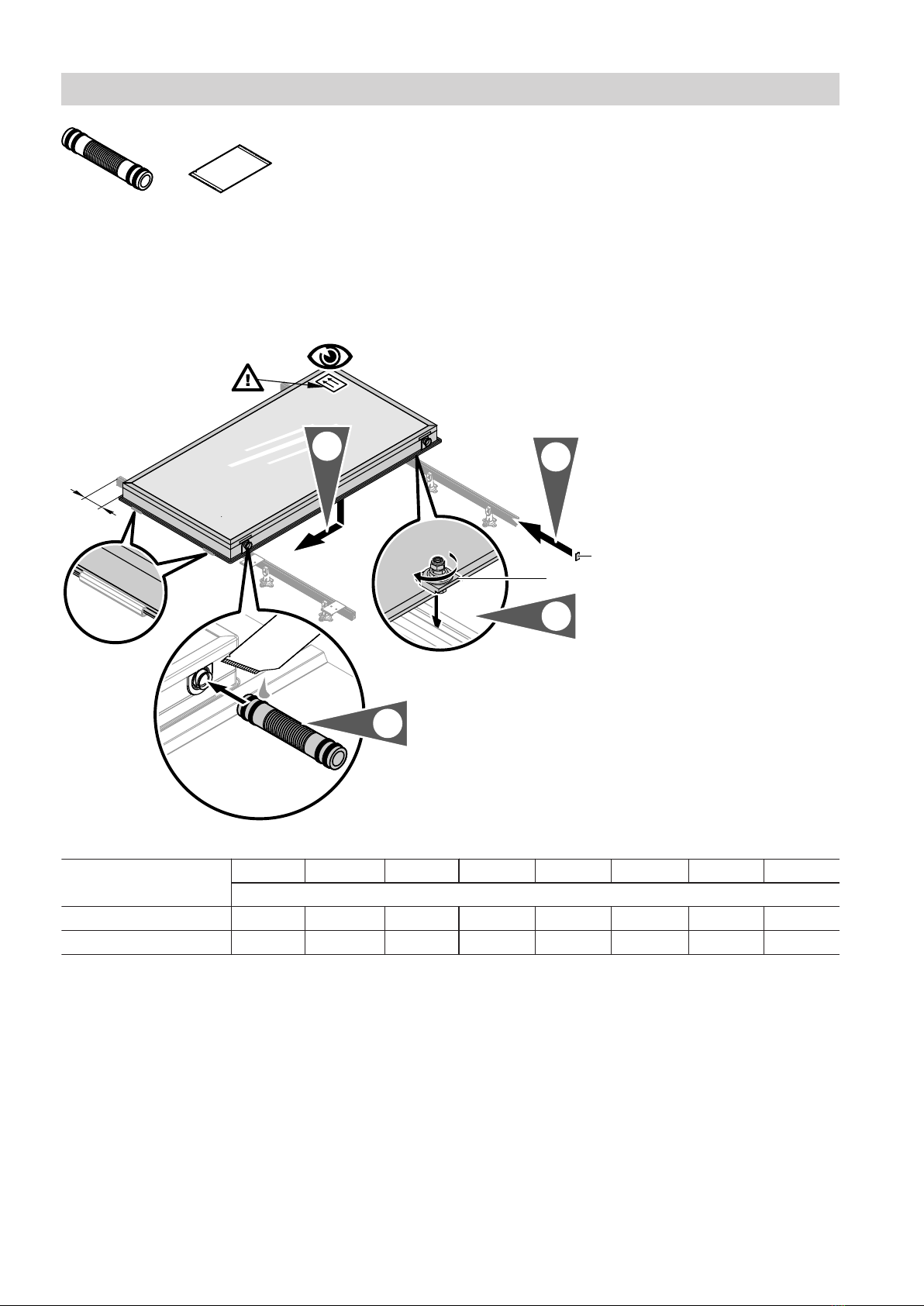

Installation information
■The first and last collectors must be positioned with
the type plate facing outwards (see label).
■On just one of the collectors, fit the pipework at the
side opposite the type plate side.
!Please note
The connection pipes must not show any signs
of damage.
Lubricate O-ring seals only with the special
valve grease provided.
4.
f
Valve grease
3.
2x
1.
90°
2.
4x
7
8
4x
Fig. 9
Number of collectors 1 2 3 4 5 6 8 10
f in mm
Type SV 27 37 66 77 106 116 156 195
Type SH 27 56 85 114 143 172 227 288
Installing the collectors
5698334

13
90°
5.
6. 7
2x
Fig. 10
Connecting the collectors
Fig. 11
Fig. 12
Note
The collector temperature sensor is part of the stand-
ard delivery of the solar control unit.
Installation information
■Lubricate O-ring seals only with the special valve
grease provided.
■Initially tighten the union nut by hand, then tighten
with an open-ended spanner by a further ¾ turn.
■Never use annealed copper pipes with locking ring
fittings.
Installing the collectors (cont.)
5698334

14
2.
9.
4. 8.
6.
7.
3.
5.
2.
1.
1.
Fig. 13
Covering the collector array
Commission the solar thermal system as quickly as
possible once the collectors have been installed.
To reliably prevent steam hammer, the collectors must
be cold when filled. Cover the collector arrays.
In the delivered condition, the collectors are covered
with a protective film for this purpose. Remove this
protective film no later than 4 weeks following col-
lector installation.
Note
If commissioning takes place at a later date, cover the
collector arrays.
Do not use the protective foil provided to cover the col-
lectors!
Installation
!Please note
Incorrect installation can lead to collector dam-
age.
Use only gunmetal or brass fittings and copper
pipes for the installation.
Never step on the collectors.
Never solder on or near the collectors.

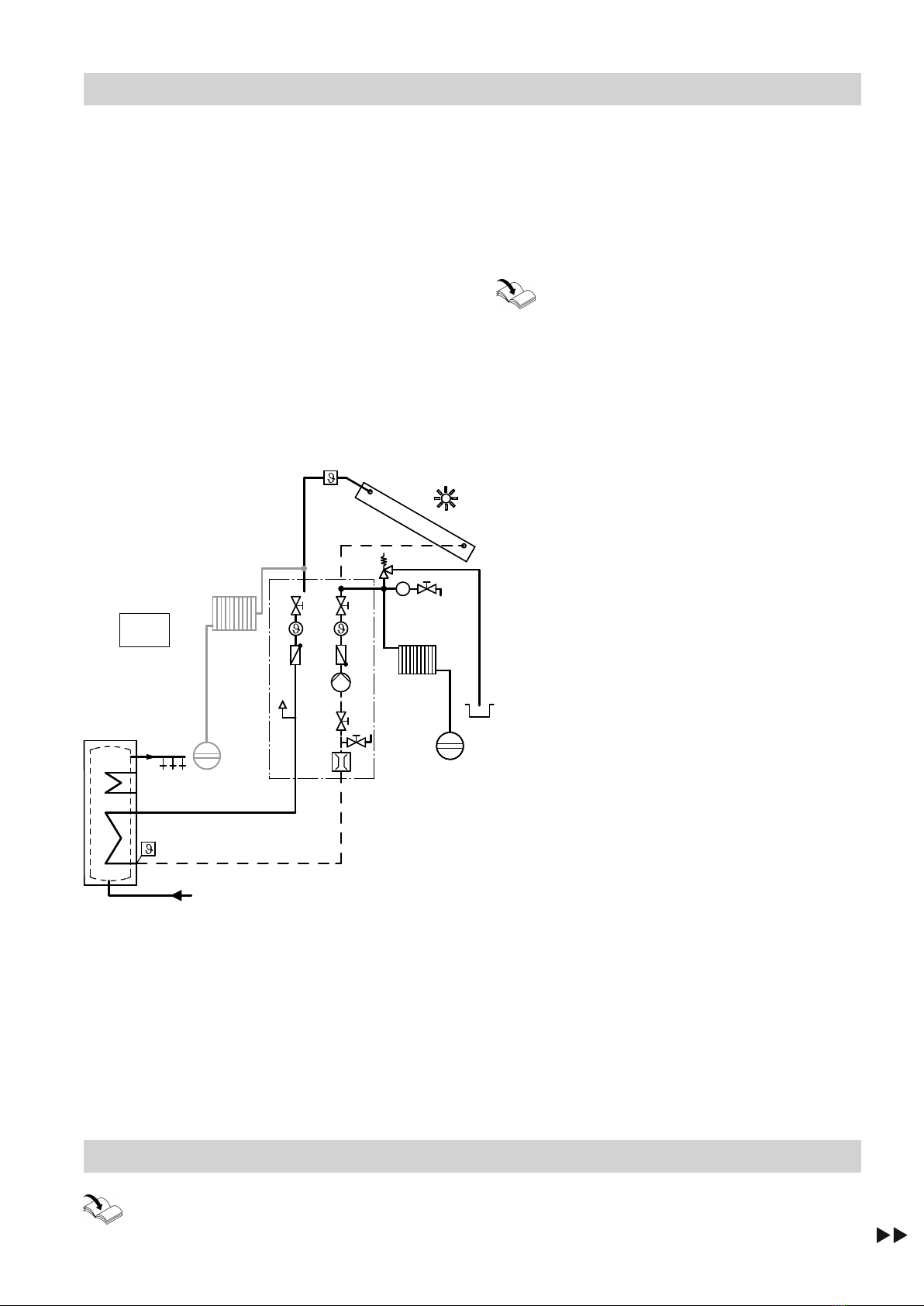

■Route pipes so that complete ventilation is ensured.
Install an air separator in the solar flow upstream of
the DHW cylinder.
Note
An air separator is integrated into the flow line of the
Solar-Divicon (see diagram).
Connecting the collectors (cont.)
5698334

15
■Braze or press fit the copper pipes in the solar cir-
cuit.
Soft solder could be weakened, particularly near the
collectors, due to the high temperatures that occur
there. Metal seal connections, locking ring fittings or
Viessmann plug-in connections with double O-rings
are the most suitable.
If other seals such as flat gaskets are used, ade-
quate glycol, pressure and temperature stability must
be guaranteed by the manufacturer.
■Design all connections to be resistant to pressure
and temperature (observe the maximum stagnation
temperature of the collector).
Never use:
–Teflon (inadequate glycol resistance)
–Hemp connections (insufficiently gas-tight)
■Equip the system to EN 12975 or EN ISO 9806 with
an expansion vessel, safety valve and circulation
pump.
■The expansion vessel must be approved to DIN
4807.
The diaphragms and seals of the expansion vessel
and safety valve must be suitable for the heat trans-
fer medium.
To calculate the pre-charge pressure, see the
"Vitosol" service instructions.
■For operation without a Solar-Divicon, use only
safety valves that meet the following conditions:
–Designed for 120 °C and up to 6 bar (0.6 MPa)
–Letter ID "S" (solar) in the component identification
P
O
A
K
M
NR
UL
G
B
C
H
EF
D
C
B
M
L
T
S
Fig. 14
ASolar-Divicon
BShut-off valves
CNon-return valves
DSolar circuit pump
EAir separator
FShut-off valve (adjusting screw above flow indica-
tor H)
GDrain valve
HFlow indicator
KFill valve
LStagnation heat sink
MExpansion vessel
NDrip pan
OCollector
RDHW cylinder
SCylinder temperature sensor
TCollector temperature sensor
USolar control unit
Commissioning
"Vitosol-F/-FM" service instructions.
Installation (cont.)
5698334

16
Viessmann Limited
Hortonwood 30, Telford
Shropshire, TF1 7YP, GB
Telephone: [phone]
Fax: [phone]
E-mail: [email protected]
Viessmann Werke GmbH & Co. KG
D-35107 Allendorf
Telephone: [phone]
Fax: [phone]
www.viessmann.com
5698334 Subject to technical modifications.
