Introduction
WARNING
Safety Information
This Insulation Tester is an accurate, professional industry tool
for measuring ACV, DCV, Frequency, Earth-Bond -Resistance,
Insulation Resistance.
Understand and follow operating instructions carefully.
• If the equipment is used in a manner not specied by the
manufacturer, the protection provided by the equipment may
be impaired.
• Always use proper terminals, switch position, and range for
measurements.
• To reduce the risk of re or electric shock, do not use this
product around explosive gas or in damp locations.
• Verify the Meter operation by measuring a known voltage.
If in doubt, have the Meter serviced.
• Do not apply more than the rated voltage, as marked on
Meter, between terminals or between any terminal and earth
ground.
• To avoid false readings that can lead to electric shock and
injury, replace battery as soon as low battery indicator blinks /
appears.
• Avoid working alone so that assistance can be rendered.
• Do not use the Tester if the Tester is not operating properly or
if it is wet.
• Individual protective device must be used if hazardous live
parts in the installation where the measurement is to be
carried out could be accessible.
• Disconnect the test leads from the test points before changing
the position of the function rotary switch.
• Never connect a source of voltage when the function rotary
switch is not in voltage position.

603 EN
3
• When using test leads or probes, keep your ngers behind
the nger guards.
• Use caution with voltages above 30Vac rms, 42 Vac peak, or
60Vdc. These voltages pose a shock hazard.
• Remove test lead from Meter before opening the battery door
or Meter case.
• DO NOT USE the test leads when the internal white insulation
layer is exposed.
• DO NOT USE the test leads above maximum ratings of CAT.
Environment, voltage and current, that are indicated on the
probe and the probe tip guard cap.
• DO NOT USE the test leads without the probe tip guard cap
in CAT III and CAT IV environments.
• Probe assemblies to be used for MAINS measurements shall
be RATED as appropriate for MEASUREMENT CATEGORY
III OR IV according to IEC 61010-031 and shall have a
voltage RATING of at least the voltage of the circuit to be
measured.
• Only replace the blown fuse with the proper rating as
specied in this manual.
• Do not attempt a resistance measurement when the open
voltage is above the fuse protection rating. Suspected open
voltage can be checked with voltage function.
• Never attempt a voltage measurement with the test lead
inserted into the Ω input terminal.
• Disconnect circuit power and discharge all high-voltage
capacitors before testing resistance, continuity, or
capacitance.

603 EN
4
Symbols as marked on the Meter and
Instruction manual
Risk of electric shock
See instruction manual
DC measurement
Equipment protected by double or reinforced insulation
Battery
Fuse
Earth
AC measurement
Conforms to EU directives
Do not discard this product or throw away.
Both direct and alternating current
This product CONFORMS TO UL STD 61010-1,
61010-2-034
Unsafe Voltage
Maintenance
Cleaning
To alert you to the presence of a potentially hazardous voltage,
when the Tester detects a voltage ≧30 V in insulation test, or
a voltage overload (OL), the ” “ symbol is displayed and High
voltage indicator is turned on.
Do not attempt to repair this Meter. It contains no user service
able parts. Repair or servicing should only be performed by
qualied personnel.
Periodically wipe the case with a dry cloth and detergent. Do
not use abrasives or solvents.

603 EN
5
The Meter Description
Front Panel Illustration
Display
Function button
Pass indicator
High Voltage
indicator
Funtions & Power
On/O󰀨
Ω Input
V insulation Input
Common Input
INSULATION
>660V
TEST
V
COM
600V
CAT IV
315mA
FUSED
SETUP
PASS
V
OFF
TRUE RMS
L nk 100M
6100GK
10GK
1GK
100M
10M
1M
0
MEM
TEST
LOCK
AutoSense
RENPIDAR
COMPARE
m
A
MK
G
Hz
V
APO
LPF
RV
A
MK
G
mF
AC S
DC 0
COMP LOCK

603 EN
6

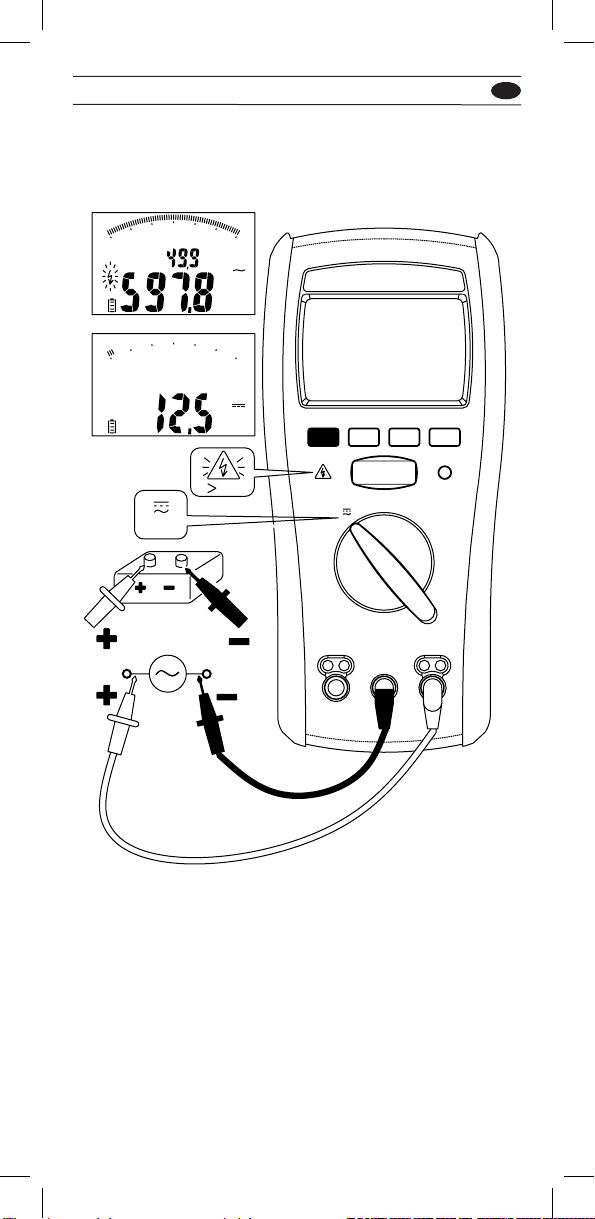

Measuring ACV/DCV : Auto sense function
Auto sense mode: The meter displays ACV or DCV whichever
is higher (>1V).
If the measured voltage is above 660Vac/dc, " > 660Vac/dc "
will appear on the display.
30V
INSULATION
COM
V
6
00
0
0
6
00
V
AC
Hz
V
DC
AutoSense
AutoSense
V
V

603 EN
7

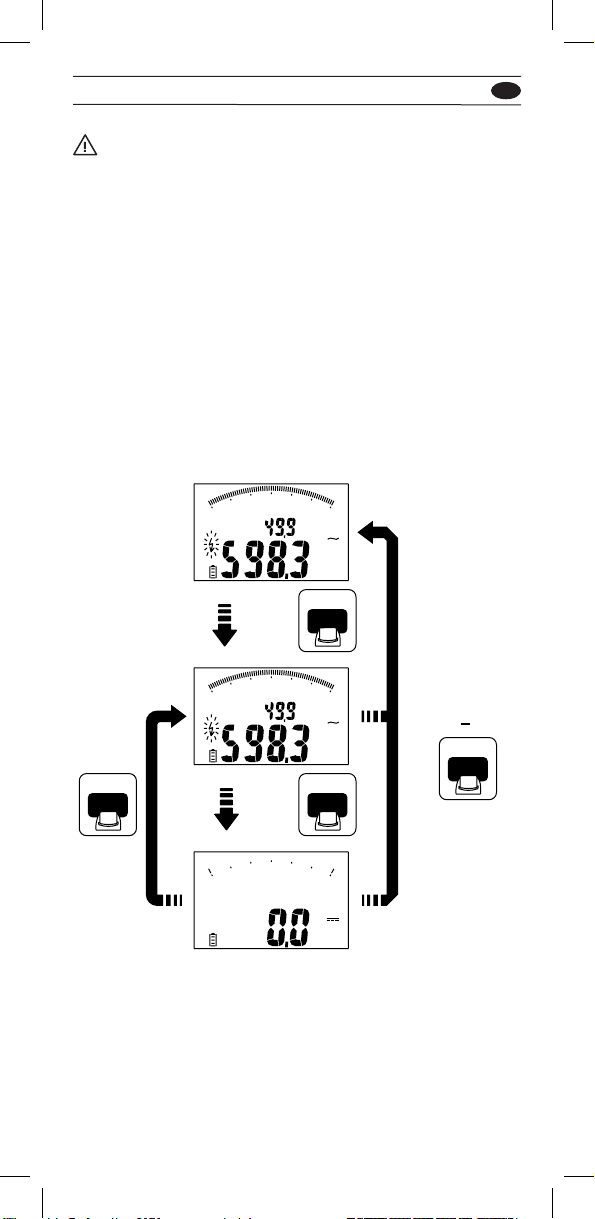

Switch Auto Voltage sense /ACV/DCV function
when the rotary switch is in voltage position
WARNING
When connecting the test leads to the DUT (Device Under
Test) connect the common test leads before connecting the live
leads; When removing the test leads, remove the test live leads
before removing the common test leads.
Don’t apply more than AC/DC 600V between the V-COM
terminals.
6
00
0
AC
Hz
AutoSense
6
00
0
V
AC
Hz
6
00
0
V
DC
Press
Press>2Sec
Press
SETUP
SETUP
SETUP
SETUP
Press

603 EN
8
Measuring Earth-Bond Resistance (Continuity)
0
0
&
hold
Press
TEST
0
&
hold
Press
TEST
COMCOM
100
K
10
K
1
K
100
10
1
0
100
K
10
K
1
K
100
10
1
0
TEST
m
A
m
A
R
R
1. Before starting the test :
(a) The circuit under test must be completely de-energized.
(b) Check the fuse is good. See the chapter “ Testing the
fuse ”.
(c) Short the test leads before measurement, and press the
Function button to zero the wire resistance of probe. If
the wire resistance is <10Ω, the resistance o󰀨set value
will be saved, and the “->0<-” symbol will be displayed
on LCD.

603 EN
9
2. Lock mode :
Press the Lock button to enter the Lock Mode.
Then press the TEST button to start the test. The test voltage
will continue to be applied until the TEST/LOCK button is
pressed again.
3. The meter displays the " ＞" symbol and the maximum
resistance for the range when measured resistance is
higher than the maximum display range.
Measuring Insulation Resistance
100M100M
10M
1M
0
TEST
=
TEST 500V
INSULATION
V
COM
100M
100G
10G
1G
100M
10M
1M
0
100G
10G
1G
M
V
V
G
500V
TEST
Press>1Sec

603 EN
10
1. Before starting the test :
The circuit under test must be completely de-energized.
If the voltage detected is above 30V, ">30V" will appear on
the display. In this condition, the test is inhibited.
2. Press the Function button to display insulation resistance or
Leakage current during the test or when the test stops.
3. Lock mode: Press the Lock button to enter the Lock Mode.
Then press TEST button >1sec to start the test. The test
voltage will continue to be applied until the TEST/LOCK
button is pressed again.
4. Stop the output test voltage before removing the test leads
(to enable the tester to discharge capacitive circuits).
If the screen displays volts, wait until it reaches zero.
5. The meter displays the " ＞" symbol and the maximum
resistance for the range when measured resistance is
higher than the maximum display range.
Before starting the Insulation Resistance test, select the
comparative value in Setup mode: 0.5MΩ, 10MΩ, 20MΩ,
50MΩ, 100MΩ, 200MΩ, 500MΩ, 1000MΩ.
Before starting the Earth-Bond Resistance test, select the
comparative value in Setup mode: 0.5Ω, 1Ω, 2Ω, 3Ω, 4Ω, 5Ω,
10Ω, 20Ω, 30Ω, 40Ω.
Using the Compare function
100M
100G
10G
1G
100M
10M
1M
0
100M
100G
10G
1G
100M
10M
1M
0
VM
COMPARE
Press

603 EN
11
If the measured value is better than the selected compare
value, the Pass indicator will be green, otherwise it is red.
Restore power by switching rotator or by pressing any button.

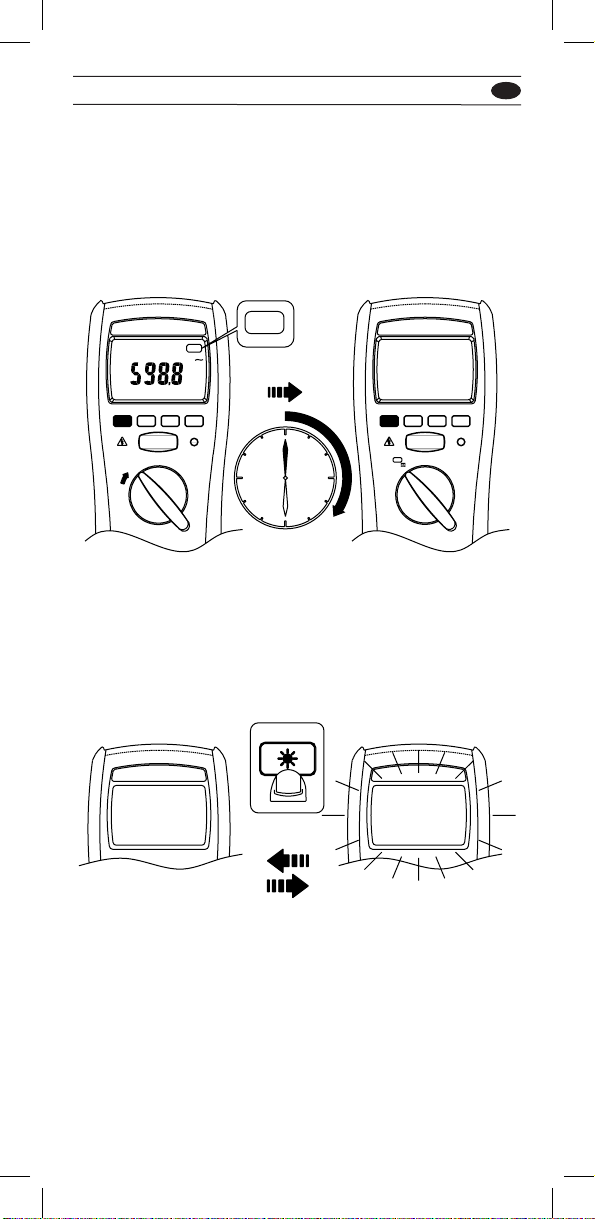

Auto Power O󰀨 (Battery Saver)
OFF
AC
V
APO
APO
V
LPF
OFF
30min
Press the Backlight button to turn the backlight on/o󰀨.
Backlight
Press

603 EN
12
Press the following button while turning meter on from OFF
position.
Test button : display of the software version.
Lock button : Show the full display of the LCD
Function button : Enter Setup Mode
Power-up options :
Setup Mode
Function Options Default
Pass threshold of Insulation
Resistance
0.5, 10, 20, 50, 100,
200, 500, 1000MΩ 100MΩ
Pass threshold of Earth-bond
Continuity
0.5, 1, 2, 3, 4, 5, 10,
20, 30, 40Ω 2Ω
APO Timer O󰀨, 10, 20, 30, 40,
50, 60 minutes 30 minutes
Reset Yes, No No
1. Press the Test button to select the function to be adjusted.
2. Press the Function button and Comp button to adjust the
options.
3. Press the Lock button to record the option.

603 EN
13
Battery and Fuse Replacement

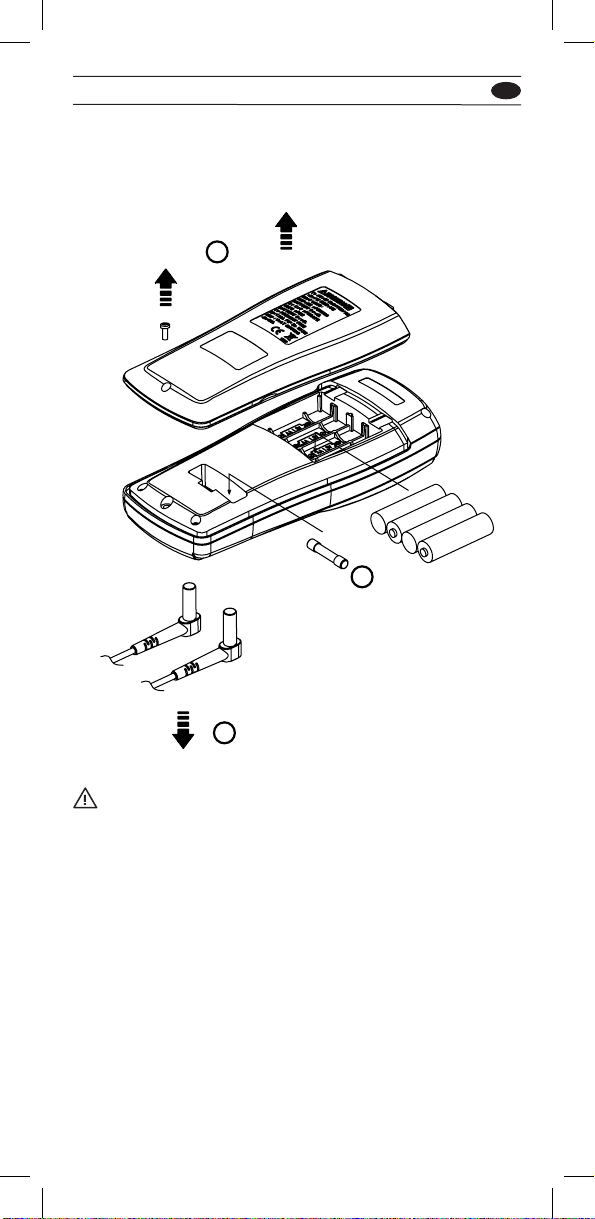

Refer to the following gure to replace fuse and the batteries :
1
2
3
Caution
• Use only a fuse with the amperage, interrupt, voltage, and
speed rating specied.
• Fuse rating : Fast, 315mA, 1000V, at least 10kA Interrupt
Rating.
• Replace battery as soon as low battery indicator blinks /
appears to avoid false reading.
• When the battery is too low for reliable operation , the meter
displays “ bAtt ”. The meter will not operate at all until the
battery is replaced.
• 1.5V x 4 alkaline batteries.

603 EN
14
0
TEST
TEST
TEST
Testing the fuse
• Remove the test leads before testing the fuse.
• If the display reading is FUSE, the fuse is bad and should be
replaced.

603 EN
15
Specications
Display Count : 4000 counts.
Overrange display : “ >OL Reading ” or “ >-OL Reading ”
Conversion Rate : 2 times / second
Dimensions (W x H x D) : 96mm x207mm x 54mm with holster
Weight : 630g including battery.
Power requirement : AA size ALKALINE Battery * 4
Batteries Life : 1.5 AA ALKALINE battery
Resistance Measurements : Tester can perform at least
2600 earth-bond resistance measurements with new alkaline
batteries at room temperature. These are standard tests of 1Ω
with a duty cycle of 5 seconds on and 25 seconds o󰀨.
Insulation test: Tester can perform at least 1100 insulation tests
with new alkaline batteries at room temperature.
These are standard tests of 1 MΩ at 1000 V with a duty cycle
of 5 seconds on and 25 seconds o󰀨.
Installation Category : IEC/EN 61010-1, IEC/EN 61010-2-034
Compliance to EN 61557 : IEC/EN 61557-2:2019
IEC/EN 61557-4:2019
EMC : EN 61326-1
General Specications
CAT Application eld
II
It is applicable to test and measuring circuits connected
directly to utilization points (socket outlets and similar
points) of the low-voltage MAINS installation.
III
It is applicable to test and measuring circuits connected
to the distribution part of the building’s low-voltage MAINS
installation.
IV It is applicable to test and measuring circuits connected at
the source of the building’s low-voltage MAINS installation

603 EN
16
Environmental Conditions
Electrical Specications
Indoor Use
Pollution degree : 2
Operating altitude : 2000m (6562ft)
Operating temperature : Non-condensing <5°C,
5°C ~ 30°C ( ≦80% RH),
30°C ~ 40°C ( ≦75% RH),
40°C ~ 50°C ( ≦45%RH)
Storage temperature :
-20°C to 60°C , 0 to 80% R.H. (batteries not tted)
Temperature Coe󰀩cient :
0.15 x (Specied accuracy)/°C, < 20°C or > 26°C .
IP Rating : IP40
Shock vibration : Random Vibration per MIL-PRFF Class 2
Drop Protection : 4 feet drop to hardwood on concrete oor.
Accuracy is given as ±(% of reading + counts of least
signicant digit) at 23°C ± 3°C, with relative humidity Less than
70% R.H., and is specied for 1 year after calibration.
ACV Function
• ACV and ACA specications are ac coupled, true RMS.
• For square wave, accuracy is unspecied.
• For non-sinusoidal waveforms, Additional Accuracy by Crest
Factor (C.F.): Add 1.0% for C.F. 1.0 to 2.0
Add 2.5% for C.F. 2.0 to 2.5
Add 4.0% for C.F. 2.5 to 3.0
• Max. Crest Factor of Input Signal: 3.0 @ 3000 counts
2.0 @ 4500 counts
1.5 @ 6000 counts
• Frequency Response is specied for sine waveform.

603 EN
17
Input Impedance: 10MΩ// less than 100pF
Frequency Response: 50Hz to 400Hz
Overload Protection: AC/DC 600V
Input Impedance: 10MΩ
Overload Protection: AC/DC 600V
ACV Minimum Sensitivity: > 60V
Minimum Frequency: 10Hz
Overload Protection: AC/DC 600V
AC Voltage
DC Voltage
Frequency
Range OL Reading Resolution Accuracy
600.0V 660.0V 0.1V ±(1.5%+5D)(50~60Hz)
±(2.0%+5D)(61~400Hz)
Range OL Reading Resolution Accuracy
600.0V 660.0V 0.1V ±(1.0%+5D)
Range OL Reading Resolution Accuracy
100.0Hz 100.0Hz 0.1Hz ±(1.0%+3D)
1000Hz 1100Hz 1Hz

603 EN
18
* <1.00Ω add 3dgt
Output Current: >200mA @ <2Ω
Output Voltage: >4V
Earth-bond Resistance (Continuity)
Range OL Reading Resolution Accuracy
40.00Ω 40.00Ω 0.01Ω ±(1.5%+5D)*
400.0Ω 400.0Ω 0.1Ω
±(1.5%+3D)4.000kΩ 4.000kΩ 0.001kΩ
40.00kΩ 44.00kΩ 0.01kΩ
Insulation Resistance
Range OL Reading Resolution Accuracy*
400.0kΩ 400.0kΩ 0.1kΩ
±(2.5%+5D)
4.000MΩ 4.000MΩ 0.001MΩ
40.00MΩ 40.00MΩ 0.01MΩ
400.0MΩ 400.0MΩ 0.1MΩ
4.000GΩ 4.000GΩ 0.001GΩ ±(20%+3D)
20.0GΩ 22.0GΩ 0.1GΩ
* Above specications only apply when high quality silicone
leads with test clips are being used with no hands touch.
Test Voltage vs. Maximum resistance range:
250V/250.0MΩ, 500V/0.500GΩ, 1000V/20.0GΩ
Test Voltage vs. Minimum resistance range:
250V/250.0kΩ, 500V/0.500MΩ, 1000V/1.000MΩ
Short Circuit Test Current: <2mA, +0%, -50%
Test Voltage Accuracy: -0%, +2%+2V
Auto discharge function: discharge time <1 sec for C ≤ 1uF
Maximum Capacitive load: Operable with up to 1uF load
Live Circuit Detection: if ≥ 30V ac/dc at inputs, test inhibited

603 EN
19
This meter is warranted to the original purchaser against
defects in material and workmanship for 3 years from the date
of purchase. During this warranty period, Manufacturer will,
at its option, replace or repair the defective unit, subject to
verication of the defect or malfunction.
This warranty does not cover fuses, disposable batteries, or
damage from abuse, neglect, accident, unauthorized repair,
alteration, contamination, or abnormal conditions of operation
or handling.
Any implied warranties arising out of the sale of this product,
including but not limited to implied warranties of merchantability
and tness for a particular purpose, are limited to the above.
The manufacturer shall not be liable for loss of use of the
instrument or other incidental or consequential damages,
expenses, or economic loss, or for any claim or claims for such
damage, expense or economic loss. Some states or countries
laws vary, so the above limitations or exclusions may not apply
to you.
Limited Warranty

603 TC
20
介紹
警告
安全性資訊
󴦞󶨋󶬵󴹁󸏲󱫲󴂞󱘈󶍰󴻬󶃘󾗗󲻁󴘁󵵙󳉉󴘁󶦚󳉉󱯉󾗚󵫞󳿕󹄡󴹁󾗗
󾗗󹰞󵠈󾗗󳰛󲔳󹧗󹡷󾗗󶨋󶬵󹧗󹡷󾗘
󱛌󸋲󱘼󸖭󳠧󸺟󲶼󳸞󱠓󳬙󶆻󾗘
󴉃󱝤󸅃󸷅󲇣󳬙󲷢󵵙󳿑󳑎󱡋󵫞󸎅󱨵󾗚󸎅󱨵󵵙󱣤󸘭󱠓󵫞󱿔󷃬󴇻󹢏
󱟽󾗘
󱸂󳖔󱝤󴦜󶃘󵵙󶔏󲵊󾗗󹝻󹠁󱟺󶷉󲃅󹄡󶌲󸷯󸀅󹄡󴹁󾗘
󹢏󱟽󵉂󵉦󳦕󸌙󹧗󹲱󹤷󾗚󸒿󱹂󲔩󵕺󵋟󳘮󴬖󺂴󲂑󸺊󳦕󵁱󵄩󵧨󲝐󱡋
󵫞󴉆󵫕󲄘󾗘
󸒿󱭴󹄡󴹁󳉛󵾝󹧗󲟛󾗚󱝤󶃘󸑃󱫲󸀮󱶧󷃬󴦜󳋃󾗘󷔑󴈅󵮁󲇰󾗚󸒿󸵲
󱣽󱫲󸀮󾗘
󸒿󱹂󲔩󹧗󴘓󹞇󳦕󱞅󱘈󹧗󴘓󷌦󳰛󲔳󹞇󳿘󱶩󸤥󸸶󱫲󸀮󱘔󴝇󶆻󵵙󹰺
󲷢󹧗󲟛󾗘
󵋡󸺻󱭾󸙂󸀮󹏌󸑱󸷯󶻽󲻍󷋿󸌙󹧗󲃅󱾭󱩫󾗚󸒿󲔩󱟽󹧗󹄡󲔍󶆻
󹝱󵖋󽘟󱲡󵢮󴂹󴇠󳱷󹧗󴭳󾗘
󸺻󱭾󵟍󷋩󳸞󱠓󾗚󱝤󹡩󹧟󸉕󱻠󱶵󾗘
󷔑󴹁󸏲󱫲󸸭󱠓󵭐󳋃󳦕󷲷󳿕󵁱󵄩󵚽󳠡󾗚󸒿󱹂󱡋󵫞󴹁󸏲󱫲󾗘
󷔑󲔩󴤾󸷯󸀅󹄡󴹁󵵙󲶿󸄅󸸶󶌲󱙆󱿔󷃬󴇻󳰛󸌙󱼎󹤷󳋀󹧗󹧌󱝾󾗚󳤑
󱡋󵫞󱤱󱜤󹡩󸘭󸄅󱨵󾗘
󳻷󸙗󱶧󷃬󳿳󸰓󹝻󹠁󵵙󱟺󶷉󱙴󱴚󾗚󲻀󴹁󸏲󴓰󳕑󴹁󸏲󺝫󸋲󹢲󸷏󳰛󾗘
󷔑󱶧󷃬󳿳󸰓󹝻󹠁󴉃󸎅󲷢󲔩󹧗󲟛󱟺󶷉󾗚󱲸󱹂󸷏󳰛󹧗󲟛󴻣󾗘
󱡋󵫞󴹁󸏲󴓰󳦕󳰔󹄻󴂹󾗚󸒿󲻀󳧼󳬙󶷉󳿕󸘭󳬙󳸛󴋃󳔶󾗘
󹧗󲟛󸹉󱳭󾗗󳁟󱦊󳦕󱝤󱘔󴂹󾗚󸒿󸖭󳠧
󱡋󵫞󾗚󲒵󵋡󴇻󳑙󵵏󸌙󹧗󱼎󹤷󾗘
󹝻󲈍󹧗󴭳󷤩󳦕󱫲󸀮󲡌󴩞󱴚󾗚󸒿󱭴󳕑󱫲󸀮󱾫󱘕󴹁󸏲󴓰󾗘
󶨋󶬵󲽖󴅱󹩌󲔩󲡌󴂹󾗚󸒿󱹂󱡋󵫞󴹁󸏲󴓰󾗘
󸒿󱹂󱡋󵫞󺂿󳿕󴇴󺂿󶖿󶦚󵵙󴹁󸏲󴓰󾗘󲔩󳰔󹄻󲃅󳰔󹄻󲻛󶔏
󸘭󳋉󱘔󸎞󴁩󵵙󵧨󲝐󾗗󹧗󲟛󲃅󹧗󴳊󾗘
󲃅󵧨󲝐󱙆󾗚󸒿󱹂󲔩󴮾󴈅󳰔󹄻󲻛󶔏󸘭󳋉󵵙󳜶󳓯󱘕
