Miboxer C2-4000 Installation instructions

Where There is Miboxer There is Power
Model No.: C2-4000
User Instruction

Introduction
Features
Compatible with batteries of Li-ion (4.2v / 4.35v),
LiFePO4 (3.6v), Ni-MH/Ni-Cd (1.48v) ;
Applicable to different types of cylindrical
rechargeable Li-ion batteries;
Maximum 1.5A/ channel fast charging;
Manually set up charging/charge-discharge-charge
current;
High precision reference voltage source calibration;
Automatically stop charging when battery was fully
charged;
With reverse-battery andshort circuit protection
function;
Intelligent temperature control function;
Automatically detectthe battery and display the
state of charging;
Automatically measure battery internal resistance;
Measure the battery capacity during charging;
Measure the actual capacity of the battery through
charge-discharge-charge ;
Two fully independentslots, supports
charging/charge-discharge-charge for two different
battery types.
Support small capacity battery charging;
Support Li-ion battery repair function;
Support DC12V car charger mode;
Made of PCfire retardant material;
Excellent heat dissipation andcircuit design;
1 year warranty.
C2-4000 is a charger, capable of chargingand
charge-discharge-charge batteries. The charger
automatically adapts the charge and discharge
current, according to characteristicsof each battery.
During the charging process, itwill automatically
determine the battery capacity, internal resistance,
the remaining charging time, the battery percentage,
charging voltage, charging current, temperature and
so on. The charger is fullycompatible with Li-ion,
IMR, INR, ICR, Ni-MH, Ni-Cd, LiFePO4 batteries. The
charger has a backlit LCD display, which can
display charging/charge-discharge-charge parameters
and charging status of thebattery.
The charger will select different charging methods
automatically accordingto different battery types.
For Li-ion, IMR, INR, ICR, LiFePO4 batteries, the
charger will apply normal Li-ion battery charging
mode (trickle, constant current, constantvoltage), for
Ni-MH/ Ni-Cd battery, the charger will apply -△Vfull
charging capacity termination method. Each channel
is fullyindependent, and has thefunction of calculating
the battery capacitythrough discharge.

Parameters

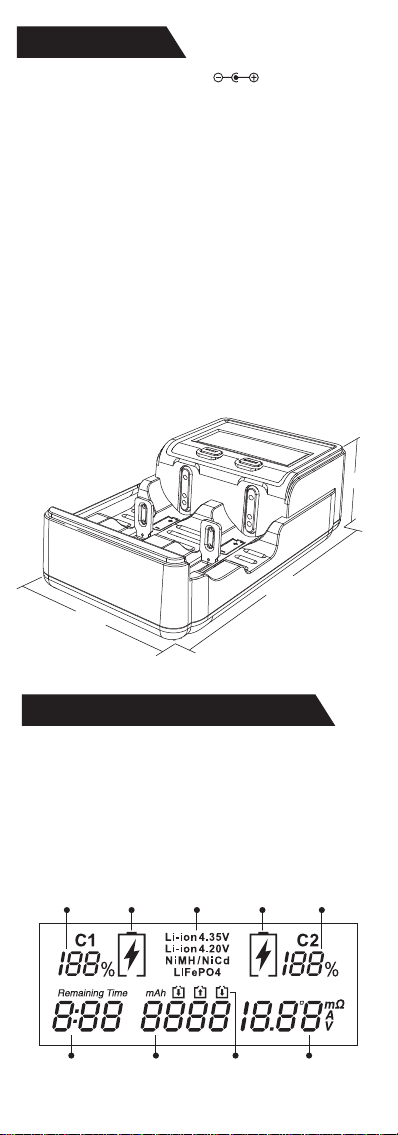

LCD display introduction
Input voltage: DC 12V 2A
Output voltage: 4.20V±1% /4.35V±1% / 3.6V±1% /
1.48V±1%
Output current:
Li-ion maximum 2*1.5A
Ni-MH/Ni-Cd maximum 2*1A
Products weight: 215g
Rich user interface display, the LCD screen show
the states of the voltage, current, remaining
charging time/charging time, battery type, internal
resistance, battery capacity, temperature and
battery percentage, which let you understand the
battery charging state more intuitively.
Compatible with:
Li-ion(4.2V/4.35V) (IMR/INR/ICR) / LiFePO4(3.6V)
10340 / 10350 / 10440 / 10500 / 12340 / 12500
12650 / 13450 / 13500 / 13650 / 14350 / 14430
14500 / 14650 / 16500 / 16340(RCR123) / 16650
17350 / 17500 / 17650 / 17670 / 18350 / 18490
18500 / 18650 / 18700 / 20700 / 21700 / 22500
22650 / 25500 / 26500 / 26650
Ni-MH / Ni-Cd (1.48V)
AAAA / AAA / AA / A / SC / C / D
148mm
48mm
82mm
Battery
percentage
Remaining time/
Charging time/
Total charge-discharge-charge time
Battery capacity Charge/discharge
symbol
Internal resistance/
current/ voltage/
temperature
First
channel
Battery
type
Second
channel
Battery
percentage

Battery percentage
Remaining time / charging time /
total charge-discharge-charge time
Battery Capacity
Change information displayed
Internal resistance / current/voltage / temperature
Input voltage: DC 12V 2A
Output voltage: 4.20V±1% /4.35V±1% / 3.6V±1% /
1.48V±1%
Output current:
Li-ion maximum 2*1.5A
Ni-MH/Ni-Cd maximum 2*1A
Products weight: 215g

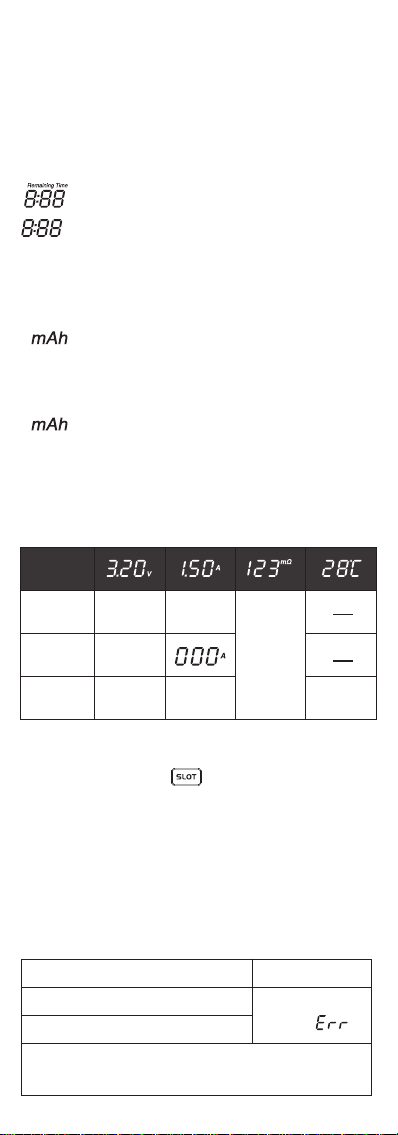

Constant shinning, means the remain
charging time;
Constant shinning, means the total time.
Note: During battery discharge mode, the time
reading means the cumulative time.
“ ” Flickering:
The data indicates the accumulated capacity
volume of the battery which was charged by the
charger.
“ ” Constant shinning:
The data indicates the battery’ s total capacity.
Put the battery in any channel, the charger will
display the battery internal resistance automatically.
A short press on the “ ” key, will switch between
the data of C1/C2 displayed.
LCD backlight
The LCD display backlight turns off after one minute
of no operation. If you want to turn on the LCD
backlight please press any key.
After battery was placed in one of the charging
slots,
the charger will display the battery percentage
automatically.
When
discharging
When
charging
When fully
charged
Discharging
voltage
Charging
voltage
Discharging
current
Temperature
Charging
current
Battery
voltage
Internal
resistance
Switch
display
Battery detection and error reporting
Battery activation and detection
Battery placing reversely
Battery short circuited happened
Error warning
Current channel
shows “ ”
Place the battery correctly, after testing OK, the
charger goes into the normal state of charge.

Operating Instructions
Battery type selection
Set the charging / discharging current
The LCD display backlight turns off after one minute
of no operation. If you want to turn on the LCD
backlight please press any key.
1. Put the battery in any channel, the charger starts
to detect the related data of the battery and
display it on the LCD screen. After 5 seconds,
the most suitable current charge (maximum
1.5A, minimum 0.1A) is automatically selected
according to the battery characteristics.
2. “ ” and “ ” flickering, means the charger
is charging.
3. When the battery is fully charged “ ”
constant shinning, and show “ ” , battery
percentage “ ” .
1. Press the key, the current symbol ( )
flickering,
2. Press the key again, select the charging
current, will automatically exit after 3 seconds.
*Default current:
The Current symbol flickering fast, means the
current is default current. the charge-discharge-charge
current (Max 1.5A, Min 0.1A)
Long press the key “ ” is flickering,
press it again within 3 seconds until “ ”
is flickering, and then press the key to choose
the
type of battery. Automatic exit after 3 seconds.
The charger cannot automatically identify LiFePO4 /
4.35V Li-ion batteries, the battery type should be set
manually.
If LiFePO4 battery type was not manually set for
LiFePO4 battery, the battery will be charged as
Li-ion 4.2V battery type. In this case there is a risk of
explosion, due to battery overcharge.
After battery was placed in one of the charging
slots,
the charger will display the battery percentage
automatically.
Li-ion / LiFePO4 Ni-MH / Ni-Cd
Discharging
current
range
Charging
current
range
0.2A / 0.3A / 0.5A / 0.8A / 1.0A / 1.5A / Default current
0.2A / 0.3A / 0.5A / 0.8A /
1.0A / 1.5A /
Default current
0.1A / 0.2A / 0.3A / 0.5A /
0.8A / 1.0A /
Default current
Note:

Charge-discharge-charge to measure
the battery capacity

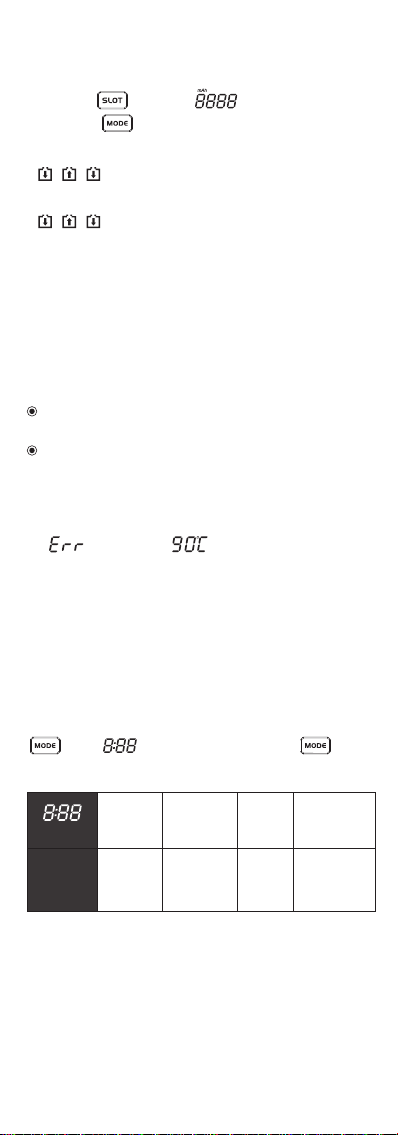

Intelligent temperature control
Time display
When the charger is in the discharge state, the
charger turns on the fan.
When the temperature of the charger exceeds
90℃, the charger will turn on the temperature
protection function, automatically stop the process
of charge-discharge-charge , LCD screen display
“ ”，and the“ ” will flickering。
When the charger begin to measure the battery
capacity in discharge, total three periods,hold
key “ ” flashes, short press key to
switch view time.
Note: When charging the 4.20V Li-ion in the first
stage, the remaining charge time is displayed.
Other batteries show the cumulative time of charge.
2. “ ” and “ ” flickering, means the charger
is charging.
3. When the battery is fully charged “ ”
constant shinning, and show “ ” , battery
percentage “ ” .
*Default current:
The Current symbol flickering fast, means the
current is default current. the charge-discharge-charge
current (Max 1.5A, Min 0.1A)
Hold the key till “ ” flickering, and
press the key within 3 seconds, to switch
measurement functions.
“ ” disappear means measurement
functions shut down.
“ ” display means measurement
functions turn on，the charger will charge the
battery, and then discharge, real-time calcula tion
of battery capacity and save the data, after the
end of the discharge, once again the battery is
full and stop.
Note: After the charger cools down, the
charge-discharge-charge process stops, and
should be re-initiated manually.
The charger cannot automatically identify LiFePO4 /
4.35V Li-ion batteries, the battery type should be set
manually.
If LiFePO4 battery type was not manually set for
LiFePO4 battery, the battery will be charged as
Li-ion 4.2V battery type. In this case there is a risk of
explosion, due to battery overcharge.
Display status
Often
show Faster show Fast show Slow show
Charge and
discharge
total time
The first stage
Charging time
Discharge
time
The third stage
Charging time
Corresponding
time

Function Description
Charge curve (only 4.20V Li-ion batteries)
Charging to measure battery capacity
Automatically set the charging current
Put the Li-ion battery(under 3.4V)into the
charger, after fully charged, the charger will
automatically store the battery curve.
Put the Li-ion battery(above 3.4V)into the
charger, after fully charged, the charger will
not store the battery curve.
Note: The charger can only store two charging
curves at the same time. When there is a third
charge curve to be stored, the charger will
automatically cover the first charge curve.
Note: When the total capacity of the LCD
display and the actual capacity of the battery is
different, please discharge the battery and
recharge it again, the charger will store the
current battery charging curve, so that the total
capacity of the battery can be accurately measured
at the next charge, this function is only valid for
4.20V lithium battery.
“ ” flickering, the charged cumulative
capacity is displayed，
“ ” constant shinning，the battery total
capacity is displayed，（ The total capacity
of the battery is calculated based on the
accumulated capacity.
After a battery is inserted into any of the charging
slots, the charger will automatically set the most
suitable charge current according to the battery
characteristics. MAX 1.5A / MIN 0.1A.
Note: The default trickle current maximum is
800mA.
When the battery voltage is below 3.60V,
The charger automatically selects the
appropriate trickle current according to the
battery characteristics.
Li-ion(4.2V / 4.35V) battery
When the battery voltage is higher than 3.60V,
The charger automatically selects the
appropriate constant current according to
the battery characteristics.
When the battery voltage is below 3.30V,
The charger automatically selects the
appropriate trickle current according to the
battery characteristics.
LiFePO4 battery
When the battery voltage is higher than 3.30V,
The charger automatically selects the
appropriate constant current according to
the battery characteristics.

Battery activation function
If the charger will identify a protected lithium battery
that needs to be activated due to under-voltage,
it will attept to activate it in accordance with the
standard charging method.. If the charger will not
be able to activate the battery, it will be considered
to be damaged, corresponding channel prompt
“ ” and stop charging.
Lithium battery repair function
When the lithium battery was discharged to 0V,
the charger will apply the battery trickle charge
to repair the battery. The battery voltage will
slowly rise, and once it is fixed, the charger will
enter the normal charging mode. If the battery
voltage can not be raised for a long time, the
charger will identify it as damaged battery,
corresponding channel prompt “ ” and
stop charging.
1. The charger is only limited to charge the
lithium ion, IMR, INR, ICR, LifePo4 and Ni MH /
Ni Cd rechargeable battery: charging different
battery types may cause an explosion,
splitting, battery leakage, personal injury or
property damage.
Matters needing attention
When the battery is fully charged, it will
stop charging and prevent overcharge
High sensitivity -△V to determine the
battery charging saturation (Ni-MH /
Ni-Cd battery)
When the battery was fully charged, the LCD
screen will display “ ” Battery capacity
percentage “ ” Charging current “ ”
Charger automatically stops charging to prevent
the battery from overcharging and shortening
the battery Life.
For Ni-MH / Ni-Cd battery, the charger will use
-△V method to determine the saturation function.
It is an accurate method to determine end of
charge, that allows nickel-metal hydride /
nickel-cadmium batteries to achieve full saturation
without overcharging.

10. When the charger is not used, battery should
be removed, and the power cable should be
pulled out.
11. Do not insert conductive materials or metal
objects into the charger, in order to avoid the
short circuit or explosion.
12. Avoid mechanical vibration and shock to
prevent damage to the charger
13. Please carefully read the label on the charger;
ensure that the battery is placed correctly when
charging.
14. Please do not overcharge or over discharge
battery, please charge the battery as soon as
possible when it is used up.
15. Do not expose the charger to rain or snow.
16. Do not touch the heating surface, when the
charger full power, high power charge and
discharge, rechargeable batteries or charger
will give out heat.
2. Using environment: using temperature
-10~40℃, storage temperature: -20~60℃,
please do not store the charger directly in the
sunlight, near the heating equipment or other
high temperature sources.
3. The charger is suitable for adults over 18 years
old; children using the charger must be under
the supervision of adults.
4. It is prohibited to use this charger with batteries
that changed its shape, color or started leaking.
5. Do not use this charger to charge disposable
batteries, such as Zinc-Carbon (carbon zinc
battery), disposable lithium metal batteries,
CR123A batteries, CR2 batteries, and other
batteries which don’ t support charging,
otherwise it may cause the risk of fire or
explosion.
6. Do not charge the defective IMR battery, or it
may cause a short circuit and cause an
explosion.
7. When the charger starts working, it should not
be placed unattended. If charging process
suddenly stopped, you should not use the
charger, and read the instructions carefully.
8. Do not disassemble, assemble or repack the
charger, which may cause damage to the
charger or even explosion.
9. The charger should be used in a well ventilated
area. Do not use or put the charger in a damp
environment. Do not place inflammable and
explosive substances in the operating area.

Warranty service
Packing list
ensure that the battery is placed correctly when
1. Broken down, Reconstructed and / or Modified
by
unauthorized parties.
2. Damaged from wrong o peration s ( i . e .
Reserve
polarity installation,Installation of
non-rechargeable batteries, or Violationwarning
operation).
3. Damaged by batteries leakage.
Free warranty does not apply to the
following conditions:
For the latest information on products
and services, please contact a local
distributor or send an email to
[e-mail].
Aftersale warranty service is only for
the products purchased from authorized sources,
this rule is compliant to all products.
Any DOA / defective product can be
exchanged for a replacement through a local
distributor/dealer within the 15 days of purchase.
After 15 days,all defective / malfunctioning
products can be repaired free of charge for a
period of 12 months (1 year) from the date of
purchase.
Beyond 12 months (1 year), a limited warranty
applies, covering the cost oflabor and maintenance,
but not the cost of accessories or replacement
parts.
Made in China
Name Quantity
C2-4000 Charger
User Manual
AC TO DC 12V/2A
Power Supply 1 PC
1 PC
1 PC

Scan for more
MiBoxer Hi-Tech Co.,Ltd.
Add: Floor 2, Buiding D, Fusen Technology Park, Hangcheng Road,
Bao’an District, Shenzhen City, Guangdong Province, China
E-mail: [e-mail]
http://www.miboxer.com
