1.0 Introduction
The KSZ8081MNX / KSZ8091MNX is a 10Base-T/100Base-TX Physical Layer Transceiver with
an MII MAC interface. It utilizes a unique mixed-signal design to extend signaling distance while
reducing power consumption, and offers HP Auto MDI/MDI-X for reliable detection of and
correction for crossover and straight-through cables, eliminating the need to differentiate between
crossover and straight-through cables.
The KSZ8091MNX has all the identical rich features of the KSZ8081MNX plus support for Energy
Efficient Ethernet (EEE) and Wake-on-LAN (WOL). The KSZ8081MNX / KSZ8091MNX come in a
32-pin, lead-free QFN package and provides an ideal solution for 10Base-T/100Base-TX
applications that have tight PCB board space.
The KSZ8081MNX and KSZ8091MNX Eval Boards (KSZ8081MNX-EVAL and KSZ8091MNX-
EVAL) provide a convenient platform to evaluate the features of the device. All configuration pins
are accessible either by jumpers, test points or interface connectors.
2.0 Board Features
Micrel KSZ8081MNX or KSZ8091MNX 10Base-T/100Base-TX Physical Layer
Transceiver
RJ-45 Jack for Fast Ethernet cable interface
HP Auto MDI/MDI-X for automatic detection and correction for straight-through and
crossover cables
MII (Media Independent Interface) Connector to interface with a MAC controller
2 LED Indicators for status and activity
Jumpers to configure strapping pins
Manual Reset Button for quick reboot after re-configuration of strapping pins
3.0 Evaluation Kit Contents
The KSZ8081MNX and KSZ8091MNX Evaluation Kits include the following hardware:
KSZ8081MNX or KSZ8091MNX Evaluation Board
A design package with the following collaterals that can be downloaded from Micrel’s website at
http://www.micrel.com
KSZ8081MNX / KSZ8091MNX Eval Board Schematic (PDF and OrCAD DSN file)
KSZ80x1 (32-QFN) Eval Board Gerber Files (PDF version included)
KSZ8081MNX / KSZ8091MNX Eval Board User’s Guide (this document)
KSZ8081MNX and KSZ8091MNX IBIS Models
and the KSZ8081MNX / KSZ8081RNB and KSZ8091MNX / KSZ8091RNB Datasheets which are
also available from Micrel’s website.

KSZ8081MNX / KSZ8091MNX 10Base-T/100Base-TX Evaluation Board User’s Guide
Micrel, Inc. August 15, 2012
Rev. 1.0
6/13
4.0 Hardware Description
The KSZ8081MNX-EVAL / KSZ8091MNX-EVAL (shown in Figure 1) comes in a compact form
factor and plugs directly into boards with Ethernet MACs that expose the MII interface.
Configuration of the KSZ8081MNX / KSZ8091MNX is accomplished through on-board jumper
selections and/or by PHY register access via the MDC/MDIO management pins of the MII
Interface.

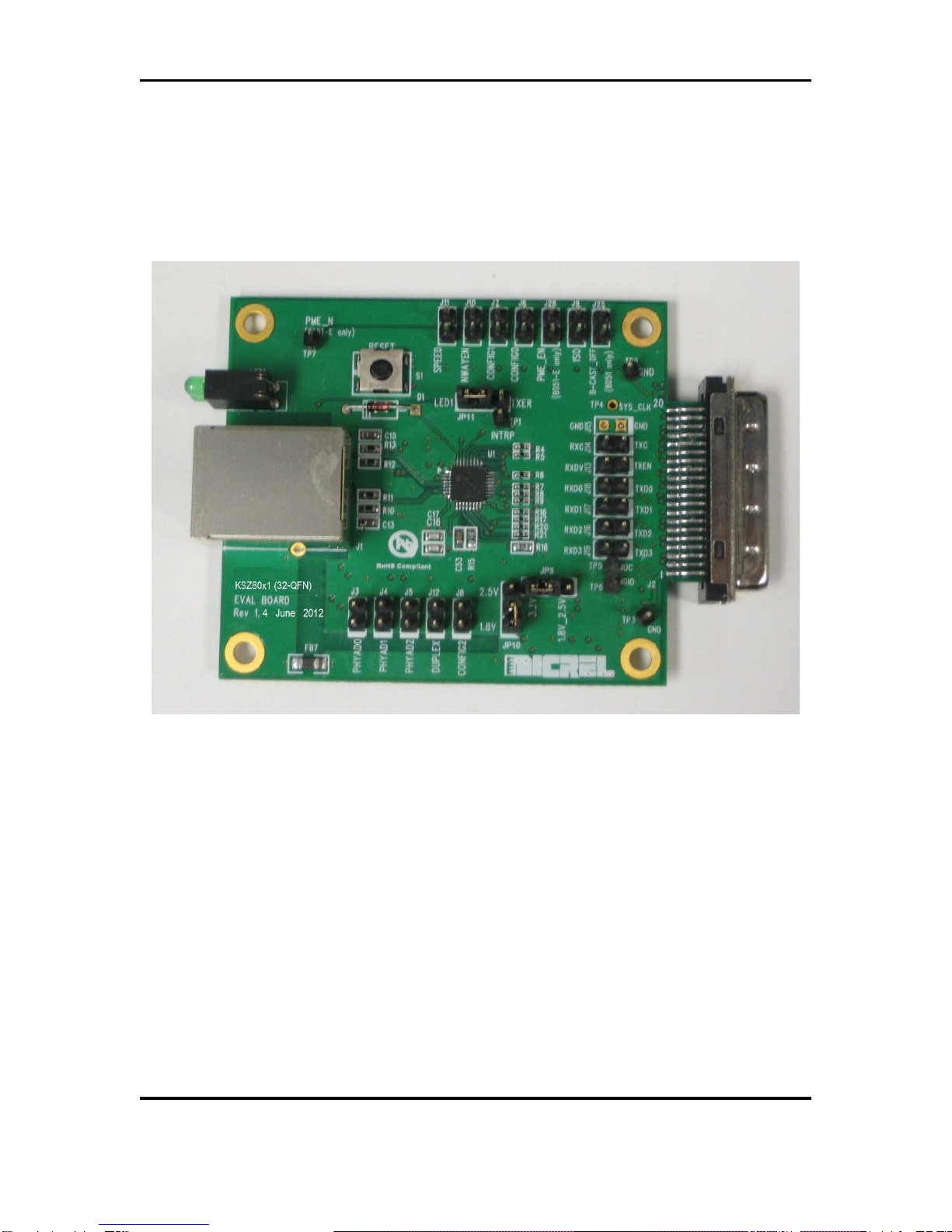

Figure 1. KSZ8081MNX Evaluation Board
Features include an RJ-45 Jack for Fast Ethernet cable connection, programmable LED
indicators for reporting link status and activity, and a manual reset button for quick reboot after re-
configuration of strapping pins.
The KSZ8081MNX-EVAL / KSZ8091MNX-EVAL receives +5V DC input power through its MII
connector.

KSZ8081MNX / KSZ8091MNX 10Base-T/100Base-TX Evaluation Board User’s Guide
Micrel, Inc. August 15, 2012
Rev. 1.0
7/13
4.1 MII (Media Independent Interface)
The KSZ8081MNX-EVAL / KSZ8091MNX-EVAL receives power and accesses MII data and

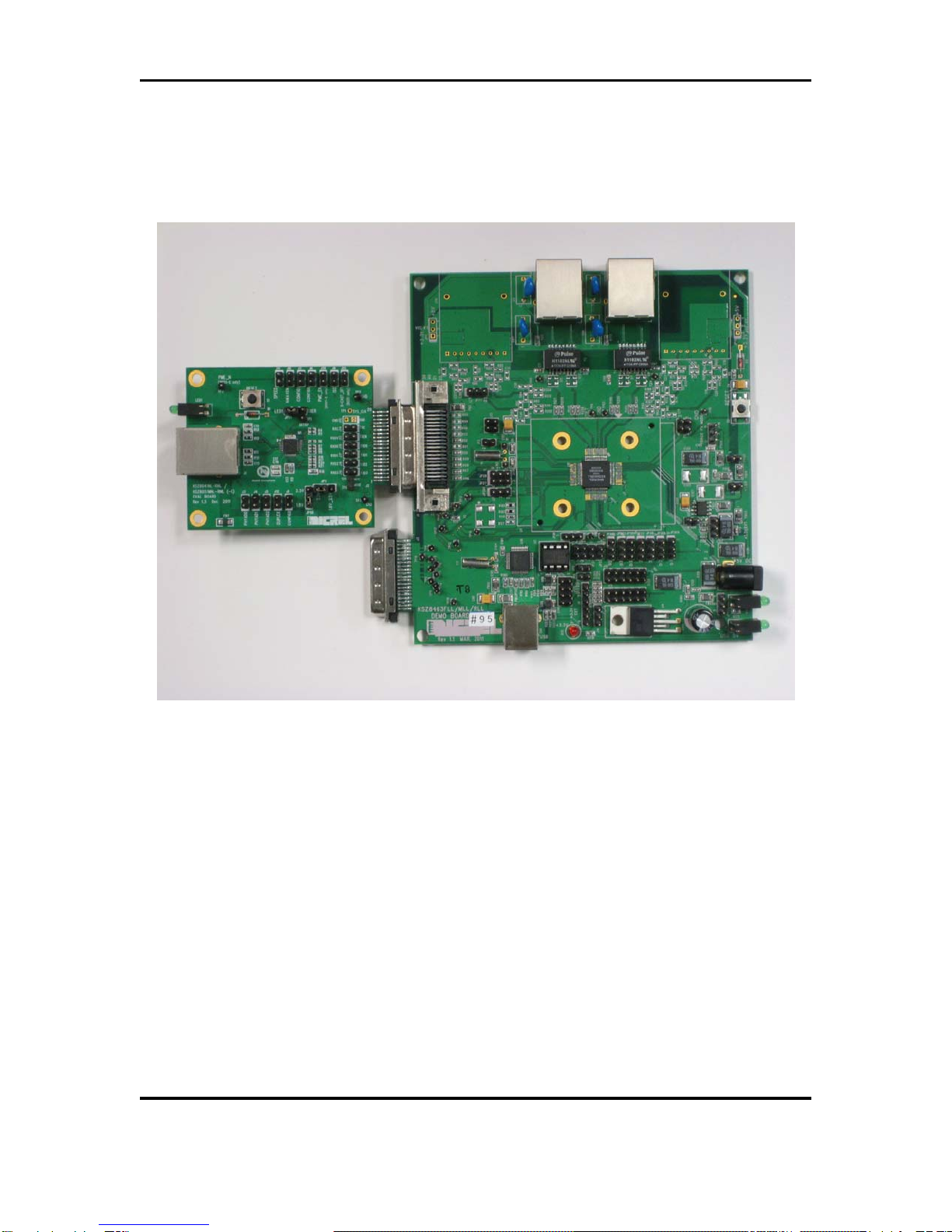

management information from the MII connector J2. Figure 2 shows the KSZ8081MNX-EVAL /
KSZ8091MNX-EVAL connected to the Micrel KSZ8463MLI Evaluation Board.
Figure 2. KSZ8081MNX-EVAL interfacing with KSZ8463MLI Evaluation Board
The MII interface is defined by Clause 22 of the IEEE 802.3 Specification. MII Management
(MIIM) is conducted thru pins MDC (clock line) and MDIO (data line). MIIM allows upper-layer
devices to monitor and control the states of the KSZ8081MNX / KSZ8091MNX. An external
device with MDC/MDIO capability can be used to read the PHY status or configure the PHY
registers. The MIIM frame format and timing information can be found in the KSZ8081MNX and
KSZ8091MNX datasheets and in Clause 22 of the IEEE 802.3 Specification.
The Eval Board has a 40-pin male edge connector that interfaces with and plugs directly into Fast
Ethernet MAC boards with the mating AMP 787170-4 (40-pin, right angle, female) connector.
Table 1 lists the pin outs for the MII interface on connector J2.

KSZ8081MNX / KSZ8091MNX 10Base-T/100Base-TX Evaluation Board User’s Guide
Micrel, Inc. August 15, 2012
Rev. 1.0
8/13
Pin # Signal Pin # Signal
1 +5V 21 +5V
2 MDIO 22 Ground
3 MDC 23 Ground
4 RXD3 24 Ground
5 RXD2 25 Ground
6 RXD1 26 Ground
7 RXD0 27 Ground
8 RXDV 28 Ground
9 RXCLK 29 Ground
10 RXER 30 Ground
11 TXER 31 Ground
12 TXCLK 32 Ground
13 TXEN 33 Ground
14 TXD0 34 Ground
15 TXD1 35 Ground
16 TXD2 36 Ground
17 TXD3 37 Ground
18 COL 38 Ground
19 CRS 39 Ground
20 +5V 40 +5V
Table 1. Connector J2 - MII Pin Definition

KSZ8081MNX / KSZ8091MNX 10Base-T/100Base-TX Evaluation Board User’s Guide
Micrel, Inc. August 15, 2012
Rev. 1.0
9/13
4.2 Jumper Setting & Definition
At power-up, the KSZ8081MNX / KSZ8091MNX is configured using the chip’s internal pull-up and
pull-down resistors with its default strapping pin values. Jumpers are provided to override the
default settings, allowing for quick configuration and re-configuration of the board. To override the
default settings, simply select and close the desired jumper setting(s) and toggle the on-board
manual reset button (S1) for the new setting(s) to take effect. The KSZ8081MNX-EVAL /
KSZ8091MNX-EVAL strapping jumper settings are defined in Table 2 below.
Jumper Definition Open (default) Close
J3 PHYAD0 1 0
J4 PHYAD1 0 1
J5 PHYAD2 0 1
J6 CONFIG0 CONFIG[2:0] Mode
[open, open, open] MII (default)
[close, close, open] MII Back-to-Back
All other CONFIG[2:0] settings not listed are
reserved (not used).
J7 CONFIG1
J8 CONFIG2
J9 Isolate Mode Disable Enable
J10 Nway Auto-Negotiation Enable Disable
J11 Forced Speed (KSZ8081 only) 100Base-TX 10Base-T
J12 Forced Duplex Half Full
J25 Broadcast Off – for PHY Address 0 Broadcast PHY address Unique PHY address
J26 PME_N Pin Enable (KSZ8091 only) Disable Enable
Table 2. KSZ8081MNX-EVAL / KSZ8091MNX-EVAL Strapping Jumper Definition
The KSZ8081MNX-EVAL / KSZ8091MNX-EVAL has another set of jumpers that may be used to
loopback the MII interface. To loopback, all six jumpers must be installed. The individual jumpers
are defined in Table 3.
Jumper MII Signals Normal Operation MII Loopback Mode
J13 RXDV / TXEN Open Close
J14 RXC / TXC Open Close
J16 RXD2 / TXD2 Open Close
J17 RXD1 / TXD1 Open Close
J18 RXD0 / TXD0 Open Close
J19 RXD3 / TXD3 Open Close
Table 3. KSZ8081MNX-EVAL / KSZ8091MNX-EVAL Loopback Jumper Definition

KSZ8081MNX / KSZ8091MNX 10Base-T/100Base-TX Evaluation Board User’s Guide
Micrel, Inc. August 15, 2012
Rev. 1.0
10/13
The last group of jumpers is defined in Table 4 below. These jumpers are not related to reset
strapping, nor to loopback. Two jumpers are used to set the VDDIO voltage, and one jumper is
used to route pin 31 as dependent on the device part number.
Note that for the eval board to function, a jumper must be installed on JP3. If pins 1 & 2 of JP3
are closed, then a jumper must also be installed on JP10.
For the KSZ8091MNX, a jumper must be installed on pins 2 & 3 of JP11.
Jumper Definition Close pins 1, 2 Close pins 2, 3
JP3 VDDIO voltage selection: 3.3V / low VDDIO set by JP10 VDDIO = 3.3V
JP10 VDDIO low voltage selection 1.8V_2.5V = 1.8V 1.8V_2.5V = 2.5V
JP11 Pin 31 connection (LED1 or TXER) For KSZ8081 only
(pin 31 = LED1) For KSZ8091 only (pin 31 = TXER)
Table 4. KSZ8081MNX-EVAL / KSZ8091MNX-EVAL Miscellaneous Jumper Definition
Table 5 lists the strapping pin definitions for the KSZ8081MNX-EVAL / KSZ8091MNX-EVAL
jumpers.
Jumper Pin Pin Name Pin Function
J5
J4
J3
15
14
13
PHYAD2
PHYAD1
PHYAD0
The PHY Address is latched at power-up / reset and is
configurable to any value from 0 to 7.
The default PHY Address is 00001.
PHY Address 00000 is enabled only if the B-CAST_OFF
strapping pin is pulled high.
PHY Address bits [4:3] are always set to ‘00’.
J8
J7
J6
18
29
28
CONFIG2
CONFIG1
CONFIG0
The CONFIG[2:0] strap-in pins are latched at power-up /
reset and are defined as follows:
CONFIG[2:0] Mode
000 MII (default)
110 MII Back-to-Back
All other CONFIG[2:0] settings not listed are reserved (not
used).
J9 20 ISO ISOLATE mode
Pull-up = Enable
Pull-down (default) = Disable
At the de-assertion of reset, this pin value is latched into
register 0h bit 10.

KSZ8081MNX / KSZ8091MNX 10Base-T/100Base-TX Evaluation Board User’s Guide
Micrel, Inc. August 15, 2012
Rev. 1.0
11/13
Jumper Pin Pin Name Pin Function
J11 31 SPEED
(KSZ8081 only) SPEED mode Pull-up (default) = 100Mbps
Pull-down = 10Mbps
At the de-assertion of reset, this pin value is latched into
register 0h bit 13 as the Speed Select, and also is latched
into register 4h (Auto-Negotiation Advertisement) as the
Speed capability support.
J12 16 DUPLEX DUPLEX mode
Pull-up (default) = Half Duplex
Pull-down = Full Duplex
At the de-assertion of reset, this pin value is latched into
register 0h bit 8 as the Duplex Mode.
J10 30 NWAYEN Nway Auto-Negotiation Enable
Pull-up (default) = Enable Auto-Negotiation
Pull-down = Disable Auto-Negotiation
At the de-assertion of reset, this pin value is latched into
register 0h bit 12.
J25 19 B-CAST_OFF Broadcast Off – for PHY Address 0
Pull-up = PHY Address 0 is set as a unique PHY
address
Pull-down (default) = PHY Address 0 is set as a
broadcast PHY address
At the de-assertion of reset, this pin value is latched by the
chip.
J26 22
PME_EN
(KSZ8091 only) PME_N Output Pin for Wake-On-LAN Function
Pull-up = Enable
Pull-down = Disable
At the de-assertion of reset, this pin value is latched into the
chip.
N/A 21 NAND_Tree# NAND Tree Mode
Pull-up (default) = Disable
Pull-down = Enable
At the de-assertion of reset, this pin value is latched by the
chip.
Table 5. Strapping Pin Definitions for KSZ8081MNX-EVAL / KSZ8091MNX-EVAL Jumpers

KSZ8081MNX / KSZ8091MNX 10Base-T/100Base-TX Evaluation Board User’s Guide
Micrel, Inc. August 15, 2012
Rev. 1.0
12/13
4.3 Test Point Definition
The KSZ8081MNX-EVAL / KSZ8091MNX-EVAL has four test points. They are defined in the
following table.
Test Point Definition
TP1 Pin 21 (with external pull-up)
KSZ8081: Interrupt
KSZ8091: Interrupt or PME_N2
TP2 Ground
TP3 Ground
TP7 Pin 30
KSZ8081: LED0
KSZ8091: LED0 or PME_N1
Table 6. KSZ8081MNX-EVAL / KSZ8091MNX-EVAL Test Point Definition
4.4 RJ-45 Connector
The RJ-45 Connector (J1) is a TDK TLA-6T718A or similar integrated magnetic jack. It connects
to standard CAT-5 Ethernet cable to interface with 10Base-T / 100Base-TX Ethernet devices.
4.5 LED Indicators
A dual LED indicator (LED1) is located adjacent to the RJ-45 Connector. The top LED and bottom
LED are connected to LED1 (pin 31) and LED0 (pin 30) respectively.
The two LEDs are programmable to LED mode ‘00’ or ‘01’ via register 1Fh bits [5:4], and are
defined in the following table.
LED Mode LED1 (pin 31) LED0 (pin 30)
00
Speed Pin
State LED Definition
10Base-T H OFF
100Base-Tx L ON
Link/
Activity Pin State LED Definition
No Link H OFF
Link L ON
Activity Toggle Blinking
01
Activity Pin
State LED
Definition
No Activity H OFF
Activity Toggle Blinking
Link Pin
State Definition
No Link H OFF
Link L ON
10 Reserved – not used Reserved – not used
11 Reserved – not used Reserved – not used
Table 7. KSZ8081MNX / KSZ8091MNX LED Definition

KSZ8081MNX / KSZ8091MNX 10Base-T/100Base-TX Evaluation Board User’s Guide
Micrel, Inc. August 15, 2012
Rev. 1.0
13/13
5.0 Bill of Materials
KSZ8081MNX / KSZ8091MNX Eval Board, Schematic Revision 1.0
Item Quantity Reference Description Package
1 2 C1,C2 47uF / Tantalum B-size
2 1 C3 22uF / Tantalum B-size
3 10 C4,C5,C7,C10,C11,C12, 0.1uF 0603
C49,C51,C57,C58
4 4 C6,C8,C48,C50 10uF / Tantalum A-size
5 1 C9 2.2uF A-size
6 2 C16,C17 22pF 0603
7 1 C52 470pF 0603
8 1 D1 1N4148 DO-35 / axial lead
9 2 FB1,FB7 Ferrite Bead 1206
10 1 J1 RJ-45 Mag Jack thru hole / PC mount
11 1 J2 Male MII Connector PCB edge mount
12 18 J3,J4,J5,J6,J7,J8,J9,J10, Header 2X1 thru hole / 0.1" pitch
J11,J12,J13,J14,J16
J17,J18,J19,J25,J26
13 3 JP3,JP10,JP11 Header 3X1 thru hole / 0.1" pitch
14 1 LED1 LEDx2 / Green thru hole / 0.1" pitch
15 1 R1 100K 0603
16 1 R2 10K 0603
17 9 R3,R25,R26,R27,R28, 4.7K 0603
R29,R30,R102,R103
18 10 R4,R5,R6,R7,R8,R9,R16, 33 0603
R17,R20,R21
19 1 R112 680 0603
20 1 R15 6.49K 0603
21 2 R22,R24 220 0603
22 5 R18,R23,R31,R32,R33 1K 0603
23 2 R111,R113 1.5K 0603
24 1 S1 SW PUSHBUTTON SMT
25 4 TP1,TP2,TP3,TP7 TestPoint thru hole / 0.1" pitch
26 1 U1 KSZ8081MNX or
KSZ8091MNX 32-pin QFN
27 1 U2 MIC5216-3.3YM5 SOT-23-5
28 1 U7 MIC5207YM5 SOT-23-5
29 1 Y1 Xtal 25MHz +/-50ppm cylinder

Mouser Electronics
Authorized Distributor
Click to View Pricing, Inventory, Delivery & Lifecycle Information:
Micrel:
KSZ8081MNX-EVAL
