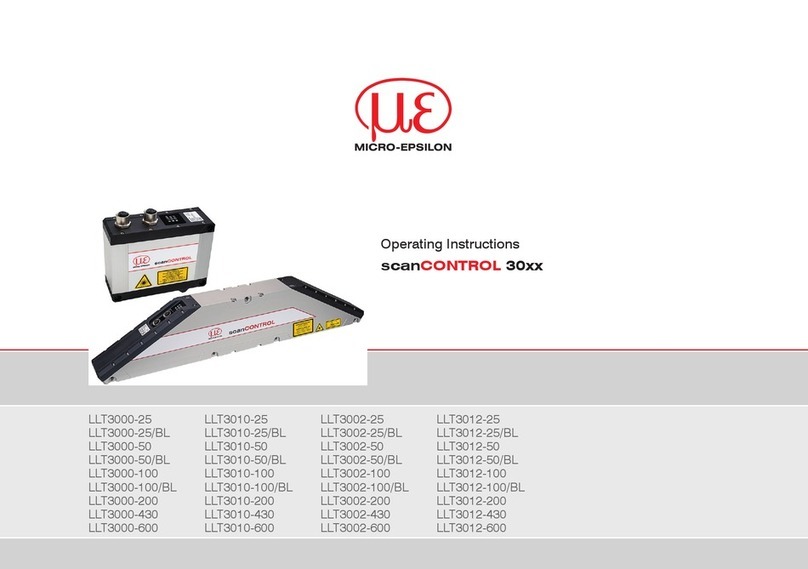

MICRO-EPSILON scanCONTROL 30 Series User manual

Operating Instructions
scanCONTROL 30xx

MICRO-EPSILON
MESSTECHNIK
GmbH & Co. KG
Königbacher Strasse 15
94496 Ortenburg / Germany
Tel. [phone] / 168-0
Fax [phone] / 168-90
e-mail: [email protected]
www.micro-epsilon.com
Laser scanner

scanCONTROL 30xx
Contents
1. Safety .......................................................................................................................................... 7
1.1 Symbols Used.................................................................................................................................................... 7
1.2 Warnings ............................................................................................................................................................ 7
1.3 Notes on CE Marking......................................................................................................................................... 8
1.4 Intended Use...................................................................................................................................................... 9
1.5 Proper Environment........................................................................................................................................... 9
2. Laser Safety.............................................................................................................................. 10
2.1 General............................................................................................................................................................. 10
2.2 Laser Class 2M................................................................................................................................................. 11
2.3 Laser Class 3R ................................................................................................................................................. 12
3. Functional Principle, Technical Data ....................................................................................... 13
3.1 Short Description ............................................................................................................................................. 13
3.1.1 Measuring Principle ........................................................................................................................................ 13
3.1.2 System Setup................................................................................................................................................... 13
3.1.3 Special Performance Features......................................................................................................................... 14
3.1.4 Advantages of the Used Sensor Matrix (Difference to Conventional Line Scanners) .................................... 14
3.1.5 Further Features............................................................................................................................................... 14
3.2 Technical Data.................................................................................................................................................. 15
3.3 LED Displays.................................................................................................................................................... 17
4. Delivery ..................................................................................................................................... 18
4.1 Unpacking, Included in Delivery...................................................................................................................... 18
4.2 Storage............................................................................................................................................................. 18
5. Installation and Mounting ........................................................................................................ 19
5.1 Attachment and Mounting .............................................................................................................................. 19
5.2 Connections..................................................................................................................................................... 23
5.2.1 General............................................................................................................................................................. 23
5.2.2 Power Supply .................................................................................................................................................. 24
5.2.3 RS422, Synchronization................................................................................................................................... 25
5.2.4 Switching Inputs............................................................................................................................................... 27
5.2.5 Ethernet Connection ........................................................................................................................................ 29

scanCONTROL 30xx
5.2.6 External Laser Switching (optional)................................................................................................................. 31
5.3 Installation Instructions .................................................................................................................................... 32
5.4 Getting Ready for Operation, Commissioning ................................................................................................ 32
6. Operation of the Sensor with a PC.......................................................................................... 33
6.1 Displays............................................................................................................................................................ 33
6.2 Operating and Demonstration Programs ........................................................................................................ 33
6.3 Installation ........................................................................................................................................................ 34
6.3.1 Requirements................................................................................................................................................... 34
6.3.2 Connecting scanCONTROL 30xx to the PC ................................................................................................... 34
6.4 Instructions for Operation ................................................................................................................................ 35
6.4.1 Measuring Field Selection ............................................................................................................................... 35
6.4.2 Calibration........................................................................................................................................................ 37
6.4.3 Operating Modes ............................................................................................................................................. 38
6.4.4 Automatic Exposure Time Regulation ............................................................................................................. 39
6.5 Error Influences................................................................................................................................................ 40
6.5.1 Reflection of the Target Surface....................................................................................................................... 40
6.5.2 Color Differences ............................................................................................................................................. 40
6.5.3 Temperature Influences ................................................................................................................................... 40
6.5.4 External Light ................................................................................................................................................... 41
6.5.5 Mechanical Vibrations...................................................................................................................................... 41
6.5.6 Surface Roughness.......................................................................................................................................... 41
6.5.7 Shadowing Effects ........................................................................................................................................... 42
6.6 Cleaning ........................................................................................................................................................... 43
7. scanCONTROL Output Unit ..................................................................................................... 44
7.1 scanCONTROL Output Unit - Components..................................................................................................... 44
7.2 Connect the Power Supply.............................................................................................................................. 45
7.3 Commissioning scanCONTROL Output Unit .................................................................................................. 46
7.4 Specification of the Components .................................................................................................................... 47
7.4.1 Output Unit Basic ............................................................................................................................................ 47
7.4.2 Supported Modules ......................................................................................................................................... 48
7.4.3 OU-DigitalOut/8-Channel/DC24 V/0.5 A/High-side Switching/8 Actuators..................................................... 49
7.4.4 OU-AnalogOut/4-Channel/0-10 V .................................................................................................................... 50
8. scanControl Gateway............................................................................................................... 51

scanCONTROL 30xx
9. Liability for Material Defects.................................................................................................... 52
10. Service, Repair ......................................................................................................................... 52
11. Decommissioning, Disposal.................................................................................................... 52
12. Error Codes .............................................................................................................................. 53
Appendix

scanCONTROL 30xx

Page 7
Safety
scanCONTROL 30xx
1. Safety
The handling of the sensor assumes knowledge of the operating instructions.
1.1 Symbols Used
The following symbols are used in this operating instructions:
Indicates a hazardous situation which, if not avoided, may result in minor or mode-
rate injury.
Indicates a situation that may result in property damage if not avoided.
Indicates a user action.
iIndicates a tip for users.
Measure Indicates hardware or a software button/menu.
1.2 Warnings
Avoid unnecessary laser radiation to be exposed to the human body.
Switch off the sensor for cleaning and maintenance.
Switch off the sensor for system maintenance and repair if the sensor is integrated into a system.
Caution - use of controls or adjustments or performance of procedures other than those specified may cause
harm.
Connect the power supply and the display/output device according to the safety regulations for electrical
equipment
> Risk of injury
> Damage to or destruction of the sensor
Avoid shocks and impacts to the sensor.
> Damage to or destruction of the sensor

Page 8
Safety
scanCONTROL 30xx
The supply voltage must not exceed the specified limits.
> Damage to or destruction of the sensor
Avoid constant exposure of the sensor to dust or splashes of water by appropriate methods such as blowing
or using a protective housing.
> Damage to or destruction of the sensor
Do not touch the protective windows of the optics. Wipe off any fingerprints immediately with pure alcohol
and a clean cotton cloth with no streaks.
Protect the cables against damage.
> Failure of the measuring device
Do not plug or unplug devices during the operation.
1.3 Notes on CE Marking
The following apply to the scanCONTROL 30xx sensor:
- EU Directive 2014/30/EU
- EU Directive 2011/65/EU, “RoHS“ category 9
Products which carry the CE mark satisfy the requirements of the EU directives cited and the European
harmonized standards (EN) listed therein. The EU Declaration of Conformity is available to the responsible
authorities according to EU Directive, article 10, at:
MICRO-EPSILON MESSTECHNIK
GmbH & Co. KG
Königbacher Straße 15
94496 Ortenburg / Germany
The sensor is designed for use in industrial environments and meets the requirements.

Page 9
Safety
scanCONTROL 30xx
1.4 Intended Use
- The scanCONTROL 30xx sensor is designed for use in industrial applications.
- It is used for
Profile measurement
Length measurement
Quality monitoring and inspection of dimensions
- The sensor must only be operated within the limits specified in the technical data, see Chap. 3.2.
- The sensor must be used in such a way that no persons are endangered or machines and other material
goods are damaged in the event of malfunction or total failure of the system/sensor/controller.
- Take additional precautions for safety and damage prevention in case of safety-related applications.
1.5 Proper Environment
- Protection class for sensors: IP 67 (applies only when connected output connectors respectively protec-
tive caps)
- Temperature range
Operation: 0 ... +45 °C (+32 ... +113 °F) (with free air circulation)
Storage: -20 ... +70 °C (-4 ... +158 °F)
- Ambient pressure: Atmospheric pressure
- Humidity: 5 - 95 % (non condensing)
The protection class does not apply for the optical sections during operation as their soiling / contamination
results in adversely affecting or failure of the function.
Only use shielded cables or original cables from the range of accessories for the connection to a power
supply and for the outputs.
Note also the assembly and installation instructions, see Chap. 5.
The IP 67 protection class is a specification which is limited to the protection with respect to dust and water.
Oil, steam and emulsion penetration are not included in this protection class and must be tested separately.

Page 10
Laser Safety
scanCONTROL 30xx
2. Laser Safety
2.1 General
The scanCONTROL 30xx sensors operate with a
semiconductor laser having a wavelength of 658 nm
(visible/red) or a semiconductor laser having a wave-
length of 405 nm (visible/blue). The laser operation is
indicated visually by the LED on the sensor.
When operating the scanCONTROL 30xx sensors,
the relevant regulations according to IEC 60825, Part
1 of 05/2014 and the applicable accident prevention
regulations must be followed.
The housings of the scanCONTROL 30xx optical
sensors must only be opened by authorized persons,
see Chap. 9. For repair and service, the sensors
should always be returned to the manufacturer.
Attach the following warning labels to the cover (front
side) of the sensor housing. The laser warning labels
for Germany have already been applied. Those for
other non German-speaking countries an IEC stan-
dard label is included in delivery and the versions ap-
plicable to the user’s country must be applied before
the equipment is used for the first time.
iIf both information labels are hidden in the installed state, the user must ensure that addi-
tional labels are fitted at the point of installation.
scanCONTROL
LASER RADIATION
DO NOT STARE INTO BEAM
OR EXPOSE USERS OF
TELESCOPE OPTICS
CLASS 2M LASER PRODUCT
IEC 60825-1: 2014
P≤10mW, P ≤10mW; E≤6mW/cm²;
0 P
λ= 405nm; F = 0...25kHz, t = 7µs...∞
COMPLIES WITH 21 CFR 1040.10 AND 1040.11
EXCEPT FOR CONFORMANCE WITH
IEC 60825-1 ED. 3., AS DESCRIBED IN
LASER NOTICE NO. 56, DATED MAY8, 2019
LASER
APERTURE

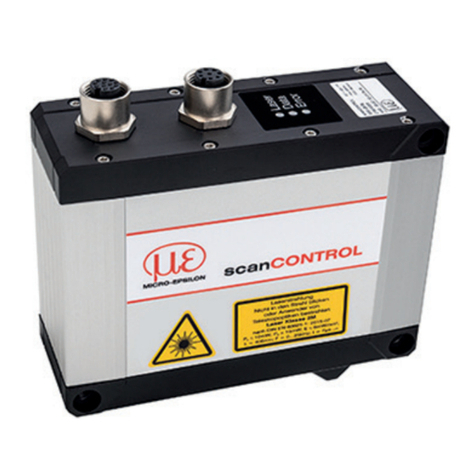

Fig. 1 True reproduction of the sensor with its actual location of the warning
label

Page 11
Laser Safety
scanCONTROL 30xx
Hazard to the eye via
laser radiation!
Consciously close
the eyes or turn away
if the laser radiation
impinges on the eye.
2.2 Laser Class 2M
scanCONTROL 30xx sensors with a maximum laser power up to 10 mW, see Chap. 3.2, are classified in
Laser Class 2M (IIM).
Accordingly, the following applies: With laser equipment of the Class 2M, the eye is not put in danger during
random, short-term exposure to the laser radiation, i.e. exposure duration up to 0.25 s. A direct glimpse into
the beam can be dangerous if the eye-closure reflex is deliberately suppressed, e.g. during adjustment.
Direct viewing into the beam with optical aids, e.g. a magnifying glass, is dangerous.
Laser equipment of the Class 2M can be employed without further protective measures, when deliberate
viewing into the laser beam or into a beam reflected by mirrors is not longer than 0.25 s. Since generally the
presence of the eye-closure reflex should not be assumed, one should close the eyes or immediately turn
away if the laser radiation impinges on the eye.
Attach the following warning labels to the cover (front side) of the housing:
LASER RADIATION
DO NOT STARE INTO BEAM
OR EXPOSE USERS OF
TELESCOPE OPTICS
CLASS 2M LASER PRODUCT
IEC 60825-1: 2014
P≤10mW, P ≤10mW; E≤6mW/cm²;
0 P
λ= 405nm; F = 0...25kHz, t = 7µs...∞
LASER RADIATION
DO NOT STARE INTO BEAM
OR EXPOSE USERS OF
TELESCOPE OPTICS
CLASS 2M LASER PRODUCT
IEC 60825-1: 2014
P≤10mW, P ≤10mW; E≤6mW/cm²;
0 P
λ= 658nm; F = 0...25kHz, t = 7µs...∞
COMPLIES WITH 21 CFR 1040.10 AND 1040.11
EXCEPT FOR CONFORMANCE WITH
IEC 60825-1 ED. 3., AS DESCRIBED IN
LASER NOTICE NO. 56, DATED MAY 8, 2019
scanCONTROL 30xx-25/BL, 30xx-50/BL scanCONTROL 30xx-25, 30xx-50 Only for USA
Lasers of Class 2M are not subject to notification and a laser protection officer is not required. Mark the laser
area recognizable and everlasting.

Page 12
Laser Safety
scanCONTROL 30xx
2.3 Laser Class 3R
The laser is pulsed, the maximum optical power is ≤ 30 mW. The pulse frequency depends on the measuring
rate set (0 … 25 kHz). The pulse duration of the peaks is regulated depending on the measuring rate.
The sensors fall within laser class 3R. The accessible laser radiation is harmful to the eyes, directly looking
into the laser radiation must be avoided at any time. Reflections of shiny or mirroring surfaces are also harm-
ful to the eyes. Class 3R lasers require a laser protection officer.
i
Laser radiation is harmful to the eyes. Do not stare deliberately into the laser beam! Close your eyes or
immediately turn away if the laser beam hits the eye.
Attach the following warning labels to the cover (front side) of the sensor housing:
LASER RADIATION
AVOID DIRECT EYE EXPOSURE
CLASS 3R LASER PRODUCT
IEC 60825-1: 2014
P≤30mW, P ≤30mW; E≤18mW/cm²;
0 P
λ= 658nm; F = 0...25kHz, t = 7µs...∞
COMPLIES WITH 21 CFR 1040.10 AND 1040.11
EXCEPT FOR CONFORMANCE WITH
IEC 60825-1 ED. 3., AS DESCRIBED IN
LASER NOTICE NO. 56, DATED MAY 8, 2019
scanCONTROL 30xx-25, 30xx-50 Only for USA
In addition, the following information label must be attached to the laser output on the sensor housing:
LASER
APERTURE
Hazard to the eye via
laser radiation!
Consciously close
the eyes or turn away
if the laser radiation
impinges on the eye.

Page 13
Functional Principle, Technical Data
scanCONTROL 30xx
3. Functional Principle, Technical Data
3.1 Short Description
3.1.1 Measuring Principle
The scanCONTROL 30xx sensor operates ac-
cording to the principle of optical triangulation
(light intersection method):
- A laser line is projected onto the target
surface via a linear optical system.
- The diffusely reflected light from the laser
line is replicated on a sensor matrix by a
high quality optical system and evaluated
in two dimensions.
The laser line triangulation corresponds in
principle to the triangulation of a laser point.
In addition, during the measurement a row
of lines are simultaneously illuminated by the
laser line. Apart from the distance informa-
tion (Z-axis), the exact position of each point
on the laser line (X-axis) is also acquired and
output by the system. Measuring range
X-axis (profile width)
Measuring
range Z-axis
(profile height)
3.1.2 System Setup
The scanCONTROL 30xx sensor is a compact sensor with an integrated controller. All necessary integral
parts are combined in one housing.

Page 14
Functional Principle, Technical Data
scanCONTROL 30xx
3.1.3 Special Performance Features
- scanCONTROL 30xx features speed and compact design with simultaneously high measurement accu-
racy. A special line-scanning optical system ensures uniform exposure of the measuring field.
- The sensor matrix is arranged in the sensor head according to the Scheimpflug condition which facilitates
uniform image focusing over the whole depth of the measurement range (Z-axis).
- The scanCONTROL 30xx series with integrated profile analysis works even without a PC in conjunction
with saved configurations. The sensor runs the profile measurement internally and calculates default mea-
sured values such as angle or edge position.
Besides measurement value output via Ethernet (Modbus TCP protocol, UDP protocol) and RS422 (Mod-
bus RTU protocol or ASCII format), additional switching signals (results of the determination of limit values)
and analog measurement values can be output. This is done by an optional scanCONTROL Output Unit,
which transforms the determined measurement signals in switching and analog signals for further process-
ing in a PLC.
- scanCONTROL Gateway allows for scanCONTROL SMART sensors to be integrated into various fieldbus
systems (Profinet, Ethernet IP, EtherCat).
3.1.4 Advantages of the Used Sensor Matrix (Difference to Conventional Line Scanners)
- A global shutter (high speed shutter) for the whole profile enables a high profile accuracy for fast applica-
tions without “tilting”.
- The matrix enables the simultaneous exposure and reading of the previous image. Thus the exposure time
is longer at the same profile frequency. With it also dark objects can be measured with a high rate.
- The High Dynamic Range mode (HDR) provides optimal measuring data on difficult target surfaces.
3.1.5 Further Features
- External synchronization and triggering
- Serial interface (RS422) for communication with PLC or PC
- Digital switching inputs, selectable TTL or HTL (selectable Pull-up or Pull down behaviour)
- The automatic control of the exposure time enables consistent measurement results with changing sur-
faces. This function can be switched off on request.
- Ethernet 100/1000 Mbit as fast standard connection to PC

Page 15
Functional Principle, Technical Data
scanCONTROL 30xx
3.2 Technical Data
Model scanCONTROL
30xx-25/BL 30xx-50/BL 30xx-25 30xx-50
Measuring range Z-axis 15 mm 40 mm 15 mm 40 mm
Start of measuring range 77.5 mm 105 mm 77.5 mm 105 mm
End of measuring range 92.5 mm 145 mm 92.5 mm 145 mm
Line length midrange (X-axis) 25 mm 50 mm 25 mm 50 mm
Linearity 10.06 % FSO (2 s); 0.08 % FSO (3 s) 0.08 % FSO (2 s); 0.12 % FSO (3 s)
Reference resolution 1.5 µm 3 µm 1.5 µm 3 µm
Resolution X-axis 2048 points/profile
Profile frequency Up to 10 kHz
Light source laser Semiconductor laser 405 nm (blue) Semiconductor laser 658 nm (red)
Laser power 2, 3
standard max. 10 mW (Laser class 2M), reduced 2.5 mW
optional -max. 30 mW (Laser class 3R),
reduced 10 mW
Protection class (DIN EN 60529 ) IP 67
Operating temperature 0 °C ... +45 °C (+32 ... +113 °F)
Storage temperature -20 °C ... 70 °C (-4 ... +158 °F)
Outputs/inputs Ethernet, Laser on/off (optional),
1x RS422 programmable (Half-duplex),
4 switching inputs programmable HTL/TTL, Pull up/pull down
all inputs and outputs galvanically isolated

Page 16
Functional Principle, Technical Data
scanCONTROL 30xx
Model scanCONTROL
30xx-25/BL 30xx-50/BL 30xx-25 30xx-50
Interfaces Ethernet
GigE Vision
Output of measurement values, sensor control, profile data transmission
Multi function
port
Digital inputs Mode switching; Encoder; Trigger
RS422 (half
duplex)
Output of measurement values; sensor control;
Trigger; synchronization
Output of measurement values Ethernet (UDP datagrams / Modbus TCP)
RS422 (ASCII / Modbus RTU) 4
Analogue 5 / Switch signal 5
Profinet 6 / EthernetIP 6 / Ethercat 6
Displays (LED) 1x laser on / 1 x data / 1 x error
Dimensions 96 x 112 x 40 mm
Sensor weight (without cable) 415 g
Supply 11 ... 30 VDC, rated value 24V, 500 mA
IEEE 802.3af Power over Ethernet, class 2
FSO = Full Scale Output | MMR = Midrange
1) Based on a MICRO-EPSILON Optronic standard target
2) Beam divergence: ±10° for LLT30xx-25, ±15° for LLT30xx-50
3) Pulse pattern: Profile frequency from 0 to 25 kHz with a constant gap of 30 µs. The pulse duration varies depending on the profile
frequency.
4) RS422 interface, programmable as serial interface or input for triggering / synchronization
5) Only with scanCONTROL Output Unit
6) Only with scanCONTROL Gateway

Page 17
Functional Principle, Technical Data
scanCONTROL 30xx
3.3 LED Displays
LED Laser Meaning
Yellow Laser is on
LED Data Meaning
Green Measurement is active
Green, flashes slowly Data transmission is active
Green, flashes short Controller accesses
LED Error Meaning
Red, ashes Error code, see Chap. 12.

Page 18
Delivery
scanCONTROL 30xx
4. Delivery
4.1 Unpacking, Included in Delivery
- 1 Sensor scanCONTROL 30xx
- 1 Assembly instructions
- 1 Calibration final inspection
- 2 Protective caps
- 1 PCR3000-5 Multifunction cable; 5 m long; for power supply, digital input (TTL and HTL) and RS422 (half-
duplex); screw connector and free cable ends
Check the delivery for completeness and shipping damage immediately after unpacking.
If there is damage or parts are missing, immediately contact the manufacturer or supplier.
4.2 Storage
Temperature range storage: -20 ... +70 °C (-4 ... +158 °F)
Humidity: 5 - 95 % (non condensing)

Page 19
Installation and Mounting
scanCONTROL 30xx
5. Installation and Mounting
5.1 Attachment and Mounting
- using 2 or 3 screws M5, screwed directly
- using 2 or 3 screws M4, screwed pushed through
Depending on the installation position, it is recommended to define the sensor position using centering ele-
ments and fitting bores.
The cylindrical counterbore ø8H7 is intended for the position-defining centering elements. This allows for the
sensor to be mounted in a reproducible and exchangeable way.
The mounting dimensions refer to the dimensional drawings.
Pay attention to careful handling during mounting and operation.
> Damage to or destruction of the sensor
The laser beam must strike the target surface at right angles. Otherwise, inaccurate measurements cannot be
excluded.
Mount the sensor by means of screws type M5 or by means of through bores for M4.
Bolt connection
Through length Screw Washer Torque
40 mm M4 x ISO 4762-A2 A 4,3 ISO 7089-A2 1.9 Nm
Direct fastening
Screw depth Screw Torque
min 14 mm M5 x ISO 4762-A2 2.5 Nm
Fig. 2 Mounting conditions
The bearing surfaces surrounding the fastening holes (through-holes) are slightly raised.
Mount the sensor only to the existing holes on a flat surface. Clamps of any kind are not permitted. Do not
exceed torques.
> Damage to or destruction of the sensor
> Inaccurate, erroneous measuring values

Page 20
Installation and Mounting
scanCONTROL 30xx
(2)
(1)
(1) Screw M4
(2) Centering element
(2)
(1)
(1) Screw M5
(2) Centering element
Fig. 3 Mounting example with bolt connection Fig. 4 Mounting example with direct fastening
Bolt connection:
- 3 threaded holes (M4)
with centering element:
- additionally 2 cylindrical counter-
bores 8H7 depth 1.8 - 2 mm
100 ±0.2
71.5 ±0.2
3 x
ø4.5
3 x M4
ø8 H7
1.9 ±0.1
Direct fastening:
- 3 bores ø 4.5
with centering element:
- additionally 2 cylindrical counterbores
8H7 depth 1.8 - 2 mm
Fig. 5 Dimensional drawing mounting bores,
dimensions in mm, not to scale
