Microcyber MCAFD4 User manual

MCAFD4 Active Fieldbus Distributor
User Manual
Microcyber Corporation

http://www.microcyber-fieldbus.com
Caution
1. Please don’t take off/install components at random.
2. Please check if the power meets the power request in the User Manual.
Version
V1.0
Disclaimer of Liability
We have reviewed the contents of this publication to ensure consistency with the
hardware and software described. Since variance cannot be precluded entirely, we
cannot guarantee full consistency. However, the information in this publication is reviewed
regularly and any necessary corrections are included in subsequent editions.
Microcyber Corporation 2015
The technical data may change at any time.
.

I
http://www.microcyber-fieldbus.com
Table of Contents
1. Overview 3
2. Feature 3
3. System Wiring Diagram 3
4. Technical Index 4
5. Installation & Wiring 6

http://www.microcyber-fieldbus.com
Active Fieldbus Distributor | MCAFD4 | Page
Email | [e-mail]
3
1. Overview
MCAFD4 Active Fieldbus Distributor is
suitable for the FF H1 and PROFIBUS
PA fieldbus application. Through the
distributor, field devices use the topology
of the main - branch to connect the
system. Each distributor has four
branches. There’s built-in automatic bus
terminal. LED status indicator can
rapidly diagnosis main line and branch
line short circuit state, isolate the fault section automatically. Multiple protection
function of the distributor can ensure the safe operation of the system.
2. Feature
Short-circuit, overload protection for main line and branch line
Suitable for FOUNDATION Fieldbus H1 and PROFIBUS PA
LED indicator fault diagnosis
Automatic bus terminal
Reverse connection protection
Automatic isolating fault port
Protection class IP65
3. System Wiring Diagram

http://www.microcyber-fieldbus.com
Active Fieldbus Distributor | MCAFD4 | Page
Email | [e-mail]
4
4. Technical Index
Power Consumption
No-load current loss
＜10mA
Power consumption
＜180mW
Main Line
Number of electrical connectors
2
Electrical connectors
M16*1.5
Cable diameter
4～9mm
Teminals
Screw type PCB terminal (3-pin)
Bus input voltage
10～32VDC
Main line max. output current
1A
Main line voltage drop
＜0.3V
Automatic bus termination
√
Branch
Number of electrical connectors
4
Num. of connectable field devices
4
Electrical connectors
M16*1.5
Cable diameter
4～9mm
Teminals
Screw type PCB terminal (3-pin)
Branch output voltage
9～31VDC
Branch max. output current
60mA
Short-circuit protection current
＜300uA

http://www.microcyber-fieldbus.com
Active Fieldbus Distributor | MCAFD4 | Page
Email | [e-mail]
5
Main and branch voltage drop
＜1V
Interface
PROFIBUS PA
√
FOUNDATION Fieldbus H1
√
Evironmental Characteristics
Working temperature
－40℃～＋85 ℃
Storage temperature
－40℃～＋85 ℃
Relative humidity
5%RH～95%RH
Protection degree
IP65
Dimension W x H x D (mm)
125*57*80 (No electrical connector)
Weight
600g

http://www.microcyber-fieldbus.com
Active Fieldbus Distributor | MCAFD4 | Page
Email | [e-mail]
6
5. Installation & Wiring
5.1 LED indicating of MCAFD4 Active Fieldbus Distributor
Port
LED
Indication
Meaning
Solution
T1-T2
Green
Main connection is normal
Bus terminal is inactive (T2 Green)
—
Red
Main short-circuit fault
Trouble shooting
Light off
Main line no access
Main line inversely access
Bus terminal is activated (T2 off)
Correct wiring
Port
LED display
Meaning
Solution
S1-S4
Green
Branch connection is normal
—
Red
Branch short-circuit fault
Trouble shooting
Light off
Main line no access
Main line inversely access
Correct wiring
5.2 Terminal distribution of MCAFD4 Active Fieldbus Distributor
Connection
Teminal
Allocation
T1-T2
Main line
+
Data correction
S
Shielded wire
-
Data line negative

http://www.microcyber-fieldbus.com
Active Fieldbus Distributor | MCAFD4 | Page
Email | [e-mail]
7
S1-S4
Field device
branch
+
Data line positive
S
Shielded wire
-
Data line negative

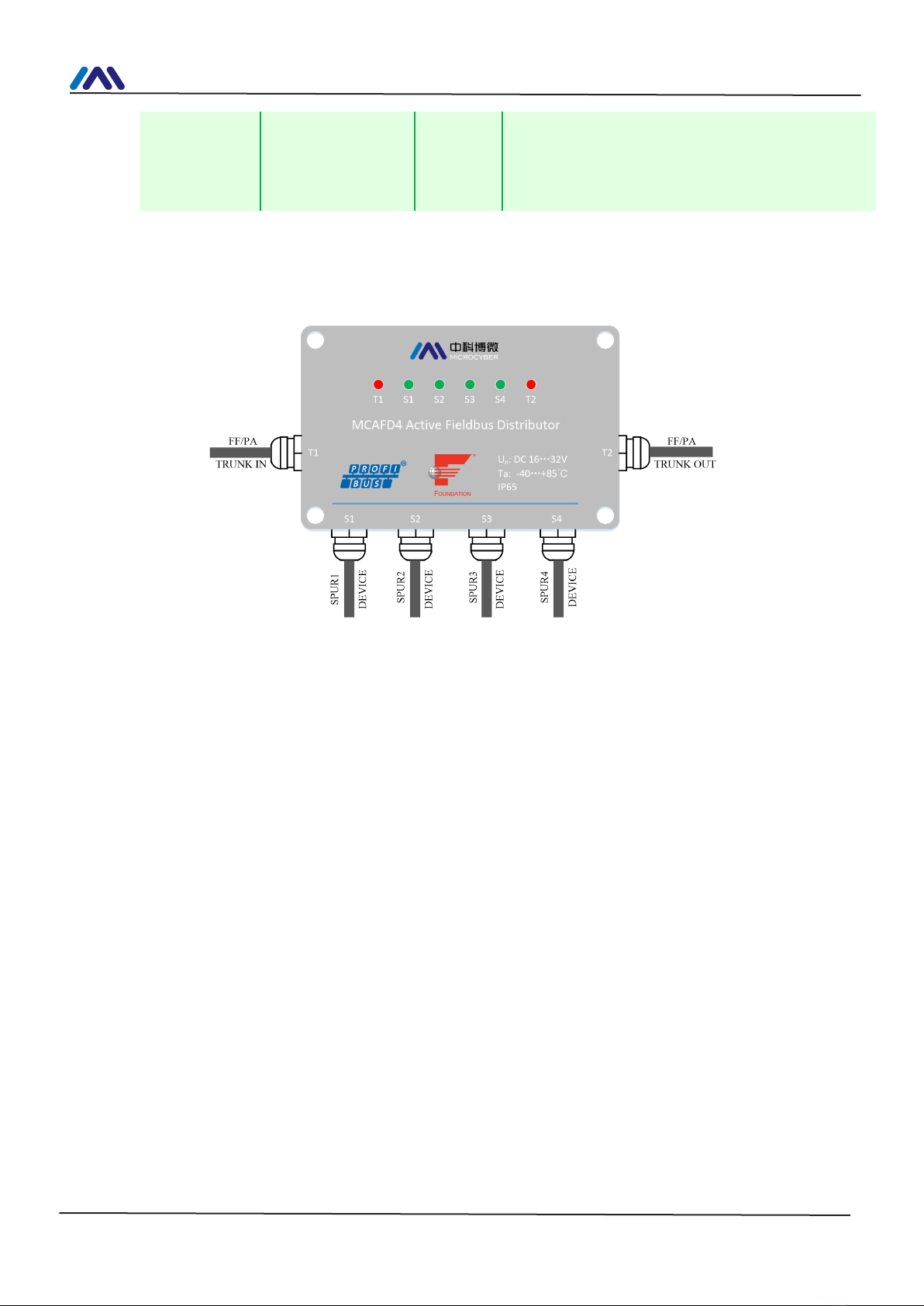

5.3 Wiring of MCAFD4 Active Fieldbus Distributor
1. Connect bus through T1 & T2, T1 for bus input, T2 for bus ouput, and
connect fieldbus devices by branch S1 to S4.
2. Open cover of active fieldbus distributor, and install the distributor to
the flat surface or on the guide rail, to ensure 60 mm space connection
on the rear left of and below the distributor.
3. Unscrew the electrical connector, run the fieldbus cable through the
electrical connector gland, and twist the cable onto the corresponding
terminal, to ensure correct polarity of the connection.
4. Close the active fieldbus distributor cover, tighten the fixing screw.
5. Use seal plug to seal unused cable entry gland, so as to ensure the
IP65 protection class.

http://www.microcyber-fieldbus.com
Active Fieldbus Distributor | MCAFD4 | Page
Email | [e-mail]
8
