Microelettrica Scientifica MC2-30T User manual

MC2-30T
Doc. N° MO-0483-ING
Copyright 2016
Date
17.03.2022
Rev.
2
Pag.
1
of
70
MICROPROCESSOR
OVERCURRENT AND EARTH FAULT
RELAY
TYPE
“MC2-30T”
OPERATION MANUAL

MC2-30T
Doc. N° MO-0483-ING
Copyright 2016
Date
17.03.2022
Rev.
2
Pag.
2
of
70
1. General Utilization and Commissioning Directions _________________________________________________________4
1.1 - Storage and Transportation _____________________________________________________________________4
1.2 - Installation __________________________________________________________________________________4
1.3 - Electrical Connection___________________________________________________________________________4
1.4 - Measuring Inputs and Power Supply _______________________________________________________________4
1.5 - Outputs Loading ______________________________________________________________________________4
1.6 - Protection Earthing ____________________________________________________________________________4
1.7 - Setting and Calibration _________________________________________________________________________4
1.8 - Safety Protection _____________________________________________________________________________4
1.9 - Handling ____________________________________________________________________________________4
1.10 - Maintenance ________________________________________________________________________________4
1.11 - Waste Disposal of Electrical & Electronic Equipment __________________________________________________4
1.12 - Fault Detection and Repair _____________________________________________________________________4
2. General _________________________________________________________________________________________5
2.1 - Power Supply ________________________________________________________________________________5
3. Front Panel ______________________________________________________________________________________5
4. Keyboard and Display ______________________________________________________________________________6
4.1 - Display _____________________________________________________________________________________6
5. Icons of Display ___________________________________________________________________________________7
6. Signalization _____________________________________________________________________________________8
6.1 - Leds Manual Reset ____________________________________________________________________________8
6.2 – Display of the last trip _________________________________________________________________________8
7. Leds Configuration_________________________________________________________________________________9
7.1 - Name _____________________________________________________________________________________10
7.2 - Link enable _________________________________________________________________________________10
7.3 - Status _____________________________________________________________________________________10
7.4 - Light Prog. _________________________________________________________________________________10
7.5 - Funct. Mode ________________________________________________________________________________10
7.6 - Functions __________________________________________________________________________________10
7.7 - Table 1 ____________________________________________________________________________________11
7.8 - Example: Change settings for “Led1” _____________________________________________________________12
7.8.1 - “Link Enable” ____________________________________________________________________________12
7.8.2 - “Flashing” ______________________________________________________________________________12
7.8.3 - “Funct.Mode” ____________________________________________________________________________13
7.8.4 -“Functions” _____________________________________________________________________________13
8. User Variables ___________________________________________________________________________________14
8.1 - Name _____________________________________________________________________________________14
8.2 - User Descr. _________________________________________________________________________________14
8.3 - Linked functions _____________________________________________________________________________14
8.4 - OpLogic____________________________________________________________________________________14
8.5 - Timer _____________________________________________________________________________________14
8.6 - Timer type _________________________________________________________________________________14
8.7 – Extra _____________________________________________________________________________________14
8.8 - Logical status _______________________________________________________________________________14
8.9 - Example: Setting “User Variable” ________________________________________________________________14
8.9.1 - “User description” (User descr.) _____________________________________________________________15
8.9.2 - “Linked Functions”________________________________________________________________________15
8.9.3 - “Operation Logic” (Oplogic) _________________________________________________________________16
8.9.4 - “Timer” ________________________________________________________________________________16
8.9.5 - “Timer type” ____________________________________________________________________________17
8.9.6 - “Extra”_________________________________________________________________________________17
9. Local Commands _________________________________________________________________________________18
10. Measure_______________________________________________________________________________________19
11. Maximum Values (Only via software) ________________________________________________________________19
12. Trip Recording __________________________________________________________________________________20
13. Partial Counters _________________________________________________________________________________22
14. Total Counters __________________________________________________________________________________23
15. Events ________________________________________________________________________________________24
15.1 – Events on display ___________________________________________________________________________25
16. System (System parameters) ______________________________________________________________________27
17. Settings _______________________________________________________________________________________28
17.1 - Modifying the setting of variables _______________________________________________________________29
17.2 - Password _________________________________________________________________________________30
17.3 – Menu: Communic. (Communication)__________________________________________________________31
17.3.1 – Description of variables___________________________________________________________________31
17.3.2 – Front Panel USB serial communication port (RS232) ____________________________________________31
17.3.3 – Cable for connection from Relay to Personal Computer __________________________________________31
17.3.4 – Main serial communication port (RS485) _____________________________________________________31
17.4 - Menu: Customize (Human Machine Interface) ____________________________________________________32
17.4.1 – Description of variables___________________________________________________________________32
17.5 - Function: FileSys (File system and Disk management) ______________________________________________33
17.5.1 - Description of variables ___________________________________________________________________33
17.5.2 – Download file informations ________________________________________________________________33
17.6 - Function: T> (Thermal Image F49) _____________________________________________________________35
17.6.1 - Description of variables ___________________________________________________________________35

MC2-30T
Doc. N° MO-0483-ING
Copyright 2016
Date
17.03.2022
Rev.
2
Pag.
3
of
70
17.6.2 - Trip and Alarm__________________________________________________________________________35
17.7 - Function: 1I> (First Overcurrent Element F50/51) _________________________________________________37
17.7.1 - Description of variables ___________________________________________________________________37
17.7.2 – Blocking Logic (BO-BI) ___________________________________________________________________38
17.7.3 - Automatic doubling of Overcurrent thresholds on current inrush ___________________________________38
17.8 – Function: 2I> (Second Overcurrent Element F50/51) _______________________________________________39
17.8.1 - Description of variables ___________________________________________________________________39
17.9 - Function: 3I> (Third Overcurrent Element F50/51) _________________________________________________39
17.9.1 - Description of variables ___________________________________________________________________39
17.10 - Function: 1Io> (First Earth Fault Element 50N/51N) _______________________________________________40
17.10.1 - Description of variables __________________________________________________________________40
17.11 - Function: 2Io> (Second Earth Fault Element 50N/51N) ____________________________________________40
17.11.1 - Description of variables __________________________________________________________________40
17.12 - Function: 3Io> (Third Earth Fault Element 50N/51N) ______________________________________________41
17.12.1 - Description of variables __________________________________________________________________41
17.13 - Function: 1Is> (First Negative Sequence Element F46)_____________________________________________42
17.13.1 - Description of variables __________________________________________________________________42
17.13.2 – Time/Current operation of the first Current Unbalance element “f(t)” ______________________________42
17.14 - Function:2Is> (Second Negative Sequence Element F46) ___________________________________________42
17.14.1 - Description of variables __________________________________________________________________42
17.15 - Function: Reclos (Automatic Reclosure RCL) _____________________________________________________43
17.15.1 - Description of variables __________________________________________________________________44
17.15.2 – Definitions____________________________________________________________________________44
17.15.3 - Operation ____________________________________________________________________________46
17.15.4 - Reclose Command ______________________________________________________________________46
17.16 - Function: tTripRd (Trip Time Reduction) ________________________________________________________47
17.16.1 - Description of variables __________________________________________________________________47
17.16.2 - Operation ____________________________________________________________________________47
17.17 - Function: TCS (Trip Circuit Supervision)_________________________________________________________48
18.17.1 - Description of variables __________________________________________________________________48
17.17.2 - Operation ____________________________________________________________________________48
17.18 - Function: IRF (Internal Relay Fault)____________________________________________________________49
17.18.1 - Description of variables __________________________________________________________________49
17.18.2 - Operation ____________________________________________________________________________49
17.19 - Function: BreakerFail (Breaker Failure) ________________________________________________________49
17.19.1 - Description of variables __________________________________________________________________49
17.19.2 - Operation ____________________________________________________________________________49
17.20 - Function: Oscillo (Oscillographic Recording) _____________________________________________________50
17.20.1 - Description of variables __________________________________________________________________50
17.20.2 - Operation ____________________________________________________________________________50
17.20.3 – Available on software ___________________________________________________________________51
17.20.4 – Setting “User Trigger Oscillo” _____________________________________________________________52
17.20.5 – Example: Setting “Oscillo Trigger Logic” _____________________________________________________53
17.21 - Function: CB Mngn (Control C/B) _____________________________________________________________56
17.21.1 - Description of variables __________________________________________________________________56
17.21.2 – Push-Buttons (Programmable only via software) ______________________________________________56
17.22 - Function: ExtResCfg (External Reset Configuration) _______________________________________________58
17.22.1 - Description of variables __________________________________________________________________58
18. Input – Output (via software)______________________________________________________________________58
18.1 – Digital Input _______________________________________________________________________________58
18.2 – “DI” Configuration (via software) _______________________________________________________________58
18.2.1 – Example ______________________________________________________________________________59
18.2.2 – Name ________________________________________________________________________________59
18.2.3 – Status ________________________________________________________________________________59
18.2.4 – Functions _____________________________________________________________________________59
18.2.5 – Example: Setting “Digital Input” ____________________________________________________________59
18.3 – Physical Outputs____________________________________________________________________________60
18.4 - “DO” Configuration __________________________________________________________________________60
18.4.1 - Example configuration ____________________________________________________________________60
18.4.2 - Functions - Operation Mode________________________________________________________________61
19. InfoStatus _____________________________________________________________________________________65
20. Date and Time __________________________________________________________________________________66
20.1- Clock synchronization ______________________________________________________________________67
22. Healthy (Diagnostic Information) ___________________________________________________________________68
23. Dev.Info (Relay Version) __________________________________________________________________________68
24. Maintenance ___________________________________________________________________________________68
25. Wiring Diagram _________________________________________________________________________________69
26. Overall Dimensions ______________________________________________________________________________69
27. Electrical Characteristics __________________________________________________________________________70

MC2-30T
Doc. N° MO-0483-ING
Copyright 2016
Date
17.03.2022
Rev.
2
Pag.
4
of
70
1. General Utilization and Commissioning Directions
Always make reference to the specific description of the product and to the Manufacturer's instruction.
Carefully observe the following warnings.
1.1 - Storage and Transportation
Must comply with the environmental conditions stated in the product's specification or by the applicable IEC
standards.
1.2 - Installation
Must be properly made and in compliance with the operational ambient conditions stated by the Manufacturer.
1.3 - Electrical Connection
Must be made strictly according to the wiring diagram supplied with the Product, to its electrical
characteristics and in compliance with the applicable standards particularly with reference to human safety.
1.4 - Measuring Inputs and Power Supply
Carefully check that the value of input quantities and power supply voltage are proper and within the
permissible variation limits.
1.5 - Outputs Loading
Must be compatible with their declared performance.
1.6 - Protection Earthing
When earthing is required, carefully check its effectiveness.
1.7 - Setting and Calibration
Carefully check the proper setting of the different functions according to the configuration of the protected
system, the safety regulations and the co-ordination with other equipment.
1.8 - Safety Protection
Carefully check that all safety means are correctly mounted, apply proper seals where required and
periodically check their integrity.
1.9 - Handling
Notwithstanding the highest practicable protection means used in designing electronic circuits, the electronic
components and semiconductor devices mounted on the modules can be seriously damaged by electrostatic
voltage discharge which can be experienced when handling the modules.
The damage caused by electrostatic discharge may not be immediately apparent but the design reliability and
the long life of the product will have been reduced. The electronic circuits are completely safe from
electrostatic discharge (8 KV IEC 255.22.2) when housed in their case; withdrawing the modules without
proper cautions expose them to the risk of damage.
1.10 - Maintenance
Make reference to the instruction manual of the Manufacturer; maintenance must be carried-out by specially
trained people and in strict conformity with the safety regulations.
1.11 - Waste Disposal of Electrical & Electronic Equipment
(Applicable throughout the European Union and other European countries with separate collection program).
This product should not be treated as household waste when you wish dispose of it. Instead, it should be
handed over to an applicable collection point for the recycling of electrical and electronic equipment.
By ensuring this product is disposed of correctly, you will help prevent potential negative consequence to the
environment and human health, which could otherwise be caused by inappropriate disposal of this product. The
recycling of materials will help to conserve natural resource.
1.12 - Fault Detection and Repair
Internal calibrations and components should not be altered or replaced.
For repair please ask the Manufacturer or its authorized Dealers.
Misapplication of the above warnings and instruction relieves the Manufacturer of any liability.

MC2-30T
Doc. N° MO-0483-ING
Copyright 2016
Date
17.03.2022
Rev.
2
Pag.
5
of
70
2. General
The main features of the relays are:
User friendly front face with hi-resolution graphic display (240x128), 10 signal Leds, 6 push-buttons
(configurable) and four push-button for complete local managemen, USB for local communication.
Eight user programmable Output Relays.
Eight opto-isolated, self powered Digital Inputs.
RS485 communication port (independent from the USB port on front panel)
Input currents are supplied to 3 current transformers: measuring phase currents.
An additional internal CT directly measures the residual (Zero Sequence) current of the three inputs.
Current inputs can be 1 or 5A: selection between 1A or 5A is made by movable jumpers provided on the Relay
card.
2.1 - Power Supply
The relay can be fitted with two different types of power supply:
Type 1
24V(-20%) / 110V(+15%) a.c.
24V(-20%) / 125V(+20%) d.c.
Type 2
80V(-20%) / 220V(+15%) a.c.
90V(-20%) / 250V(+20%) d.c.
Before energizing the unit check that supply voltage is within the allowed limits.
3. Front Panel

MC2-30T
Doc. N° MO-0483-ING
Copyright 2016
Date
17.03.2022
Rev.
2
Pag.
6
of
70

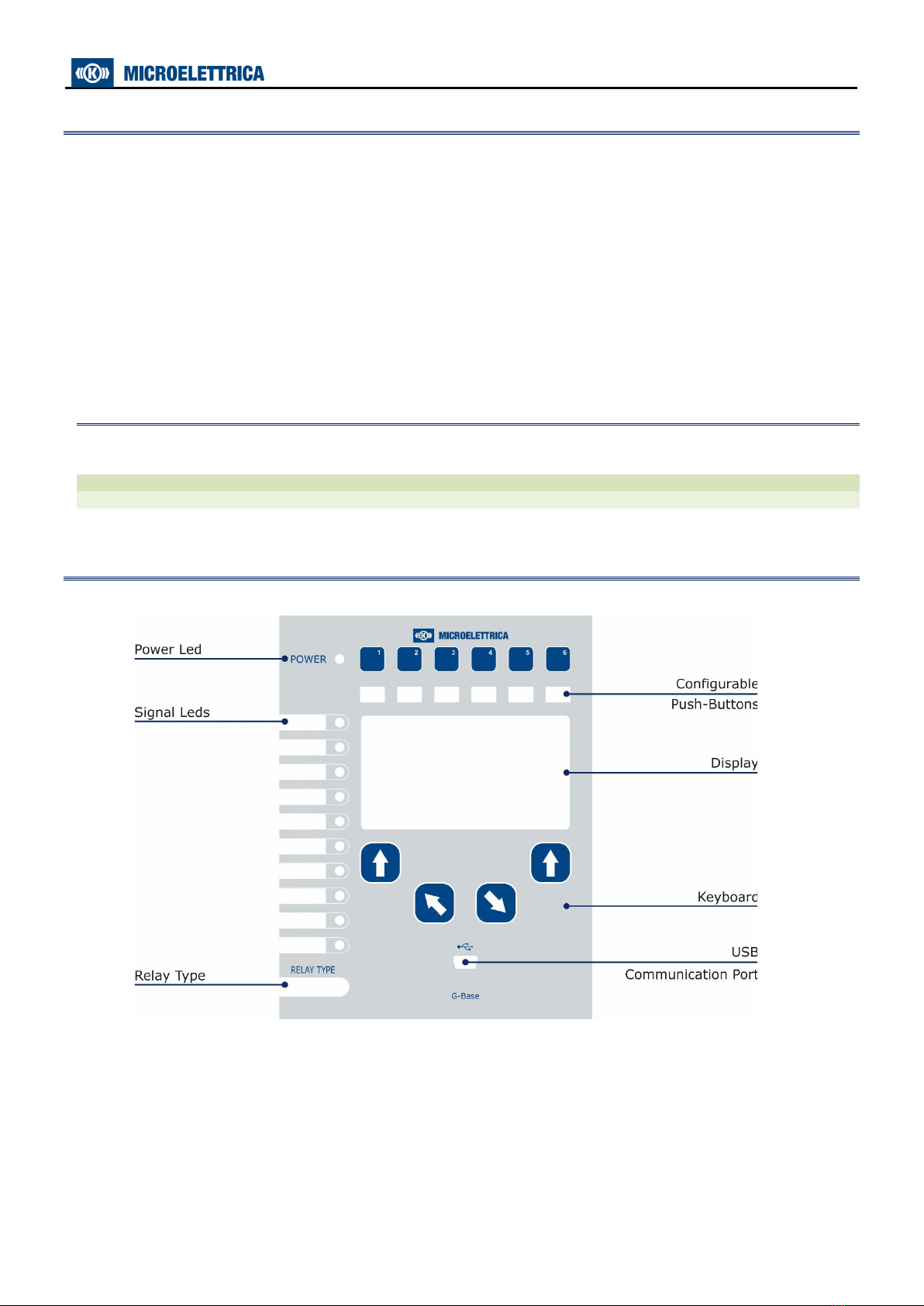

4. Keyboard and Display
Push-buttons Programmable
↓
Navigation
menu
By these buttons the options showed in
correspondence on the display are selected.
Increase These buttons are used to scroll the items of
the different menus (Local Control,
Measurements, Energy metering etc).
Decrease
By the key

select the windows showing the ICONS of the available menus.
By the key , select the desired icon and enter by key 
The different elements can be selected by the key

and

.
The details of the individual menus are given in the following paragraphs.
4.1 - Display
The 240x128 pixel hi-resolution LCD display the available information (menu, etc.).

MC2-30T
Doc. N° MO-0483-ING
Copyright 2016
Date
17.03.2022
Rev.
2
Pag.
7
of
70
5. Icons of Display
LocalCmd LOCAL COMMANDS
Measure ACTUAL MEASUREMENTS
TripRec. TRIP RECORDING
Counter PARTIAL COUNTERS (RESETTABLE COUNTER)
ROCnt TOTAL COUNTER (READ ONLY COUNTER)
Events EVENT RECORDING
Setting FUNCTION SETTINGS
System SYSTEM SETTINGS
InfoStatus INFORMATION STATUS
TimeDate TIME AND DATE
Healthy DIAGNOSTIC INFORMATION
Dev.Info RELAY VERSION

MC2-30T
Doc. N° MO-0483-ING
Copyright 2016
Date
17.03.2022
Rev.
2
Pag.
8
of
70
6. Signalization
Eleven signal leds are provided:
1
Led Power Supply
Not programmable
Green
10
Leds
Programmable (via software)
N°
Colours
Default
1
Green
#####
2
Green
#####
3
Green
#####
4
Yellow
#####
5
Red
#####
6
Red
#####
7
Red
#####
8
Yellow
#####
9
Red
#####
10
Green
#####
In case of auxiliary power supply failure the status of the leds is recorded and reproduced when power supply is
restored.

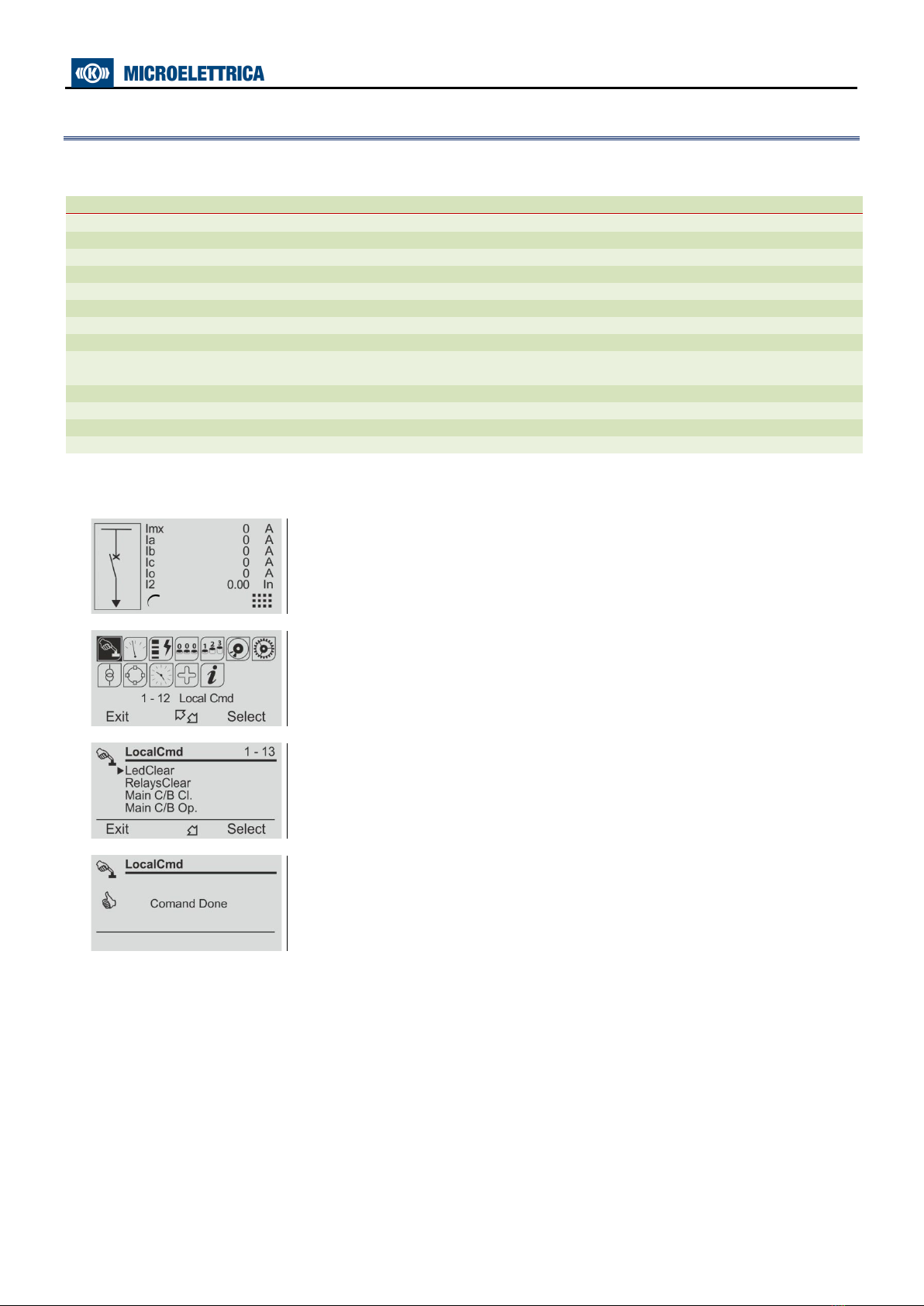

6.1 - Leds Manual Reset

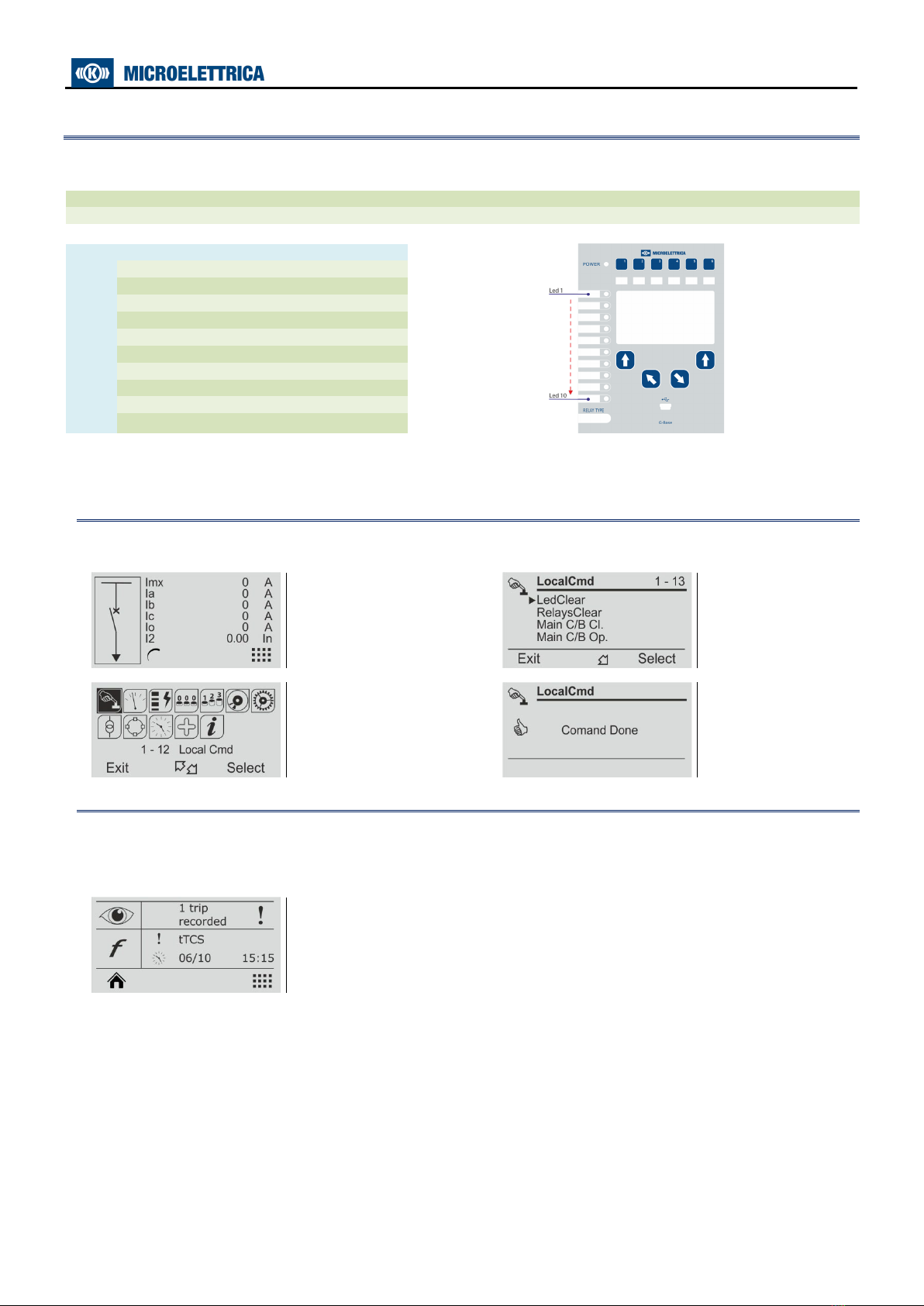

For Leds manual reset operate as follows:
1
•
Press “Menu” for
access to the main
menu with icons.
3
•
Select
“LedClear”
•
Press “Select” to
execute the
command.
2
•
Select icon
“LocalCmd”.
4
•
When command has
been executed the
display shows
“Command Done”;
•
Press “Select”,
6.2 – Display of the last trip
Beside the signalization of the led “Trip”, indicating a generic function trip, the display shows a window
indicating the last function that was tripped and the number of events that are stored in the memory. The
display will show this window until the reset button or external reset are operated.
1
•
Press “Menu” to access to the main menu with icons.
Press “Home” to erase trip visualization.
Ex. “tTCS” (flashing) is the last trip.

MC2-30T
Doc. N° MO-0483-ING
Copyright 2016
Date
17.03.2022
Rev.
2
Pag.
9
of
70
7. Leds Configuration
The relay manage up to 10 signal leds (Programmable), 1 led “Power” (green).

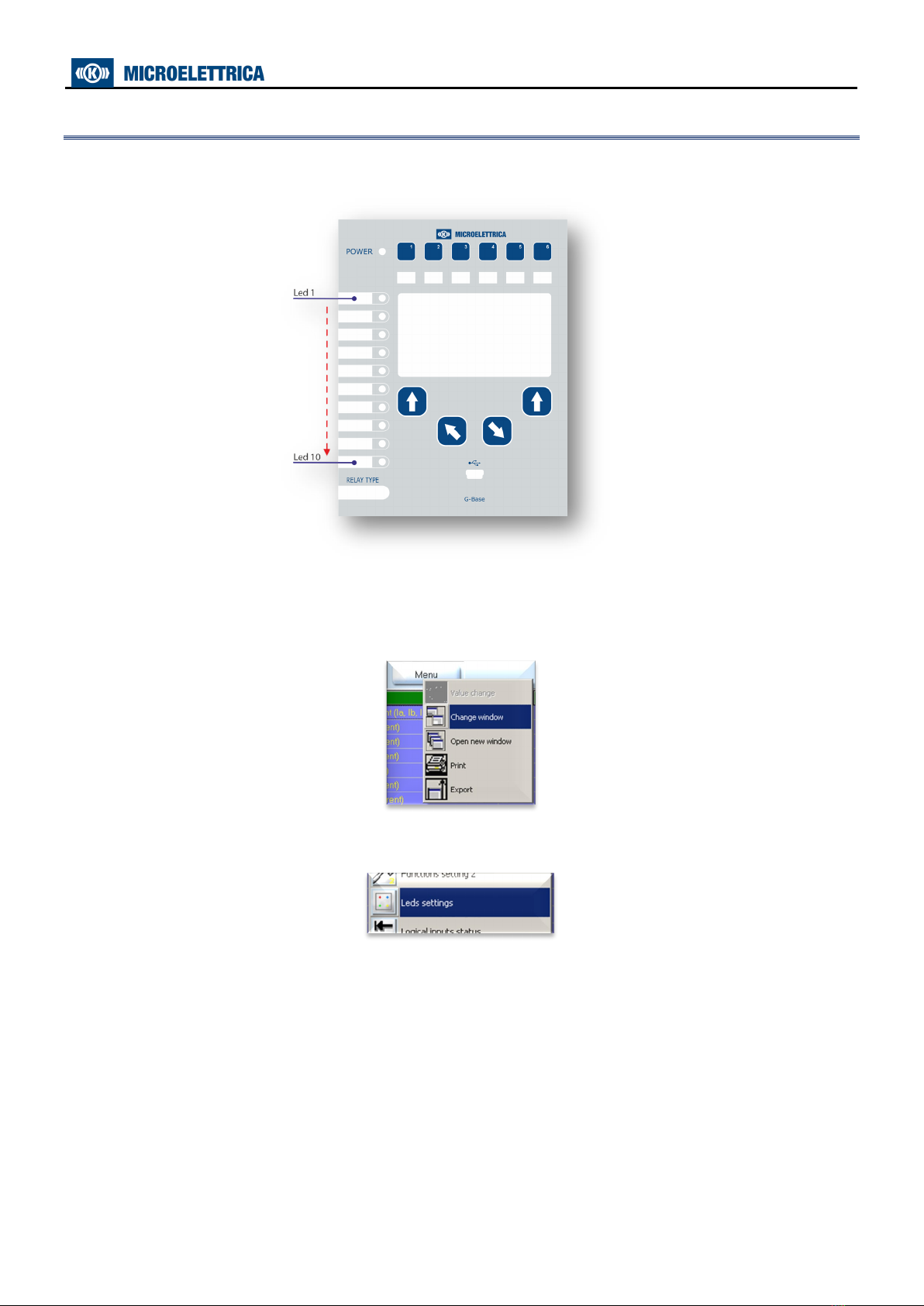

For Leds programming (only via software) operate as follows:
- Open the software program and connect to the relay.
- Select “Change Windows” from “Menu” button (options)
- Select “Led Setting”

MC2-30T
Doc. N° MO-0483-ING
Copyright 2016
Date
17.03.2022
Rev.
2
Pag.
10
of
70

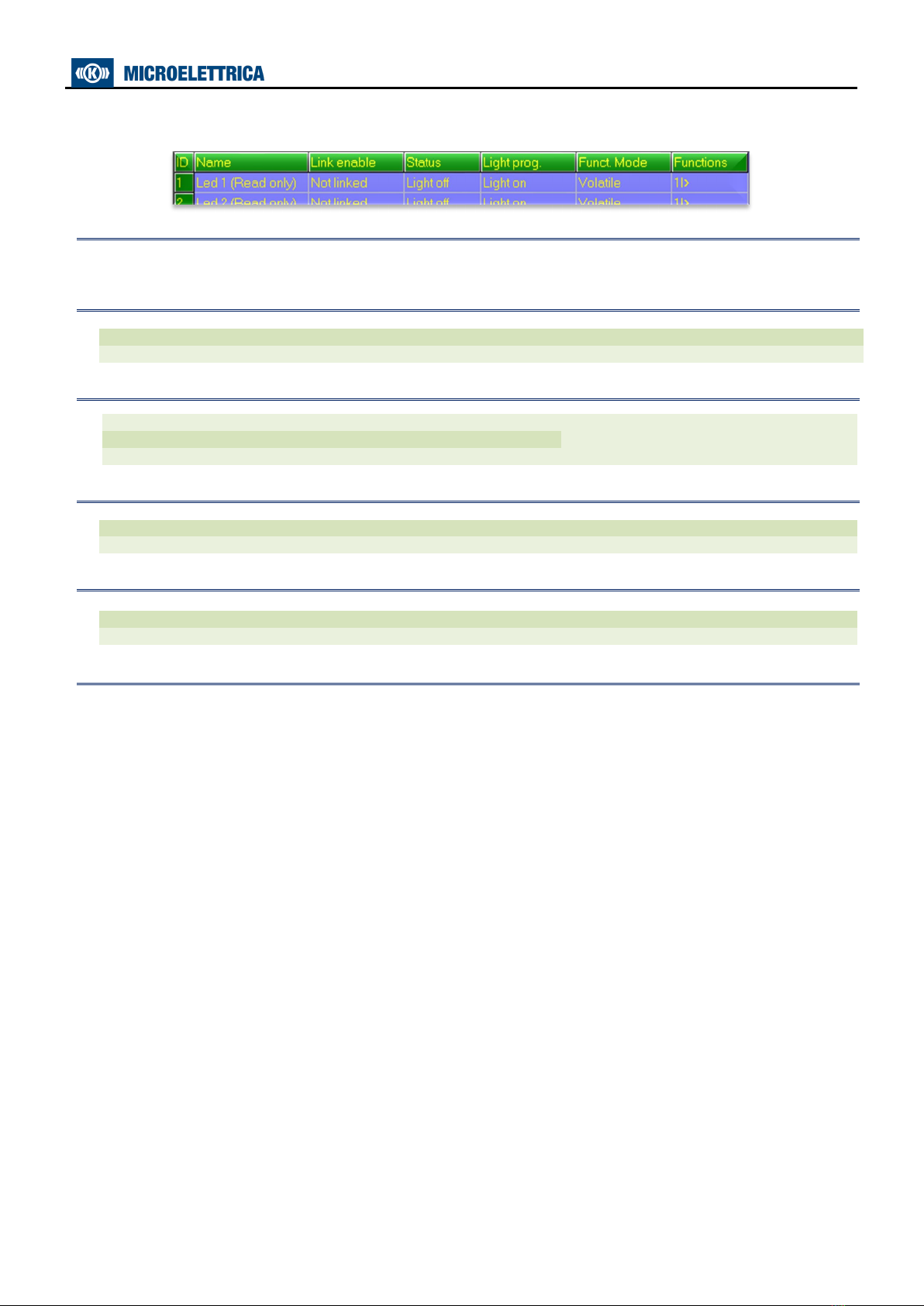

The window for leds configuration will show:
7.1 - Name
Led name – for leds position see picture
7.2 - Link enable
Linked
=
Enable to operate
Not Linked
=
Disable
7.3 - Status
7.4 - Light Prog.
Light-on
=
When cause appear led is illuminated
Flashing
=
When cause appear led is flashing
7.5 - Funct. Mode
Volatile
=
When cause disappear led turn-off (Not memorized)
Latched
=
When cause disappear led remain illuminated (memorized)
7.6 - Functions
Select the function assigned to specific led (see table 1).
Its possible to configure only one function for each led.
For configuration multiple functions use “UserVar” function.
Light-off
=
Normal condition
Light-on
=
When cause appear led is illuminated
See “Light Prog”
Flashing
=
When cause appear led is flashing

MC2-30T
Doc. N° MO-0483-ING
Copyright 2016
Date
17.03.2022
Rev.
2
Pag.
11
of
70
7.7 - Table 1
Tal
Alarm
Thermal Image T>
T>
Trip
1I>
Start
First overcurrent element
t1I>
Trip
2I>
Start
Second overcurrent element
t2I>
Trip
3I>
Start
Third overcurrent element
t3I>
Trip
1Io>
Start
First earth fault element
t1Io>
Trip
2Io>
Start
Second earth fault element
t2Io>
Trip
3Io>
Start
Third earth fault element
t3Io>
Trip
1Is>
Start
First negative sequence current element
t1Is>
Trip
2Is>
Start
Second negative sequence current element
t2Is>
Trip
tTCS
Trip coil supervision
IRF
Start
Internal Relay Failure
tIRF
Trip
BF
BF (Breaker Failure)
DskClean
Disk near Full clean operation is required
DskFull
Disk Full Write should be lock
DskWR
Disk write in progress
DskFRMT
Disk Format in progress
DskCHK
Check disk in progress
rDskAttach
Removable disk usb attach
rDskDetach
Removable disk usb detach
rDskDtchable
Removable disk usb now detachable
rDskClean
Removable disk usb near to full clean operation is required
rDskFull
Removable disk usb full, write locked
rDskWR
Removable disk usb write in progress
rDskFRMT
Removable disk usb format in progress
rDskCHK
Removable disk usb check in progress
manOpCmd
Manual Open Command
L/Rdisc
Local/Remote signal Discrepancy
CL-Cmd
Close Command
C/Bfail
Circuit Breaker failure
RCLf
Automatic reclosure failed
RCLRun
Automatic reclosure in progress
TwRCL
Trip not enable for Automatic reclosure
RCL-OK
Successful Automatic reclosure
ManCL-OK
Successful manual closure
BirCL
Presence Automatic relosure input blocking
Gr1to2
Switch to Set up 2
TripTimeR
Trip Time Reduction Active
Gen.Start
Start
Generic
Gen.Trip
Trip
OscilloTrigger Logic
User Variable for Oscillographic Recording
Gate1
User Variable
to
Gate25
Vcc
Reserved
Gnd
Reserved
Reset
Reset signal logic
P1
Push-button 1
P2
Push-button 2
P3
Push-button 3
P4
Push-button 4
P5
Push-button 5
P6
Push-button 6
0.D1
Digital Inputs
0.D1Not
to
0.D8
0.D8Not
0.R1
Output relays
0.R2
0.R3
0.R4
0.R5
0.R6
0.R7
0.R8

MC2-30T
Doc. N° MO-0483-ING
Copyright 2016
Date
17.03.2022
Rev.
2
Pag.
12
of
70
7.8 - Example: Change settings for “Led1”
Change settings for “Led1” : “Enable”, “Flashing”, “Latched”, “1I>”.
Main Windows:
7.8.1 - “Link Enable”

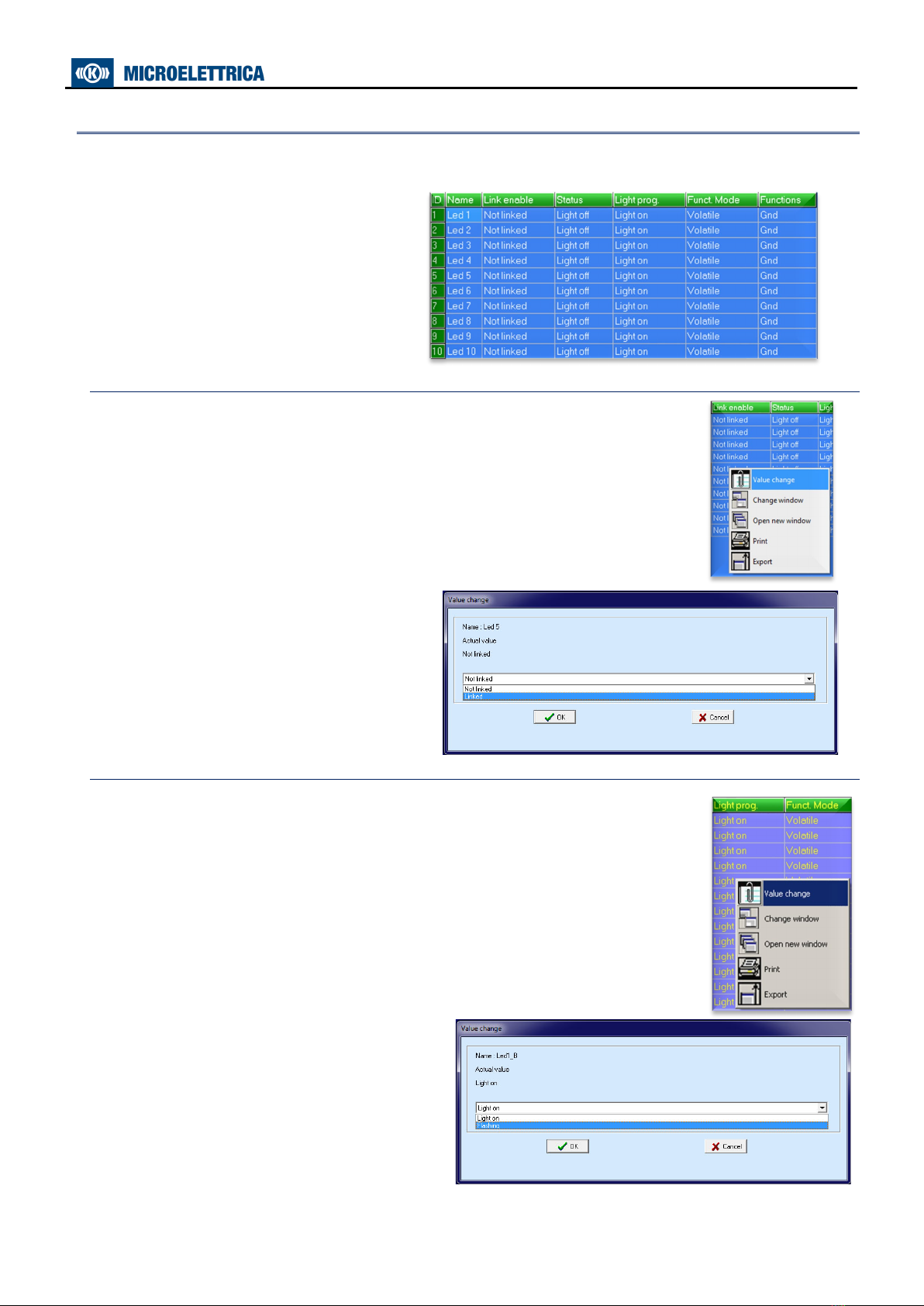

Select “Link enable” related to “Led 1” and press right button on mouse, select
“Value change”:
Select “Linked” and press “OK” (if Password is
request, see § Password):
7.8.2 - “Flashing”
Select “Light prog” related to Led 1 and press right button on mouse, select “Value
change”:
Select “Flashing” and press “OK” (if Password is
request, see § Password):

MC2-30T
Doc. N° MO-0483-ING
Copyright 2016
Date
17.03.2022
Rev.
2
Pag.
13
of
70

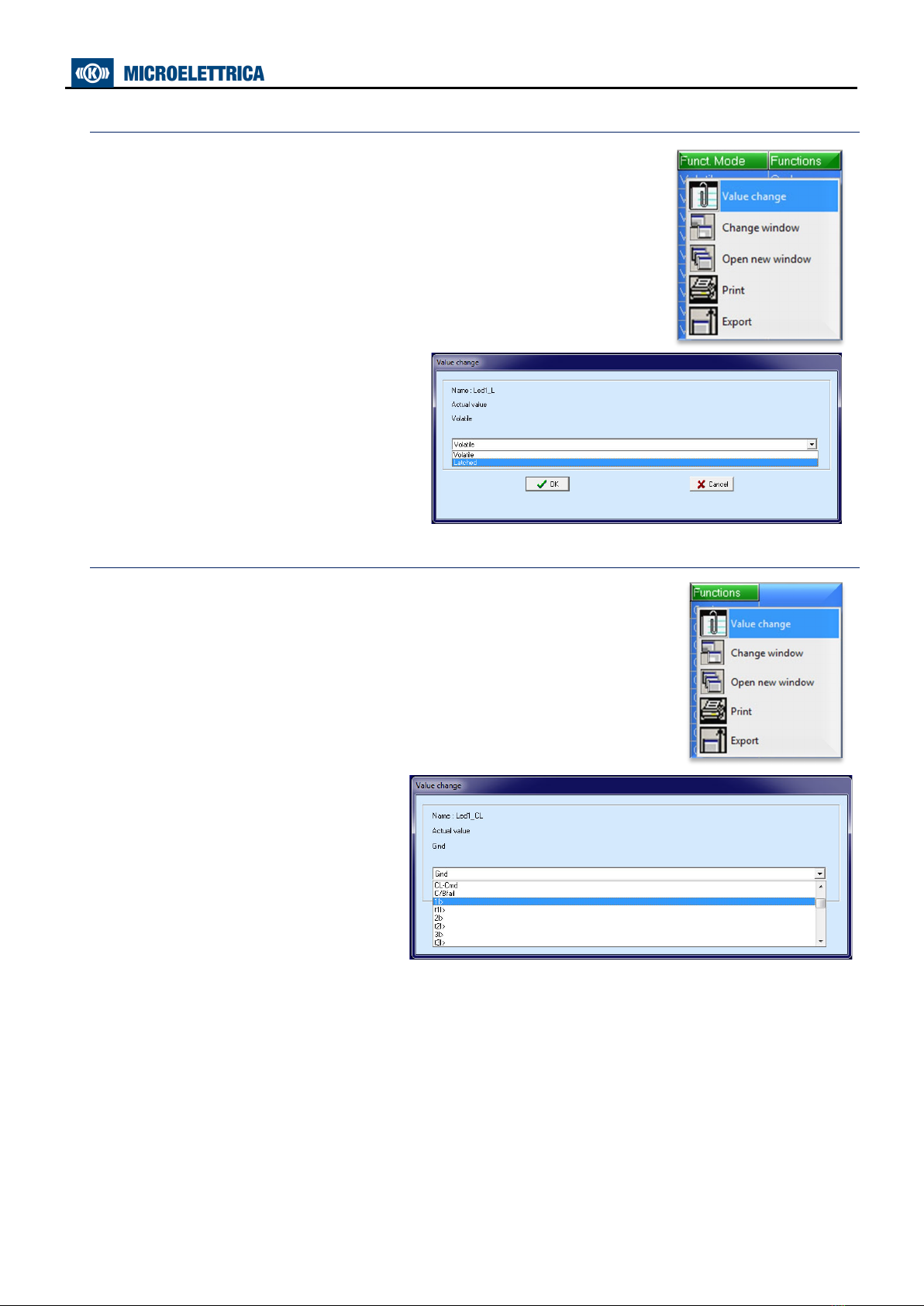

7.8.3 - “Funct.Mode”
Select “Funct.Mode” related to Led 1 and press right button on mouse, select
“Value change”:
Select “Latched” and press “OK”
(if Password is request, see § Password):
7.8.4 -“Functions”
Select “Functions” related to Led 1 and press right button on mouse,
select “Value change”:
Select “1I>” and press “OK”
(if Password is request, see § Password):

MC2-30T
Doc. N° MO-0483-ING
Copyright 2016
Date
17.03.2022
Rev.
2
Pag.
14
of
70
8. User Variables
The “User Variable” is a result of a logical operation (Or, AND, ecc...), it can be used like other logical output.
This operation is possible only via software.
8.1 - Name
Internal progressive name
8.2 - User Descr.
Custom identification label for user variable
8.3 - Linked functions
Selection functions

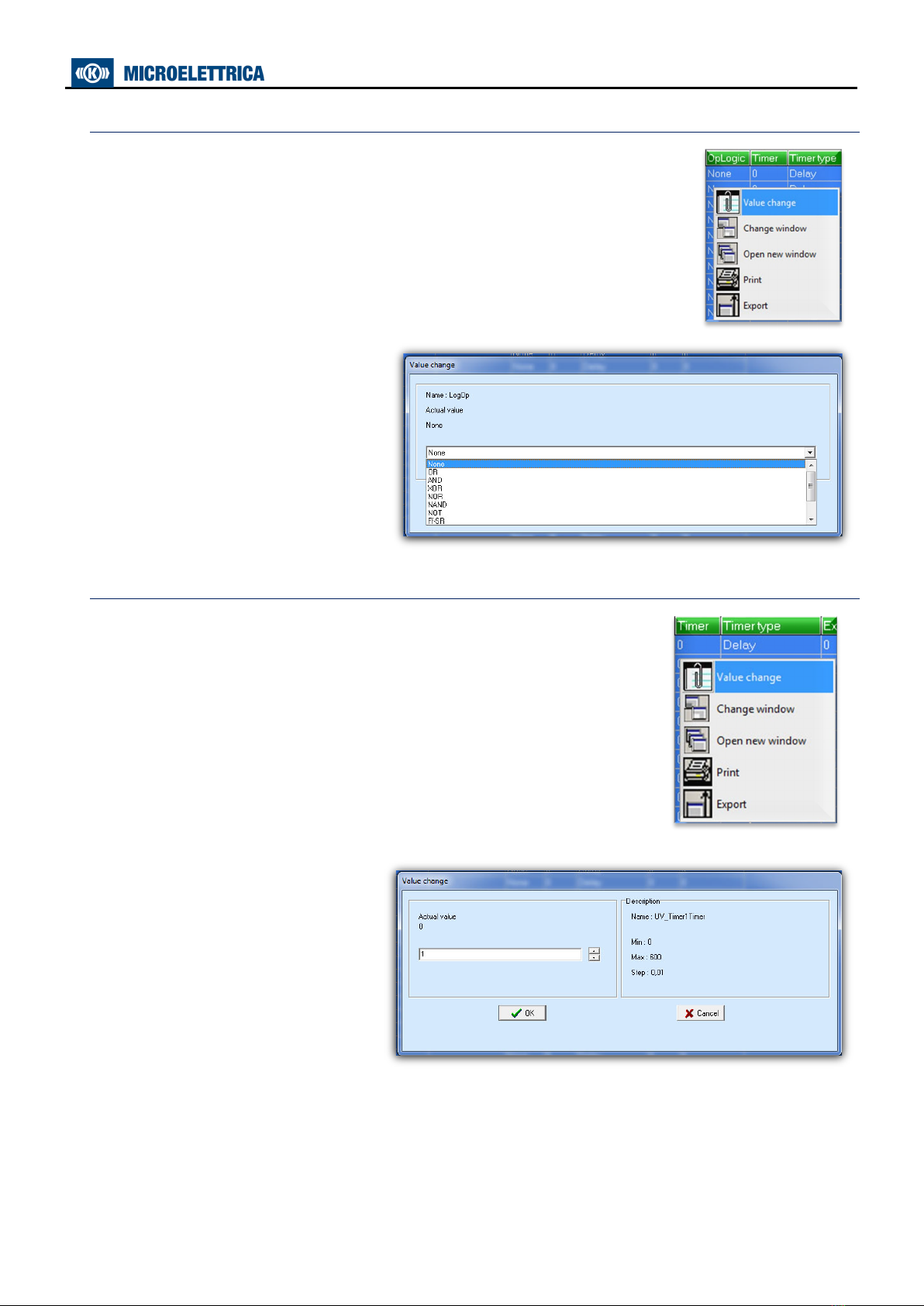

8.4 - OpLogic
Operation Logic
=
[None, OR, AND, XOR, NOR, NAND, NOT, Ff-SR, Counter, Rise-UP, Fall-Down]
8.5 - Timer
Time delay (0-600)s, step 0.01s
8.6 - Timer type
Delay
=
Add a delay on output activation. The “Timer” is edge triggered on rise edge.
Monostable P
=
Activated the output for the time “Timer”
Monostable N
=
Disactivated the output for the time "Timer".
Blinking
=
The output switches periodically at the frequency defined by "Timer".
Delay-Fall-Down
=
Delay-Fall-Down
8.7 – Extra
Extra Time (0 - 65000)s, step 1s
8.8 - Logical status
“User Variable” Logical status
8.9 - Example: Setting “User Variable”
Open software program and connect to the relay.
Select “Change Windows” from “Menu” button
Select “User Variable”
Setting for “UserVar<0>” : “Current Trip”, “1I>,2I>,3I>”, “OR”, “1”, “Monostable P”, “10”.

MC2-30T
Doc. N° MO-0483-ING
Copyright 2016
Date
17.03.2022
Rev.
2
Pag.
15
of
70
8.9.1 - “User description” (User descr.)
Select “User descr” related to “UserVar<0>” and press right button on mouse,
select “Value change”:
Insert “Current Trip” into box and press
“OK”:
8.9.2 - “Linked Functions”
Select “Linked Functions” related to “UserVar<0>” and press right button on
mouse, select “Value change”:
Select “1I>, 2I>, 3I>” from “Available” box via push-button “<Add”, and press “OK”.
For remove functions, use push-button “>Remove”.

MC2-30T
Doc. N° MO-0483-ING
Copyright 2016
Date
17.03.2022
Rev.
2
Pag.
16
of
70
8.9.3 - “Operation Logic” (Oplogic)
Select “Oper Logic” related to “UserVar<0>” and press right button on mouse,
select “Value change”:
Insert “OR” into box and press “OK”:
8.9.4 - “Timer”
Select “Timer” related to “UserVar<0>” and press right button on mouse,
select “Value change”:
Select “1” into box and press “OK”:

MC2-30T
Doc. N° MO-0483-ING
Copyright 2016
Date
17.03.2022
Rev.
2
Pag.
17
of
70
8.9.5 - “Timer type”
Select “Timer” related to “UserVar<0>” and press right button on mouse,
select “Value change”:
Select “Monostable P” into box and
press “OK”:
8.9.6 - “Extra”
Select “Extra” related to “UserVar<0>” and press right button on mouse,
Select “10” into box and press “OK”:

MC2-30T
Doc. N° MO-0483-ING
Copyright 2016
Date
17.03.2022
Rev.
2
Pag.
18
of
70
9. Local Commands
“Local Commands” allow to operate from relay front face controls like Thermal Memory reset, Leds reset, etc.
Menu
Description
Password
→
Led
Clear
Reset of signal Leds
No
→
Relays
Clear
Manual reset of output relays
No
→
main C/B
Cl.
Manual C/B closing (conditioned by Password)
Yes
→
main C/B
Op.
Manual C/B opening (conditioned by Password)
Yes
→
Event
Clear
Reset Events
Yes
→
LTrip
Clear
Reset Last Trip
Yes
→
Counter
Clear
Reset Counters
Yes
→
HistFail
Clear
Reset of Internal Failure Historic records
Yes
→
Reset
Term
Reset to zero of the accumulations relevant to Thermal Image and
Interruption Energy (only if T> is enable)
Yes
→
Leds
Test
Signal Leds test
No
→
Force
Osc
Force Oscillo Recording
Yes
→
Format
iDisk
Format internal disk
Yes
→
Check
iDisk
Check internal disk
Yes
To operate one command by the Front Face Keyboard, proceed as follows (Led Clear in the present example).
1
•Press “Menu” for access to the main menu with icons.
2
•Select “LocalCmd” icon with pushbutton “Increase” or “Decrease”.
•Press “Select” for access.
3
•Select with pushbutton “Increase” or “Decrease” the menu “LedClear”.
•Press “Select” to execute the command.
(if Password is request, see § Password).
4
•When command has been executed the display shows
“Command Done”; go to “3”.

MC2-30T
Doc. N° MO-0483-ING
Copyright 2016
Date
17.03.2022
Rev.
2
Pag.
19
of
70
10. Measure
Real time values as measured during the normal operation.
1
•Press “Menu” for access to the main menu with icons.
2
•Select “Measure” icon with pushbutton “Increase” or “Decrease”.
•Press “Select” for access.
3
•Scroll the menu “Measure”with pushbutton “Increase” or “Decrease” to display
the measurement.
•Press “Exit” to go to the main menu.
Imx
(0 ÷99999)
A
Largest of the 3 phase-currents (Ia,Ib,Ic)
Ia
(0 ÷99999)
A
RMS value phase A current
Ib
(0 ÷99999)
A
RMS value phase B current
Ic
(0 ÷99999)
A
RMS value phase C current
Io
(0 ÷99999)
A
RMS value of Zero Sequence Current (RMS Secondary Amps)
I2
(0 ÷99999)
In
Negative Sequence current
Tem
(0 ÷99999)
%T
Thermal status as % of the full load continuous operation
temperature Tn
11. Maximum Values (Only via software)
Maximum demand values recorded starting from 100ms after closing of main Circuit Breaker (updated any time
the breaker closes).
Imx
(0 ÷99999)
A
Largest of the 3 phase-currents (Ia,Ib,Ic)
Ia
(0 ÷99999)
A
RMS value phase A current
Ib
(0 ÷99999)
A
RMS value phase B current
Ic
(0 ÷99999)
A
RMS value phase C current
Io
(0 ÷99999)
A
RMS value of Zero Sequence Current (RMS Secondary Amps)
Tem
(0 ÷99999)
%T
Thermal status as % of the full load continuous operation
temperature Tn

MC2-30T
Doc. N° MO-0483-ING
Copyright 2016
Date
17.03.2022
Rev.
2
Pag.
20
of
70
12. Trip Recording
Display of the function which caused the tripping of the relay plus values of the measurement at the moment of
tripping. The last 30 events are recorded.
The memory buffer is refreshed at each new relay tripping (FIFO logic).
Display
→
Reading of recorded Trips.
Erase
→
Clear all Trips recorded.
1
•Press “Menu” for access to the main menu with icons.
2
•Select “TripRec.” icon with pushbutton “Increase” or “Decrease”.
•Press “Select” for access.
3
•Select “Display” with pushbutton “Increase” or “Decrease”.
•Press “Select” for access.
•For “Erase” go to “8”
4
•If no trip is recorded the display shows “No Trips”.
5
•If any trip was recorded, select “View” to display the chronological list of the
records.
•By the keys “Increase” or “Decrease” select the date of the record to be
checked.
6
•Will be shown:
“Descr” the function that caused the event (Example: t1I> = Rise)
“Edge” if the function was tripped (Rise) or reset (Fall)
“Date”, date of trip, year/month/day, hour:minutes:seconds:milliseconds
•Press “Value”, for reading the value of input quantities on tripping.
