Microlab H12W User manual

Before using, please read the manual carefully
H12W
User Manual
Microlab Technology Co.,Ltd
Made in China
All symbols and logo belong to the respective brand holder or registered holder. All specifications and information are subject to changes without
further notice. Slight variations and differences might appear between the printed photos and actual product due to product enhancement.
Wireless 2.4GHz Stereo System
feel the difference
80-H12W-97-0001-01 2010-08-11

1
Important Safety Instructions
WARNINGS:
1. Read Instructions - All the safety and operating instructions must be read before the product is operated.
2. Retain Instructions - The safety and operating instructions should be kept product for future reference.
3. Heed warnings - All warnings on the product and in the operating instructions should be adhered to.
4. Follow instructions - All operating and use instructions should be followed.
5. Installation - Install in accordance with the manufacturer's instructions.
6. Power sources - This product should be operated only from the type of power source indicated by the marking adjacent to
the power cord entry. If you are not sure of the type of power supply to your home, consult your product dealer or local
power company.
7. Grounding or polarization - the is not required to be grounded. Ensure the plug is fully inserted into the wall outlet
or extension cord receptacle to prevent blade or pin exposure. Some versions of the product are equipped with a power
cord fitted with a polarized alternating line plug (a plug having one blade wide than the other). This plug will fit onto the
power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing
the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety
purpose of the polarized plug. When using an extension power-supply cord or a power-supply cord other than that
supplied with the appliance ,it should be fitted with the appropriate molded plugs and carry safety approval appropriate to
the country of use.
8. Power cord protection - Power-supply cords should be routed so that they are not likely to be walked on, kinked or
pinched by items placed on or against them, paying particular attention to cords from plugs, receptacles and the point
where they exit from the appliance.
9. Overloading - Do not overload wall outlets, extension cords or multiple sockets, as this can result in a risk of fire or
electric shock.
10. Ventilation - The product must be properly ventilated. Do not place the product on a bed, sofa, or other similar surface.
Do not cover the product with any items such as tablecloths, newspapers, etc.
11. Heat - The product should be situated away from heat sources such as radiators, heat registers, stoves, or other
products) including amplifiers that produce heat. No naked flame sources, such as lighted candles, should be placed on
the apparatus.
12. Water and moisture - To reduce the risk of fire or electric shock, do not expose the product to train, dripping, splashing or
excessive moisture such as in a sauna or bathroom. Do not use this product near waterfor example, near a bathtub,
washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool and the like.
13. Object and Liquid Entry - Never push objects of any kind into this product through openings, as they may touch
dangerous voltage points or short-circuit parts that could result in a fire or electric shock. Never spill liquid of any kind on
the product. Do not place any object containing liquid on top of the product.
14. Cleaning - Unplug the product from the wall outlet before cleaning. The cabinet of the subwoofer may be cleaned by
dusting with a dry cloth. If you wish to use an aerosol cleaning spray, do not spray directly on the cabinet; spray onto the
cloth. Be careful not to damage the drive units.
15. Attachments - Do not use attachments not recommended by the product manufactures, as they may cause hazards.
16. Accessories - Do not place this product on an unstable cart, stand, tripod, bracket or table. The product may fall, causing
serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket or table
recommended by the manufacturer or sold with the product. Any mounting of the product should follow the manufacturer's
instructions and should use a mounting accessory recommended by the manufacturer.
17. Moving the - A product and cart combination should be moved with care. Quick stops, excessive force and
uneven surfaces may cause the product and cart combination to overturn.
18. Unused periods - The power cord of the appliance should be unplugged from the outlet during lightning storms or when
the apparatus is left unused for a long period of time.
product
product
Caution:
To reduce the risk of electric shock, do not dismantle the product and do not expose the apparatus to rain or moisture. No
user-serviceable parts inside. Refer servicing to qualified personnel only.
The lightning flash within an equilateral triangle is intended to alert you to the presence of uninsulated dangerous voltage
within the product's enclosure that may be of sufficient magnitude to constitute an electric shock to a person or persons.
The exclamation point within an equilateral triangle is intended to alert you to the presence of important operating and
maintenance (servicing) instructions in the literature accompanying the product.
Explanation of Graphical Symbols:
2
19. Servicing - Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous
voltage or other hazards. Refer all servicing to qualified service personnel.
20. Please remove the power plug form the main power source or wall power source when not in use. When plugged in to a
power source, the system is in standby mode, so the power is not entirely cut off.
21. Replacement parts - When replacement parts are required, ensure the service technician has used replacement parts
specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may
result in fire, electric shock or other hazards.
22. Mains fuses - For continued protection against fire hazard, use fuses only of the correct type and rating. The correct fuse
specification for each voltage range is marked on the product.
23. Do not turn up the volume while listening to a section with very low level inputs or no audio signals. If you do, the speaker
may be damaged when a peak level section is suddenly played.
24. The only means of completely disconnecting the product from the power supply is by removing the power cord from the
wall outlet or the product. The wall outlet or the power cord entry to the product must remain freely accessible at all times
while the product is in use.
25. Try to install the product near a wall socket or extension cord and shall be easily accessible.
26. The highest environmental temperature suitable for this product is 40 C.
o
Introduction
Features






Wireless high fidelity stereo subwoofer speaker system with crystal clear acoustics
5.25" woofer and 1" x 2 speakers with near perfect linear frequency response curve
Superb dynamics, depth and deep bass - ideal for all audio type of playbacks
Slim satellites with tight and clear acoustics
Built-in amplifier with wireless 2.4GHz receiver and duo function volume knob
Wireless infrared remote control and 2.4GHz USB dongle
Package contents






H12W speakers 2pcs
3.5mm stereo - 2RCA cable pc
Interconnect speaker cable, 2.5m 1pc
2.4GHz USB dongle 1pc
Infrared remote control 1pc
User manual
1
1pc
Wireless high fidelity stereo bookshelf speaker system with excellent high quality drivers.
Ideal for music / movie entertainment and multimedia applications. Using 2.4GHz technology
for transferring music data across to the main amplifier at true audio quality. 2.4GHz
technology is not affected by line of sight issue so any obstruction in from the transmitter. Also
features duo function volume knob that toggles as input selector. Comes with infrared remote
control that provides wireless control.
Perfect sound everytime from your music playbacks and for your perfect entertainment.
Uncolored audio, precise position, high resolution and depth with Microlab own audio
technology.
80-H12W-97-0001-01 2010-08-11

* all illustrations not to scale
PC or Notebook
Mp3 / M p4
Media player
CD / VC D / DVD pla yer
Illustrations
34

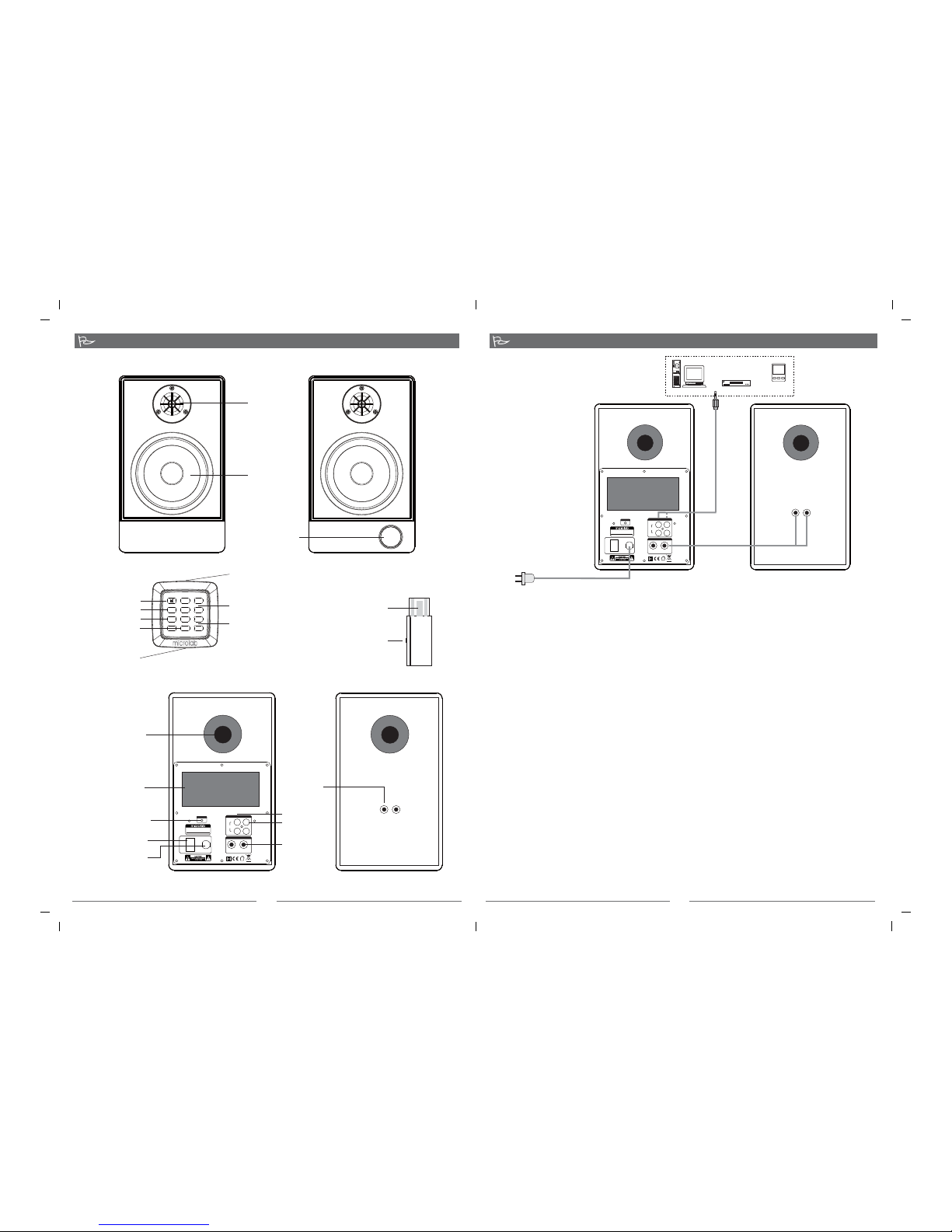

Connections and Operations
Front panel Connections
Rear panel
Connections
Operations
1. Connect the left speaker to the main / right speaker binding post interfaces. Use the provided
interconnect speaker cable and lock between both binding posts with the bare copper wires.
For alternative pure distortion free connection, you can use third party “banana” plugs to
connect.
2. Place both bookshelf speakers on extreme sides of the listening position.
3. Connect the playback device to the rear PC or AUX input interfaces of the right speaker. Use
the included 2RCA to 3.5mm stereo cable.
4. The main / right speaker should be placed near a power source and near the playback device
such as CD/DVD, Mp3/Mp4 player or TV.
5. Last, connect the AC power cable at the rear of the main / right speaker to the AC power supply
source. Please ensure the AC power supply match the power requirement printed at the rear
panel.
1. Ensure the master volume is at the lowest setting.
2. Turn on the main AC power and switch at the rear of the main speaker.
3. Start the playback device and song.
4. Slowly adjust the volume to your preferred volume level and enjoy. Note that the volume knob
can be turn for level adjustment and toggle for input source change.
5. To change the input source, depress on the volume knob to change from PC input to AUX input
or vice versa. The red LED indicates PC source and when it turns orange, it will indicate AUX
source input.
6. For remote control, simply point directly at the amplifier unit and depress the button of choice
on it.
7. For 2.4GHz wireless operation,
a. Connect the 2.4GHz USB dongle to the notebook or desktop. Windows® operating
AC power supply
AC 220V - 240V ~ 50Hz, 600mA or
AC120V ~ 60Hz, 1.2A
Main / Right speaker
Left speaker
Master volume
knob
Woofer
Tweeter
L
R
L- L+
ACIN
ON
OFF
ID PAIRING
TO L SPEAKER
AUX
PC
AUDIO
INPUT
MODEL:H12W
ACIN: 220V-240V~ 50Hz 600mA
MULTIMEDIASPEAKER
MADEIN CHINA
Main/Right speaker Left speaker
Bass
reflex tunnel
Cooling fins
Wireless ID
pairing button
Power switch
AC IN power
cord
PC input
AUX input
Binding
posts to
Left speaker
Binding
posts
L
R
L- L+
ACIN
ON
OFF
IDPAIRING
TO L SPEAKER
AUX
PC
AUDIO
INPUT
MODEL:H12W
ACIN: 220V-240V~ 50Hz 600mA
MULTIMEDIASPEAKER
MADEIN CHINA
Main/Right speaker Left speaker
Pairing
button
(depress to
pair with
amplifier)
USB type A
interface
VOL+
VOL-
RESET
INPUT TREB+ BASS+
BASS-
TREB-
VOL-
VOL+
Mute
Reset
Input
Treble
Volume
Bass
Remote Control
Infrared lens
Opening
tab
2.4GHz USB dongle
3.5mm stereo
Interconnect
speaker
cable
80-H12W-97-0001-01 2010-08-11

AMPLIFIER
SPEAKERS
INTERFACES
POWER
Output power: 80 Watt RMS
Power distribution: 40 Watt x 2
Harmonic distortion: < 0.3% 1 W 1 kHz
Frequency response: 40 Hz - 20 kHz
Signal/Noise ratio: > 80 dB
Separation: > 50 dB
Tweeter driver type: 1" x 2
Tweeter rated power: 10 Watt x 2, 6 ohm
Bass driver type: 5.25" x 2
Bass rated power: 30 Watt, 4 ohm
Frequency range: 40 Hz - 20 kHz
Output: Binding posts
Input: 2RCA sockets, 2.4 GHz wireless data
Wireless: Infrared remote control
2.4GHz: USB type A
Power supply: AC 220 V - 240 V ~ 50 Hz, 600 mA or AC120V ~ 60Hz, 1.2 A
Operations
65
Frequently Asked Questions (FAQ) & Annex
- The end -
© 2010 Microlab Technology Co., Ltd
All rights reserved
All specifications and information are subject to changes without further notice

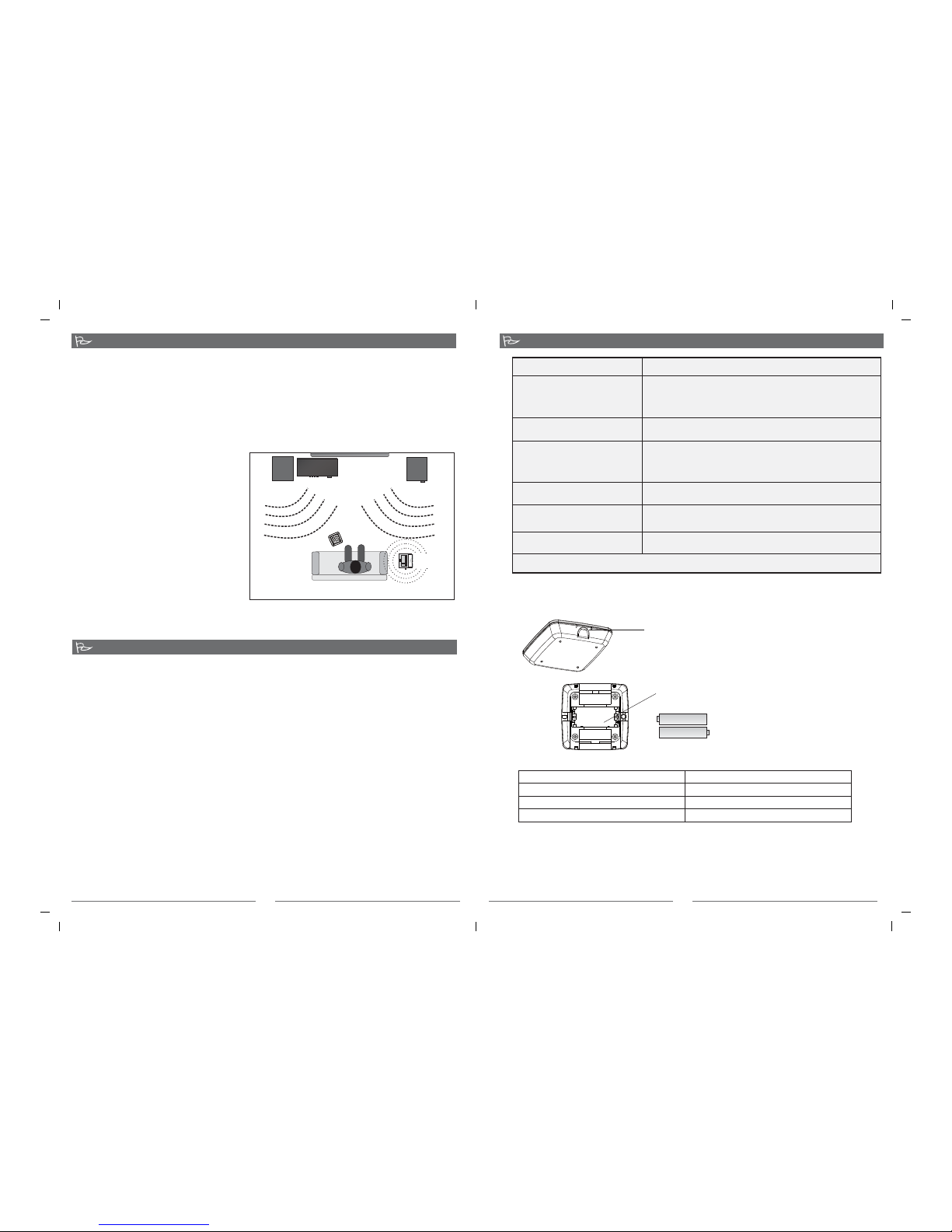

Battery compartment
Wireless remote control
Please observe battery
orientation when inserting
Battery installation
1. Locate the side tab of the remote control
2. Press the tab
3. Pull the top apart to expose the battery compartment
Note: Prolong un-use period, please remove batteries
to prevent leakage.
Specifications
If the problem still exists, please contact the distributor or seek professional advice.
Check if the audio source is working well
Check if the audio and speaker cables well connected
Check if the volume at right level
Static sound heard when
volume knob is turned
What are the products
supported?
Where to place this speaker
Check if the source file is not corrupted, play a different song and
test. Note that playing music file with above 192kbps bitrate is
recommended for better resolution.
heck if the satellite cable well connected, and ensure
source connection is correctly inserted
C
One or more satellite no sound
No Sound
Sound is distorted
Turn off the playback source first, then turn the speaker
volume knob several times. Playback again and monitor.
The static noise is due to dust, so simply turning the
volume will remove it easily.
It is magnetically shielded so can be placed near LCD TV
Monitor without any distortion
Any playback devices such as PC, notebook with USB slot, CD/DVD
player, Media Players with 2RCAor 3.5mm stereo plug.
Solutions
system will auto detect the device, “SYNIC wireless audio” and install its driver.
b. Windows® operating system will then change the sound playback properties to the
“SYNIC wireless audio”. The blue LEDs will now blink slowly indicating both are paired
and on standby for data transfer.
c. Please start your audio media software and start the playback.
d. Next depress the side button of the USB dongle till the blue LED blinks quickly, then go
to the back of the main speaker and depress the rear pairing button till the blue LED
blinks quickly to activate the pairing sequence. Once paired, both LEDs will blink slowly
indicating successful connection.
f. The LED will illuminate steadily
once music is played and music
data being transmitted.
e. The pairing process is carried out
once only. Subsequent uses are
fully automatic except for re-
installation of operating system.
If the playback is not started, the
pairing will not work.
g. If there is conflict with nearby
2.4GHz products, please repeat
the pairing process again.
Note: it is advisable not to turn the volume too loud or
to its extreme volume limit to avoid damage to
the speaker driver material and impair your hearing. Always adjust in slow increment.
2.4GHz LED status Functions
Blink slowly
Blink quickly
Illuminate steady
Positive pairing or awaiting data transfer
Pairing in progress
Music data transfer
Not to scale
Remote control
Media player
Viewing screen
Stereo speaker arrangement
Ideal listening position and placement
VOL+
VOL-
RESET
INPUT TREB+ BASS+
BASS-
TREB-
VOL-
VOL+
2.4GHz transmission
from 2.4GHz USB dongle
Notebook or
Desktop
80-H12W-97-0001-01 2010-08-11
