Microlab M-1910 User manual

Prior to initial use, please read the manual carefully
M-1910
User Manual
www.microlab.cn
Microlab Electronics Co.,Ltd
Made in China
All symbols and logo belong to the respective brand holder or registered holder. All specifications and information are subject to changes without
further notice. Slight variations and differences might appear between the printed photos and actual product due to product enhancement.
Multimedia Speaker
80-M1910-97-0001-01 2012-05-09 (Change remote control and front panel)

1
English 2
Technical Information
AMPLIFIER
Total Power: 65 Watt RMS
Power distribution: 8 Watt x 5 + 25 Watt
Harmonic distortion: < 0.3 % 1 W 1 kHz
Frequency response: 30 Hz - 20 kHz
Signal/Noise ratio: > 75 dB
Separation: > 45 dB
Speakers
Tweeter type: 1 x 4 (Satellites)
Tweeter rated power: 5 Watt x 4, 8 Ohm
Mid-range type: 3 x 4 (Satellites), 3" x 2 (Center)
Mid-range rated power: 10 Watt x 4, 4 Ohm (Satellites), 10 Watt x 2, 8 Ohm (Center)
Woofer type: 6.5
Woofer rated power: 30 Watt, 8 Ohm
Interfaces
Output: 5RCAs
Input: 5.1 - 6RCA (home theater), 2.1 - 2RCA (stereo), 1 x Coaxial, 1 x TOSlink
Wireless: RF remote control (Battery type: Alkaline AAA)
Frequently Asked Questions (FAQ)
Frequently Asked Questions Answers
Please ensure fresh batteries are inside the
battery compartment of the remote control.
Try to use it nearer to the subwoofer.
Check of the audio source is working well.
Check if the audio and speaker cables are well connected.
Ensure volume is correctly adjusted
What are the products
supported?
Where to place this speaker
If the problem still exists, please contact the distributor or ask for professional service
Check if the volume is at lower level and the Mp3
format is recorded at above 196 bitrate
Check the 3.5 mm stereo cable for proper connection
and cable is firmly inserted
Intermittent sound
Wireless volume intermittent
Infrared remote control
No Sound
Sound is distorted
It is magnetically shielded so can be placed
near LCD TV Monitor without any distortion
© 2012 Microlab Electronics Co., Ltd All rights reserved.
- The end -
EN
6
Any playback devices such as PC, notebook with USB slot,
CD/DVD player, Media Players with 3.5mm stereo plug.
Static sound heard when volume
knob is turned
Turn off the playback source first, then turn the speaker
volume knob several times. Playback again and monitor.
80-M1910-97-0001-01 2012-05-09 (Change remote control and front panel)

Important Safety Instructions
WARNINGS:
1. Read Instructions - All the safety and operating instructions must be read before the product is operated.
2. Retain Instructions - The safety and operating instructions should be kept product for future reference.
3. Heed warnings - All warnings on the product and in the operating instructions should be adhered to.
4. Follow instructions - All operating and user instructions should be followed.
5. Installation - Install in accordance with the manufacturer's instructions.
6. Power sources - This product should be operated only from the type of power source indicated by the marking adjacent to
the power cord entry. If you are not sure of the type of power supply to your home, consult your product dealer or local
power company.
7. Grounding or polarization - the product is not required to be grounded. Ensure the plug is fully inserted into the wall
outlet or extension cord receptacle to prevent blade or pin exposure. Some versions of the product are equipped
with a power cord fitted with a polarized alternating line plug (a plug having one blade wide than the other). This
plug will fit onto the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully
into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your
obsolete outlet. Do not defeat the safety purpose of the polarized plug. When using an extension power-supply
cord or a power-supply cord other than that supplied with the appliance, it should be fitted with the appropriate
molded plugs and carry safety approval appropriate to the country of use.
8. Power cord protection - Power-supply cords should be routed so that they are not likely to be walked on, kinked
or pinched by items placed on or against them, paying particular attention to cords from plugs, receptacles and the
point where they exit from the product.
9. Overloading - Do not overload wall outlets, extension cords, or multiple sockets, as this can result in a risk of fire or
electric shock.
10. Ventilation - The product must be properly ventilated. Do not place the product on a bed, sofa, or other similar surface. Do
not cover the product with any items such as tablecloths, newspapers, etc.
11. Heat - The product should be situated away from heat sources such as radiators, heat registers, stoves, or other
products, including amplifiers that produce heat. No naked flame sources, such as lighted candles, should be placed on
the apparatus.
12. Water and moisture - To reduce the risk of fire or electric shock, do not expose the product to train, dripping, splashing or
excessive moisture such as in a sauna or bathroom. Do not use this product near waterfor example, near a bathtub,
washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool and the like.
13. Object and Liquid Entry - Never push objects of any kind into this product through openings, as they may touch
dangerous voltage points or short-circuit parts that could result in a fire or electric shock. Never spill liquid of any kind on
the product. Do not place any object containing liquid on top of the product.
14. Cleaning - Unplug the product from the wall outlet before cleaning. The cabinet of the subwoofer may be cleaned by
dusting with a dry cloth. If you wish to use an aerosol cleaning spray, do not spray directly on the cabinet; spray onto the
cloth. Be careful not to damage the drive units.
15. Attachments - Do not use attachments not recommended by the product manufactures, as they may cause hazards.
16. Accessories - Do not place this product on an unstable cart, stand, tripod, bracket or table. The product may fall, causing
serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket or table
recommended by the manufacturer or sold with the product. Any mounting of the product should follow the manufacturers’
instructions and should use a mounting accessory recommended by the manufacturer.
17. Moving the product - A product and cart combination should be moved with care. Quick stops, excessive force and
uneven surfaces may cause the product and cart combination to overturn.
18. Unused periods - The power cord of the appliance should be unplugged from the outlet during lightning storms or when
the apparatus is left unused for a long period of time.
19. Servicing - Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous
voltage or other hazards. Refer all servicing to qualified service personnel.
Caution:
To reduce the risk of electric shock, do not dismantle the product and do not expose the apparatus to rain or moisture. No
user-serviceable parts inside. Refer servicing to qualified personnel only.
The lightning flash within an equilateral triangle is intended to alert you to the presence of uninsulated dangerous voltage
within the product's enclosure that may be of sufficient magnitude to constitute an electric shock to a person or persons.
The exclamation point within an equilateral triangle is intended to alert you to the presence of important operating and
maintenance (servicing) instructions in the literature accompanying the product.

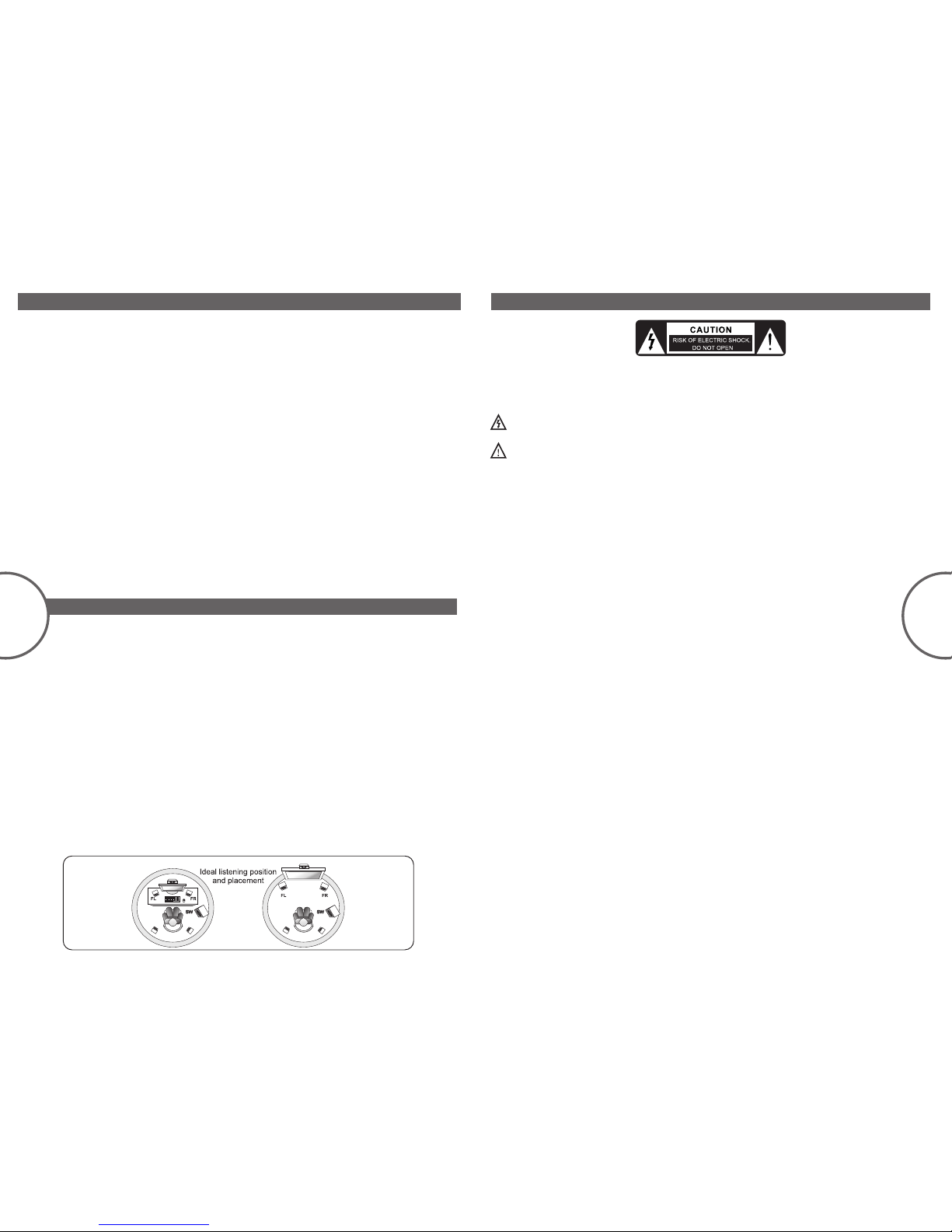

Explanation of Graphical Symbols:
EN
2
EN
5
Connections
1. Connect the satellites to the left and right RCA outputs at the rear panel of the subwoofer.
2. Place both satellites on extreme sides of the listening position.
3. Connect the rear satellites to the rear left and right outputs.
4. Place both satellites to the extreme sides at the rear of the listening position.
5. Place the subwoofer on the floor and with its back near the wall for more bass.
6. Connect the center satellite to the center output at the rear panel of the subwoofer, and place this
above the LCD monitor or TV.
For Stereo source;
7. Connect the playback device to the rear stereo RCA inputs with the included signal cable.
For 5.1 channel source;
8. Connect the 5 input channels respectively to the rear panel 5 channel RCA inputs.
For Coaxial source;
9. Use the included coaxial cable and connect from digital processor to the coaxial port at the rear of the
subwoofer.
For Optical source;
10. Connect from the digital processor to the TOSlink port at the rear of the subwoofer with the included
optical cable.
11. Next, connect the power cable at the rear of the subwoofer to the AC power supply source. Please
ensure the AC power supply match the power requirement printed at the rear panel.
12. For the remote control, please ensure fresh battery is correctly loaded.
1. Ensure the master volume is at the lowest setting.
2. Turn on the main AC power and switch on the speaker system from the rear power switch.
3. The power LED will illuminate and the default 5.1 mode will be displayed.
4. Start the playback device and song.
5. Adjust the volume on the media player, and speaker master volume to your preferred listening level.
6. For sound effects, bass and front levels can be adjusted from the front panel or remote control.
7. For remote control, simply point directly at the subwoofer and adjust the volume control. The remote
control features input selection, sound effect level adjustments and mute.
8. The volume control is factory defaulted at the value 16.
9. For more input options, depress the master volume to toggle the different input source types. The
toggle will loop the selections from 5.1, to AU 16, CO 16, OP 16, and then back to 5.1 again. The LED
display 5.1 represents the source selection from the 5.1 channel connections. AU 16 represents the
AUX stereo channel, CO 16 represents the Coaxial connection, and OP 16 represents the optical
TOSlink connection.
10. The system can be placed temporary on hold by depressing the ST-BY button on the front panel or
remote control.
11. For short pause during playback, depress the mute button to silence the system.
Operations
CE N
SL S R SL S R
CE N
FL - front l eft
FR - front r ight
SW - subwo ofer
SL - surround left
SR - surround right
CE N - center
80-M1910-97-0001-01 2012-05-09 (Change remote control and front panel)

Mp3 \ Mp4
Media playe r
TV
Gam ing dev ices
PC or Notebo ok
Med ia
pla yer
CD\ VCD \ DVD
Blu-Ray pla yer
Connections
to AC
power supply
20. Please remove the power plug form the main power source or wall power source when not in use. When plugged in to a
power source, the system is in standby mode, so the power is not entirely cut off.
21. Replacement parts - When replacement parts are required, ensure the service technician has used replacement parts
specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may
result in fire, electric shock or other hazards.
22. Mains fuses - For continued protection against fire hazard, use fuses only of the correct type and rating. The correct fuse
specification for each voltage range is marked on the product.
23. Do not turn up the volume while listening to a section with very low level inputs or no audio signals. If you do, the speaker
may be damaged when a peak level section is suddenly played.
24. The only means of completely disconnecting the product from the power supply is by removing the power cord from the
wall outlet or the product. The wall outlet or the power cord entry to the product must remain freely accessible at all times
while the product is in use.
25. Try to install the product near a wall socket or extension cord and shall be easily accessible.
26. The highest environmental temperature suitable for this product is 40°C.
Introduction
Features
Pure sound with PCM technology
Power 5.1 subwoofer system with cinematic effects
Connects to stereo and 5.1 audio source such as DVD player and gaming devices
Enhance your movie effects to cinema quality
Immerse yourself in your games with acoustic effects
5 satellites to fill your room and excite your senses
Feature TOSLINK and Coaxial connectors
Remote control for standoff adjustments
Package contents
M-1910 satellites 5 pcs
M-1910 subwoofer 1 pc
2RCA - 2RCA cable 3 pcs
3.5mm - 2RCA cable 1 pc
Coaxial cable 1 pc
Optical cable 1 pc
Remote control 1 pc
User manual 1pc
Enhance your rudimentary TV audio to home theater sound effects with this powerful 5.1 system. Versatile
in capabilities, it lets you connect to many multimedia platform options. You can connect to your digital
audio processor, or CD/DVD player, Mp3/Mp4 media player, or your TV.
Comes complete with front stereo and center satellites to create sound movements in your room. Two
surround satellites placed at the rear for extra sound dimension.
Powerful subwoofer with built-in amplifier that gives you unprecedented vocal and depth in bass
frequencies. The subwoofer designed with bass reflex tunnel for efficient woofer movements and
complete low frequencies production.
For purer sound, the system includes one TOSlink and one Coxial for user to connect to their
gaming devices such as PS3, XBOX or PC sound card with S/PDIF connectors.
Function Instruction
Illustrations
Front view
EN
4
EN
3
ST-BY
VOLUME
BASS
FRONT
INPUT SE L
FRONT+
FRONT-
VOLUME +
VOLUME -
SUB-W+
SUB-W-
CENTER +
CENTER -
SURR+
SURR-
MUTE
INPU T SEL
FRON T+
FRON T-
VOLU ME+
VOLU ME-
SUB- W+
SUB- W-
CENT ER+
CENT ER-
SURR +
SURR -
MUTE
BASS
VOLUME
PUSH INPUT SEL
FRON T
R L RL
AUDI O
OUTP UT
AUDI O
INPU T
SURR S URR
FR
CEN
SW / CEN
FR
AUX
COAX IAL
OPTI CAL
T800mAL250V
FUSE AC IN POWE R
ON
OFF
MULTIMEDIA SPEAKER
MODEL: M-1910
MADE IN CHINA
Front panel Rear panel
Volume knob/
Input selector
(toggle)
Heat sink
Standby:
power savings
mode (LED)
Bass adjustment
Front adjustment
FU SE compartment
AC input cord
Bass reflex tunnel
To Surround satellites
To Front satellites
To Center satellite
Surround (rear)
inputs
Subwoofer/Center
inputs
Front inputs
AUX: stereo inputs
Coaxial input
Optical TOSlink input
Power ON /OFF switch
R L RL
AUDIO
OUTPUT
AUDIO
INPUT
SURR SUR R
FR
CEN
SW / CEN
FR
AUX
COAXIA L
OPTICA L
T800mAL250V
FUSE AC IN POWER
ON
OFF
MULTIMEDIA SPEAKER
MODEL: M-1910
MADE IN CHINA
Coaxial connection
x3 cables - 5.1 home theater
3.5mm stereo connection (AUX)
Optical S/PDIF (gaming devices, etc)
Subwoofer
Subwoofer
Right
Surr Right Left Surr Left
Center
Remote
control
Remote
control
Surr
Left Left
Center
Right
Surr
Right
Subwoofer
Mute: turn off volume
temporary
Input Selector:
Change audio source
Front volume adjustments
Master volume adjustments
Surround volume
adjustments
Center volume
adjustments
Subwoofer volume
adjustments
80-M1910-97-0001-01 2012-05-09 (Change remote control and front panel)
Table of contents
Other Microlab Stereo System manuals

Microlab
Microlab H12W User manual

Microlab
Microlab H11 User manual

Microlab
Microlab M-113 User manual

Microlab
Microlab B-77 User manual

Microlab
Microlab FC861 User manual

Microlab
Microlab FC362 User manual

Microlab
Microlab B-55 User manual

Microlab
Microlab Solo 15 User manual

Microlab
Microlab FC361 User manual
