Microlife WatchBP Office BASIC+ User manual

Ofce blood pressure
measurement device
with Ab detection
Instruction Manual
EN 1

1

EN
2
Product description
Name of parts ................................................................. 3
Display ............................................................................ 4
Components and accessories ......................................... 5
Before using WatchBP Ofce
Selecting and tting the correct cuff .............................. 6
Activating the Device ..................................................7–8
Connect the cuff to the device ........................................ 9
Fitting the cuff properly .............................................9–10
Three operation modes
«SINGLE» Mode ............................................................ 11
«CYCLING» Mode .......................................................... 12
«AUSCULTATION» Mode ................................................ 12
Viewing the stored values
Viewing the stored values ............................................ 13
Special Functions

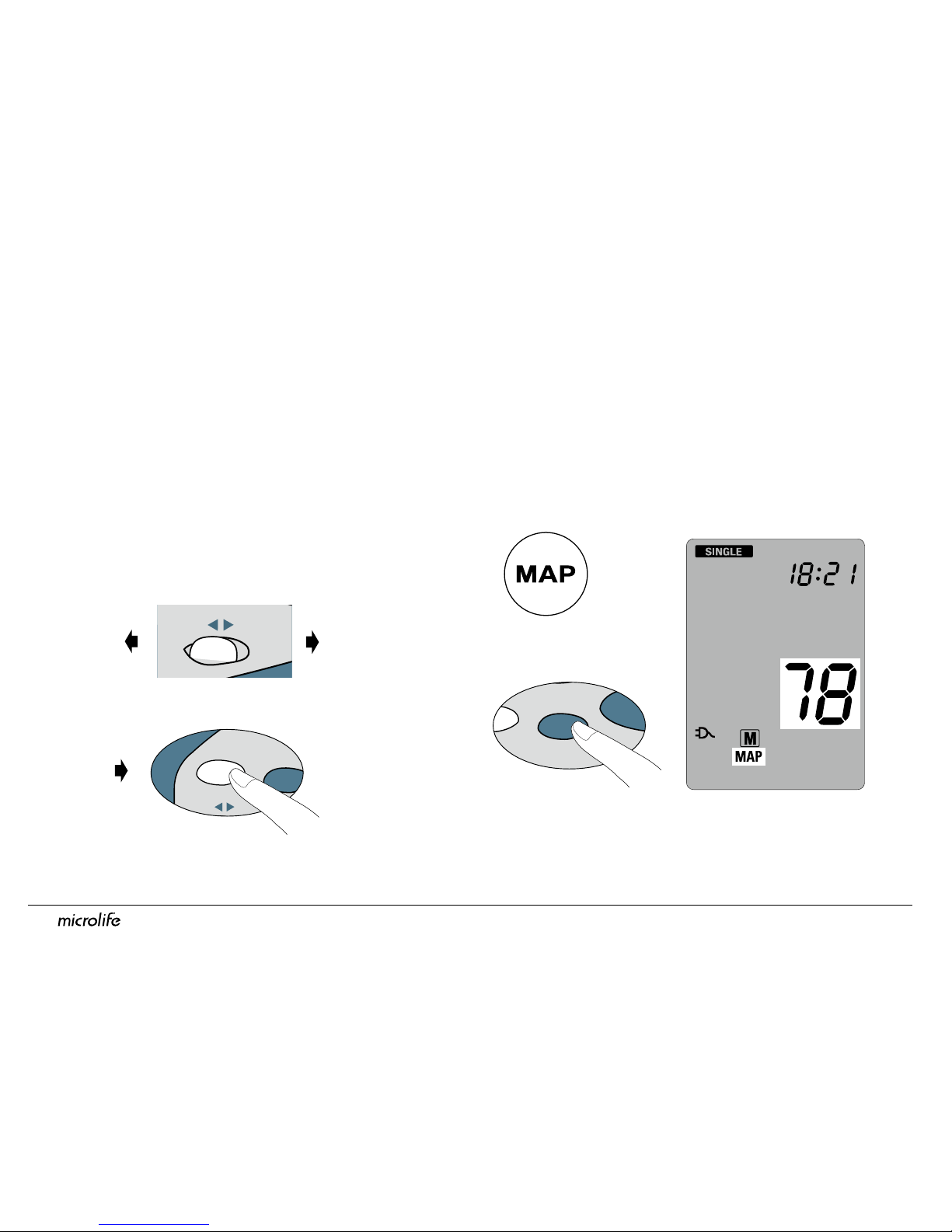

Mean arterial pressure ................................................. 13
Atrial brillation detection ......................................14-16
Skipping the countdown time ...................................... 17
Taking fewer than three measurements ..................... 17
Appendix
Rechargeable battery and power adaptor ................... 18
Error messages ....................................................... 19–20
Safety, care, accuracy test and disposal ................. 21–22
Technical specications ................................................ 23
Guarantee card ............................................................. 24
Table of Contents

3
SYS
mmHg
DIA
mmHg
PUL
/min
Auscult.
Single Cycling
MAP
Start/Stop
Time/Test
M
(3, Afib)
BASIC+
SYS
mmHg
DIA
mmHg
PUL
/min
Auscult.
Single Cycling
MAP
Start/Stop
Time/Test
M
(3, Afib)
BASIC+
Display
Time/Test
Start/Stop
Auscultation button
MAP
M Button (Memory)
Mode switch
Single/Cycling
(3, Ab)
DC 7.5V 2.0A
USB Port
Main Adapter
Cuff Socket

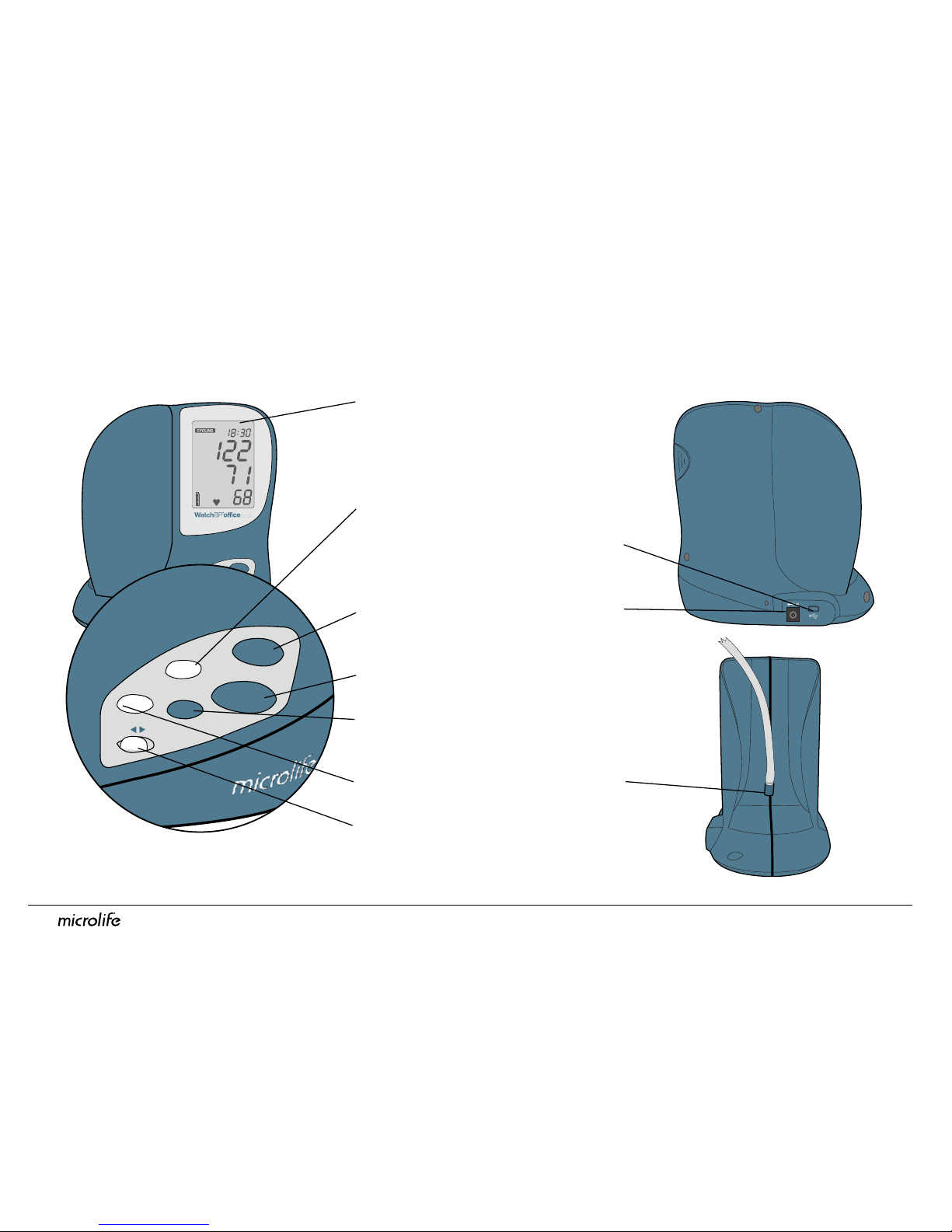

Product description
Name of parts

EN
4
Display
Single Mode
Cycling MOde
Auscultation Mode
Ination indicator
(for Auscult. Mode)
External Power
PC Link Indicator
Battery Symbol
Interval Time
Month/Date
Time
Systolic Value
Diastolic Value
Memory
Number of Stored Data
Pulse
Mean Arterial Pressure
Pulse Rate

5

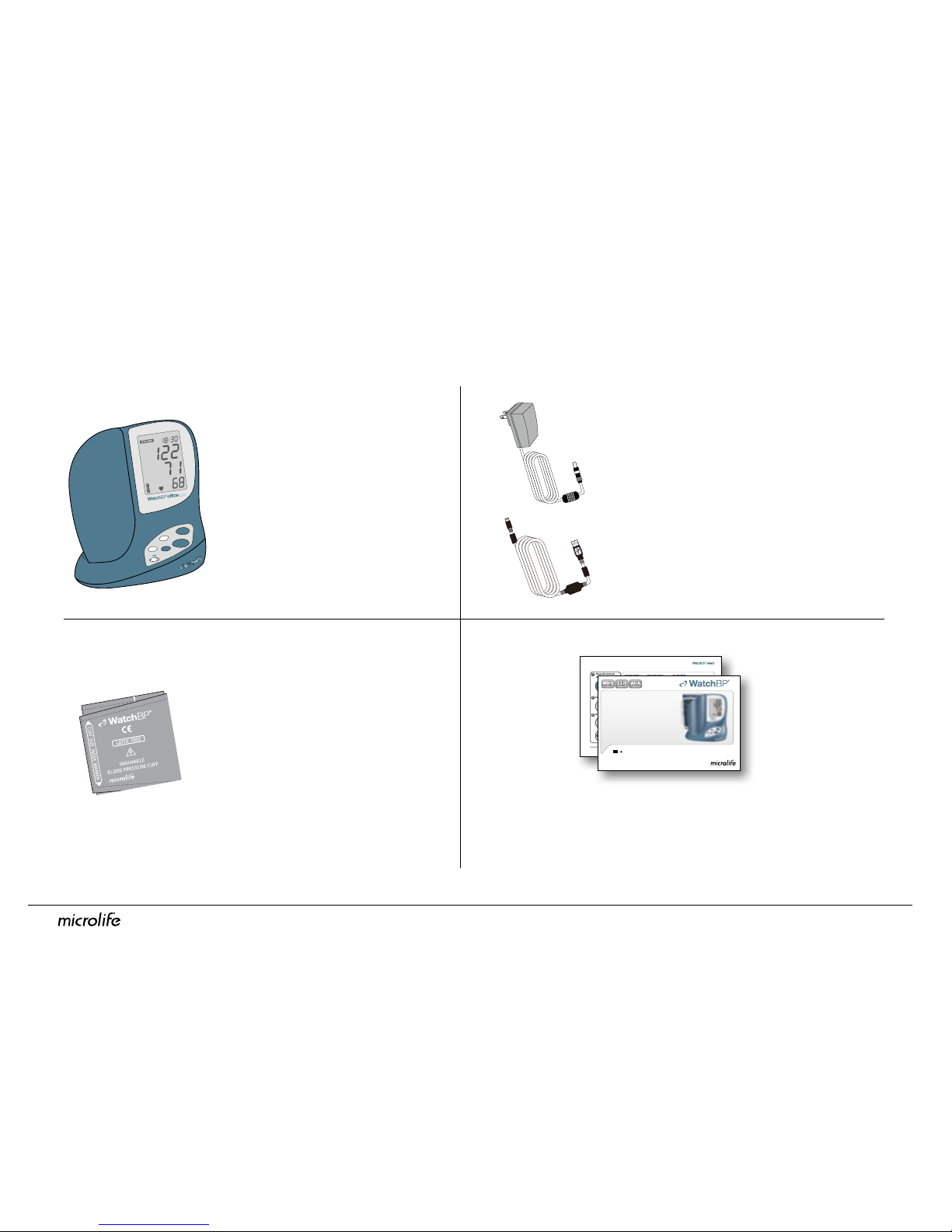

Product and components
Blood Pressure Device X 1
AC Adaptor X 1
(Input100 - 240V~ 50/60Hz 0.48A;
Output+7.5V 2A)
Cuff for upper arm
M size (22cm~32cm) X 1
L size (32cm~42cm) X 1
Instruction Manual X 1
Quick Start Guide X 1
SYS
mmHg
DIA
mmHg
PUL
/min
Auscult.
Single Cycling
O/I Interval
Alarm/Limit
Time/Test
M
SYS
mmHg
DIA
mmHg
PUL
/min
Auscult.
Single Cycling
O/I Interval
Alarm/Limit
Time/Test
M
How to take blood pressuremeasurement in three different modes
Quick start guide
Flip overthe quick start guide to see ‘Product description’.
Printed2011 June
1Plug cuffconnector
in the cuffsocket
Switchthe mode
«Single» Mode
«Cycling» Mode
«AUSCULTATION»Mode PressAuscult.
buttonto begin a
measurement
Noteblood
pressureusing
auscultatory
method
Placethe stethoscope on
the hollowof the elbow,
overthe brachial artery
PressStart/Stop
button to start a
measurement
Result will be
displayedafter
the measurement
2
3Press to start
Single
Cycling
2
SYS
mmHg
DIA
mmHg
PUL
/min
Auscult.
Single Cycling
O/I Interval
Alarm/Limit
Time/Test
M
SYS
mmHg
DIA
mmHg
PUL
/min
Auscult.
Single Cycling
O/I Interval
Alarm/Limit
Time/Test
M
SYS
mmHg
DIA
mmHg
PUL
/min
Auscult.
Single Cycling
O/I Interval
Alarm/Limit
Time/Test
M
Auscult.
PressStart/Stop button
tostart cycling measurements
Ofce blood pressure
measurement device
with Ab detection
Instruction Manual
EN 1
USB Cable
SYS
mmHg
DIA
mmHg
PUL
/min
Auscult.
Single Cycling
MAP
Start/Stop
Time/Test
M
(3, Afib)
BASIC
+

EN
6
Before using the device
Selecting the correct cuff
Two different cuff sizes are provided with the device:
Medium and Large. Use the cuff marker to select the cuff
size that best matches the circumference of the patient’s
upper arm.
M (Medium size)
22 - 32 cm (8.7 - 12.6 inches)
L (Large size)
32-42 cm (12.6 - 16.5 inches)

7

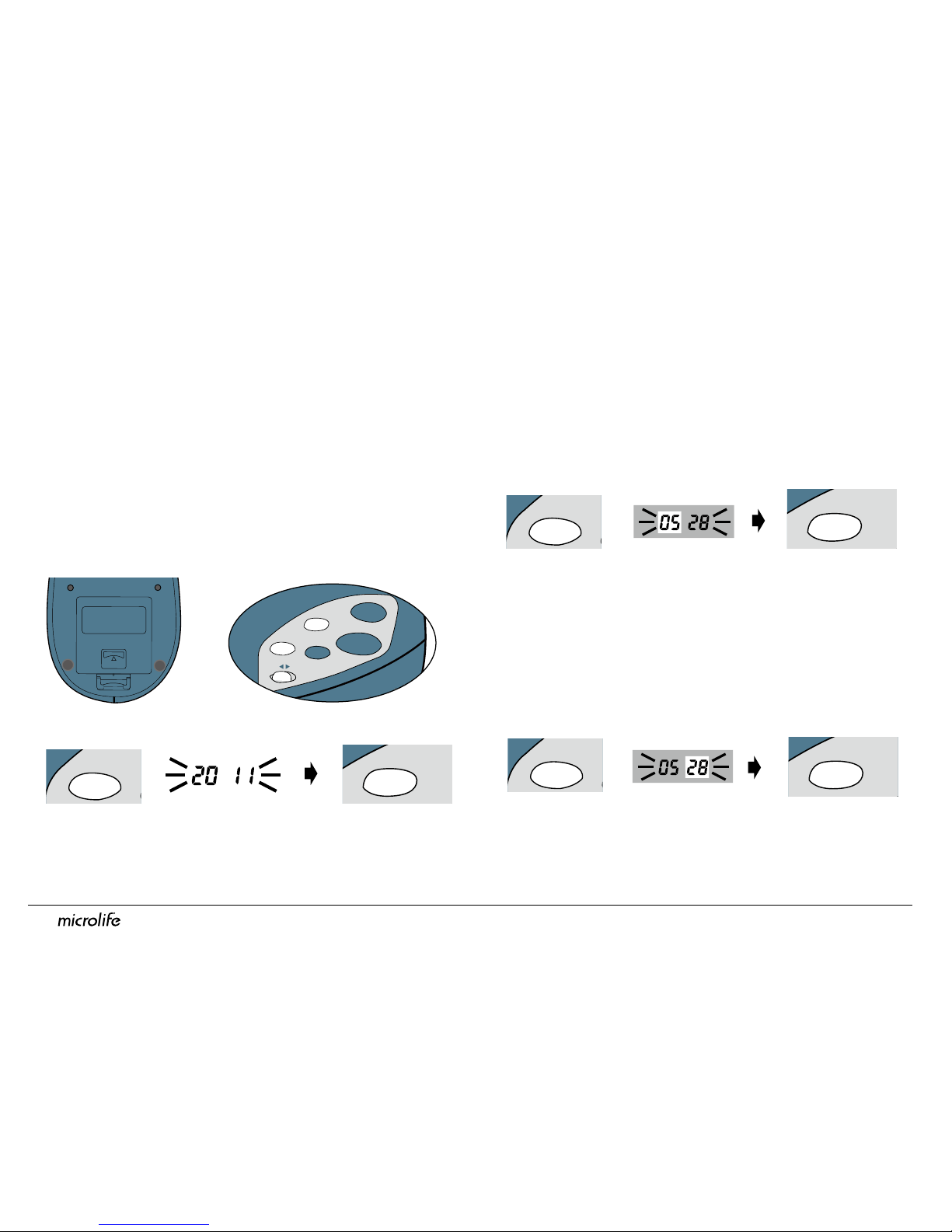

Activating the Device
Open the cover of the battery compartment then plug in
the rechargeable battery socket.
Use the device for the rst time
1) Set the year – When the power is on, the Year number
ashes in the display. Press the M Button to select the Year.
Press the Time/Test Button to conrm. The Month number
ashes after.
ABRIR
SYS
mmHg
DIA
mmHg
PUL
/min
Auscult.
Single Cycling
MAP
Start/Stop
Time/Test
M
(3, Afib)
BASIC+
SYS
mmHg
DIA
mmHg
PUL
/min
Auscult.
Single Cycling
MAP
Start/Stop
Time/Test
M
(3, Afib)
BASIC+
SYS
mmHg
DIA
mmHg
PUL
/min
Auscult.
Single Cycling
MAP
Start/Stop
Time/Test
M
(3, Afib)
BASIC+
2) Set the month – Use the M Button to select the
Month. Press the Time/Test Button to conrm. The Day
number ashes after.
3) Set the day – Press the M Button to select the Day.
Press the Time/Test Button to conrm. The Hour
number ashes after.
SYS
mmHg
DIA
mmHg
PUL
/min
Auscult.
Single Cycling
MAP
Start/Stop
Time/Test
M
(3, Afib)
BASIC+
SYS
mmHg
DIA
mmHg
PUL
/min
Auscult.
Single Cycling
MAP
Start/Stop
Time/Test
M
(3, Afib)
BASIC+
SYS
mmHg
DIA
mmHg
PUL
/min
Auscult.
Single Cycling
MAP
Start/Stop
Time/Test
M
(3, Afib)
BASIC+
SYS
mmHg
DIA
mmHg
PUL
/min
Auscult.
Single Cycling
MAP
Start/Stop
Time/Test
M
(3, Afib)
BASIC+

EN
8
Select the correct cuff
Two different cuff sizes are provided with the device:
Medium and Large. Use the cuff marker to select the cuff
size that best matches the circumference of the patient’s
upper arm.
* please use only Microlife cuffs!
4) Set the time – Press the M Button to select the time
then press the Time/Test Button to conrm. The set
time is displayed on the screen.
5) If you want to change the year, date and time, just
press the Time/Test Button then repeat the process as
instructed above.
SYS
mmHg
DIA
mmHg
PUL
/min
Auscult.
Single Cycling
MAP
Start/Stop
Time/Test
M
(3, Afib)
BASIC+
SYS
mmHg
DIA
mmHg
PUL
/min
Auscult.
Single Cycling
MAP
Start/Stop
Time/Test
M
(3, Afib)
BASIC+
SYS
mmHg
DIA
mmHg
PUL
/min
Auscult.
Single Cycling
MAP
Start/Stop
Time/Test
M
(3, Afib)
BASIC+
M (Medium size)
22 - 32 cm (8.7 - 12.6 inches)
L (Large size)
32-42 cm (12.6 - 16.5 inches)

9

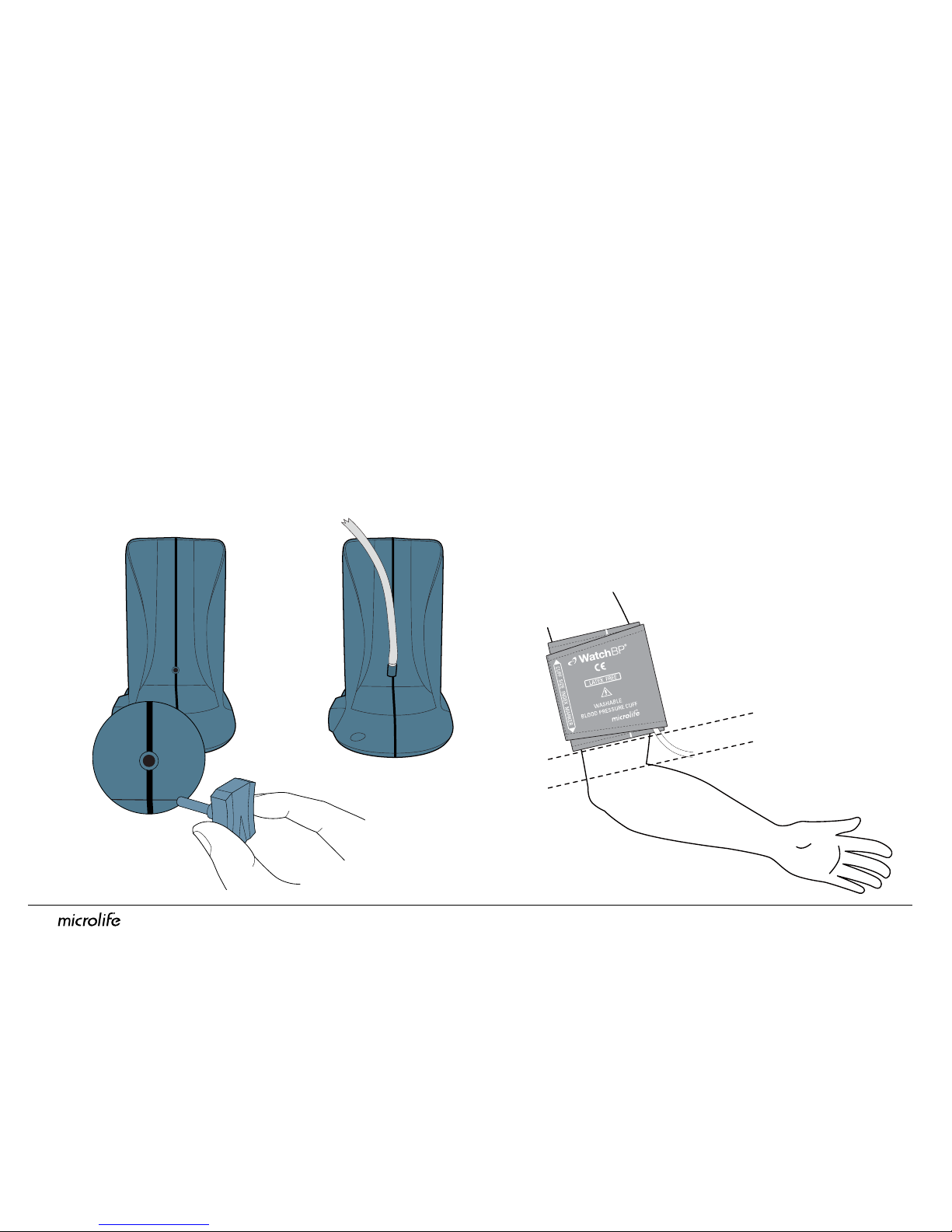

Connect the cuff to the device
Connect the cuff to the device by inserting the cuff connector
into the cuff connector socket.
Fitting the cuff properly
1) Place the cuff over the left (right) upper arm so that the
air tube and artery mark arrow point towards the lower
arm.
2) Put the cuff around the arm. Make sure that the lower
edge of the cuff lies approximately 2 to 3cm ( ¾ to 1
inch) above the elbow.
2-3 cm
(3/4 to 1 inch)
Before using the device (cont.)

EN
10

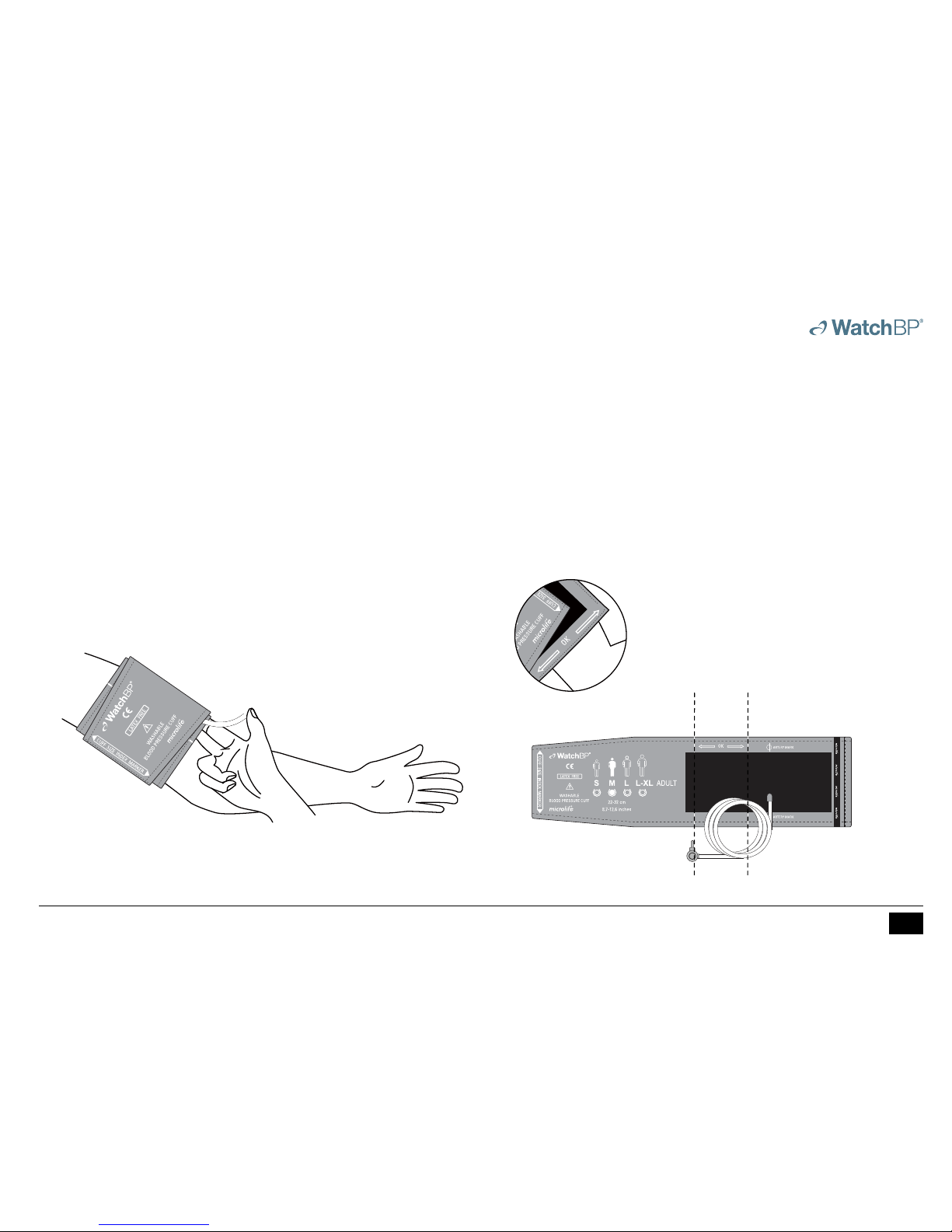

3) Wrap and tighten the cuff around the arm.
4) Leave a little free space between the arm of the patient
and the cuff. It must be possible to t 2 ngers between
the arm and the cuff. Clothing must not restrict the arm.
Remove all clothing covering or constricting the arm to
be measured.
5) It may result in incorrect blood pressure readings if the
cuff does not t properly. Use a different size cuff if the
range index at the end of the cuff does not fall into the
range specied by the range stripes.
6) Apply the same steps to the other arm if a measurement
of the other arm is required.
* When the cuff is wrapped around
the arm, the edge of the cuff should
be in the range which is marked
“OK”.

11
SYS
mmHg
DIA
mmHg
PUL
/min
Auscult.
Single Cycling
MAP
Start/Stop
Time/Test
M
(3, Afib)
BASIC+
«Single » «Cycling»
SYS
mmHg
DIA
mmHg
PUL
/min
Auscult.
Single Cycling
MAP
Start/Stop
Time/Test
M
(3, Afib)
BASIC+
SYS
mmHg
DIA
mmHg
PUL
/min
Auscult.
Single Cycling
MAP
Start/Stop
Time/Test
M
(3, Afib)
BASIC+

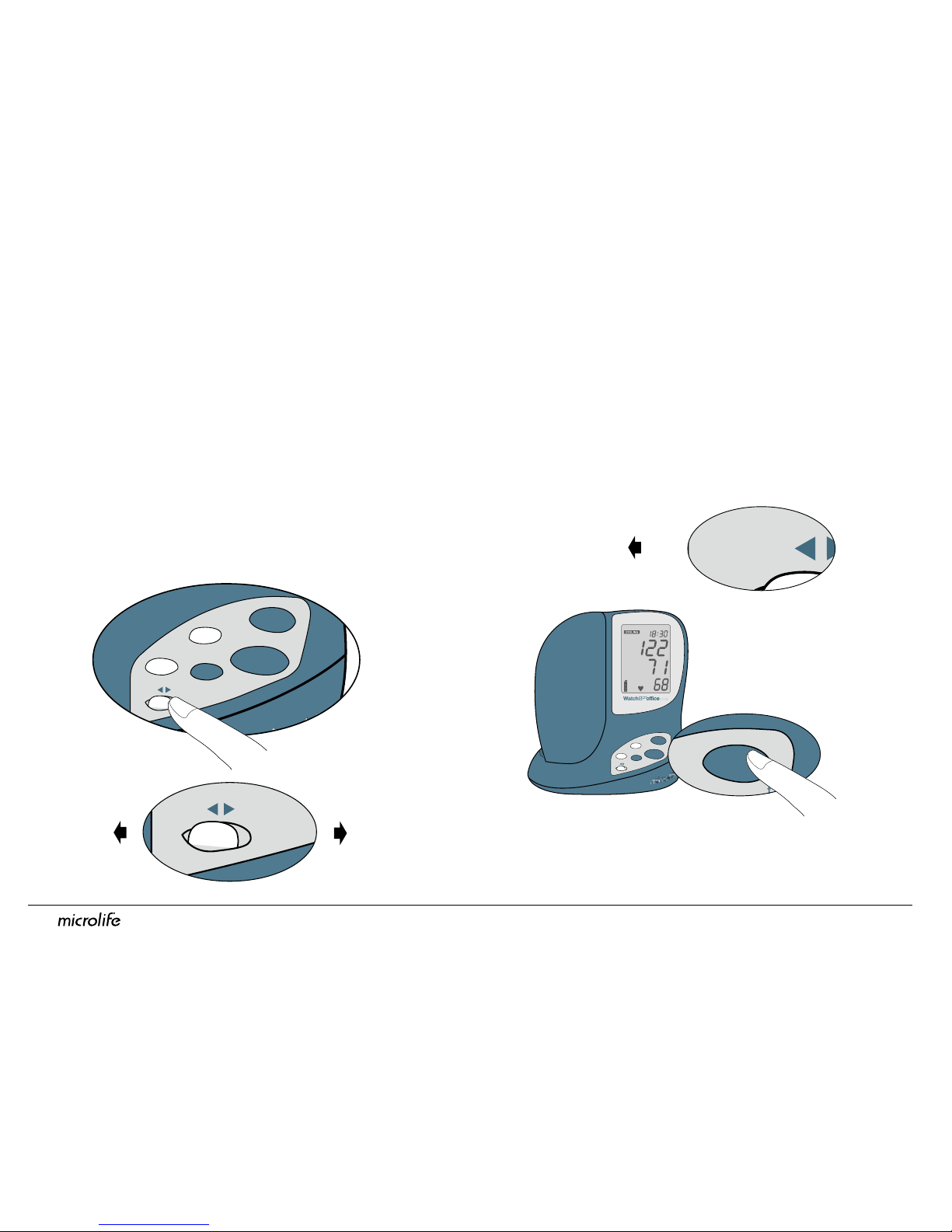

Three operation modes: Single, Cycling or Auscultation mode
Select an operation mode
There are three measuring modes can be used.
Slide the switch to seletct Single mode (standard single
measurement) or Cycling mode (automatic triple
measurements).
Press and hold «Auscult.» button to start auscultation
measurement.
SYS
mmHg
DIA
mmHg
PUL
/min
Auscult.
Single Cycling
MAP
Start/Stop
Time/Test
M
(3, Afib)
BASIC+
«Single »
SYS
mmHg
DIA
mmHg
PUL
/min
Auscult.
Single Cycling
MAP
Start/Stop
Time/Test
M
(3, Afib)
BASIC+
«Single» Mode (standard single measurement)
Select «Single» Mode then press «Start/Stop» button
to perform single blood pressure measurement. The
measurement reading is displayed and saved after the
measurement.
*Press «Start/Stop» Button to terminate the measurement
when inating or deating.

EN
12
SYS
mmHg
DIA
mmHg
PUL
/min
Auscult.
Single Cycling
MAP
Start/Stop
Time/Test
M
(3, Afib)
BASIC+
SYS
mmHg
DIA
mmHg
PUL
/min
Auscult.
Single Cycling
MAP
Start/Stop
Time/Test
M
(3, Afib)
BASIC+
SYS
mmHg
DIA
mmHg
PUL
/min
Auscult.
Single Cycling
MAP
Start/Stop
Time/Test
M
(3, Afib)
BASIC+
60 sec.
1 2
60 sec.
3
60 sec.

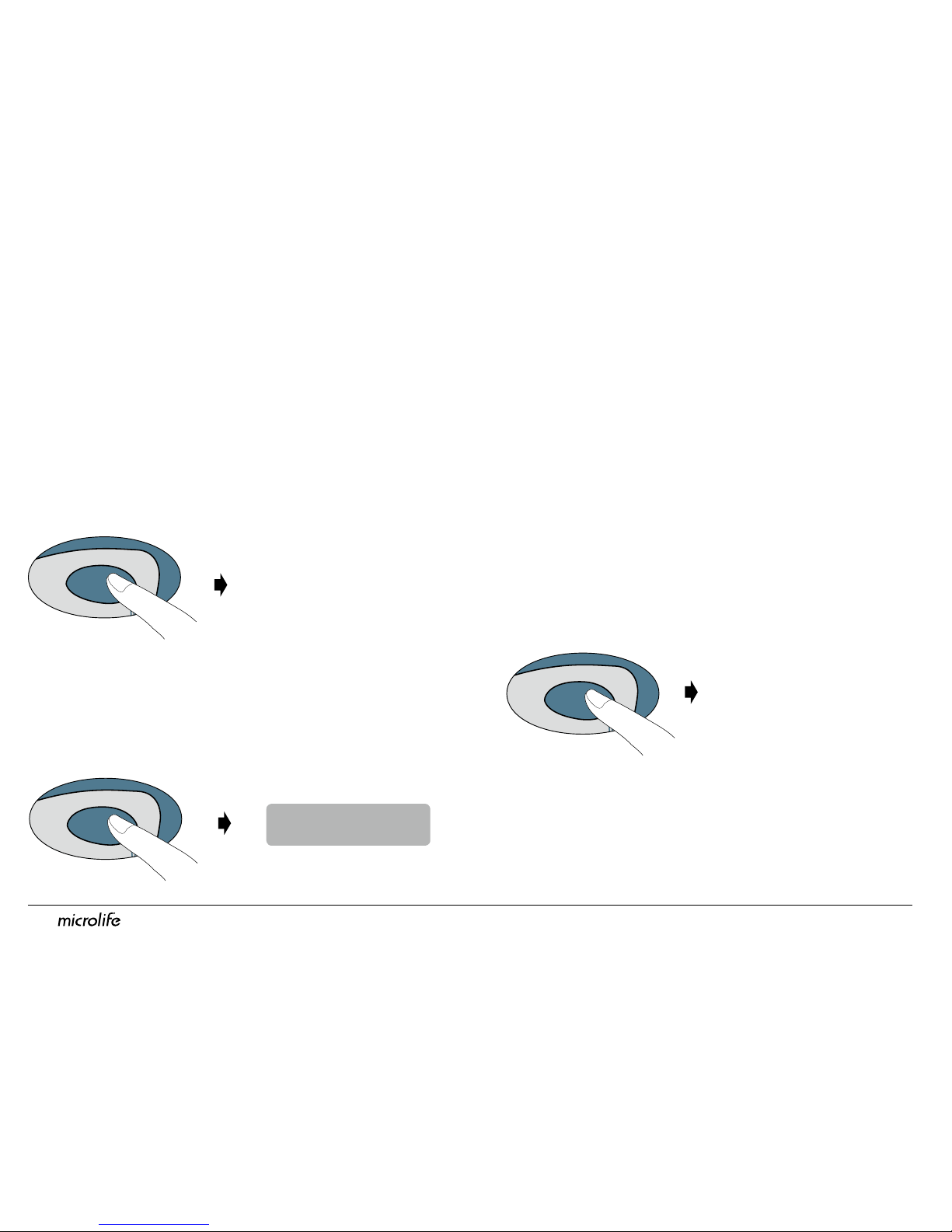

«AUSCULTATION» Mode
«AUSCULTATION» Mode is used for blood pressure
measurement of patients to conrm if a patient is suitable
for the oscillometric method.
Press and hold «Auscult.» button to start pumping. Release
the button when it reaches the needed pressure. Press and
hold the «Auscult.» button to repump during deaing; press
«Start/Stop» button to release pressure during deating.
There is no measurement readings displayed in this mode.
The user has to use with a stethoscope to determine the
blood pressure.
«Cycling»
SYS
mmHg
DIA
mmHg
PUL
/min
Auscult.
Single Cycling
MAP
Start/Stop
Time/Test
M
(3, Afib)
BASIC+
*The device will automatically return to ‘Single’ or ‘Cycling’
mode if there is no operation for one minute after the
auscultation operation.
«Cycling» Mode (automatic triple measurements)
Select «Cycling» Mode then press «Start/Stop» button
to perform automatic triple blood pressure measurement
with 60 seconds intervals. The average reading
measurement readings is displayed and saved after the
measurements.
*User can set measurement intervals at 15 or 60 seconds in
Cycling Mode. Press «Start/Stop» Button for 3 seconds then
press «Auscult.» Button to select 15 or 60. Press «Start/Stop»
Button to conrm the selection.

13
SYS
mmHg
DIA
mmHg
PUL
/min
Auscult.
Single Cycling
MAP
Start/Stop
Time/Test
M
(3, Afib)
BASIC+
SYS
mmHg
DIA
mmHg
PUL
/min
Auscult.
Single Cycling
MAP
Start/Stop
Time/Test
M
(3, Afib)
BASIC+
Viewing the stored values
The device stores only the blood pressure values of the
last measurement procedure in Single mode and Cycling
mode. Press the M Button in Single mode or Cycling
mode to review the stored readings.
In Cycling mode, the average is displayed rst. Press M
Button repeatly to review the indevidual readings of the
3 measurements in Cycling mode.
«Single » «Cycling»
Viewing the stored values Special Functions
MAP (Mean Arterial Pressure)
The device measures the true mean arterial pressured
(MAP) of the patient. Each measurement includes a
single MAP value. The average measurement will display
the average MAP value. Press the "MAP" button to view
the MAP when the measurements is displayed or when
viewing the memory.
*The Mean Arterial Pressure MAP in this device is
determined from the maximum peak of the oscillometric
envelope curve.
SYS
mmHg
DIA
mmHg
PUL
/min
Auscult.
Single Cycling
MAP
Start/Stop
Time/Test
M
(3, Afib)
BASIC+

EN
14
Appearance of the atrial brillation
indicator for early detection
The device is designed to detect asymptomatic atrial
brillation during blood pressure measurements in the
«CYCLING» Mode. If two out of three measurements
detect atrial brillation, the Ab icon is displayed. This
device is able to detect atrial brillation with high
sensitivity of 97% and specicity of 89%.*If the
atrial brillation icon is displayed after the measurement,
it is recommended to visit a doctor.
*Joseph Wiesel, Lorenzo Fitzig, Yehuda Herschman and Frank
C. Messineo. Detection of Atrial Fibrillation Using a Modied
Microlife Blood Pressure Monitor.
American Journal of Hypertension 2009; 22, 8, 848–852.
doi:10.1038/ajh.2009.98
* This device detects atrial brillation, a major cause of stroke.
Not all risk factors for stroke, including atrial utter, may be
detected by this device.
* This device may not detect atrial brillation in people with
pacemakers or debrillators. People with pacemakers
or debrillators should not use this device to detect atrial
brillation.

15
Special Function (cont.)
About Atrial Fibrillation
Atrial brillation is a common heart rhythm problem. It
affects more than 2 million people in North America. It
is more common in older age and it is found in 10% of
people over 80 years old. It is a common cause of major
strokes. About 15% of all strokes are caused by atrial
brillation.
The elderly or those with high blood pressure, diabetes or
heart disease are more likely to get a stroke if they have
atrial brillation.
Atrial brillation is a rhythm problem that can last from
a few minutes, to days, weeks or even years. Atrial
brillation can cause blood clots in the upper chambers
of the heart (the atria). These clots can break off and ow
to the brain causing a stroke.
The use of blood thinners, such as warfarin, can lower the
risk of stroke in patients with atrial brillation.
A doctor can conrm the presence of Ab by using an ECG.
Sometimes Ab is present incidentally. Therefore, a doctor
may not see it on regularly scheduled visits.
One method of detecting Ab is by mean of palpations.
This method is not very reliable. Failure of detecting Ab
may in the end lead to the occurrence of a stroke; whereas
early detection may lead to early treatment that can
signicantly reduce the chances of a stroke.

EN
16
Atrial Fibrillation Detector
The device can screen for atrial brillation during blood
pressure measurement.
Some people may have atrial brillation occasionally
that lasts longer than a day. In this situation the device
allows frequent screening on multiple days for optimal
diagnosis of atrial brillation.
Sometimes the device might falsely detect atrial
brillation which can have two causes:
1) The arm has moved during blood pressure
measurement. For this reason it is of essential
importance that the arm is kept still during the
measurement.
2) Some other arrhythmia (irregular heart beat) than
atrial brillation might be present.
For people with pacemakers or debrillators it is not
recommended to use the device for detecting Atrial
Fibrillation.
Information for the doctor
This device is designed to detect atrial brillation and
false negative readings are very rare. Though it is
programmed to specically detect atrial brillation,
frequent premature beats, marked sinus arrhythmia
or other rhythm abnormalities might cause false
positive readings. If atrial brillation is detected by the
device, we suggest to perform another measurement
in the doctor’s ofce. If the atrial brillation icon is
not displayed then the previous abnormal readings
may have been due to transient atrial brillation.
If the atrial brillation icon is displayed then EKG
performance is suggested for determining the exact
rhythm abnormality.

17
Taking fewer than Three measurements
In «CYCLING» Mode , the measurement sequence can
be stopped at anytime by pushing the «Start/Stop»
button. The device enters stand-by and remaining
measurements are cancelled. Data from the measured
blood pressure can be viewed by pushing the M Button.
Skipping the countdown time
The 15 seconds countdown before measurement in
«CYCLING» Mode can be skipped by pressing the «Start/
Stop» button. The device will immediately begin the next
measurement.
*The device goes into stand-by by pressing the «Start/Stop»
button after the measurements completed. The device will
automatically switch to stand-by if left unattended for one
minutes.
Cancel remaining
measurements at
anytime during
the measurement
sequence.
Skip the countdown time
and begin measurement.
Stand by mode
Special Function (cont.)
SYS
mmHg
DIA
mmHg
PUL
/min
Auscult.
Single Cycling
MAP
Start/Stop
Time/Test
M
(3, Afib)
BASIC+
SYS
mmHg
DIA
mmHg
PUL
/min
Auscult.
Single Cycling
MAP
Start/Stop
Time/Test
M
(3, Afib)
BASIC+
SYS
mmHg
DIA
mmHg
PUL
/min
Auscult.
Single Cycling
MAP
Start/Stop
Time/Test
M
(3, Afib)
BASIC+

EN
18
Rechargeable Battery
The device features a built-in, rechargeable Ni-MH battery
pack that delivers up to 400~500 measurement cycles.
The battery can be recharged between use with the
power adaptor provided. Battery charging indicator is
displayed when the rechargeabe battery is being charged.
Empty battery indicator is displayed when battery is weak.
Rechargeable battery and power adaptor
DC 7.5V 2.0A
DC 7.5V 2.0A
Using a power adaptor
Please only use the Microlife adaptor supplied with the
device to recharge the device.
1) Plug the adapter cable into the Power Plug of the
device.
2) Plug the adaptor plug into the wall socket. When
the power adaptor is connected, no battery power is
consumed.
* Battery is weak.
* Battery is being
charged.

19
If an error occurs during measurement, the
measurement is interrupted and an error message
«Err» is displayed.
•Please contact your local
Microlife service center if the
error persists.
•If you think the results are
unusual, please read through
the information in this
instruction manual carefully.
Error Description Potential cause and
remedy
«Err 1»Signal too
weak
The pulse signals on
the cuff are too weak.
Re-position the cuff and
repeat the measurement.
«Err 2»Error signal During the measurement,
error signals were
detected by the cuff,
caused for instance by
movement or muscle
tension. Repeat the
measurement, keeping
your arm still.
Error messages
