Micronor MR380-1 Series User manual

© Copyright 2013-2019, Micronor Inc., USA
MR380-1 Series
MR380-2 Series
DIN Rail Mount Controller
For Use with MR38X Series
Fiber Optic Signaling Sensors
Instruction Manual
Document: 98-0380-01
Revision D4 dated 9/27/2019
MICRONOR INC.
900 Calle Plano, Suite K
Camarillo, CA 93012
USA
Tel [phone]
Fax [phone]
[e-mail]
www.micronor.com
For Support in Europe:
MICRONOR AG
Pumpwerkstrasse 32
CH-8105 Regensdorf
Switzerland
Tel [phone]
Fax [phone]
[e-mail]
www.micronor.ch
Notice of Proprietary Rights
The design concepts and engineering details embodied in this manual, which are the property of MICRONOR
INC., are to be maintained in strict confidence; no element or detail of this manual is to be spuriously used, nor
disclosed, without the express written permission of MICRONOR INC. All rights are reserved. No part of this
publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means,
electronic, mechanical, photocopying, recording, or otherwise, without prior written permission from
MICRONOR INC.

MR380-1 Series Instruction Manual
Page 2 of 35
Revision History
Revision
Date
Notes
A
12/11/2013
•Initial release
B
7/13/2015
•
Added 50/125 fiber pigtail option
•Controller design upgraded to Universal and will work
with both 50/125 and 62.5/125 multimode fiber
C
10/15/2015
•Update with new Camarillo address and tel/fax numbers
C1
03/09/2016
•Style Update
D
10/17/2016
•
E-Stop part number change, MR380 to MR387
•Added Single Mode option
•Added reference to IECEx Test Report
•Added MR380-2-2 Switch Contoller
•
Added Declaration of Conformity
D1
12/1/2016
•Corrected SIL typo, is SIL1/PLc
D2
3/2/2017
•Added Single Mode Declaration of Conformity to
Appendix
D3
5/18/2017
•Remove 850nm Multimode Option
D4
9/27/2019
•Single Mode MR387/MR381 maximum loss specification
increased to 5dB
• Combined SM/MM Declaration of Conformity added

MR380-1 Series Instruction Manual
Page 3 of 35
Table of Contents
1. Product Description ................................................................................5
1.1. MR387 Fiber Optic Emergency Stop Switch ...................................................................5
1.2. MR381 Fiber Optic Emergency Actuator Switch .............................................................6
1.3. MR385 Foot Pedal and MR386 Microswitch....................................................................7
1.4. Fields of Application .......................................................................................................8
1.5. Features ..........................................................................................................................8
1.6. MR380-1 versus MR380-2 Controller...............................................................................8
2. Standard Contents ..................................................................................9
3. MR380 DIN Rail Controller Installation and Operation..........................10
3.1. Mounting the E-Stop/E-Actuator Switch .......................................................................10
3.2. Mounting the Controller Module ..................................................................................11
3.3. Connecting the Controller ............................................................................................11
3.4. MR380-1 Installation .....................................................................................................12
3.4.1. Electrical Connections............................................................................................12
3.4.2. System Start-Up & Performance Check ..................................................................12
3.5. MR380-2 Installation .....................................................................................................14
3.5.1. Electrical Connections MR380-2 Controller............................................................ 14
3.5.2. System Start-Up & Performance Check ..................................................................14
4. Troubleshooting....................................................................................16
4.1. Potential Issues & Solutions ..........................................................................................16
4.2. Damaged In Shipment ..................................................................................................17
5. Warranty Information ............................................................................18
6. Specifications ........................................................................................19
6.1. MR387 E-Stop Sensor ...................................................................................................19
6.2. MR381 E-Actuator Sensor .............................................................................................20
6.3. MR380-1 E-Stop Controller Module..............................................................................21
6.4. MR380-2 Switch Controller Module ..............................................................................22
7. Theory of Operation..............................................................................24
8. Application Notes .................................................................................25
8.1. Determining System Loss Budget For Chaining Multiple Switches ............................... 25
9. Reference Documents...........................................................................26
9.1. MR380-1 E-Stop Controller Reference Drawing ............................................................ 26
9.2. MR380-2 Switch Controller Reference Drawing.............................................................26
9.3. MR381 E-Actuator Reference Drawing..........................................................................26
9.4. MR387 E-Stop Reference Drawing................................................................................26
9.5. MR380 Series Declaration of Conformity ......................................................................26

MR380-1 Series Instruction Manual
Page 4 of 35
Table of Figures
Figure 1. MR387 Series Fiber Optic Emergency Switch & MR380-1 Controller ............5
Figure 2. Complete E-Stop Functional System Overview .............................................6
Figure 3. MR381 Series Fiber Optic Emergency Actuator & MR380-1 Controller.........6
Figure 4. MR385 Fiber Optic Foot Pedal and MR386 Fiber Optic Microswitch ............7
Figure 5. Panel Cut Out Dimensions and Assembly Hierarchy of Emergency Switch .10
Figure 6. Emergency Switch Orientation Interchangeable when Mounting into Optical Block
...........................................................................................................................10
Figure 7. Mounting Options: DIN Rail Mount versus Chassis Mount ..........................11
Figure 8. Front Panel Outputs of MR380-1 Series Controller .....................................12
Figure 9. MR380-1 Controller with E-Stop: Power On (Left) and E-Stop Depressed (Right)
...........................................................................................................................13
Figure 10. MR380-1 Controller with E-Actuator: Power On (Left) and E-Actuator Depressed (Right)
...........................................................................................................................13
Figure 12. Front Panel Outputs of MR380-1 Series Controller ...................................14
Figure 13. MR380-2 Controller with NO Microswitch: Power On (Left) and Microswitch Depressed
(Right) .................................................................................................................15
Figure 14. MR380-2 Controller with NC Microswitch: Power On (Left) and Microswitch Depressed
(Right) .................................................................................................................15
Figure 15. LC Loopback MR380 Controller Check .....................................................17
Figure 16 Block Diagram of Basic Theory of Operation for MR387 Fiber Optic E-STOP24
Figure 17 Example System Using Three MR387-2 E-Stop Switches ...........................25

MR380-1 Series Instruction Manual
Page 5 of 35
1. Product Description
1.1. MR387 Fiber Optic Emergency Stop Switch

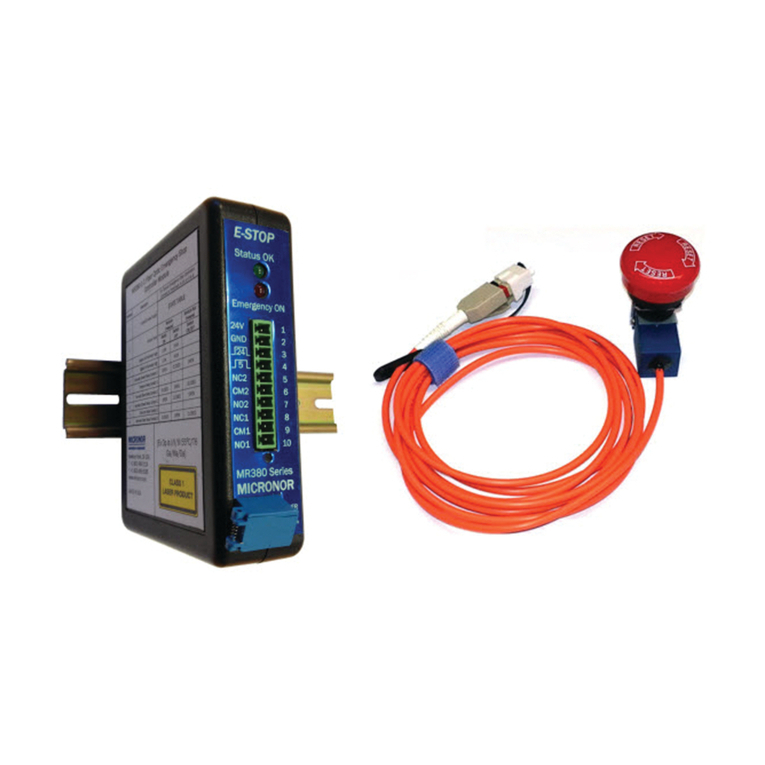

Figure 1. MR387 Series Fiber Optic Emergency Switch & MR380-1 Controller
The MR387 Emergency Stop Switch paired with MR380-1 series Controller provides a new,
innovative emergency signaling detection that can be deployed in hazardous environments and
over very long distances. The Fiber Optic E-Stop switch employs a photo interrupt scheme
operating over a duplex multimode or single mode optical link that allows for reliable signal
detection and implements a known default failure state.
The optical signal levels are rated inherently safe, allowing the sensor to be safely deployed in any
type of explosive atmosphere or hazardous location. The entire fiber optic sensor system has a
generous system loss budget, allowing for long distance, complex routing, and daisy chaining of
multiple switches.
Depressing the switch interrupts the optical signal and the Controller provides both Double Pole
Double Throw (DPDT) relay contacts and digital outputs for signal and control. The controller will
indicate if there is a broken fiber connection or depressed switch in the system which provides
increased safety margin over electrical emergency switches. The controller will always default to
the emergency state when: the switch is depressed, in case of a broken fiber, in case of a fiber
being disconnected or loss of power to the controller unit.
Multiple E-Stops may be wired in series to one Controller as long as all optical losses fall within
the optical loss budget of the Controller used.
Figure 2 provides a complete functional overview of the emergency switch system.

MR380-1 Series Instruction Manual
Page 6 of 35
1.2. MR381 Fiber Optic Emergency Actuator Switch
Figure 3. MR381 Series Fiber Optic Emergency Actuator & MR380-1 Controller
The MR381 Emergency Actuator Switch is designed for safety applications where a system is not
to be activated or powered, such as a fire suppression systems, until the E-Actuator is deliberately
pushed and engaged. A malfunction of the system not activate the emergency event.
Emergency Switch
Optional Switches
in Series
24V Out
5V Out
NC2
CM2
NO2
NC1
NO1
CM1
MR380-1 Controller
Module
‘POWER’
‘EMERGENCY ON’
Figure 2. Complete E-Stop Functional System Overview

MR380-1 Series Instruction Manual
Page 7 of 35
The E-Actuator is also sometimes referred to as a Reverse E-Stop. Optically, the MR381 E-Actuator
works in an opposite manner than the MR387 E-Stop. An activated E-Stop breaks the optical circuit
while an activated E-Actuator closes the circuit. In this way, the emergency actuation event cannot
be accidentally tripped, even in case of a system failure such as: a broken fiber, fiber disconnected
or loss of power to the controller unit.
Using the MR380-1 Controller, the Status LED is OFF when the E-Actuator is in the normal Reset
(up) position and ON when engaged (pushed down).
Only one E-Actuator sensor can be optically connected to a Controller.
1.3. MR385 Foot Pedal and MR386 Microswitch
Figure 4. MR385 Fiber Optic Foot Pedal and MR386 Fiber Optic Microswitch
The MR385 Foot Pedal or the MR386 Fiber Optic Microswitch paired with the MR380-0 or MR380-
2 series controllers provides a new, innovative signaling detection that can be deployed in difficult,
hazardous environments and over very long distances. The Fiber Optic Micro Switch employs a
photo interrupt scheme operating over a duplex 62.5/125μm fiber optic link that allows for reliable
signal detection. This provides the same mechanical attributes typically associated with ubiquitous
electrical micro switches. It has mechanical tactile feedback when the switch toggles – essential
when precise switching points need to be set.
There are two switch types, the all non–metallic version is designed to operate within an MRI
environment where high magnetic fields would interfere with any electronic switch. The switch may
be safely used within the MRI bore because it is immune to the magnetic field as well as invisible
to the imaging process. It is also an ideal switch for deployment in highly corrosive atmospheres.
The second version employs a metallic non-magnetic spring and is capable of working over a wider
temperature range. The optical signal levels are rated inherently safe, simple mechanical devices;
allowing the system to be safely deployed in various explosive atmospheres or hazardous
locations.

MR380-1 Series Instruction Manual
Page 8 of 35
1.4. Fields of Application
•Hazardous Environments: Oil & gas mining/extracting, refining
•Medical: MRI environment
•Energy Distribution: E-Switch maybe deployed next to high voltage lines
1.5. Features
•EMI/RFI Immune
•Wide System Loss Budget
•Complex Routing Capability
•Long Distance Signaling without Interference
•Multiple Switches in Series
•Immune to High Voltage Lines
•Immune to Lightening
•ATEX classified Inherently Safe for EPL Mb/Gb/Gc/Db/Dc applications
•Multiple E-STOP Switches Can Be Daisy Chained
•Double Pole Double Throw Relay Output
•Digital Signal Out
•ESTOP sensor available with either 50/125µm, 62.5/125µm and 9/125µm pigtails
•Universal DIN Rail Mountable Controller, works with both 50/125 µm and 62.5/125 µm multimode
fiber links
•Single mode Controller option available
1.6. MR380-1 versus MR380-2 Controller
The MR380-1 series DIN Rail Mount Controller is designed to be used with the following fiber
optic sensor products:
•MR381 E-Actuator
•MR382 Push Button
•MR383 Key Switch
•MR384 Push Button
•MR387 E-Stop
The MR380-2 series DIN Rail Mount Controller is identical to the MR380-1 except that the
operation of the Status LED has been reversed to correspond to actuation of the Microswitch. Use
this controller with the following fiber optic microswitch-based sensor products:
•MR385 Foot Pedal
•MR386 Microswitch

MR380-1 Series Instruction Manual
Page 9 of 35
2. Standard Contents
MR380-1 E-Stop or MR380-2 Switch series Controller Module:
•MR380-1 or MR380-2 Controller Module
•Phoenix Terminal Block (1879599) inserted as part of unit
•Instruction Manual (this document, one soft copy supplied with each shipment)
MR38X series Sensor:
•Confirm configuration pigtail and/or connector interface configuration consistent with specific
product data sheet and reference drawing
•MR381/MR328/MR383/MR384 series sensors include 2-56 x 3/16 Pan Head Phillips Screws, Qty. 2
(installed)
•Instruction Manual (this document, one soft copy supplied with each shipment)

MR380-1 Series Instruction Manual
Page 10 of 35
3. MR380 DIN Rail Controller Installation and Operation
3.1. Mounting the E-Stop/E-Actuator Switch
For mounting the sensor switch into a panel, please provide a cut-out as dimensionally shown in
Figure 5and Mechanical Reference Drawing. Refer to Figure 6for switch orientation. Secure panel-
mount switch with all appropriate designations and requirements.
Figure 5. Panel Cut Out Dimensions and Assembly Hierarchy of Emergency Switch
Figure 6. Emergency Switch Orientation Interchangeable when Mounting into Optical Block
Mushroom Push Button
Mounting Nut
Panel Lock Washer
Gasket
2-56 x 3/16
Panhead Philips
Screws
