Midas APOLLO QA018 User guide

MIDAS Group 2019
CABIN MOUNTING INSTRUCTION
APOLLO
80x80 i 90x90 x 215 cm
MODEL QA018
Dear Clients, thank you for choosing our shower cabin.
Before you start using the cabin, please thoroughly read the instruction and mount it in
accordance with instructions contained within it.
In order to ensure your satisfaction and a defect-free use of Midas Group products we suggest
mounting our cabins by authorized service crews.
The list of service crews is available at the end of this instruction or on the website:
www.midasgroup.com.pl
MG/APOLLO-80/80-90/90-215/01-2019_1.0

TIPS BEFORE MOUNTING
Mounting of our shower cabins must be carried out by a person with
adequate experience or qualifications.
The assembler must possess valid authorizations to mount electrical device and
installations. He should also be familiar with the issues concerning hydraulic
installation and properties of structures which contain elements made of safety
glass.
Glass elements of the cabin are made of safety glass. Maintaining special caution
when unpacking, moving and mounting the glass parts is necessary. Glass must not
be placed directly on the floor or leaning on the wall. Glass should not be hit or
levered with hard tools.
Damaged glass will break into small pieces.
Before mounting carefully read the whole instruction.
Check completeness of all elements before mounting. Do not mount the cabin
in case of noticing damages of any of the elements.
The cabin is designated solely for non-commercial home use. The
manufacturer reserves the right to introduce changes in the structure of the
product, its components such as the shape of nozzles, handle, head shower.
NOTE! In case of asymmetrical cabins, mounting schemes presented in
instructions concern the right side cabin version. In case of left side cabin the
manner of mounting is a mirror image of the assembly presented in this instruction.
LOCATION OF CABIN MOUNTING
The showering cabin should be placed in the corner of the room. The walls of the
room should be secured against negative impact of water and humidity. The room
in which the cabin is installed should be equipped in a functional and efficient
ventilation and heating systems. The cabin cannot be mounted in rooms where air
temperature may fall below 15°C.
Part of the area designated to be blockedmust be free of all electrical and gas
equipment etc. which is not resistant to direct impact of water streams (i.e. socket
or electrical switches).
Once the cabin has been mounted , free spacemust be left around it, as shown on Figure
1.
The manner of mounting the cabin in the corner of a room must ensure freedom
of carrying out maintenance and servicing works. Fixing the cabin to the wall is
not recommended.
1
MIDAS Group 2020
!

2
MIDAS Group 2020

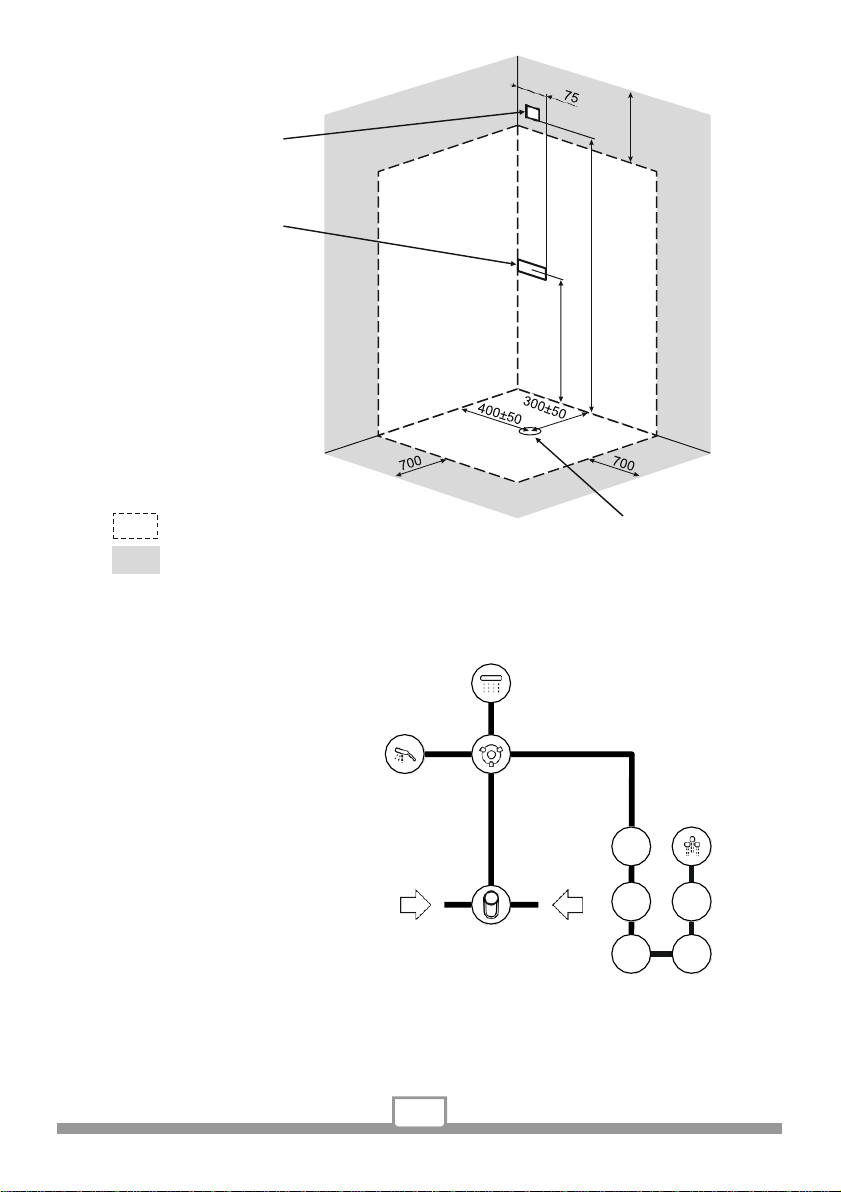

MINIMUM DISTANCES WHILE
PLACING THE CABIN
electrical/
telephone connection
water connection
Fig. 1
- space occupied by the cabin water outlet
- space which must remain vacant after mounting the cabin
WATER INSTALLATION SCHEME OF
THE CABIN
hand shower
upper shower
head shower
Function switch
Fig. 2
foot
massager
power
cold
water
power
hot
water
water nozzles
in the shower panel
single lever mixer (water
valve)
Connect water installations of upper shower, hand shower and foot massager.
Connect water installations to cabin system. Connect water outflow of the shower
base.
Having done the above actions check tightness of the whole water system.
1100 - 1200
2250
150

3
MIDAS Group 2020
!
NOTE! Due to the fact that cabin walls are made of glass, mounting of these
elements ought to be conducted by at least two persons.
BEFORE YOU START MOUNTING REMEMBER THAT ALL MECHANICAL
CONNECTIONS BETWEEN STRUCTURAL ELEMENTS REQUIRE SEALING!
NOTE! The device must be installed in line with the binding law concerning electrical installations.
Electrical connection must be properly protected against water and moisture. Electrical connection should
have a residual current circuit breaker (RCD) with nominal differential current not exceeding 30 mA. In
addition, the feed circuit must be equipped in a bipolar switch disconnecting electrical power of the cabin
NOTE! Connection of the cabin to the fixed installation of the room may be made using an installation
hermetic box with resistance class IPX4.
NOTE! In case of connecting the cabin to water installation use electrical leader hoses in metal shielding.
Hoses should be ended with 1/2 internal thread nuts”. The recommended nominal hose flow amounts to
15 l/min; the recommended nominal maximum operating pressure of the hose equals 4 bars.
You may use siphons available on the market in order to connect
the shower base outlet.
In line with the binding PN-EN 14527-2016 standards the maximum shower
base load amounts to 100 kg/m2.
SEALING OF SHOWER CABIN
When mounting the cabin, it is necessary to secure the key connection points of
the cabin walls, aluminium profiles, water connections etc. with a sanitary silicone.
Once mounting is complete, check the tightness of all connections.
The water cannot flow beyond the spray chamber of the cabin.
MOUNTING OF CABIN ON SHOWER BASE AND ALUMINIUM SLIDING SHEETS
After mounting of cabin walls and shower base you can proceed to mounting
additional accessories in the cabin, that is: glass shelf and handle inside the
shower cabin. Make sure that places of adapter torsions through the wall are
equipped in gaskets. The cabin must be sealed until all leakages stop.
The assembly of front fixed glass:
- Place the side, fixed glass on the mounted aluminium frame
- The glass should be supported by aluminium edges of the sliding sheet rolls
and fit into the cut-outs of side aluminium profiles
- screw the fixed glass delimiters by means of screws.
!
NOTE! In case of some cabins there is a possibility of taking down during
mounting the front shower base protection.
If silicone was used for sealing the outlet and siphon, remember that this
substance requires a specific duration, specified by its manufacturer, in order to
acquire the sealing properties.

4
MIDAS Group 2020
2
1
aluminium upper
sliding sheet
door glass 3
7
6
aluminium lower
sliding sheet
4
5
Lower roll
SEALING OF SIDE FIXED GLASS IN ALUMINIUM PROFILES (VERTICAL
PROFILES)
Depending on the type of cabin, various types of gaskets may be found between
the vertical profile and the fixed glass.
If the cabin set you have purchased contains “U”-shaped gaskets:
place them on the longer edge of the fixed glass and insert inside the vertical
profile.
If the cabin set you have purchased contains „A”-shaped gaskets: once you insert
the glass into the profile, gently drive the gasket into the gap in between the glass
and the profile.
NOTE! Driving the gasket must be performed with the use of a smooth
element to prevent surface scratching of glass.

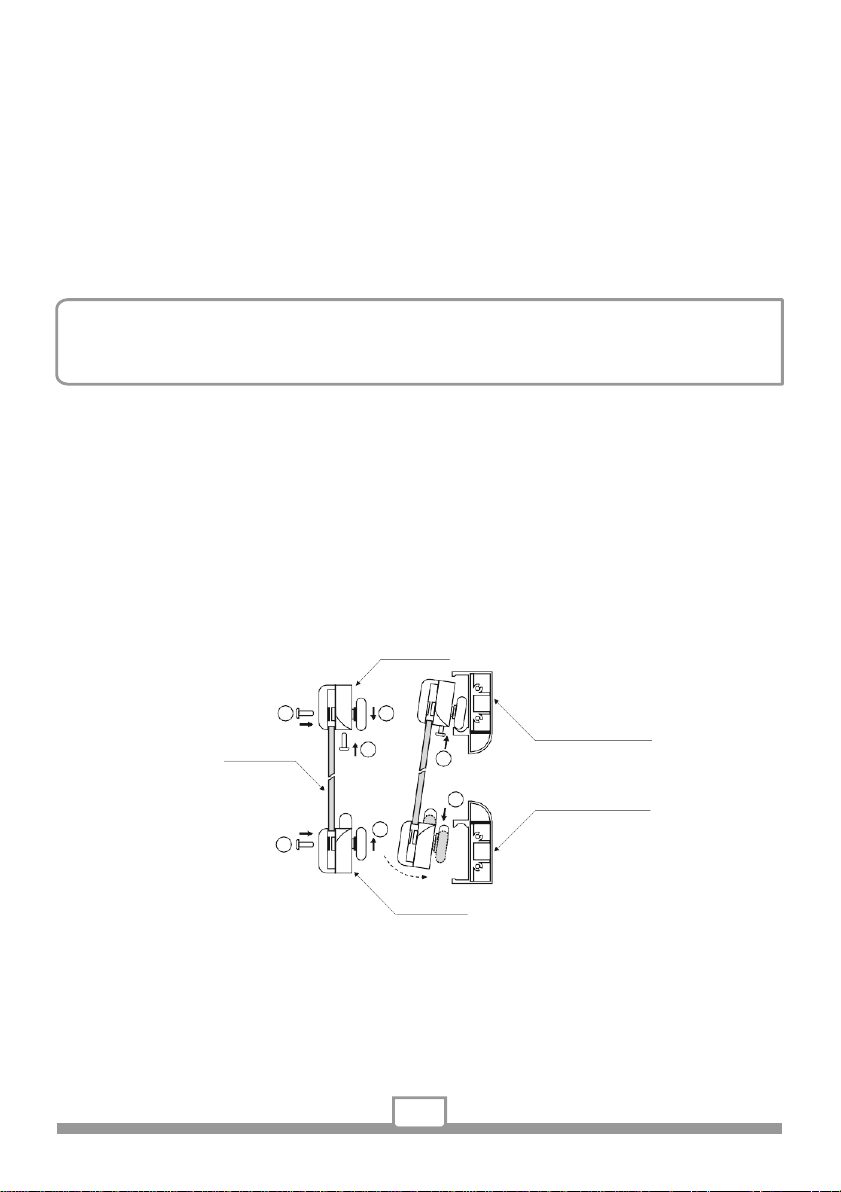

ASSEMBLY OF ROLLS IN ALUMINIUM SLIDING SHEETS
1. Mount upper rolls to two upper holes located in the glass wing of the door and
similarly, mount lower rolls to the lower holes (lower rolls have a button enabling
the release of glass from the sliding sheets).
2. Screw the rolls by means of screws [2] and [5].
3. Insert upper rolls in the upper sliding sheet track.
4. Pressing the button [6] on the lower roll causes moving of the roll's wheel [4].
5. After pressing the button, enter lower rolls into the lower sliding sheet track.
6. After releasing the roll's pressure, they should zip on the sliding sheet.
7. Regulate the door settings by means of screws [3] and [7]
upper roll
While regulating the sliding glass doors, maintain special caution. Glass doors
must tightly adjoin to each other after closing them and the sliding cannot be
hindered, otherwise you must regulate the screws that fix the rolls or check if
magnetic gaskets are placed in the right way.
!

5
MIDAS Group 2020
!
NOTE! Connection to water installation in the room may be performed by means of
flexible connection hoses in metal shielding, ended with metal nuts. Additionally,
you may apply water valves equipped in water filters. All above indicated
components may be purchased in hydraulic stores.
CONNECTING THE CABIN INTO WATER INSTALLATION
1. Connecting water to cabin water installation should be carried out through
water valves. Placing the valves will facilitate easier potential dismounting of
the cabin with the need to switch off the main water valve for the room.
2. Cold and hot water must be connected to a single lever shower mixer. The
mixer has led out outer external threads 1/2” to which cabin water feed must
be screwed in.
3. The water system of feeding water accessories of the cabin is designated for
installing in the water supply network with a maximum water pressure from
0,1MPa to 0,5 MPa and water temperature not exceeding 90°C.
4. To mount water installation in the cabin, use non-crimping keys with smooth
surfaces of jaws, preferably secured with a cotton fabric.
5. Having connected water and the accessories (hand shower, upper shower,
water nozzles) check the tightness of the whole water system. If necessary,
correct the leaks.
6. Having checked tightness of all inlet and outlet connections as well as water
distribution points, place the cabin in its designated location.

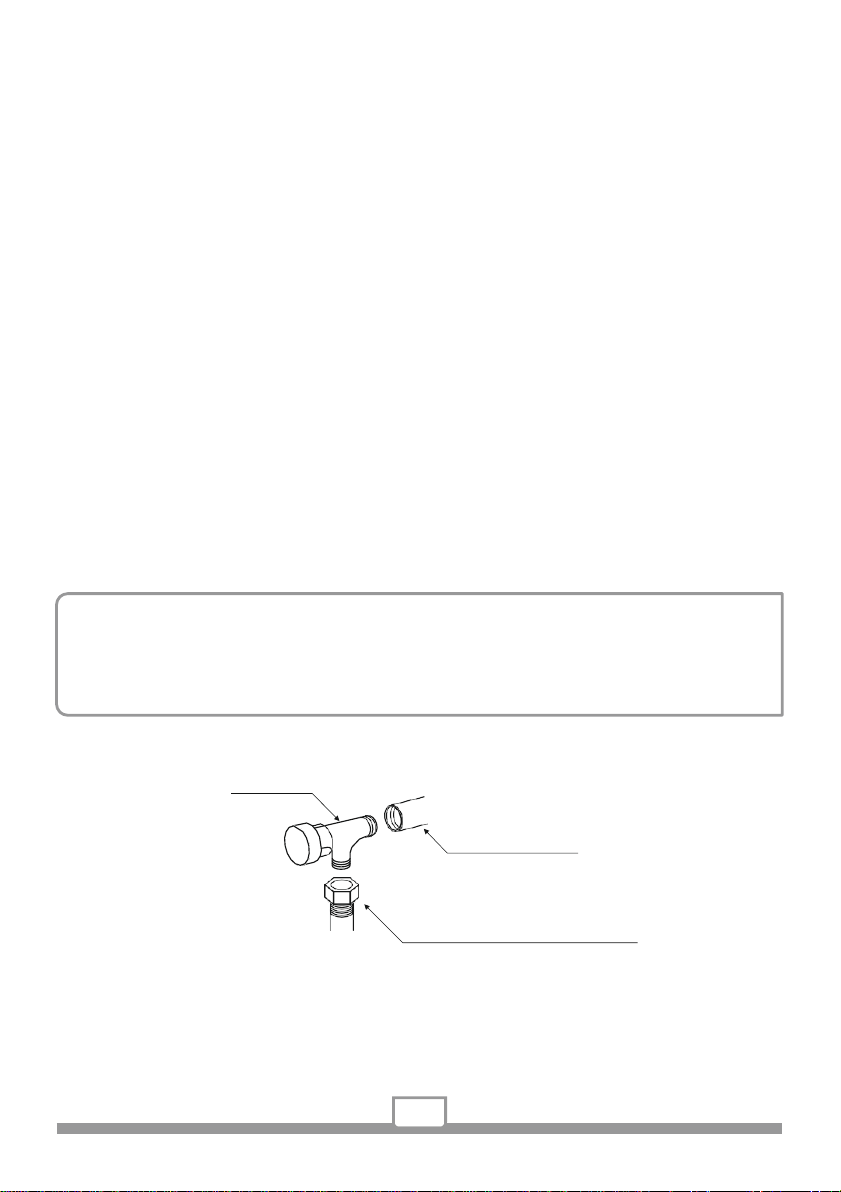

ball valve
Water tube in metal shielding (water
inlet to cabin mixer)
fixed water
installation pipe of
the room

6
MIDAS Group 2020
MAINTENANCE, USE AND CLEANING
Construction elements of the cabin such as glass, lacquered parts, acrylic and
plastic elements must be cleaned only with a delicate wipe with the use of gentle
detergents. Avoid applying abrasive pastes, solvents, acetone, cleaning agents and
disinfection agents which contain chlorine etc.
The following materials may be harmful to health, causing product damages - the
following should not be applied for cleaning cabins: substances containing acids,
alkali, hydrochloric acid, polishing agents, nylon brushes, sandpaper and all other
agents and materials having unbeneficial impact on health, possibly damaging the
shower cabin.
The manufacturer shall not be responsible for any damages caused by improper
use, assembly or maintenance of the product.
Pay special attention to cleanliness of sliding sheets on which rolls move.
Children and the disabled cannot be left without supervision when in
shower cabin.
Objects which might weaken (scratch) or damage the cabin glass should not be
leaning against the cabin.
One person as a maximum may use the cabin at once.
Pushing against, banging or impacting the glass or cabin profiles in another
improper manner should be avoided. Proper functioning of the shower mixer as well
as of the entire water supply system largely depends on the quality of water, its
hardness of calcium saturation and level of contaminants such as sand, limescale
etc. The quality of water determines frequency of necessary servicing of the mixer
and the whole system to be performed by the user. Application of mesh filters in
water installations is recommended (placed for example in valves of water
installation).
Electronic/electrical fitting components must be cleaned with gently wetted cloth.
Prior to cleaning or servicing the cabin, power supply must be switched off. When
one has finished using the cabin, power supply must be switched off outside the
cabin and the water inlet valve must be closed.
Railing in the shower cabin can handle light elements. Heavyitems should not be
hung on it, nor should one pull on it.
Heavier items should not be placed on the shelf inside shower cabin. The
maximum load capacity of the shelf is 0.5 kg.
MAINTENANCE
After each use the cabin must be thoroughly rinsed with clean water and then
dried with wetted cloth.
- Long-term contact of the cabin surface with personal hygiene meansmay cause
damages of its surface or corrosion of its metal elements. Until complete drying one
should leave the doors open and ensure good room ventilation. The cleaning cloth
which is used cannot contain fibres of possess scrub or scratch properties.

7
MIDAS Group 2020
The state of wearing parts must be verified at least one a month as well as
permeability of the shower head, hand shower, hydromassage nozzles and
losses of silicone grease on the rolls must be filled.
Worn out elements must be replaced.
Water and electrical installation should be serviced at least once a year. The
service should be carried out by a person with proven relevant qualifications
concerning water, electrical and mechanical installations.
Such service ought to cover the following elements:
- checking durability of all water connections (hoses, nozzles, mixer)
- checking tightness of the whole system
- checking electrical components (transformer)
- checking continuity of electrical insulation
REMOVING PACKAGING AND STRUCTURAL MATERIALS
Packaging materials made of cardboard are suitable for further processing.
Adhesive tape and PE security film must be recycled. Packaging elements which
cannot be processed must be neutralized after use in a safe manner, compliant with
the binding provisions of law on waste disposal. Upon product life expiry, its
recyclable elements (i.e. aluminium profiles, glass) should be recycled.
Electrical parameters: Protection class against electrocution Class II
Degree of protection is ensured by IPX4 rated housing.
Water power supply parameters: Working pressure of water amounts to 0,1-0,5
MPa (1-5 bar);
Nominal flow 15/ per minute.
SAFETY PROVISIONS
The manufacturer bears no responsibility in the following cases: In case of
non-abiding by the provisions contained in the standards concerning
residential electrical installation.
In case of non-abiding by installation and maintenance recommendations
contained in this instruction.
In case of using or installing the cabin with hydromassage in a way which
breaches the following standards: PN-EN 60335-2-105 and PN-EN 14428
This instruction must be thoroughly read as a whole prior to commencing
device use.
This instruction must be kept in order to use it in the future or to be able to pass
it onto the future user.
This instruction was elaborated for various models and
versions; therefore, the product may differ from the examples
specified in the schemes. Nevertheless, the instructions do
not change.

8
MIDAS Group 2020
Company MIDAS Group Sp. z o.o., Sp. K. reserves the right to introduce all changes,
considered as appropriate, without an obligation of prior notification or exchange.
This product may be designated solely for use in accordance with its target designation.
The manufacturer bears no responsibility for potential damages caused by improper use
of the product.
CAUTION
Shower cabin cannot be used within 24 hours after mounting. For safety reasons
children must not be allowed to pay inside the shower cabin.
Children and the disabled cannot be left without supervision when in shower
cabin.
Shower cabin doors should be properly maintained. In case of occurrence of problems,
after-sale service ought to be contacted.
For safety reasons shower cabin doors must not be sharply opened.
Shower glass doors should not be leaned on or supported on by users when
entering or getting out of the cabin. Glass should not be leaned on.
Use of boilers with instant ignition (flow boilers) causes incorrect hot water intake.
Duration of water intake should be extended in order to enable its heating process.
Thermostatic mixer should not be installed in case of using a boiler with instant ignition
(flow boiler).
One must ensure that water outlet from the shower base is fully functional.
Nozzle holes must not be clogged with items or body parts. One must ensure
that the floor is always clean and dry to avoid the danger of slipping and
falling.
To avoid accidents, one must ensure that children and the elderly use the cabin/tub
with hydromassage only when other adults are around.
When regulating water temperature, one must not open the inlet of hot water.
One must not use the cabin with hydromassage when water temperature is too
high. One must use the shower when water temperature does not exceed 38°C.
One must pay attention to the duration of each bath; in case of feeling worse the
bath must be immediately discontinued and the shower cabin abandoned.
Drinking alcohol, applying drugs or medications while using the cabin with
hydromassage is forbidden as it may cause loss of consciousness.
Persons with obesity, heart problems, too high or too low blood pressure, suffering
from cardio-vascular system disorders or diabetes as well as pregnant women
should seek doctor's advice before commencing the use of cabin with
hydromassage.
Person who are on medications should consult a doctor before using the cabin with
hydromassage as some medications may cause drowsiness, impact their heart
functioning, blood pressure levels and blood circulation functioning.
Prior to using hydromassage one ought to consult a doctor.
It is forbidden to use an intense level of hydromassage by persons suffering from heart
problems, internal inflammation states, infectious diseases, epilepsy and persons
possessing pacemakers.
Smoking in the shower cabin is not allowed.
When the cabin with hydromassage is not used, power supply must be switched off with
a switch located in the power circuit of the cabin.
User of electrical devices such as: hairdresser or other devices powered by internal
installation of the building inside the cabin is forbidden.

MIDAS Group 2020
9
PRECAUTIONS
Hydromassage should not last too long and, especially in the initial period of its
use. In time, the duration of hydromassage application may gradually be
extended, however, general physical condition must always be observed. The
recommended duration of a hydromassage amounts to 20 minutes (optimal
duration in order to reach a desired outcome).
CLEANING AND MAINTENANCE
Full maintenance of all components of a cabin with hydromassage must take
place frequently. Recommendations specified here must be carefully observed in
order not to destroy the gloss of acrylic elements and metal parts.
Soft cloths and generally accessible cleaning agents which do not cause
scratches should be applied for everyday cleaning.
Clothes with artificial fibres, sharp sponges, tampons with metal needles and
cleaning agents in powder as well as liquid, containing abrasive substances or
ammonia, alcohol, home-applicable acids, acetone or other solvents cannot be
used, since they may damage surfaces. No aggressive chemical cleaning agents
can be applied.
Calcareous sludge may be removed with citric acid or vinegar dissolved in water,
using a soft cloth.
It is recommended to install a water-softening device in order to avoid
sedimentation of limescale.
For cleaning glass and mirrors the use of products available on the
market designated for cleaning windows (not containing ammonia) is
recommended.
If small scratches appear on the surface of the cabin, fine-grain adhesive paper
may be used (grain 1200#) for polishing these spots. After this treatment, these
surfaces may additionally be covered with a small amount of standard toothpaste
or polishing paste, which may then be followed by polishing these spots with a soft
cloth, obtaining through this a new, clean and shiny area.
The armature should be regularly cleaned, at least 3 times a month or more
frequently, depending on the needs.
Gilded or chrome-plated elements do not require frequent polishing. Blunt tools
or knives should not be used to scrap the surface of the cabin.
Water should be drained immediately after the shower, which should be
followed by cleaning the cabin and switching off power supply.
For the cabin with hydromassage to preserve its initial polish for many years, it is
recommended to use water with temperature not exceeding 60°C.

MIDAS Group 2020
TRANSPORTATION AND STORAGE
While storing the hereby product one should not tip it over or place piles of packaging on
it. Storing it together with organic solvents such as formalin is also not recommended.
In case of transporting the product, packaging with the cabin should be carefully lifted
and lowered down, avoiding tightness, hits, mechanical shocks etc.
Should the cabin remain unused for a longer period of time, it must be dried and
provided with good ventilation and lack of corroding substances in the air.
The manufacturer reserves the right to introduce potential changes in components or
functions of the product. Each component is made in compliance with our patterns and
detailed information regarding the principles of their functioning and use may be provided
by our service crew:
MIDAS GROUP Sp. z o.o., Sp. K.
Al. San Francisco 2, 55-020 Rzeplin
tel. 71,337 25 78
71,337 25 79
fax.: 71,337 25 52
www.midasgroup.com.pl
If this instruction does not contain all possible issues and situations which might occur,
please contact our local distributors in order to obtain further explanations.
This device is marked for compliance with the European Directive 2002/96/EC and
the Polish
Waste Electrical and Electronic Equipment Act.
Such marking informs that this equipment, after its expiry term, cannot be placed together
with other household waste.
The user is obliged to dispose it to entities dealing with collection of used electrical and
electronic equipment. Collection firms, including local collection points, stores and
communal units create the relevant system
which enables disposal of such equipment. Proper actions with respect of disposing used
electrical and electronic equipment contribute to
Avoiding harmful to human health and natural environment consequences resulting from
the presence of hazardous components and improper storage and processing of such
equipment. In case of this product, certain substances which might negatively impact the
environment in the period of its use as well as post its expiry have been limited.
10

11
MIDAS Group 2019
!
P
230
V
FUNCTION SWITCH AND MIXER
The control system presented on the picture may vary from the one installed in the
cabin,
depending on individual cabin accessories. Each cabin contains:
- single-lever mixer (water valve letting the flow of water in and mixing
cold and hot water
- function switch directing the flow of water from systems mounted in the cabin
(hand shower, upper shower, water nozzles, foot massager). Grips for
mounting the foot massage panel etc. are located on the cabin wall.
Note! Depending on the selected cabin accessories, either one or two
simultaneous functions may be set up.
MIXER
temperatur
e regulation
Lifting mixer handle increases the flow of water,
when moved downward it decreases the flow. In
order to increase water temperature, one must turn
the handle to the left - in order to decrease it - to the
right.
The massage function in the cabin is realized by
means of massage nozzles mounted on the shower
panel. Narrow directional stream of water at large
pressure is applied in its operations. The use of
massage function has an impact on:
FUNCTION
SWITCH - muscle relaxation - painkilling properties
Individual functions are supported by turning the
handle of function switch to the left or to the right.
These functions are independent from one another
and cannot work simultaneously.
! connect the telephone line if the telephone function is used.
The cabin can be plugged in after verifying its tightness!
Connection must be performed by an authorized electrician. Connection must
be performed in accordance with the currently valid standards. At this stage
one must

MIDAS Group 2019
12
DESCRIPTION OF USE OF THE CONTROL PANEL:
volume indicator
illumination lamp
ventilator lamp
reset button [1]
halogen light switch [2]
ventilator switch [3]
ventilator switch [4]
shower panel illumination
lamp
telephone lamp
[5] volume adjustment
[6] station scanning
[7] LED decorative light
switch
[9] control panel switch microphone
Pressing the button enables function, subsequent pressing the same button
switches off a given function.
To turn on the power press control panel switch [9], press it again to turn off
In order to switch on the halogen light installed on the cabin roof, press halogen
light switch [2], press it again to switch off.
In order to switch on the diodes installed on the shower panel press decorative
LED light switch [7], press it again to switch off.
In order to turn the ventilator on press ventilator switch [3], press it again to
switch off.
In order to turn the ventilator on press ventilator switch [4], press it again to switch
off. Volume control buttons [5] may increase or decrease radio volume. In order to
search for the preferred radio station, press the button of automatic radio station
search [6]. In order to improve the quality of radio stations listened to correctly set
up the antenna. Pressing restart radio button [1] will cause a return to initial radio
range.
NOTE! Radio remembers the last selected radio station.
In some models there is a possibility of answering the incoming calls.
NOTE! Complete switch off of the device from the network occurs after pulling the
plug out of the socket or switching off the switch located in power supply installation
of the cabin. Having finished using the cabin switch off the power.
VOL
RST TUN
VOL
FM
!

MIDAS Group 2019

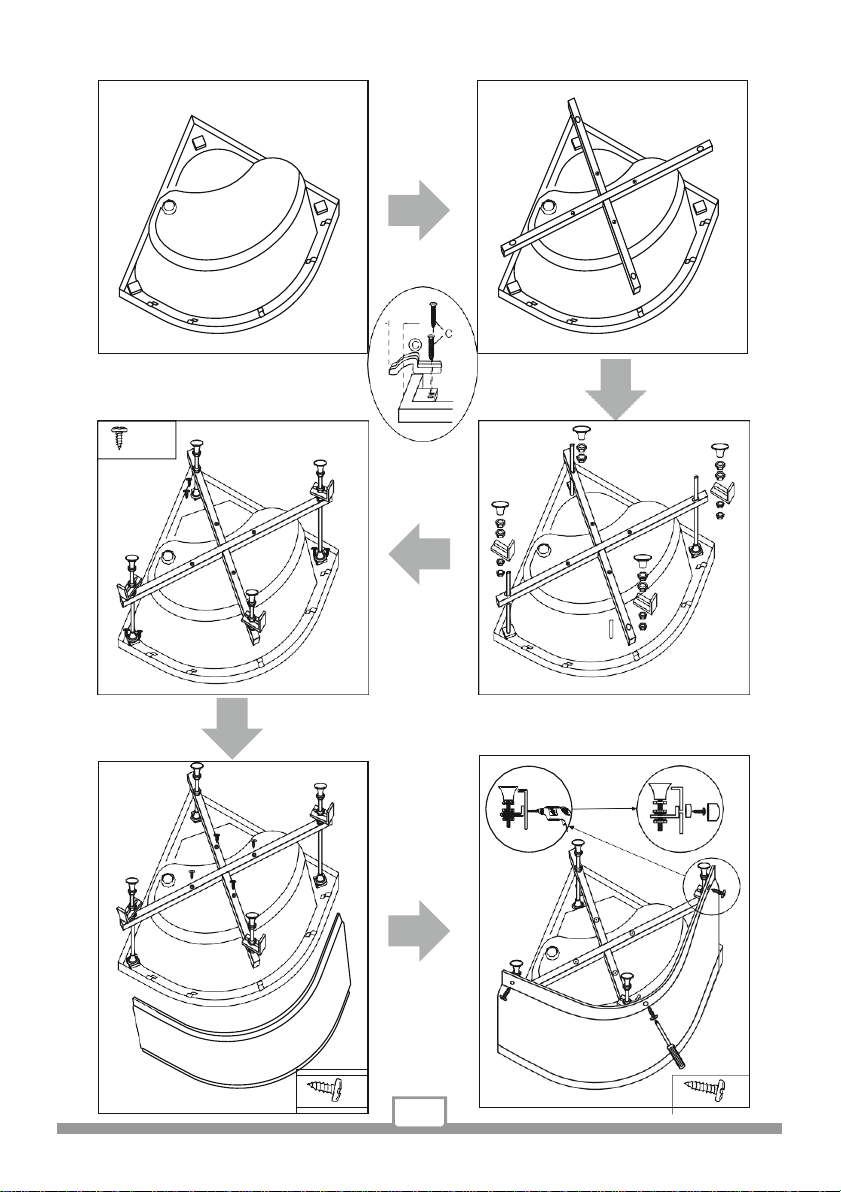

Mounting of the shower base version: A
1-3mm
M4 x16
M4 x16
M4 x16
M4 x16
13
M4 x20
M4 x16

MIDAS Group 2020
Mounting of the shower base version: B
1-3mm
M4 x16
M4 x16
M4 x16
M4 x16
14
M4 x16
M4 x20

15
MIDAS Group 2019
!
NOTE! In case of some cabins there is a possibility of taking down during
mounting the front shower base protection.
NOTE! If silicone was used to seal the outlet and siphon remember that this
substance requires a specific duration, specified by its manufacturer, in order to
acquire the sealing properties.
4
Activate the system of water outlet in the shower base. It is necessary to secure the
siphon and the sanitary silicone outflow with a teflon tape or another, equally
effective method. By means of spirit level set the legs in such a way so that the
shower base is located in a position that enables water outflow from the base
chamber.
Connect the shower base to the outlet system.
You may use shower base or bathtub siphons available on the market in order to
connect the shower base outflow to the draining system of the room.
EXAMPLES OF SIPHONS AVAILABLE ON THE MARKET
A
B

16
MIDAS Group 2019
5 ≠ 6
6
12
13
14
15
K
x4
L
M
N
O
P
R
x1
S
T
U
Tools:
A
B
C
D
E
M4x16 x17 M4x12
F G
x4 M4x10
H
x4 M3,5x25 x8 M4x20 x8
I
J
M4x20 x8
x4
x4
x4
x3
2
3
5
1
11
7
8
9
10

MIDAS Group 2019

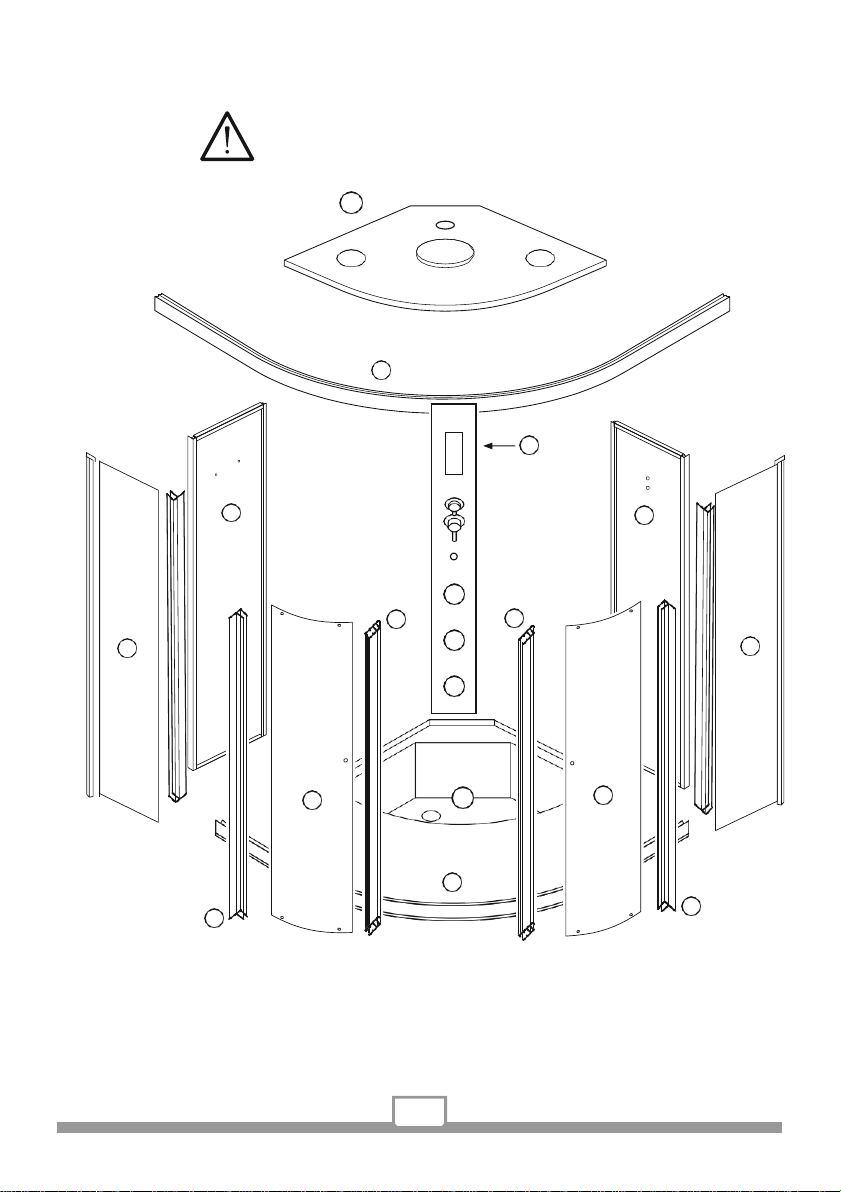

2
5
11
12
13
8
8
15
9
3
10
6
7
7
17
5 ≠ 6
14

MIDAS Group 2019
T
15
5
10
5
T
9
14
6
8
6
9
18
B m4x12
5
5
5
15
15
E
m3,5x25
14
15
6
5
15
14
6
7
15
14
B m4x12
N
6
15
6
m3,5x25
E

19
MIDAS Group 2019
Z2 R2
R1 Z1
12
13
5
5
15
14
14
15
10
9
9 10
6
6
3
5 ≠ 6
3
