Midea FLOOR TYPE User manual

INSTALLATION MANUAL
For correct installation, read this manual before starting installation.
This manual may be subject to change without notice for purpose of improvement.
CEILING AND FLOOR TYPE
AIR CONDITIONER

CONTENT
Installation precaution...........................................................................1
Installation place
Indoor unit installation..........................................................................4
Outdoor unit installation......................................................................8
Install the connecting pipe...................................................................9
Connect the drain pipe
......................................................................................1
Accessories..................................................................................................3
...........................................................................11
Wiring.............................................................................................................12
Test operation...........................................................................................16

There is enough room for installation and maintenance.
The ceiling is horizontal, and its structure can endure the weight of the indoor unit.
The air outlet and the air inlet are not impeded, and the influence of external air is the least.
The air flow can reach throughout the room.
The connecting pipe and drainpipe could be extracted out easily.
There is no direct radiation from heaters
1
To install properly, please read this manual at first.
The air conditioner must be installed by qualified persons.
When installing the indoor unit or its tubing, please follow this manual as strictly as possible.
When all the installation work is finished, please turn on the power only after a thorough
check.
No further announcement if there is any change of this manual caused by product improv-
ement.
Note: The installor should illustrate to users how to correctly use and maintain the air-condi-
tioner, as well as remind users to carefully read and keep both Installation Manual and
Owner's Manual well.
INSTALLATION PRECAUTION
The Indoor Unit
The Outdoor Unit
INSTALLATION PLACE
Location in the following places may cause malfunction of the machine. (If unavoidable,
please consult your local dealer.)
a. There exists petrolatum.
b. There is salty air surrounding(near the coast).
c. There is caustic gas(the sulfide, for example) existing in the air (near a hot spring).
d. The Volt vibrates violently(in the factories).
Cautions
There is enough room for installation and maintenance.
The air outlet and the air inlet are not impeded, and can not be reached by strong wind.
The place is dry and ventilative.
The support is flat and horizontal and can stand the weight of the outdoor unit. And no
additional noise or vibration.
Your neighborhood will not feel uncomfortable with the noise or expelled air.
There is no leakage of combustible gas.
It is easy to install the connecting pipe or cables.

2
Notes Before Installation
1. Select the correct carry-in path.
2. Move this unit as originally packaged as possible.
3. If the air conditioner is installed on a metal part of the building, it must be electrically
insulated according to the relevant standards to electrical appliances.
e. In buses or cabinets.
f. In kitchen where it is full of oil gas.
g. There is strong electromagnetic wave existing.
h. There are inflammable materials or gas.
i. There is acid or alkaline liquid evaporating.
j. Other special conditions.
NOTE:
Remark per EMC Directive 89/336/EEC
For to prevent flicker impressions during the start of the compressor (technical process),
following installation conditions apply.
1. The power connection for the air conditioner has to be done at the main power distribution.
The distribution has to be of a low impedance, normally the required impedance reaches
a 32A fusing point.at
2. No other equipment has to be connected with this power line.
3. For detailed installation acceptance, please refer to your contract with the power supplier
restrictions do apply for products like washing machines, air conditioners or electricalif
ovens.
4. For power details of the air conditioner, refer to the rating plate of the product.
5. For any question contact your local dealer.

1. Remote controller..................1
2. Frame...................................1
3. Mounting screw
(ST2.9x10-C-H).....................2
4. Alkaline dry batteries(AM4)
...............................................2
Remote controller & Its Frame
1
2
3
Remote
controller Remote controller
holder
Mounting screw B
ST2.9x10-C-H
Never throw or beat the controller.
Before installation, operate the remote controller
to determine its location in a reception range.
Keep the remote controller at least 1m apart from
the nearest TV set or stereo equipment. (It is
necessary to prevent image disturbances or
noise interferences.)
Do not install the remote controller in a place
exposed to direct sunlight or close to a heating
source, such as a stove.
Note that the positive and negative poles are
in right positions when loading batteries.
Cautions on remote controller installation
1
1
2
Name of Accessories
Owner's manual
Installation manual
Q'ty
(This manual)
Qutline Usage
ACCESSORIES
3
Hook For wall mounting installation
Hanging arm 2For ceiling installation

4
INDOOR UNIT INSTALLATION
Carry out the pipe and line operation in the ceiling after finishing the installation of the main
body. While choosing where to start the operation, determine the direction of the pipes to
be drawn out. Especially in case there is a ceiling, position the refrigerant pipes, drain pipes,
indoor & outdoor lines to the connection places before hanging up the machine.
The installation of hanging screw bolts.
Wooden construction
Installing f10 hanging screw bolts. (4 bolts)
Please refer to the following figure for the distance measurement between the screw bolts.
Please install with f10 hanging screw bolts.
The handling to the ceiling varies from the constructions, consult the construction personn-
els for the specific procedures.
1. The size of the ceiling to be handled ... ... do keep the ceiling flat. Consolidate the roof
beam for possible vibration.
2. Cut off the roof beam.
3. Strengthen the place cut off, and consolidate the roof beam.
Put the square timber traversely over the
roof beam, then install the hanging screw
bolts. (Refer to Chart 1)
Chart 1
Timber over the beam
Roof beam
Hanging screw bolts
Ceiling
New concrete bricks
(Blade shape insertion) (Slide insertion)
Chart 2
Inlaying or embedding the screw bolts.
(Refer to Chart 2)
Install and use directly the supporting angle
steel. (Refer to chart 4)
For Original concrete bricks
Use embedding screw bold, crock and stick
harness. (Refer to Chart 3)
Steel roof beam structre
Steel bar
Hanging screw bolt
Hanging bolts
Supporting
angle steel
Embedding screw bolt
Chart 3
Chart 4
(Pipe hanging and embedding
screw bolt)

5
Wall Mounting Installtion
Chart 5
E. Connecting point of
refrigerant pipe
(D. gas side)
D. Connecting point of
refrigerant pipe
(E. Liquid side)
Drain point
Hook
Chart 6
Washer
1.Fix the hook with tapping screw onto the wall.(Refer to Chart 6)
2.Hang the indoor unit on the hook.
Tappingscrew
<6mm
Hook

A
Chart 8
6
Ceiling Installation
Chart 7
1.Remove the side board and the grille.(Refer to Chart 8)
Side board
Screw nut
Washer
Hanging
screw bolt
Hanging arm
Chart 9
20 25mm
Mounting bolt(max.40mm)
2.Locate the hanging arm on the hanging screw bolt.(Refer to Chart 9)
Prepare the mounting bolts on the unit.( Refer to Chart 10)
Chart 10
8 13mm
Hanging arm
Grille
(For models 48000 and 60000 Btu/h, do not remove the grille.)

7
Capacity
()
Btu/h
18000-24000Btu/h
36000Btu/h
ABD
48000-60000Btu/h
Note:The dimension of 18000Btu/h and 24000Btu/h are the same
The dimension of 48000Btu/h and 60000Btu/h are the same
D. Connecting point of
refrigerant pipe
(D.gas side)
Drain point
E. Connecting point of
refrigerant pipe
(E. Liquid side)
The dimension of the unit
EF G
Chart 11
3.Hang the unit on the hanging arm by sliding backward. Securely tighten
the mounting bolts on both sides.(Refer to Chart 9)
H
C
ATTENTION: The figures above are based on model with 18000Btu/h as rated capacity,
which may differ from the unit you purchased.
990 660 206 505 506 907 200 203
1280 660 206 795 506 1195 200 203
1670 680 244 1070 450 1542 200 240
Hanging arm
Mounting bolt
Hanging
screw bolt

8
>30cm
>60cm
>30cm
>200cm
Chart 13
(Wall or obstacle)
Maintain channel
Air outlet
Air inlet
Air inlet
A
C
B
Necessary Room For Installation And Maintenance (Refer to Chart 13)
Moving And Installing
If possible, please remove the obstacles nearby to prevent the performance from being
impeded by too little of air circulation. Leave open two of the three directions(A,B,C).
Since the gravity center of this unit is not at its physical center, so please be careful when
lifting it with a sling.
Never hold the air-in of the outdoor unit to prevent it from deforming.
Do not touch the fan with hands or other objects.
o
Do not lean it more than 45 , and do not lay it sidelong.
OUTDOOR UNIT INSTALLATION
Keep this unit away from direct radiation of the sun or other heaters. If unavoidable, please
cover it with a shelter.
In places near coast or with a high attitude where the wind is strong, please install the
outdoor unit against the wall to ensure normal performance.
Use a baffle when necessary.
In the case of extremely strong wind, please prevent the air from flowing backwards into
the outdoor unit. (Refer to chart 12)
Locate the outdoor unit as close to the indoor unit as possible.
The minimum distance between the outdoor unit
and obstacles described in the installation chart
does not mean that the same is applicable to the
situation of an airtight. Leave open two of three
directions A , B, C.
Caution
Strong wind
X
O
Chart 12

9
INSTALL THE CONNECTING PIPE
Check whether the height drop between the indoor unit and outdoor unit, the length of
refrigerant pipe, and the number of the bends meet the following requirements:
The max height drop...................................................................................................10m
(If the height drop is more than 10m, you had better put the outdoor unit over above the
indoor unit.)
The length of refrigerant pipe.......................................................................less than 30m
The number of bends....................................................................................Less than 10
Do not let air, dust, or other impurities fall in the pipe system during the time of installation.
The connecting pipe should not be installed until the indoor and outdoor units have been
fixed already.
Keep the connecting pipe dry, and do not let moisture in during installation.
1) Connect the indoor unit at first, then the outdoor unit.
,
Bend the tubing in proper way. Don t harm them.
The Procedure of Connecting Pipes
1. Measure the necessary length of the connecting pipe, and make it by the following way.
Please fasten the feet of this unit with bolts firmly to prevent it from collapsing in case of
earthquake or strong wind.
Make concrete foundation. (Refer to chart 14)
>60cm
Obstacle
Fix with bolt
Necessary width
Deep
foundation
Chart 14

10

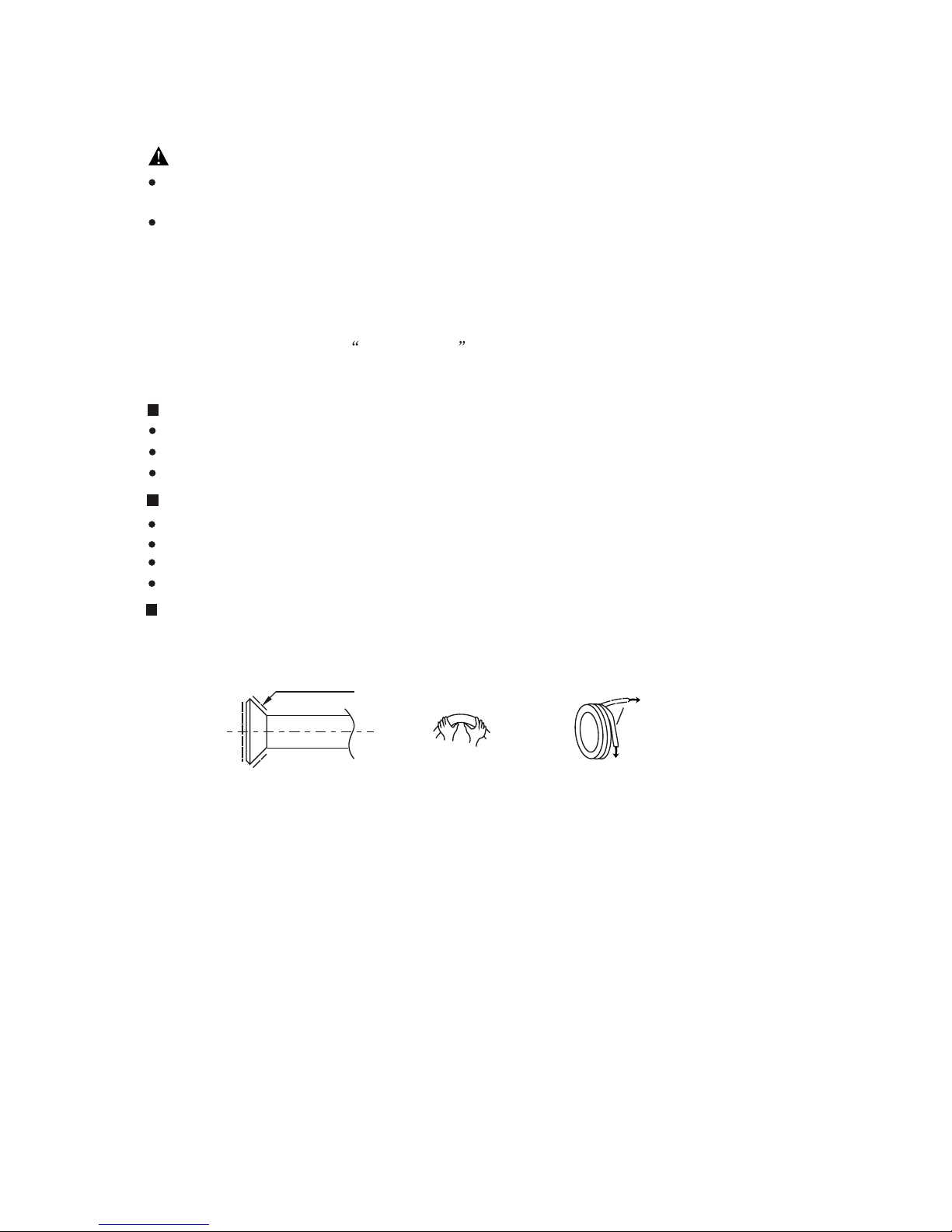

Be sure to use the same insulating materials when you buy the brass pipe. (More than
9mm thick)
Use the market brass pipe.
Chart 15 Chart 16 Chart 17
Use frozen oil
Bend the pipe with thumb
Min-radius 100mm
Make the ends
straight
2. Locate The Pipe
1) Drill a hole in the wall (suitable just for the size of the wall conduit, 90mm in general), then
set on the fittings such as the wall conduit and its cover.
2) Bind the connecting pipe and the cables together tightly with binding tapes. Do not let air
in, which will cause water leakage by condensation.
3) Pass the bound connecting pipe through the wall conduit from outside. Be careful of the
pipe allocation to do no damage to the tubing.
3. Connect the pipes.
4. Then, open the stem of stop valves of the outdoor unit to make the refrigerant pipe conne-
cting the indoor unit with the outdoor unit fluently flow.
5. Be sure of no leakage by checking it with leak detector or soap water.
6. Cover the joint of the connecting pipe to the indoor unit with the soundproof/insulating
sheath (fittings), and bind it well with the tapes to prevent leakage.
Daub the surfaces of the flare pipe and the joint nuts with frozen oil, and wrench it for 3~4
rounds with hands before fasten the flare nuts. (Refer to chart 14)
Be sure to use two wrenches simultaneously when you connect or disconnect the pipes.
Cautions
2) The stop valve of the outdoor unit should be closed absolutely (as original state). Every
time you connect it, first loosen the nuts at the part of stop valve, then connect the flare
pipe immediately (in 5 minutes). If the nuts have been loosened for a long time, dusts
and other impurities may enter the pipe system and may cause malfunction later. So
please expel the air out of the pipe with refrigerant before connection.
o
The bending angle should not exceed 90 C
Bending position is preferably in the bendable pipe. The larger the better it is .
Do not bend the pipe more than three times.
3) Expel the air (refer to the Expel The Air ) after connecting the refrigerant pipe with the
indoor unit and the outdoor unit.
Then fasten the nuts at the repair-points.
Notices For Benable pipe.
Cut out a desired concave at the bending part of the insulating pipe.
Then expose the pipe(cover it with tapes after bending).
To prevent collapsing of deforming, please bend the pipe at its biggest radius.
Use bender to get a small radius pipes.
Bend the connecting pipe of small wall thickness.

11
The drain pipe of indoor unit must be heat insulated, or it will condense dew, as well as
the connections of the indoor unit.
Hard PVC binder must be used for pipe connection, and make sure there is no leakage.
With the connection part to the indoor unit, please be noted not to impose pressure on the
side of indoor unit pipes.
When the declivity of the drain pipe downwards is over 1/100, there should not be any win
ding.
The total length of the drain pipe when pulled out traversely shall not exceed 20m, when
the pipe is over long, a prop stand must be installed to prevent winding.
Refer to the figures on the right for the installation of the pipes.
CONNECT THE DRAIN PIPE
1.5m~2m
Insulating
material Downward declivity
lower than 1/100 VP30
Downward declivity
lower than 1/100
Put as deep as possible
(about 10cm)
Chart 17
Bend
S shape
1. Install indoor unit drain pipe
The outlet has PTI screw bread, Please use sealing materials and pipe sheath (fitting)
when connecting PVC pipes.
CAUTIONS
2. Drainage test
Check whether the drainpipe is unhindered
New built house should have this test done before paving the ceiling.
3. Drain Elbow Installation
Fit the seal into the drain elbow, then insert the drain elbow into the base pan hole of outdoor
o
unit, rotate 90 to securely assemble them. Connect the drain elbow with an extension drain
hose (Locally purchased), in case of the condensate draining off the outdoor unit during the
heating mode. (Refer to Chart 17)
Seal The base pan hole
of outdoor unit
Drain elbow
Seal
The base pan
hole of outdoor
Drain
elbow

12
1. The air conditioner should use separate power supply with rated voltage
2. The external power supply to the air conditioner should have ground wiring, which is linked
to the ground wiring of the indoor and outdoor unit.
3. The wiring work should be done by qualified persons according to circuit drawing.
4. A leakage protector should be installed according to the National Standard concerning
electrical appliance.
5. Be sure to locate the power wiring and the signal wring well to avoid cross-disturbance and
their contact with connecting pipe or stop value body.
6. The wiring attached to this air conditioner is 10m long. Be sure to prolong it with wiring of
the same type and proper length if necessary. Generally, do not twist two wiring together
unless the joint is soldered well and covered with insulator tape.
7. Do not turn on the power until you have checked carefully after wiring.
Attaching wiring
The Specification of Power
WIRING
(A)
2
(mm )
2
(mm )
220-240V~, 50Hz
TYPE
POWER
GROUND WIRING
OUTDOOR UNIT POWER
WIRING
STRONG ELECTRIC
SIGNAL
INDOOR/OUTDOOR
CONNECTING
WIRING
CIRCUIT BREAKER/FUSE
INDOOR UNIT POWER WIRING
PHASE 1-PHASE
FREQUENCY AND VOLT
20/16 40/25
18000Btu/h 24000Btu/h
220-240V~, 50Hz
1-PHASE
3x2.5
2.0 2.5
3x2.5
5X2.0
X2.0
(3 )
WEAK ELECTRIC
SIGNAL
2
1x0.5mm
5x2.0
3X1
(2X1)
2
2x0.5mm
1-core sheild wire 2-core sheild wire
380V 3N~, 50Hz
3-PHASE
40/20
1.5
36000-60000Btu/h
5x1.5
5x1.5
3X1
()
2X1
Chat 18

Chat 20
Wiring Chart
Installing wiring chart, refer to link circuit chart for details.
Ground wiring
Ground wiring
Power supply
Switch/Fuse
(Available locally)
Power wiring (indoor)
Power linking wiring (Outdoor)
Strong elec-signal link wiring
Weak elec-signal link wiring
Indoor
Unit Outdoor
Unit
Ground the air conditioner properly in case to affect its
anti-interference function
Chart 19
13
Air Conditioner Link-circuit
18000Btu/h(1 PHASE)
CAUTION: When wiring, pleasechoose the correspondingchart, or itmay cause damage.

14
Chat 21
Air Conditioner Link-circuit
24000Btu/h(1 PHASE)
~
Air Conditioner Link-circuit
Chat 22
36000-60000Btu/h(3 PHASE)

Disassemble the bolts from the maintenance board, and pull it in the direction of the arrow
to remove the protection board.
Notice: Do not scratch the surface during operation.
ATTENTION: Chart 23 is based on one type of outdoor units, which may look different
from your own outdoor unit.
Chart 23
Protection
board
Terminator
The Outdoor Units
15

16
1. The test operation must be carried out after the entire installation has been completed.
2. Please confirm the following points before the test operation:
3. According to the user s requirement, install the remote controller frame where the remote
controller s signal can reach the indoor unit smoothly.
4. Test operation
TEST OPERATION
The indoor unit and outdoor unit are installed properly.
Tubing and wiring are correctly completed.
The refrigerant pipe system is leakage-checked.
The drainage is unimpeded.
The heating insulation works well.
The ground wiring is connected correctly.
The length of the tubing and the added stow capacity of the refrigerant have been recorded.
The power voltage fits the rated voltage of the air conditioner.
There is no obstacle at the outlet and inlet of the outdoor and indoor and indoor units.
The gas-side and liquid-side stop values are both opened.
The air conditioner is pre-heated by turning on the power.
Set the air conditioner under the mode of COOLING with the remote controller, and
check the following points per the Owner s Manual If there is any malfunction, please
resolve it through chapter Troubles And Causes in the Owner s Manual .
1) The indoor unit
a. Whether the switch on the remote controller works well.
b. Whether the buttons on the remote controller works well.
c. Whether the air flow louver moves normally.
d. Whether the room temperature is adjusted well.
e. Whether the indicator lights normally.
f. Whether the temporary buttons works well.
g. Whether the drainage is normal.
h. Whether there is vibration or abnormal noise during operation.
2) The outdoor unit
a. Whether there is vibration or abnormal noise during operation.
b. Whether the generated wind, noise, or condensed water by the air conditioner have influ-
enced your neighborhood.
c. Whether any of the refrigerant is leaked.
A protection device delays the start of compressor for about 3 minutes when it is
restarted immediately after switching on the power.
Cautions

MDV05I-011aW
2200019056
