Midea MOBA30U-12HN1-Q User manual

Contents i
Light Commercial
50Hz R410A
ON/OFF SERIES
Service Manual 2017
Outdoor units:
MOBA30U-12HN1-Q
MOBA30U-18HN1-Q
MOCA30U-24HN1-Q
MOD31U-36HN1-R
MOU-48HN1-R
MOUA-60HN1-R
Indoor units:
MCA3-12HRN1-Q1
MCA3-18HRN1-Q1
MCD-18HRN1-Q1
MCD-24HRN1-Q1
MCD-36HRN1-R1
MCD-48HRN1-R
MCD-60HRN1-R
MTB-18HWN1-Q1
MTB-24HWN1-Q1
MTI-36HWN1-R1
MTB-48HWN1-R
MTB-60HWN1-R
MHG-24HWN1-Q1
MHG-36HWN1-R1
MHG-48HWN1-R
MHG-60HWN1-R
MUE-12HRN1-Q1
MUE-18HRN1-Q1
MUE-24HRN1-Q1
MUE-36HRN1-R1
MUE-48HRN1-R
MUE-60HRN1-R
DM17-01.01.08en

Light Commercial R410A on-off DM17-01.01.08en
1
Part 1 General Information .................................................... 3
Part 2 Indoor Units ................................................................. 9
Part 3 Outdoor Units .......................................................... 116
Part 4 Installation ...............................................................130
Part 5 Electrical Control System ......................................168
※The specifications, designs, and information in this book are subject to change without notice for
product improvement.

Light Commercial R410A on-off DM17-01.01.08en
3
Part 1
General Information
1. Model Lists ............................................................................. 4
2. External Appearance ............................................................. 5
3. Nomenclature ......................................................................... 7

DM17-01.01.08en Light Commercial R410A on-off
4
1. Model Lists
1.1 Indoor Units
R410A Capacity multiplied by 1000Btu/h
Type Function 09 12 18 24 30 36 48 60
Four-way cassette(compact) Cooling and heating ● ●
Super-slim 4-way cassette Cooling and heating ● ● ● ● ●
Middle static pressure duct Cooling and heating ● ● ●
● ●
High static pressure duct Cooling and heating ● ●
● ●
Ceiling & Floor Cooling and heating ● ● ● ● ● ● ●
M Floor-standing Cooling and heating ●
● ●
1.2 Outdoor Units
Universal Outdoor unit Model Compressor type Compressor Brand Matched indoor units
Heat Pump
MOBA30U-12HN1-Q ROTARY GMCC MCA3-12HRN1-Q1
MUE-12HRN1-Q1
MOBA30U-18HN1-Q ROTARY GMCC
MCA3-18HRN1-Q1
MUE-18HRN1-Q1
MTB-18HWN1-Q1
MCD-18HRN1-Q1
MOCA30U-24HN1-Q ROTARY GMCC
MFM-24ARN1-Q
MUE-24HRN1-Q1
MHG-24HWN1-Q1
MCD-24HRN1-Q1
MTB-24HWN1-Q1
MOD31U-36HN1-R SCROLL EMERSON
MCD-36HRN1-R1
MUE-36HRN1-R1
MHG-36HWN1-R1
MTI-36HWN1-R1
MOU-48HN1-R SCROLL Panasonic
MUE-48HRN1-R
MHG-48HWN1-R
MTB-48HWN1-R
MCD-48HRN1-R
MOUA-60HN1-R SCROLL Panasonic
MUE-60HRN1-R
MTB-60HWN1-R
MCD-60HRN1-R
MHG-60HWN1-R

Light Commercial R410A on-off DM17-01.01.08en
5
2. External Appearance

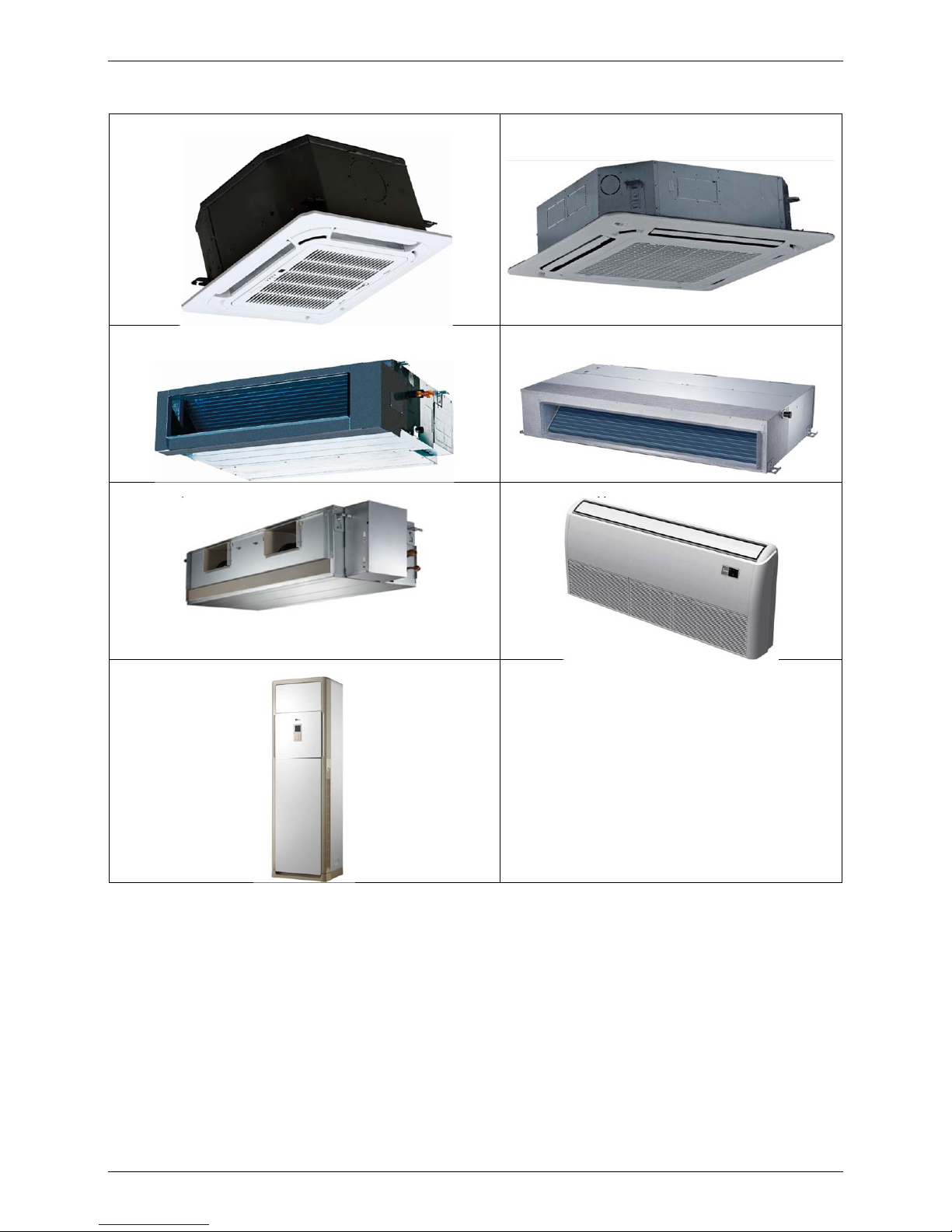

2.1 Indoor Units
Compact Four-way cassette
Super-slim 4-way Cassette
Middle static pressure duct Middle static pressure duct
High static pressure duct
Ceiling & floor type
M Floor-standing

DM17-01.01.08en Light Commercial R410A on-off
6
2.2 Outdoor Units
Single fan outdoor unit Double fan outdoor unit

Light Commercial R410A on-off DM17-01.01.08en
7
3. Nomenclature
3.1 Indoor Unit
M U B ‐36H R N1 ‐Q1
Minorconstructivechanges
Powersupply
Q220~240V,1N,50Hz
R380~420V,3N,50Hz
Refrigerant
N1 R410A
‐‐ R22
ControlMode
WWiredcontrol
RRemotecontrol
FunctionCode
CCoolingOnly
HCooling&Heating
ACooling&Heating+PTC
Capacity(x1000Btu/h)
DesignTime
ATimeADesigned
BTimeBDesigned
CTimeCDesigned
DTimeDDesigned
ProductCategory
CCassetteType
TDuctType
UCeiling&FloorType
HHSPDuctType
Midea

DM17-01.01.08en Light Commercial R410A on-off
8
3.2 Outdoor Unit
M O D30 U‐36HN1 ‐Q
Powersupply
Q220~240V,1N,50Hz
R380~420V,3N,50Hz
Refrigerant
N1 R410A
‐‐ R22
FunctionCode
CCoolingOnly
HCooling&Heating
ACooling&Heating+PTC
Capacity(x1000Btu/h)
USideDischargeOutdoorUnit
OutdoorSizeCode
ProductCategory
OOutdoorunit
Midea

Light Commercial R410A on-off DM17-01.01.08en
9
Part 2
Indoor Units
Four-way Cassette Type (Compact) ................................. 10
Four-way Cassette Type ..................................................... 23
MSP Duct Type .................................................................... 43
HSP Duct Type ..................................................................... 65
Ceiling & Floor Type ........................................................... 86
Floor-standing Type ..........................................................105

DM17-01.01.08en Light Commercial R410A on-off
10
Four-way Cassette Type (Compact)
Features .............................................................................. 11 1.
Specification ...................................................................... 12 2.
Dimensions ........................................................................ 12 3.
Service Space .................................................................... 14 4.
Capacity tables .................................................................. 14 5.
Air Velocity and Temperature Distributions .................... 15 6.

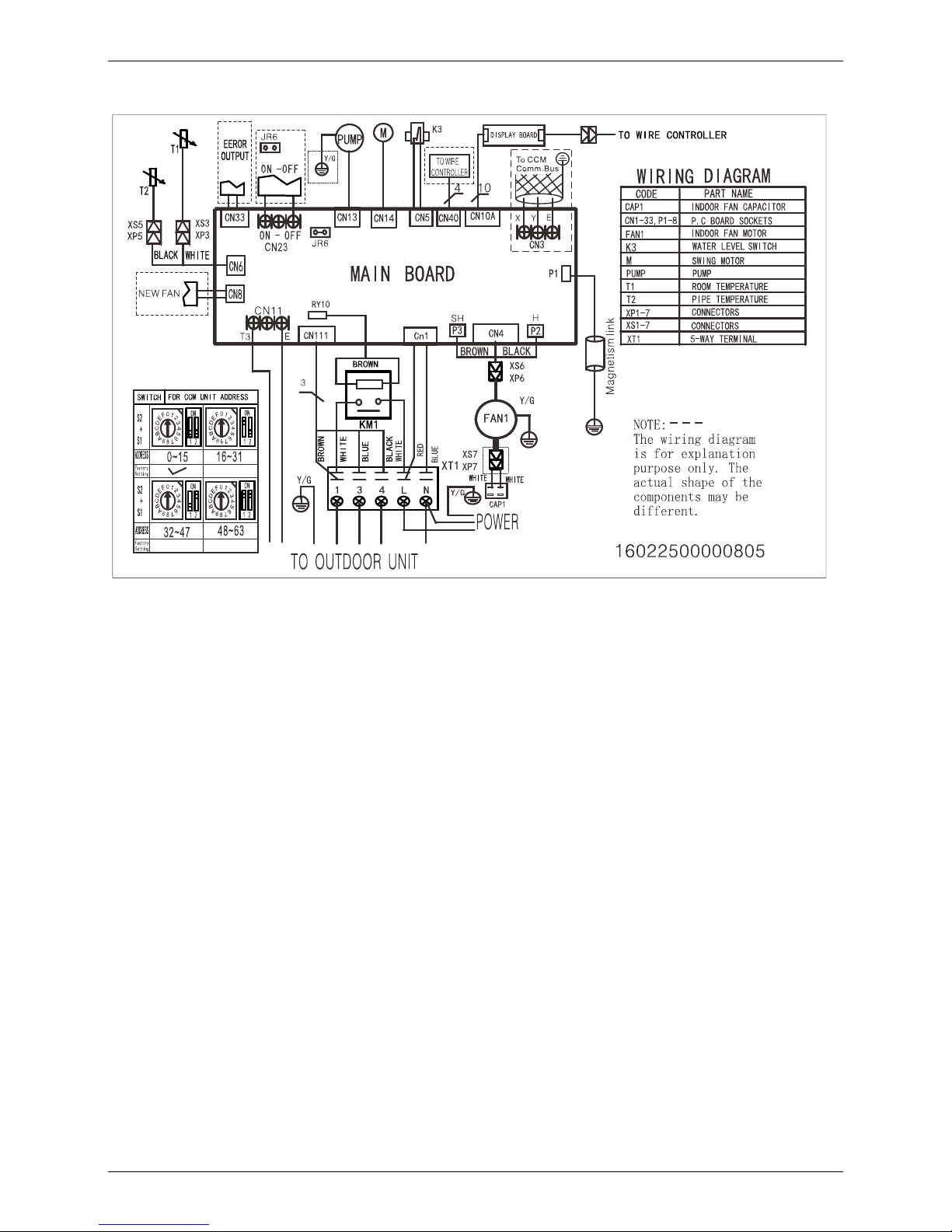

Wiring Diagrams ................................................................ 18 7.
Electric Characteristics ..................................................... 19 9.
Sound Levels ................................................................... 20 10.
The Specification of Power ............................................. 21 11.
Field Wiring ...................................................................... 22 12.

Light Commercial R410A on-off DM17-01.01.08en
11
Features 1.
1.1 Compact design
 The body size is 570×260×570mm, it’s just smaller than the ceiling board, so it’s very easy for
installation and will not damage the decoration. The panel size is 647×50×647mm.
 The hooks are designed in the four corners of the body, which can save installation space.
1.2 Electric control box built-in design
 The E-box is simply and safely built inside the indoor unit. It’s convenient for installation and
maintenance. Can check the control part easily, you only need to open the air return grille.
1.3 Air passage function
 Reserves the space for air outlet from the side of indoor unit; It’s availed to connect air duct
from the two sides to the nearby small rooms.

DM17-01.01.08en Light Commercial R410A on-off
12
Specification 2.
Indoor model MCA3-12HRN1-Q1 MCA3-18HRN1-Q1
Outdoor model MOBA30U-12HN1-Q MOBA30U-18HN1-Q
Power supply V-ph-Hz 220~240-1-50 220~240-1-50
Cooling
Capacity Btu/h 12500 18300
kW 3,66 5,36
Input W 1350 1980
Current A 6 8,78
EER W/W 2,71 2,71
Heating
Capacity Btu/h 13000 19000
kW 3,81 5,57
Input W 1320 1720
Current A 5,9 7,63
COP W/W 2,89 3,24
Indoor fan
motor
Model YKT-17-6-6 YKT-27-4-6
Qty 1 1
Input W 40.5/35.3/31.4 78/71/51/39
Capacitor uF 1.5UF/450V 2UF/450V
Speed(Hi/Med/Lo) r/min 640/540/440 890/850/685/583
Indoor coil
Number of rows
1 2
Tube pitch(a)x row pitch(b) mm 21x13.37 21x13.37
Fin spacing mm
1,3 1,3
Fin type Hydrophilic aluminium Hydrophilic aluminium
Tube outside dia.and type mm Φ7,innergroove tube Φ7,innergroove tube
Coil length x height x width mm
1380x210x13.37 1360x210x26.74
Number of circuits
3 4
Indoor air flow (Hi/Mid/Lo) m
3
/h 650/550/430 810/650/530
Indoor noise level (sound pressure) (Hi/Mid/Lo) dB(A) 42/38/36 48/41/36
Throttle type / /
Indoor unit
Dimension (WxDxH)(body) mm 570x570x260 570x570x260
Packing (WxDxH)(body) mm 655x655x290 655x655x290
Dimension (WxDxH)(panel) mm 647x647x50 647x647x50
Packing (WxDxH)(panel) mm 715x715x123 715x715x123
Net/Gross weight(body) kg 16.3/19.1 16.5/19
Net/Gross weight(panel) kg 2.5/4.5 2.5/4.5
Design pressure MPa 4.2/1.5 4.2/1.5
Drainage water pipe diameter mm ODΦ25 ODΦ25
Refrigerant
piping Liquid side/Gas side mm Φ6.35/Φ12.7(1/4"/1/2") Φ6.35/Φ12.7(1/4"/1/2")
Controller RG36C/BG(C)E RG36C/BG(C)E
Operation temperature ℃ 17~30 17~30
Room
temperature
Cooling ℃ 17~32 17~32
Heating
℃ 0~30 0~30
Remarks:
1.The above design and specifications are subject to change without prior notice for product improvement.

Light Commercial R410A on-off DM17-01.01.08en
13
Dimensions 3.

DM17-01.01.08en Light Commercial R410A on-off
14
Service Space 4.

Light Commercial R410A on-off DM17-01.01.08en
15
Capacity tables 5.
5.1 MCA3-12HRN1-Q1 / MOBA30U-12HN1-Q
COOLING OUTDOORTEMPERATUREDRY
Indoor
Conditions
 21ºC 25ºC 30ºC 35ºC 40ºC 45ºC
21ºCD
15ºCW
TotalcapacitykW 3,39  3,36  3,32  3,26  2,61  2,44 
SensitivecapacitykW 2,71  2,68  2,66  2,61  2,08  1,95 
InputkW. 3,66  3,63  3,60  3,53  3,64  3,78 
24ºCD
17ºCW
TotalcapacitykW 3,46  3,43  3,40  3,33  2,66  2,50 
SensitivecapacitykW 2,77  2,74  2,72  2,66  2,13  2,00 
InputkW. 1,36  1,35  1,34  1,32  1,36  1,41 
27ºCD
19ºCW
TotalcapacitykW 3,81  3,77  3,73  3,66  2,93  2,75 
SensitivecapacitykW 3,05  3,02  2,99  2,93  2,34  2,20 
InputkW. 1,40  1,39  1,38  1,35  1,39  1,44 
32ºCD
23ºCW
TotalcapacitykW 4,26  4,22  4,18  4,10  3,28  3,07 
SensitivecapacitykW 3,41  3,38  3,34  3,28  2,62  2,46 
InputkW. 1,56  1,55  1,54  1,51  1,56  1,62 
HEATING OUTDOORCONDITIONS
Indoor
Conditions
 24ºCD
18ºCW
12ºCD
11ºCW
7ºCD
6ºCW
4ºCD  
3ºCW
0ºCD  
‐1ºCW
‐5ºCD  
‐6ºCW
‐7ºCD
‐8ºCW
15ºC CapacitykW 4,88 4,83 4,23  3,47 2,96 2,33 2,16
InputkW. 1,69  1,67  1,46  1,35  1,32  1,16  1,13 
18ºC CapacitykW 4,66 4,61 4,04  3,31 2,83 2,22 2,06
InputkW. 1,61  1,59  1,40  1,29  1,26  1,11  1,08 
20ºC CapacitykW 4,40 4,35 3,81 3,12 2,67 2,10 1,94
InputkW. 1,52  1,51  1,32  1,22  1,19  1,05  1,02 
22ºC CapacitykW 3,74 3,70 3,24  2,66 2,27 1,78 1,65
InputkW. 1,41  1,39  1,22  1,13  1,10  0,97  0,94 
27ºC CapacitykW 3,74 3,70 3,24  2,66 2,27 1,78 1,65
InputkW. 1,42  1,40  1,23  1,14  1,11  0,98  0,95 

DM17-01.01.08en Light Commercial R410A on-off
16
5.2. MCA3-18HRN1-Q1 / MOBA30U-18HN1-Q
COOLING OUTDOORTEMPERATUREDRY
Indoor
Conditions  21ºC 25ºC 30ºC 35ºC 40ºC 45ºC
21ºCD
15ºCW
TotalcapacitykW 4,96  4,91  4,87  4,77  3,82  3,58 
SensitivecapacitykW 3,97  3,93  3,89  3,82  3,05  2,86 
InputkW. 5,35  5,32  5,28  5,17  5,33  5,53 
24ºCD
17ºCW
TotalcapacitykW 5,07  5,02  4,98  4,88  3,90  3,66 
SensitivecapacitykW 4,06  4,02  3,98  3,90  3,12  2,93 
InputkW. 2,00  1,99  1,97  1,93  1,99  2,07 
27ºCD
19ºCW
TotalcapacitykW 5,57  5,52  5,47  5,36  4,29  4,02 
SensitivecapacitykW 4,46  4,42  4,37  4,29  3,43  3,22 
InputkW. 2,05  2,04  2,02  1,98  2,04  2,12 
32ºCD
23ºCW
TotalcapacitykW 6,24  6,18  6,12  6,00  4,80  4,50 
SensitivecapacitykW 4,99  4,95  4,90  4,80  3,84  3,60 
InputkW. 2,30  2,28  2,26  2,22  2,28  2,37 
HEATING OUTDOORCONDITIONS
Indoor
Conditions  24ºCD  
 18ºCW
12ºCD  
 11ºCW
7ºCD
6ºCW
4ºCD  
  3ºCW
0ºCD  
‐1ºCW
‐5ºCD  
‐6ºCW
‐7ºCD
‐8ºCW
15ºC CapacitykW 7,14 7,06 6,18  5,07 4,33 3,40 3,15
InputkW. 2,20  2,18  1,91  1,76  1,72  1,52  1,48 
18ºC CapacitykW 6,82 6,74 5,90  4,84 4,13 3,25 3,01
InputkW. 2,10  2,08  1,82  1,69  1,64  1,45  1,41 
20ºC CapacitykW 6,43 6,36 5,57 4,57 3,90 3,06 2,84
InputkW. 1,99  1,96  1,72  1,59  1,55  1,37  1,33 
22ºC CapacitykW 5,47 5,41 4,73  3,88 3,31 2,60 2,41
InputkW. 1,83  1,81  1,59  1,47  1,43  1,26  1,23 
27ºC CapacitykW 5,47 5,41 4,73  3,88 3,31 2,60 2,41
InputkW. 1,85  1,83  1,60  1,48  1,45  1,27  1,24 

Light Commercial R410A on-off DM17-01.01.08en
17
Air Velocity and Temperature Distributions(Reference Data) 6.
Airflow velocity
Temperature

DM17-01.01.08en Light Commercial R410A on-off
18
Wiring Diagrams 7.
MCA3-12HRN1-Q1, MCA3-18HRN1-Q1

Light Commercial R410A on-off DM17-01.01.08en
19
Electric Characteristics 8.
Model Indoor Units Power Supply
Hz Voltage Min. Max. MFA
MCA3-12HRN1-Q1
50 220-240V 198V 254V 16
MCA3-18HRN1-Q1
50 220-240V 198V 254V 16
Note:
MFA: Max. Fuse Amps. (A)

DM17-01.01.08en Light Commercial R410A on-off
20
Sound Levels 9.
1.4m
Microphone
Model
Noise level dB(A)
H M L
MCA3-12HRN1-Q1
42 38 36
MCA3-18HRN1-Q1
48 41 36
