Midea MHC-96HWD1N1 User manual

Midea R410A
Full DC Inverter Split Type Series 50Hz
Technical Manual
Applicable Model:
Indoor unit Outdoor unit
Midea reserves the right to discontinue, or change specification or designs at any time without notices and
without incurring obligations.
MHC-96HWD1N1
MOVG-96HD1N1-R

Midea R410AFull DC Inverter Split Type Series Technical Manual MCAC-UTSM-201406
1
Content
Part. 1 General information............................2
Part. 2 Indoor Unit...........................................5
Part. 3 Outdoor Unit......................................17
Part. 4 Installation.........................................22
Part. 5 Controller...........................................71

MCAC-UTSM-201406 Midea R410AFull DC Inverter Split Type Series Technical Manual
2
Part. 1 General information
1. Model Names of Indoor/Outdoor Units..................................3
2. External Appearance.............................................................3
3. Nomenclature .......................................................................4

Midea R410AFull DC Inverter Split Type Series Technical Manual MCAC-UTSM-201406
3

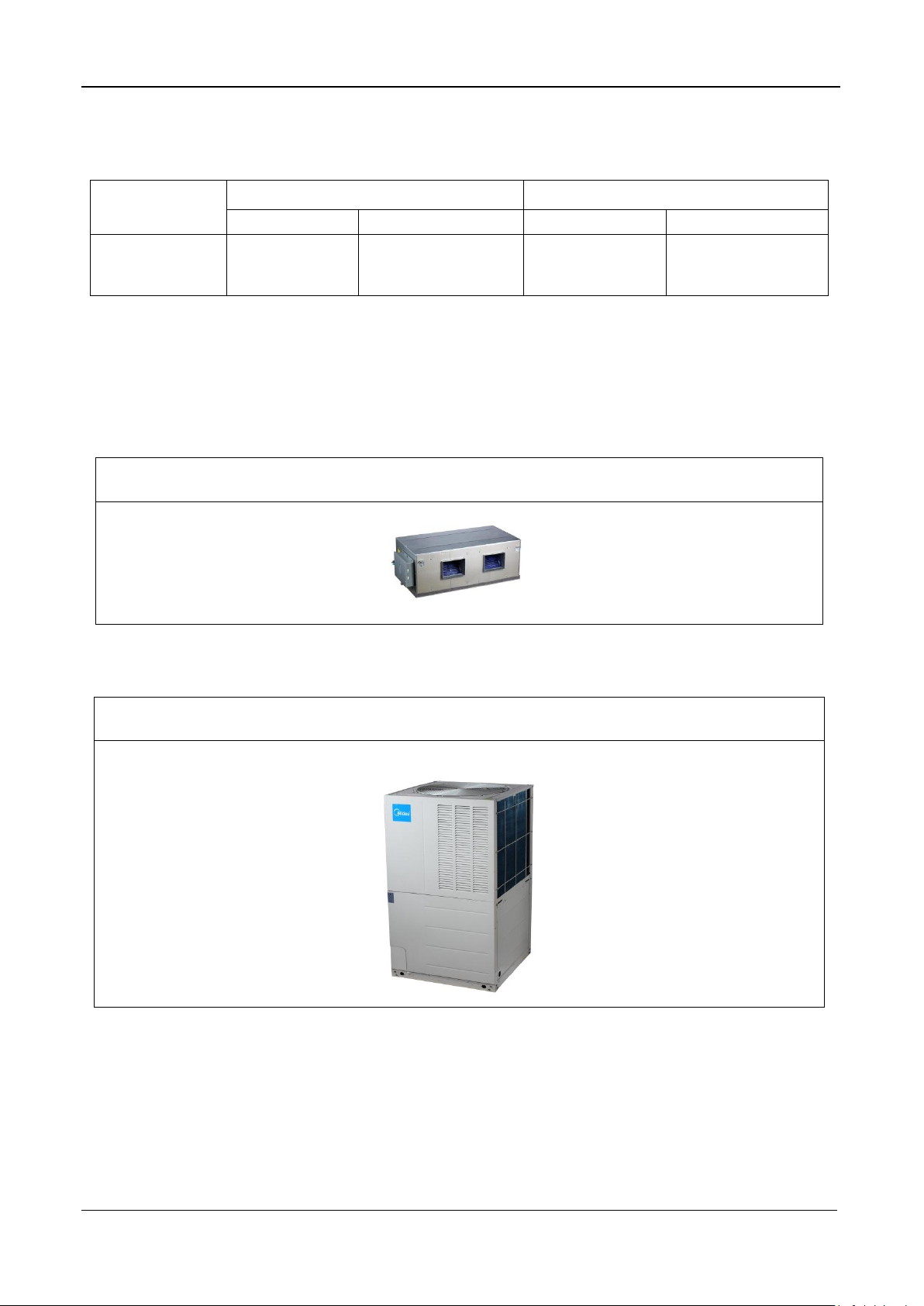

1. Model Names of Indoor/Outdoor Units
Type
Indoor unit
Outdoor unit
Model
Power supply
Model
Power supply
Hi-static pressure
duct type
MHC-96HWD1N1
220-240V~, 1Ph, 50Hz
MOVG-96HD1N1-R
380-415V~, 3Ph, 50Hz
2. External Appearance
2.1 Indoor units
MHC-96HWD1N1
2.2 Outdoor unit
MOVG-96HD1N1-R

MCAC-UTSM-201406 Midea R410AFull DC Inverter Split Type Series Technical Manual
4
3. Nomenclature
3.1 Indoor unit:
MHC–96 HWD1 N1
Refrigerant type - N1:R410A
Full DC inverter
Control type: Wired controller
H: Heat pump
Nominal cooling capacity (96×1,000Btu/h)
Series number: C type
High static pressure duct type
Midea
3.2 Outdoor unit:
M O V G - 96 H D1 N1 - R
Power supply:380~415V 3Ph 50Hz
Refrigerant type - N1: R410A
Full DC inverter
H: Heat pump
Nominal cooling capacity (96×1,000Btu/h)
Series number: G type
Top-discharge type
Outdoor unit
Midea

Midea R410AFull DC Inverter Split Type Series Technical Manual MCAC-UTSM-201406
5
Part. 2 Indoor Unit
1. Features..............................................................................6
2. Specifications......................................................................7
3. Dimensions (Unit: mm)........................................................8
4. Service Space .....................................................................8
5. Refrigerant circuit ................................................................9
6. Wiring Diagrams................................................................10
7. Capacity Table...................................................................13
8. Static Pressure Curve........................................................15
9. Electric Characteristics......................................................15
10.Sound Levels.....................................................................16
11. Accessories.......................................................................16

MCAC-UTSM-201406 Midea R410AFull DC Inverter Split Type Series Technical Manual
6
1. Features
High capacity of cooling and heating,
High efficient DC inverter compressor and DC motor, more energy saving. (MEPs approval)
Thin size, even can installed at limited place.
All round steel shell, for high quality protection of transportation.
Convenient installation, hidden in the ceiling, unit installation is not hindered by the location of
lighting fixtures or room structure.
Air inlet and outlet flanges are standard and easy for duct connection.
Multi diffusers from one indoor unit supply airflow to multi rooms at the same time. The unit is
suitable for various applications where there are many rooms or halls, such as restaurants,
connect halls and hotels.
Highly efficient scroll compressor, with thermal protectors to prevent motor overheating.
Power supply of indoor and outdoor is separated, easy installation.
Normal wired controller is standard. Remote controller, wired weekly controller and centralized
controller is optional.

Midea R410AFull DC Inverter Split Type Series Technical Manual MCAC-UTSM-201406
7
2. Specifications
Model
MHC-96HWD1N1
Power supply
\
220-240V~, 1Ph, 50Hz
Cooling
Capacity
Btu/h
34,120~90,418~102,360
W
10,000~26,500~30,000
Input
W
2,400~8,200~9,800
EER
W/W
3.23
Heating
Capacity
Btu/h
44,356~90,418~102,360
W
13,000~26,500~30,000
Input
W
3,400~8,000~9,800
COP
W/W
3.31
AEER/ACOP
\
3.106/3.294
Rated input
W
850
Rated current
A
4.5
Indoor air flow
l/s
1,389
Indoor standard ESP (External static pressure)
Pa
0~200
Indoor noise level
dB(A)
56
Refrigerant type
\
R410A
Refrigerant control
\
EXV
Fan
Type
\
Centrifugal fan
Motor model (×Quantity)
\
WZDK750-38GS-W (×1)
Speed (Hi/med/lo)
r/min
1,250/1,160/1,090
Coil
Type
\
Copper tube and aluminum fin
Tube size
mm
Ф9.52
No. of rows
\
4
Fin spacing
mm
1.5
Tube pitch(a)×row pitch(b)
mm
25.4×22
Length×height
mm
1,202×457.2
Number of circuits
\
18
Controller
\
KJR-29B1/BK-E (Wired controller)
Refrigerant pipe (Liquid/ Gas)
mm
Ф12.7/Ф28.6
Drain pipe size
mm
Ф41
Connection wire
Power wire
\
3×2.5mm2
Signal wire
\
3×0.75mm2
Dimension (W×H×D)
mm
1,470×510×795
Packing (W×H×D)
mm
1,555×545×875
Net/Gross weight
kg
83/92
Notes:
1. Nominal cooling capacities are based on the following conditions:
Indoor temp: 27°CDB, 19°CWB; Outdoor temp: 35°CDB, 24°C WB;
2. Nominal heating capacities are based on the following conditions:
Indoor temp: 20°CDB, 15°C WB; Outdoor temp: 7°CDB, 6°CWB;
3. Equivalent refrigerant piping: 7.5m (horizontal).

MCAC-UTSM-201406 Midea R410AFull DC Inverter Split Type Series Technical Manual
8

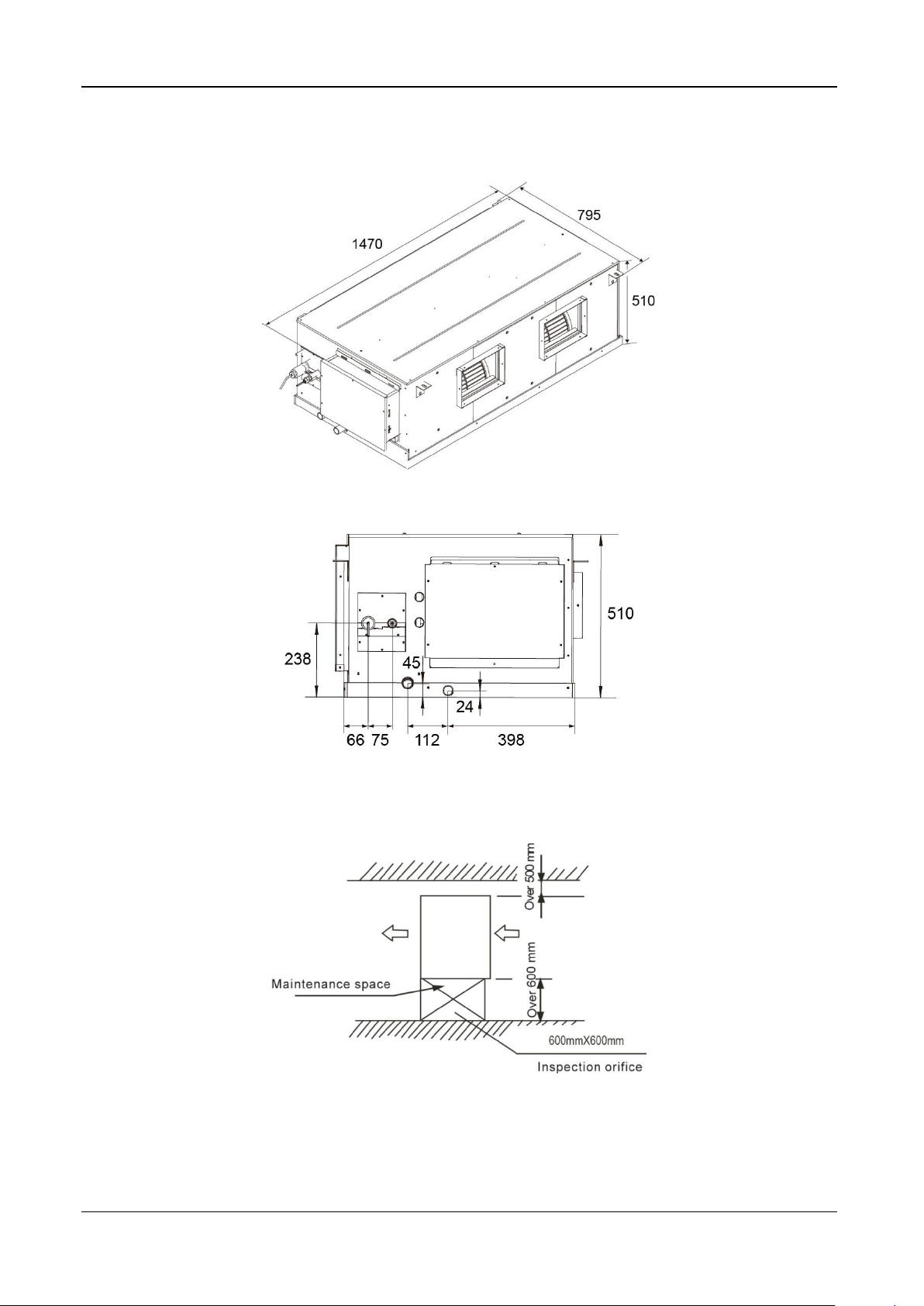

3. Dimensions (Unit: mm)
Pipe side view
4. Service Space
Top view

Midea R410AFull DC Inverter Split Type Series Technical Manual MCAC-UTSM-201406
9
5. Refrigerant circuit

MCAC-UTSM-201406 Midea R410AFull DC Inverter Split Type Series Technical Manual
10

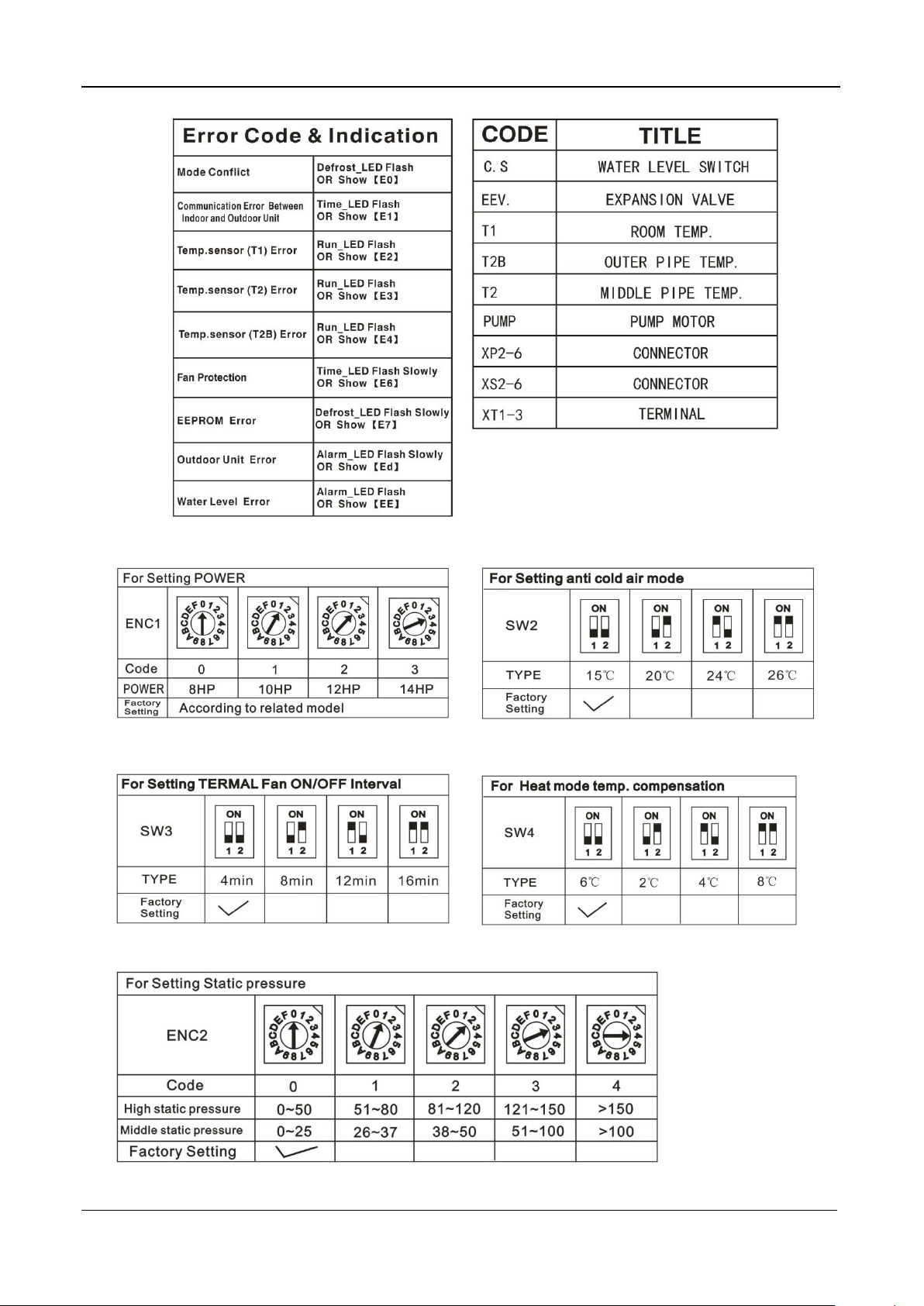

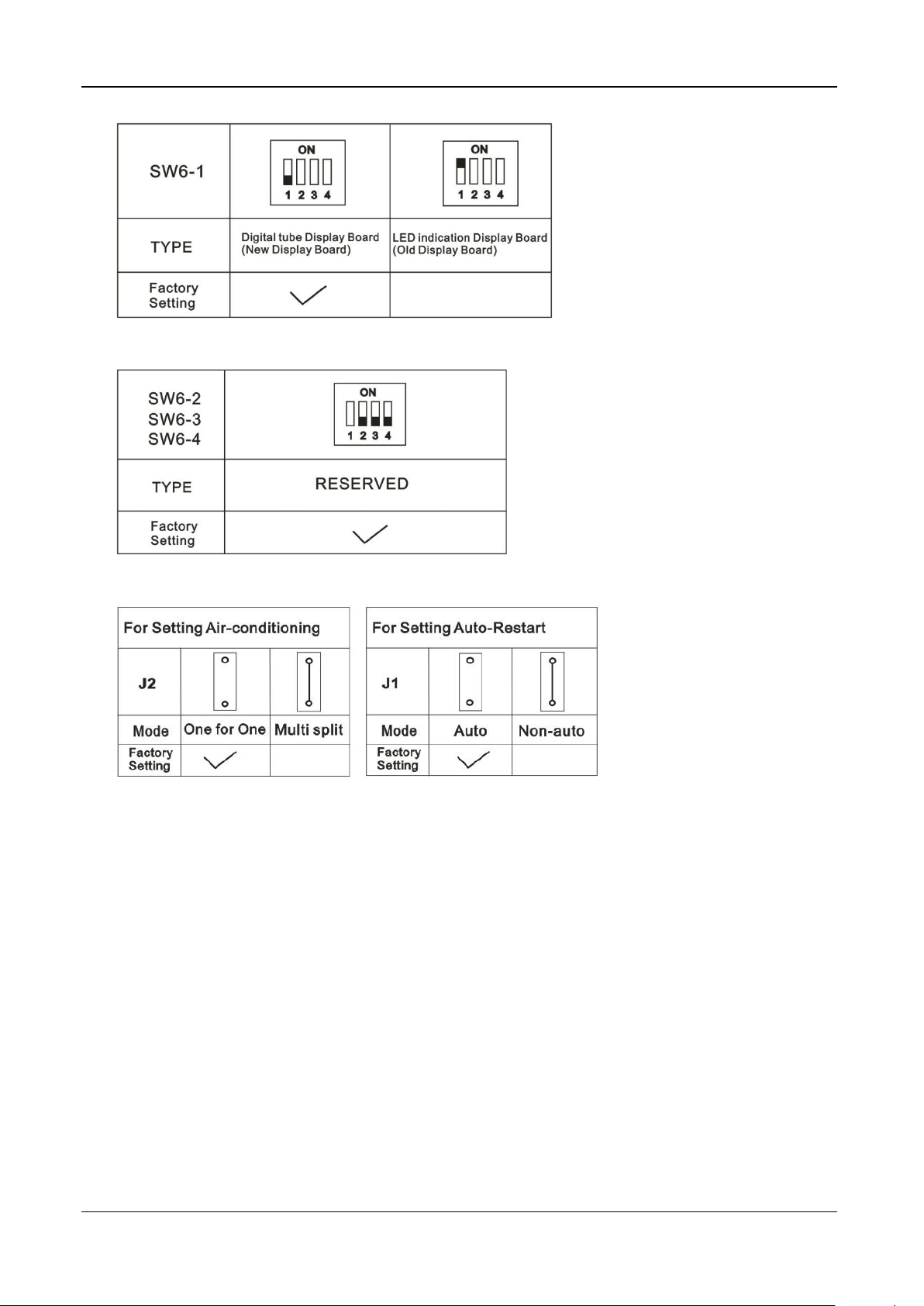

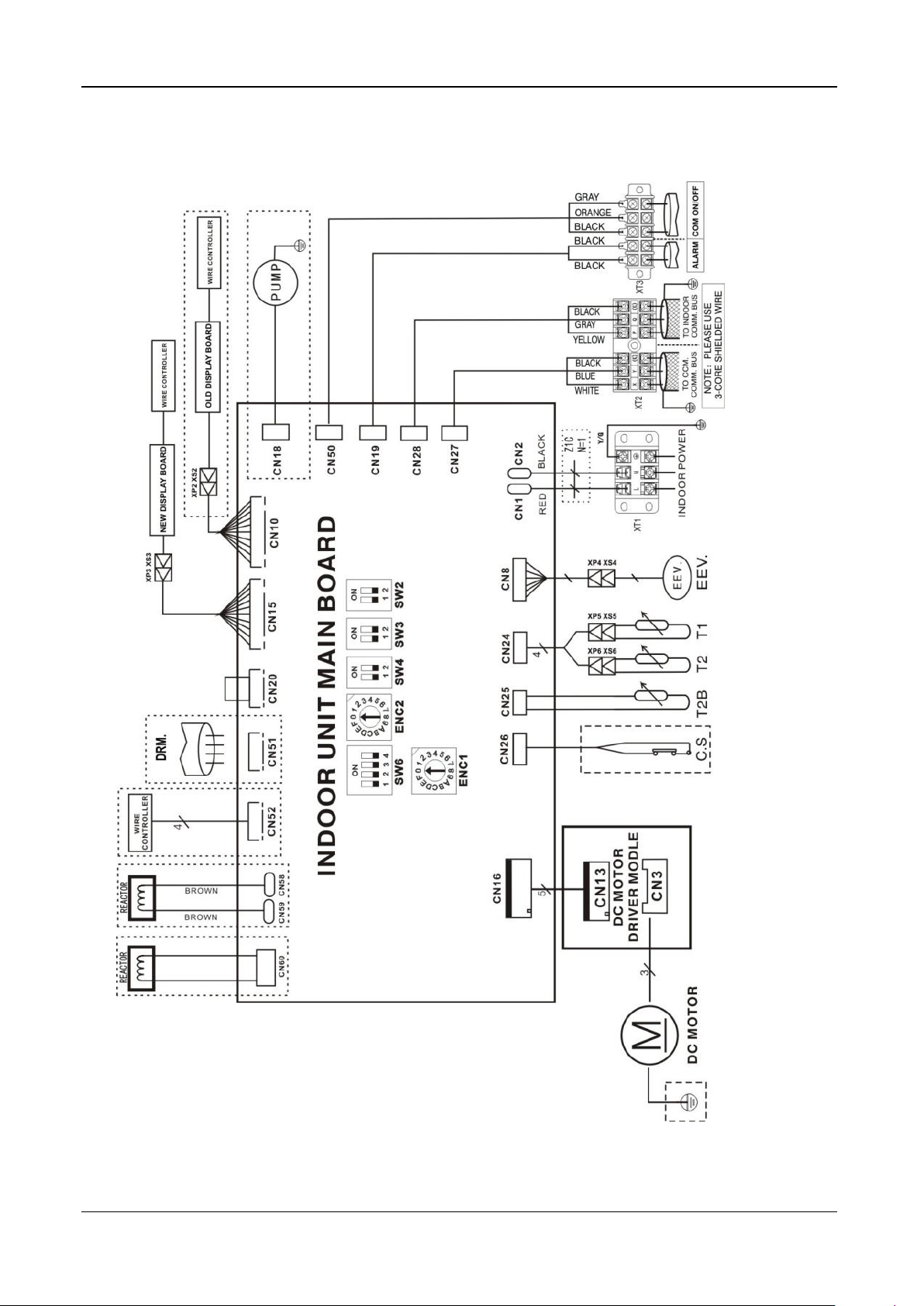

6. Wiring Diagrams

Midea R410AFull DC Inverter Split Type Series Technical Manual MCAC-UTSM-201406
11

MCAC-UTSM-201406 Midea R410AFull DC Inverter Split Type Series Technical Manual
12

Midea R410AFull DC Inverter Split Type Series Technical Manual MCAC-UTSM-201406
13
7. Capacity Table
Cooling mode:
Indoor temperature
Outdoor temperature (DB °C )
DB (°C )
WB (°C )
20.0
27.0
30.0
35.0
40.0
46.0
TC
SC
TC
SC
TC
SC
TC
SC
TC
SC
TC
SC
20.0
15.0
25.54
17.06
24.72
16.03
23.79
15.28
22.86
14.52
21.94
13.77
20.83
12.87
16.0
26.77
16.29
25.85
15.43
24.87
14.70
23.89
13.97
22.92
13.25
21.74
12.38
24.0
16.0
26.77
21.22
25.85
20.35
24.87
19.63
23.89
18.90
22.92
18.18
21.74
17.31
17.0
28.00
20.45
26.98
19.75
25.95
19.05
24.92
18.35
23.90
17.66
22.67
16.82
18.0
29.28
19.55
28.18
18.93
27.09
18.31
25.99
17.69
24.90
17.07
23.59
16.33
19.0
30.58
18.62
29.55
17.92
28.53
17.23
27.51
16.53
26.14
16.22
24.51
15.84
20.0
31.81
17.68
30.50
16.88
29.20
16.08
27.89
15.27
26.59
14.47
25.02
13.50
27.0
18.0
28.28
23.64
27.18
23.01
26.09
22.38
24.99
21.75
23.9
21.12
22.59
20.36
19.0
29.58
22.78
28.55
22.08
27.53
21.37
26.51
20.68
25.14
20.33
23.51
19.92
20.0
30.81
21.90
29.5
21.09
28.2
20.28
26.89
19.48
25.59
18.67
24.02
17.69
21.0
32.07
20.99
30.62
19.93
29.17
18.86
27.72
17.80
26.27
16.74
24.53
15.47
22.0
33.32
20.08
31.73
18.76
30.14
17.43
28.55
16.12
26.96
14.81
25.05
13.23
23.0
34.58
19.16
32.85
17.57
31.11
16.01
29.38
14.44
27.65
12.86
25.56
10.99
24.0
35.84
18.23
33.96
16.40
32.09
14.58
30.21
12.75
28.33
10.92
26.08
8.75
30.0
20.0
31.81
25.08
30.50
24.27
29.20
23.47
27.89
22.67
26.59
21.86
25.02
20.90
21.0
33.07
24.11
31.62
23.04
30.17
21.97
28.72
20.91
27.27
19.84
25.53
18.56
22.0
34.32
23.14
32.73
21.81
31.14
20.48
29.55
19.15
27.96
17.82
26.05
16.22
23.0
35.58
22.17
33.85
20.58
32.11
18.98
30.38
17.39
28.65
15.80
26.56
13.89
24.0
36.84
21.20
34.96
19.35
33.09
17.49
31.21
15.64
29.33
13.78
27.08
11.55
Notes:
1. DB = Dry Bulb Temperature (°C), WB = Wet Bulb Temperature (°C)
2. TC = Total Capacity (kW)
3. SC = Sensible Capacity (kW)

MCAC-UTSM-201406 Midea R410AFull DC Inverter Split Type Series Technical Manual
14
Heat pump mode:
Indoor
temperature
Outdoor temperature (DB °C)
-2.0
0.0
2.0
4.0
6.0
12.0
15.0
18.0
DB (°C)
TC
SC
TC
SC
TC
SC
TC
SC
TC
SC
TC
SC
TC
SC
TC
SC
15.0
20.99
20.99
22.40
22.40
23.79
23.79
25.20
25.20
26.61
26.61
30.83
30.83
32.95
32.95
35.06
35.06
17.0
20.97
20.97
22.37
22.37
23.76
23.76
25.17
25.17
26.58
26.58
30.12
30.12
32.20
32.20
34.27
34.27
19.0
20.93
20.93
22.34
22.34
23.73
23.73
25.13
25.13
26.54
26.54
29.41
29.41
31.44
31.44
33.47
33.47
21.0
20.51
20.51
21.89
21.89
23.24
23.24
24.62
24.62
26.00
26.00
28.70
28.70
30.69
30.69
32.68
32.68
23.0
19.67
19.67
20.99
20.99
22.30
22.30
23.62
23.62
24.94
24.94
27.99
27.99
29.93
29.93
31.88
31.88
25.0
18.84
18.84
20.11
20.11
21.36
21.36
22.62
22.62
23.89
23.89
27.27
27.27
29.18
29.18
31.08
31.08
27.0
18.01
18.01
19.22
19.22
20.41
20.41
21.62
21.62
22.83
22.83
26.56
26.56
28.43
28.43
30.29
30.29
Notes:
1. DB = Dry Bulb Temperature (°C)
2. TC = Total Capacity (kW)
3. SC = Sensible Capacity (kW)

Midea R410AFull DC Inverter Split Type Series Technical Manual MCAC-UTSM-201406
15
8. Static Pressure Curve
9. Electric Characteristics
Model
Indoor Unit
Power Supply
IFM
Hz
Voltage
Min.
Max.
MCA
MFA
kW
FLA
MHC-96HWD1N1
50
220-240V
198V
254V
6.375
16
0.75
5.1
Note:
MCA: Min. Current Amps. (A)
MFA: Max. Fuse Amps. (A)
IFM: Indoor Fan Motor
kW: Fan Motor Rated Output (kW)
FLA: Full Load Amps. (A)

MCAC-UTSM-201406 Midea R410AFull DC Inverter Split Type Series Technical Manual
16

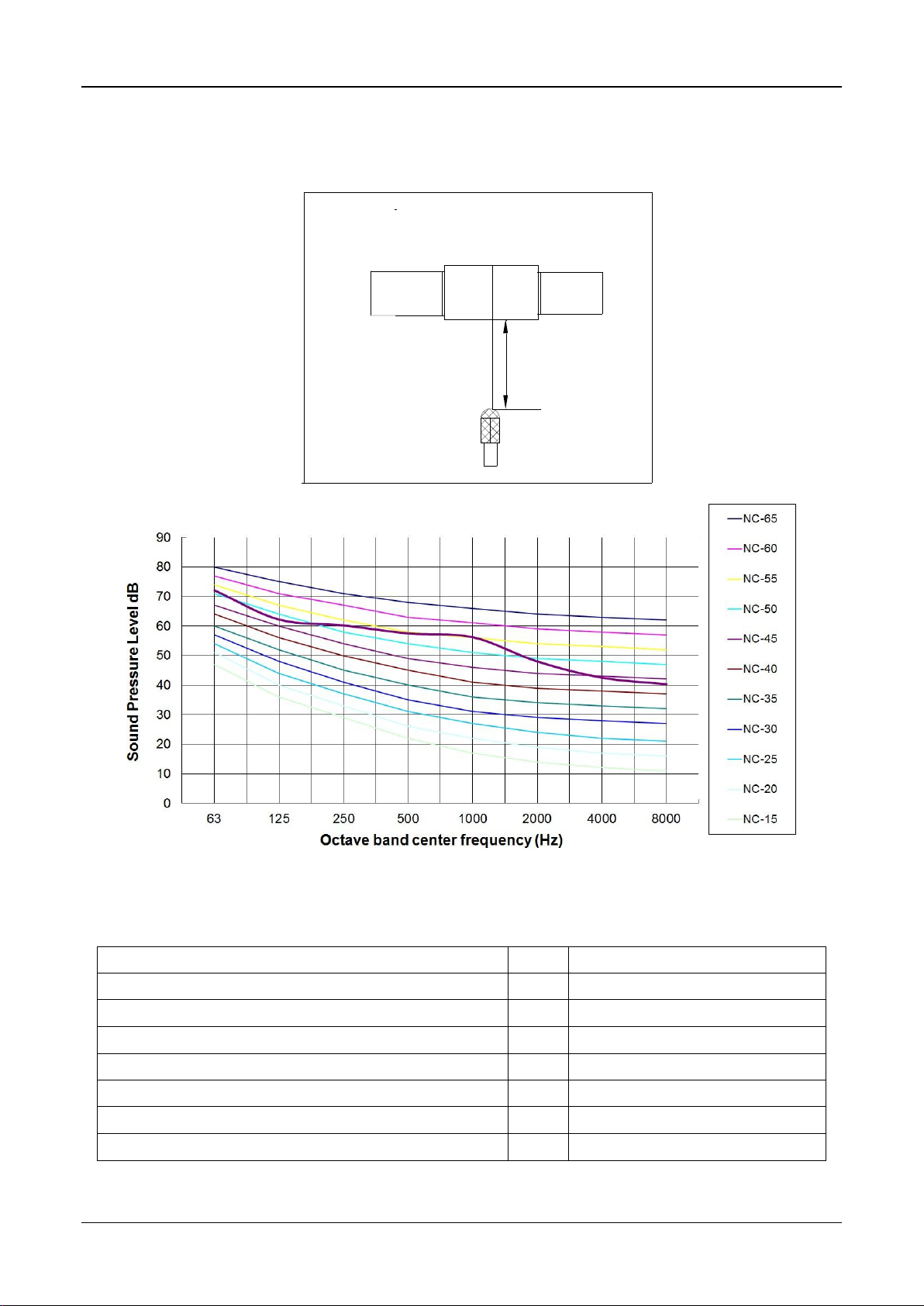

10.Sound Levels
Concealed Duct Type
Suction
Discharge
Microphone
1.4m
Duct
11. Accessories
Name
Qty.
Purpose
Owner’ manual
1
Installation manual
1
Restriction assembly
1
Connect to system
Water connective pipe
1
Connect to water drainage pipe
Protective sleeve for refrigerant inlet and outlet pipes
2
Wired controller
1
Copper nut
1
Connect to liquid-side pipe

Midea R410AFull DC Inverter Split Type Series Technical Manual MCAC-UTSM-201406
17
Part. 3 Outdoor Unit
1. Specifications....................................................................18
2. Dimension .........................................................................19
3. Service Space ...................................................................19
4. Wiring Diagrams................................................................20
5. Electric Characteristics......................................................21
6. Sound Levels.....................................................................21

MCAC-UTSM-201406 Midea R410AFull DC Inverter Split Type Series Technical Manual
18
1. Specifications
Model
MOVG-96HD1N1-R
Power supply
\
380-415V~, 3Ph, 50Hz
Ambient temp in cooling
°C
15～48
Ambient temp in heating
°C
-15~24
Rated input (Whole units)
W
9,250
Rated current (Whole units)
A
16
Noise level
dB(A)
66
Compressor
Type ×Qty.
\
Inverter scroll ×1
Brand
\
Hitachi
Model
\
E705DHD-72D2YG
Capacity
W
23,250 (@ 60rps)
Input
W
7,150 (@60rps)
Refrigerant oil
ml
500 (FVC68D)
Refrigerant
Type/Charge
\
R410A/10,000g
Fan
Type ×Qty.
\
Axial fan ×1
Motor model
\
WZDK750-38G-7
Brand
\
Panasonic
Motor speed
rpm
730
Coil
Type
\
Copper tube and aluminum fin
Tube size
mm
Ф7
No. of rows
\
3
Fin space
mm
1.5
Tube pitch(a)×row pitch(b)
mm
21×13.37
Coil (W×H)
mm
2,800×798
Number of circuits
\
18
Refrigerant
pipe
Liquid side/ Gas side
mm
Ф12.7/Ф28.6
Max. pipe length
m
50
Max. difference in level
m
30(Outdoor unit down), 25(Outdoor unit up)
Connection
wire
Power wire (Outdoor unit)
\
5×6.0mm2
Signal wire
\
3×0.75mm2
Dimension (W×H×D)
mm
948×1,585×968
Packing (W×H×D)
mm
1,010×1,705×1,000
Net/ Gross weight
kg
231/256
Notes:
Nominal cooling capacities are based on the following conditions: Indoor temp: 27°CDB, 19°CWB; Outdoor
temp: 35°CDB; Nominal heating capacities are based on the following conditions: Indoor temp: 20°CDB;
Outdoor temp: 7°CDB, 6°CWB; Equivalent ref. piping: 7.5m (horizontal).

Midea R410AFull DC Inverter Split Type Series Technical Manual MCAC-UTSM-201406
19

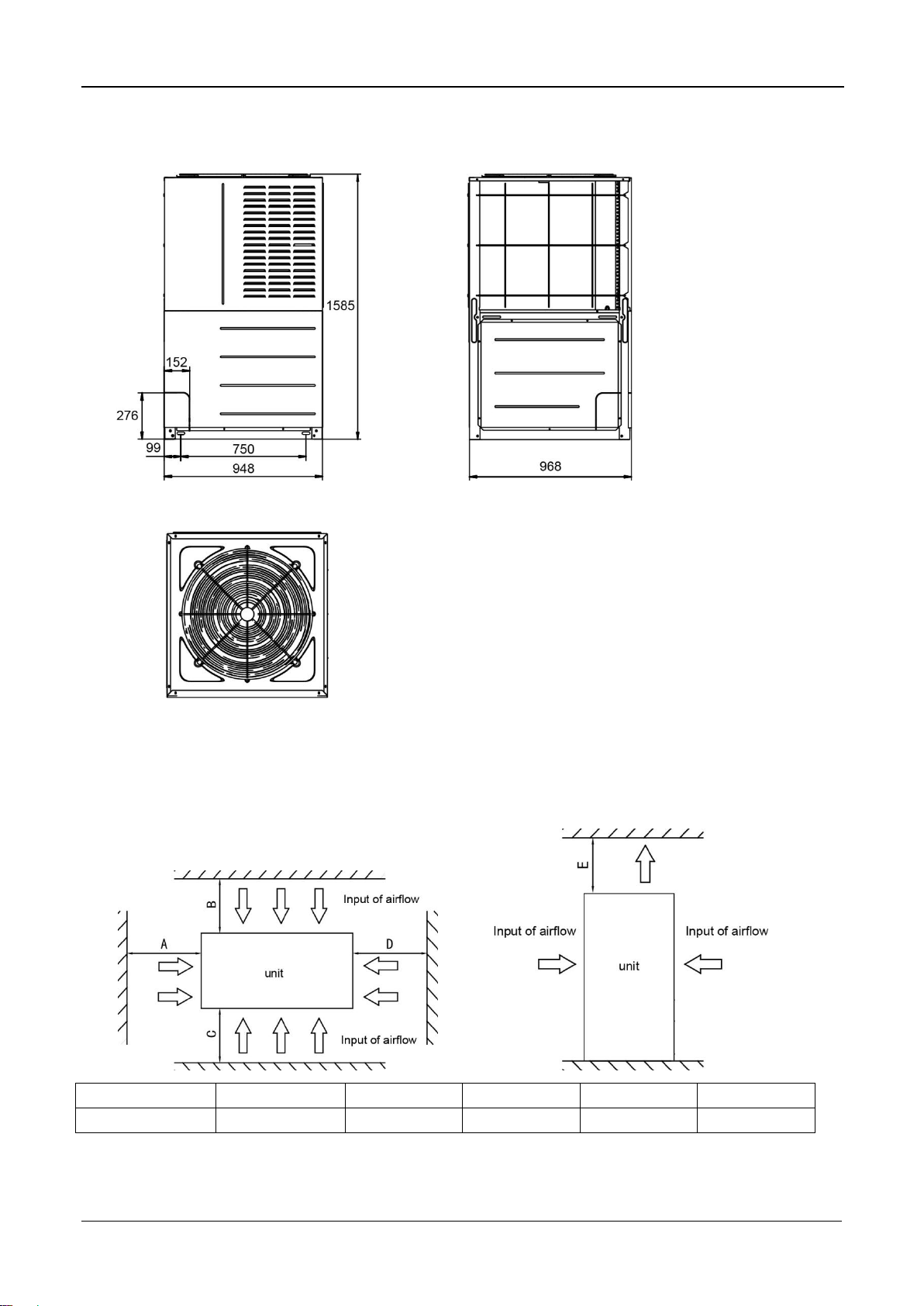

2. Dimension
Front view Left view
(Unit: mm)
Top view
3. Service Space
A
B
C
D
E
Installation space
≥1,500mm
≥2,000mm
≥2,000mm
≥1,500mm
≥8,000mm
