Midea M24DBF6501SS User manual

M24DBF6501SS
M24DBF6501BB
M24DBF6501WW
24inch tall tub Dishwasher

Table of Contents
Important Safety Instructions--------------------2
Features of your new dishwasher 3 4------------- -
Operating Instructions-------------------------- -5 7
Preparing and loading dishes 8 12---------------- -
Care & cleaning--------------------------------- -13 15
Troubleshooting----------------------------- -16 17
1

Important safety instruction
WARNING
For your safety, the information in this manual must be followed to
minimize the risk of fire explosion or electric shock, and to prevent
property damage and personal injury.
Proper installation
Please install your dishwasher properly follow the installation guide.
Water supply temperature should be 120°F to 140°F.
Dispose of the discarded appliance and packing material properly.
The dishwasher must be grounded, or it can result in a risk of electric shock.
If there is any damage the dishwasher, please contact to your dealer, Do not attempt to
repair or replace any part by yourself .
Basic precaution before use
Read all instructions before using the dishwasher.
The manual does not cover every possible
condition and situation that may occur .
Use the dishwasher only for intended function as
described in this manual.
When loading items to be washed:
-Load sharp items and knives so that they are not
likely to damage the door seal and tub.
-Load sharp items and knives with the handles up to
reduce the risk of injury.
Do not wash plastic items unless marked
“dishwasher safe” or the equivalent if not marked,
check with manufacture for recommendation, items
that are not dishwasher safe may melt and create a
potential fire hazard.
If the dishwasher drains into a food disposer,
make sure disposer is completely empty
before
running the dishwasher .
Do not operate your dishwasher unless all
enclosure panels are in the properly place.
Do not touch the heating element during or
immediately
after use, especially if the sanitize option
has
been selected.
Do not let children abuse, sit or stand on door or
racks of a dishwasher.
Under certain conditions, hydrogen gas may be
produced in a hot water system that has not been
used for two weeks or more. Hydrogen gas is
explosive. If the hot water system has not been used
for such a period, before using dishwasher, turn on all
hot water faucets and let water flow from each for
several minutes. This will release any accumulated
hydrogen gas. Hydrogen gas is flammable. Do not
smoke or use an open flame during this time.
Do not store or use combustible materials, gasoline
or other flammable vapors and liquids in the vicinity
of this or any other appliance.
Use only detergents or rinse agents recommended
for use in a dishwasher and keep them out of the
reach of children.
Keep young children and infants away from the
dishwasher when it is operating.
Do not use the dishwasher if it has a damaged
power line or plug, and do not plug the dishwasher
into a damaged outlet to observe these
instructions may result in electrical shock.
Remove the door to the washing compartment when
removing
an old dishwasher from service or discarding
it.
2
,
ing
to
r
the
Failure .

Features of your new dishwasher
Specification
Capacity
Dimension
Weight
Power Supply
Rated power usage
Water Feed Pressure
14 place settings
606 x 650 x 85 mm (W x D x H)
unpacked ( )
120volts 60Hz,
Wash motor Heater 840W
20
~
120 psi (138
~
828kPa)
3
7
99lb 45kg
50W
Top Spray Arm
Upper Spray Arm
Heating Element
Bottom Rack
Detergent Dispenser
Rinse Aid Dispenser
Tub Gasket
Cup Shelf
Adjustable Upper Rack
Silverware Basket
1
2
3
4
5
6
7
8
9
10
11
1
3
6
5
7
8
9
10
11
4
2
Lower Spray Arm

Features of your new dishwasher
Features

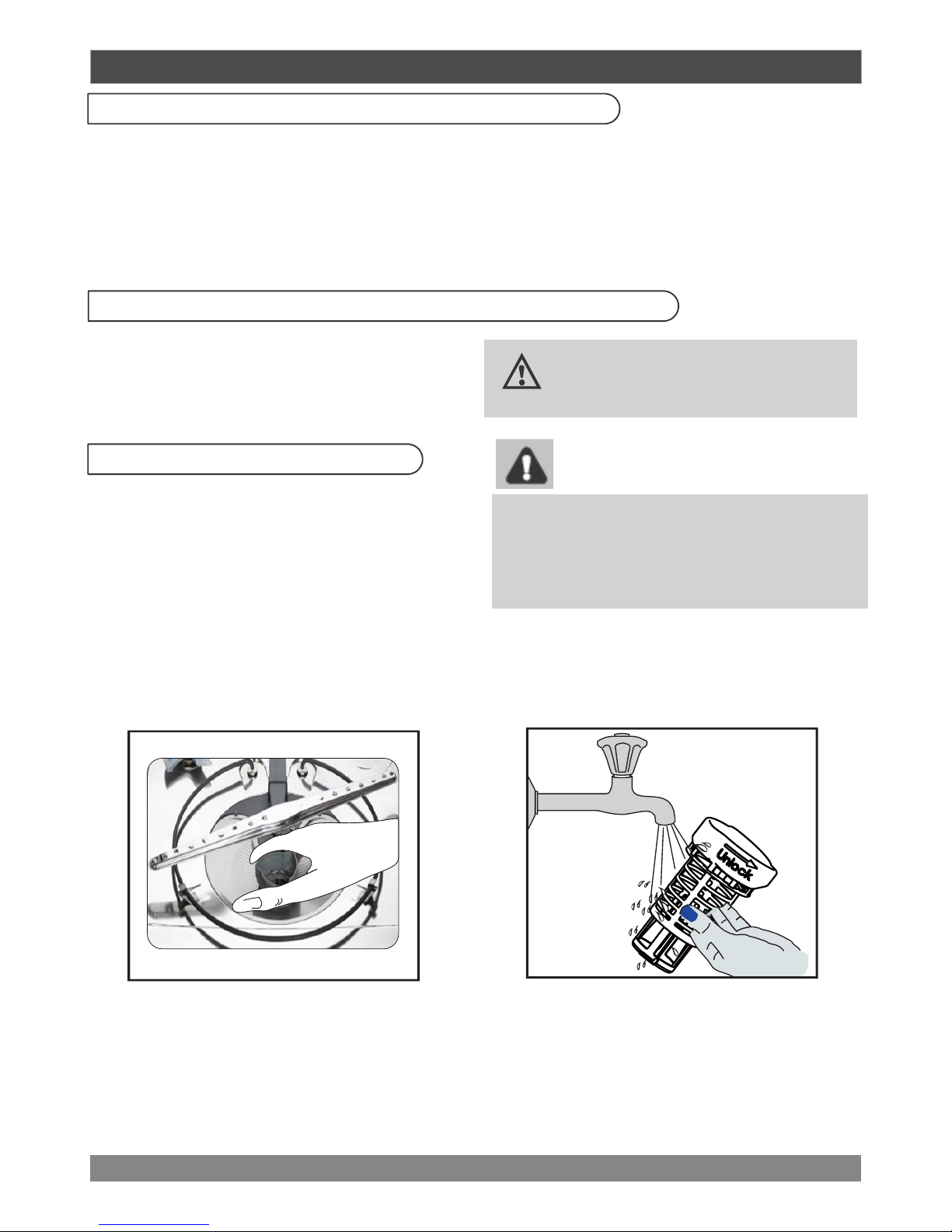

Filter System
Your dishwasher has a multiple Filter System. In the
System there are four filter-meshes .It can separate
soiled water and clean water in different chambers.
The multiple filter system helps your dishwasher to get
better performance with less water and less energy .
Adjustable Upper Rack
The Upper Rack can be raised or lowered to
accommodate loading taller dishes in either rack. The
Upper Rack clearance height H1 goes from 8" to 10".
The Bottom Rack clearance height H2 is 11” to 13”.
Smart Wash System
Your dishwasher has Smart Wash System. When a
partial load of lightly soiled dishes is placed in the
unit, a wash cycle similar to a short wash will
automatically be performed. When a full load of
heavily soiled dishes is placed in the unit, a heavy
wash cycle will automatically be performed. It can
determine the type of cycle required to clean the
dishes and will clean more efficiently every time.
4

Operating dishwasher
Wash Cycle Selections
6
Rinse wash
This cycle is for all items. It can determine the
condition of soil on the dishes and initiate the
optimal
cycle to obtain the best cleaning
performance.
1
Heavy wash
This cycle is for hard-to-clean, heavily soiled
dishes, pots, pans and dishes.
2
Normal wash
This cycle is for regularly soiled dinner dishes or
silverware.
3
Light wash
This cycle is for lightly soiled and pre-rinsed
dishes and silverware.
4
Eco
5
G lass
This cycle is for pre-rinsing dishes or glasses.
This is only a rinse that keeps food from drying
on your dishes and reduces odor buildup in your
dishwasher until you are ready to wash a full
load.
Do not use
detergent.
Obput the options:
Heated Dry
This option is available on all cycles except rinse only.
The Heated Dry option in combination with rinse aid
will enhance drying performance. You can turn off by
pressing Heated Dry so that the light goes off
during the period of the washing.
8
Hi-Temp Wash
This option can increase the water temperature in
the main wash and rinse. This increase in water
temperature helps the dishwasher detergent remove
food, grease
and soil from dishes more effectively .
The option is available in Auto Wash, Pots&Wash
and
Normal Wash.
Sanitize
To
sanitize your dishes and glassware, select the
Sanitize option. When selected, the light above the
pad will turn on and remain on until end of cycle. The
water
temperature in the final rinse will be raised. The
option is available in Auto Wash, Pots&Wash and
Normal Wash.
This cycle is for lightiy dishes or glasses.
1
PRO
With the dishwasher door close, you can press
the PRO button to select the wash cycle. A
light on the display will indicate which cycle
has been selected.
2
Options
When the wash cycle has been selected, you
can choose the option by pressing the "Options"
button.
5

Operating dishwasher
Delay Start
3
To delay the start of a selected cycle, press Delay Start
pad until the desired delay time shows in the LED
indicator it allows you to automatically start your
dishwasher for a 1 to 24 hour delay.
To cancel the Delay Start option and begin the cycle
before
the delay period is over press the Start/Cancel
pad.
5
You can lock all controls to prevent children from
accidently
changing the dishwasher cycle or
starting
the dishwasher.
Press and hold the Delay Start pad for 3
4
Start/Cancel
Seconds the lock graphic light will turn on.
To unlock the control press and hold the Heated
Push door firmly closed. The door latches automatically.
Select
the wash cycle and options desired, the indicator
light
above the pad will turn on. To start press the
Start/Cancel
key once, the light will glitter and the wash
action begins. To cancel when a cycle is running, press
Start/Cancel
pad once and the dishwasher will start a
60
second
drain and then shut off. At the end of the
drain, you can select the desired cycle.
When you want to load more dishes or pause the
dishwasher
while it is already running, make sure to
open
the
door slowly and carefully as there is a possibility of
injury
from the hot steam inside the dishwasher. You
can
add
more dishes before the main wash starts. Open the
door and check the detergent dispenser. If the main
wash
section of the detergent dispenser
is still closed, you
can
add items. If the door is opened while the dishwasher is
running, a safety mechanism is activated and stops the
cycle.
Dry pad for 3 seconds, the lock graphic light will
turn
off.
Indicator light
Sanitized
When "sanitize" option is selected, the temperature
Chlid Lock
of the water will reach a maximum of 70°C (158°F).
Clean
The clean light will turn on at the end of the cycle.
6

Operating dishwasher
Status Window
01 24-
If the Delay Start option is selected the number, of
delay start hours shows in the Status Window If. the
dishwasher is working and the wash cycle time is more
than a hour number, of hours and minutes left shows
alternately in the Status Window.
CL
Flashes once the program has been entered and the
Start Cancel/ key is pressed It. also flashes if the door is
opened during a wash cycle Close. the dishwasher
door to begin or continue a wash cycle.
MINUTES
Number of minutes left in a cycle (0-59 or 1H 2H)
- .
It shows hours and minutes alternately.
NOTE
The time remaining could suddenly increase
or drop several minutes This. means the
Smart Sensor has checked the soil level and
determined
if additional water fills are needed
or if water fills can be deleted.
Error indication
In certain situations which are critical to the
machines function and safe operation, the
control shall shut down and indicate an error
code Er (See Error Codes on page 18).
If Er codes are displayed contact, the dealer or
servicer They. will be able to provide assistance
in troubleshooting the problem and or locate an
authorized service technician if needed.
Cycle Chart
.
min
Runningtime(min)
PreWash
PreWash
Wash(48℃)
Rinse
Rinse
Rinse(58℃)
Drying
PreWash
Auto(42~48℃)
Rinse(50~58℃)
Drying
PreWash
Auto(42℃)
Rinse(58℃)
Drying
PreWash
PreWash
Wash(40℃)
Rinse
Rinse(50℃)
Drying
PreWash
PreWash
Wash(48℃)
Rinse
Rinse(58℃)
Drying
Rinse rinseonly 0 20 0.016 7.8
0.507 19.3
Light 0/9.9 100~120 0.477~0.542 11.4~18.9
Heavy 0/19.8 140 0.605 23
Normal 0/9.9 100~130 0.502~0.552 11.0~22.9
ECO 0/9.9 105 0.321 19.3
Glass 0/9.9 120
Program DescriptionofCycle Detergent(Prewash/Mainwash)(g) Water(L)Energy(kWh)
NOTE:
The NSF certified is Normal Cycle with the sanitize option selected.
The CU test is Normal Cycle with the hi temp option selected.
7

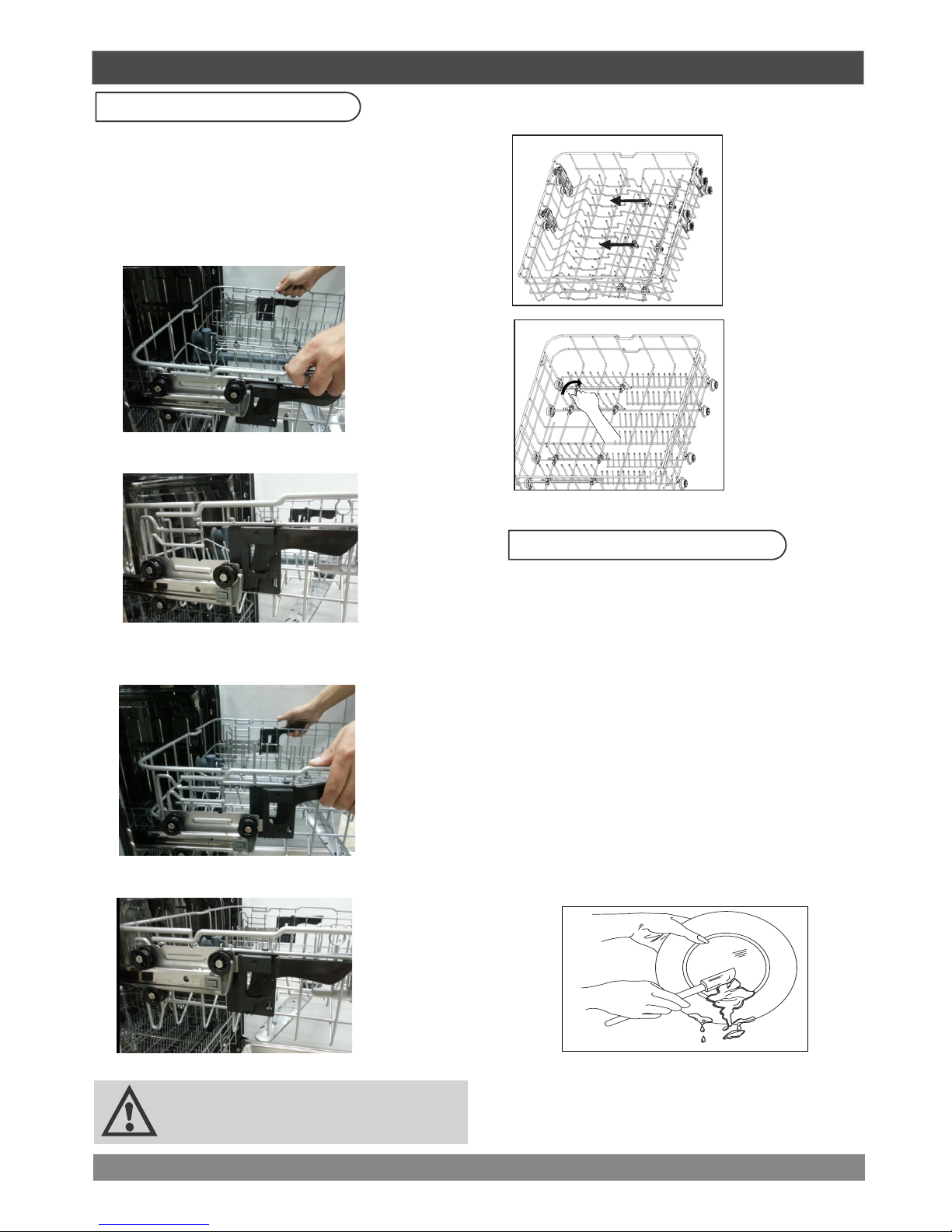

Adjustable Upper Rack
Note:
Height should be adjusted without dishes in the racks.
Dish Preparation
Scrape away large pieces of food, bones, pits,
toothpicks, etc. The continuous filtered wash system
will remove the remaining food particles. Burned-on
foods should be loosened before loading. Empty liquids
from glasses and cups.
Foods such as mustard, mayonnaise, vinegar, lemon
juice and tomato based products may cause
discoloration of stainless steel and plastics if allowed to
sit for a long period of time. Unless the dishwasher
is to be opertated at once it is best to rinse off these
food soils.
If the dishwasher drains into a food disposer, be sure
disposer is completely empty before starting
dishwasher.
Upper Rack
LowerRack
8
1. Lift the rack for upper postion
2. Up press the handle to lower the rack
The upper rack in the upper postion
The upper rack in the lower postion
The upper rack height can be easily adjusted to
accommodate loading taller dishes in either rack.
To accommodate taller dishes in the bottom rack, there
are 2 positions available:

Loading the Upper Rack
The upper rack is designed for cups, glasses, small
plates, bowls and plastic items marked “dishwasher
safe” etc.
For best results, place the bowls, cups, glasses, sauce
pans with soiled surface facing down or toward the
center. Tilt slightly for better drainage.
Make sure the loaded dishes do not
interfere with the rotation of the middle
spray arm, which is located at the bottom
of the upper rack. (Check this by rotating
the middle spray arm by hand.)
Loading the Bottom Rack
The bottom rack is designed to load plates, soup bowls,
plates, saucers and cookware. The adjustable rack
space will allow you to load maximum 13 inch items.
Large items should be placed along the edge
so they do not interfere with the middle spray
arm rotation, and make sure they not prevent
the detergent dispenser from opening.
Large items should be turned so that the
inside faces downward, and make sure these
items do not interfere with the lower spray
arm rotation.
The fold-down tines in the bottom rack make it easy to
load those extra large and hard-to-fit items. The tines
may be left up for normal use or folded down for more
flexible loading. Fold down for more space to load large
pots or pans.

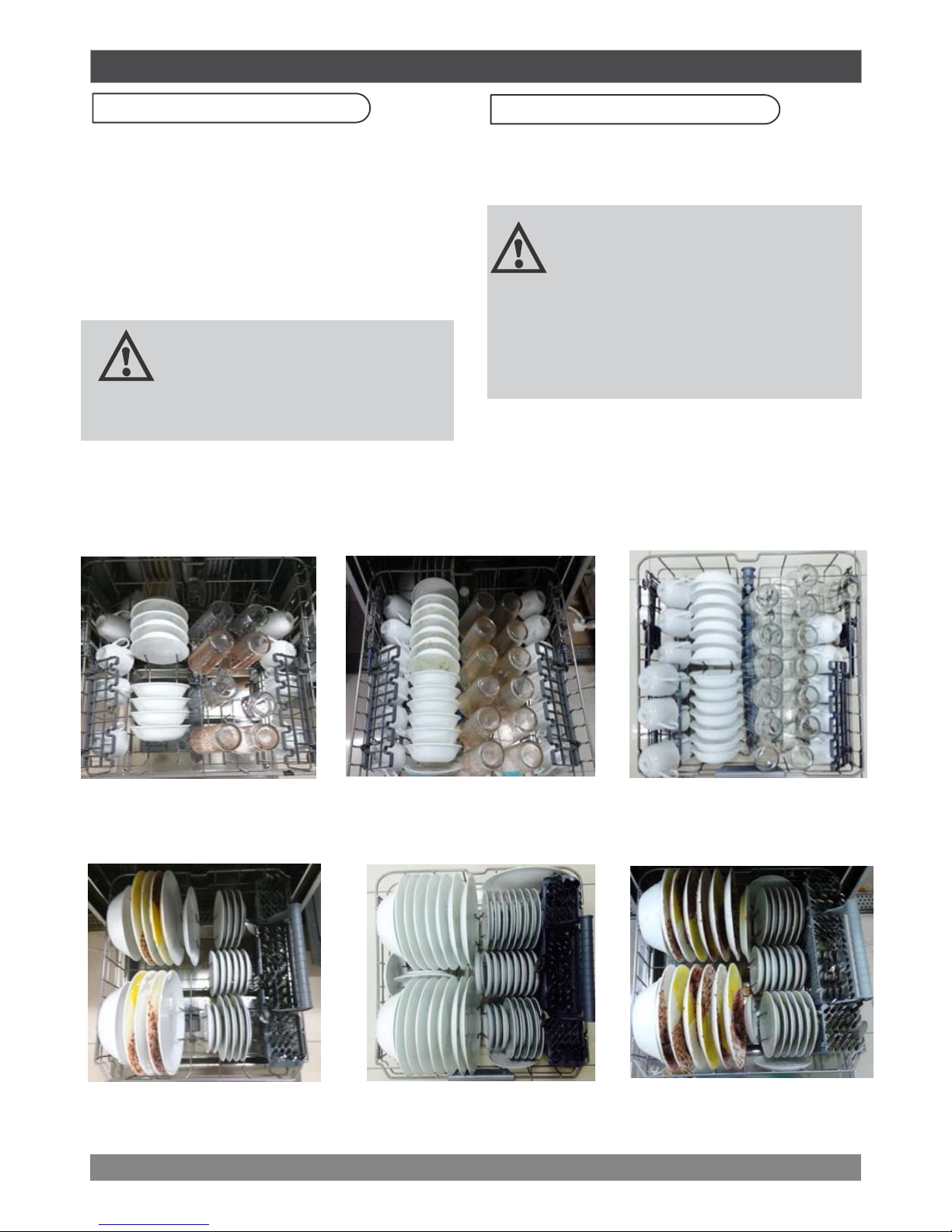

Upper Rack place settings
Upper Rack 12 place settings
Bottom Rack place settings
Bottom Rack 12 place settings
Upper Rack 14 place settings
Bottom Rack 14 place settings
9
8
8
