Midea AW925EBL-S00E User manual

PN: 261800312
AW925EBL-S00E
602

Model:
Rated Voltage:
Rated Input Power(Microwave):
Rated Output Power(Microwave):
Oven Capacity:
Turntable Diameter:
External Dimensions:
Net Weight:
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY
(a) Do not attempt to operate this oven with the door open since this can
result in harmful exposure to microwave energy. It is important not to
break or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow
soil or cleaner residue to accumulate on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the oven must not
be operated until it has been repaired by a competent person.
Specifications
Rated Input Power(Grill):
Rated Input Power(Convection):
AW925EBL
230V~50Hz
1500W
900W
25 L
315mm
1400W
2400W
If the apparatus is not maintained in a good state of cleanliness, its surface could
be degraded and affect the lifespan of the apparatus and lead to a dangerous
situation.
ADDENDUM
2
Approx 1 g
512mmX461mmX306.5mm
6.3k
-S00E

IMPORTANT SAFETY INSTRUCTIONS
WARNING To reduce the risk of fire, electric shock, injury to persons
or exposure to excessive microwave oven energy when
using your appliance, follow basic precautions, including
the following:
1. Warning: Liquids and other foods must
not be heated in sealed containers since
they are liable to explode.
2. Warning: It is hazardous for anyone other
than a competent person to carry out any
service or repair operation that involves
the removal of a cover which gives
protection against exposure to microwave
energy.
3. This appliance can be used by children
aged from 8 years and above and persons
with reduced physical, sensory or mental
capabilities or lack of experience and
4. Keep the appliance and its cord out of
5. Only use utensils suitable for use in
microwave ovens.
6. The oven should be cleaned regularly and
any food deposits should be removed.
7. Read and follow the specific:"PRECAU-
TIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY".
8. When heating food in plastic or paper
containers, keep an eye on the oven due
to the possibility of ignition.
9. If smoke is emitted, switch off or unplug
the appliance and keep the door closed
in order to stifle any flames.
10. Do not overcook food.
11. Do not use the oven cavity for storage
purposes. Do not store items, such as
bread, cookies, etc. inside the oven.
12. Remove wire twist-ties and metal handles
from paper or plastic containers/bags
before placing them in the oven.
13. Install or locate this oven only in
accordance with the installation
instructions provided.
14. Eggs in the shell and whole hard-boiled
eggs should not be heated in microwave
ovens since they may explode, even
after microwave heating has ended.
15.This appliance is intended to be used in
household and similar applications such
as:
-staff kitchen areas in shops, offices and
other working environments;
-by clients in hotels, motels and other
residential type environments;
-farm houses;
-bed and breakfast type environments.
16. If the supply cord is damaged, it must
be replaced by the manufacturer, its
service agent or similarly qualified
persons in order to avoid a hazard.
17. Do not store or use this appliance
outdoors.
18. Do not use this oven near water, in a
wet basement or near a swimming
pool.
19. The temperature of accessible surfaces
may be high when the appliance is
operating. The surfaces are liable to get
hot during use. Keep cord away from
heated surface, and do not cover any
events on the oven.
20. Do not let cord hang over edge of table
or counter.
21. Failure to maintain the oven in a clean
condition could lead to deterioration
of the surface that could adversely
affect the life of the appliance and
possibly result in a hazardous situation.
22. The contents of feeding bottles and
baby food jars shall be stirred or shaken
and the temperature checked before
consumption, in order to avoid burns.
knowledge if they have been given
supervision or instruction concerning use
of the appliance in a safe way and
understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall
not be made by children unless they are
older than 8 and supervised.
reach of children less than 8 years.
3

33.The rear surface of appliance shall be placed against a wall.
34.The microwave oven shall not be placed in a cabinet unless it has been tested in a cabinet.
READ CAREFULLY AND KEEP FOR FUTURE
REFERENCE
23. Microwave heating of beverages can result in delayed eruptive boiling, therefore
care must be taken when handling the container.
24.The appliance is not intended for use by persons (including children) with reduced
physical , sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the appliance
by a person responsible for their safety.
25.Children should be supervised to ensure that they do not play with the appliance.
26.The appliances are not intended to be operated by means of an external timer or
separate remote-control system.
27. Accessible parts may become hot during use. Young children should be kept away.
28.Steam cleaner is not to be used.
29 During use the appliance becomes hot. Care should be taken to avoid touching heating
elements inside the oven.
30. Only use the temperature probe recommended for this oven.(for ovens provided with a
facility to use a temperature-sensing probe.)
31. WARNING: The appliance and its accessible parts become hot during use.Care should
be taken to avoid touching heating elements. Children less than 8 years of age shall be
kept away unless continuously supervised.
32. The microwave oven must be operated with the decorative door open.(for ovens with a
decorative door.)
4

5
DANGER
Electric Shock Hazard
Touching some of the interna components
can cause serious personal injury or death.
Do not disassemble this appliance.
WARNING
Electric Shock Hazard
Improper use of the grounding can result in
electric shock. Do not plug into an outlet until
appliance is properly installed and grounded.
To Reduce the Risk of Injury to Persons
Grounding Installation
CLEANING
Be sure to unplug the appliance from the
power supply.
1. Clean the cavity of the oven after using
with a slightly damp cloth.
2. Clean the accessories in the usual way
in soapy water.
3. The door frame and seal and
neighbouring parts must be cleaned
carefully with a damp cloth when they
are dirty.
1. A short power-supply cord is provided
to reduce the risks resulting from becoming
entangled in or tripping over a longer cord.
2. If a long cord set or extension cord is
used:
1)The marked electrical rating of the cord
set or extension cord should be at least as
great as the electrical rating of the appliance.
This appliance must be grounded. In the
event of an electrical short circuit,
grounding reduces the risk of electric
shock by providing an escape wire for
the electric current. This appliance is
equipped with a cord having a grounding
wire with a grounding plug. The plug must
be plugged into an outlet that is properly
installed and grounded.
Consult a qualified electrician or
serviceman if the grounding instructions
are not completely understood or if doubt
exists as to whether the appliance is
properly grounded. If it is necessary to
use an extension cord , use only a 3-wire
extension cord.
2)The extension cord must be a grounding-
type 3-wire cord.
3)The long cord should be arranged so that
it will not drape over the counter top or
tabletop where it can be pulled on by
children or tripped over unintentionally.
4. Do not use harsh abrasive cleaners
or sharp metal scrapers to clean the
oven door glass since they can
scratch the surface, which may
result in shattering of the glass.
5. Cleaning Tip---For easier cleaning of the
cavity walls that the food cooked can
touch:
Place half a lemon in a bowl, add 300ml
(1/2 pint) water and heat on 100%
microwave power for 10 minutes.
Wipe the oven clean using a soft, dry cloth.

CAUTION
Personal Injury Hazard
It is hazardous for anyone
other than a compentent person
to carry out any service or repair
operation that involves the removal
of a cover which gives protection
against exposure to microwave
energy.
Utensil Test:
1. Fill a microwave-safe container with 1 cup of cold
water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is
warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.
Materials you can use in microwave oven
Utensils Remarks
Aluminum foil Shielding only. Small smooth pieces can be used to cover thin parts of
meat or poultry to prevent overcooking. Arcing can occur if foil is too
close to oven walls. The foil should be at least 1 inch (2.5cm) away from
oven walls.
Follow manufacturer’s instructions. The bottom of browning dish must be
at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause
the turntable to break.
Microwave-safe only. Follow manufacturer's instructions. Do not use
cracked or chipped dishes.
Always remove lid. Use only to heat food until just warm. Most glass jars
are not heat resistant and may break.
Heat-resistant oven glassware only. Make sure there is no metallic trim.
Do not use cracked or chipped dishes.
Follow manufacturer’s instructions. Do not close with metal tie. Make
slits to allow steam to escape.
Use for short–term cooking/warming only. Do not leave oven unattended
while cooking.
Use to cover food for reheating and absorbing fat. Use with supervision
for a short-term cooking only.
Use as a cover to prevent splattering or a wrap for steaming.
Microwave-safe only. Follow the manufacturer’s instructions. Should be
labeled "Microwave Safe". Some plastic containers soften, as the food
inside gets hot. "Boiling bags" and tightly closed plastic bags should be
slit, pierced or vented as directed by package.
Microwave-safe only. Use to cover food during cooking to retain
moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.
Browning dish
Glass jars
Glassware
UTENSILS See the instructions on "Materials you can use in
microwave oven or to be avoided in microwave oven."
There may be certain non-metallic utensils that are not
safe to use for microwaving. If in doubt, you can test the
utensil in question following the procedure below.
Oven cooking
bags
Paper plates
and cups
Paper towels
Parchment
paper
Plastic
Plastic wrap
Dinnerware
6

A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system
Materials to be avoided in microwave oven
Utensils Remarks
Aluminum tray
Food carton with
metal handle
Metal or metal-
trimmed utensils
Metal twist ties
Paper bags
Plastic foam
Wood
F
G
A
C B
ED
SETTING UP YOUR OVEN

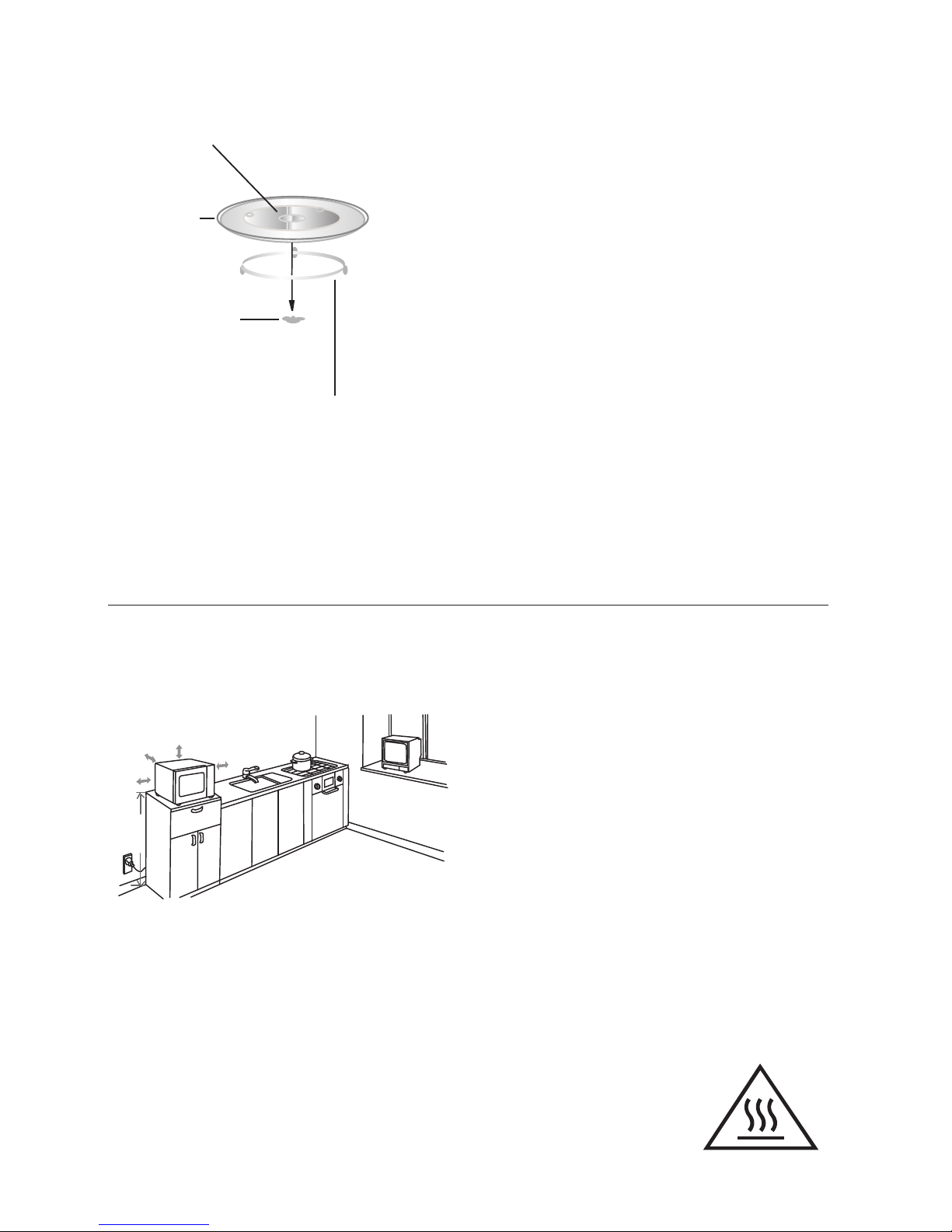

Names of Oven Parts and Accessories
Remove the oven and all materials from the carton and oven cavity.
Your oven comes with the following accessories:
Glass tray 1
Turntable ring assembly 1
Instruction Manual 1
Metal shields the food from microwave energy. Metal trim may
cause arcing.
May cause a fire in the oven.
Plastic foam may melt or contaminate the liquid inside when exposed
to high temperature.
Wood will dry out when used in the microwave oven and may split
or crack.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing and could cause a fire in the oven.
7
Grill Rack( Only be used in grill function
and be placed on the glass tray )

Remove all packing material and accessories.
Examine the oven for any damage such as
dents or broken door. Do not install if oven is
damaged.
Countertop Installation
Cabinet: Remove any protective film found
on the microwave oven cabinet surface.
Do not remove the light brown Mica cover
that is attached to the oven cavity to
protect the magnetron.
Installation
Select a level surface that provide
enough open space for the intake
and/or outlet vents.
(4) Blocking the intake and/or outlet openings
can damage the oven.
(5) Place the oven as far away from
radios and TV as possible.
Operation of microwave oven may
cause interference to your radio or TV
reception.
2. Plug your oven into a standard household
outlet. Be sure the voltage and the
frequency is the same as the voltage
and the frequency on the rating label.
WARNING: Do not install oven over a
range cooktop or other heat-producing
appliance. If installed near or over a heat
source, the oven could be damaged and
the warranty would be void.
Hub (underside)
Glass tray
Turntable ring assembly
a. Never place the glass tray upside down. The glass
tray should never be restricted.
b. Both glass tray and turntable ring assembly must
always be used during cooking.
c. All food and containers of food are always placed
on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks or
breaks, contact your nearest authorized service
center.
Turntable Installation
Turntable shaft
1.
The accessible surface
may be hot during
operation.
(2) The rear surface of appliance shall
be placed against a wall.
Leave a minimum clearance of
30cm above the oven, a minimum
clearance of 20cm is required
between the oven and any adjacent
walls.
(3) Do not remove the legs from the
bottom of the oven.
(1) The minimum installation height is
85cm.
20cm
30cm
20cm
min85cm
0cm
8

Press "Microwave " the LED will display "P100".Press " Microwave " for times
or turn " "to choose the power you want, and "P100", "P80" "P50", "P30" or
"P10" will display for each added press. Then press "START/+30SEC./CONFIRM " to
confirm, and turn " " to set cooking time. Press " START/+30SEC./CONFIRM "
again to start cooking.
3. Microwave Cooking
This microwave oven uses modern electronic control to adjust cooking parameters
to meet your needs better for cooking.
When the microwave oven is electrified,the oven will display "0:00", buzzer will ring
once.
2) Turn " " to adjust the hour figures, the input time should be within 0--23(24-hour).
3) Press " CLOCK/KITCHEN TIMER ", the minute figures will flash.
5) Press " CLOCK/KITCHEN TIMER" to finish clock setting. ":" will flash.
Note: 1) If the clock is not set, it would not function when powered.
2) During the process of clock setting, if you press " STOP/CLEAR ", the oven
will go back to the previous status automatically.
1) Press " CLOCK/KITCHEN TIMER " once. "00:00" displays.
OPERATION INSTRUCTION
4) Turn " " to adjust the minute figures, the input time should be within 0--59.
2. Kitchen Timer
(1) Press " CLOCK/KITCHEN TIMER "twice, LED will display 00:00.
(2) Turn " " to enter the correct timer.(The maximum cooking time is 95 minutes.)
(3) Press " START/+30SEC./CONFIRM " to confirm setting.
(4) When the kitchen time is reached, the buzzer will ring 5 times.
If the clock be set(24-hour system), LED will display the current time.
Note: The kitchen Time is differ from 24-hour system,Kitchen Timer is a timer.
1.Clock Setting
9

Example: If you want to use 80% microwave power to cook for 20 minutes, you can
operate the oven as the following steps.
4. Grill or Combi. Cooking
Press " Grill/Combi." the LED will display "G-1",and press "Grill/Combi. "for times
or turn the " " to choose the power you want, and "G-1","C-1", "C-2","C-3" or
"C-4" will display for each added press. Then press "Start/+30Sec./Confirm " to
confirm, and turn " " to set cooking time. Press "Start/+30Sec./Confirm"
again to start cooking.
Example: If you want to use grill power to cook for 10 minutes, you can operate the
oven as the following steps.
NOTE: the step quantities for the adjustment time of the coding switch are as follow:
0---1 min : 5 seconds
1---5 min : 10 seconds
5---10 min : 30 seconds
10---30 min : 1 minute
30---95 min : 5 minutes
Microwave Power Chart
Press
Microwave Power
Once Twice Thrice 4 times 5 times
80% 50% 30% 10%100%
1) Press " Microwave " once, the screen display "P100".
3) Press "Start/+30Sec./Confirm " to confirm, and the screen displays "P 80".
4) Turn " " to adjust the cooking time until the oven displays "20:00".
5) Press " Start/+30Sec./Confirm"to start cooking .
2) Press "Microwave " once again or turn" " to choose 80% microwave power.
1) Press " Grill/Combi. " once, the screen display "G-1".
2) Press " Start/+30Sec./Confirm " to confirm.
3) Turn " " to adjust the cooking time until the oven displays "10:00".
4) Press " Start/+30Sec./Confirm " to start cooking .
Note:If half the grill time passes, the oven sounds twice, and this is normal. In order
to have a better effect of grilling food, you should turn the food over,
close the door, and then press"START/ +30SEC./ Confirm" to continue cooking.
If no operation, the oven will continue working.
10

5. Convection Cooking(With preheating funtion)
6. Convection Cooking( Without pre-heating function)
1) Press the "CONVECTION " key once, "150" flash.
2) Keep pressing "CONVECTION" or turn " " to select the convection function.
3) Press the " START/+30SEC./CONFIRM " to confirm the temperature.
4) Press the " START/+30SEC./CONFIRM " to start preheating.When the
preheating temperature arrives, the buzzer will sound twice to remind you to
put the food into the oven. And the preheated temperature is displayed and flash.
5) Put the food into the oven and close the door.
Turn " " to adjust the cooking time. (The maximum setting time is 95 minutes.)
6) Press the " START/+30SEC./CONFIRM " key to start cooking.
1) Press the "CONVECTION " key once, "150" flash.
2) Keep pressing "CONVECTION" or turn " " to select the convection function.
3) Press the " START/+30SEC./CONFIRM " to confirm the temperature
4) Turn " " to adjust the cooking time. (The maximum setting time is 95 minutes.)
5) Press the " START/+30SEC./CONFIRM " key to start cooking.
The convection cooking can let you to cook the food as a traditional oven. Microwave is not
used. It is recommended that you should preheat the oven to the appropriate temperature
before placing the food in the oven.
Note:the temperature can be chosen from 150 degrees to 240 degrees.
Note: a. Cooking time cannot be input until the preheating temperature arrives.
If the temperature arrives, door must be opened to input the cooking time.
b. If the time not input in 5 minutes, the oven will stop preheating. The buzzer sound
five times and turn back to waiting states.
Note:the temperature can be chosen from 150 degrees to 240 degrees.
11

8. Speedy Cooking
7.Multi-Stage Cooking
Two stages can be maximumly set. If one stages is defrosting, it should be put in the first
stage. The buzzer will ring once after each stage and the next stage will begin.
Note: Auto menu and preheating cannot be set as one of the multi-stage.
9. Speedy Microwave Cooking
1) In waiting state, press "START/+30SEC./CONFIRM" key to cook with 100% power
level for 30 seconds. Each press on the same key can increase 30 seconds. The
maximum cooking time is 95 minutes.
2) During microwave,grill,convection and combination states, press
"START/+30SEC./CONFIRM" key to cook with 100% power level for 30 seconds.
Each press on the same key can increase 30 seconds.
In waiting state, turn " " left to choose cooking time directly then press
"START/+30SEC./CONFIRM" key to cook with 100% microwave power.
This program can be set as one of multi-stage.
Note: this function cannot work under weight defrost, mult-stage and auto
menu cooking.
Example: if you want to defrost the food for 5 minutes, then to cook with 80%
microwave power for 7 minutes. The steps are as following:
1) Press "W.T./TIME DEFROST " twice, the screen will display "d-2";
2) Turn " " to adjust the defrost time of 5 minutes;
3) Press"MICROWAVE" once;
4) Turn " " to choose 80% microwave power till "P80" display;
5) Press "START/+30SEC./CONFIRM" to confirm;
6) Turn " " to adjust the cooking time of 7 minutes;
7) Press "START/+30SEC./CONFIRM" to start cooking.
10. Auto Menu
1) In waiting state, turn " " right to choose the function wanted,
and "A001","A002","A003"...."A120" will be displayed.
2) Press "START/ +30 SEC./CONFIRM" to confirm the menu you need.
3) Turn " " to choose the weight of menu.
4) Press "START/ +30 SEC./CONFIRM" to start cooking.
12

12. Defrost by Time
11. Defrost by W.T.
13. Inquiring Function
(1) During cooking state, press "CLOCK/KITCHEN TIMER " to check the current time. It will be
displayed for 2-3 seconds.
14. Lock-out Function for Children
Lock: In waiting state, press "STOP/CLEAR" for 3 seconds, there will be a long "beep"
denoting entering into the children-lock state and " " indicator will light. LED will display
current time or 0:00.
Lock quitting: In locked state, press "STOP/CLEAR" for 3 seconds, there will be a long "beep"
denoting that the lock is released, and " " indicator will disapear.
1) Press " W.T./TIME DEFROST " key twice, the oven will display "d-2"
2) Turn " " to select the cooking time. The maximum setting time is 95 minutes.
3) Press " START/+30SEC./CONFIRM" key to start defrosting.
1) Press "W.T./TIME DEFROST " pad once,the oven will display "d-1",.
3) Press "START/+30SEC./CONFIRM" key to start defrosting.
2) Turn " " to select the weight of food.At the same time, "g" will lights,
The weight should be 100-2000g.
(2) In cooking state, press "MICROWAVE","GRILL/ COMBI."or " CONVECTION", the current
power will be displayed for 2-3 seconds.
15. Specification
(1) The buzzer will sound once when turning the knob at the beginning;
(2) "START/+30 SEC./CONFIRM" must be pressed to continue cooking if the door is opened
during cooking;
(3) Once the cooking programme has been set , "START/+30 SEC./CONFIRM" is not pressed
in 5 minutes. The current time will be displayed. The setting will be cancelled.
(4) The buzzer sounds once by efficient press, inefficient press will be no responce.
(5) The buzzer will sound five times to remind you when cooking is finished.
13

Menu weight display
menu_1
Main Course
A1
Pepper Chicken 400g 400
A2
Chilli
Chicken
400g 400
A3
Aloo Masala 200g 200
A4
Baigan Masala 300g 300
A5
Gobhi Masala 300g 300
A6
Bhindi Masala 300g 300
A7
Mutton Biryani 100g 100
A8
Onion Rice
200g 200
300g 300
A9
Dal 200g 200
A10
Sambar 200g 200
Auto menu Chart
14

A11
Muttor Paneer 300g 300
A12
Aloo Gobhi 300g 300
A13
Aloo Methi 300g 300
A14
Jeera Aloo
300g 300
A15
Karela Sabji 300g 300
A16
Masala Arvi 300g 300
A17
Masala Arbi
300g 300
A18
Chole 200g 200
A19
Rajma 200g 200
A20
Kadhi
100g 100
200g 200
300g 300
15
menu_1
Main Course

A21
Mutton curry
100g 100
200g 200
300g 300
400g 400
500g 500
A22
Spicychicken
Masala
100g 100
200g 200
300g 300
400g 400
500g 500
A23
Dosa Sabji 300g 300
A24 300g 300
Keema Masala
16
menu_1
Main Course

A25
BaiganBharta 500g 500
menu_2
Health Plus
A26
Sprouts
250g 250
A27
Chivda 250g 250
A28
Corn Chat 250g 250
A29
Lemon Chicken 400g 400
A30
Garlic Chicken
100g 100
200g 200
300g 300
400g 400
500g 500
A31
Grilled Chicken 200g 200
17
menu_1
Main Course

A32
Tandoori Fish 200g 200
A33
Muttontikka 500g 500
A34
Ghiya Raita 250g 250
menu_3
Continental
A35
Pasta 200g 200
A36
Macroni 300g 300
A37
Baked Macaroni
100g 100
200g 200
300g 300
A38
Grill Sandwich
1 1
2 2
4 4
A39
Cheese
Sandwich
1 1
2 2
4 4
18
menu_2
Health Plus

A
40
Chicken Club
Sandwich
1 1
2 2
4 4
A41
Stuffed
Sandwich
1 1
2 2
4 4
A42
Veg Pizza 1 1
A43
Chicken Pizz 1 1
A44
Cheese Pizza 1 1
A45
Onion
Capcicum Pizza 1 1
menu_4
Sweet
A46
Gajar Ka Halwa
100g 100
200g 200
300g 300
19
menu_3
Continental

A47
Ghiya Halwa
400g 400
500g 500
A48
Coconut Burfi
100g 100
200g 200
300g 300
A49
Khoya Burf
100g 100
200g 200
300g 300
A50
Kheer 100g 100
A51
Coconut Kheer 300g 300
A52
Suji Halwa 100g 100
20
menu_4
Sweet
