Midea HD-437S User manual

Showcase
HD-437S(N)

CONTENTS
DEAR CUSTOMER:
Thank you for buying this o ensure that you get the best results from your new ,
please take time to read through the simple instructions in this booklet. Please ensure that the packing
material is disposed of in accordance with the current environmental requirements.When disposing of
any equipment please contact your local waste disposal department for advice on safe
disposal. This appliance must be only used for its intended purpose.
show case. T
show case
show case
Safety warnings
Meaning of safety warning symbols···············
Electricity related warnings ··················
Related warnings for use ···················
Warnings related to placing items················
Warnings related to disposal··················
Proper use of show case
Names of components ····················
Prouduct features ······················4
Thermostat ·························
placement ·························
Start ····························
Maintenance of show case
Cleaning ··························
Defrost ···························
Stop using··························
Frequently asked questionst ·················
················Installation of universal wheels
1
2
2
3
3
4
5
5
5
6
6
6
7
8

Safety warnings
Meaning of safety warning symbols
Prohibition symbols
Warning symbols
Note symbols
The symbols indicate prohibited matters, and those
behaviors are forbidden. Non-compliance with the
instructions may result in product damages or endanger
the personal safety of users.
The symbols indicate matters that must be followed, and
those behaviors must be strictly executed in line with the
operation requirements. Non-compliance with the
instructions may result in product damages or endanger
the personal safety of users.
The symbols indicate matters to pay attention to, and
these behaviors shall be specially noted. Due
precautions are needed or minor or moderate injuries
or damages of the product will be caused.
This manual contains lots of important safety information which
shall be observed by the users.
CAUTION :
The appliance is not intended for use by young children or infirm persons without
supervision.
Young children should be supervised to ensure that they do not play with the
appliance.
GENERAL：
This type of is widely used in places such as hotels ,offices, student dormitories
and houses. It is mostly suitable for refrigerating and preserving foods such as fruits and
beverage. It enjoys the advantages of small size, Lightweight, Low electric consumption
and easy use.
show case
1

To ensure safety, it is not recommended that to place regulators,
rice cookers, microwave ovens and other appliances at the top of the
, those recommended by the manufacture are not included.
Do not use electrical appliances in the food pantry.
show case
Safety warnings
Electricity related warnings
Authorized demolition or renovation of the is not prohibited.
It is forbidden to damage the refrigerant lines and the repair and
maintenance of the must be carried out by professionals.
Damaged power cord must be replaced by the manufacturer, its
maintenance department or related professionals in order to avoid
danger.
show case
show case
The surrounding of the appliances around or the embedded structure
shall not be obstructed while good ventilation shall be maintained.
The gaps between doors and body are small,
be noted not to put your hand in these areas to prevent squeezing the
finger. Please be gentle when switching off the door to avoid
falling articles.
Do not pick foods or containers in the freezing chamber when the
is running, especially metal containers in order to avoid frostbite.
show case show case
show case
show
case
Do not pull the power cord when pulling the power plug of the
Please firmly grasp the plug and pull out it from
the socket directly.
Do not damage the power cord under any condition so as to
ensure safety use, do not use when the power cord is damaged
or the plug is worn.
Worn or damaged power cord shall be replaced in
manufacture-authorized maintenance stations.
show case.
Please use a dedicated three-hole power socket which is 10A
or more and the power socket shall not be shared with other
electrical appliances.
The power cord should be firmly contacted with the socket or else
fires might be caused. Please ensure that the grounding electrode
of the power socket is equipped with a reliable grounding line.
Related warnings for use
The adopts 115V/60Hz AC power, voltage fluctuations
over the range of 187~242V will cause malfunction or even damage,
so a 750 W automatic voltage regulator must be installed in concert
with the AC power.
Please turn off the valve of the leaking gas and then open the doors
and windows in case of leakage of gas and other flammable gases.
Do not unplug the and other electrical appliances
considering that spark may cause a fire.
show case
show case
2
10A

Do not allow children to enter or climb the to prevent that
children are sealed in the or children are injured by the
falling .
Do not spray or wash the ; do not put the in moist
places easy to be splashed with water so as not to affect the electrical
insulation properties of the .
show case
show case
show case
show case show case
show case
Do not place heavy objects on the top of the considering
that objectives may fall when switching the door, and accidental
injuries might be caused.
Please pull of the plug in case of power failure or cleaning. Do not
connect the to power supply within five minutes to prevent
damages to the compressor due to successive starts.
show case
show case
Do not put flammable, explosive, volatile and highly corrosive items
in the to prevent damages to the product or fire accidents.
Do not place flammable items near the to avoid fires.
show case
show case
Do not place items such as bottled or sealed container of fluid such
as bottled beers and beverages in the to prevent bursts
and other losses.
show case
This product is only suitable for the storage of foods.not be used for
other purposes, such as storage of blood, drugs or biological products.
Please remove the door of the and shelves which shall be properly placed to avoid accidents
of children entering and playing in the .
show case
show case
The ＇s refrigerant and cyclopentane foam materials are combustible materials and
discarded should be isolated from fire sources and can not be burned. Please transfer the
to qualified professional recycling companies for processing to avoid damages to the
environment or other hazards.
show case
show case
show case
Safety warnings
Warnings related to disposal
Warnings related to placing items
3

Proper use of show case
The low temperature of may keep food fresh for a long time and it is mainly used to store
frozen foods and making ice.
The is suitable for storage of meat, fish, shrimp, dumplings, rice balls and other foods not
to be consumed in short term.
Chunks of meat are preferably to be divided into small pieces for easy access.
Please be noted food shall be consumed within the shelf time.
show case
show case
Names of components
The features and accessories of the show case you bought may be not entirely
consistent with the legend, please refer to the packing list.
4
Product features
Reliable properties: the show case adopts branded efficient compressor which has excellent
performance and high reliability;
Unique design of case structure, attractive appearance and reliable durability;
Luxuriant single-layer sliding gate made of heat reflection coating armored glass, fully displaying
the design of large arc ;
Built-in hanging basket for placing articles, convenient to access;
Environmentally friendly refrigerant and cyclopentane environmentally friendly blowing
agents are used to promote environmental protection;
Glass door
Power cord
Shutter
control panel
universal wheel
Cabinet assembly
1
hanging basket
load limit line label
Lock

Placement
Proper use of show case
5

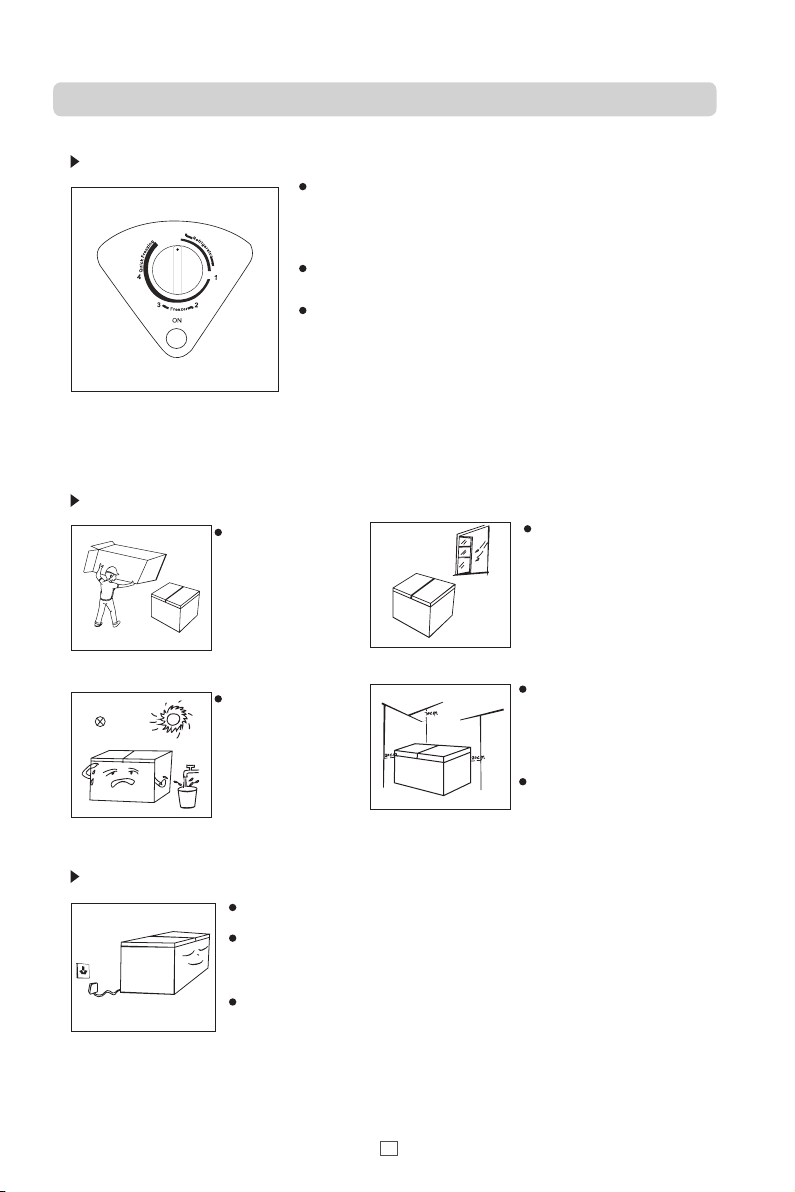

Thermostat
Connect the show case to power supply and“Power”indicator
（the green light）will shine.The temperature of the chamber is
adjusted through thermostat knob, Clockwisely rotate the
thermostat knob and the interior temperature will decrease.
“1-2-3-4-Quick freezing”stands for freezing. The number on
the thermostat knob does not mean a specific temperatures.
For refrigeration, temperature control knob should be set Refrigerator;
For freezing, the temperature control knob should be set Freezer;
For quick-frozen, the temperature control knob should be set to Quick
freezing.
The top space of the
shall be greater than 70cm, and
the distances from both sides
and backside shall be more than
20cm to facilitate the opening
and closing and heat dissipation.
Wipe the show case inside and
outside with warm moist rag
(add a small amount of detergent
in the warm water and wipe clean
finally with clean water).
show case
The show case is placed in a
well-ventilated indoor place;
the ground shall be flat, and
sturdy .
Before using the show
case, remove all
packaging materials
including bottom
cushions and foam
pads and tapes inside
the show case, tear off
the protective film on
the door and the show
case body.
Keep away from heat
and avoid direct
sunlight. Do not place
the show case in
moist or watery places
to prevent rust or
reduction of insulating
effect.
Start
The show case shall stay for half an hour before connecting
220V/50HZ power when it is firstly started.
The show case shall run 2 to 3 hours before loading fresh or
frozen foods; the show case shall run for more than 4 hours in
summer in advance considering that the ambient
temperature is high.
Dairy (like ice cream) should be stored near to the bottom of
the freezer as soon as possible, so as to increase the taste
of the frozen dairy products.

Maintenance of show case
Cleaning
show case shall be manually defrosted.
Unplug the show case and open the show case door, remove foods and drawers before defrosting;
Open the outflow holes and drainage holes (and place water container at the outflow holes);
indoor frost will naturally melt, wipe the defrost water with a dry, soft cloth. When the frost
softens, an ice scraper might be used to the accelerate de-icing process.
Please remove the food and put in a cool place when defrosting before removing accessories.
Foods can be preserved for a couple of hours even in summer in case of power failure; it is
recommended to reduce the frequency of opening door and do not put fresh foods into the
show case.
Please unplug the show case left unused for a long time for cleaning. Keep the door open to avoid
the bad odor.
Do not turn upside, horizontally place or vibrate the show case, the carrying angle can not be
greater than 45°. Please hold the door and hinge when moving.
Do not use hard brushes, clean steel balls, wire brushes,
abrasives, such as toothpastes, organic solvents (such as
alcohol, acetone, banana oil, etc.), boiling water, acid or
alkaline items clean show case considering that this may
damage the fridge surface and interior.
Do not rinse with water so as not to affect the electrical insulation
properties. Please use a dry cloth when cleaning temperature
control knob and electrical components.
Please unplug the for defrost and cleaning. show case
Dusts behind the show case and on the ground shall be timely cleaned to improve the cooling
effect and energy saving. The interior of the show case should be cleaned regularly to avoid odor.
Soft towels or sponge dipped in water and non-corrosive neutral detergents are suggested for
cleaning. The show case of shall be finally cleaned with clean water and dry cloth. Open the door for
natural drying before the power is turned on.
Defrost
Other mechanical devices or other means shall not be used to accelerate except
those recommended by the manufacturer. Do not damage the refrigerant circuit.
Stop using
Continuous operation is recommended when the show case is started.
Please do not move the show case under normal circumstances so as
not to affect the ＇s service life.show case
6

Inoperation
Odor
Long-term operation
of compressor
Illuminating light
does not shine
The door can
not be properly closed.
show case
Loud noises
Whether the is plugged and connected to power;
Low voltage;
Whether temperature control knob is in the work area
Failure power or tripping circuit
show case
Odorous foods should closely wrapped;
Whether foods are rotten;
Whether the interior shall be cleaned.
It is normal that operates for longer time in
summer when the ambient temperature is higher;
Do not put too much food in the show case at one time;
Do not put foods until they are cooled;
Frequent opening of show case door.
Thick frost layer (defrost is needed)
show case
Whether the is connected to power, whether the
indicator light is damaged.
show case
The door is stuck by food packages;
Too much food;
Tilt show case.
show case
Whether the food is leveled, whether the is
balanced;Whether the parts are properly placed.
＇sshow case
show case
Frequently asked questions
The following simple issues can be handled by the user. Please call the after-sale service
department if the issues are not settled.
7

Installation of universal wheels
1. Open the packing box of truckle, and take out the
universal wheels and screws.
2. There are two self-locking universal wheels, two
common universal wheels, 12 screws and screwdriver
3. Put package foam aside the freezer.
4. Lean the cabinet upon the foam.(Do not keep this
situation for a long time.)
5. Install the self-locking universal wheels to the
foot pedal with screwdriver.
6.Wheels and casters are installed.
8

7. Install the common universal wheels to the baseplate of the
compressor with screwdriver.
8、Finished installation of wheels
9.Make cabinet stand.(Keep the appliance standing up for more than
6h, then connect the supply power.)
Installation of universal wheels
9
