Midea TMF Series User manual

Service Manual_2018-V2.0
1
Service Manual TMF SERIES
Applicable Models
Model Code
Applicable Models
HD-377FWEN
UR-BCD290WE-DQ
22031020005681
The picture in this service manual is only for reference, and specific appearance
and configuration are subject to the real product.
This manual mainly teaches the method, the specific work skill needs engineer to
accumulate through the daily work.

Service Manual_2018-V2.0
2
WARNING
Important Safety Notice
There are special components used in this equipment which are important for safety. These parts are marked
by in the Schematic Diagrams, Circuit Board Diagrams, Exploded Views and Replacement Parts List. It is
essential that these critical parts should be replaced with manufacturer’s specified parts to prevent shock, fire
or other hazards. Do not modify the original design without permission of manufacturer.
WARNING
Important Safety Notice
The Maintenance Manual is only for the use of maintenance personnel with certain experience and
background in electrical, electronic and mechanical field.
Any attempt to repair main devices may lead to personal injury and property loss.
Manufacturers or distributors are not responsible for the content of the Manual and interpretation thereof.
Midea Refrigerators
Technical Maintenance Manual
Copyright @2017
All rights reserved. Replication of all or part of the Manual in any forms shall not be allowed without written
approval by the Overseas Sales Corporation of Midea Refrigerators.

Service Manual_2018-V2.0
3
Contents
1. SIGNIFICANT UPDATE NOTES(NONE) .....................................................................................................5
2. SAFETY WARNING CODE..............................................................................................................................6
2.1WARNING FOR OPERATION SAFETY.................................................................................................................6
2.2 SAFETY INSTRUCTION FOR REFRIGERANT .......................................................................................................8
3. TRANSPORT ...................................................................................................................................................9
3.1 HANDLING.....................................................................................................................................................9
4. INSTALLATION AND COMMISSIONING..................................................................................................... 10
4.1DOOR DISASSEMBLY ANDASSEMBLY (NONE)................................................................................................ 10
4.2 INSTALLATION LOCATION.............................................................................................................................. 10
4.3 LEVELING OF THE REFRIGERATOR................................................................................................................ 10
4.4 LEFT OR RIGHT OPEN DOOR REVERSAL.........................................................................................................11
4.5 INSTALLATION OF HANDLE（NONE）........................................................................................................... 12
4.6 INSTALLATION OF DOOR LOCK（NONE）...................................................................................................... 12
5. PRODUCT CONFIGURATION AND DIMENSION ....................................................................................... 13
5.1 MAIN PARTS AND THEIR NAMES.................................................................................................................... 13
5.2 EXTERNAL DIMENSION ................................................................................................................................ 14
5.3 LOCATION OF S/N....................................................................................................................................... 15
6. PRODUCT SPECIFICATION ........................................................................................................................ 16
6.1 ELECTRICAL PARAMETERS........................................................................................................................... 16
6.2 COOLING TEMPERATURE SETTING RANGE .................................................................................................... 16
6.3 CIRCUIT DIAGRAM....................................................................................................................................... 17
7. REFRIGERATING PIPING SYSTEM AND CIRCULATING ROUTE OF COOLING AIR............................. 18
7.1 REFRIGERATING PIPING SYSTEM.................................................................................................................. 18
7.2SPECIAL SOLDERING POSITION .................................................................................................................... 18
8. DISMANTLING OF PARTS........................................................................................................................... 19
8.1 PARTS ON THE DOOR .................................................................................................................................. 19
8.2PARTS INSIDE THE REFRIGERATOR................................................................................................................ 19
8.3 LIGHT SYSTEM............................................................................................................................................ 20
8.4AIR DUCT COMPONENTS IN FREEZING CHAMBERAND FAN MOTOR ................................................................... 20
8.5 EVAPORATOR AND DEFROST SYSTEM(NONE)............................................................................................... 22
8.6 COMPRESSOR CASE ................................................................................................................................... 23
8.7MAIN CONTROL BOARDL............................................................................................................................... 27
9. TEMPERATURE SENSING SYSTEM .......................................................................................................... 28
9.1 POSITION OF SENSORS ............................................................................................................................... 28
9.2REPLACEMENT OF SENSORS......................................................................................................................... 28

Service Manual_2018-V2.0
4
10. FUNCTION AND OPERATION ................................................................................................................... 30
10.1 OPERATION PANEL.................................................................................................................................... 30
10.2 TEMPERATURE SETTING............................................................................................................................ 30
10.3 OPEN DOORALARM(NONE)....................................................................................................................... 30
10.4 DEFROSTING FUNCTION............................................................................................................................ 30
10.5 TEST MODE............................................................................................................................................ 31
10.6SENSOR FAULT DISPLAY............................................................................................................................. 31
10.7BACKUP DATA FOR POWER FAIL(NONE)....................................................................................................... 31
11. COMPRESSOR........................................................................................................................................... 32
11.1COMPRESSOR ON AND OFF CONTROL SPECIFICATIONS ................................................................................ 32
12. TROUBLESHOOTING METHOD ............................................................................................................... 33
12.1NOT COOLING ........................................................................................................................................... 33
12.2 NO WORKING OF COMPRESSOR................................................................................................................. 34
12.3INSIDE FROSTING,NO DEFROSTING-MAINTENANCE GUIDELINES ................................................................... 34
12.4 LIGHT IS NOT ON....................................................................................................................................... 35
12.5 NOISE...................................................................................................................................................... 35
13. FIGURES AND DETAILS OF REPAIR PARTS .......................................................................................... 36

Service Manual_2018-V2.0
5
1. Significant update notes(None)

Service Manual_2018-V2.0
6
2. Safety Warning Code
2.1 Warning for operation safety
Important Safety Instructions
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
This symbol indicates that dangerous voltage
constituting a risk of electric shock is present
within your freezer.
This symbol indicates that there are important
operating and maintenance instructions in the
literature accompanying your freezer.
WARNING
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this appliance near water.
6) Clean only with a damp cloth.
7) Do not block any ventilation openings.
8) Install in accordance with the manufacturer’s instructions.
9) Do not install near any heat sources, such as radiators, heat registers, stoves, or
other apparatus that produce heat.
10) Do not defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. Agrounding type plug has two
blades and a third grounding prong. The wide blade or the third prong are provided for your
safety. If the provided plug does not fit into your outlet, consult an electrician for replacement
of the obsolete outlet.
11) Protect the power cord from being walked on or pinched, particularly at plugs,
convenience receptacles, and the point where they exit from the appliance.
12) Do not attempt to modify or extend the power cord of this appliance.
13) Unplug this appliance during lightning storms or when it will not be used for long
periods of time.
14) Make sure that the available AC power matches the voltage requirements of this
appliance.

Service Manual_2018-V2.0
7
CONNECTING ELECTRICITY
Electrical Shock Hazard.
Plug into a grounded 3-prong outlet.
Do not remove the ground prong.
Do not use an adapter.
Failure to follow these instructions can
result in death, fire, or electrical shock.
WARNING
Electric Shock Hazard
Failure to follow these instructions can result in electric shock, fire, or
death.
1) WARNING–Keep ventilation openings, in both the freezer and the built-in structure,
clear of obstruction.
2) WARNING–Do not touch the interior of the freezer with wet hands. This could result
in frost bite.
3) WARNING–Do not use mechanical devices or other means to accelerate the
defrosting process, other than those recommended by the manufacturer.
4) WARNING–Do not damage the refrigerant circuit.
5) WARNING–Do not damage the refrigerant tubing when handling, moving, or using
the freezer.
6) WARNING–DANGER–Never allow children to play with, operate, or crawl inside the
freezer. Risk of child entrapment. Before you throw away your old freezer:
6-1) Take off the doors
6-2) Leave the shelves in place so that children may not easily climb inside
7) Unplug the freezer before carrying out user maintenance on it.
8) This freezer can be used by children age eight years and older and persons with
reduced physical or mental capabilities or lack of experience and knowledge if they are
given supervision or instruction concerning the use of the freezer in a safe way and
understand the hazards involved. Children should not play with the freezer. Cleaning and
maintenance should not be performed by children without supervision.
9) If a component part is damaged, it must be replaced by the manufacturer, its service
agent, or similar qualified persons in order to avoid a hazard.
10) Please dispose of the freezer according to local regulations as the freezer contains
flammable gas and refrigerant.
11) Follow local regulations regarding disposal of the freezer due to flammable
refrigerant and gas. All refrigeration products contain refrigerants, which under the
guidelines of federal law must be removed before disposal. It is the consumer's responsibility
to comply with federal and local regulations when disposing of this product.
12) This freezer is intended to be used in household and similar environments.

Service Manual_2018-V2.0
8
13) Do not store or use gasoline or any flammable liquids inside or in the vicinity of this
freezer.
14) Do not use extension cords or ungrounded (two-prong) adapters with this freezer. If
the power cord is too short, have a qualified electrician install an outlet near the freezer. Use
of an extension cord can negatively affect the freezer’s performance.
Grounding requirement
This freezer must be grounded. This freezer is equipped with a cord having a grounding
wire with a grounding plug. The plug must be inserted into an outlet that is properly installed
and grounded.
Improper use of the grounding plug can result in a risk of electric shock. Consult a
qualified electrician or service person if the grounding instructions are not completely
understood, or if doubt exists as to whether the freezer is properly grounded.
2.2 Safety instruction for refrigerant
Explosion Hazard.
Keep flammable materials and vapors, such as gasoline, away from freezer. Failure to do so
can result in fire, explosion, or death.
Safety instruction for refrigerant
DANGER–Risk of Fire or Explosion. Flammable Refrigerant Used. To Be Repaired Only By
Trained Service Personnel. Do Not Use Mechanical Devices. Do Not Puncture Refrigerant
Tubing. CAUTION–Risk of Fire or Explosion. Flammable Refrigerant Used. Consult Repair
Manual/Owner’s Guide Before Attempting To Service This Product. All Safety Precautions
Must be Followed. CAUTION–Risk of Fire or Explosion. Dispose of Properly InAccordance
With Federal Or Local Regulations. Flammable Refrigerant Used. CAUTION–Risk of Fire or
Explosion Due To Puncture Of Refrigerant Tubing; Follow Handling Instructions Carefully.
Flammable Refrigerant Used.

Service Manual_2018-V2.0
9
3. Transport
3.1 Handling
Handling
1)Protect the refrigerator in moving it,Same as shown as lef
t photo, please move it by handcart with cushion
2)Remove all packing materials and bottom cushion, the m
ove into house for placement
3)After moving it to appropriate location, wait for 2 hours bef
ore power on.

Service Manual_2018-V2.0
10
4. Installation and commissioning
4.1Door Disassembly and Assembly (None)
The refrigerator door needs to be dismantled if it cannot enter the room in the whole.
Disassembly of Freezer door
Disassembly of Freezer door
None
Disassembly of refrigerator door
Disassembly of refrigerator door
None
4.2 Installation location
Installation location
Location that is easy for ventilation shall be chosen to
facilitate heat dissipation, enhance its performance and
reduce the energy consumption.
4.3 Leveling of the refrigerator
Leveling of the refrigerator
If the refrigerator cannot be placed steadily, adjust the
footing to level it.

Service Manual_2018-V2.0
11

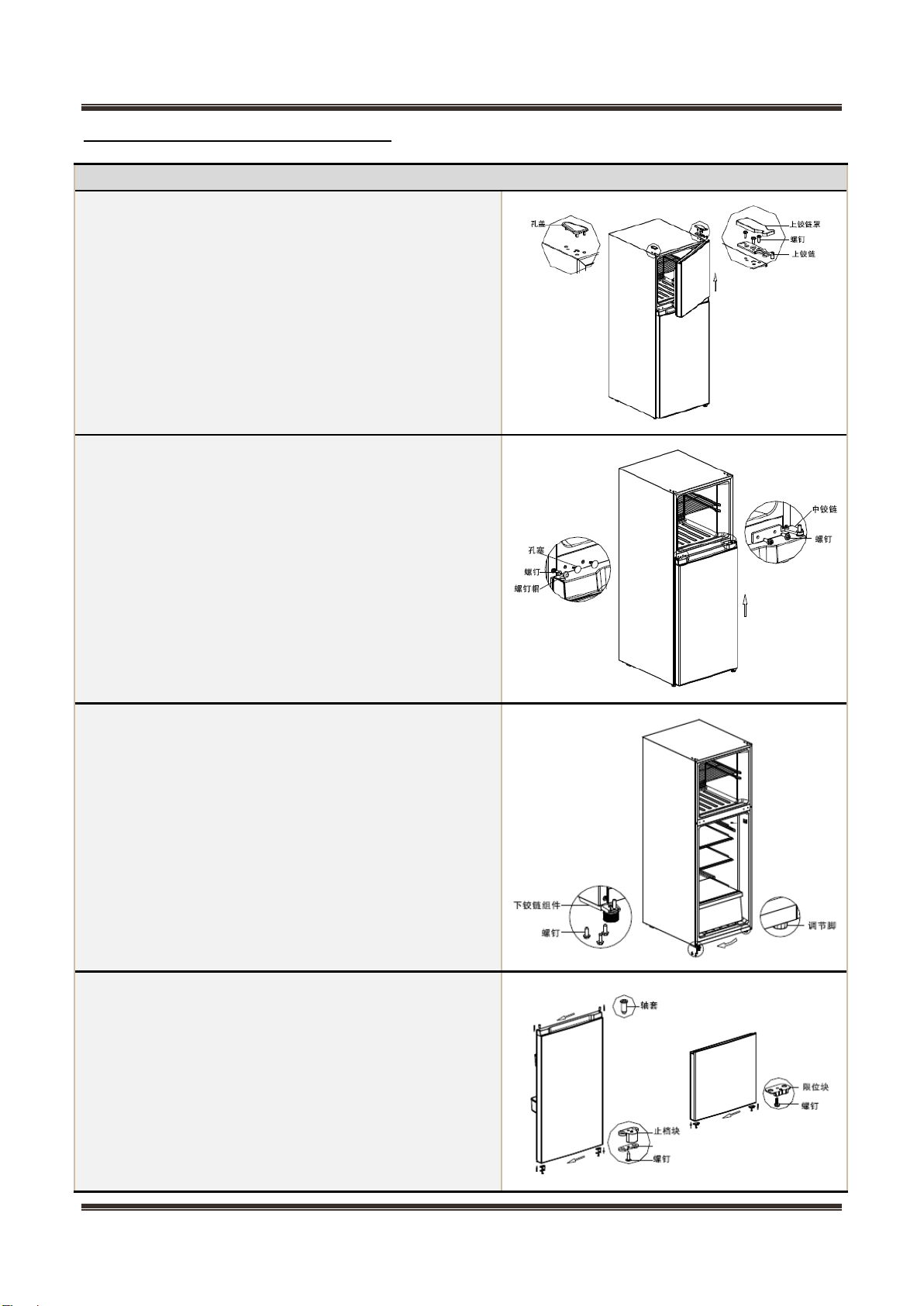

4.4 Left or right open door reversal
Door reversal
Unplug your refrigerator and remove all food from the door
shelves.
Dismantle upper hinge cover, upper hinge and hole cap
of the other side, remove the freezer door.
；Dismantle the middle hinge, the screw hole caps and
remove the refrigerating door
Dismantle the bottom hinge, hole caps and screws,
Install the bottom hinge shaft and adjust foot on the other
side of the bottom hinge, then install the hinge on the
other side.
Dismantle the screw, sleeve pipe and stopper from the
refrigerating door and freezer door, Then install them on
the other side of the doors in order. Install the upper
hinge sleeve on the freezer door to the hole on the other
side of axis sleeve.

Service Manual_2018-V2.0
12
Put the cold door on the lower hinge, install the middle
hinge, cover, screw and screw cap
Put the refrigerating door on the middle hinge, install the
upper hinge, hinge cover and hole cap
4.5 Installation of handle（None）
4.6 Installation of door lock（None）

Service Manual_2018-V2.0
13
5. Product configuration and dimension
5.1 Main parts and their names
(The picture is only for reference, and specific appearance and configuration are subject to the real
product)
FRZ. chamber
REF. chamber
1. Steel wire shelf of freezer
2. F large tray
3. LED light
4. Temperature controller panel
5. Glass shelf
6. Fruits and vegetables box cover plate
7. Crisper for fruit and vegetable
8. REF. tray
9. REF. tray

Service Manual_2018-V2.0
14
5.2 External dimension
Description
Code
Size (mm)
Height to Top of Case
A
1523
Width
B
545
Depth w/Cabinet
C
625
Depth w/Door
D
693
Depth w/Handle
E
/
Depth (Door open 90 deg. w)
F
1194
Depth (Door open 145 deg. w)
G
1117
Width (Door open 145 deg. w)
H
931
(The picture is only for reference)

Service Manual_2018-V2.0
15
5.3 Location of S/N
Some products also have S/N on the lower part of the right side of the Cabinet.

Service Manual_2018-V2.0
16
6. Product specification
6.1 Electrical parameters
Applicable Models
HD-377FWEN
Product Name
UR-BCD290WE-DQ
Product Code
22031020005681
Item
Specification
Specification
Refrigerant
R600a
Compressor
FZ59E1D-U
Starter(PTC)
QP2-4R7
Overload protector(OLP)
DRB25T61A1
Integrate PTC+OLP
None
Variable frequency driver board
None
Capacitor
None
Power filter
None
Winding resistance of compressor
wiring terminal
Rmc：7.28±7%Ω
Rsc：9.29±7%Ω
Rms=Rmc+Rsc
Winding resistance picture
The input power of compressor
70.2W
Lights inside the refrigerator
Lights inside the freezing chamber
None
Lights inside the refrigerating chamber
LED DC12V/＜2W
Switch of the refrigerator door
■Mechanical switch
□Magnetism control switch
6.2 Cooling temperature setting range
Compartment
The highest (oC)
Lowest (oC)
Freezing
-12
-20
Refrigerating
10
0
Variable temperature
/
/

Service Manual_2018-V2.0
17
6.3 Circuit diagram

Service Manual_2018-V2.0
18
7. Refrigerating piping system and circulating route of cooling air
7.1 Refrigerating piping system
1.Compressor→2.Exhaust transition pipe→3.Left condenser→4.Anti-condensationg tube→5.Right
condenser→6.Dry filter→7.Capillary tube→8.Evaporator→9.Return pipe→10.Return transition pipe
(The picture is only for reference, and specific appearance and configuration are subject to the real
product)
7.2 Special soldering position

Service Manual_2018-V2.0
19
8. Dismantling of parts
8.1 Parts on the door
Door seal
Door seal is installed into door liner groove.
1) Open the refrigerator door.
2) Take the door seal ①out of door liner.
Door tray
While squeezing it inward, lift up the baffle and take it out
from refrigerator liner.
8.2Parts inside the refrigerator
Refrigerator Fruit box cover
Remove the crisper cover of ref. compartement accordin
g to below steps:
1）Take out the crisper firstly.
2）Lift up the Fruit box cover, and then pull out it.
Shelves

Service Manual_2018-V2.0
20
Lift up the division plate with a proper force and pull it out
towards yourself;
8.3 Light system
Light
Light
The refrigerator compartment lights are in the top of
fridge liner
1）Use the flat screwdriver to open the light cover;
2）Use hands to remove the clip fixing the light board;
3）Pull out the LED terminal.
Light switch
There is a light switch on the side wall of the refrigerating
chamber.Loosen the hook with flat screwdriver and pull
out the switch until the wire connector reveals.
8.4Air duct components in freezing chamber and fan motor
Disassembly and installation of Air duct
