Midea DFS180HK User manual

DFS180HK
USER MANUAL
Warning: All the contents of this Guide have been checked carefully. If there are any printing errors OR
misunderstanding, please contact Midea customer service team.
It will be compiled into the new version of the guide without any notice if there are any technical
improvements.
The diagram above is just for reference. Please treat the appearance of the actual product as final.
Instant Electric Water Heater

01
Thank you for choosing Midea! Please read this user manual be carefully before
using this new appliance to ensure that you have a better understanding of the
product features, and know how to operate this product in a safe way.
CONTENTS
0
02
1
17
10
18
19
20
20
06
07
09
21
INDEX
SAFETY INSTRUCTIONS
SPECIFICATIONS
PRODUCT OVERVIEW
QUICK START GUIDE
PRODUCT INSTALLATION
OPERATION INSTRUCTIONS
CLEANING AND MAINTENANCE
TROUBLESHOOTING
TRADEMARKS, COPYRIGHTS AND LEGAL STATEMENT
DISPOSAL AND RECYCLING
DATA PROTECTION NOTICE

The following safety guidelines are intended to prevent unforeseen risks or damage from
unsafe or incorrect operation of the appliance. Please check the packaging and appliance
upon arrival to make sure everything is intact and ensure a safe operation. If you find any
damage within 7days after purchase, please contact the retailer or dealer. Please note
that modifications or alterations to the appliance are not allowed due to the safety
concern. Unintended use may cause hazards and loss of warranty claims. Please refer to
the terms & conditions at the warranty card or Midea HK ocial website.
The rated voltage of this appliance is 380V-415V 50Hz three-phase, AC only.
This product must be connected to the circuit breaker, otherwise it may cause a
safety accident. Required rating of circuit breaker : 3x50A.
This product must be installed by professional technicians. Improper installation may
cause accidents.
This product must be earthed.
WARNING: This product is not to be used for a potable water supply.
For any improper installation and incorrect operation of this product, our company
will not be liable for any responsibility.
Intended Use
Warning
The signal indicates a hazard with a medium degree of risk which, if not
avoided, may result in death or serious injury.
Attention
The signal indicates important information (e.g. damage to property),
but not danger.
Caution
The signal indicates a hazard with a low degree of risk which, if not
avoided, may result in minor or moderate injury.
Read these operating instructions carefully and attentively before using/commissioning the
unit and keep them in the immediate vicinity of the installation site or unit for later use!
Explanation of Symbols
SAFETY INSTRUCTIONS
02
1.
2.
3.
4.
5.
6.
Warning
ELECTRICAL REQUIREMENTS

03
Children should be supervised to ensure that they do not play with the appliance.
This appliance is not intended for use by person (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning the use of this appliance
by a person responsible for their safety.
If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualified technicians in order to avoid hazard.
Do not put gas, gasoline, high evaporative agents or other flammable items around
the water heater.
Hot water from the water heater may cause scald, please test the temperature of the
hot water before using.
Empty water will lead to the spilling of steam or very hot water, which can cause
serious burns. Please cut o the power supply immediately, stop using the water
heater and contact professional technicians to check and repair.
If the circuit breaker is broken, don't close it. Inform professional technicians to check
and repair immediately.
The appliance can only be installed indoor, where temperature keeping at 2°C or
above. If there is water in inside the unit, it might freeze. Before the ice melt, the
water heater cannot be electrified.
Do not open front cover. This may cause electric shock.
The resistivity of the water supply must not be less than 1250 Ω/cm.
For safety, do not change the installation position of the machine or block the water
outlet of the machine. If you need to move or relocate the machine, please contact
professional technicians.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
Warning
These instructions are precautions to prevent the risks of serious injury or death of the
user, and any damages to property.
Caution
To prevent personal injury, injury to others and property damage, the instructions
below must be followed. Incorrect operation due to failure to follow instructions will
cause harm or damage. Installation must be carried out by a qualified technicians and in
compliance to the local authority regulations.
Caution
Safety Warning
Product installation
Installation must be carried out by a qualified technician and in compli-
ance to the local regulations.
For any improper installation and incorrect operation of this product, our
company will not be liable for any responsibility.

04
The water heater should be earthed before use. Please ensure that the resistance
of household earth wire is＜4ΩUsing water heater without earthed is highly
prohibited.
Warning
Important Installation Warning
Installation warning
The product must be connected to a circuit breaker (RCBO). Otherwise,
electric shock may occur when using. It is recommended that the rated
circuit breaker be 3P-In50A.
Ensure that the appliance is earthed.
The electrical resistivity of the water must not fall below that stated on the
rating label. In a linked water network, take into consideration the lowest
electrical resistivity of the water. Your water supply utility could advise the
electricity resistivity or conductivity of the water in your area.
Carry out all electrical connection and installation work in accordance with
relevant regulations.
The rated voltage of this machine is 380V-415V 50Hz three-phase, AC only.
Before installing this water heater, check and confirm the earth electrode on the socket
is reliably earthed, without electricity.
The minimum inlet water pressure is 0.1MPa.maximum inlet water pressure is 0.75 MPa.
The appliance is not to be installed in locations where freezing can occur.
This water heater is suitable for home, apartment or certain commercial uses. It can be
installed anywhere in the house where hot water is needed, such as bathing, hand
washing, kitchen, etc.
This water heater does not use plugs; This water heater must be connected directly to a
power switch with leakage protection. When installing, please distinguish between the
wire and the ground wire, do not connect wrong.
Do check whether the amperes of the household wiring enough before installation, and
dedicated circuit must be used when installation.
The distance between water heater installed and water output should be as nearby as
possible to avoid loss of heat.
The electric water heater may be damaged if the water hardness is too high. Damage to
the unit caused by scale or a high mineral count is not covered under the warranty.
In time of lightning/thunder, switch “O” the Circuit Breaker in advance to protect the
water heater against possible damage.
Do cut-o power supply before any maintenance. Any maintenance or adjust-ment
towards this product by non-professional is highly prohibited.
The damaged power cord must be replaced by a good power cord provided, and the
replacement should be done by a qualified technician or engineer or profes-sionals of
the similar products.
In order to avoid a hazard due to inadvertent resetting of the Circuit Breaker, this
appliance must not be supplied through an external switching device, such as timer or
connected to a circuit that is regularly switched “On” and “O” by the utility.
The water heater is not intended for use by persons (including children) with reduced
physical,sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instructions concerning use of the appli-ance by a
person responsible for their safety.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.

05
The electric water heater can be set to: OFFand 30-50°C (The actual outlet water
temperature depends on the inlet water temperature and water flow).
Households with small children, disabled, or elderly may need to set the thermostat
at 45°C or lower to prevent possible injury from hot water.
Please set the temperature according to your personal needs. Please check the water
temperature with your hands before using hot water
1.
2.
3.
Danger
Water in higher temperature increases the potential for Hot Water
SCALDS.
DANGER
HOT
Water temperature over 52°C can cause severe burns
or death.Children, disabled and elderly are at high risk
of being scalded. Read the instruction menu before
setting the water heater temperature. Check and feel
the temperature before bath or shower. Regarding the
thermostatic valve, please read the instruction menu.
SAFETY PRECAUTIONS BEFORE
USING WATER HEATER
WARNING
The appliance is intended to be permanently connected to the water mains and not
connected by a hose-set.
The water inlet of this appliance shall not be connected to inlet water obtained from any
other water heaing system.
The appliance must be permanently connected to fixed wiring.
Circuit breakers and products should be installed in a dry, no splash, principle of
flammable objects or gases.
Do not use damaged cords, old or loosen electrical outlets. Otherwise, it may cause
accidents such as electric shock, short circuit or fire and so on.
15.
16.
17.
18.
19.

06
SPECIFICATIONS
DFS180HKProduct Model
Electrical supply
Rated power input
Max. current load
Recommended smallest wire size
Recommended circuit breaker specification
Water pipe connector
Min. permissible pressure
Max. permissible pressure
Start-up water flow
Height
Width
Depth
Current
Rated pressure(MPa)
Water supply resistance
Max. temperature
Water proof standard
Net weight
380V-415V AC three-phase/50Hz
16.2-19.4kW
3x 27.3 A
4 x 4 mm
3x50 A
G1/2
0.1 MPa
0.75 MPa
2.5±0.3 L/min
473 mm
227 mm
119 mm
41 A
0.75 MPa
1250 Ω•cm
50 °C
IPX4
4.3 kg

07
Parts Identification
PRODUCT OVERVIEW
back shell
Power supply
plate coveer
Alternating
current contactor
Terminal of wiring
Water pipe
cover plate
Front shell
Display panel
ON/OFF konb
Holes for hanging screws Holes for hanging
screws
PCB
Water flow sensor
Air filter net
Inlet pipe
Power cable
threading tube
G1/2
Holes for hanging screws
Heating element
outlet pipe

08

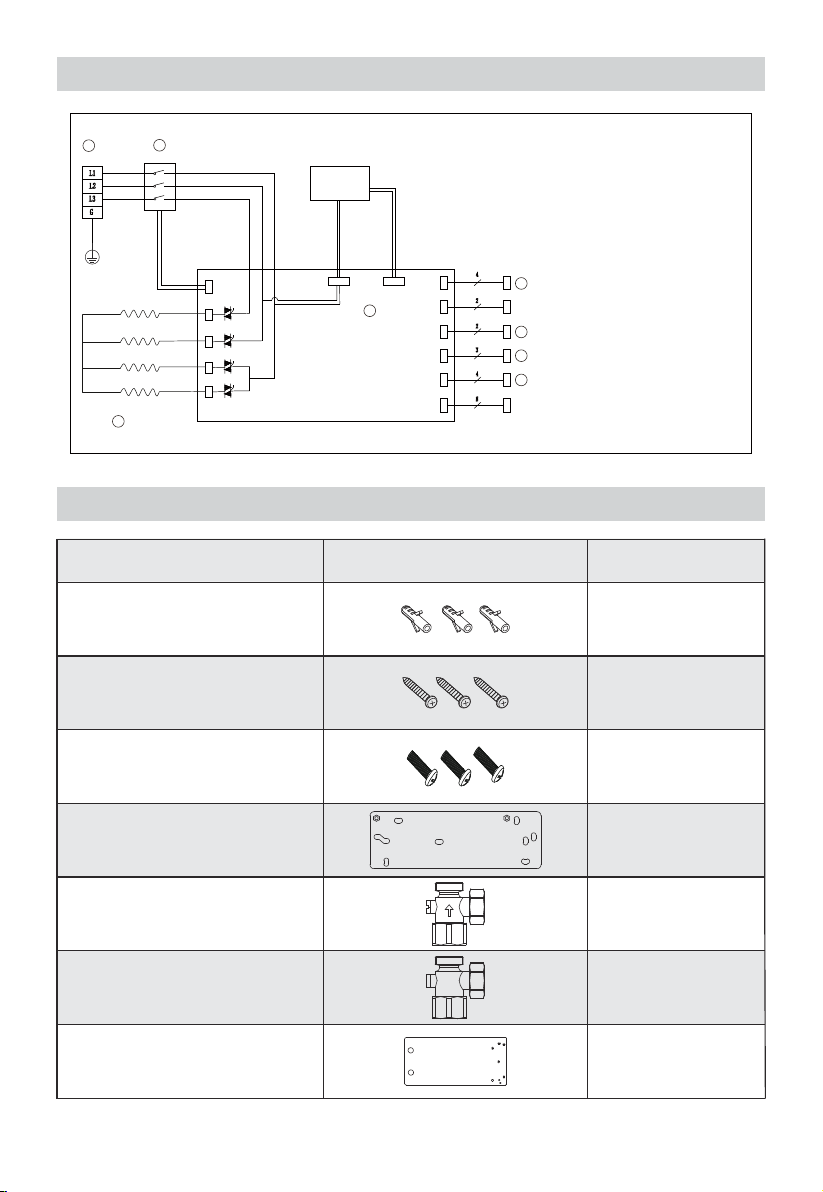

1. Terminal Block
2. AC contactor
3. Heating system
4. Power PCB
5. Control PCB
6. Outlet temperature
flow sensor
7. Inlet temperature flow
sensor
8. Water flow sensor.
E. Earth
P1. Live Phase 1
P2. Live Phase 2
P3. Live Phase 3
Internal Wire Diagram
Transfer
12
3
4
5
6
8
7
Accessories
picture quantityName of parts
Pointed screw
Iron plate
Inlet connecting pipe
Outlet connection pipe
paper
Plastic pipe
Flat screw
3
1
1
1
1
3
3

09
QUICK START GUIDE
Before First Use
Warning
2. Brief description of each function
1. Startup of electric water heater and adjust the
setting of the water inlet.
M1 / M2
BATH
AI
ECO
KNOB Push to switch ON&OFF, adjust the temperature
M1 and M2 referring to dierent setting modes
Bath mode, you can adjust the temperature and set the water volume
Set AI function
After pressing this key, the default setting temperature is 40° C
≥ 60 s
Open and close all connected draw-o valves
several times, until all air has been purged
from the pipework and the appliance.
Carry out a tightness check.
Switch on the power supply.
1.
2.
3.
1.[AI+ECO]:
Long press [AI+ECO] for 3 seconds, and
the child lock status light will be on. At this
state, all keys except the shutdown button
will be invalid; Long press [AI+ECO] again
for 3 seconds to release the child lock
state, it will then resume to normal.
2.Bath:
For bathtub mode, the default setting of
water discharge is 150L. If it is necessary to
adjust the set water discharge, long press
this icon, the "L" icon flashes, rotate the
knob to adjust the set water discharge, and
then long press this icon to exit the
bathtub mode setting
function; When the actual amount of water
reach the set volume, the LED screen will
has flashes to remind.
3.[AI]:
1) Start "AI" when the set temperature is
not between 38-44° C:
The ambient temperature is greater than
or equal to 28 ° C. The preset temperature
is 40 ° C.
The ambient temperature is 22-27 ° C.
The preset temperature is 42 ° C.
The ambient temperature is 16-21 ° C,
and the preset temperature is 43 ° C.
The ambient temperature is less than or
equal to 15 ° C. The preset temperature
is 44 ° C.
2) When the set temperature is between
38-44℃, start "AI" : recommend the
current set temperature to the user;
3)You can exit by turning the knob

10
1.
2.
3.
4.
5.
6.
7.
Installation sequence
Check whether the circuit meets the requirements of this product and local standard.
Check whether the waterway and water pipe meet the installation requirements of
this product.
Select the position for product installation.
Wall drilling for installation.
Pipeline connection.
Circuit connection.
Check the electricity supply.
Before Installation
Installation Method
PRODUCT INSTALLATION
DO NOT install this product in a location where it may be subjected to freezing
temperatures. If the water inside your tankless water heater freezes, it can cause
severe and permanent damage that is not covered under your warranty.
DO NOT locate the water heater in a location that is dicult to access. Make sure
that the water heater and hot water outlet pipe are out of reach of children so tthat
they cannot get access to the temperature controls or injure themselves by touching
the hot water outlet pipe. The outlet water pipe can get very hot.
This product does NOT require venting. Avoid installing your tankless water heater in
a location prone to excessive humidity, moisture, or dust, or in an area where it may
be splashed with water or other liquids.
DO NOT install under water pipes or air conditioning lines that might leak or
condense moisture that could then drip onto the heater.
DO NOT install this product on the top of electrical boxes or junctions.
The water heater should not be located in area where leakage will result in damage to
the area adjacent to it or to lower floors of building. If the installation at such areas
cannot be avoided, it is recommended that a suitable drip pan with adequate drainage
should be installed under the water heater. Please check the requirement for this type of
installation at your area. It is recommended that a drip pan (connected with a proper
drainage) should be installed below the water heater to avoid property damage in the
unlikely occasion of leakage. Alternatively, you can install an active water leak detector
and shuto valve to turn o your water supply whenever leakage is detected.
CAUTION
Manufacturer recommends that this product should be installed by a licensed and
qualified electrician in accordance with all applicable electrical standards. As all other
electrical appliances, under no circumstances should you attempt to install, repair or
disassemble this water heater without shuttng o all power to the unit directly at the
fuse or breaker box. Make sure to shut o all breakers. SERIOUS BODILY INJURY OR
DEATH COULD OCCUR IF YOU IGNORE THIS WARNING.All wiring (wire gauge) and
circuit protection (breakers) must comply with local standard.
CAUTION
1.
2.
3.
4.
5.

11

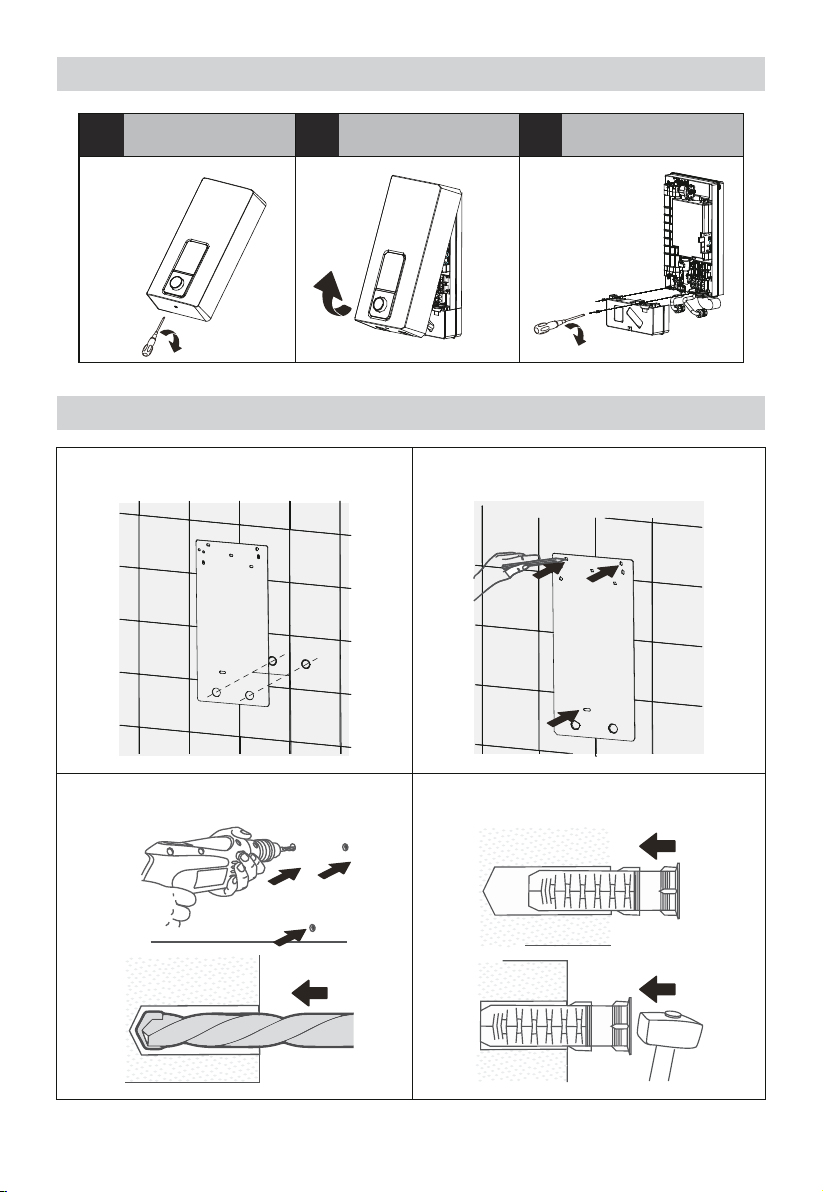

Open the product
Hole drilling
Remove the screw
using a screw driver.
1 2 3
Open the front shell from
the bottom.
Loosen the screw on the
cover plate with a tool
Align the two holes on the paper
with the user's water pipe holes
Use a pen to record the location of
the two holes on the wall
Tap the plastic pipe into the hole.Drill holes with a 6 mm diameter
drill bit to a depth of 30mm.
Step 1 Step 2
Step 3 Step 4

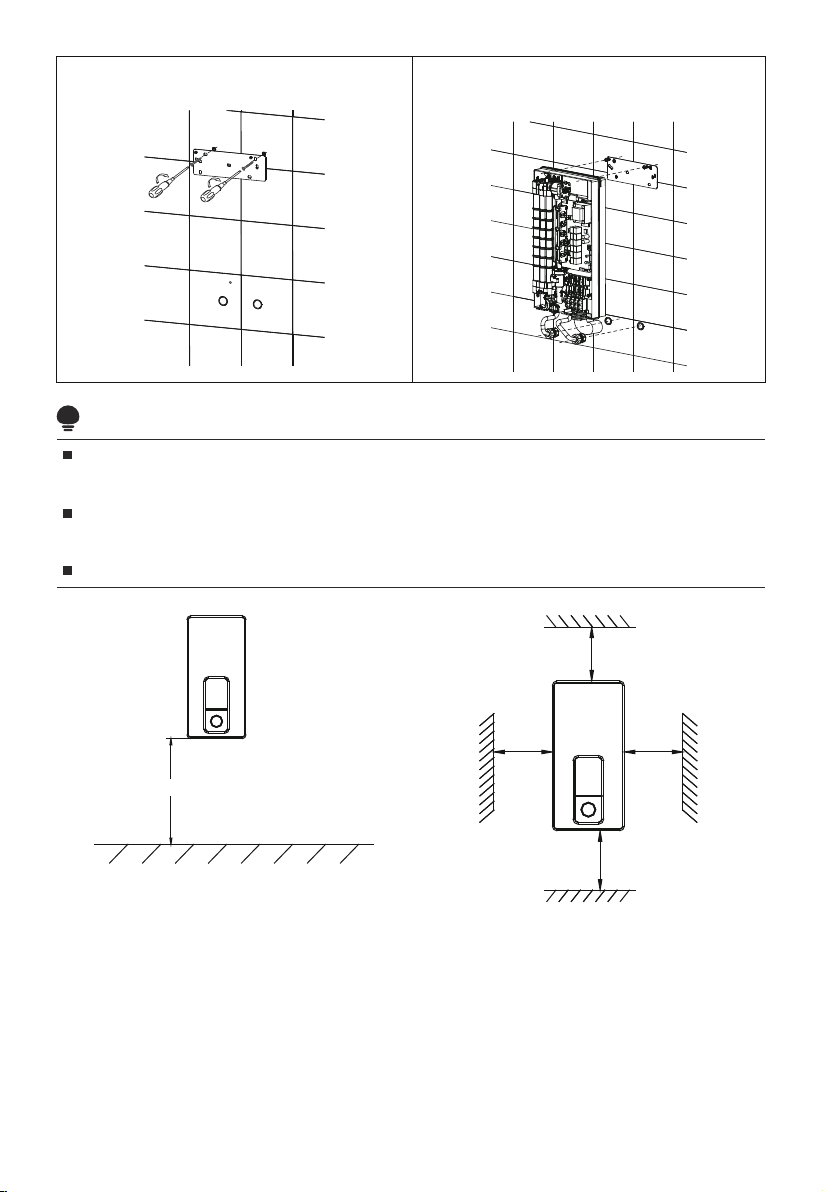

1212 ＞100mm ＞100mm
＞200mm ＞90mm
Figure 2
Ground
＞1.6m
Figure 1
Screw the iron plate to the wallStep 5 Step 6 Hang the electric water heater on
the screws and make sure that the
water pipe holes are aligned
Note
If this product is installed in an open place indoors, it is recommended to install at the
height of more than 1.6 meters to prevent children from playing with the temperature
adjustment knob of the water heater(Figure 1)
If the product is installed in a narrow or enclosed space, keep a small space to ensure
that the appliance is operating in a normal condition as well as easy for maintenance.
(Figure 2)
No horizontal, inverted or inclined installation!

13

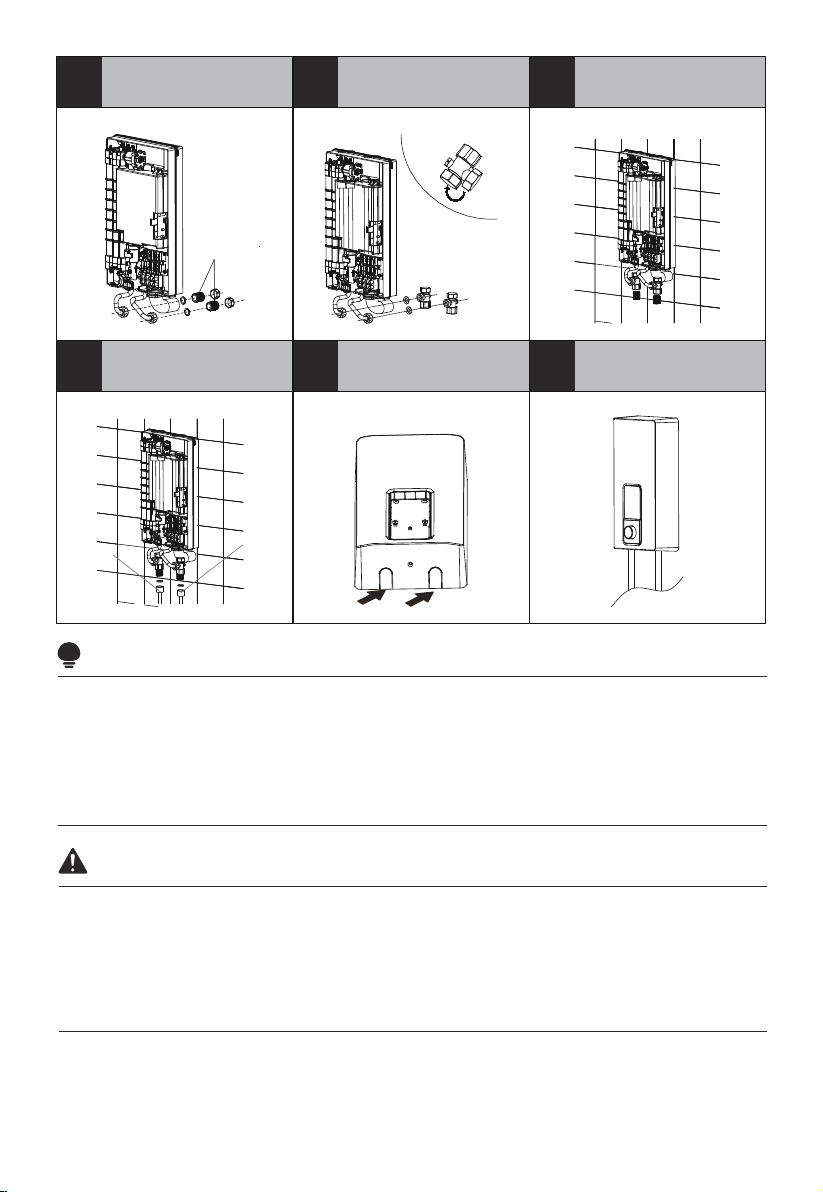

Connection of bottom pipe outlet
1. Back pipe connection
2. Below the inlet and outlet water connection
This type of connection changes the IP rating of the appliance.
Note
Inlet
Outlet
Inlet
Connecting
copper pipe
(G1/2)
G1/2
Remove the connection tube from
the product
Install the connecting copper pipe
in the customer's water pipe hole
Install the lid and screw it after
fastening the water pipe joint
Connect the tee water pipe to the
copper pipe
Step 1 Step 2
Step 3 Step 4
13

14
Remove the connection
tube from the product
123
Change the position of the
cap on the tee and install it
on the electric water heater
Connect the threaded
pipe to the tee pipe
Inlet pipe
outlet pipe
Made of plastic
Made of plastic
4 5 6
A plastic pipe is connected
to a threaded pipe
Use a tool to remove the
reserved holes in the front
shell.
Mounting the front
shell.
G1/2
The pipe connecting to the water heater must be plastic(The length is more than 2
meters)During water pipe installation, do not change the angle of the copper pipe or distort
the copper pipe. Otherwise, the copper pipe may be blocked and an accident may
occur
1.
2.
Note
FOR SAFETY REASON, THIS WATER HEATER MUSTBE INSTALLED,
OPERATED ANDMAINTAINED IN ACCORDANCE WITHTHE MANUFACTURER’S
INSTRUCTIONS.
THIS APPLIANCE MUSTONLY BE INSTALLED IN ACCORDANCEWITH
THE ACCEPTABLE PLUMBINGCONFIGURATIONS SPECIFIED IN THESE INSTRUCTIONS.
FAILURE TODO SO MAY RESULT IN CONDITIONSWHERE TEMPERATURECONTROL
IS INADEQUATE.
1.
2.
Warning
14

15

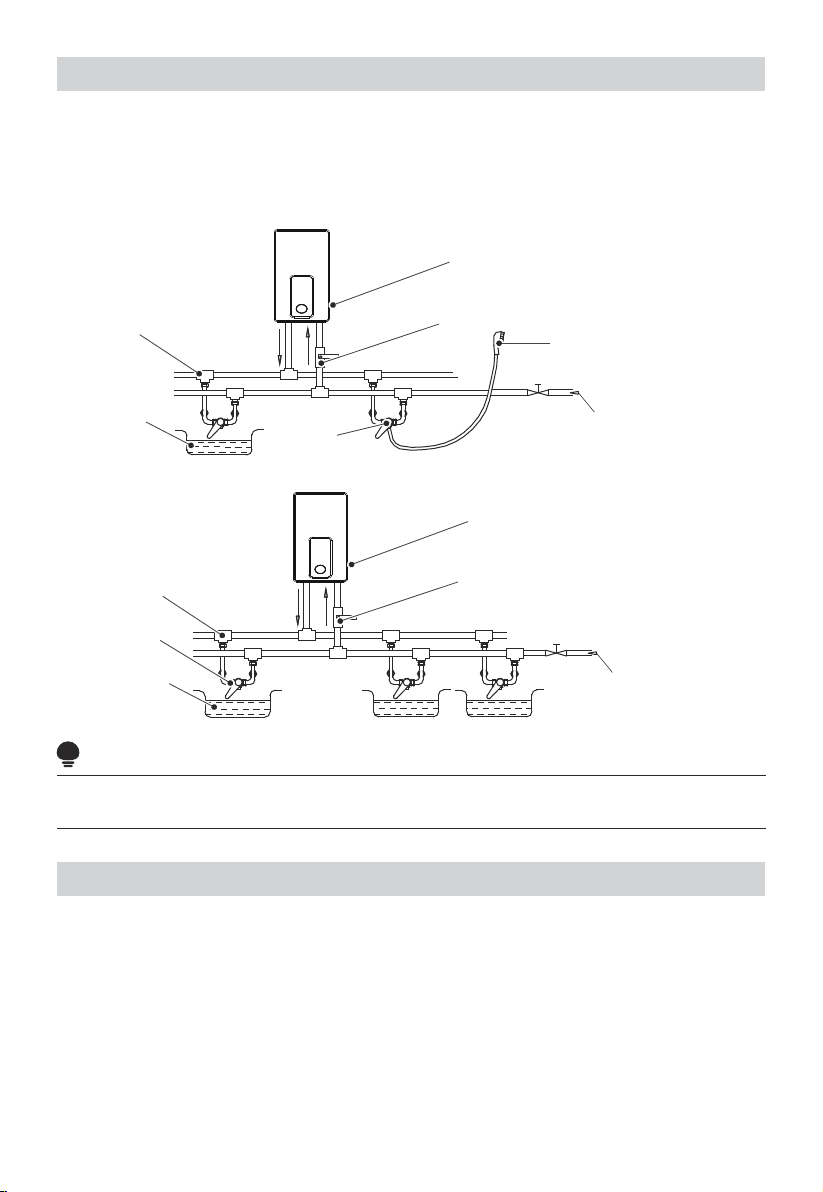

Plumbing Connection
1.
2.
The specification of this water heater pipe is G1/2。Rubber seal gasket must be
added to the threaded end surface in order to avoid water leakage.It is also recom-
mended to set up the pressure relief valve to the inlet of the main body, sealgasket
with filter screen should be used in the joint position.
Typical residential installation (Fig.3). Typical commercial installation(Fig.4).
Power Supply Connection
1.
2.
Choose air switch with leakage protection according to the power of the water
heater. The switch must be readily accessible, clearly identifiable and out of reach of
person using a fixed bath or shower. The wiring must be connected to the switch
without the use of a plug or socket outlet.
When connecting the water heater to electric network, please pay attention when
connecting the live line, and earth line with corresponding line in the electric network.
A T&P valve may be required to meet the installation standard in your area when the
water pressure is over 150 psi.
Note
Water inlet valve
Water inlet valve
Running water pipe
Mixing valve
Water pool
Triple joint
Shower nozzle
Hot water
outlet
Cold
water
inlet
Main machine
(Fig.3)
(Fig.4)
Mixing valve
Water inlet valve
Water inlet valve
Running water pipe
Water pool
Triple joint Hot water
outlet
Main machine
Cold water
inlet

16

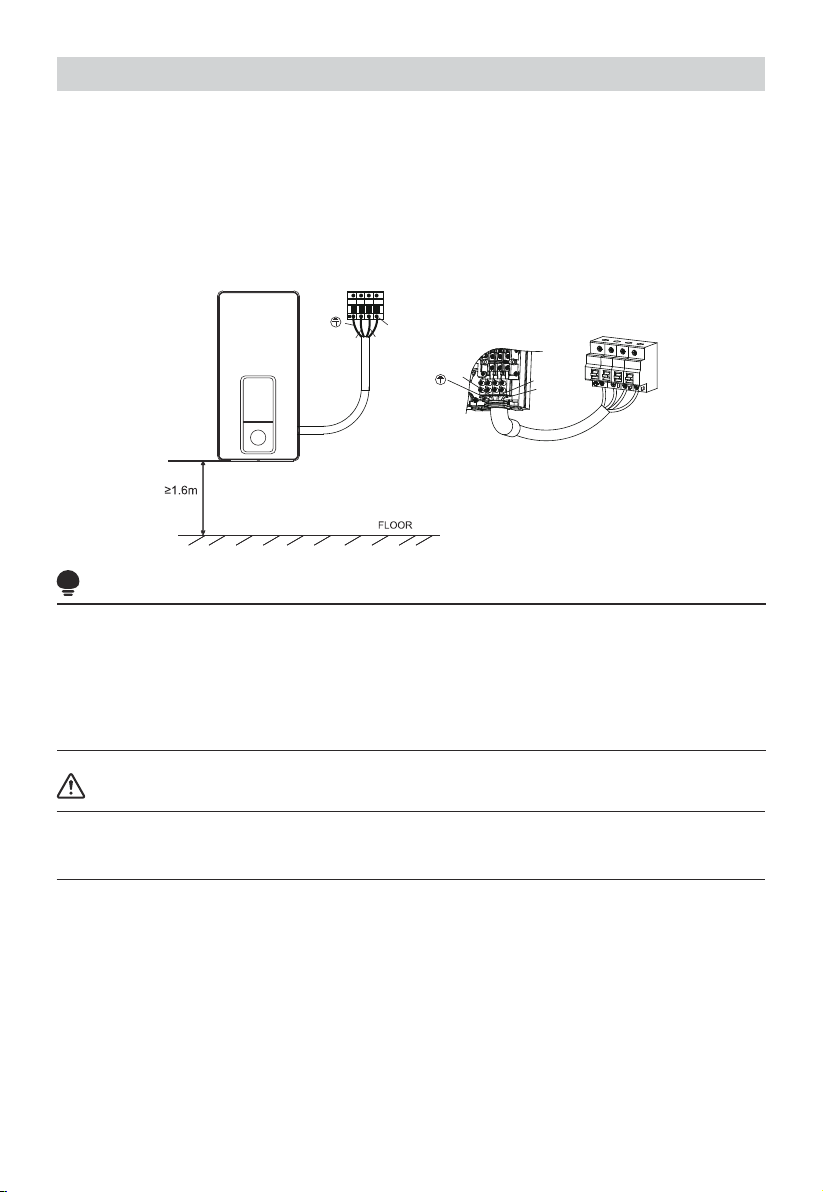

Connection of wire
1.
2.
Confirm the water heater installation position, then reserve one water outlet and one
water inlet accordingly. The distance between these two points is 10 cm. Connect the
special copper core wire from the main power supply at home to the C40 air switch,
reserve a certain length under the wall and connect it to the wire connector in the
bathroom. The copper core wire must meet the requirements of this water heater.
Confirm the position of the water heater in the bathroom, reserve copper core
connection at a distance measuring 4 cm from the right of the water inlet and at 6 cm
from the bottom of the water heater as shown in below diagram.
Make sure you have established the correct connection. Wiring must be done according
to the diagram to ensure the normal operation of the machine. The ground and live wire
must not be misconnected.
CAUTION
1. This product must be connected to the circuit breaker(RCBO), otherwise it may cause
electric shock. Required rating of circuit breaker : 3x50A
2. This product must be earthed
3. It is prohibited if the technicians refused to ground and connect the RCBO during the
installation process. It must be connected in accordance with the specifications. Our
company will not take any responsibility for any accidents caused by improper installa-
tion
Note
L1 L2
L3
L1 L2
L3

17
Function description
OPERATION INSTRUCTIONS
On/O: Turn on or turn o the machine.
Water flow tesing function: Through signal sending from the water flow sensor, the
PCB plate will test if the water flows into the water heater. The heating system only
start when the water flow is higher than 2.5L/min.
Thermostatic function: Reaching the pre-set outlet temperature within 20 seconds.
1.
2.
3.
M1 / M2
BATH
AI
ECO
KNOB Push to switch ON&OFF, adjusting
the temperature
M1 and M2 referring to dierent
setting modes
Bath mode, you can adjust the
temperature and set the water volume
Set AI function
After pressing this key, the default
setting temperature is 40°C
Heater power(kW) Euent flow(L/min) use
18
20
22
25
28
29
flow(L/min)Water use mode Flow fluctuation Identification
Inlet water
temperature(°C)
Small flow of
hand washing
wash hands
Kitchen water
take a shower
18
18
18
18
18
18
5.7
7.6
1.9
3.8
10.7
11.7
12.9
15.1
18.4
19.8
1.9-3.4
1.9-4.9
3.8-8.4
5.7-9.5
Description of multi-point water usage
BATH
ECO
KNOB
M1
M2
AI AI
Child Lock-3 sec.

18
Maintenance
1.
2.
3.
4.
5.
6.
7.
CLEANING AND MAINTENANCE
The water heater should only be repaired and maintained by the Company’s recog-
nized professional service sta. Improper repairing or maintenance may cause serious
injury accident or property loss
Before opening machine or repairing and maintaining machine, power must be cut o
Before repairing, please refer to “Trouble Shooting” to exclude obvious problems.
When using machine, please keep the water heater surrounding area clean.
Before cleaning, power must be cut o, use wet cloth with neutral wash clean to wipe
smoothly, do not use petrol or other liquor, after finish, use dry cloth to wipe again
and keep the machine dry
If the machine is not used for a long-term, or if used in cold weather, need take
necessary actions to avoid frozen to damage machine.
Inlet fillter washer need regular cleaning.(Figure 3)
Note
After cleaning, turn on the faucet and run
water for 60 seconds, and check whether
there is water leakage in the connection
position.
Figure 3

19
TROUBLESHOOTING
Important information
1.
2.
3.
Please switch o power supply whenever the water heater needs repairs.
Please contact Midea Customer Service Center in case of maintenance required.
Please do not allow any other persons to open or repair the water heater.
Likely cause/s Action/RemedySymptom
Water is too hot
Water flow rate is too low or
main water supply’s tempera-
ture is too high
Water flow rate is too high or
main water supply’s tempera-
ture is too low
1. 1.
1.
2.
Decrease water incoming
flow or increase setting
temperature
Faulty spray
of handset
Water is too cold
If water flow rate is too low,
machine cannot be started
Check water supply, if water
pressure needs to be incresed,
please turn o other water
supply in the house, or add a
pump to increase pressure
Unstable voltage or lower
than voltage required by
product
Ask professionals to check
voltage
Air switch is o or wires are
not well connected
Ask professionals to check air
switch and wire connection
Handset is blocked Clean handset nozzles
Water flows
without power
Increase water flow
Decrease temperature
3.
2.
2.
3.
The internal temperature of the
product is too high, greater
than 75°C
Display E1 Sensor failure Ask professional to check the
product sensor
Display E2 The temperature drops to 65°C
and automatically returns to
normal
Display E3 Temperature reaches 80°C Turn the power o and then
back on
Display EC Abnormal communication of
circuit board
Ask professional personnel for
maintenance
