Midea ECOHEAT Series User manual

Water Heater
ECOHEAT SERIES
version 000
Rated Voltage: 230V
Rated Power: 3800W
Frequency: 60Hz
Weight: 1.6kg
Dimensions (WxHxD):
224x330x93mm
FP-67WTR380WMTL-W1
ph.midea.com
USER’S MANUAL

1
TABLE OF CONTENTS
TITLE PAGE
1.Caution .............................................................................................................................(2)
2.Product introduction .........................................................................................................(3)
3.Unit installation .................................................................................................................(5)
4.Usage ...............................................................................................................................(8)
5.Maintenance.....................................................................................................................(9)
6.Troubleshooting ..............................................................................................................(10)
Sincerely, thank you for selecting our electric water heater. Please read this manual carefully
before use; correctly grasp the methods for installation and use of this electrical water heater, to
make full use of its superior performance. Please do preserve the instruction manual, for future
reference.

2
To prevent personal injury, injury to others and property damage, the instructions below must be
followed. Incorrect operation due to failure to follow instructions will cause harm or damage.
Special Caution
1. CAUTION
This water heater is for household use only and it can be installed indoors where
hot water is needed.
A plug is not used for this water heater; this water heater must be connected directly to a
circuit breaker with current leakage protection.
Please distinguish live line (red/brown),neutral line (blue) and earth line (green/yellow)
during installation.
Do check whether the ampere rating of the household wiring is sufficient before installation,
and a dedicated circuit must be used when installing.
Before installing this water heater, check and confirm if the earth electrode in the socket is
reliably earthed and has no current flowing. If there is no ground electrode or incorrect ground
connection is done, the water heater will not work.
The hot water from the water heater may cause scalding; please test and check the
temperature of the hot water before use.
The distance between water heater installed and water output should be as near as
possible to avoid loss of heat.
The electric water heater may be damaged if the water hardness is too high. To ensure
longer product lifespan, please install nd put it into use where the local water hardness
is less than 450mg/L9CaCO3)
In times of lightning/thunder, switch “Off” the circuit breaker ahead of time, to protect
the water heater against possible damage.
Inspect the built-in ELCB (once a month) to avoid hazards to users such as damage to
property serious injury or death.
Do not cut off power supply before maintenance. Any maintenance or adjustment of
product by a non-professional is highly prohibited.
A damaged power cord must be replaced by good one provided by the manufacturer,
and the replacement should be done by qualified technician or engineer or professionals of
similar products.
In order to avoid hazard due to inadvertent resetting of the Earth Leakage Circuit
Breaker (ELCB), this appliance must not supplied through an external switching device, such
as timer or connected to a circuit that is regularly switched “On” and “Off” by the utility.
This water heater is equipped with adjustable flow capacity safety valve. For safety use,
please do not change its installation location and do not block its water outlet.
The shower head must be descaled regularly.
For any improper installation and incorrect
operation of this product, our company will not be liable for any responsibility.
This water heater can be used for other purpose, e.g., washing hands, dishes or food,
and so on. (Multi-directional water supply is not available).
When the shower is used by children, elderly, sick or physically- handicapped persons, they
are requested to be attentive to and check the water temperature by hand, from time to time.

3
WARNING
The water heater should be earthed before use. Please ensure that the resistance of
household earth wire is <4Ω. Using water heater without earthing is highly prohibited.
!
2. PRODUCT INTRODUCTION
Model
Rated Voltage
Rated Frequency
Rated Power
Rated Current
Dia. Of Wire Cord
Circuit Breaker
Rated Pressure
Minimum Flow Rate
Minimum Pressure
Maximum Pressure
Protection Class
Waterproof Class
Product Size (WxHxD)
Knob Quantity
FP-67WTR380WMTL-W1
230V~
60Hz
3800W
17A
2.0mm²
≥20A
0 MPa
1.2 Liters/minute
0.03 Mpa (4.4 psi)
0.3 MPa (43.5 psi)
I
IP25
224×330×93 mm
1
2.1 Technical Specifications

4
2.2 Parts Identification
Terminal block
Indicator light board
Main control board
Silicon control
Flow sensor
Marker for
water inlet
Water inlet
Wire pressing board
Temperature
Limiter/
Thermal
cut out
Heating
elements
assembly
Stainless
steel circlip
Electronic
Temperature
sensor
Marker for
wateroutlet
Water outlet
Key board
WIRING DIAGRAM
Red Blue
2.3 Internal Wire Diagram
Indicator Light Board
Thermal
Cut Out
Key Board
L
N
E
Red
Blue
Yellow/Green
Temperature
Adjusting
Board
Heating Elements
Silicon Control
Main Control Board
Relay
Relay
Flow Sensor
Temperature Sensor
Terminal Block
G
E
CN1 CN4 CN6
CN2
CN3
CN5
T1
T2
ELCB

5
3.1 Installation Instruction
3.2 Power Cord Installation
Check the capacity of power circuit (circuit breaker, wires, etc.)
Power cord installation;
Water heater installation;
Plumbing connection;
Power supply connection;
①
②
③
④
⑤
Water Supply.

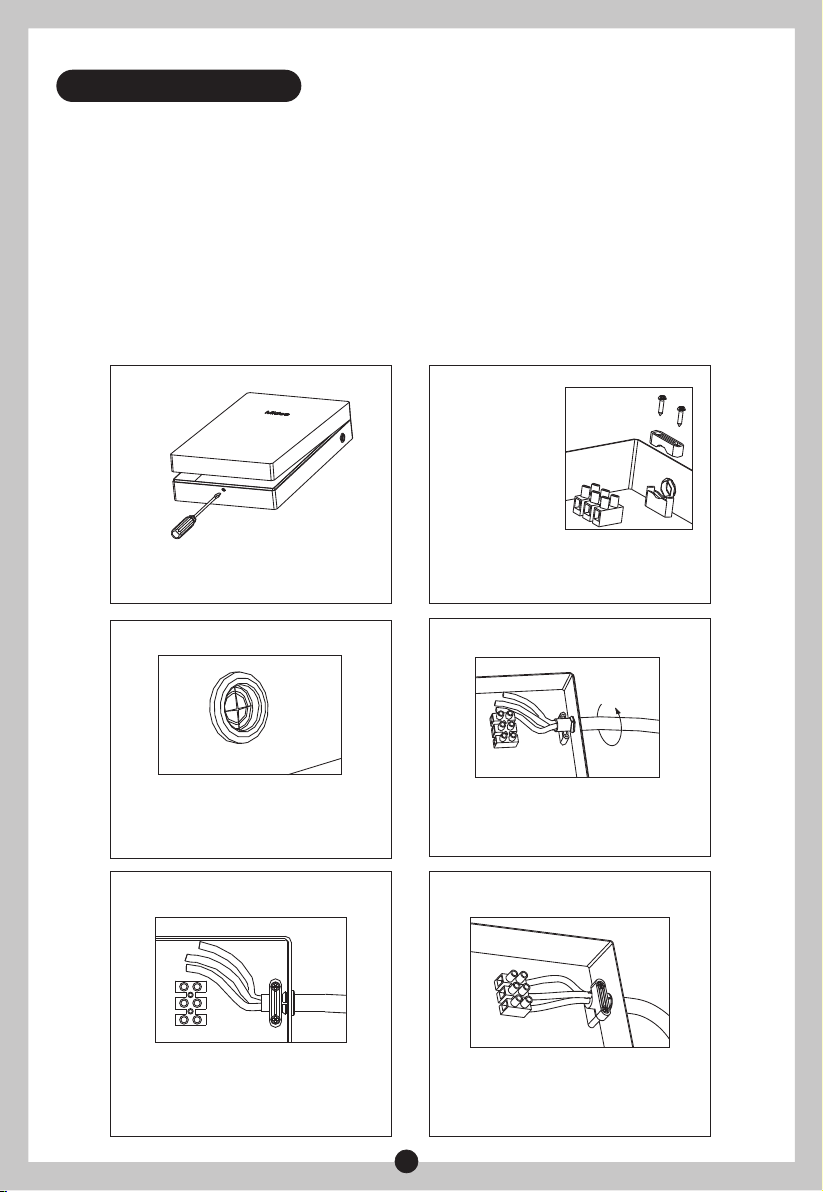

Step 1 Step 2
⑥
3. UNIT INSTALLATION
Step 3 Step 4
Step 5 Step 6
Remove the screws at the bottom of the unit. Lift
the Main Switch Knob and Power Knob to make it
free. Remove the front plate gently.
Gash the middle of the film of the power cord
jacket with a sharp knife in order to put into
power lines.
Tighten the wire-pressing plate with screws to
primary position, ensure that the power cord not
be pulled out more than 60N.
Remove the power cord wire pressing plate and
keep the screws.
Insert by turning the power cord into the jacket for
installation of wire pressing plate.
Connect the power cord to wiring terminals; the
method is as shown in picture.

6
3.3 Water Heater Installation
3.4 Plumbing Connection
①
②
③
④
⑤
NOTE
The installation position of neutral line (blue), live line (brown/red) and earth line
(green/yellow) should be corresponding to the other end of the wiring terminals.
Make sure the distance between the unit and surrounding wall is not less than 300mm, to
have enough space for maintenance purposes.
Determinethe position of four fixing screws (attached with the unit), make four holes with
corresponding depth in the wall by means of a drill and drive a wall plug into the hole.
Drive in the screws on the top and ensure certain distance between screw head and wall
(See Fig.1)
Mount the unit on the wall and tighten with two screws at bottom, connect the wires and
install top cover with the screws.
Determine installation position of the unit according to length of power cord / position
of circuit breaker (Distance between bottom and floor should be ≥1.6m).
①
②
A flexibe shower hose should be connected to the water outlet and shower head. The
attached sealing ring should be used at end face.
Water valve with filter should be installed at water inlet of the unit, sealing ring with filter
should be used at end face. (See Fig.2).
120
250
180
(Fig.1)
WARNING
Metallic / chromed hose and conductive control valve shall not be used.
!

7
3.5 Power Supply Connection
3.6 Water Supply
①
②
③
Choose a circuit breaker with leakage protection according to power of water heater;
When connecting the water heater to electric circuit, please pay attention to connect live
line (red/brown), neutral line (blue) and earth line (yellow/green) with corresponding line in
electric circuit.
Adjust power selection knob to“OFF”;
(Fig.2)
Water flow adjusting
valve with filter
Cold water inlet
NOTE
Water flow adjusting valve with filter must be used when installing the unit. Blue marker
stands for water inlet, red marker stands for water outlet. Do not apply excessive
torque/force to avoid damaging the water heater.
NOTE
A dedicated power cord should be used for this unit. After connecting to electric circuit,
please check the earth condition and make sure the earth resistance is <4Ω.
After all the plumbing connections are
finished , open water inlet valve of the product and
supply water to the unit to drain away air inside until there is stable water flow coming out of
the shower head. If there are leaks, check if the connection points are securely fastened.
Tighten the connections then try again.

8
4.1 Operating the unit
4.2 Leakage Testing
4.3 To Adjust Water Flow
Switch on the power supply, the unit will conduct a self-inspection for 2
seconds. ELCB green indicator light will turn on (If there is no current
leakage). Rotate the knob clockwise to switch on the unit and the indicator
light will turn on. The unit is now working. If not, the water flow may be lower
than 1.2L/minute.
4. USAGE

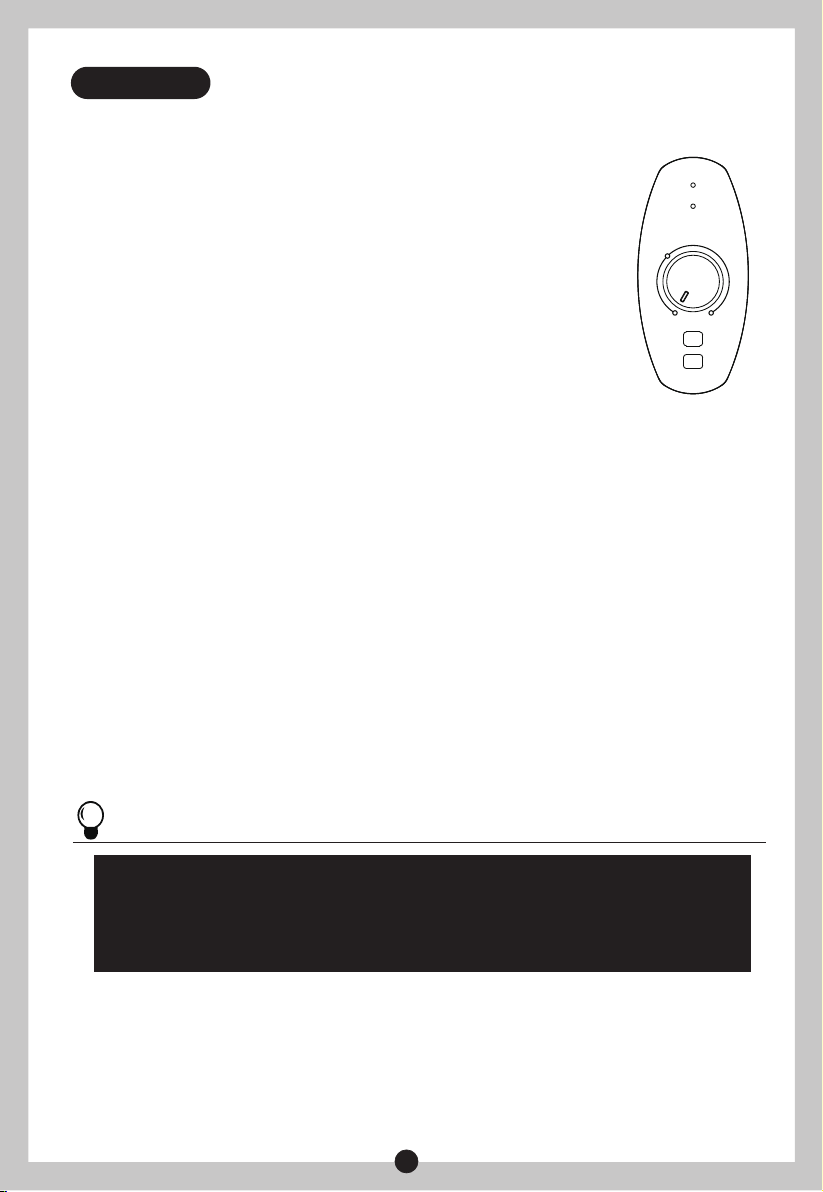

LOW
POWER
ELCB
MAXOFF
TEST
RESET
When the water heater is working normally, press TEST button. If the leakage
test circuit has no problem, the ELCB green indicator light will be off, and the
unit will not heat. Press RESET, testing will be canceled, and the ELCB green
indicator light will be on. The unit will then be back to the working state set
before. If the circuit leaks, pressing the RESET button won’t cancel leakage
testing. The ELCB & POWER indicator lights will flicker, meaning the water
heater has problems and cannot be used. All buttons won’t work and there will
be no heating.
Rotate the handle of water flow adjusting valve.
4.4 Electricity Leakage Protection
When the electricity leakage testing circuit is working normallyand if the leakage current is bigger
than a value between 7.5mA and 15mA, the red POWER and green ELCB indicator light will be off
with no heating; it can only be used after the failure is solved.
4.5 To Adjust Water Temperature
NOTE
For first time use, ensure that the power is turned on only after the unit is filled fully with
water and there is stable water flow coming out of the shower head.
The electric water heater may be damaged if the water hardness is too high. To guaran-
tee the normal service life, please install where water hardness is less than 450mg/L
(CaCO3).
If the water flow is low and power is high while using the unit, outlet water temperature will be high
and the unit will stop heating automatically. At this time, please lower the power and increase the
water flow in order to avoid inconsistency of water temperature.
4.6 Use After Overheating Protection
Rotate the handle of water flow adjusting valve to adjust to proper water flow. Adjust power by rotating
the knob clockwise or counter clockwise and the water temperature will increase or decrease
accordingly.

9
DECLARATION: this water heater can only be maintained by authorized service personnel.
Incorrect installation and use may cause serious injury or loss of property.
5. MAINTENANCE
WARNING
Do cut off power supply before maintenance, to avoid danger such as electric shock.
!
This electric water heater should be installed in a place without direct sunshine or where
rainwater will not hit the unit. Please cut off power supply if the unit will not be used for a
long period of time.
Please run the water for about 10 seconds to drain away the impurities in the pipe before
connecting the water source to the electric water heater, to avoid clogging.
If the unit has not been used for a long time, check it first before using it again. Turn on the
unit only after water constantly flows out of the shower head.
Do not spray water to the circuit breaker or heater body directly, to avoid moisture formation.
Please cut off the power during inclement weather to avoid damaging the water heater.
If the unit will not be used for a long period of time, turn off the water supply to the water heater,
to prolong its life.
Check the power cord connecting terminals frequently to make sure that these are well and
reliably contacted, no occurence of overheating phenomenon, and grounding is good.
Disassemble the shower head and sealing ring with filter, for periodic cleaning.

6. TROUBLESHOOTING
10
SUGGESTIONS
1. Check whether power
is cut.
2. Contact authorized
service personnel for
repair.
1. Rotate “TEMP” knob
2. Repair or replacement
of the PCB.
1. Press the reset handle
of the Silicon control
after checking and
troubleshooting.
2. Change the heating
element.
3. Adjust water flow.
4. Change the flow sensor.
5. Open the flow sensor
and clean the rotor.
1. Wait for restoration of
running water supply;
2. Open the inlet valve of
running water.
Lower the heating power
and increase the water
flow.
Contact authorized service
personnel for repair.
REASONS
1. The “TEMP” knob is off;
2.
3. The water flow
is below 1.2L/min;
PCB error;
4. Impurities clogging the
flow sensor of the rotor.
1. The running water
supply is cut off;
2. The inlet valve of running
water is not open.
1. Water pressure is not
stable.
2. Outlet water temperature
is too high, overheating
protection activates
repeatedly
Ocurance of electrical
current leakage.
Temperture sensor
is broken.
Change the temperture
sensor.
SYMPTOMS
The heating indicator light
is off and the outlet
water is cold.
The heating indicator light
is on and the outlet
water is cold.
Switch on the power
supply, ELCB indicator
light is off.
No water flows out of
the shower head.
Outlet water temperature
is sometimes hot or cold
1. The Silicon control is
cut off.
2. Heating element
is broken.
“ELCB”and“POWER”
indicator lights flicker at
the same time
“POWER” indicator light
flickers
1. Power supply error;
2. PCB error;
3. Thermal cut out is
activated

For more information, please visit our website www.midea.com.ph
Customer Care
(02) 863-55-22
Landline:
[phone]
Viber/SMS:
[email protected]om.ph
Email:
1-800-10-863-5522
Toll free:
Monday - Sunday / 8:00am - 8:00pm
A quality product of
