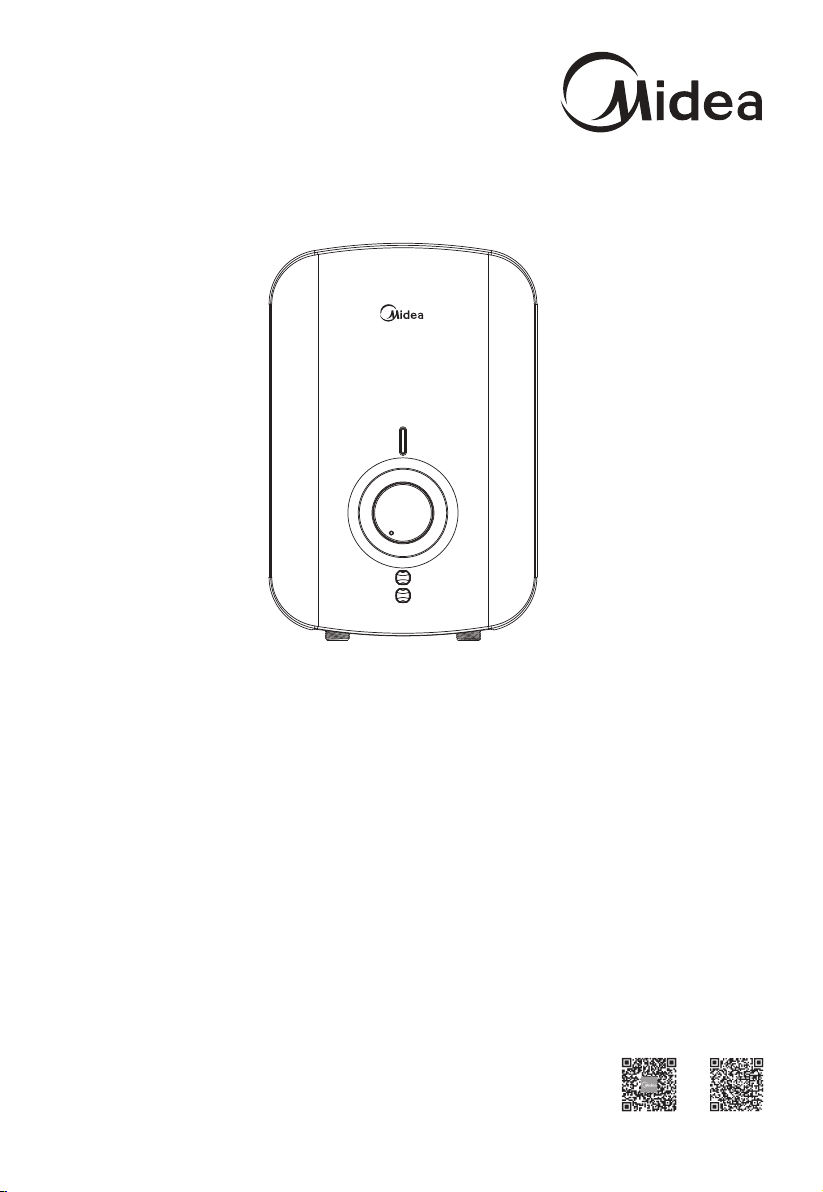

Midea DSK45V User manual

Thank you very much for purchasing our water heater.
Before installing and operating your water heater, please
read this manual carefully and keep it for future reference.
The diagram above is just for reference. Please take the
appearance of the actual product as the standard.
Instant Electric Water Heater
Instruction Manual
Model: DSK45V

1
TABLE OF CONTENTS
TITLE PAGE
1.Cautions ...........................................................................................................................(2)
2.Product introduction .........................................................................................................(3)
3.Unit installation .................................................................................................................(5)
4.Methods of using ..............................................................................................................(8)
5.Maintenance.....................................................................................................................(9)
6.Troubleshooting..............................................................................................................(10)
Sincerely thank you for selecting our electric water heater. Please read this manual carefully
before use; correctly grasp the methods for installation and use of this electrical water heater, to
make full use of its excellent performances. Please do preserve the instruction manual for future
reference.

2
This water heater is for household, and it can be installed wherever place that need hot water.
Plug is not used for this water heater; this water heater must be connected directly with power
switch that comes with leakage-protection. Please distinguish live line (red/brown), neutral line
(blue) and earth line (green/yellow) during installation.
Do check whether the amperes of the household wiring enough before installation, and
dedicated circuit must be used when installation.
Before installing this water heater, check and confirm the earth electrode on the socket is reliably
earthed, without electricity.
The hot water from the water heater may cause scald, please test the temperature of the hot
water before use.
The distance between water heater installed and water output should be as nearby as possible
to avoid loss of heat.
The electric water heater may be damaged if the water hardness is too high. To ensure longer
product lifespan, please install and put it into use on condition that the local water hardness is
less than 450mg/L (CaCO3)
In time of lightning/thunder, switch “Off” the Miniature Circuit Breaker (MCB) in advance to
protect the water heater against possible damage.
Inspection on the built-in ELCB (once a month) to avoid a hazard to users such as damage to
property, serious injury or death.
Do cut-off power supply before any maintenance. Any maintenance or adjustment towards this
product by non-professional is highly prohibited.
The damage power cord must be replaced by a good power cord provided by the manufacturer,
and the replacement should be done by a qualified technician or engineer or professionals of
the similar products.
In order to avoid a hazard due to inadvertent resetting of the Earth Leakage Circuit Breaker
(ELCB), this appliance must not be supplied through an external switching device, such as timer
or connected to a circuit that is regularly switched “On” and “Off” by the utility.
Water heater is equipped with adjustable flow capacity safety valve. For safety use, please do
not change its installation location and do not block its water outlet.
For any improper installation and incorrect operation of this product, our company will not be
liable for any responsibility.
This water heater can be used for other purpose, eg. Washing hands, dishes or foods, and so on.
(Multi directional water supply is not available).
When the shower is used by someone such as child, old person, sick person and physical
handicapped person, the concern person is kindly requested to pay attention and check the
shower temperature by using hand from time to time.
To prevent personal injury, injury to others and property damage, the instructions below must be
followed. Incorrect operation due to failure to follow instructions will cause harm or damage.
Special Cautions
1. CAUTIONS
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●

3
WARNING
The water heater should be earthed before use. Please ensure that the resistance of
household earth wire is <4Ω. Using water heater without earthed is highly prohibited.
!
2. PRODUCT INTRODUCTION
Model
Rated Voltage
Rated Frequency
Rated Power
Rated Current
Dia. Of Wire Code
Air Switch
Rated Pressure
Minimum Flow Rate
Minimum Pressure
Maximum Pressure
Protection Class
Water Proof Class
Products Size
Knob Quantity
DSK45V
220-240V~
50/60Hz
4500W
20.4A
2.5mm²
≥25A
0 MPa
1.5 Liters/minute
0.03 MPa
0.3 MPa
I
IP25
224×330×93 mm
1
2.1 Technical Performance Parameters

4
2.2 Parts Identification
WIRING DIAGRAM
2.3 Internal Wire Diagram
Indicator Light Board
Thermal
Cut Out
Key Board
L
N
E
Red
Blue
Yellow/Green
Temperature
Adjusting Board
Heating Elements
Silicon Control
Main Control Board
Relay
Relay
Flow Sensor
Temperature Sensor
Terminal Block
G
CN1 CN4 CN6
CN2
CN3
CN5
T1
T2
ELCB
Terminal block
Indicator light
board
Main control board
Silicon control
Flow sensor
Marker for
water inlet
Water inlet
Wire pressing board
Thermal
cut out
Heating
elements
assembly
Stainless
steel circlip
Marker for
wateroutlet
Water outlet
Key board
Red Blue

5
3.1 Installation Instruction

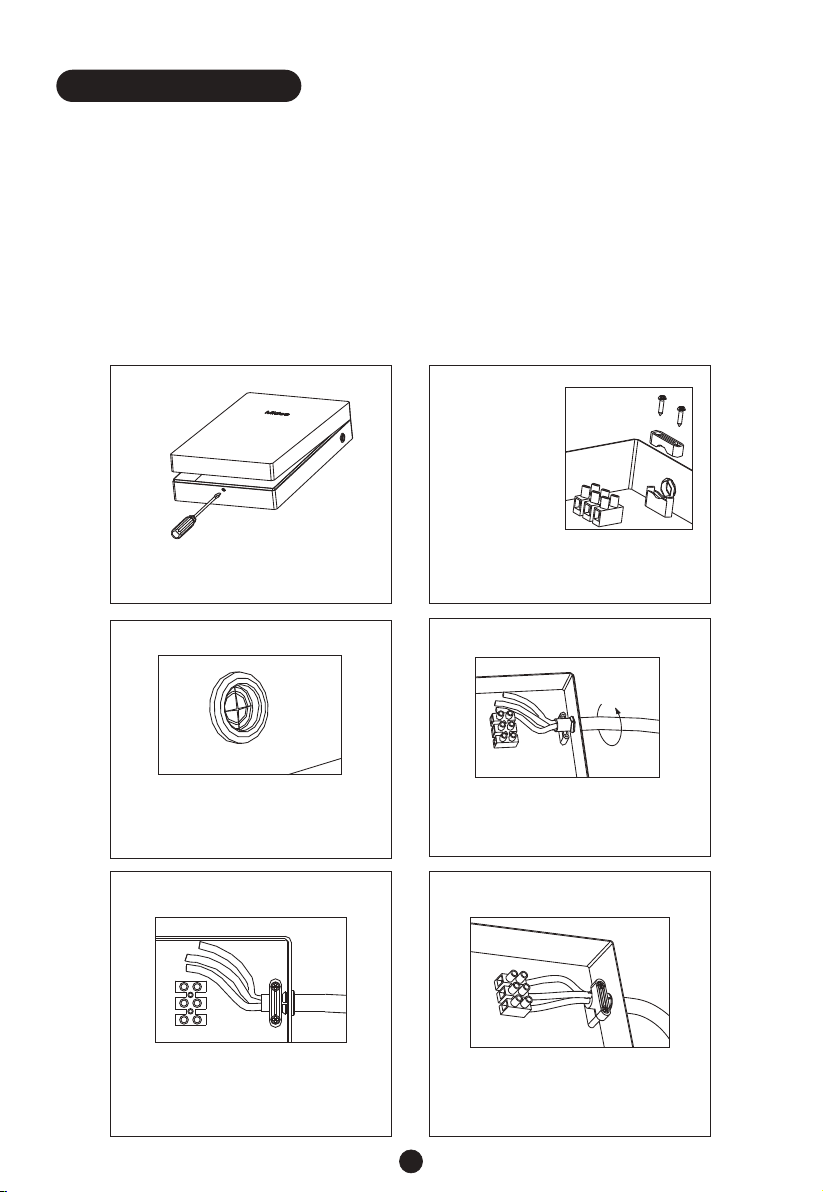

3.2 Power Cord Installation
Check the capacity of power circuit;
Power cord installation;
Water heater installation;
Plumbing connection;
Power supply connection;
①
②
③
④
⑤
Water Supply.
Step 1 Step 2
⑥
3. UNIT INSTALLATION
Step 3 Step 4
Step 5 Step 6
Remove the screws at the bottom of the unit. Lift
up the Main Switch Knob and Power Knob to
make it free. Remove the front plate gently.
Gash the middle of the film of the power cord
jacket with a sharp knife in order to put into
power lines.
Tighten the wire-pressing plate with screws to
primary position, ensure that the power cord not
be pulled out more than 60N.
Remove the power cord wire pressing plate and
keep the screws.
Screw the power cord into the jacket for
installation of wire pressing plate.
Connect the power cord to wiring terminals; the
method is as shown in picture.

6
3.3 Water Heater Installation
3.4 Plumbing Connection
①
②
③
④
⑤
NOTE
The installation position of neutral line (blue), live line (brown/red) and earth line
(green/yellow) should be corresponding to the other end on wiring terminals.
Make sure the distance between the unit and surrounding wall is not less than 300mm, so
that to have enough space for maintenance purpose.
Determinethe position of four fixing screws (attached with the unit), make four holes with
corresponding depth in the wall by means of a drill and drive a wall plug into the hole.
Drive in the screws on the top and ensure certain distance between screw head and wall
(See Fig.1)
Mount the unit on the wall and tighten with two screws at bottom, connect the wires and
install top cover with the screws.
Determine installation position of the unit according to length of power cord / position
of air switch (Distance between bottom and floor should be ≥1.6m).
①
②
Shower flexible tube should be connected with water outlets and shower head separately,
attached sealing ring should be used at end face.
Water valve with filter should be installed at water inlet of the unit, sealing ring with filter
should be used at end face. (See Fig.2).
120
250
180
(Fig.1)
WARNING
Metallic / chromed hose and conductive control valve shall not be used.
!

7
3.5 Power Supply Connection
3.6 Water Supply
①
②
③
Choose air switch with leakage protection according to power of water heater;
When connecting the water heater to electric network, please pay attention to connect live
line (red/brown), neutral line (blue) and earth line (yellow/green) with corresponding line in
electric network.
Adjust power selection knob to“OFF”;
(Fig.2)
Water flow adjusting
valve with filter
Cold water inlet
NOTE
Water flow adjusting valve with filter must be used when install the unit. Blue marker
stands for water inlet, red marker stands for water outlet. Do not overexert to avoid
damaging the water heater.
NOTE
A private power cord should be used for this unit. After connecting to electric network,
please check the earth condition and make sure the earth resistance is <4Ω.
After all the plumbing is
finished connecting, open water inlet valve of the product and supply
water to the unit to drain away air inside until there is stable water flow comes out from shower
head. Check whether there is leakage at joints or not. If there is, check whether the connecting
parts are fastened or not, then re-supply water.

8
4.1 Operating Of The Unit
4.2 Leakage Testing
4.3 To Adjust Water Flow
Switch on the power supply, the unit will take self-inspection for 2s, The
indicator light will turn blue (under the condition of no electricity leakage).
When the water flow exceeds 1.2L/min, rotate the knob clockwise to switch on
heating power rotate switch, the indicator light will turn white ,the unit start to
work.
4. METHODS OF USING
When the water heater is working normally (including working state of PUMP),
press TEST button, if the leakage test circuit is no problem, the indicator light
will be off, and the unit will not heat. Press RESET, testing will be canceled,
and indicator light will turn blue or white, the unit will be back to working state
set before. If the circuit leaks, press RESET button can't cancel leakagetesting,
the indicator light keeps off, it means the water heater has problems and can't
be used; all the buttons are invalid, the indicator lights are all off, heating is
stopped, and pump will be closed.
Rotate the handle of water flow adjusting valve to adjust the water flow.
4.4 Electricity Leakage Protection
When the electricity leakage testing circuit is working normally, if the leakage current is bigger than
certain value between 7.5mA and 15mA, the indicator light will keep flickering, no heating; it can
only be used after the failure is excluded. (When electricity leakage is tested, red and green
indicator lights are all off, stop heating )
4.5 To Adjust Water Temperature
NOTE
For first time using, ensure electrify after the unit is filled fully with water and there is
stable water flow comes out from shower head.
The electric water heater may be damaged if the water hardness is too high. To
guarantee the normal service life, please install and put it into use on condition that the
local water hardness is less than 450mg/L (CaCO3).
If the water flow is small and power is high while using the unit, outlet water temperature is rather
high; the unit will stop heating automatically. At this time, please lower the power and adjust the
water flow faster in order to avoid inconsistency of water temperature.
4.6 Use After Overheating Protection
Rotate the handle of water flow adjusting valve to adjust to proper water flow. Adjust power by rotating
knob, clockwise rotate, power will be increased and water temperature increase accordingly or vice
versa.
Indicator
light

9
This electric water heater should be installed at the place without sunshine or rain spray.
Please cut off power supply if not use for long time.
Please blow down the water for about 10 seconds to drain away the impurities in the pipe before
connecting the water source to the electric water heater to avoid blockage of water heater.
If long time no use the unit, check the water heater first before use. Electrify after the water
flows out stably.
Do not spray water to air switch or heater body directly, to avoid moist.
Please cut off the power in the weather of thunder and rain to avoid damaging the water heater.
If not use for long period of time, please cut off water inlet to prolong the lifespan of the water
heater.
Check the power cord connecting terminals frequently to make sure that they are well and
reliablycontacted, no overheating phenomenon,and grounding is good or not.
Disassembly shower head and sealing ring with filter to clean periodically.
DECLARATION: this water heater can only be maintained by authorized service personnel,
incorrect installation and using method may cause serious injury or loss of property.
●
●
●
●
●
●
●
●
5. MAINTENANCE
WARNING
Do cut off power supply before maintenance, to avoid danger like electric shock.
!

SUGGESTIONS
1. Check whether power
is cut
2. Contact authorized
service personnel for
repair.
1. Adjust the power higher.
2. Contact authorized
service personnel for
repair.
3. Start the water heater
again when the
hydraulic pressure is
increased.
1. Wait for restoration of
running water supply;
2. Open the inlet valve of
running water.
Adjust the heating power
lower, make the water
bigger.
Contact authorized service
personnel for repair.
Contact authorized service
personnel for repair.
REASONS
1. Power supply error;
2. PCB error;
3. Thermal cut out acts;
4. Electricity leaks.
1. Switch is off;
2. Heating element error;
3. PCB error;
4. Water pressure is too
low, can’t start the unit.
1. The running water
supply is cut off;
2. The inlet valve of running
water is not open.
1. Water pressure is not
stable.
2. Outlet water temperature
is too high, overheating
protection again and
again.
Water switches error.
Electricity leaks.
SYMPTOMS
Outlet water is cold.
6. TROUBLESHOOTING
10
Switch on the power
supply, indicator light
is off.
No water flows out from
the shower head.
Outlet water temperature
sometimes is hot,
sometimes is cold.
Close water valve, the
heating indicatorlight is
still on.
Press TEST, indicator light
is off; press RESET button,
the indicator light is still off.

The product is subject to change without notice.
Please keep this manual properly.
