Midea ECOHEAT Series User manual

Water Heater
ECOHEAT SERIES
Rated Voltage: 230V
Rated Power: 3800W
Frequency: 60Hz
Weight: 1.95/2.25kg
Dimensions (WxHxD):
200x400x95mm
FP-67WTR380WMTM-W1
FP-67WTR380WMTH-B1
version 000
ph.midea.com
USER’S MANUAL

1
TABLE OF CONTENTS
TITLE PAGE
1.Caution .........................................................................................................................................................................(2)
2.Product introduction ...............................................................................................................................................(3)
3.Unit installation ...........................................................................................................................................................(7)
4.Usage ..............................................................................................................................................................................(10)
5.Maintenance................................................................................................................................................................(11)
6.Troubleshooting.........................................................................................................................................................(12)
Sincerely, thank you for selecting our electric water heater. Please read this manual carefully
before use; correctly grasp the methods for installation and use of this electrical water heater, to
make full use of its superior performance. Please do preserve the instruction manual, for future
reference.

2
To prevent personal injury, injury to others and property damage, the instructions below must be
followed. Incorrect operation due to failure to follow instructions will cause harm or damage.
Special Caution
1. CAUTION
This water heater is for household use only and it can be installed indoors where
hot water is needed.
A plug is not used for this water heater; this water heater must be connected directly to a
circuit breaker with current leakage protection.
Please distinguish live line (red/brown),neutral line (blue) and earth line (green/yellow)
during installation.
Do check whether the ampere rating of the household wiring is sufficient before installation,
and a dedicated circuit must be used when installing.
Before installing this water heater, check and confirm if the earth electrode in the socket is
reliably earthed and has no current flowing. If there is no ground electrode or incorrect ground
connection is done, the water heater will not work.
The hot water from the water heatermay cause scalding; please test and check the
temperature of the hot water before use.
The distance between water heater installed and water output should be as near as
possible to avoid loss of heat.
The electic water heater maybe damaged if the water hardness is too high. To ensure
longer product lifespan, please install nd put it into use where the local water hardness
is less than 450mg/L9CaCO3).
In times of lightning/thunder, switch “Off” the circuit breaker ahead of time, to protect
the water heater against possible damage.
Inspect the built-in ELCB (once a month)to avoid hazards to users such as damage to
property serious injury or death.
Do not cut off power supply before maintenance. Any maintenance or adjustment of
product by a non-professional is highly prohibited.
The damaged power cord must be replaced by good one provided by the manufacturer,
and the replacement should be done by qualified technician or engineer or professionals of
similar products.
In order to avoid hazard due to inadvertent resetting of the Earth Leakage Circuit
Breaker (ELCB), this appliance must not supplied through an external switching device, such
as timer or connected to a circuit that is regularly switched “On” and “Off” by the utility.
This water heater is equipped with adjustable flow capacity safety valve. For safety use,
please do not change its installation location and do not block its water outlet.
For any improper installation and incorrect operation of this product, our company will not be
liable for any responsibility.
This water heater can be used for other purpose, e.g., washing hands, dishes or food,
and so on. (Multi-directional water supply is not available).
When the shower is used by children, elderly, sick or physically- handicapped persons, they
are requested to be attentive to and check the water temperature by hand, from time to time.
This shower head must be descaled regularly.
WARNING
The water heater should be earthed before use. Please ensure that the resistance of
household earth wire is <4Ω. Otherwise you may receive an electric shock. Using the water heater
without earthing is highly prohibited.
!

Connect the wire of measuring instrument according to the manual. Please check the diagram
below.
Connect E1to the ground wire, and connect E2, P2 to the auxiliary electrode of steel bar in the soil
or ground. The distance of E1, E2, P2 and steel bar should be greater than 20m. A requirement is
that the measurement site should avoid strong electric elds, in order to reduce the measure-
ment error.
There are 4 terminals E1, E2, P1, P2 on grounding resistance measuring instrument. E1 and P1 are
usually connected for convenience. You only need to connect the E1 to the ground terminal and
E2, P2 to the auxiliary electrode steel bar in the soil/ground.
If there is no soil to drill the steel bar in, you can connect P2, E2 to the neutral terminal re hoses
or oors, which can be considered as the ground resistance.
Then press the POWER button, select the appropriate test range (if not clear about the scope of
the resistance, choose the biggest range, and then choose the smallest range.), press the PRESS
key. The screen display number is the resistance value of grounding resistance of the house.
●
●
●
●
●
3
P2 E2 E1 P1
10Ω 100Ω 1000Ω
POWER HOLD
PRESS
d1≥20m d2≥20m

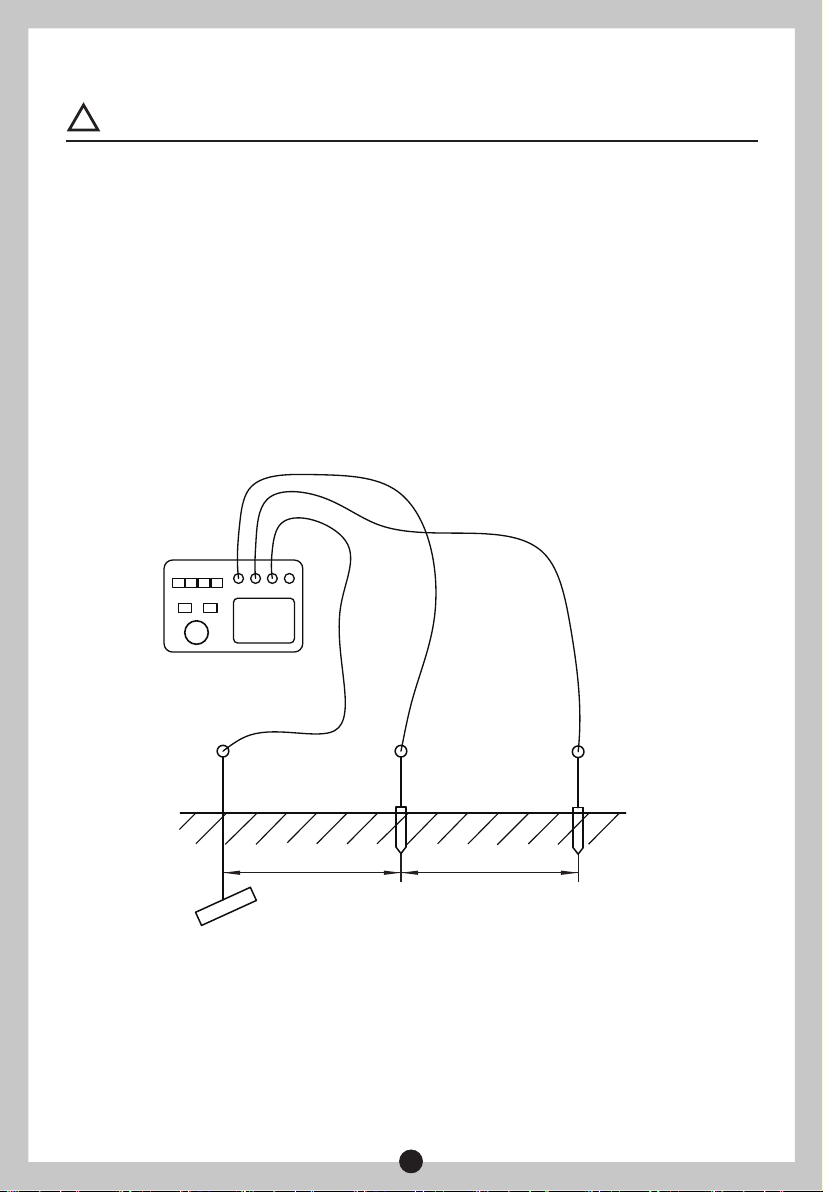

Ground resistance measurement method:
!

2. PRODUCT INTRODUCTION
2.1 Technical Performance Parameters
FP-67WTR380WMTH-B1FP-67WTR380WMTM-W1
Model
Rated
Rated
Rated
Voltage
Rated Frequency
Power
Current
Dia. Of Wire Cord
Circuit Breaker
R ated
Minimum Flow R ate
Minimum Pressure
Pressure
Pressure
Maximum
Protection Class
Waterproof Clas s
Product Size ( WxHxD)
Knob Quantity
3800W
0～17A
4mm²
≥20A
0～17A
3800W
4mm²
≥20A
I
230V~
60 Hz
0 MP a
1.2 Liters/minute
0.03 MPa (4.4 psi)
0.3 MPa (43.5 psi)
IP 25
200×400×95 mm
1
4

5

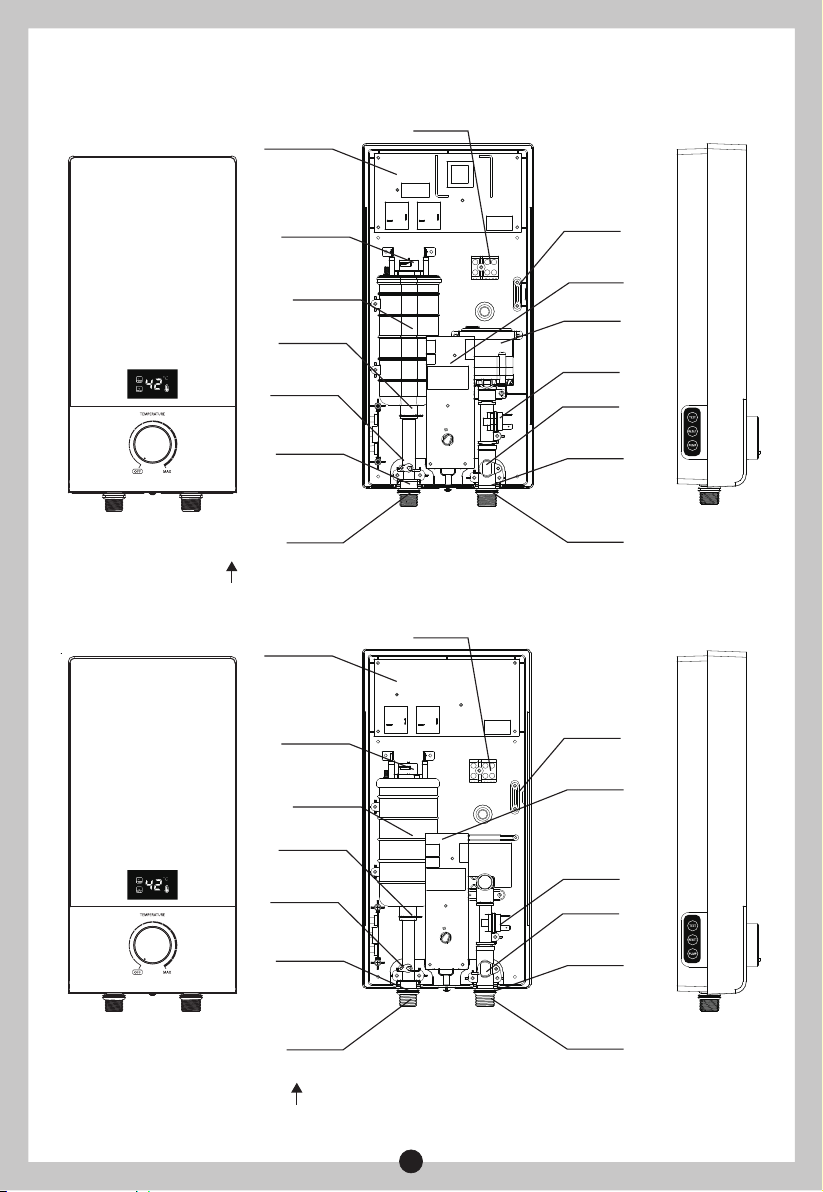

2.3 Parts Identication
Terminal block
Silicon control
DC pump
Flow sensor
Marker for
water inlet
Water inlet
Thermal
Temperature
Limiter/
Temperature
Limiter/
Electronic
Electronic
cut out
Main control board
Heating
elements
assembly
Stainless
steel circlip
Temperature
sensor
Marker for
wateroutlet
Water outlet
Red Blue
FOR FP-67WTR380WMTM-W1
FOR FP-67WTR380WMTH-B1
Terminal block
Silicon control
Flow sensor
Marker for
water inlet
Water inlet
Wire pressing
board
Thermal
cut out
Main control board
Heating
elements
assembly
Stainless
steel circlip
Temperature
sensor
Marker for
wateroutlet
Water outlet
Red Blue
Indicator
light board
Wire pressing
board
Indicator
light board

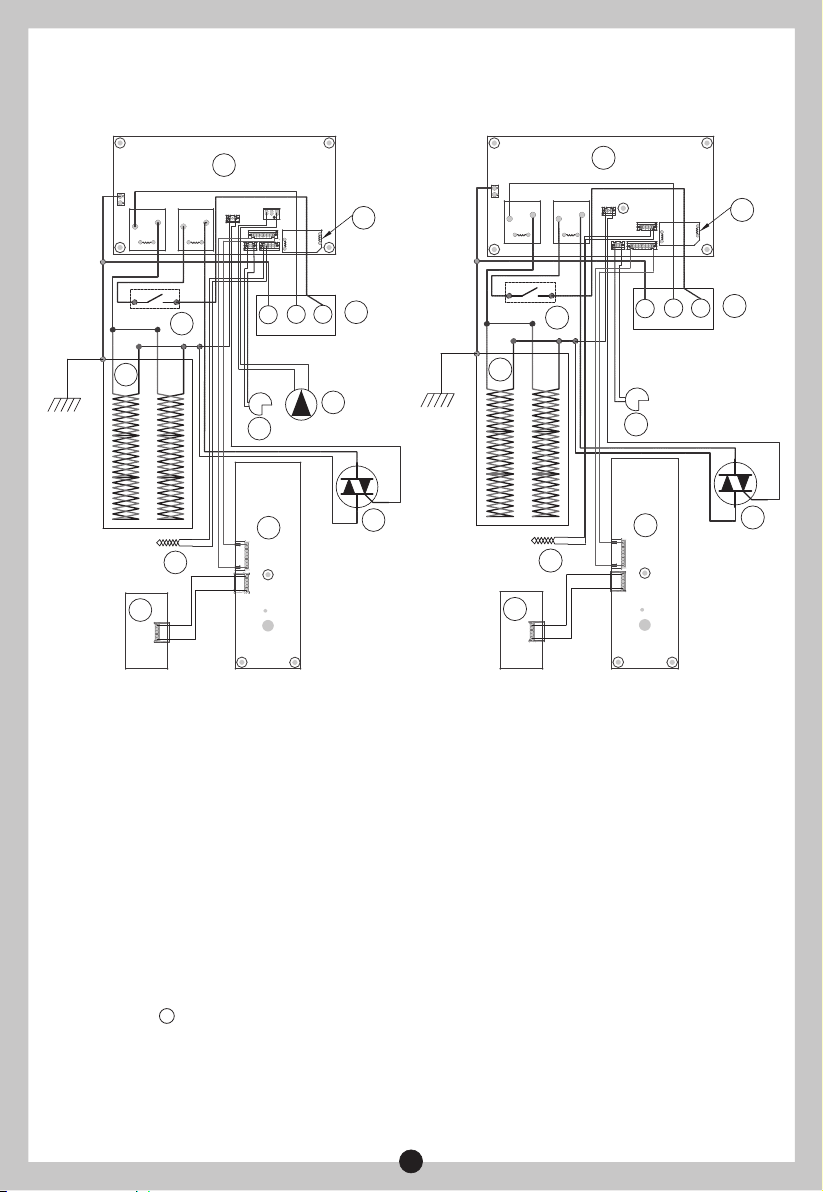

2.4 Internal Wire Diagram
6
WIRING DIAGRAM FOR FP-67WTR380WMTH-B1 WIRING DIAGRAM FOR FP-67WTR380WMTM-W1
⑧：DC Pump
⑦：Temperature Sensor
⑥：Heating Elements
⑤：Thermal Cut Out
④：Indicator Light
③：Main Control Board
②：Terminal Block
①：Key board
⑩：Silicon Control
：Mutual inductor
11
⑨：Flow Sensor
⑩：Mutual inductor
⑧：Silicon Control
⑦：Temperature Sensor
⑥：Heating Elements
⑤：Thermal Cut Out
④：Indicator Light
③：Main Control Board
②：Terminal Block
①：Key board
⑨：Flow Sensor
L
N
CN6
5
6
4
7
9
1
2
N
PE L
G
T1
T2
3
8
10
NL
RL2 RL1
CN1
5
6
4
7
9
3
10
1
2
N
PE L
G
T1
T2
8
11

7
3.1 Installation Instruction
3.2 Power Cord Installation
Check the capacity of power circuit (circuit breaker, wires, etc.)
Power cord installation;
Water heater installation;
Plumbing connection;
Power supply connection;
①
②
③
④
⑤
Water Supply.
Step 1 Step 2
⑥
3. UNIT INSTALLATION
Step 3 Step 4
Step 5 Step 6
Remove the screws at the bottom of the unit. Lift
the Main Switch Knob and Power Knob to make it
free. Remove the front plate gently.
Gash the middle of the film of the power cord
jacket with a sharp knife in order to put into
power lines.
Tighten the wire-pressing plate with screws to
primary position, ensure that the power cord not
be pulled out more than 60N.
Remove the power cord wire pressing plate and
keep the screws.
Insert by turning the power cord into the jacket for
installation of wire pressing plate.
Connect the power cord to wiring terminals; the
method is as shown in picture.

8
(Fig.1)
170
275
3.3 Water Heater Installation
①
②
③
④
⑤
NOTE
The installation position of neutral line (blue), live line (brown/red) and earth line
(green/yellow) should be corresponding to the other end of the wiring terminals.
Make sure the distance between the unit and surrounding wall is not less than 300mm, to
have enough space for maintenance purposes.
Determinethe position of four fixing screws (attached with the unit), make four holes with
corresponding depth in the wall by means of a drill and drive a wall plug into the hole.
Drive in the screws on the top and ensure certain distance between screw head and wall
(See Fig.1)
Mount the unit on the wall and tighten with two screws at bottom, connect the wires and
install top cover with the screws.
Determine installation position of the unit according to length of power cord / position
of circuit breaker (Distance between bottom and floor should be ≥1.6m).
3.4 Plumbing Connection
①
②
A flexibe shower hose should be connected to the water outlet and shower head. The
attached sealing ring should be used at end face.
Water valve with filter should be installed at water inlet of the unit, sealing ring with filter
should be used at end face. (See Fig.2).
WARNING
Metallic / chromed hose and conductive control valve shall not be used.
!

9
(Fig.2)
Water ow
adjusting
valve with
lter
Cold water inlet
3.5 Power Supply Connection
3.6 Water Supply
①
②
③
Choose a circuit breaker with leakage protection according to power of water heater;
When connecting the water heater to electric circuit, please pay attention to connect live
line (red/brown), neutral line (blue) and earth line (yellow/green) with corresponding line in
electric circuit.
Adjust power selection knob to“OFF”;
NOTE
Water flow adjusting valve with filter must be used when installing the unit. Blue marker
stands for water inlet, red marker stands for water outlet. Do not apply excessive
torque/force to avoid damaging the water heater.
NOTE
A dedicated power cord should be used for this unit. After connecting to electric circuit,
please check the earth condition and make sure the earth resistance is <4Ω.
After all the plumbing connections are finished , open water inlet valve of the product and
supply water to the unit to drain away air inside until there is stable water flow coming out of
the shower head. If there are leaks, check if the connection points are securely fastened.
Tighten the connections then try again.

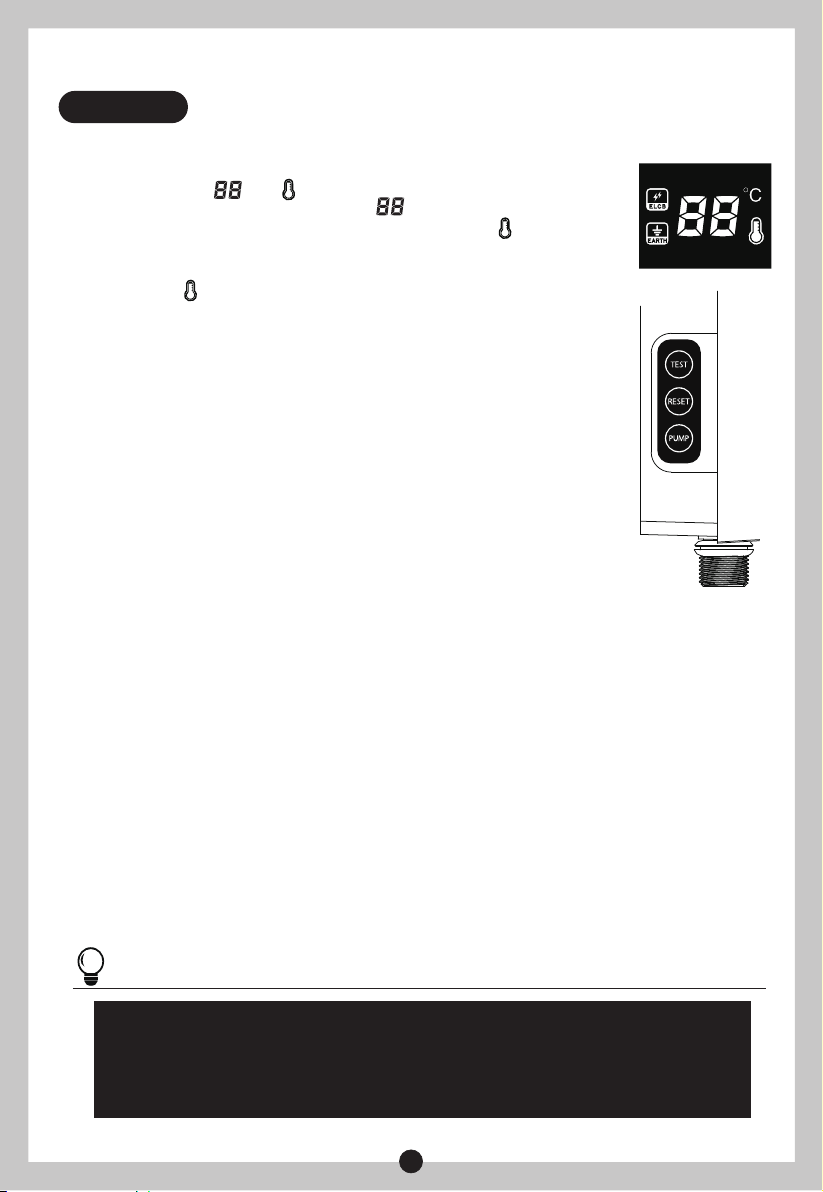

Switch on the power supply and the LED will light up. If the heater is not working,
the light in both the and icons will turn o after 15 seconds. Rotate the
knob clockwise to switch on the unit and the will display the set temperature.
When the temperature is between 30° and 37°C, the light in the icon will be
green; orange if between 38° and 44°C; and red if more than 45°C. If the EARTH
orange indictor light is o, there is an abnormality in the grounding.
If the light in the icon ickrs, it means that the heater is working at its maximum
power but the outlet water temperature is still below the set temperature.
10
4.1 Operating the unit
4.2 Leakage Testing
4.3 To Adjust Water Flow
4. USAGE
Rotate the handle of water flow adjusting valve.
4.4 Electricity Leakage Protection
4.5 To Adjust Water Temperature
4.7 Use After Overheating Protection
4.6 To Activate Pump Function (FP-67WTR380WMTH-B1)
When the water heater is working normally, press TEST button. If the leakage
test circuit has no problem, the ELCB green indicator light will be off, and the
unit will not heat. Press RESET, testing will be canceled, and the ELCB green
indicator light will be on. The unit will then be back to the working state set
before. If the circuit leaks, pressing the RESET button won’t cancel leakage
testing. The ELCB & POWER indicator lights will flicker, meaning the water
heater has problems and cannot be used. All buttons won’t work, there will be
no heating and the pump will not function.
The pump will be on as the default setting when the product is used the rst time and can be turned o by
pressing the PUMP button which turns this function on and o.
When the electricity leakage testing circuit is working normallyand if the leakage current is bigger
than a value between 7.5mA and 15mA, the red POWER and green ELCB indicator light will be off
with no heating; it can only be used after the failure is solved.
Rotate the handle of water flow adjusting valve to adjust to proper water flow. Adjust power by rotating
the knob clockwise or counter clockwise and the water temperature will increase or decrease
accordingly.
NOTE
For first time use, ensure that the power is turned on only after the unit is filled fully with
water and there is stable water flow coming out of the shower head.
The electric water heater may be damaged if the water hardness is too high. To guaran-
tee the normal service life, please install where water hardness is less than 450mg/L
(CaCO3).
If the water flow is low and power is high while using the unit, outlet water temperature will be high and
the unit will stop heating automatically. At this time, please lower the power and increase the water
flow in order to avoid inconsistency of water temperature.

11
6. TROUBLESHOOTING
SUGGESTIONS
1. Check whether power is cut
2. Contact authorized service
personnel for repair.
3. Make sure the grounding is
reliable.
1. Rotate “TEMP” knob
2. Repair or replacement
of the PCB
1. Press the reset handle
of the thermal sensor
after checking and
troubleshooting
2. Change the heating
element
3. Adjust water ow
4. Change the ow sensor
5. Open the ow sensor
and clean the rotor
1. Wait for restoration of
running water supply;
2. Open the inlet valve of
running water.
Lower the heating power and
increase the water ow.
Contact authorized service
personnel for repair.
Contact authorized service
personnel for repair.
REASONS
1. Power supply error,
2. PCB error;
3.
4.
Occurence of leakage current
There is no ground electrode or
incorrect ground connection
1. The “TEMP” knob is o;
2.
3. The water ow
is below 1.2L/min;
PCB error ;
4. Impurities clogging the
ow sensor of the rotor
1. The running water
supply is cut o;
2. The inlet valve of running
water is not open.
1. Water p ressu re is not
stable.
2. Outlet water temperature
is too high, overheating
pr
otectionactivates repeatedly
Occurence of electrical
current leakage.
PUMP malfunction.
Temperture sensor
is broken
Change the temperture
sensor
SYMPTOMS
Theheating indicator light
is oand the outlet
water is cold.
Theheating indicator light
is on and the outlet
water is cold.
Switch on the power
supply, ELCB indicator
light is o ff.
No water ows out of
the shower head.
Outlet water temperature
is sometimes hot or cold
Pressure can’t be
increased.
1. The thermal sensor
cut o the circuit
2. Heating element
is broken
“EARTH”、“ELCB”and
“POWER” indicator
lights icker at the
same time
“POWER” indicator light
ickers
5. MAINTENANCE
DECLARATION: this water heater can only be maintained by authorized service personnel.
Incorrect installation and use may cause serious injury or loss of property.
WARNING
Do cut off power supply before maintenance, to avoid danger such as electric shock.
!
This electric water heater should be installed in a place without direct sunshine or where
rainwater will not hit the unit. Please cut off power supply if the unit will not be used for a
long period of time.
Please run the water for about 10 seconds to drain away the impurities in the pipe before
connecting the water source to the electric water heater, to avoid clogging.
If the unit has not been used for a long time, check it first before using it again. Turn on the
unit only after water constantly flows out of the shower head.
Do not spray water to the circuit breaker or heater body directly, to avoid moisture formation.
Please cut off the power during inclement weather to avoid damaging the water heater.
If the unit will not be used for a long period of time, turn off the water supply to the water heater,
to prolong its life.
Check the power cord connecting terminals frequently to make sure that these are well and
reliably contacted, no occurence of overheating phenomenon, and grounding is good.
Disassemble the shower head and sealing ring with filter, for periodic cleaning.

For more information, please visit our website www.midea.com.ph
Customer Care
(02) 863-55-22
Landline:
[phone]
Viber/SMS:
[email protected]om.ph
Email:
1-800-10-863-5522
Toll free:
Monday - Sunday / 8:00am - 8:00pm
A quality product of
