MCAC-RTSM-2012-01 M-thermal Technical Manual(part 1)
1
Midea M-thermal
Heat Pump Water Heater
Technical Manual
Midea reserves the right to discontinue, or change at any time, specifications or designs without notices and
without incurring obligations.
CE-LRSJF-V120/N1-610
CE-LRSJF-V100/N1-610
CE-LRSJF-V80/N1-310
CE-LRSJF-V60/N1-310
CE-LRSJF-V80/N1-310-B
Outdoor unit
CE-LSX-300XP/D30B11
CE-LSX-200XP/D30B11
CE-LSX-150XP/D30B7
CE-LSX-300XP/SD15B11
Water tank
CE-SMK-120/CD30GN1
CE-SMK-100/CD30GN1
CE-SMK-80/CD30GN1
CE-SMK-60/CD30GN1
CE-SMK-80/CSD80GN1
Indoor unit
CE-TMK-01
Solar kit

MCAC-RTSM-2012-01 M-thermal Technical Manual(part 1)
2
Part 1
System Outline
1.Measurements ...................................................................................3
2.External Appearance.........................................................................4
3.Nomenclature ....................................................................................5
4.Features .............................................................................................7
5.Specifications....................................................................................8
5.1 Specifications of outdoor units...............................................................................8
5.2 Specifications of Hydraulic indoor unit..................................................................9
5.3 Specifications of water tank and solar kit............................................................10
6.Performance data ............................................................................11
6.1 Heating performance data of 6/8kw model...........................................................11
6.2 Cooling performance data of 6/8kw model ..........................................................13
6.3 Heating performance data of 10/12kw model.......................................................14
6.4 Cooling performance data of 10/12kw model ......................................................15

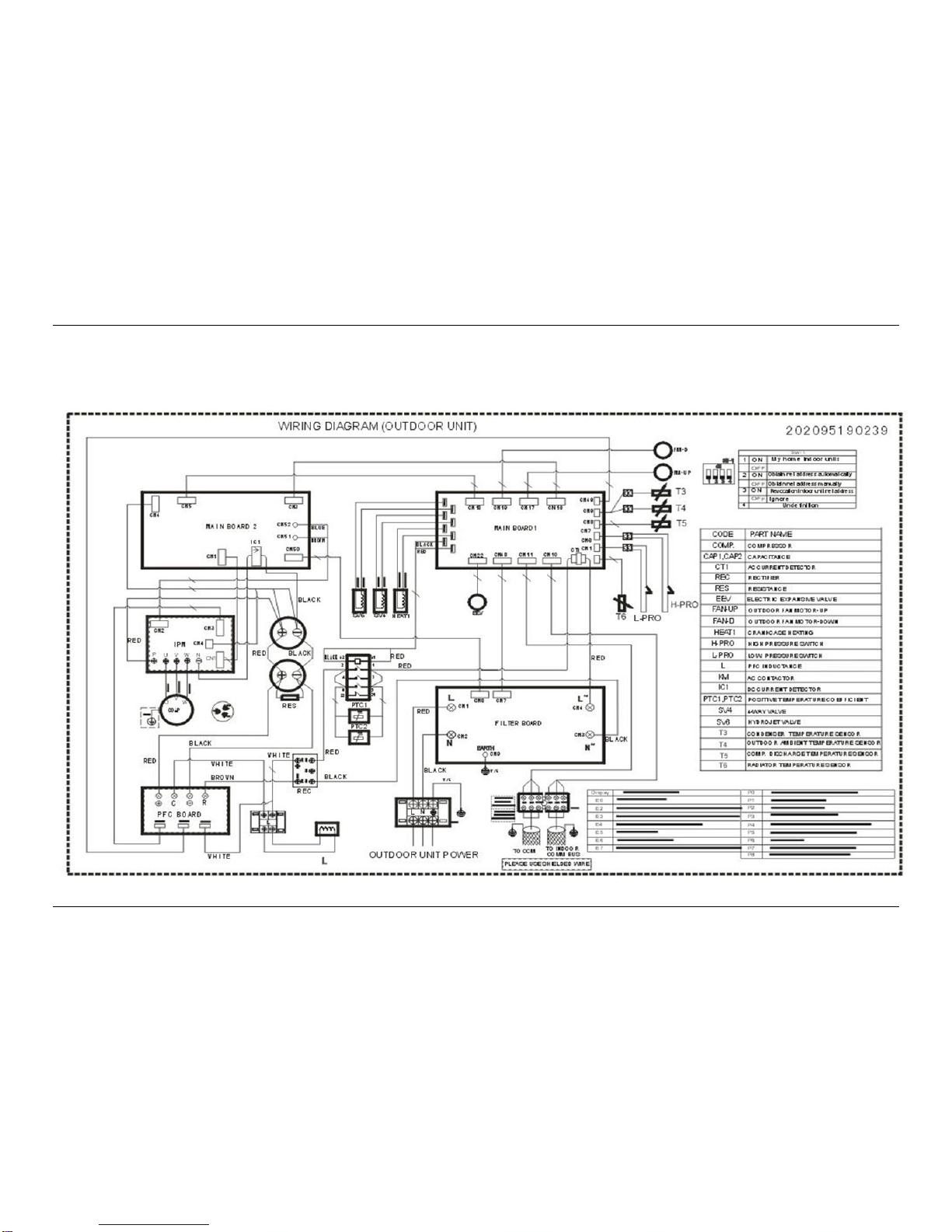

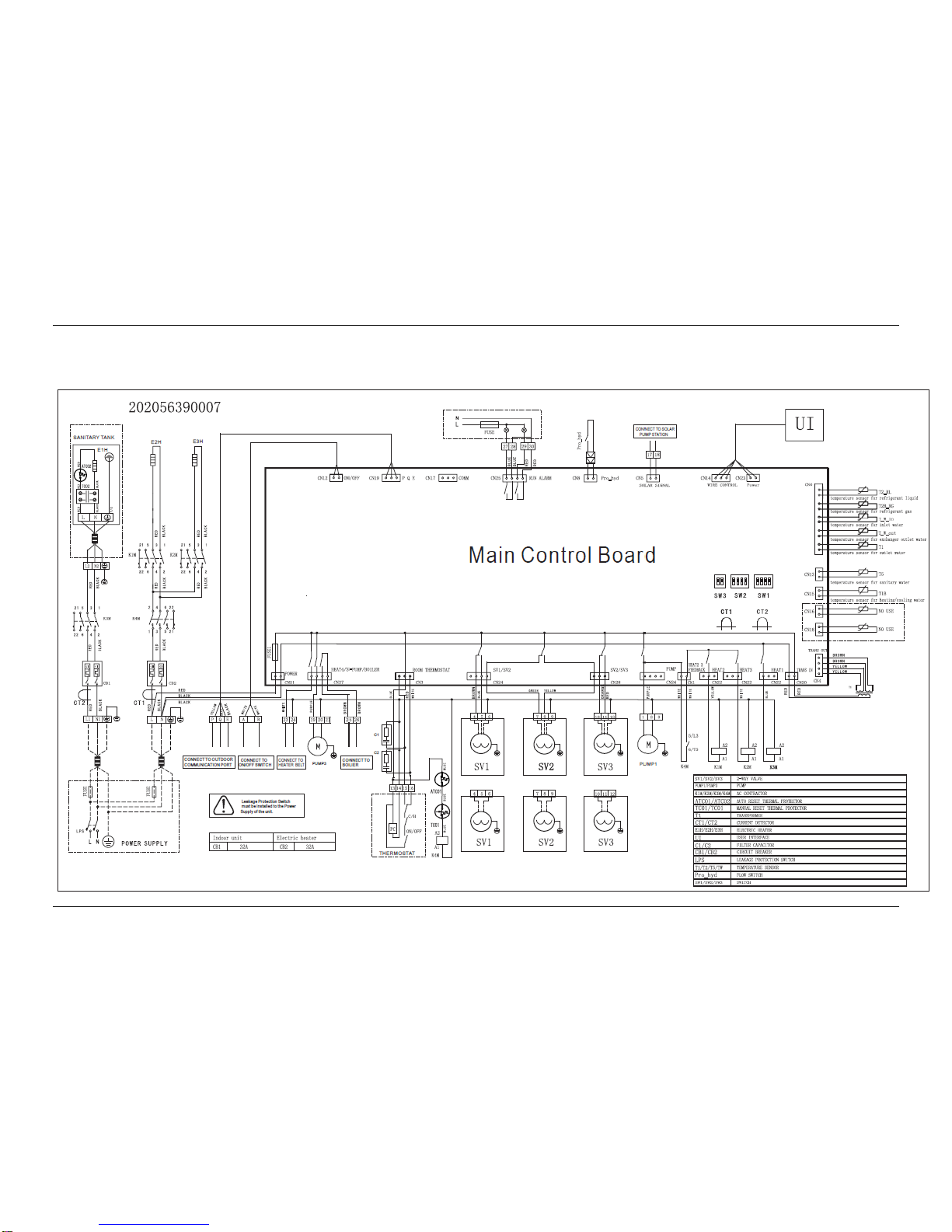

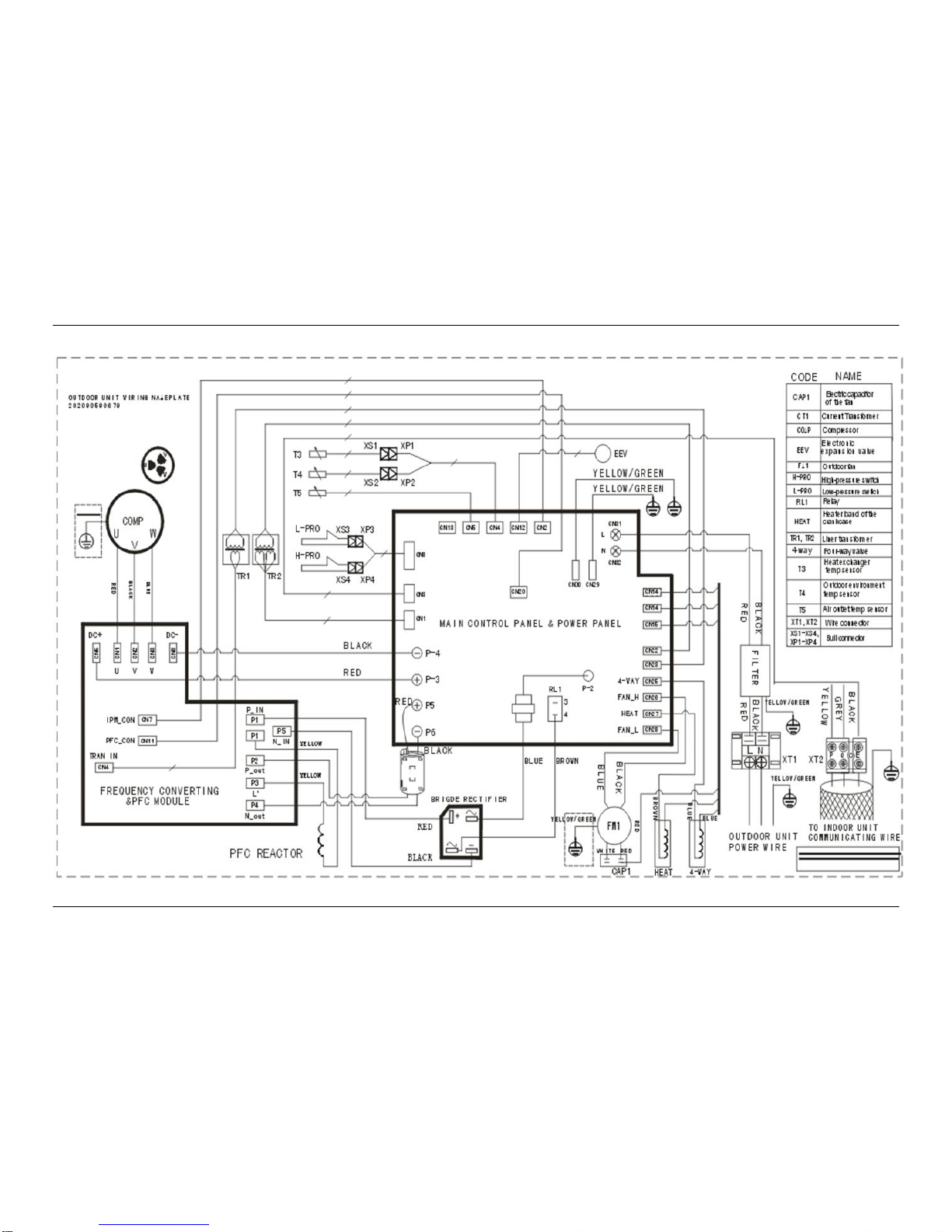

7.Wiring Diagrams..............................................................................16
7.1 Outdoor units wiring diagram...............................................................................16
7.2 Hydraulic indoor units wiring diagram.................................................................18

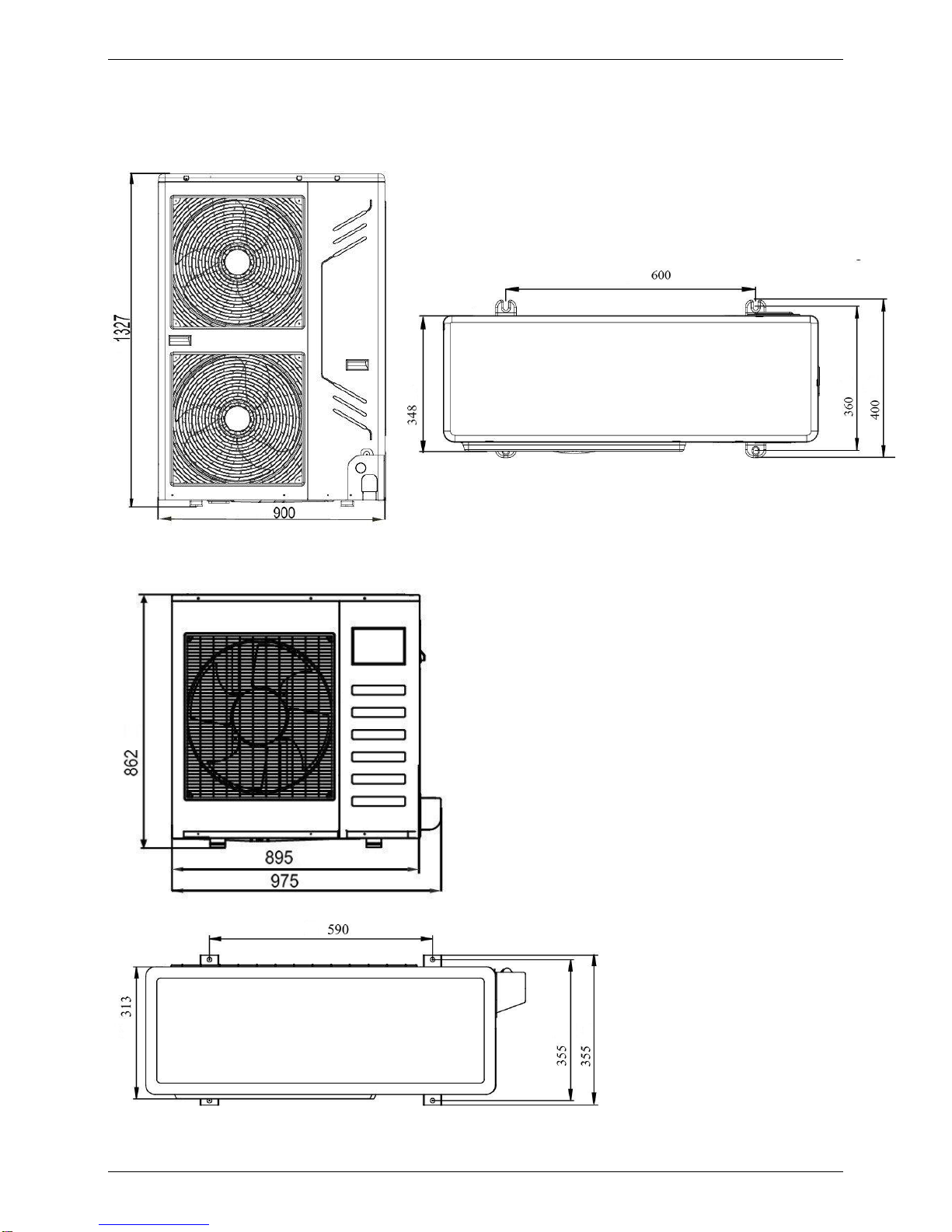

8.Dimensions......................................................................................20
8.1 Dimensions of outdoor units ................................................................................20
8.2 Dimensions of Hydraulic indoor units..................................................................21
9.Installation place and service space..............................................22
9.1 Outdoor unit service space...................................................................................22
9.2 Hydraulic indoor unit installation location and service space............................23
10. Exploded View ...........................................................................24
10.1 Exploded view of outdoor units............................................................................24
10.2 Exploded view of hydraulic indoor units..............................................................28
11. Accessories ...............................................................................32
12. Functional diagram....................................................................33
12.1 Complete system diagram ....................................................................................33
12.2 Electrical connection diagram and cable specification ......................................34

MCAC-RTSM-2012-01 M-thermal Technical Manual(part 1)
3
1. Measurements
Outdoor units
Model name
Dimension (mm)
Net/Gross weight (kg)
Power supply
CE-LRSJF-V120/N1-610
Width: 900
Height: 1327
Depth:348
89/101
220～240-50Hz
1 Ph
CE-LRSJF-V100/N1-610
CE-LRSJF-V80/N1-310
Width: 895
Height: 862
Depth:313
66/70
220～240-50Hz
1 Ph
CE-LRSJF-V60/N1-310
CE-LRSJF-V80/N1-310-B
Width: 895
Height: 862
Depth:313
63/67
220～240-50Hz
1 Ph
Hydraulic indoor unit
SMK-120/CD30GN1
Width: 900
Height:500
Depth:375
63/75
220～240-50Hz
1 Ph
SMK-100/CD30GN1
SMK-80/CD30GN1
SMK-60/CD30GN1
SMK-80/CSD80GN1
Width: 900
Height:500
Depth:375
64/77
380V-3Ph-50Hz
Solar kit
CE-TMK-01
Width: 810
Height: 310
Depth:295
8/10
220～240-50Hz
1 ph
Water Tank
Model name
Dimension (mm)
Net/Gross weight (kg)
Packing Dimension W×D×H
CE-LSX-300XP/D30B11
Ф580×1800
75//84
620×1960×635
CE-LSX-200XP/D30B11
Ф580×1320
60/68
670*1400*670
CE-LSX-150XP/D30B7
Ф580×1055
49/55
670*1135*670
CE-LSX-300XP/SD15B11
Ф580×1800
80/91
670×1885×670

MCAC-RTSM-2012-01 M-thermal Technical Manual(part 1)
4

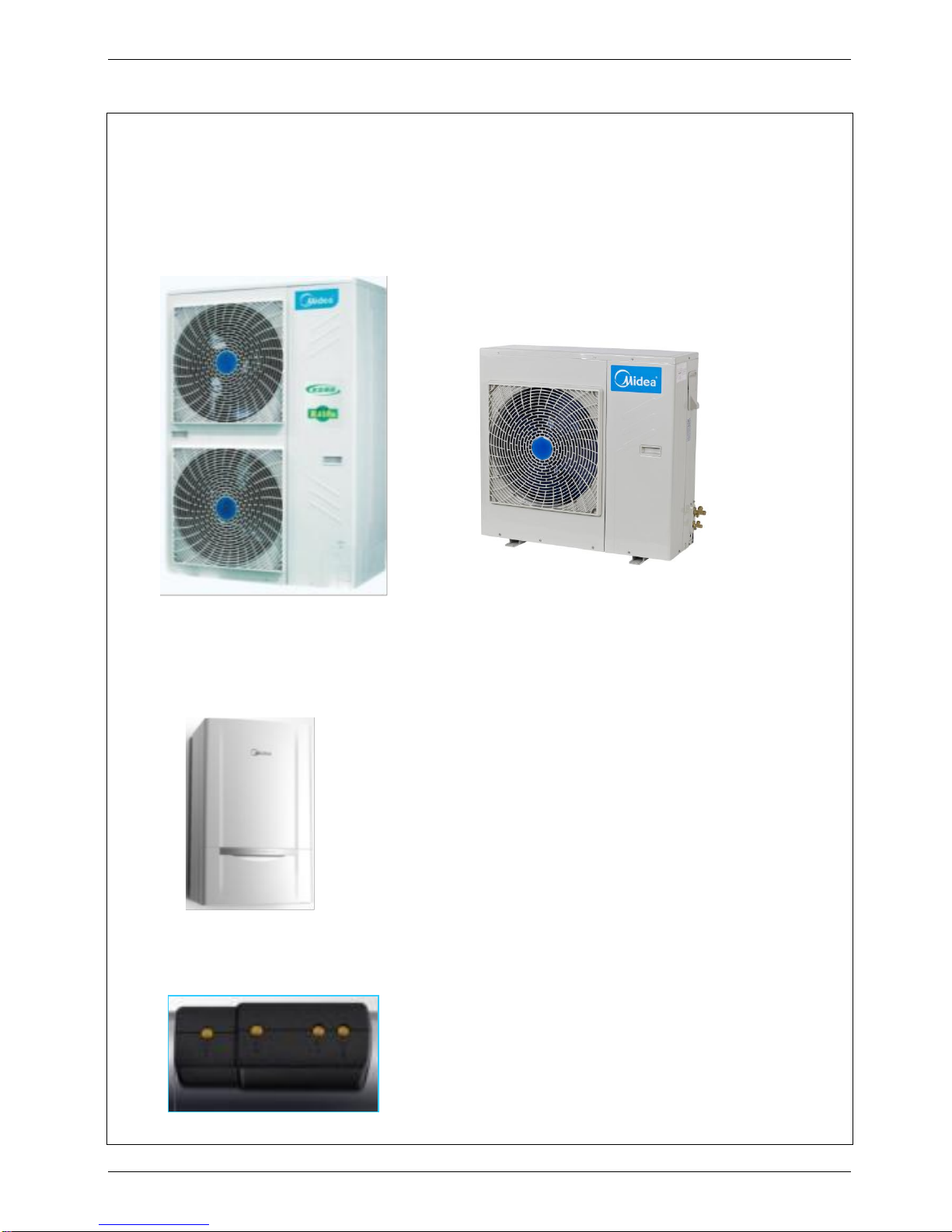

2. External Appearance
CE-LRSJF-V120/N1-610 CE-LRSJF-V80/N1-310
CE-LRSJF-V100/N1-610 CE-LRSJF-V60/N1-310
CE-LRSJF-V80/N1-310-B
CE-SMK-120/CD30GN1 CE-SMK-100/CD30GN1
CE-SMK-80/CD30GN1 CE-SMK-80/CSD80GN1 CE-SMK-60/CD30GN1
CE-TMK-01

MCAC-RTSM-2012-01 M-thermal Technical Manual(part 1)
5

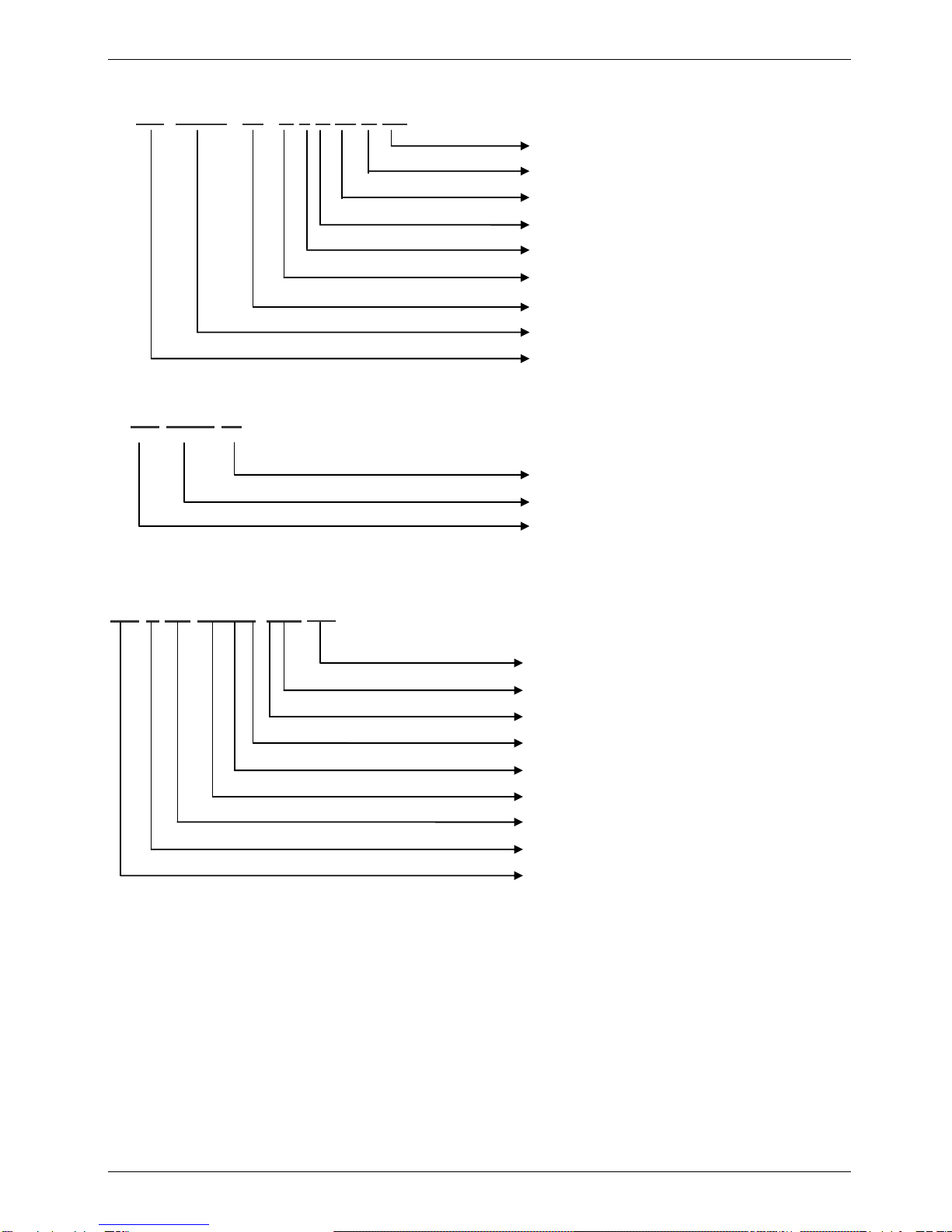

3. Nomenclature
Outdoor unit
CE-L RSJF-V100/N1-610
Design code
Refrigerant type (R410a)
Heating Capacity (8000W)
Compressor type (DC compressor)
Split type
Midea Heat Pump water heater
Heating and cooling mode (Omit for heating)
Export model code
CE-LSX-300XP/D30B11
CE-LSX-200XP/D30B11
CE-LSX-150XP/D30B7
CE-LSX-300XP/SD15B11

MCAC-RTSM-2012-01 M-thermal Technical Manual(part 1)
6
Indoor unit
CE-SMK –80 / C S D 80 G N1
Solar kit
CE-TMK-01
CE-L SX-300XP/ D30 B11
Refrigerant type (R410a)
Installation type (Wall-mounted)
E-heater Capacity (8000W)
Electric heater
Power type (3ph, 380V)
Water cycle type
Heating Capacity (8000w)
Hydraulic modular
Export model code
Design code
Solar heating unit
Export model code
Design code
E-heater power(3000w)
Electric heater
Water tank appearance code (spraying appearance)
Water tank inner tank code (Stainless Steel inner tank )
Water tank volume (300L)
Water tank code
Water tank type code (vertical type)
Export model code

MCAC-RTSM-2012-01 M-thermal Technical Manual(part 1)
7
4. Features
4.1 Safety
a. Realize isolation between water and electricity. No electric shock problem, more safety.
b. No fuel tubes and storage, no potential danger from oil leakage, fire, explosion etc.
4.2 Five operating model
a. space cooling
b. space heating
c. water heating
d. space cooling + water heating
E. space heating + water heating
1.3Environmental friendly.
a. R410a refrigerant;
b. No discharge of poisonous gas;
c. Reduce CO2 emission

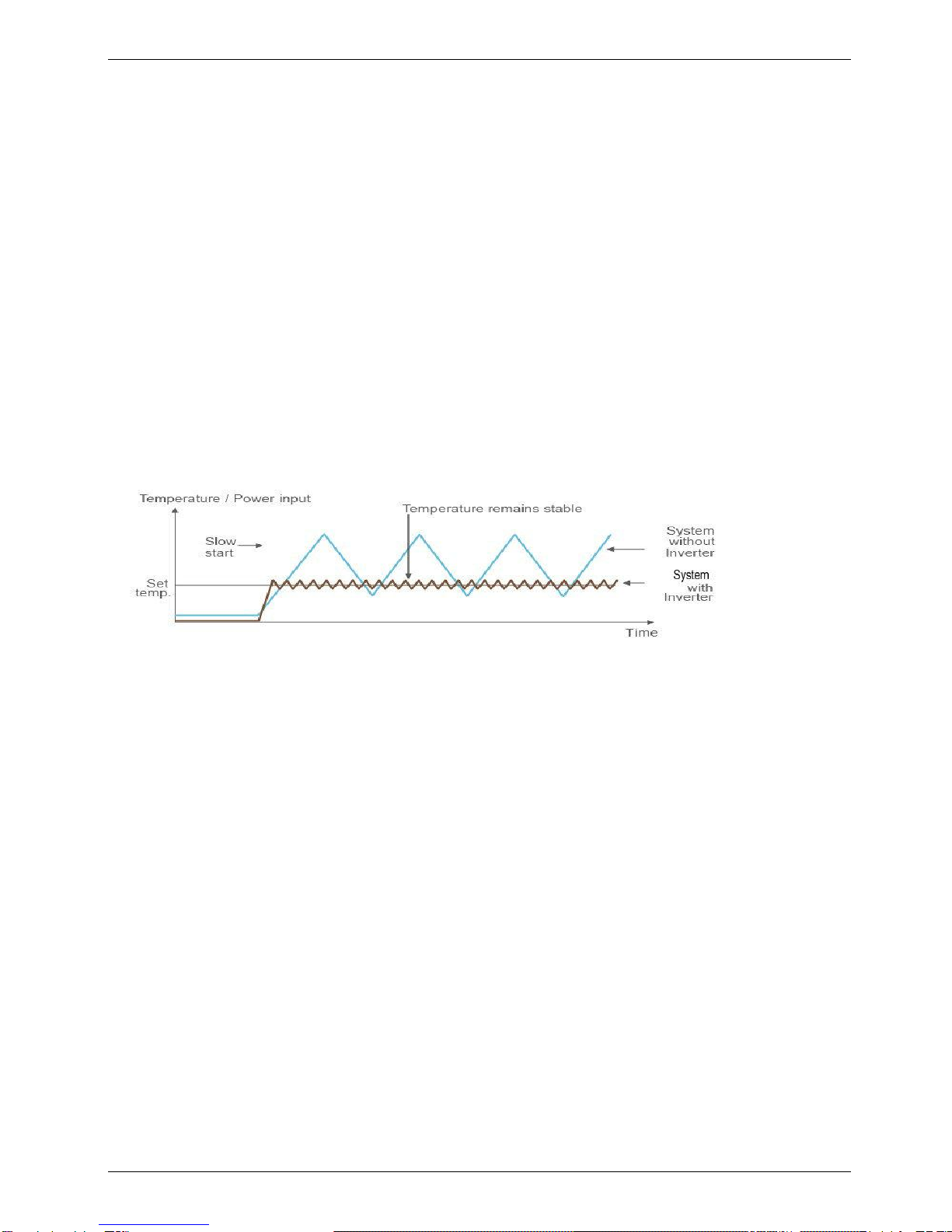

4.4 DC inverter system.
.
4.5 Automatic weekly anti-legionella function
4.6 Easy operation and automatic control.
The system can be controlled simply through the wire controller.
4.7 High efficiency and energy-saving.
The unit adopts heat pump principle, which absorbs heat from outdoor air and produce heat water, thermal
efficiency for water heating be up to 4.3
4.8 All-the-weather running.
Within the temperature range from -20 to 43℃, it will not be affected by night, overcast sky, rain and snow.
4.9 Convenient installation and maintenance
The quadrate type can be easily installed in a corner of the verandah even if it’s very narrow
4.10 Total Heating Solution
When floor heating is conducted in a new house, warm air spreads gently across the house, making it
comfortable and enabling the use of broad space without necessitating radiators or FCU.
4.11 Comfort System
When floor heating is applied, warm air spreads gently across the house, making it comfortable. The system
can help blood circulation and metabolism, further boosting our health.
The installation of M-Thermal will eliminate oil or gas tank, making the household surrounding neat and safe,
enabling the use of more space, and avoiding refueling.
4.11 CE approval

MCAC-RTSM-2012-01 M-thermal Technical Manual
8
5. Specifications
5.1 Specifications of outdoor units
DC Inverter outdoor unit
LRSJF-V120/N1-610
LRSJF-V100/N1-610
LRSJF-V80/N1-310
LRSJF-V60/N1-310
LRSJF-V80/N1-310-B
Power supply
Ph-V-Hz
1-220～240-50
1-220～240-50
1-220～240-50
1-220～240-50
1-220～240-50
Max. current
A
23
22
15
14
16
Heating
Capacity
kW
12
10
8
6
8
COP
kW/kW
4.3
4.1
4.08
4.0
4.08
Ambient Temp.
℃
-15～43
-15～43
-15～43
-15～43
-20~43
Cooling
Capacity
kW
9.3
8.5
6.3
6.3
6.3
COP
kW/kW
2.45
2.45
2.23
2.45
2.23
Ambient Temp.
℃
15～43
15～43
15～43
15～43
15～43
Unit
Dimension (W×H×D)
mm
900×1327×348
900×1327×320
895×862×313
895×862×313
895×862×313
Packing (W×H×D)
mm
1016×1456×435
1016×1456×435
1025×910×410
1025×910×410
1025×910×410
Net/gross weight
kg
89/101
89/101
66/70
66/70
63/67
Noise level
dB(A)
58
58
58
58
58
Refrigerant
type/quantity
kg
R410a/2.7kg
R410a/2.7kg
R410a/2.4kg
R410a/2.4kg
R410a/2.4kg
system pressure
MPa
4.4/2.6
4.4/2.6
4.4/2.6
4.4/2.6
4.4/2.6
Compressor
Model
TNB306FPGMC
TNB306FPGMC
TNB220FLHMC
TNB220FLHMC
TNB220FLHMC
Type
Rotary
Rotary
Rotary
Rotary
Rotary
Brand
Mitsubishi
Mitsubishi
Mitsubishi
Mitsubishi
Mitsubishi
Locked rotor current
A
67
67
45
45
45
Rate current
A
13.5
13.5
9.7
9.7
9.7
Crankcase
W
30
30
30
30
30
Capacity
kW
9.8
9.8
7.1
7.1
7.1
Fan motor
Brand
Panasonic
Panasonic
welling
welling
welling
Model
WZDK100-38G（*2）
WZDK100-38G（*2）
YDK75-6H-1
YDK75-6H-1
YDK75-6H-1
Type
DC MOTOR
DC MOTOR
AC MOTOR
AC MOTOR
AC MOTOR
Input
w
100*2
100*2
168
168
168
Output
w
110*2
110*2
75
75
75
Speed
r/min
800
800
877/749
877/749
877/749
Max. refrigerant pipe length
m
50
50
25
25
25
Liquid side/ Gas side
mm
Φ9.5/Φ15.9
Φ9.5/Φ15.9
Φ9.5/Φ15.9
Φ9.5/Φ15.9
Φ9.5/Φ15.9
Outdoor coil
Number of rows
2
2
2
2
2
Tube pitch(a)x row
pitch(b)
mm
25.4/22
25.4/22
22*19.05
22*19.05
22*19.05
Tube dia. and type
mm
7.94(female screw)
7.94(female screw)
7.94(female screw)
7.94(female screw)
7.94(female screw)

MCAC-RTSM-2012-01 M-thermal Technical Manual
9
Fin space
mm
1.6
1.6
1.7
1.7
1.7
Fin type (code)
Hydrophilic
aluminum
Hydrophilic aluminum
Hydrophilic aluminum
Hydrophilic
aluminum
Hydrophilic aluminum
Coil length x height
1276*870
1276*870
792*38.1
792*38.1
792*38.1
Number of circuits
7
7
8
8
8
Loading
Quantity
20'/40'/40H
Pcs
28/58/58
28/58/58
60/126/126
60/126/126
60/126/126
5.2 Specifications of Hydraulic indoor unit
Hydraulic indoor unit
SMK-120/CD30GN1
SMK-100/CD30GN1
SMK-80/CD30GN1
SMK-60/CD30GN1
SMK-80/CSD80GN1
Power supply
Ph-V-Hz
1-220～240-50
1-220～240-50
1-220～240-50
1-220～240-50
3-380-50
Function
Types
Heating &Cooling
Heating &Cooling
Heating &Cooling
Heating &Cooling
Heating &Cooling
Space Heating
℃
15～55
15～55
15～55
15～55
15～55
Space Cooling
℃
7～22
7～22
7～22
7～22
7～22
Sanitary Hot
Water
℃
35～60
35～60
35～60
35～60
35～60
Max. current
A
27
27
27
27
16
Noise level
dB(A)
32
32
32
32
32
Unit
Dimension
(W×H×D)
mm
900×500×375
900×500×375
900×500×375
900×500×375
900×500×375
Packing
(W×H×D)
mm
1110×610×510
1110×610×510
1110×610×510
1110×610×510
1110×610×510
Net/gross
weight
kg
63/75
63/75
63/75
63/75
64/77
E-heater
Size
kW
1.5
1.5
1.5
1.5
4.5
3.5(spare)
Quantity
2
2
2
2
1
1
Specification
Ph-V
1-220～240
1-220～240
1-220～240
1-220～240
3-380
1-220～240
Water
pipeline
Water inlet
pipe
mm
DN32
DN32
DN32
DN32
DN32
Water outlet
pipe
mm
DN32
DN32
DN32
DN32
DN32
Loading
Quantity
20'/40'/40H
Pcs
66/138/184
66/138/184
66/138/184
66/138/184
66/138/184
The testing Condition:
1. Heating: Outdoor temp. 7/6℃(DB/WB), inlet water temp. 30℃, outlet water temp. 35℃.
2. Cooling: Outdoor temp. 35/24℃(DB/WB), inlet water temp. 12℃, outlet water temp. 7℃.

MCAC-RTSM-2012-01 M-thermal Technical Manual
10
5.3 Specifications of water tank and solar kit
Sanitary hot water tank
LSX-300XP/D30B11
LSX-200XP/D30B11
LSX-150XP/D30B7
LSX-300XP/SD15B11
Power supply
Ph-V-Hz
1-220～240-50
1-220～240-50
1-220～240-50
3-380-50
Storage size
L
300
200
150
300
Max. water output temp.
℃
60
60
60
60
Dimension (D×H)
mm
Ф580×1800
Ф580*1320
Ф580×1050
Ф580×1800
Packing (W×H×D)
mm
670×1885×670
670×1400×670
670×1135×670
670×1885×670
Net//gross weight
kg
75/84
60/68
49/55
80/91
E-heater
specification
kW
3.0
3.0
3.0
1.5
Power supply
Ph-V
1-220～240-50
1-220～240-50
1-220～240-50
3-380-50
Tank material
SUS304
SUS304
SUS304
SUS304
Water
pipeline
Water inlet pipe
mm
DN20
DN20
DN20
DN20
Water outlet pipe
mm
DN20
DN20
DN20
DN20
PT valve joint
MPa
DN20
DN20
DN20
DN20
Solar kit
TMK-01
Power supply
Ph-V-Hz
1-220～240-50
Dimension (W×H×D)
mm
810×310×295
Packing (W×H×D)
mm
830×340×315
Net weight
kg
8/10
solar coils
OD+T
mm*mm
￠22*0.8
length
m
11
material
SUS316L
inlet pipe
mm
DN20
outlet pipe
mm
DN20
Loading
Quantity
20'/40'/40H
Pcs
300/624/728

MCAC-RTSM-2012-01 M-thermal Technical Manual
11
6. Performance data
6.1 Heating performance data of 6/8kw model
6kW
LWE[℃]
30
35
40
45
50
55
Tamb [℃]
HC[W]
PI[W]
COP
HC[W]
PI[W]
COP
HC[W]
PI[W]
COP
HC[W]
PI[W]
COP
HC[W]
PI[W]
COP
HC[W]
PI[W]
COP
-15
4877
2206
2.21
4870
2377
2.05
4450
2527
1.76
3410
2543
1.34
/
/
/
/
/
/
-7
6248
2334
2.68
6057
2490
2.43
5889
2650
2.22
4950
2721
1.82
/
/
/
/
/
/
0
7576
2281
3.32
7322
2447
2.99
6992
2638
2.65
6354
2707
2.35
4962
2522
1.97
/
/
/
2/1
6063
2166
2.80
6536
2401
2.72
6143
2574
2.39
5793
2449
2.37
5064
2525
2.01
/
/
/
7/6
9551
2360
4.05
9000
2518
3.57
8888
2756
3.22
8262
2841
2.91
6380
2623
2.43
1842
1497
1.23
10/8
9858
2400
4.11
10179
2579
3.95
9745
2753
3.54
8686
2826
3.07
7029
2612
2.69
1681
1466
1.15
15/12
9710
2057
4.72
9357
2215
4.22
9445
2409
3.92
9332
2617
3.57
8247
2678
3.08
3215
1493
2.15
20/15
9560
1940
4.93
9797
2105
4.65
9444
2252
4.19
7486
1978
3.79
5593
1718
3.26
3719
1493
2.49
25/17
10220
1913
5.34
10619
2086
5.09
10742
2276
4.72
9888
2288
4.32
7440
1879
3.96
4274
1477
2.96
30/22
11407
1889
6.04
11896
2069
5.75
12026
2267
5.31
11906
2471
4.82
7266
1717
4.23
4013
1409
2.85
35/24
/
/
/
/
/
/
12652
2184
5.79
12630
2479
5.10
6775
1634
4.15
3820
1433
2.67
Remark:
HC = heating capacity PI = power input

MCAC-RTSM-2012-01 M-thermal Technical Manual
12
8kW
LWE[℃]
30
35
40
45
50
55
Tamb [℃]
HC[W]
PI[W]
COP
HC[W]
PI[W]
COP
HC[W]
PI[W]
COP
HC[W]
PI[W]
COP
HC[W]
PI[W]
COP
HC[W]
PI[W]
COP
-15
5186
2322
2.23
5178
2502
2.07
4731
2660
1.78
3626
2677
1.35
/
/
/
/
/
/
-7
6643
2457
2.7
6440
2621
2.46
6262
2789
2.25
5263
2864
1.84
/
/
/
/
/
/
0
8055
2401
3.35
7785
2576
3.02
7434
2777
2.68
6756
2849
2.37
5276
2655
1.99
/
/
/
2/1
6512
2280
2.86
7020
2527
2.78
6598
2709
2.44
6222
2578
2.41
5439
2658
2.05
/
/
/
7/6
10155
2484
4.09
9569
2650
3.61
9450
2901
3.26
8785
2991
2.94
6784
2761
2.46
1959
1576
1.24
10/8
10482
2526
4.15
10823
2715
3.99
10362
2898
3.58
9236
2975
3.1
7474
2749
2.72
1987
1543
1.29
15/12
10324
2165
4.77
9949
2332
4.27
10042
2536
3.96
9922
2755
3.6
8769
2819
3.11
3418
1572
2.17
20/15
10165
2042
4.98
10417
2216
4.7
10041
2371
4.23
7960
2082
3.82
5947
1808
3.29
3954
1572
2.52
25/17
10867
2014
5.4
11291
2196
5.14
11422
2396
4.77
10514
2408
4.37
7911
1978
4
4651
1555
2.99
30/22
12007
2008
5.98
12522
2200
5.69
12659
2410
5.25
12533
2627
4.77
7648
1826
4.19
4224
1498
2.82
35/24
/
/
/
/
/
/
13452
2299
5.85
13429
2609
5.15
7204
1720
4.19
4062
1508
2.7
Remark:
HC = heating capacity PI = power input

MCAC-RTSM-2012-01 M-thermal Technical Manual
13
6.2 Cooling performance data of 6/8kw model
6kW
LWE[℃]
7
10
13
15
18
22
Tamb [℃]
CC[W]
PI[W]
EER
CC[W]
PI[W]
EER
CC[W]
PI[W]
EER
CC[W]
PI[W]
EER
CC[W]
PI[W]
EER
CC[W]
PI[W]
EER
20
7033
1771
3.97
8800
2066
4.26
8903
2046
4.35
9973
2263
4.41
/
/
/
/
/
/
25
6917
2060
3.36
6362
1560
4.08
8380
2219
3.78
9896
2398
4.13
11436
2913
3.93
12605
2924
4.31
30
6146
1959
3.14
6367
1980
3.22
8337
2508
3.32
9226
2590
3.56
10853
3084
3.52
11933
3181
3.75
35
3714
1524
2.44
6468
2656
2.43
7122
2718
2.62
8406
3164
2.66
9901
3372
2.94
10615
3432
3.09
40
/
/
/
4767
2243
2.13
5452
2292
2.38
5955
2327
2.56
6755
2369
2.85
8058
2434
3.31
43
/
/
/
3858
2072
1.86
4596
2106
2.18
4956
2134
2.32
5724
2173
2.63
6859
2224
3.08
Remark:
CC= cooling capacity PI = power input
8kW
LWE[℃]
7
10
13
15
18
22
Tamb [℃]
CC[W]
PI[W]
EER
CC[W]
PI[W]
EER
CC[W]
PI[W]
EER
CC[W]
PI[W]
EER
CC[W]
PI[W]
EER
CC[W]
PI[W]
EER
20
7151
1802
3.97
8838
2106
4.2
8982
2081
4.32
10081
2328
4.33
/
/
/
/
/
/
25
7205
2147
3.36
6627
1631
4.06
8729
2328
3.75
10308
2502
4.12
11912
3052
3.9
13130
3057
4.30
30
6402
2061
3.11
6632
2083
3.18
8684
2639
3.29
9610
2725
3.53
11305
3245
3.48
12430
3347
3.71
35
3869
1604
2.41
6737
2795
2.41
7419
2860
2.59
8756
3329
2.63
10314
3548
2.91
11057
3611
3.06
40
/
/
/
4966
2360
2.1
5679
2412
2.35
6203
2448
2.53
7036
2493
2.82
8394
2561
3.28
43
/
/
/
4019
2180
1.84
4787
2216
2.16
5162
2245
2.3
5963
2286
2.61
7145
2340
3.05
Remark:
CC= cooling capacity PI = power input

MCAC-RTSM-2009-09 Midea Heat Pump Water Heater Technical Manual
14
6.3 Heating performance data of 10/12kw model
10kW
LWE[℃]
30
35
40
45
50
55
Tamb [℃]
HC[W]
PI[W]
COP
HC[W]
PI[W]
COP
HC[W]
PI[W]
COP
HC[W]
PI[W]
COP
HC[W]
PI[W]
COP
HC[W]
PI[W]
COP
-15
6912
3245
2.13
4619
3009
1.54
5931
3671
1.62
/
/
/
/
/
/
/
/
/
-7
8616
3198
2.69
8173
3306
2.47
7551
3598
2.10
5237
3436
1.52
4433
3625
1.22
/
/
/
0
10548
3330
3.17
10125
3353
3.02
9355
3574
2.62
10523
4058
2.59
6178
3471
1.78
5245
3606
1.45
2/1
8274
3300
2.51
8855
3185
2.78
9408
3580
2.63
7879
3556
2.22
6622
3530
1.88
5624
3670
1.53
7/6
13655
3366
4.06
11638
2901
4.01
11969
3710
3.23
11097
3966
2.80
8702
3679
2.37
7008
3870
1.81
20/15
13178
2153
6.12
11738
2279
5.15
12980
2591
5.01
10033
2477
4.05
8931
2506
3.56
7399
2682
2.76
35/24
14856
2066
7.19
18012
2594
6.94
14247
2506
5.69
14095
2411
5.85
9143
2471
3.70
9197
2260
4.07
Remark:
HC = heating capacity PI = power input
12kW
LWE[℃]
30
35
40
45
50
55
Tamb [℃]
HC[W]
PI[W]
COP
HC[W]
PI[W]
COP
HC[W]
PI[W]
COP
HC[W]
PI[W]
COP
HC[W]
PI[W]
COP
HC[W]
PI[W]
COP
-15
7198
3345
2.15
4810
3102
1.55
6176
3785
1.63
/
/
/
/
/
/
/
/
/
-7
8972
3297
2.72
8511
3408
2.50
7863
3709
2.12
5454
3542
1.54
4616
3737
1.24
/
/
/
0
10984
3433
3.20
10354
3395
3.05
9742
3685
2.64
10958
4184
2.62
6433
3578
1.80
5462
3718
1.47
2/1
8616
3402
2.53
9221
3283
2.81
9797
3691
2.65
8205
3666
2.24
6896
3639
1.90
5857
3784
1.55
7/6
13932
3400
4.10
11874
2930
4.05
12212
3747
3.26
11322
4006
2.83
8879
3716
2.39
7150
3909
1.83
20/15
13446
2175
6.18
11976
2302
5.20
13244
2617
5.06
10237
2502
4.09
9112
2531
3.60
7549
2709
2.79
35/24
15638
2283
6.85
18325
2756
6.65
14536
2531
5.74
14381
2435
5.91
9329
2496
3.74
9384
2283
4.11
Remark:
HC = heating capacity PI = power input

MCAC-RTSM-2009-09 Midea Heat Pump Water Heater Technical Manual
15
6.4 Cooling performance data of 10/12kw model
10kW
LWE[℃]
7
10
13
15
18
22
Tamb
[℃]
CC[W]
PI[W]
EER
CC[W]
PI[W]
EER
CC[W]
PI[W]
EER
CC[W]
PI[W]
EER
CC[W]
PI[W]
EER
CC[W]
PI[W]
EER
20
5498
1250
4.40
9412
2070
4.55
12005
2230
5.38
12906
2539
5.08
14468
2979
4.86
15310
2908
5.26
25
5024
1072
4.69
11458
2742
4.18
11116
3044
3.65
13584
3060
4.44
14486
3295
4.40
17194
3497
4.92
30
7699
2437
3.16
10710
3003
3.57
12601
3319
3.80
13185
3342
3.95
14289
3533
4.04
16444
3772
4.36
35
4020
1372
2.93
10149
3593
2.83
11732
3680
3.19
12369
3715
3.33
13646
3913
3.49
15725
4191
3.75
40
6278
2938
2.14
8345
3468
2.41
9439
3549
2.66
10306
3596
2.87
11478
3662
3.13
13126
3740
3.51
43
5872
3017
1.95
7170
3350
2.14
8334
3419
2.44
9104
3471
2.62
10059
3526
2.85
11683
3603
3.24
Remark:
CC= cooling capacity PI = power input
12kW
LWE[℃]
7
10
13
15
18
22
Tamb
[℃]
CC[W]
PI[W]
EER
CC[W]
PI[W]
EER
CC[W]
PI[W]
EER
CC[W]
PI[W]
EER
CC[W]
PI[W]
EER
CC[W]
PI[W]
EER
20
5668
1289
4.40
9703
2134
4.55
12376
2299
5.38
13305
2618
5.08
14915
3071
4.86
15783
2998
5.26
25
5127
1094
4.69
11692
2798
4.18
11343
3106
3.65
13861
3122
4.44
14782
3362
4.40
17545
3568
4.92
30
7856
2487
3.16
10929
3064
3.57
12858
3387
3.80
13454
3410
3.95
14581
3605
4.04
16780
3849
4.36
35
4061
1386
2.93
10252
3629
2.83
11851
3717
3.19
12494
3753
3.33
13784
3953
3.49
15884
4233
3.75
40
6341
2968
2.14
8429
3503
2.41
9534
3585
2.66
10410
3632
2.87
11594
3699
3.13
13259
3778
3.51
43
5931
3047
1.95
7242
3384
2.14
8418
3454
2.44
9196
3506
2.62
10161
3562
2.85
11801
3639
3.24
Remark:
CC= cooling capacity PI = power input

MCAC-RTSM-2009-09 Midea Heat Pump Water Heater Technical Manual
16
7. Wiring Diagrams
7.1 Outdoor units wiring diagram
Model:CE-LRSJF-V120/N1-610 CE-LRSJF-V100/N1-610

MCAC-RTSM-2009-09 Midea Heat Pump Water Heater Technical Manual
17
Model:CE-LRSJF-V60/N1-310 CE-LRSJF-V80/N1-310 CE-LRSJF-V80/N1-310-B

MCAC-RTSM-2009-09 Midea Heat Pump Water Heater Technical Manual
18
7.2Hydraulic indoor units wiring diagram
Model :SMK-120/CD30GN1 SMK-100/CD30GN1 SMK-80/CD30GN1 SMK-60/CD30GN1

MCAC-RTSM-2009-09 Midea Heat Pump Water Heater Technical Manual
19
Model :SMK-80/CSD80GN1

MCAC-RTSM-2009-09 Midea Heat Pump Water Heater Technical Manual
20
8. Dimensions
8.1 Dimensions of outdoor units
Model: CE-LRSJF-V120/N1-610 CE-LRSJF-V100/N1-610
Model: CE-LRSJF-V80/N1-310 CE-LRSJF-V60/N1-310 CE-LRSJF-V80/N1-310-B
