A solid foundation is necessary to prevent settling and tilting of each project. We recommend using a
leveling pad, unless local building code requires you to pour a concrete foundation or build another type
of foundation.
FOUNDATION:
• Choose the location for the completed project; place and mark the position of the base layer of blocks.
Once marked, remove the blocks and the organic top soil within the marked area.
• If applicable to your area, create a leveling pad with a non-frost susceptible, well graded, compacted
angular gravel-sand mixture with fines (GW as per ASTM D248). The leveling pad should be a minimum
of 4" to 6" thick. For leveling pads greater than 8” thick, the fill material shall be placed in more than
one lift. Each layer or lift of fill material shall be leveled and compacted to a 95% Standard Proctor
density before moving on.
• Once the top layer of fill material is compacted and level, place the base layer of blocks. The base layer
should sit 1" to 2" below grade to help further prevent shifting. Use additional fill material to level the
base layer as needed.
* If a concrete slab is required, prepare a leveling pad using the procedures listed in the paragraphs above. The concrete
shall have a minimum compressive strength of 2500 psi. A 4" thick concrete slab should be more than sufficient.
A thickened edge and reinforcement of the leveling slabs may be required. Please consult a professional engineer for
specific requirements.
TIPS FOR BUILDING LEVELING PADS:
It is the responsibility of the owner to ensure compliance with all applicable laws, codes and regulations for
any project. Proper safety precautions must be taken prior to and during the construction of each project.
Please follow standard safety guidelines and wear necessary protective equipment when building and using
your new backyard addition.
RESPONSIBILITIES:
• Please research and
follow local building codes
prior to the excavation,
construction and assembly
of your project.
• Exercise caution when you
work with concrete block
designs. Wear protective
safety equipment such as
safety glasses, dust masks,
gloves and a hard hat.
• Whether you plan to build
the project yourself or to
hire a professional, every
project requires a call to
mark your utility lines.
BEFORE YOU BEGIN:
Rubber Mallet
Level
Utility Knife
Caulk Gun
Protective Equipment
Tape Measure
TOOL CHECK LIST:

4

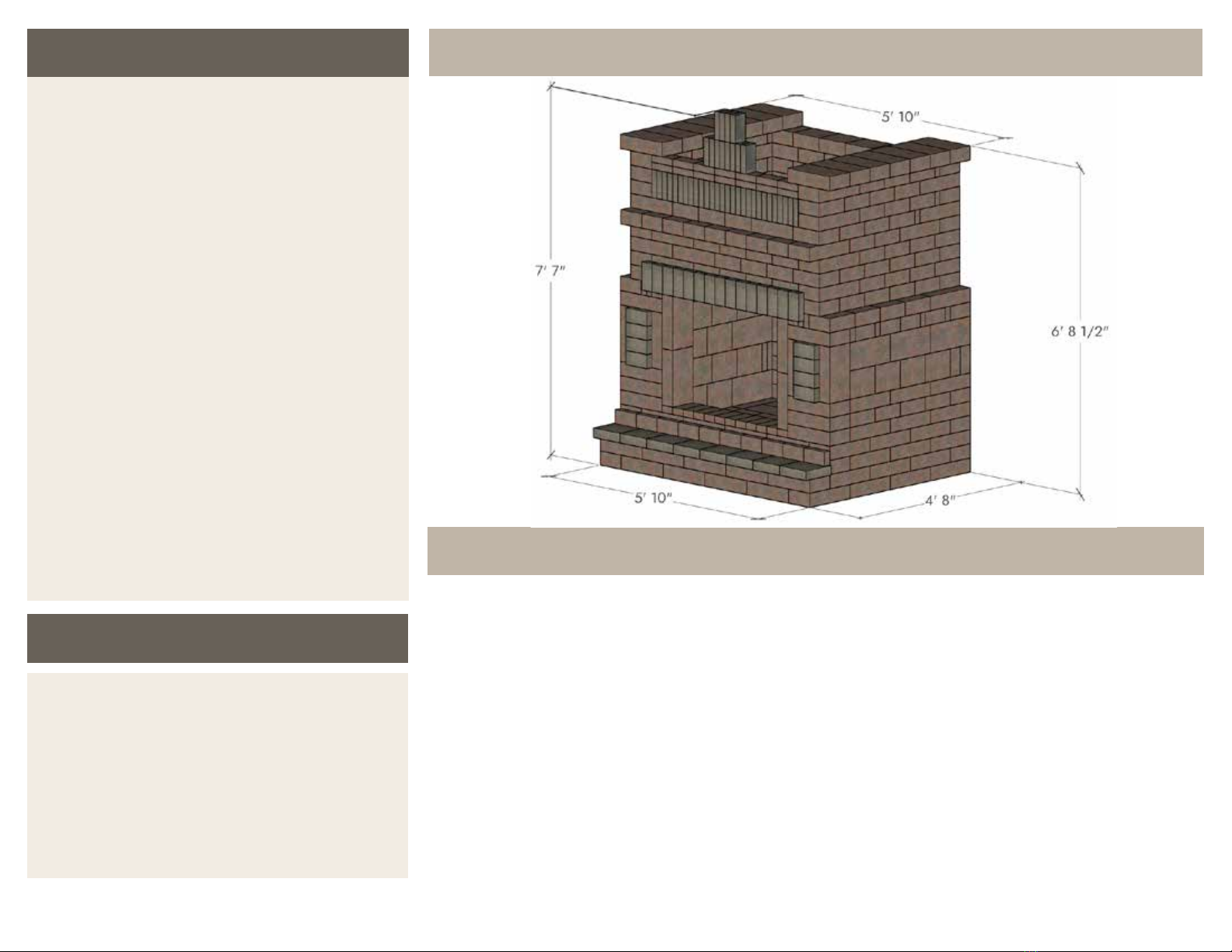

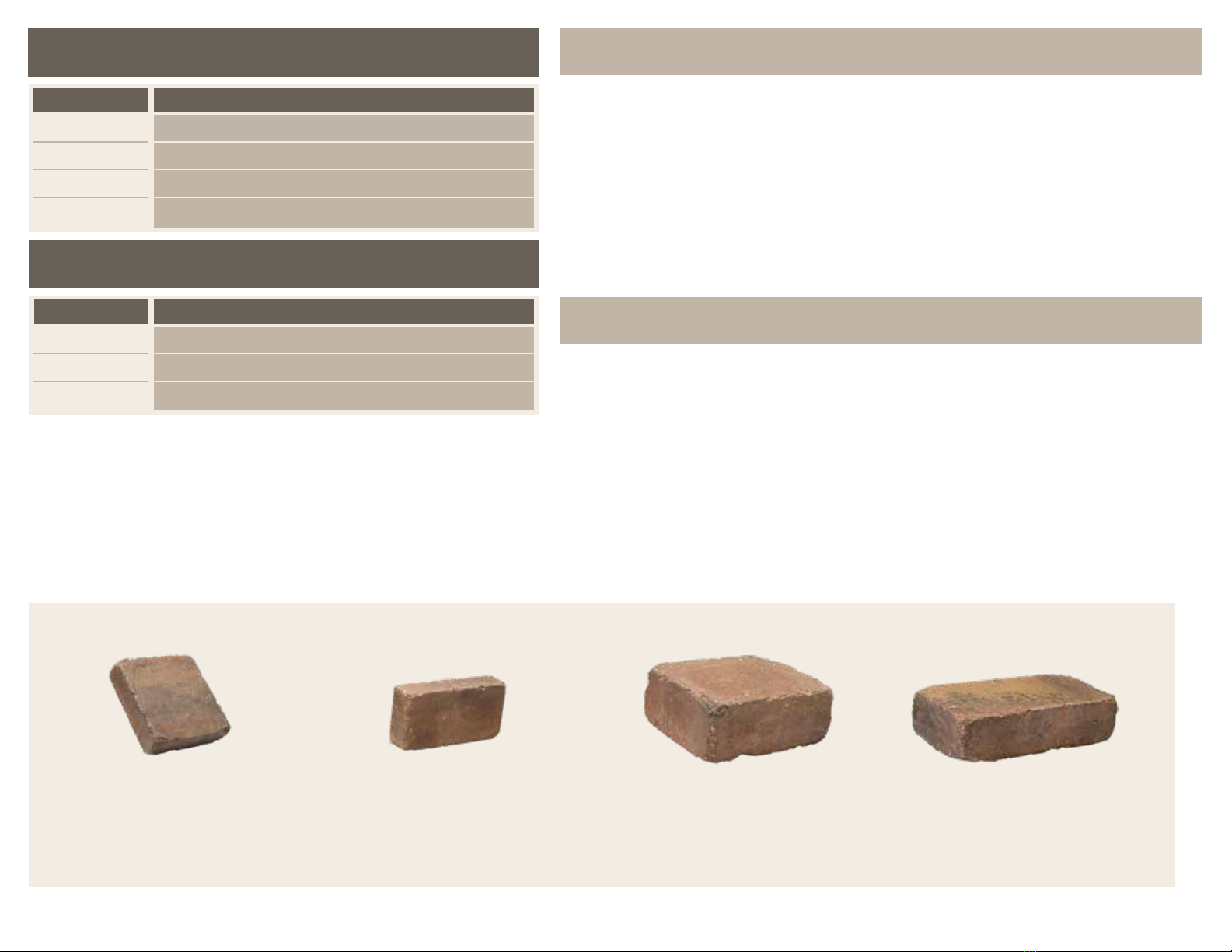

FIREPLACE DIMENSIONS
TABLE OF CONTENTS
Materials List
Tool Check List
Foundation Guidelines
Level 1 - Level 2
Level 3 - Level 4
Level 5 - Level 6
Level 7 - Level 8
Level 9 - Level 10
Level 11 - Level 12
Level 13 - Level 14
Level 15 - Level 16
Level 17 - Level 18
Level 19 - Level 20
Level 21 - Level 22
Level 23 - Level 24
Level 25 - Level 26
Level 27 - Keystone
Finished Elevations
Use & Care Instructions
2
3
3
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
TECHNIQUES
Fasten each layer of block together with
¼” - ⅜” bead of construction adhesive on
all adjacent block faces unless otherwise
noted. Refer to the construction adhesive’s
application instructions for proper use.
Follow suggestions on page 3 to build a proper foundation before starting your new project. If not
already set, place the first level of block 1”- 2” below grade, level and fill in any gaps. Use Level 1
as a reference to place the blocks for all remaining levels.
Refer to the illustrations on the following pages to guide you through each step. Prior to adhering
each level to the previously laid block, place the entire level of blocks and check to make sure it fits
properly and lays level. Remove small sections at a time to place the adhesive.
Once all levels are complete, clean off any unwanted surface residue with a damp cloth. Wait a
minimum of two days before using the fireplace.
INSTALLING FIREBRICK: install firebrick every 3-4 levels during assembly of the fireplace. Firebrick
should set like a veneer by applying ONLY refractory mortar to the back of the firebrick. Adhere
the firebrick to the inside of the fieplace. Remove excess mortar with a trowel. Mortar joints should
be ⅛”-⅜” thick.
INSTALLATION INSTRUCTIONS
* Do not over apply adhesive. It may reduce effectiveness.
Use mineral spirits to remove any unwanted adhesive.

5

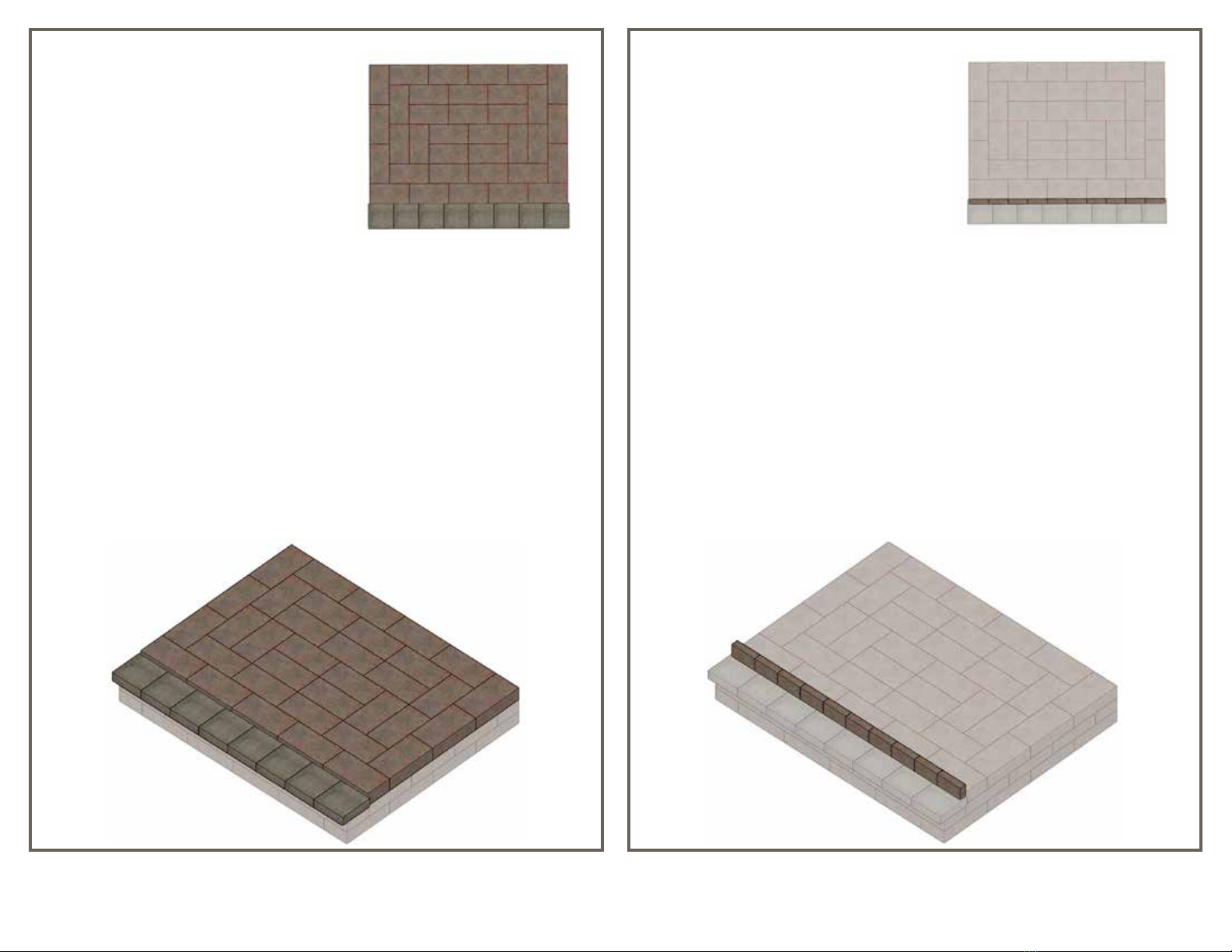

LEVEL 1 LEVEL 2
(40) L Belgian Wall Block
Fasten each layer of block together with ¼” - ⅜” bead of
adhesive on all adjacent block faces unless otherwise noted. Refer
to the adhesive’s application instructions for proper use.
(40) L Belgian Wall Block

6

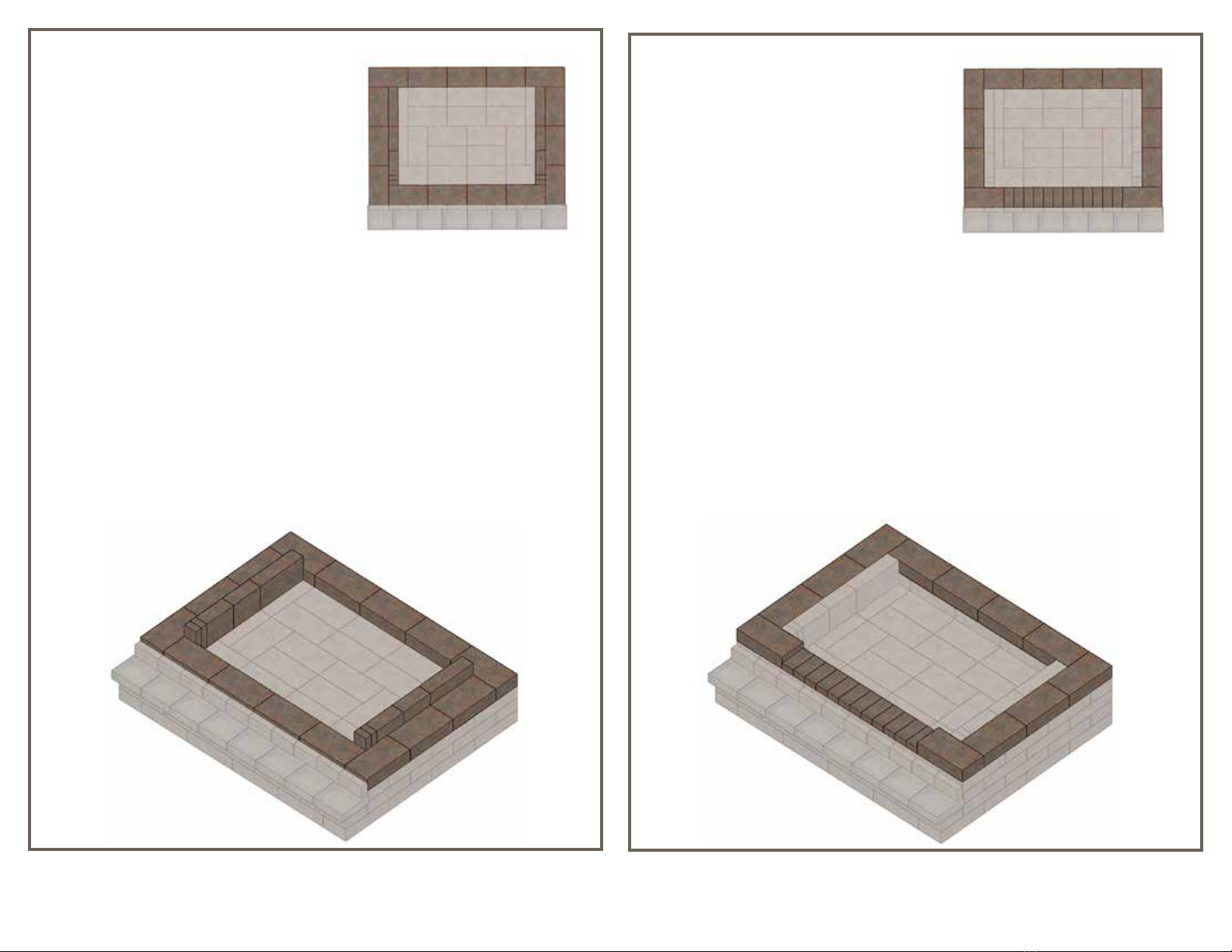

LEVEL 3 LEVEL 4
(35) L Belgian Wall Block
(8) 9×9 Belgian Paver Stones
(10) S Belgian Wall Block

7

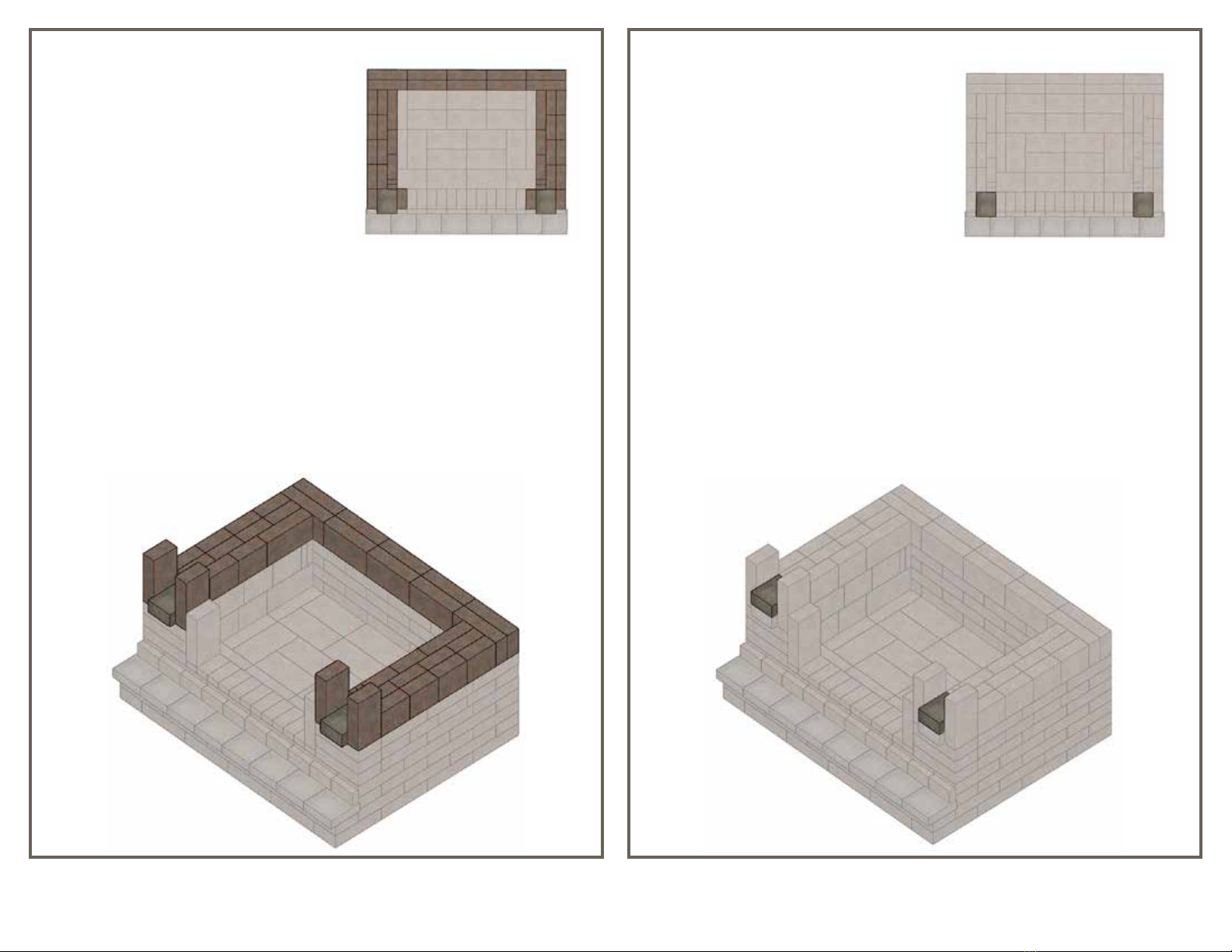

LEVEL 5 LEVEL 6
(12) L Belgian Wall Block
(12) S Belgian Wall Block
(17) L Belgian Wall Block
(4) M Belgian Wall Block
(4) S Belgian Wall Block

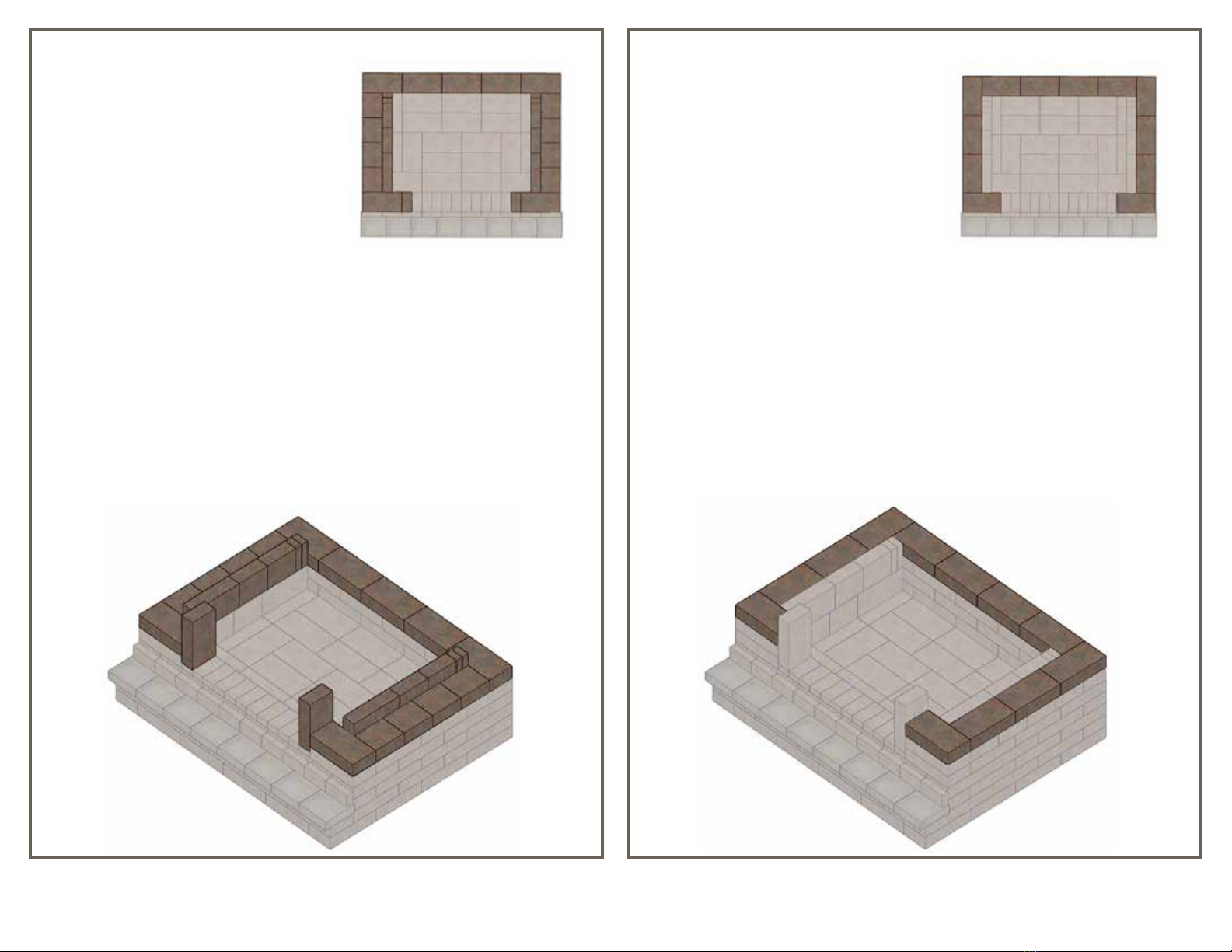

8

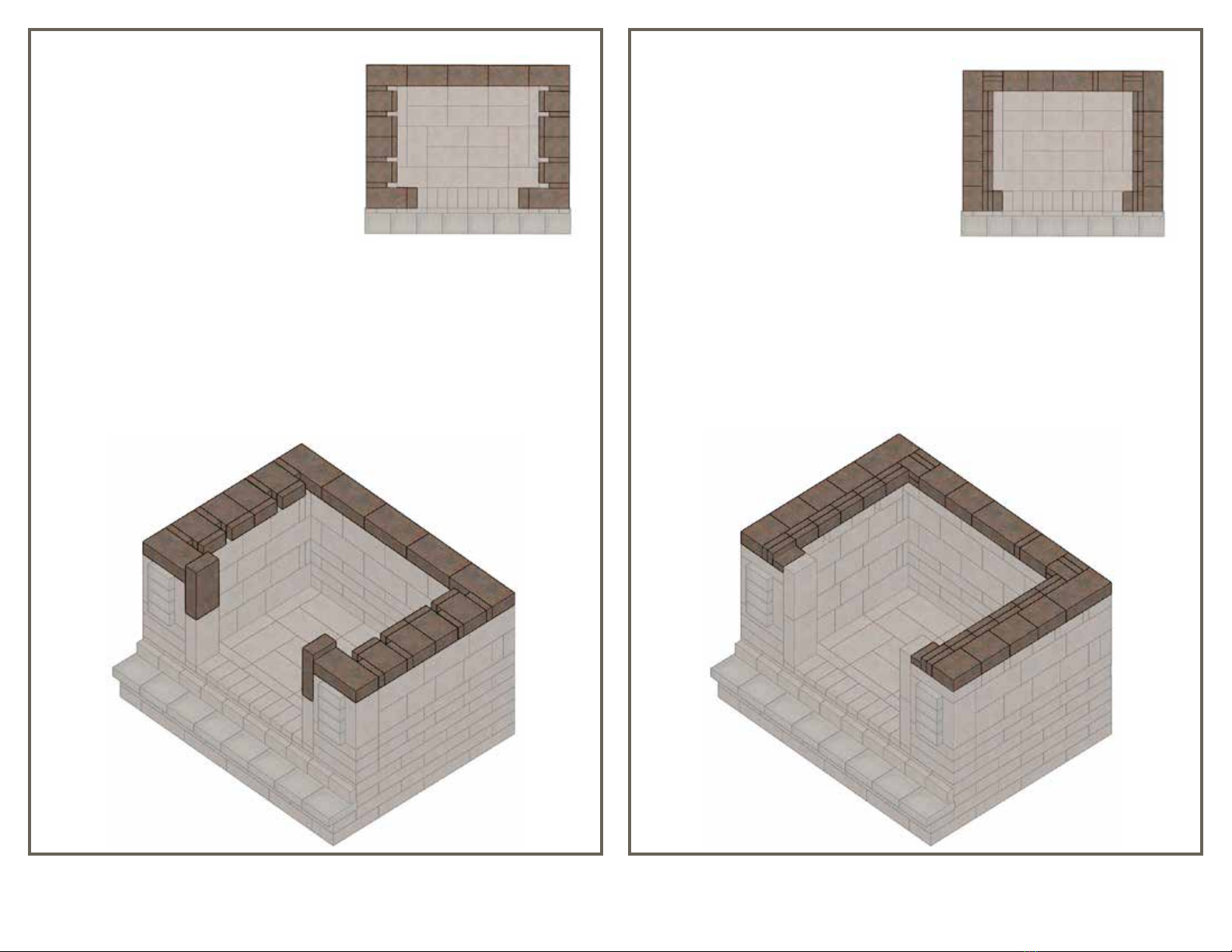

LEVEL 7 LEVEL 8
(12) Belgian Large Wall Block
(11) L Belgian Wall Block
(12) M Belgian Wall Block
(4) S Belgian Wall Block

9

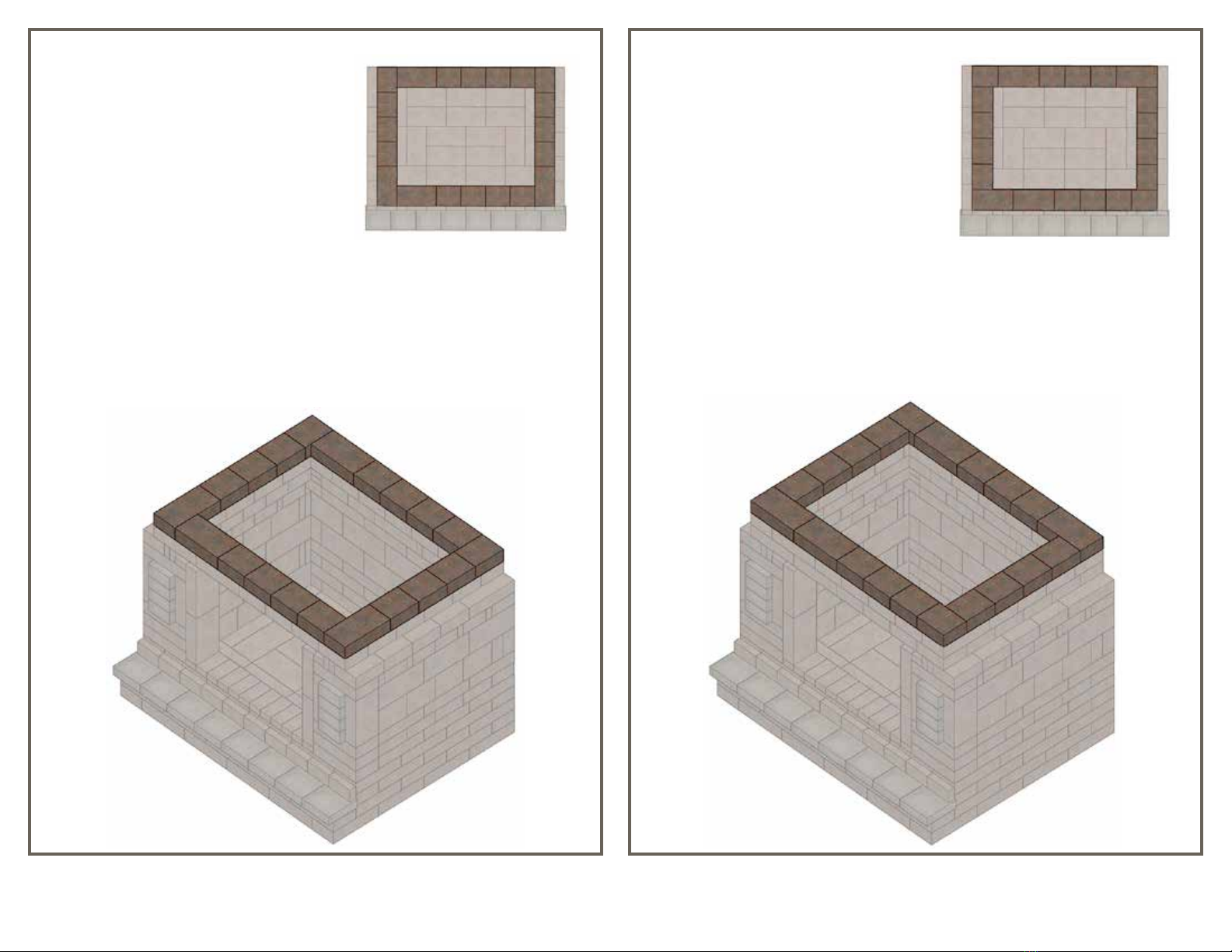

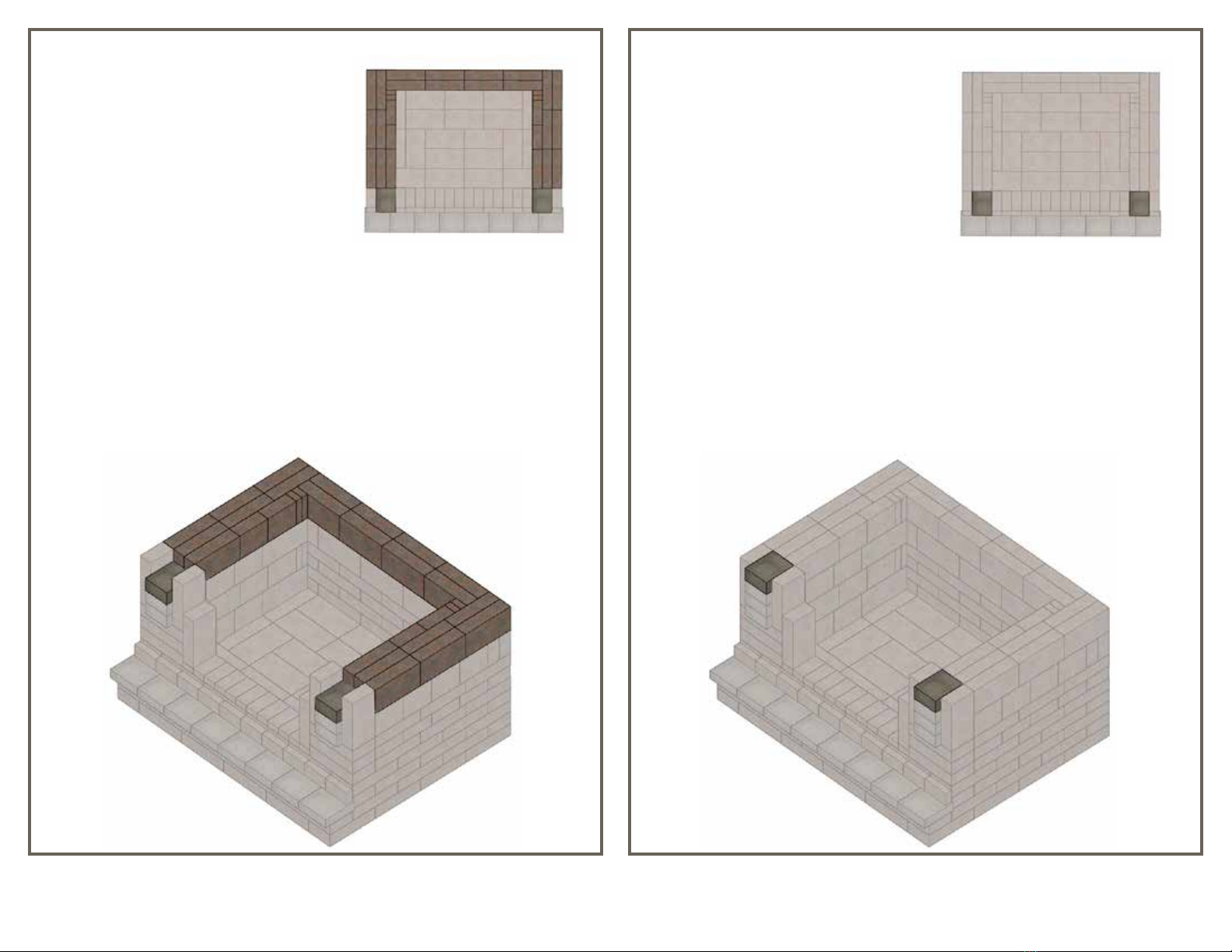

LEVEL 9 LEVEL 10
(16) L Belgian Wall Block
(20) M Belgian Wall Block
(2) M Belgian Wall Block - Color 2
(4) S Belgian Wall Block
(2) M Belgian Wall Block - Color 2

10
LEVEL 11 LEVEL 12
(20) L Belgian Wall Block
(2) M Belgian Wall Block - Color 2
(2) M Belgian Wall Block - Color 2
(4) S Belgian Wall Block

11

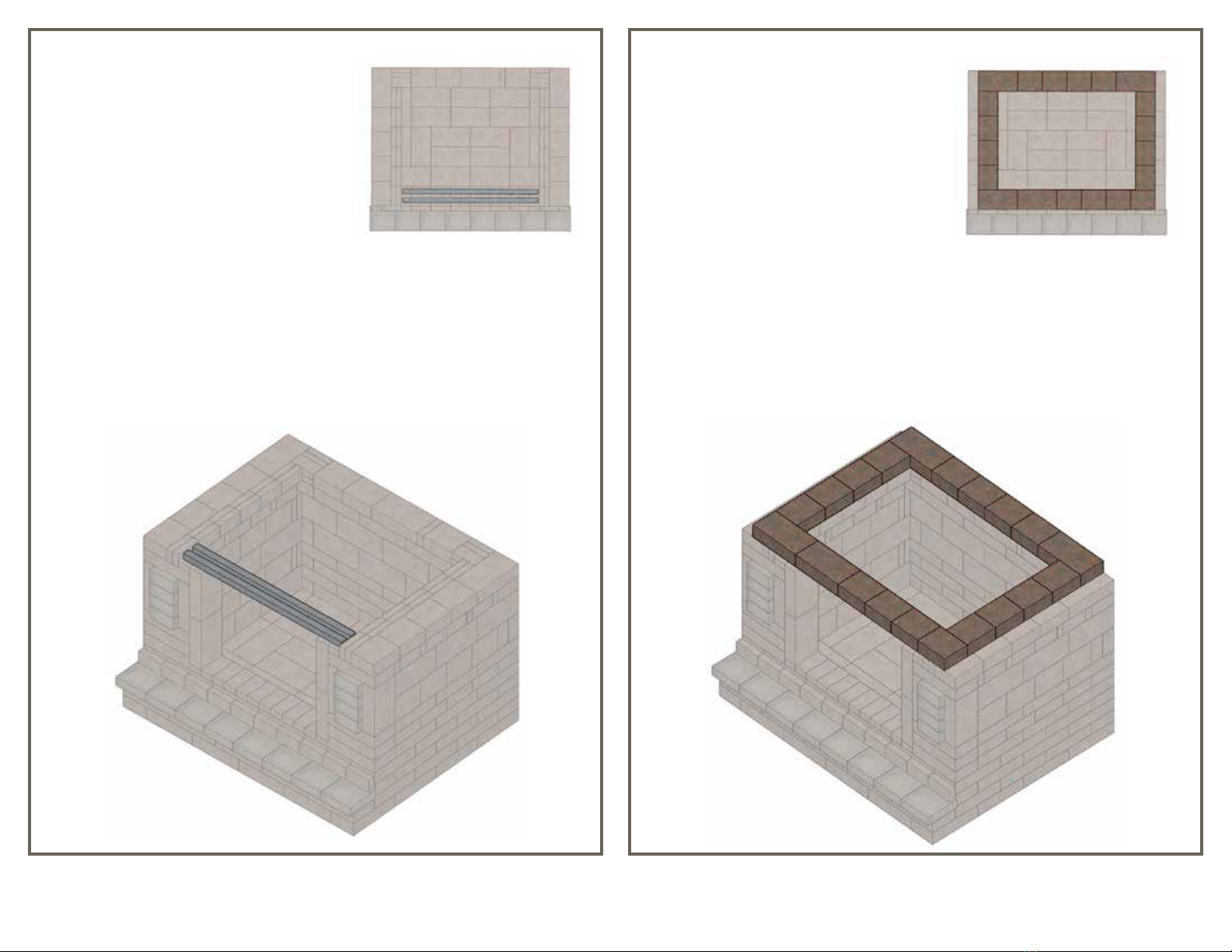

LEVEL 13 LEVEL 14
(9) L Belgian Wall Block
(8) M Belgian Wall Block
(16) S Belgian Wall Block
(3) L Belgian Wall Block
(11) M Belgian Wall Block
(35) S Belgian Wall Block

12

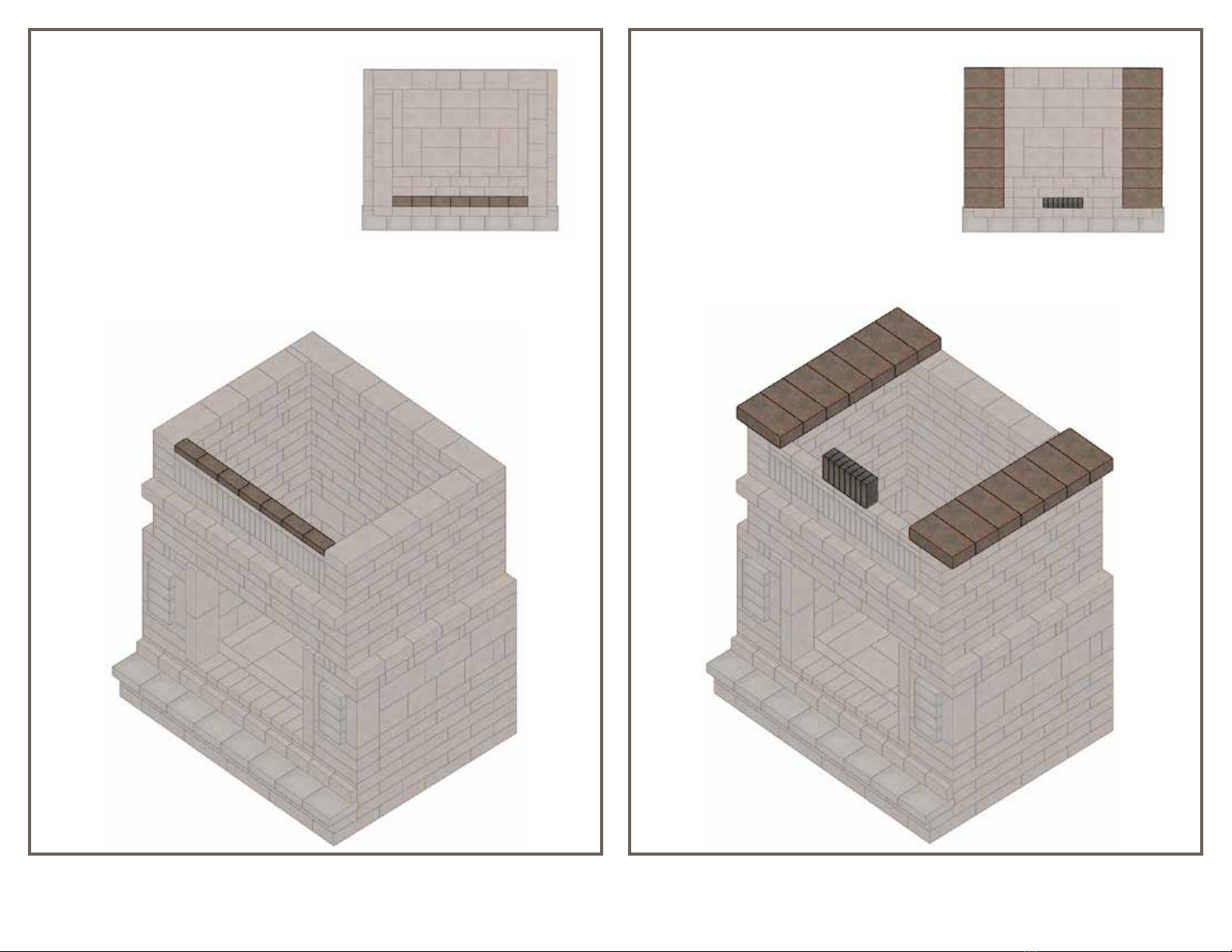

LEVEL 15 LEVEL 16
(4) L Belgian Wall Block
(16) M Belgian Wall Block
(2) 1¾” × 4’ Square Tube Steel

13

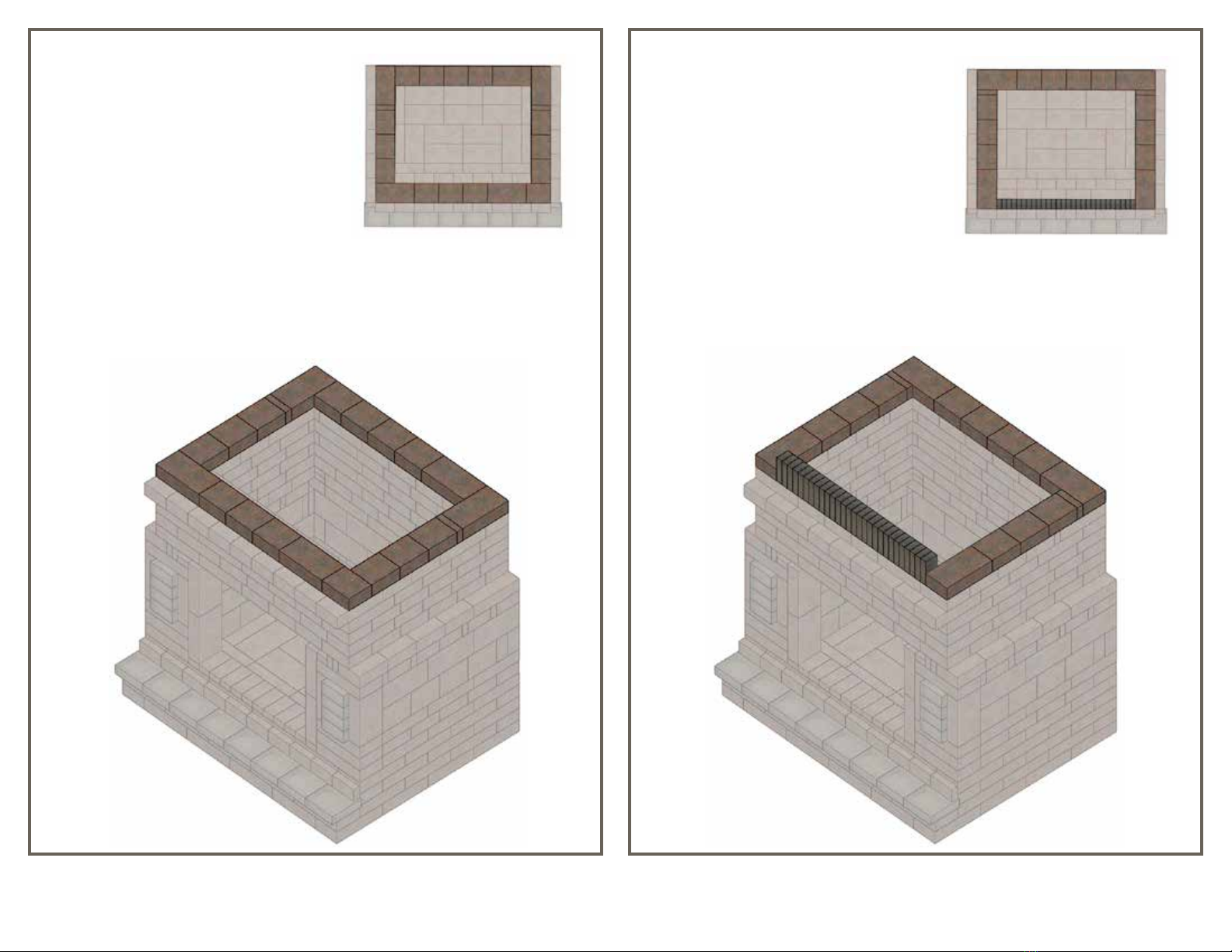

LEVEL 17 LEVEL 18
(4) L Belgian Wall Block
(16) M Belgian Wall Block
(4) L Belgian Wall Block
(16) M Belgian Wall Block

14

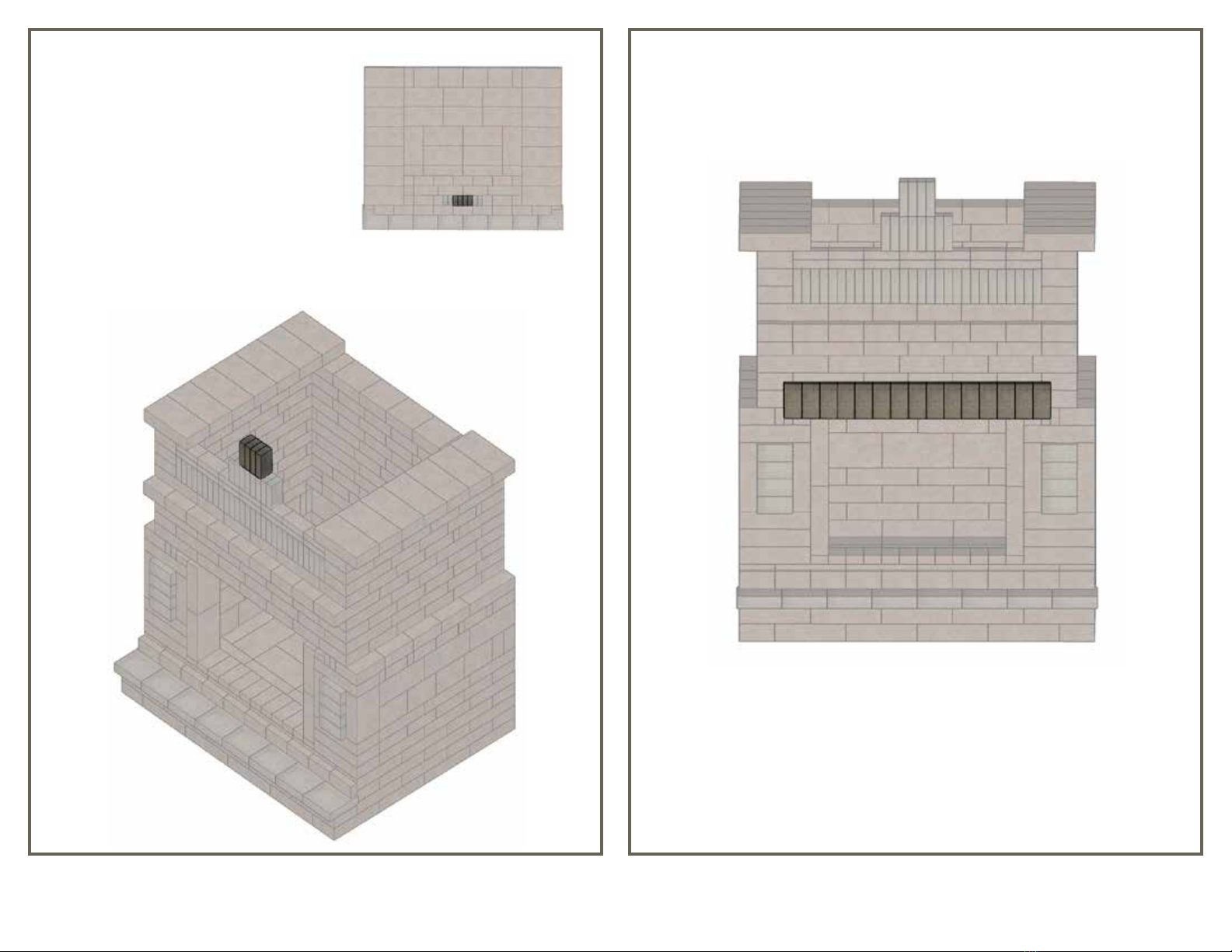

LEVEL 19 LEVEL 20
(13) L Belgian Wall Block
(8) M Belgian Wall Block
(4) L Belgian Wall Block
(16) M Belgian Wall Block

15
LEVEL 21 LEVEL 22
(5) L Belgian Wall Block
(14) M Belgian Wall Block
(2) S Belgian Wall Block
(4) L Belgian Wall Block
(10) M Belgian Wall Block
(2) S Belgian Wall Block
(28) S Belgian Wall Block - Color 2

16
LEVEL 23 LEVEL 24
(4) L Belgian Wall Block
(10) M Belgian Wall Block
(9) S Belgian Wall Block
(3) L Belgian Wall Block
(12) M Belgian Wall Block

17
LEVEL 25 LEVEL 26
(7) S Belgian Wall Block (14) L Belgian Wall Block
(8) S Belgian Wall Block - Color 2

18
LEVEL 27
(4) S Belgian Wall Block - Color 2
KEYSTONE
(15) S Belgian Wall Block - Color 2
Begin by gluing keystone blocks together, wait until glue
has completely dried before attaching the keystone. Refer to
manufactures specification on dry times. Then, using 2×4’s and
straps to hold the keystone tight against the fireplace, attach the
keystone to the fireplace. Over applying adhesive can adversely
affect how well the glue bonds to the block.

19

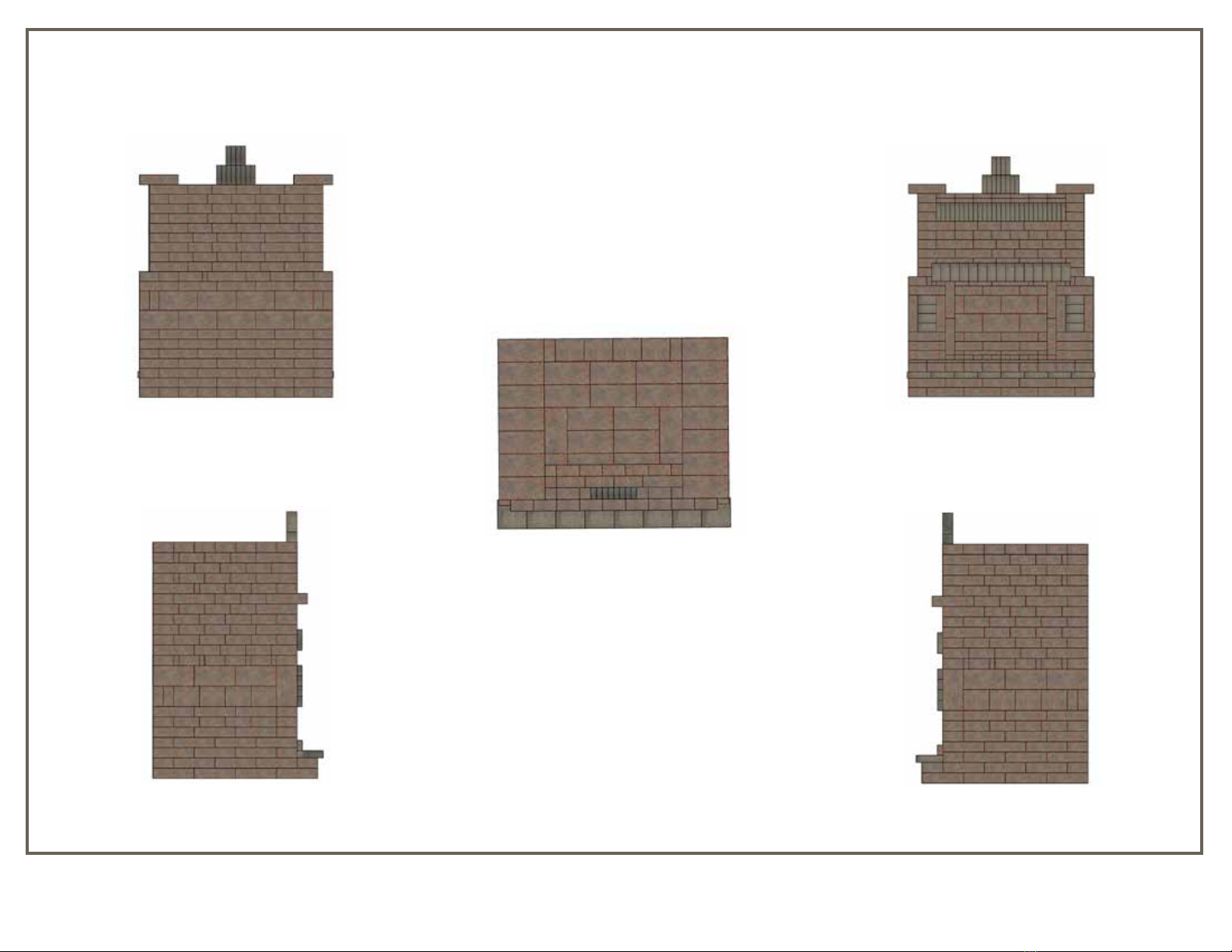

FIREPLACE ELEVATIONS
Right View
Back View
Left View
Front View
Top View

20

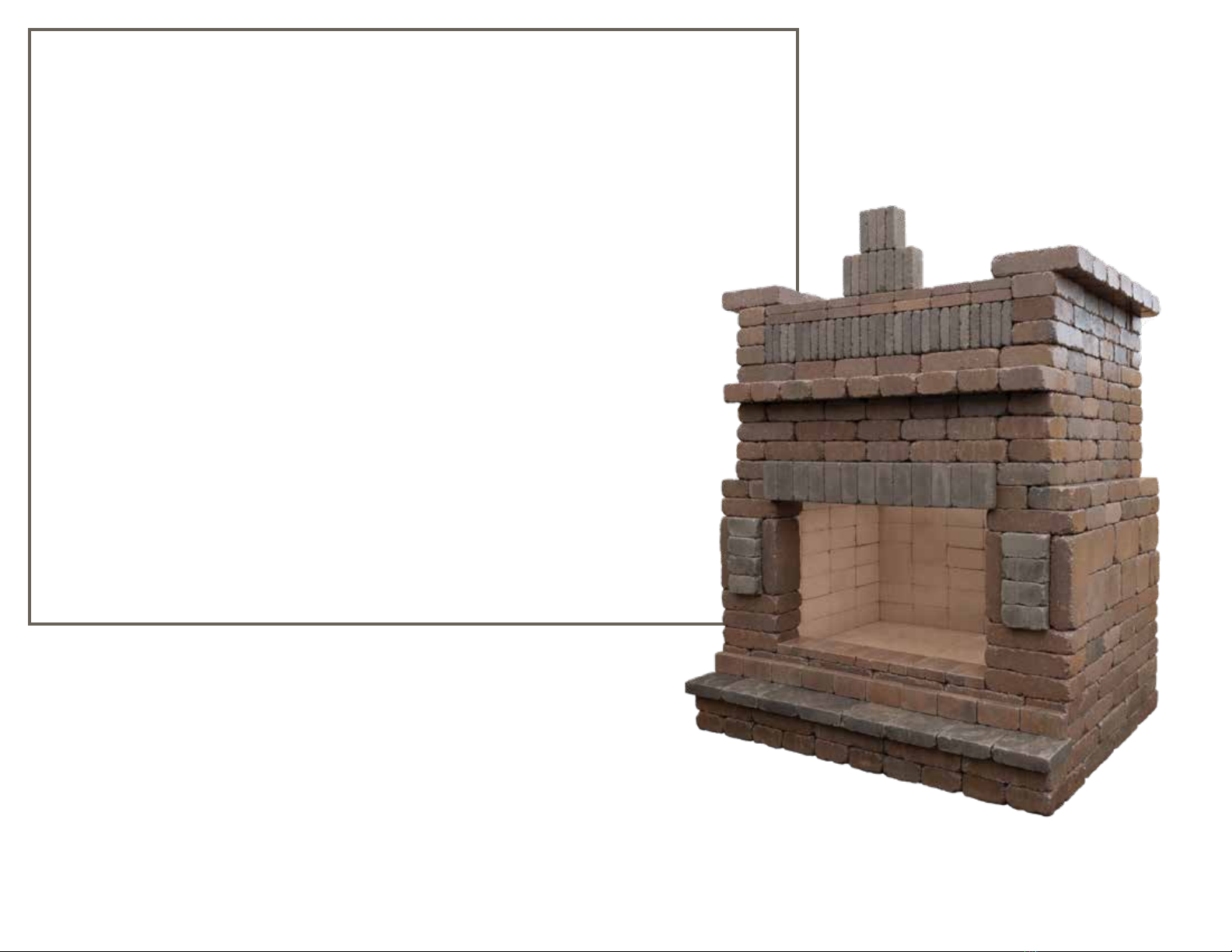

With proper use and maintenance you can enjoy this new addition to your
landscape for years to come.
USE & MAINTENANCE
FIREPLACE MAINTENANCE:
• Make sure all ventilation openings are clear of debris.
• Wait until fireplace has completely cooled before cleaning.
Refer to the instruction manual for cleaning and other
maintenance tips.
• Concrete blocks can be cleaned by wiping down with water
or gently spraying with a hose.
• Make sure proper drainage is allowed at the base of the
fireplace. Proper drainage gives water a way to escape so it
doesn’t build up, seep through gaps or erode blocks.
FIREPLACE USE:
• When using your fireplace, always follow burning regulations
in your area, keep the area free from combustible material and
never leave a fire unattended.
• Refer to the fireplace insert’s instruction manual for use and tips.
