Regency Fireplace Products CARDINIA Quick start guide
Model: F150B-2
Owners &
Installation
PLEASE KEEP THESE INSTRUCTIONS FOR
FUTURE REFERENCE
Manual
Sept-26-2017
918-669f
WARNING:
Improper installation, adjustment, alteration, service or maintenance can
cause injury or property damage. Refer to this manual. For assistance or
additional information consult an authorised installer, service agency or
the distributor.
FOR YOUR SAFETY
Do not store or use petrol or other ammable vapours and liquids in the
vicinity of this or any other appliance.
Installation and service must be performed by an authorised installer or
service agency.
CARDINIA FREESTANDING WOOD FIRE
FPI - FIREPLACE PRODUCTS AUSTRALIA PTY LTD.
1-3 CONQUEST WAY, HALLAM, VICTORIA 3803
2Regency Cardinia Freestanding Wood Fire
Thank-you for purchasing a
REGENCY FIREPLACE PRODUCT.
The pride of workmanship that goes into each of our products will give you years of trouble-free
enjoyment. Should you have any questions about your product that are not covered in this manual,
please contact the REGENCY DEALER in your area.
Keep those REGENCY FIRES burning.
SAFETY NOTE:
about restrictions and installation inspection requirements in your area.
The authority having jurisdiction should be consulted before installation to determine the need to
obtain a permit.
ONLY CLEAN APPLIANCE WITH A DAMP CLOTH
(NEVER WHEN UNIT IS HOT)
DO NOT USE ANY ABRASIVE CLEANERS
DO NOT BURN (WILL VOID WARRANTY):
• Treated wood • Tea Tree • Oil Based woods • Coal • Garbage
• Cardboard • Solvents • Colored Paper • Trash
Regency Cardinia Freestanding Wood Fire 3
table of
contents
MAINTENANCE
Maintenance..........................................................................9
Creosote................................................................................9
.........9
Glass Maintenance................................................................9
Door Latch Adjustment ..........................................................9
Wood Storage........................................................................9
PARTS LIST
Heater Assembly .................................................................10
WARRANTY
Warranty ..............................................................................12
Data Badge ............................................................................4
Unit Dimensions ....................................................................5
Heat Shield Position ..............................................................5
INSTALLATION
Residential Installation ...........................................................6
Safety Guidelines and Warnings ...........................................6
Brick Installation ....................................................................6
Clearance to Combustibles ....................................................7
Floor Protection .....................................................................7
OPERATING INSTRUCTIONS
Operating Instructions ...........................................................8
Air Slide Control.....................................................................8
................................................................................8
4Regency Cardinia Freestanding Wood Fire
SAFETY LABEL
data badge
This is a copy of the label that accompanies
have printed a copy of the contents here for
your review.
NOTE: Regency units are constantly being
improved. Check the label on the unit and if
correct one.
Part #: 918-663f
Colour: Black on Grey
Size: 100%
Sept. 11/07: Changed Maximum Average Heat Output
from 13.1kW to 11kW as per Matthew M.
Dec. 12/08: Changed model to F150B-1
Aug. 15/12: Updated manufacture dates
Jan.6/14: Rev. C - Updated E. Aus address and manufacturing dates
Apr. 15/15: Rev. D - updated data as per Matt M.
May 21/15: Rev. E - new test data(-2 model)
Sept. 25/17: Rev. F--Updated manufacturing date
Model: CARDINIA F150B-2
JAN FEB MAR APR MAY JUN JUL AUG SEP OCT NOV DEC 2017 2018 2019 2020 2021
TESTED BY:
HRL TECHNOLOGY PTY LTD.
TRAMWAY ROAD MORWELL VICTORIA 3840 (May 2014)
MAXIMUM AVERAGE HEAT OUTPUT BURNING HARDWOOD: 10kW
OVERALL AVERAGE EFFICIENCY BURNING HARDWOOD: 69%
Date of Manufacture:
Serial
Number
918-663f
324
WHEN TESTED IN ACCORDANCE WITH AS/NZS 4012:2014 & AS/NZS 4013:2014
PARTICULATE EMISSION FACTOR: 0.5g/kg
CATALYTIC COMBUSTOR: NO
TEST REPORT NUMBER: HCMG/15/030
MAKE: REGENCY
TYPE: FREESTANDING WOODFIRE
MANUFACTURER/DISTRIBUTOR: FIREPLACE PRODUCTS AUSTRALIA PTY. LTD.
1 CONQUEST WAY, HALLAM VIC 3803
Regency Cardinia Freestanding Wood Fire 5

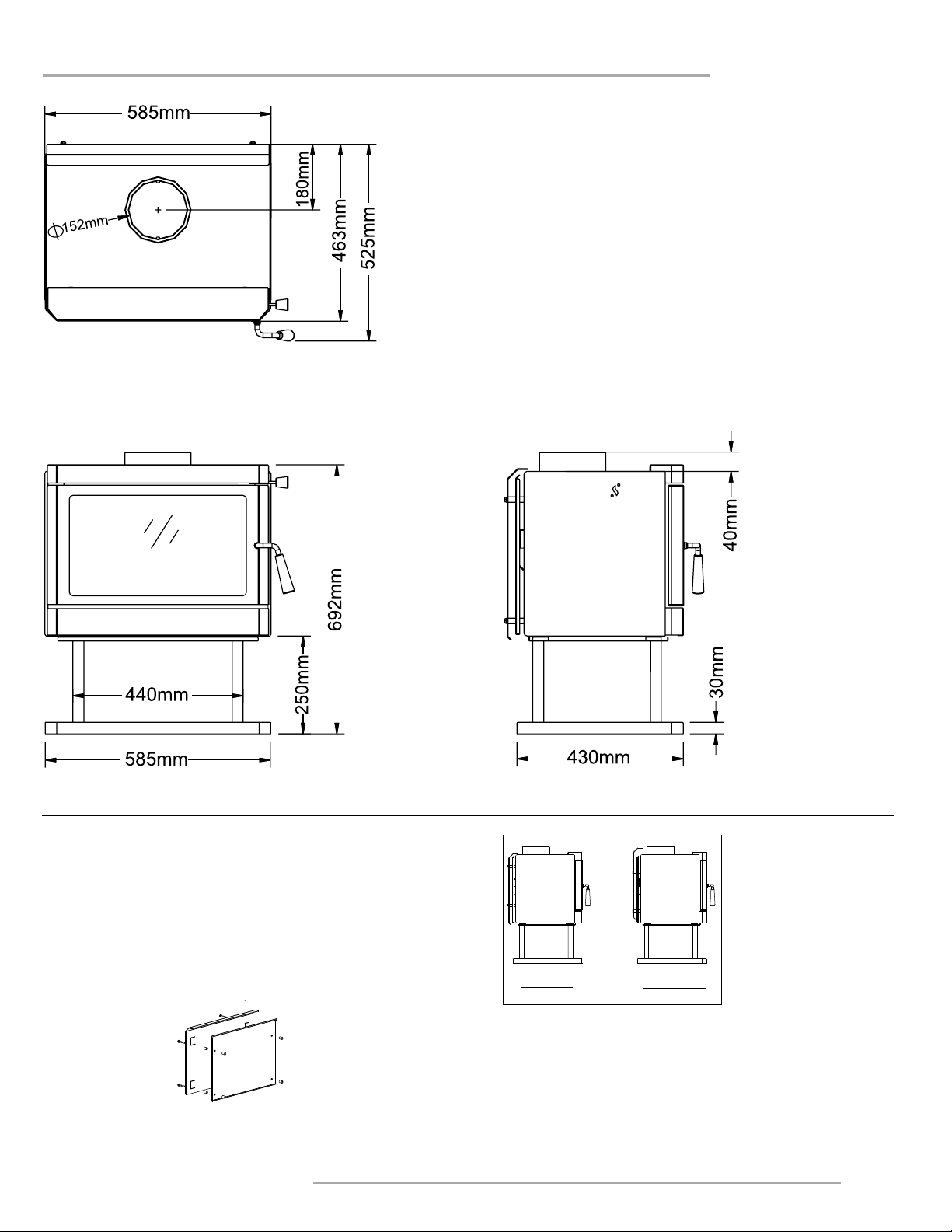

DIMENSIONS
dimensions
IMPORTANT
HEAT SHIELD POSITION
The heat shield must be raised if the heater is installed where the
rear wall is combustible.
Remove the heat shield by undoing the 4 bolts. Move the heat shield
secure in place.
Heat Shield position
when shipped.
Heat Shield position
when shipped.
Bottom Screw location used.
Bottom Screw location used.
918-690
918-690
NOTE: Heat Shield must be raised during installation
when installed against a combustible wall.
Remove the heat shield by undoing the
4 bolts. Move the heat shield up to align the
bottom screw locations screw holes in the firebox
and secure in place.
NOTE: Heat Shield must be raised during installation
when installed against a combustible wall.
Remove the heat shield by undoing the
4 bolts. Move the heat shield up to align the
bottom screw locations screw holes in the firebox
and secure in place.
IMPORTANT:
Heat Shield Position
IMPORTANT:
Heat Shield Position
Heat Shield position
during installation.
Heat Shield position
during installation.
Heat Shield position
when shipped.
Heat Shield position
when shipped.
Bottom Screw location used.
Bottom Screw location used.
918-690
918-690
NOTE: Heat Shield must be raised during installation
when installed against a combustible wall.
Remove the heat shield by undoing the
4 bolts. Move the heat shield up to align the
bottom screw locations screw holes in the firebox
and secure in place.
NOTE: Heat Shield must be raised during installation
when installed against a combustible wall.
Remove the heat shield by undoing the
4 bolts. Move the heat shield up to align the
bottom screw locations screw holes in the firebox
and secure in place.
IMPORTANT:
Heat Shield Position
IMPORTANT:
Heat Shield Position
Heat Shield position
during installation.
Heat Shield position
during installation.
6Regency Cardinia Freestanding Wood Fire
installation
1) Please read this entire manual before you
to follow instructions may result in property
damage, bodily injury or even death. Be
aware that local Codes and Regulations may
override some items in this manual. Check
with your local inspector.
2) THE APPLIANCE AND FLUE-SYSTEM
SHALL BE INSTALLED IN ACCORDANCE
WITH AS/NZS 2918:2001 AND THE AP-
PROPRIATE REQUIREMENTS OF THE
RELEVANT BUILDING CODE OR CODES.
APPLIANCES INSTALLED IN ACCORD-
ANCE WITH THIS STANDARD SHALL
COMPLY WITH THE REQUIREMENTS OF
AS/NZS 4013 WHERE REQUIRED BY THE
REGULATORY AUTHORITY.
ANY MODIFICATION OF THEAPPLIANCE
THAT HAS NOT BEEN APPROVED IN
WRITING BY THE TESTING AUTHORITY
IS CONSIDERED TO BE IN BREACH OF
THEAPPROVAL GRANTED FOR COMPLI-
ANCE WITH AS/NZS 4013.
CAUTION: MIXING OF APPLIANCE OR
FLUE-SYSTEM COMPONENTS FROM
DIFFERENT SOURCES OR MODIFYING
THE DIMENSIONAL SPECIFICATION OF
COMPONENTS MAY RESULT IN HAZ-
ARDOUS CONDITIONS. WHERE SUCH
ACTION IS CONSIDERED, THE MANU-
FACTURER SHOULD BE CONSULTED
IN THE FIRST INSTANCE.
3) Select a position for your Regency Heater.
Consult the minimum clearance chart for
close clearance installation use listed double
wall connector systems.
4) To insure vertical alignment, suspend a plumb
5) Check that the area above the ceiling is
from the heater to combustibles to insure
that they are within the prescribed limits.
6) Mark the location of the pedestal base on
7)
instructions. The performance of your wood
when door is open, and
RESIDENTIAL
INSTALLATION
SAFETY GUIDELINES AND
WARNINGS
1) Never use petrol, petrol type lantern fuels,
kerosene, charcoal lighter fuel, or similar
heater. Keep all such liquids well away from
the heater while it is in use.
2) Keep the door closed during operation and
maintain all seals in good condition.
3) Do not burn any quantities of paper, garbage,
petrol, naptha or engine oil in your heater.
4) If you have smoke detectors, prevent smoke
5)
warpage and premature steel corrosion.
6) Do not permit creosote or soot build-up in
7) Your Regency heater can be very hot. You
may be seriously burned if you touch the
heater while it is operating, keep children,
clothing and furniture away. Warn children
8) The heater consumes air while operating,
provide adequate ventilation with an air duct
or open a window while the heater is in use.
9)
another appliance.
10) Do not use grates or andirons or other
methods for supporting fuel. Burn directly
on the base or bricks where supplied.
11)
seconds prior to slowly opening the door
12) Do not connect your unit to any air distribu-
tion duct.
13)
-
wood, “mill ends”, etc. is not allowed as this
your warranty. As well, a large portion of
sawmill waste is chemically treated timber,
which is illegal to burn in many areas. Salt
14) No combustible material should be closer
7.
15) DO NOT OPERATE WITH BROKEN
GLASS.
output.
8) -
protector clearances.
9) -
10) In areas with seismic activity, Regency
recommends that your unit is secured to the
pedestal.
11) Do not connect this unit to a ue serving
another appliance.
BRICK INSTALLATION
radiate heat more evenly.
Important: Remove the packing material from
above and below the top bricks. Check to see
have not become misaligned during shipping.
Regency Cardinia Freestanding Wood Fire 7
installation
MINIMUM CLEARANCE TO
COMBUSTIBLE MATERIALS
A
B
C
D
E
G
H
Floor Protection
the heater as follows;
which has a thermal resistance of 0.8m2k/w for 4mm sheets of cement
The ue pipe shall extend not less than 4.6m above the top of the oor protector.
NOTE: Installation must be carried out by a licensed installer in accordance
with AS/NZS 2918:2001.
Super Single
Hawkwind
Standard
AHD Special
Insulated
IMPORTANT
* (1) The Flo-Met Super Single flue kit must be installed with a
130o x 900mm stainless reflective shield between decromesh and
active flue plus an additional 900mm x 130o stainless shield posi-
tioned 20mm behind decromesh directly on top of the appliance.
* (2) The Hawkwind Standard flue kit requires 130o x 900mm
stainless reflective shield between the decromesh casing and ac-
tive flue.
The clearance can be further reduced by 25mm (to 200mm) by
using 2 lengths of 7" (178mm) stainless between active flue and
decromesh instead of reflective shield. If no additional shielding is
added to the Standard default Hawkwind kit the rear wall clearance
is 325mm.
* (3) The AHD Special Insulated flue kit must be installed with a
40mm air gap around the flue to any combustible surfaces and the
ceiling ring must be spaced as such to provide an air gap of 20mm
to the ceiling.
8Regency Cardinia Freestanding Wood Fire
operating
instructions
4)
has begun to burn strongly, adjust your draft
level.
WARNING: Never build a roaring re in
a cold heater. Always warm your heater
up slowly!
5) Once a bed of coals has been established
the draft control to a low setting to operate
6) -
tion rate at a moderate level and avoid a
setting, and only after the metal has been
warmed.
7)
becomes seasoned. Windows and/or doors
should be left open to provide adequate
ventilation while this temporary condition
8) Do not place anything on the heater top
during the curing process. This may result
Pull - Open
WARNING: To build a re in ignorance
or to disregard the information con-
tained in this section can cause serious
permanent damage to the unit and void
your warranty!!
AIR SLIDE CONTROL
Both the primary and air wash drafts are control-
led by the control rod located on the right side
your draft - pull open, and to decrease - push
closed. All units have a secondary draft system
that continually allows combustion air to the
OPERATING
INSTRUCTIONS
With your unit now correctly installed and safety
inspected by your local authority, you are now ready
is important that you fully understand the operation
of your draft control.
CAUTION: THIS APPLIANCE MUST BE MAIN-
TAINED AND OPERATED AT ALL TIMES IN
ACCORDANCE WITH THESE INSTRUCTIONS.
CAUTION: THE USE OF SOME TYPES OF
PRESERVATIVE-TREATED WOOD AS A FUEL
CAN BE HAZARDOUS.
WARNING: ANY MODIFICATION OF THE AP-
PLIANCE THAT HAS NOT BEEN APPROVED
IN WRITING BY THE TESTING AUTHORITY IS
CONSIDERED AS BREACHING AS/NZS 4013.
WARNING: DO NOT USE FLAMMABLE LIQUIDS
OR AEROSOLS TO START OR REKINDLE THE
FIRE.
WARNING: DO NOT USE FLAMMABLE LIQUIDS
OR AEROSOLS IN THE VICINITY OF THIS AP-
PLIANCE WHEN IT IS OPERATING.
WARNING: DO NOT STORE FUEL WITHIN
HEATER INSTALLATION CLEARANCES.
WARNING: OPENAIR CONTROL (AND DAMPER
WHEN FITTED) BEFORE OPENING FIRING
DOOR.
FIRST FIRE
When your installation is completed and in-
1) Open control fully.
2)
CAUTION: Never leave unit unattended
if door is left open. This procedure is for
re start-up only, as unit may overheat
if door is left open for too long.
3) With the draft still in the fully open position
the door.
Push - Closed
For safety reasons and in order to avoid
over ring of your unit do not burn your
re with the door open or ajar.
Regency Cardinia Freestanding Wood Fire 9
maintenance
9)
will increase.
10)
drafting problems may occur. Consult an
of increasing your draft.
11) Some cracking and popping noises may be
These noises will be minimal when your unit
reaches temperature.
12) Before opening your door to reload, open
minimize any smoking.
13)
during operation. It is important that you
supply a source of fresh air to your unit
while burning. A slightly opened window is
created by your Regency Heater causing a
open a window near your unit.
CAUTION: If the body of your unit, ue bae
or any part of the ue connector starts to
glow, you are overring. Stop loading fuel
immediately and close the draft control until
the glow has completely subsided.
14) Green or wet wood is not recommended for
your unit. If you must add wet or green fuel,
open the draft control fully until all moisture
Once all moisture has been removed, the
draft control may be adjusted to maintain
15) If you have been burning your heater on
a low draft, use caution when opening the
door. After opening the damper, open the
before fully opening the door.
16) The controls of your unit or the air supply
passages should not be altered to increase
17) If you burn the unit too slowly or at too low
a setting your unit will not be operating as
says that if your glass is clean, then your
Burn the heater hot enough to keep your
glass clean and you won't need to clean
CREOSOTE
When wood is burned slowly, it produces tar and
other organic vapours, which when combined
with moisture, form creosote. The creosote
WARNING: Things to remember in case
of a ue re:
1. Close all draft and damper controls.
2. CALL THE FIRE DEPARTMENT.
Ways to Prevent and Keep Unit
Free of Creosote
1) Burn heater with the draft control wide open
during burning season.
2) Burn heater with draft control wide open
apply fresh wood. This allows the wood to
achieve the charcoal stage faster and burns
up any unburned gas vapours which might
otherwise be deposited within the system.
3) Only burn seasoned wood! Avoid burning
wet or green wood. Seasoned wood has
been dried at least one year.
4)
smouldering one that can deposit creosote
within the system.
5)
WOOD STORAGE
Store wood under cover, such as in a shed, or
covered with a tarp, plastic, tar paper, sheets
of scrap plywood, etc., as uncovered wood can
absorb water from rain or snow, delaying the
seasoning process.
MAINTENANCE
It is very important to carefully maintain your
season and as necessary during the season, as
creosote deposits may build up rapidly. Moving
parts of your heater require no lubrication. The
door rope seals, and door glass is imperative
for the correct operation and longevity of your
Regency Wood heater. They should be inspected
on a regular basis and replaced if they show any
of these components can damage the heater
and void warranty.
inspected at least once every two months
during the heating season to determine is
a creosote buildup has occurred.
6) Have ue system and unit cleaned by
competent ue sweeps twice a year dur-
ing the rst year of use and at least once
a year thereafter or when a signicant
layer of creosote has accumulated (3
mm) it should be removed to reduce the
risk of a ue re.
GLASS MAINTENANCE
Neoceram ceramic glass that will withstand
the highest heat that your unit will produce. In
the event that you break your glass by impact,
purchase your replacement from an authorized
Regency dealer only, and follow our step-by-step
instructions for replacement.
Allow the heater to cool down before cleaning
the glass, do not clean the glass when it is hot.
Do not use abrasive cleaners.
DOOR LATCH
ADJUSTMENT
The door latch may require adjustment as the
door gasket material compresses over time.
be moved closer to the door frame, causing a
tighter seal.
1. Carefully remove the split pin, Latching Sleeve
and pin from the handle
2.
-
quired depth
3. Re-install the split pin, Latching Sleeve & pin
into the handle
4. Adjust the Set Screw to the proper depth to
Rear V
iew of Door shown
Latching
Sleeve
Pin
Set Screw
10 Regency Cardinia Freestanding Wood Fire
PARTS LIST
parts list
HEATER ASSEMBLY
1) 1141704B Friebrick Retaining Bracket (3 Pieces)
2) 1141703 2mm Back Shield
1141702 Inner Back Shieid
3) Primary Air Opening
4) 1141800 Secondary Air Tube
5) 8010108 Firebrick Set
6) 1143200 Pedestal
7) 8010102 Ash Lip Panel
8) 8010101 Top Panel
9) 8010110 Door Assembly (without Handle)
10) 8010114 Door Handle Set
11) 8010106 Neoceram Glass W/Gasket
12) 1141600 Air Slide
8010611 Steel baffie (optional)(A)
7510206 Cast Plate Set (optional)(B)
13) 8010115 Glass Retainer Bracket
14) 1141400 Metal lip inside firebox
15) 3720103 Door rope seal 5 ft.(not shown)
16) 1141004 Rear Baffle/Brick Support Bar
17) 1151700B Air Slide Fasteners (3 pcs)
18) 1160118 Securing Pin (sec Air Tube)
1
4
5
6
7
8
9
10
11
3
2
12
13
14 16
17
18
Optional Cast Plate Set & Steel Baffle
A
B
Part# Description
PARTS LIST
Regency Cardinia Freestanding Wood Fire
STOVE ASSEMBLY
Regency Cardinia Freestanding Wood Fire 11
NOTES
notes
12 Regency Cardinia Freestanding Wood Fire
WARRANTY
warranty
Limited Warranty
FPI Fireplace Products International Ltd. (“the manufacturer”) through its wholly owned subsidiary, Fireplace
Products Australia Pty Ltd (for Australia and New Zealand customers) and sold under the Regency® brand of
fireplace products (collectively referred to herein as “FPI”), extends this Limited Warranty to the original purchaser
of this appliance provided the product remains in the original place of installation. The items covered by this
limited warranty and the period of such coverage is set forth in the table below.
Some conditions apply (see below).
The policy is not transferable, amendable or negotiable under any circumstances.
Wood Products
Component Coverage Labor
Coverage
Components Covered
15
years
2
years
1
year
Warranty (Years)
Welded Firebox Steel
5
All Stainless Steel Components, Smoke Deflectors,
Heat Shields etc.
1
Air Tubes
1
Airmate
1
Door handle and latch assembly, all hardware
1
Glass Thermal Breakage Only
1
Steel Faceplates, Accessory Housings
1
All Plating
1
Ash Drawer, Heatshields, Pedestal
1
All Baffles-Steel, Ceramic, Vermiculite
1
All castings, firebox, surrounds, doors, panels etc.
1
All Electrical, Fans, wiring, switches etc.
(Fan only)
1
Glass - Crazing
1
Catalyst Assembly (see below for specific details)
6 Years
Prorated 3
Flue components
1
Firebricks
Nil
Nil
After the original warranty coverage for any of the parts above have expired, any repair and/or replacement parts
purchased by the consumer from FPI or through an accredited distributor or dealer will carry a ninety (90) day
warranty (valid only with an original copy of the tax invoice). No labor coverage is included with any repair and/or
replacement part.
Replacement parts are limited to one per warranty term. Airtube and baffle replacements are limited to one
replacement per term.
Catalyst Assembly
IMPORTANT WARRANTY INFORMATION FOR UNITS WITH A CATALYTIC CONVERTER
FPI will replace, at no charge to the consumer, 'one' catalytic converter that ceases to function within three (3)
years from the date of purchase by the original consumer, provided that the following conditions are met:
(1) The catalytic converter must not have been mechanically abused
(2) Only recommended fuels have been used in the appliance
Revision Date: December 2016 Regency Wood Products Warranty
Regency Cardinia Freestanding Wood Fire 13
WARRANTY
warranty
If after three (3) years the catalytic converter fails to function, a prorated warranty will provide for replacement at
the following fee schedule to be paid by the consumer*:
Year 4.....................$90*
Year 5.....................$100*
Year 6.....................$110*
* Prices subject to change without notice. Conditions (1) and (2) above also apply for prorated warranty periods.
AFTER YEAR SIX (6), THE CONSUMER MUST PURCHASE ANY CATALYTIC CONVERTERS THAT NEED REPLACEMENT AT
THE CURRENT RETAIL PRICE, AND WILL BE RESPONSIBLE FOR ANY LABOUR COSTS TO REMOVE AND/OR SERVICE.
LABOR WILL ONLY BE COVERED ON THE CATALYTIC CONVERTER FOR THE FIRST THREE (3) YEARS.
Conditions:
Warranty protects against defect in manufacture or FPI factory assembled components only, unless herein
specified otherwise. This warranty will only apply to those products which are acquired at the time of this
warranty being effective. FPI will not be liable for any damage or loss that falls outside the scope of the warranty.
Any part(s) found to be defective during the warranty period as outlined above will be repaired or replaced at FPI’s
option through an accredited distributor, dealer or pre-approved and assigned agent provided that the defective
part is returned to the distributor, dealer or agent for inspection if requested by FPI. Alternatively, FPI may at its
own discretion fully discharge all of its obligations under the warranty by refunding the verified purchase price of
the product to the original purchaser. The purchase price must be confirmed by an original copy of the tax invoice.
The authorised selling dealer, or an alternative authorised FPI dealer if pre-approved by FPI, is responsible for all
in-field diagnosis and service work related to all warranty claims. This warranty does not cover dealer travel
costs for diagnostic or service work. Dealers may charge homeowner for travel and additional time. Check with
your selling dealer in advance for any costs to you when arranging a warranty call. FPI is not responsible for
results or costs of workmanship of unauthorised FPI dealers or agents in the negligence of their service work.
Additional service fees may apply if you are seeking warranty service from a dealer other than the dealer from
whom you originally purchased the product.
At all times FPI reserves the right to inspect reported complaints on location in the field claimed to be defective
and determine whether the warranty will apply prior to processing or authorising of any claim. Failure to allow
this upon request will void the warranty.
All warranty claims must be submitted by the dealer servicing the claim, including an original copy of the tax
invoice (proof of purchase by you). All claims must be complete and provide full details as requested by FPI to
receive consideration for evaluation, including proof of maintenance records. Incomplete claims may be rejected.
FPI has absolute discretion to assess and determine any warranty claim and may accept or reject a claim as it
considers appropriate.Any part or parts of the unit found to be defective will be repaired or replaced at FPI's
option, through an accredited distributor or service agent provided that the defective part be returned to the
distributor or agent, Transportation Prepaid, if requested.It is the general practice of FPI to charge for larger,
higher priced replacement parts and issue credit once the replaced component has been returned to FPI and
evaluated for manufacturer defect.
If a consumer has a unit installed outside an accredited distributor, dealer or pre-approved service agent’s
service area, or the closest approved service agent is situated more than thirty (30) kilometres from the
installation, FPI is not obliged to arrange warranty repairs or shipping/transportation costs. In these cases, the
consumer must arrange warranty service with its selling dealer, and shipping, travel and/or additional labor
charges will apply.
Unit must be installed according to all manufacturers’ instructions as per the manual.
All Local and National required codes must be met.
The installer is responsible to ensure the unit is operating as designed at the time of installation.
Revision Date: December 2016 Regency Wood Products Warranty
14 Regency Cardinia Freestanding Wood Fire
WARRANTY
warranty
Revision Date: November 2016
Regency Wood Products Warranty
The original purchaser is responsible for annual maintenance of the unit, as outlined in the owner’s manual. As
outlined below, the warranty may be voided due to problems caused by lack of maintenance. Annual maintenance
records should be retained.
Exclusions:
This Limited Warranty does not extend to paint, rust or corrosion of any kind due to a lack of maintenance or
improper venting, combustion air provision, corrosive chemicals (i.e. chlorine, salt, air, etc.), firebrick (rear, sides or
bottom), door or glass gasket, or any other additional factory fitted gasket.
Malfunction, damage or performance based issues as a result of environmental conditions, location, chemical
damages, downdrafts, installation error, installation by an unqualified installer, incorrect chimney components
(including but not limited to cap size or type), operator error, abuse, misuse, use of improper fuels (such as
unseasoned timber, mill-ends, construction timber or debris, off-cuts, treated or painted timber, tea tree, metal or
foil, plastics, garbage, solvents, cardboard, coal or coal products, oil based products, waxed cartons, compressed
pre-manufactured logs), accidents, lack of regular maintenance and upkeep, acts of God, weather related
problems from hurricanes, tornados, earthquakes, floods, lightning strikes/bolts or acts of terrorism or war, which
result in malfunction of the appliance are not covered under the terms of this Limited Warranty.
FPI has no obligation to enhance or modify any unit once manufactured (i.e. as products evolve, field modifications
or upgrades will not be performed on existing appliances).
Any unit showing signs of neglect or misuse will not be covered under the terms of this warranty policy and may
void this warranty. This includes units with rusted or corroded fireboxes which have not been reported as rusted or
corroded within three (3) months of installation/purchase. Any alteration to the unit which causes sooting or
carboning that results in damage to the exterior fascia or over firing that can cause component or firebox/heat
exchanger failure will not be covered by this warranty.
Units which show evidence of being operated while damaged, or with problems known to the purchaser and
causing further damages will void this warranty.
Units where the serial no. has been altered, deleted, removed or made illegible will void this warranty.
Minor movement, expansion and contraction of the steel is normal and is not covered under the terms of this
warranty.
Freight damages for products or parts are not covered under the terms of the warranty.
Porcelain/Enamel: Absolute perfection is neither guaranteed nor commercially possible. Any chips must be
reported and inspected by the authorised selling dealer within three (3) days of installation. Any damage of this
type not reported after this time period will be subject to rejection and any related warranty will not apply.
Special Finishes: Expect some changes in color as the product "ages" with constant heating and cooling. The
manufacturer warranty does not cover tarnishing, changing colors and/or marks (i.e. finger prints, etc.) after the
purchase of the product. Damage from the use of abrasive cleaners is not covered by warranty.
Products made or provided by other manufacturers and used in conjunction with the FPI appliance without prior
authorisation from FPI may void this warranty.
INCORRECT INSTALLATION IS NOT COVERED BY WARRANTY. A SERVICE OR CALLOUT FEE WILL BE CHARGED IN
THESE CIRCUMSTANCES.
Regency Cardinia Freestanding Wood Fire 15
WARRANTY
warranty
Limitations of Liability:
1. Exclusion of implied terms
The customer may have the benefit of consumer guarantees under the Australian Consumer Law. To the maximum
extent permitted by law, all terms, conditions or warranties that would be implied into this Warranty or in
connection with the supply of any goods or services by the supplier under law or statute or custom or international
conventions are excluded.
2. Limitation of liability
(a) To the maximum extent permitted by law and subject to clauses 1 and 3, the supplier’s total liability arising out
of or in connection with its performance or its obligations pursuant to this Warranty, or arising out of or in
connection with the supply of specific goods or services (including pursuant to or for breach of this Warranty,
under statute, in equity or for tort, including negligent acts or omissions) is limited as follows: (i) the supplier shall
have no liability to the customer for any Consequential Loss; (ii) without limiting the effect of clause 2(a)(i), the
supplier’s total aggregate liability for Loss, however arising, shall not exceed the GST exclusive aggregate price paid
by the customer to the supplier for the specific goods or services that gave rise to the Loss in question.
(b) The limitations and exclusions in this sub-clause do not apply to the extent that any Loss is directly attributable
to: (i) the personal injury or death caused by the supplier’s default, breach of this Warranty or negligence; or (ii)
fraud by the supplier.
(c) Each party must take reasonable steps to mitigate any Loss it suffers or incurs.
3. Limitation of liability under Australian Consumer Law Guarantees
(a) To the extent that goods supplied by the supplier are not goods of a kind ordinarily acquired for personal,
domestic or household use and the customer is deemed to be a consumer for the purposes of section 64A of the
Australian Consumer Law, the customer agrees that the supplier’s liability for a failure to comply with a consumer
guarantee that the customer may have a benefit under the Australian Consumer Law (other than a guarantee
under sections 51 (title), 52 (undisturbed possession) and 53 (undisclosed securities)), is limited to, at the option of
the supplier, one or more of the following: (i) replacement of the goods or the supply of equivalent goods; (ii) the
repair of the goods; (iii) the payment of the cost of replacing the goods or of acquiring equivalent goods; or (iv)
equivalent goods; or (v) the payment of the cost of having the goods repaired.
(b) To the extent that services supplied by the supplier are services other than services of a kind ordinarily acquired
for personal, domestic or household use or consumption, the supplier’s liability for failure to comply with a
consumer guarantee that the customer may have the benefit of is limited to, at the option of the supplier: (i) the
supply of the services again; or (ii) the payment of the cost of having the services supplied again.
4. Subject to Change
This Limited Warranty is given at the time of sale and purchase of the relevant fireplace product. The terms of this
Limited Warranty may be amended from time to time by FPI in accordance with changes to business practices,
consumer laws or other legal requirements. The rights and protections granted under the Limited Warranty are
those in force in relation to a fireplace product at the time and in the place of sale of that product, and only those
terms will be applicable in respect of that product.
5. Severability
Any term of this Limited Warranty that is invalid or unenforceable in any jurisdiction is to be read down for the
purposes of that jurisdiction, if possible, so as to be valid and enforceable, and is otherwise capable of being
severed to the extent of the invalidity or unenforceability, without affecting the remaining provisions of this
Limited Warranty or affecting the validity or enforceability of that provision in any other jurisdiction.
6. Definitions
For purposes of clauses 1, 2 and 3:
(a) Consequential Loss means loss of expected savings, loss of use, loss of opportunity, loss of profit, loss of
revenue, increased financing costs, loss arising from delay, or any consequential, special or indirect loss or damage,
whether or not the possibility or potential extent of the loss or damage was known or foreseeable, and whether
arising from a claim under indemnity, contract, tort (including negligence), statute or otherwise.
(b) Loss means any expense, cost or damage of any kind and includes Consequential Loss and a fine or penalty
imposed by a statutory or other authority.
Revision Date: December 2016 Regency Wood Products Warranty
16 Regency Cardinia Freestanding Wood Fire
WARRANTY
warranty
Revision Date: November 2016
Regency Outdoor Products Warranty
How to Obtain Warranty Service:
Customers should contact the authorised selling dealer to obtain warranty service. In the event the authorised
selling dealer is unable to provide warranty service, please contact FPI by mail at the address listed below. Please
include your name, address, purchase date, selling dealer, serial #, type of unit, a brief description of the problem,
email and telephone contact information, and a copy of your original tax invoice. A representative will contact you
to make arrangements for an inspection and/or warranty service. (See below for Western Australia and/or New
Zealand)
Please note Fireplace Products Australia Pty Ltd does not provide installation services.
Fireplace Products Australia Pty Ltd
1 –3 Conquest Way
Hallam, VIC
Australia, 3803
Phone: +61 3 9799 7277
Fax: +61 3 9799 7822
To obtain warranty service in Western Australia and/or New Zealand, please contact one of our
authorised distributors in those areas:
Western Australia:
Air Group Australia
28-30 Division St.
Welshpool, WA
Australia, 6106
Phone: (08) 9350 2200
Fax: (08) 9353 4225
New Zealand:
Aber Holdings Ltd
PO Box 10095
Te Rapa, Hamilton
New Zealand, 3241
Freephone: 0800 161 161
Product Registration and Customer Support:
Thank you for choosing a Regency Fireplace. Regency strives to be a world leader in the design, manufacture, and
marketing of hearth products. To provide the best support for your product, we request that you complete a
product registration form at http://www.regency-fire.com.au/Customer-Care/Warranty-Registration.aspx within
ninety (90) days of purchase.
Regency Cardinia Freestanding Wood Fire 17
WARRANTY
warranty
Product Registration and Customer Support:
Thank you for choosing a Regency Fireplace. Regency strives to be a world leader in the design, manufacture, and
marketing of hearth products. To provide the best support for your product, we request that you complete a product
registration form found on our Web Site under Customer Care within ninety (90) days of purchase.
For purchases made in CANADA or the UNITED STATES:
http://www.regency-fire.com/Customer-Care/Warranty-Registration.aspx
For purchases made in AUSTRALIA:
http://www.regency-fire.com.au/Customer-Care/Warranty-Registration.aspx
You may also complete the warranty registration form below to register your Regency Fireplace Product and mail and/or
fax it back to us, and we will register the warranty for you. It is important you provide us with all the information below in
order for us to serve you better.
Warranty Registration Form (or Register online immediately at the above Web Site):
Warranty Details
Serial Number (required):
Purchase Date (required) (mm/dd/yyyy):
Product Details
Product Model (required):
Dealer Details
Dealer Name (required):
Dealer Address:
Dealer Phone #:
Installer:
Date Installed (mm/dd/yyyy):
Your Contact Details (required)
Name:
Address:
Phone:
Email:
For purchases made in CANADA:
FPI Fireplace Products
International Ltd.
6988 Venture St.
Delta, British Columbia
Canada, V4G 1H4
For purchases made in the UNITED STATES:
Fireplace Products U.S., Inc.
PO Box 2189 PMB 125
Blaine, WA
United States, 98231
Phone: 604-946-5155
Fax: 604-946-4349
Phone: 604-946-5155
Fax: 604-946-4349
For purchases made in AUSTRALIA:
Fireplace Products Australia Pty
Ltd
1- 3 Conquest Way
Hallam, VIC
Australia, 3803
Phone: +61 3 9799 7277
Fax: +61 3 9799 7822
For fireplace care and tips and answers to most common questions please visit our Customer Care section on our Web Site.
Please feel free to contact your selling dealer if you have any questions about your Regency product.
18 Regency Cardinia Freestanding Wood Fire
Regency Cardinia Freestanding Wood Fire 19
Installer: Please complete the following information
Dealer Name & Address:______________________________________________
___________________________________________________________________
Installer: ___________________________________________________________
Phone #: ___________________________________________________________
Date Installed: ______________________________________________________
Serial No.:__________________________________________________________
This manual suits for next models
1
Table of contents
Other Regency Fireplace Products Indoor Fireplace manuals
Regency Fireplace Products
Regency Fireplace Products L540E Quick start guide
Regency Fireplace Products
Regency Fireplace Products F1100S Service manual
Regency Fireplace Products
Regency Fireplace Products GF950L-NG Quick start guide
Regency Fireplace Products
Regency Fireplace Products H2100 Quick start guide
Regency Fireplace Products
Regency Fireplace Products GFI300LNG-R Quick start guide
Regency Fireplace Products
Regency Fireplace Products Horizon HZ40E Quick start guide
Regency Fireplace Products
Regency Fireplace Products City Series Service manual
Regency Fireplace Products
Regency Fireplace Products DVi34L Series Quick start guide
Regency Fireplace Products
Regency Fireplace Products Panorama P36 Quick start guide
Regency Fireplace Products
Regency Fireplace Products I100B-1 Quick start guide
Regency Fireplace Products
Regency Fireplace Products Grandview G600C-1 Quick start guide
Regency Fireplace Products
Regency Fireplace Products I2404M Quick start guide
Regency Fireplace Products
Regency Fireplace Products IG34-NG Quick start guide
Regency Fireplace Products
Regency Fireplace Products Grandview G600EC-NG Quick start guide
Regency Fireplace Products
Regency Fireplace Products L390E Quick start guide
Regency Fireplace Products
Regency Fireplace Products P33-NG4 Quick start guide
Regency Fireplace Products
Regency Fireplace Products Skope E110-2 User manual
Regency Fireplace Products
Regency Fireplace Products P36-NG4 Natural Gas Quick start guide
Regency Fireplace Products
Regency Fireplace Products Energy U31-NG10 User manual
Regency Fireplace Products
Regency Fireplace Products B41XTE-NG1 Service manual
Regency Fireplace Products
Regency Fireplace Products Energy U31-NG10 Repair manual
Regency Fireplace Products
Regency Fireplace Products GOSFORD F300B Quick start guide
Regency Fireplace Products
Regency Fireplace Products Contura Ri50 Quick start guide
Regency Fireplace Products
Regency Fireplace Products P36D-NG1 Quick start guide
Popular Indoor Fireplace manuals by other brands
Travis Industries
Travis Industries 1080 CF installation manual
Whalen
Whalen WSF54AL30R-AG manual
Valor
Valor 1700JN Installation & owner's manual
Vanguard
Vanguard VE32L OWNER'S OPERATION AND INSTALLATION MANUAL
HAMPTON BAY
HAMPTON BAY Hampton H25-NG Owners & installation manual
Heat & Glo
Heat & Glo TIARAP-BK-IPI installation manual
Enviro
Enviro C72I owner's manual
Napoleon
Napoleon HD35NT Installation and operating instructions
Montigo
Montigo R720 Installation & maintenance manual
Empire Comfort Systems
Empire Comfort Systems VFP32FB0L Installation instructions and owner's manual
Faber
Faber SILVA B11 Installation guide and user's manual
FireplaceXtrordinair
FireplaceXtrordinair 564 GSR2 35K CF installation manual
