Installation
*INSTALLATION*
Safety instructions for installation
Risk of damage from incorrect installation.
Incorrect installation can cause damage to the cooktop.
The cooktop must only be installed by a qualified person.
Danger of electric shock!
Incorrect connection to the power supply may result in an electric shock.
The cooktop must be connected to the power supply by a qualified electrician.
Damage from falling objects.
Take care not to damage the cooktop when fitting wall units or a rangehood
above it.
Fit the wall units and the rangehood before the cooktop.
 The veneer or laminate coatings of worktops (or adjacent kitchen
units) must be treated with 100°C heat-resistant adhesive which will
not dissolve or distort. Any splashbacks must be of heat-resistant
material.
 The cooktop must not be installed over a fridge, fridge-freezer,
freezer, dishwasher, washing machine, washer-dryer or tumble dryer.
 A gas cooktop must not be installed adjacent to this cooktop.
 This cooktop must not be installed above ovens unless these
have a built-in cooling fan.
 After installation, ensure that nothing can come into contact with
the connection cable and that it is without hindrance.
 The connection cable may not come into contact with any moving
kitchen component (e.g. a drawer) or be subject to mechanical
obstruction which could damage it.
 Carefully observe the safety clearances listed on the following
pages.

11464020-02
Installation
*INSTALLATION*
 All ducting, pipework and fittings must be of non-flammable
material and comply with all relevant national and local building
regulations.
 The appliance must not be connected to a chimney or vent flue
which is in current use for exhausting fumes from appliances burning
gas or other fuels. Neither should it be connected to ducting which
ventilates rooms with fireplaces.
 If exhaust air is to be extracted into a chimney or ventilation duct
no longer used for other purposes, seek professional advice.
 The extracted air drawn into the extractor must not be routed into
the base unit, as this will damage the cabinet. The extracted air must
be routed outside through ducting (extraction mode) or back into the
room through the recirculation box (recirculation mode).

11464020-02
Installation
*INSTALLATION*

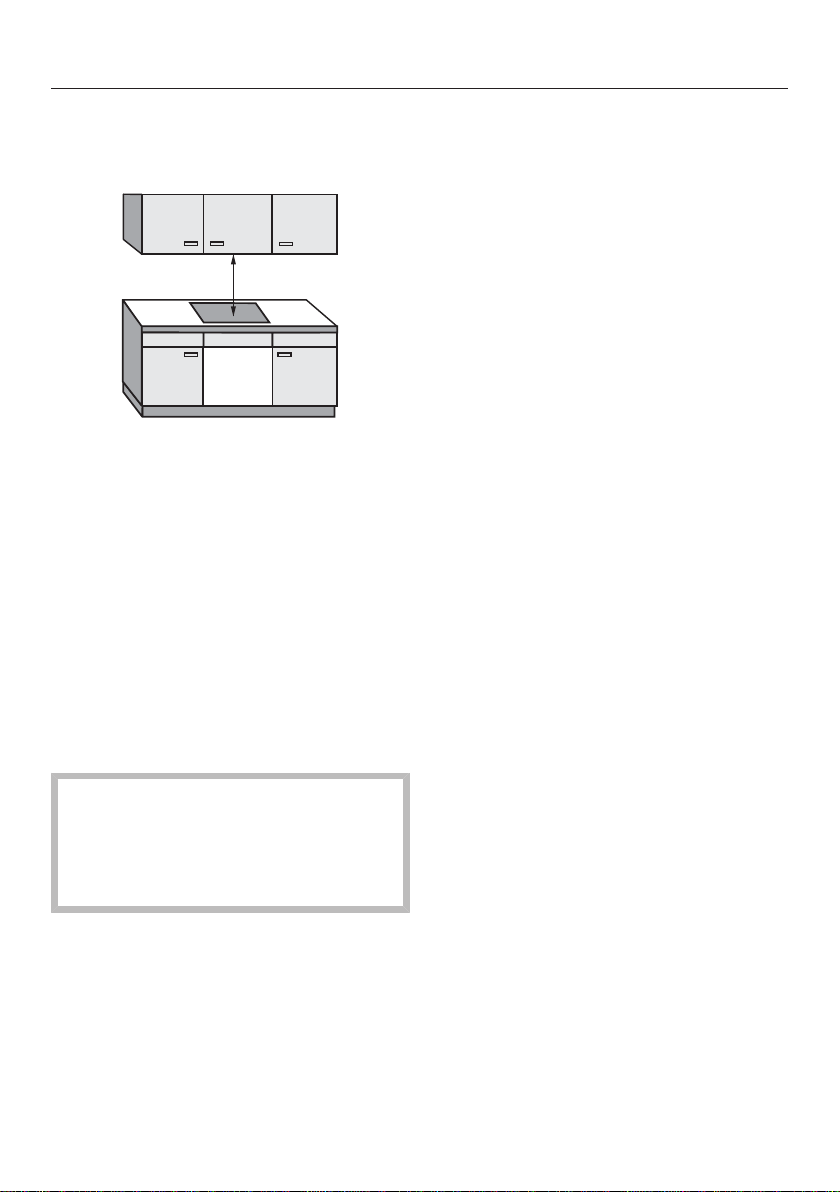

Safety distances
Safety distance above the cooktop
The safety distance specified by the
manufacturer of the rangehood must be
maintained between the cooktop and
the rangehood above it.
If the manufacturer's instructions are
not available for the rangehood, a
minimum safety distance 600 mm must
be maintained.
For any flammable objects, e.g. utensil
rails, wall units etc., a minimum safety
distance of 600mm must be
maintained between these objects and
the highest part of the cooktop below.
When two or more appliances which
have different safety distances are
installed together below a
rangehood, observe the greatest
specified safety distance.

11464020-02
Installation
*INSTALLATION*
Safety distances to the sides and
back of the appliance
The minimum distance shown below
must be maintained between the back
edge of the cooktop and a tall unit or
wall.
Ideally the cooktop should be installed
with plenty of space on either side.
There may be a wall at the rear or a tall
unit or wall on one side (right or left),
taking into account the distances
below. On the other side, however, no
tall unit or wall should stand closer than
300mm to the edge of the cooktop.
Before installing the cooktop, check
that the below clearance requirements
are met.
Minimum horizontal distance from the
back edge of the cooktop to a
combustible surface:
50mm.
Minimum horizontal distance from the
right edge of the cooktop to a
combustible surface:
50mm.
Minimum horizontal distance from the
left edge of the cooktop to a
combustible surface:
50mm.

11464020-02
Installation
*INSTALLATION*
Installation notes
All dimensions in this instruction
booklet are given in mm.
Surface-mounted installation
Seal between the cooktop and the
worktop
Damage caused by incorrect
installation.
Using sealant under the cooktop
could result in damage to the
cooktop and the worktop if the
cooktop ever needs to be removed
for servicing.
Do not use sealant between the
cooktop and the worktop.
The sealing strip under the edge of
the cooktop provides a sufficient seal
for the worktop.
Tiled worktop
Grout lines and the hatched area
underneath the cooktop frame must be
smooth and even. If they are not, the
cooktop will not sit flush with the
worktop and the sealing strip
underneath the cooktop will not provide
a good seal between the cooktop and
the worktop.

11464020-02
Installation
*INSTALLATION*
Flush-fit installation
Flush-fit installation is only possible in
natural stone (granite, marble), solid
wood and tiled worktops. When using
a worktop made from any other
material, please check first with the
worktop manufacturer that it is
suitable for installing a flush-mounted
cooktop.
The internal width of the base unit
underneath the appliance must be at
least as wide as the inner worktop cut-
out (see “Installation – Installation
dimensions – Flush”), so that the
cooktop is easily accessible from
underneath after installation and the
bottom half of the casing can be
removed for maintenance. If the
underside of the cooktop is not freely
accessible after installation, any
sealant used to plug the gaps around
the appliance must be removed to
enable the cooktop to be lifted out of
the cut-out should this be necessary.
Natural stone worktops
The cooktop is placed directly in the
cut-out.
Solid wood worktops, tiled worktops,
glass worktops
The cooktop is placed on a wooden
frame inside the cut-out. The frame
must be provided on site and is not
supplied with the appliance.
Minimum plinth height
The minimum plinth height is 100mm
(recirculation mode only).
Housing unit back panel
The extraction ducting is laid behind the
housing unit back panel. The back
panel must be removable for
maintenance purposes.
Grease trap
The cooktop must be installed such
that the grease trap is easily accessible
as it needs to be removed for cleaning.

11464020-02
Installation
*INSTALLATION*

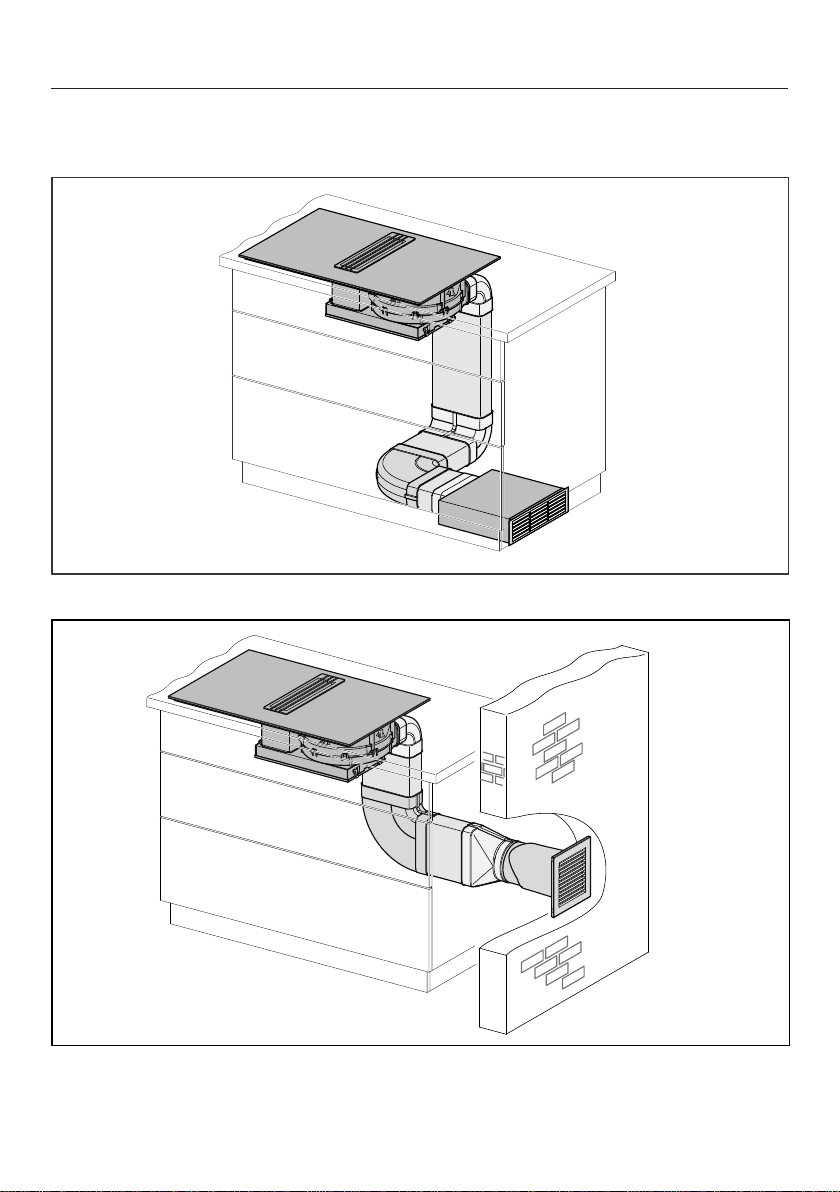

Installation examples
Recirculation mode
Extraction mode

11464020-02
Installation
*INSTALLATION*

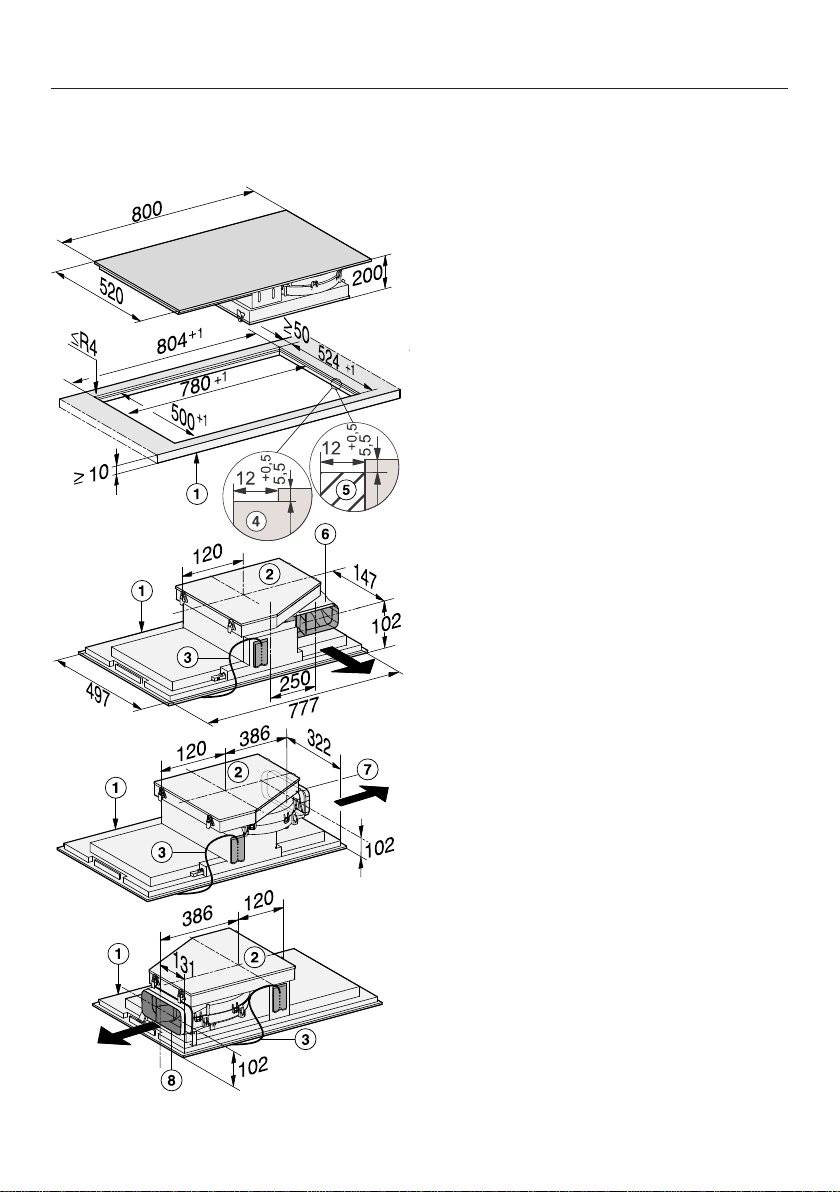

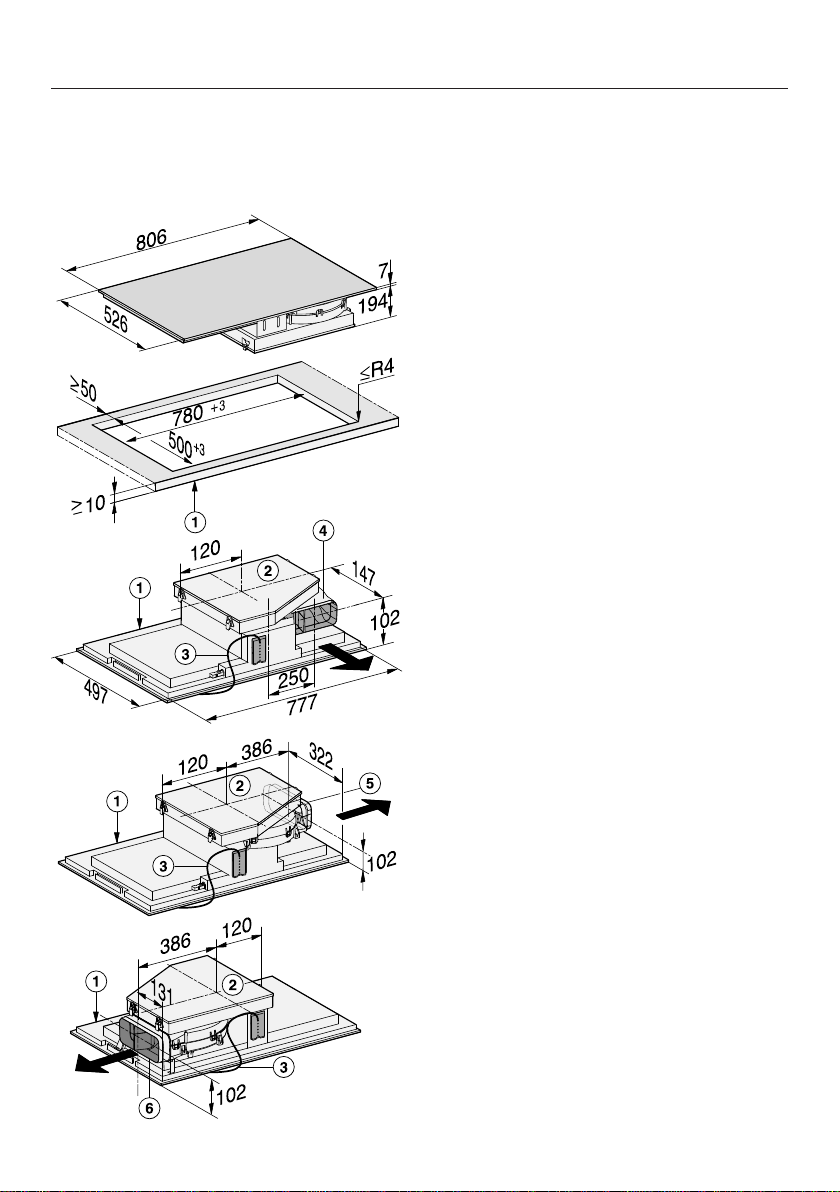

Installation dimensions –
Surface-mounted
KMDA7633FR, KMDA7634FR
aFront
bRemovable drip tray
cMains connection box with mains
connection cable, L = 1440 mm
dAir duct connection – at the back
(ex-works)
eAir duct connection - on the right
(conversion required)
fAir duct connection - on the left
(conversion required)

11464020-02
Installation
*INSTALLATION*
KMDA7633FL, KMDA7634FL aFront
bRemovable drip tray
cMains connection box with mains
connection cable, L = 1440 mm
dAir duct connection – at the back
(ex-works)
eAir duct connection - on the right
(conversion required)
fAir duct connection - on the left
(conversion required)

11464020-02
Installation
*INSTALLATION*

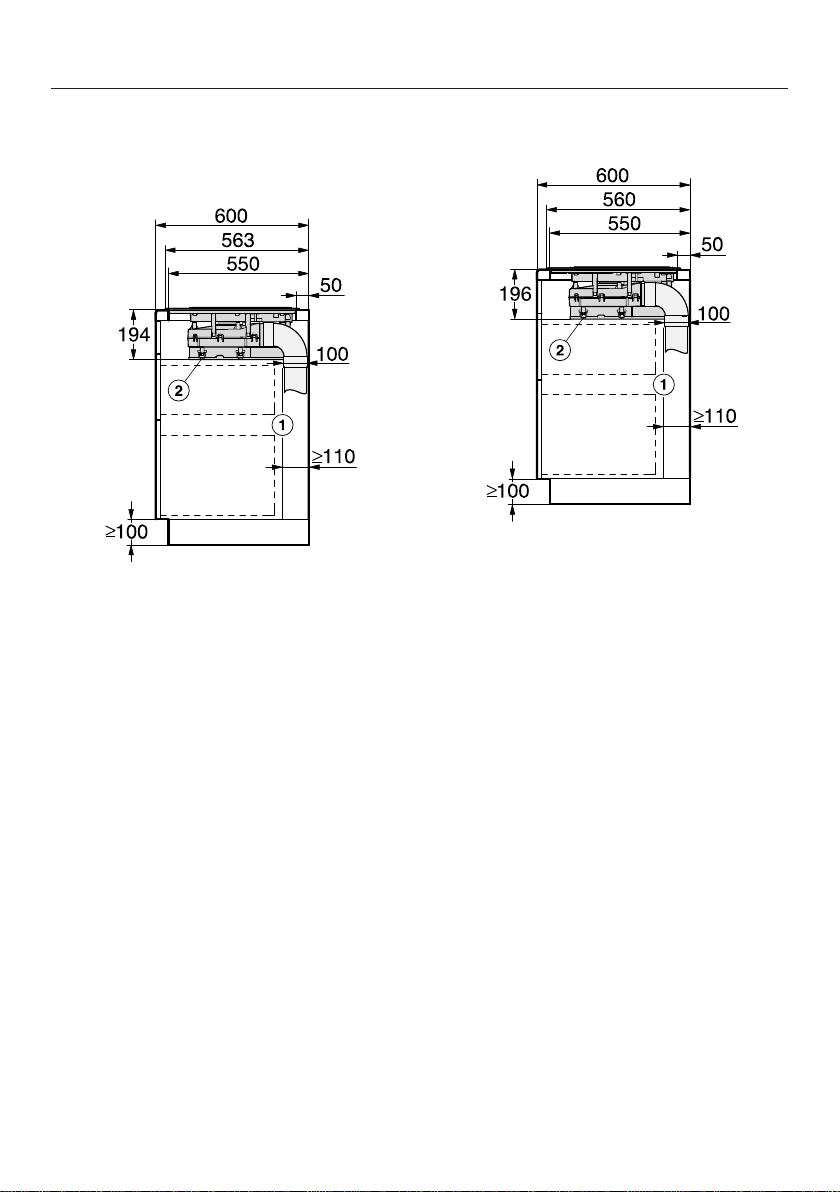

Worktop depth 600mm
KMDA7633FR, KMDA7634FR
aHousing unit back panel
The housing unit back panel must be
removable for service work. The
housing unit wall and an adjoining
room wall or furniture housing must
be at least 110mm apart to ensure
sufficient room for the ducting.
bDrip tray
After installation the removable drip
tray must be accessible from below.
KMDA7633FL, KMDA7634FL
aHousing unit back panel
The housing unit back panel must be
removable for service work. The
housing unit wall and an adjoining
room wall or furniture housing must
be at least 110mm apart to ensure
sufficient room for the ducting.
bDrip tray
After installation the removable drip
tray must be accessible from below.

11464020-02
Installation
*INSTALLATION*

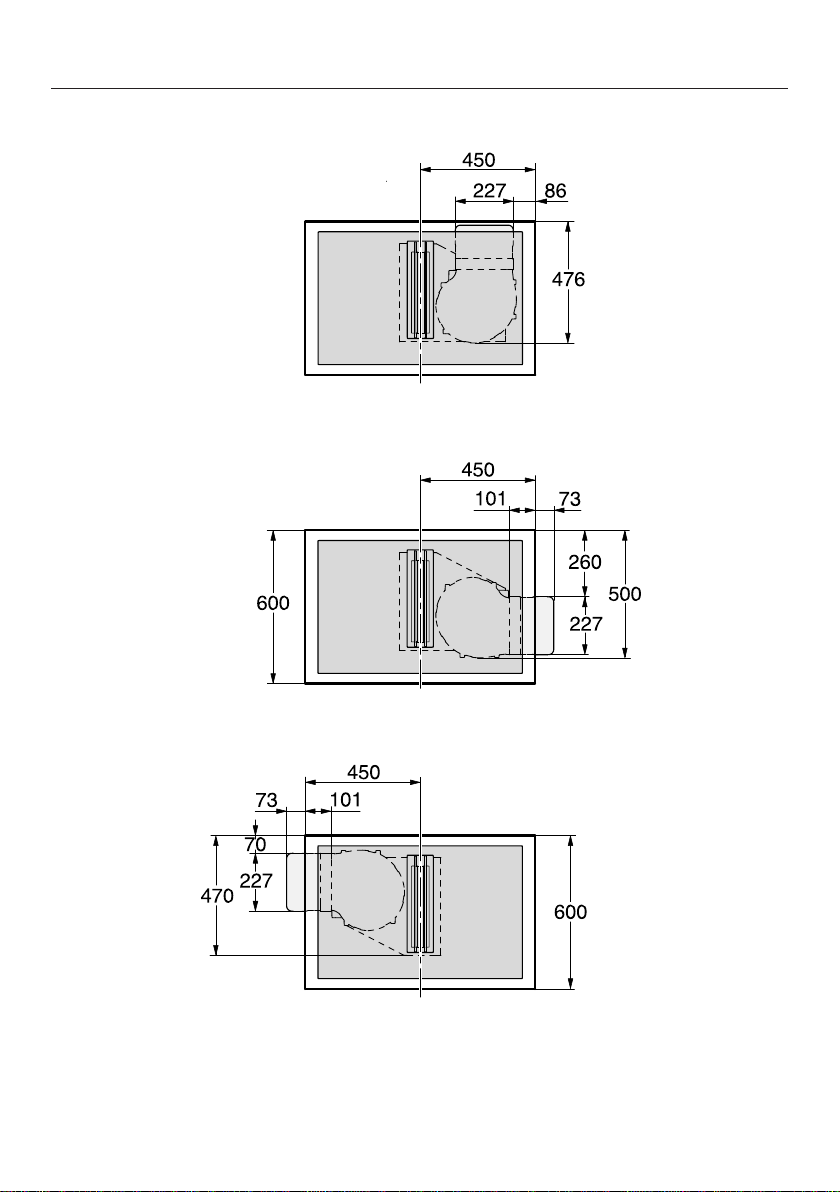

Extraction to the rear (standard)
Extraction to the right
Extraction to the left

11464020-02
Installation
*INSTALLATION*
Worktop depth greater than 600mm
KMDA7633FR, KMDA7634FR
aHousing unit back panel
The housing unit back panel must be
removable for service work. The
housing unit wall and an adjoining
room wall or furniture housing must
be at least 110mm apart to ensure
sufficient room for the ducting.
bVariable length of interim piece
cDrip tray
After installation the removable drip
tray must be accessible from below.
x= Dimension by which the worktop is
deeper than 600mm.
KMDA7633FL, KMDA7634FL
aHousing unit back panel
The housing unit back panel must be
removable for service work. The
housing unit wall and an adjoining
room wall or furniture housing must
be at least 110mm apart to ensure
sufficient room for the ducting.
bVariable length of interim piece
cDrip tray
After installation the removable drip
tray must be accessible from below.
x= Dimension by which the worktop is
deeper than 600mm.

11464020-02
Installation
*INSTALLATION*
Extraction to the rear (standard)
Extraction to the right
Extraction to the left

11464020-02
Installation
*INSTALLATION*

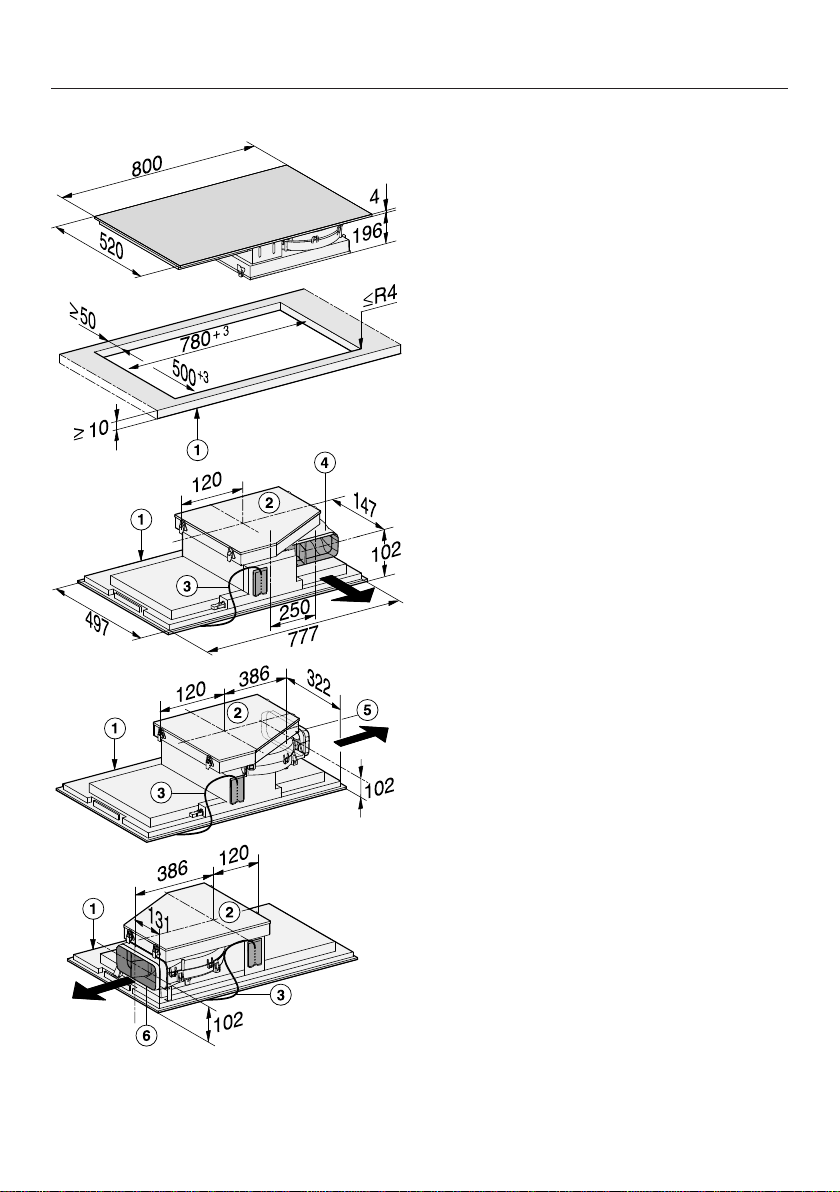

Installation dimensions–Flush
KMDA7633FL, KMDA7634FL
aFront
bRemovable drip tray
cMains connection box with mains
connection cable, L = 1440 mm
dStepped cut-out
eWooden frame (to be provided on
site)
fAir duct connection – at the back
(ex-works)
gAir duct connection - on the right
(conversion required)
hAir duct connection - on the left
(conversion required)

11464020-02
Installation
*INSTALLATION*
Worktop depth 600mm
KMDA7633FL, KMDA7634FL
aHousing unit back panel
The housing unit back panel must be
removable for service work. The
housing unit wall and an adjoining
room wall or furniture housing must
be at least 110mm apart to ensure
sufficient room for the ducting.
bDrip tray
After installation the removable drip
tray must be accessible from below.

11464020-02
Installation
*INSTALLATION*
Extraction to the rear (standard)
Extraction to the right
Extraction to the left

11464020-02
Installation
*INSTALLATION*
Worktop depth greater than 600mm
KMDA7633FL, KMDA7634FL
aHousing unit back panel
The housing unit back panel must be
removable for service work. The
housing unit wall and an adjoining
room wall or furniture housing must
be at least 110mm apart to ensure
sufficient room for the ducting.
bVariable length of interim piece
cDrip tray
After installation the removable drip
tray must be accessible from below.
x= Dimension by which the worktop is
deeper than 600mm.

11464020-02
Installation
*INSTALLATION*
Extraction to the rear (standard)
Extraction to the right
Extraction to the left

11464020-02
Installation
*INSTALLATION*

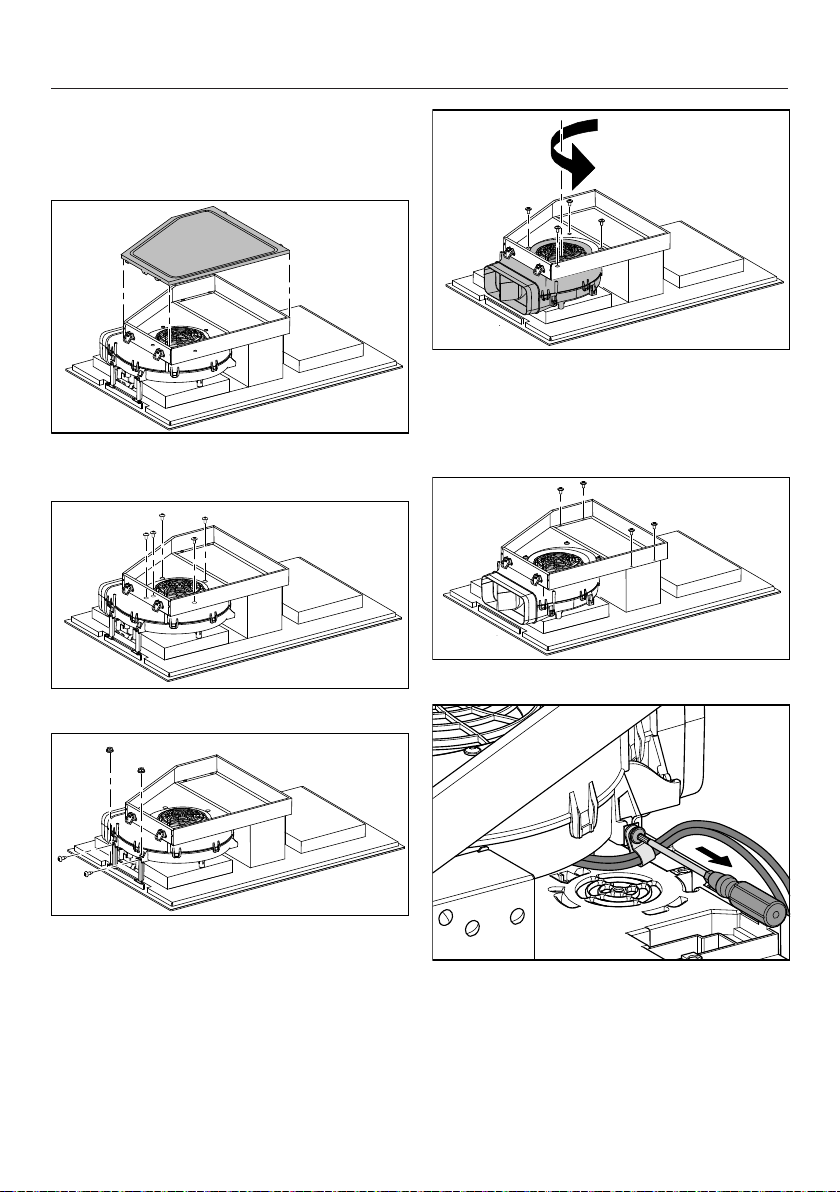

Changing extraction direction
If you modify the extraction direction,
the original brackets will no longer be
required.
Use the brackets supplied separately
with the extractor once the extraction
direction has been modified.
Keep the original brackets in case
the extraction direction needs to be
modified again.
Extraction to the right
Place the cooktop on its ceramic
surface on a soft underlay.
Release the 4 catches and remove
the drip tray.
Undo the 5 screws on the fan.
Undo the fixing brackets.
Rotate the fan by 90°.
Secure the fan (you only need
4screws). Make sure that the plastic
edge is on the left.
Use the bracket supplied separately
to secure the fan.
Place the drip tray onto the extractor
again and secure the tray using the
4catches.

11464020-02
Installation
*INSTALLATION*
Extraction to the left
Place the cooktop on its ceramic
surface on a soft underlay.
Release the 4 catches and remove
the drip tray.
Undo the 5 screws on the fan.
Undo the fixing brackets.
Rotate the fan by 90°.
Secure the fan (you only need
4screws). Make sure that the plastic
edge is on the left.
Undo the 4 screws on the frame.
Loosen the cable tie.
