Miele G 7883 User manual

Operating instructions
Laboratory Glassware
Washer
G 7883
To avoid the risk of accidents or
damage to the machine it is
essential to read these instructions
before it is installed, commissioned
and used for the first time. M.-Nr. 09 183 270
en-CA

Warning and safety instructions .....................................5
Symbols on the appliance .........................................9
Intended use.....................................................10

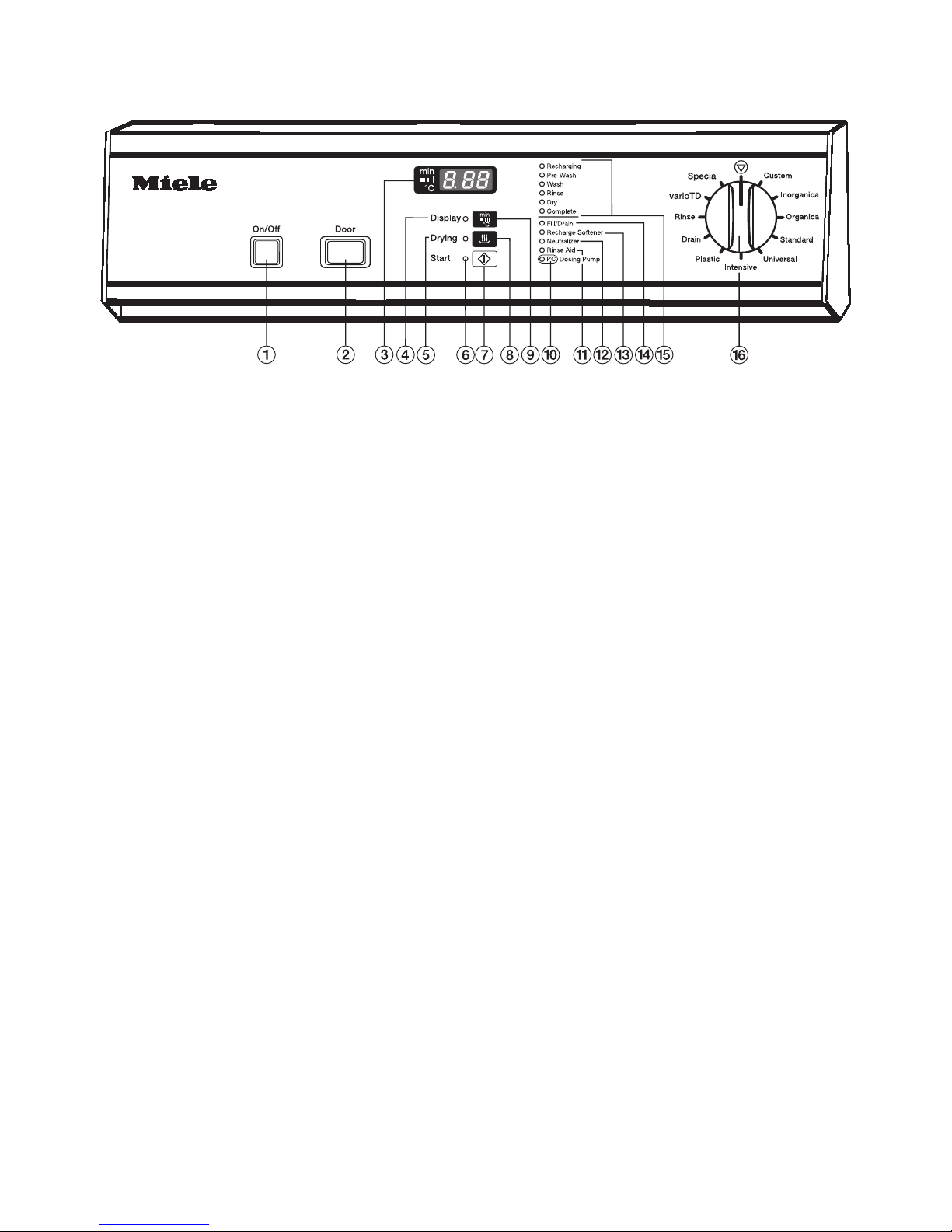

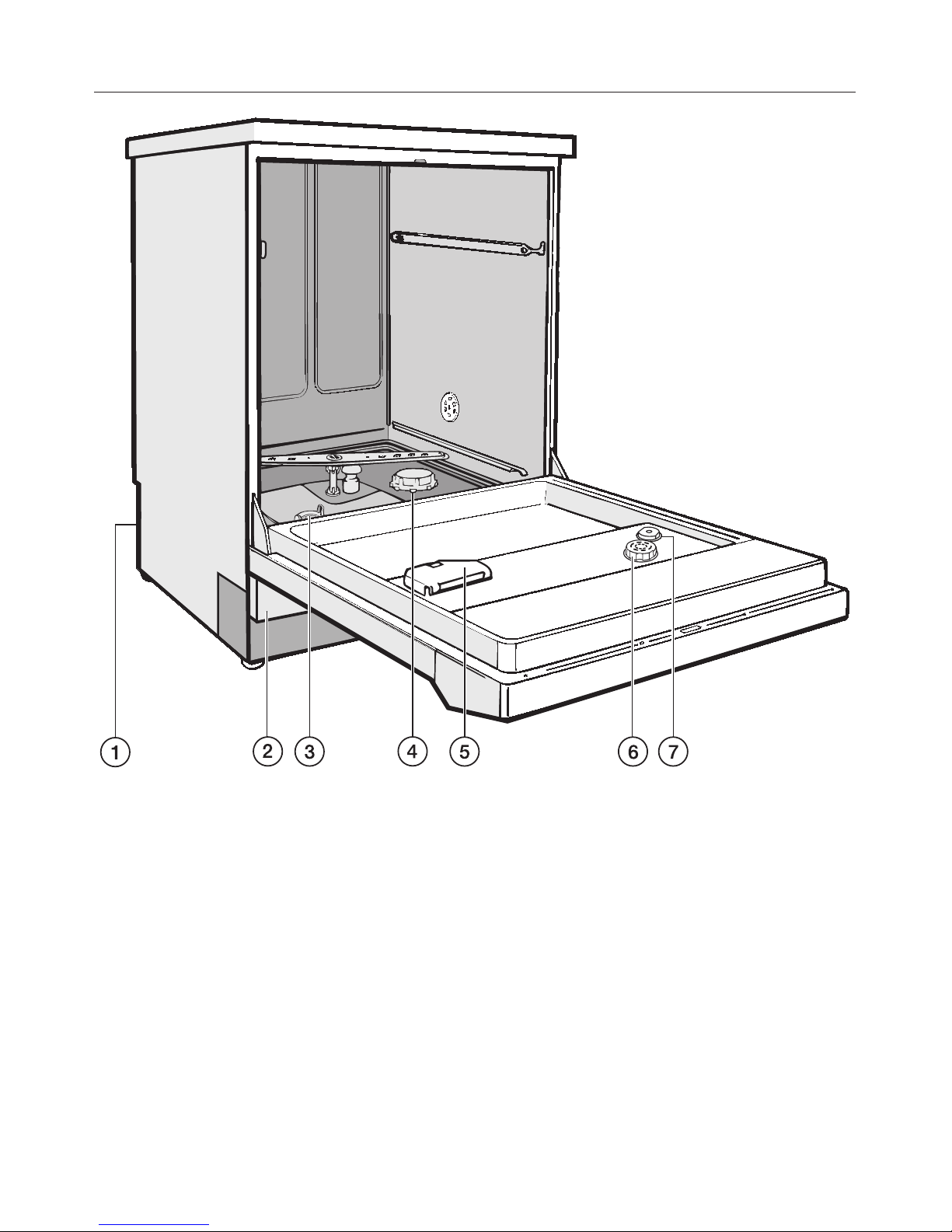

Guide to the machine .............................................11
Caring for the environment.........................................13
Disposal of your old appliance .......................................13
Opening and closing the door ......................................14
Electric door lock ..................................................14
To open the door ..................................................14
To close the door ..................................................14
To open the door with the emergency release ...........................14
Water softener ...................................................15
Programming the water softener ......................................15

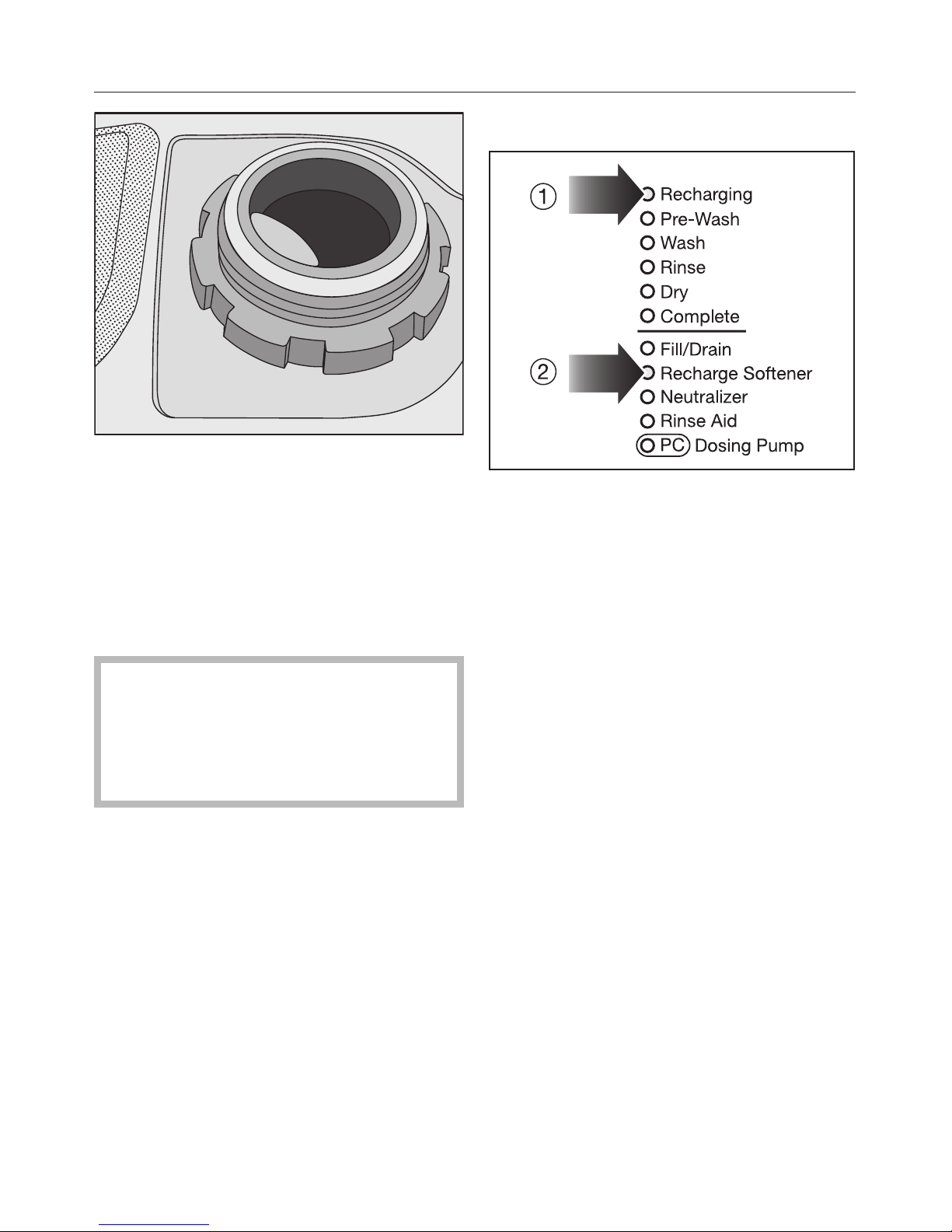

Filling the salt reservoir .............................................17
Add salt indicator..................................................18
Areas of application...............................................19
Loading the machine ...............................................19
Water connection spring adapter .....................................21
Height adjustable top basket.........................................21
Laboratory utensils ................................................22
Chemical processes and technology.................................24
Dispensing chemical agents........................................29
Adding rinsing agent ...............................................29
Add rinsing agent indicator ..........................................30
Setting the dosage.................................................30
Adding neutralising agent ...........................................31
Add neutralising agent indicator .....................................32
Adding cleaning agent .............................................33
Adding powder cleaning agent .......................................33
Operation .......................................................35
Switching on .....................................................35
Starting a programme ..............................................35
Selecting the additional Drying 0function ...........................35
Programme sequence indicators .....................................36
At the end of a programme ..........................................36
Switching off .....................................................37
Cancelling a programme ............................................37
Contents
2

Programme cancellation due to a fault...............................37
Cancelling the programme manually ................................37
Programmable functions...........................................38
The following applies to all programmable functions: ......................38
To activate programming mode ....................................38
To save values and exit from programming mode ......................38
To exit from programming mode without saving .......................38
Dispensing liquid cleaning agent via DOS 1.............................39
Setting the dosage concentration...................................39
Venting the dispensing system.....................................39
Dispensing neutralising agent via DOS 3 ...............................40
Setting the dosage concentration...................................40
Venting the dispensing system.....................................40
Buzzer ..........................................................41
Changing programme parameters ....................................42
Changing the temperature ........................................42
Changing the temperature holding time..............................43
Resetting to factory default settings ...................................43
Setting the time and date............................................44
Process documentation (optional)...................................45
Essential maintenance ............................................46
Maintenance .....................................................46
Process validation .................................................47
Routine checks ...................................................47
Cleaning the filters in the wash cabinet.................................48
Cleaning the coarse filter .........................................48
Cleaning the flat and micro-fine filters ...............................49
Cleaning the spray arms ............................................50
Cleaning the control panel...........................................51
Cleaning the front of the machine .....................................51
Cleaning the wash cabinet ..........................................51
Cleaning the door seals.............................................51
Dispensing systems................................................51
Baskets and inserts ................................................52
Problem solving guide ............................................53
Other problems ..................................................62
Thermal cut-out ...................................................62
Cleaning the drain pump and non-return valve...........................63
Contents
3

Cleaning the filters in the water inlet ...................................64
After sales service ................................................65
Installation ......................................................66

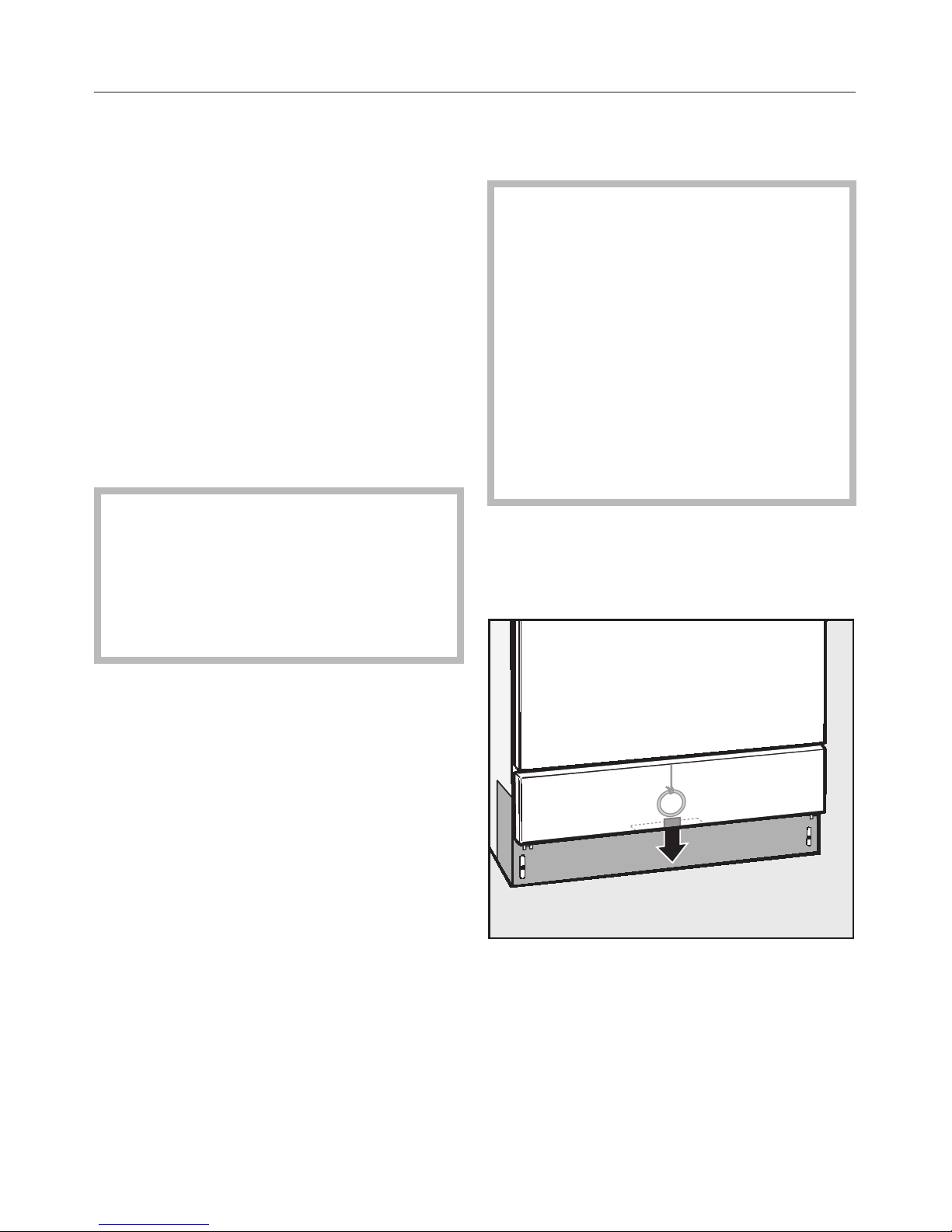

Building the machine under a continuous worktop ........................66
Electrical connection..............................................68
Plumbing........................................................69
Connection to the water inlet .........................................69
DI water connection (pressurised) ö60 - 1000 kPa (9 - 145 psi)...........70
DI water connection (without pressure) 8.5 - 60 kPa (1.23 - 9 psi) (optional) . 70
Drainage ........................................................71
Programme chart .................................................72
Technical data ...................................................74
Contents
4

This machine complies with all
relevant local and national safety
requirements. Please note that
incorrect use can lead to personal
injury and damage to property.
To avoid the risk of accidents and
damage to the machine please read
these instructions carefully before
starting to use it. Keep these
instructions in a safe place for
reference, and pass them on to any
future user.
Correct application
~This lab washer is designed for use
with the applications described in these
Operating Instructions only. Alterations
or conversions to the machine or using
it for purposes other than those for
which it was designed are not
permitted and could be dangerous.
This machine must only be used for
cleaning and disinfecting laboratory
utensils if the manufacturer has stated
that they are suitable for machine
processing. Follow the manufacturer's
instructions. Miele cannot be held liable
for damage caused by improper or
incorrect use of the machine.
~This machine is intended for indoor
use only.
~This machine may only be used in
mobile installations if a risk assessment
of the installation has been carried out
by a suitably qualified engineer.
Please pay attention to the following
notes to avoid injury and damage.
~This machine should be
commissioned and then maintained by
a Miele service technician only. A Miele
service contract is recommended to
ensure compliance with GLP
Guidelines. Unauthorised repairs could
be dangerous and jeopardise the
personal safety of the operator, for
which the manufacturer cannot be held
liable.
~Do not install the machine in an area
where there is any danger of explosion
or of freezing conditions.
~The electrical safety of this machine
can only be guaranteed if connected to
a correctly installed earthing system on
site. It is most important that this basic
safety requirement is present and
tested regularly, and where there is any
doubt the on-site electrical system
should be inspected by a qualified
electrician.
The manufacturer cannot be held liable
for damage or injury caused by the lack
of or inadequacy of an effective
earthing system (e.g. electric shock).
~A damaged or leaking machine
could be dangerous and compromise
your safety. Disconnect the machine
from the mains immediately and call the
Miele Service Department.
~Personnel operating the machine
should be trained regularly. Untrained
personnel and children must not be
allowed access to the machine or its
controls.
Warning and safety instructions
5

~Take care when handling chemical
agents such as cleaning agent,
neutralising agent, rinsing agent etc.
These may contain irritant or corrosive
ingredients. Follow all instructions and
safety procedures carefully. Wear
protective gloves and goggles. With all
chemical agents, the manufacturer's
safety instructions and safety data
sheets must be observed.
~This lab washer is designed for
operation with water and recommended
chemical agents only. Organic solvents
and flammable liquid agents must not
be used in this machine. These could
cause an explosion, damage rubber
and plastic components in the
machine, and cause liquids to leak out
of the machine.
~Avoid inhalation of powder cleaners.
These chemicals can cause burning in
the mouth and throat if swallowed and
can inhibit breathing.
~The water in the cabinet must not be
used as drinking water.
~Do not sit or lean on an open door.
The machine could tip up and be
damaged or cause an injury.
~Be careful when sorting items with
sharp pointed ends and positioning
them in the machine that you do not
hurt yourself or create a danger for
others. Sharp items should be placed in
baskets with the pointed ends facing
downwards.
~When using this machine in the
higher temperature ranges, be
especially careful not to scald or burn
yourself or come into contact with
irritant substances when opening the
door. Where disinfecting agents are
used there is a danger of inhaling toxic
vapours.
~Where there is a risk of toxic or
chemical substances occuring in the
suds solution (e.g. aldehyde in the
disinfecting agent), it is essential to
regularly check door seals and make
sure that the steam condensor is
functioning correctly.
Opening the machine door during a
programme interruption carries
particular risks in such circumstances.
~Should personnel accidentally come
into contact with toxic vapours or
chemical agents, follow the emergency
instructions given in the manufacturer's
safety data sheets.
~Baskets, inserts and the load must
be allowed to cool down before they
are unloaded. Any water remaining in
containers could still be very hot. Empty
them into the wash cabinet before
taking them out.
~Do not touch the heating elements if
you open the door during or directly
after the end of a programme: you
could burn yourself. They remain hot for
some time after the end of the
programme.
~Never clean the machine or near
vicinity with a hose or a pressure
washer.
Warning and safety instructions
6

~The machine must be disconnected
from the mains electricity supply before
any maintenance or repair work is
carried out. Do not reconnect it until the
maintenance or repair work has been
successfully completed.
The following points should be
observed to assist in maintaining
quality standards when processing
laboratory glassware and utensils, in
order to avoid damage to the loads
being cleaned.
~If the machine is being used for
disinfection, the steam condenser and
its connections to and from the wash
cabinet must be cleaned and
disinfected whenever any repairs are
carried out or parts replaced.
~If it is necessary to interrupt a
programme in exceptional
circumstances, this may only be done
by authorised personnel.
~The standard of cleaning and
disinfection in the disinfection
programmes must be routinely
confirmed by the user. The process
should be validated on a regular basis,
and checked against documented
control results.
~For thermal disinfection, use
temperatures and temperature holding
times to achieve the required infection
prophylaxis in accordance with current
health and safety regulations.
~Chemical disinfection agents should
only be used for items which cannot
withstand the higher temperatures used
by thermal disinfection. The range of
effective disinfection is based on claims
made by the producer of the
disinfecting agent. Their instructions on
handling, use and effectiveness must
be observed. The use of chemical
disinfection procedures is the
responsibility of the operator.
~Only use chemical agents
formulated for special processes and
approved by Miele for use with this
machine. Use of unsuitable agents
could adversely affect the components
of the machine. In the event of any
damage or material deterioration
please contact Miele Service.
~Pre-treatments with cleaning or
disinfecting agents can create foam, as
can certain types of soiling and
chemical agents. Foam can have an
adverse effect on the disinfection and
cleaning result.
~Foam must not be able to escape
from the wash cabinet. It would hinder
the correct functioning of the machine.
~Check the process used regularly to
monitor foaming levels.
~To avoid the risk of damage to the
lab washer and any accessories used
with it caused by chemical agents,
soiling and any reaction between the
two please read the notes in "Chemical
Processes and Technology".
Warning and safety instructions
7

~Where a chemical additive is
recommended on technical application
grounds (e.g. a cleaning agent), this
does not imply that the manufacturer of
the machine accepts liability for the
effect of the chemical on the items
being cleaned.
Please be aware that changes in
formulation, storage conditions etc.
which may not be publicised by the
chemical manufacturer, can have a
negative effect on the cleaning result.
~When using chemical agents such
cleaning agent it is essential that the
manufacturer's instructions are
followed. Only use chemical agents for
the purpose they are designed for as
specified by the manufacturer, to the
exclusion of other chemicals, to avoid
such dangers as chemical reactions
and material damage.
~In critical applications where very
stringent requirements have to be met,
it is strongly recommended that all the
relevant factors for the process, such
as cleaning agent, water quality etc.
are discussed with Miele.
~If cleaning and rinsing results are
subject to particularly stringent
requirements (e.g. chemical analysis,
specialised industrial processes etc.), a
regular quality control test must be
carried out by the user to ensure that
the required standards of cleanliness
are being achieved.
~Mobile units, baskets and inserts
should only be used for the purpose
they are designed for.
Hollow laboratory glassware and
utensils must be thoroughly cleaned,
internally and externally.
~Empty any containers or utensils
before arranging them in the machine.
~Do not allow any remains of acids or
solvents, and in particular hydrochloric
acid or chloride solutions, to get into
the wash cabinet. Similarly avoid any
materials with a corrosive effect.
The presence in compounds of any
solvents should be minimal.
~To avoid any corrosion damage,
ensure that solutions or steam
containing hydrochloric acid do not
come into contact with the stainless
steel outer casing of the machine.
~After carrying out any work on the
mains water system, the water supply
system to the lab washer must be
vented.
Otherwise, the components in the
machine may become damaged.
~Please follow the advice on
installation in these instructions and the
separate Installation Instructions.
Warning and safety instructions
8

Using accessories
~Only use genuine Miele original
accessories with this machine.
~Only use Miele mobile units, baskets
and inserts in this machine. Using
accessories made by other
manufacturers, or making modifications
to Miele accessories, can result in
unsatisfactory cleaning and disinfecting
results, for which Miele cannot be held
liable. Any resultant damage would also
invalidate the machine guarantee.
~Only use chemical agents which
have been approved by their
manufacturer for use in the application
you are using. The chemical agent
manufacturer is responsible for any
negative influences on the material the
load is made from and for any damage
they may cause to the machine.
Symbols on the appliance
Warning:
Observe the operating
instructions.
Warning:
Danger of electric shock.
Disposing of your old machine
~Please note that the machine may
have been contaminated by infectious
pathogens, facultative pathogens,
genetically modified material, blood or
other bodily fluids, and must be
decontaminated before disposal.
For environmental and safety reasons
ensure the machine is completely
drained of any residual water, chemical
residues and cleaning agent. Observe
safety regulations and wear safety
goggles and gloves.
Make the door lock inoperable, so that
children cannot accidentally shut
themselves in. Then make appropriate
arrangements for the safe disposal of
the appliance.
The manufacturer cannot be held
liable for damage caused by
non-compliance with these Warning
and Safety instructions.
Warning and safety instructions
9

This lab washer can be used to clean,
rinse, disinfect (thermally and
chemically) and dry a wide range of
laboratory glassware and utensils.
Follow the laboratory equipment
manufacturer's instructions on how to
process their items by machine.
Examples of application areas:
–laboratory glassware and utensils
used in research and development,
–laboratory glassware and utensils
used in areas of analysis and
specimen taking,
– laboratory glassware and utensils
used in micro-biology and
biotechnology.
The type of laboratory glassware and
utensils which can be processed are
e.g. beakers, bottles, centrifuge tubes,
Erlenmeyer flasks, funnels, measuring
cylinders, pipettes, Petri dishes and
round bottom flasks.
Processing laboratory glassware and
utensils by machine achieves
reproducible results, and should be
used in preference to processing them
by hand.
For the protection of personnel,
disinfection should be carried out
thermally, e.g. using the varioTD
programme.
National health and safety regulations
regarding disinfection must also be
observed.
The cleaning programme as well as any
chemical agents must be chosen
according to the type of soiling and
load being processed.
The agents used for processing the
products should be selected according
to the level of cleaning required as well
as the method of analysis used.
The use of a suitable carrier (mobile
unit, module, insert etc.) is important to
ensure the adequate cleaning of
laboratory glassware and utensils.
Examples are given in the section
"Areas of application".
The lab washer is programmed to carry
out the final rinse with mains water or
with processed water of a quality to suit
the application (e.g. purified water,
de-ionised water, demineralised water).
The water quality is of particular
importance for applications requiring
analytically clean laboratory equipment.
Intended use
10

aOn/Off switch
bDoor release
cDisplay
dDisplay indicator light
eDrying indicator light
fStart indicator light
gStart button 6
hDrying button 0
iDisplay button ßto switch between
the displays for:
- actual temperature
- elapsed time
- current block
jOptical interface 8for service
technician;
"Dosing Pump": Cleaning agent
indicator light.
k"Rinse Aid" indicator light
l"Neutralizer" indicator light
mRecharge Softener indicator light
nFill/Drain indicator light
oProgramme sequence indicators:
Recharging
Pre-Wash
Wash
Rinse
Dry
Complete
pProgram selector:
fStop
Custom (freely programmable
program)
Inorganica
Organica
Standard
Universal
Intensive
Plastic
Drain
Rinse
varioTD
Special
Guide to the machine
11

aConnection for DOS module K 60 at
the rear of the machine
bService panel
cFilter combination
dSalt reservoir
eDispenser for powder cleaning agent
fRinsing agent reservoir (with dosage
selector)
gRinsing agent level indicator
At the rear of the machine:
–Interface connector RS 232
(optional)
–Suction tube for external neutralising
agent container
Guide to the machine
12

Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for disposal
and should be recycled.
Ensure that any plastic wrappings,
bags etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation.
Disposal of your old appliance
Old electric and electronic equipment
often contains valuable materials.
However, they may also contain harmful
substances that were necessary for
safe use. Improperly disposing of these
items in your household waste can be
detrimental to health and the
environment. This is why it is important
NEVER to dispose of your old
appliance with the regular household
garbage.
Instead, please contact your local
community waste collection point to
return and recycle electric and
electronic appliances.
If the appliance is being stored for
disposal, please make sure it has been
child-proofed.
Caring for the environment
13

Electric door lock
This machine is equipped with an
electric door lock.
The door can only be opened when:
^the electricity supply to the machine
is switched on and
^the switch "On/Off" is pressed in.
To open the door
^Press the door release switch in as
far as it will go, and at the same time
grip the handle and open the door.
,Do not touch the heating
elements if you open the door during
or directly after the end of a
programme; you could burn
yourself. They remain hot for some
time after the end of the programme.
The door cannot be opened after a
programme has been started, and it
remains locked until the end of the
programme. It is still possible to open
the door during the "Rinse" and "Drain"
programmes.
The machine can be programmed (by a
Miele service technician) to open
during "Drying".
To close the door
Lift the door upwards and push until it
clicks shut. Do not press the door
release button whilst shutting the door.
To open the door with the
emergency release
The emergency release should only
be used when the door cannot be
opened normally, e.g. in the event of
a power failure.
Important note for SPECIAL
programmes - read the notes in the
Warning and Safety instructions.
If the door is opened using the
emergency release cord, there is a
danger or burning, scalding and
chemical burning.
^Turn the programme selector to f.
^Switch the machine off with the
"On/Off" switch.
^The emergency release cord is
located at the bottom of the machine
behind the service panel. Pull it
downwards to open the door.
Opening and closing the door
14

In order to achieve good cleaning
results, the lab washer needs to
operate with soft water. Hard water
results in the build-up of calcium
deposits on laboratory glassware and
utensils etc. and in the lab washer.
Mains water with a hardness level
higher than 4 gr/gal (70 ppm CaCO3)
needs to be softened. This takes place
automatically in the integrated water
softener.
–The water softener requires
reactivation salt.
–The lab washer must be
programmed to correspond to the
water hardness in your area.
– Your local water authority will be able
to advise you on the water hardness
in your area.
Where the water hardness fluctuates
e.g. between8-17gr/gal (140 -
310 ppm CaCO3) always programme
the lab washer to the higher value
(17 gr/gal in this example).
The built-in water softener has
settings from1-60gr/gal (20 -
1080 ppm CaCO3).
In the event of a fault, it will help the
service technician if you know the
hardness of your local water supply.
Enter the water hardness below:
gr/gal or ppm CaCO3
Programming the water
softener
^Switch off the machine.
^Turn the programme selector to f.
^Press ßand 6at the same time,
hold them in and, whilst doing so,
switch the machine on with the
"On/Off" switch.
The current programme status P.... will
appear in the display. The indicator
light "Rinse/Drain" will come on.
^Press 0once.
E01 will appear in the display.
^Turn the programme selector one
switch position clockwise (1 o'clock
position).
The number 19 will appear in the
display (the factory water hardness
default setting in gr/gal, equivalent to
340 ppm CaCO3).
^Press ßas many times as
necessary, or hold it in until the
required value (degree of hardness
in gr/gal) appears in the display.
See table on the next page for water
hardness settings in gr/gal and ppm
CaCO3.
Once the number 60 has been reached,
the counter will begin again at 0.
^Press 6.
SP will appear in the display.
^Press 6again.
The setting will now be stored in
memory. The display will clear.
The machine is now ready for use.
Water softener
15

Table of settings
Settings
1-30
gr/gal
1-30
ppm
CaCO3
Settings
31 -60
gr/gal
31 -60
ppm
CaCO3
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19 *)
20
21
22
23
24
25
26
27
28
29
30
20
40
50
70
90
110
130
140
160
180
200
220
230
250
270
290
310
320
340
360
380
400
410
430
450
470
490
500
520
540
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
560
580
590
610
630
650
670
680
700
720
740
760
770
790
810
830
850
860
880
900
920
940
950
970
990
1010
1030
1040
1060
1080
*) Factory default setting
Water softener
16

Filling the salt reservoir
Only use special coarse grained
reactivation salt with granules of
approx.1-4mm,e.g. Miele Softener
Salt. Do not use other types of salt such
as cooking salt, agricultural grade or
gritting salt. These may contain
insoluble additives which can impair
the functioning of the water softener. If
in doubt consult the Miele Professional
Department.
The salt reservoir holds approx.
2.5 kg of salt.
,Inadvertently filling the salt
reservoir with cleaning agent will
damage the water softener.
Before filling the salt reservoir make
sure that you have picked up the
right packet of reactivation salt.
^Remove the bottom basket from the
machine.
^Unscrew the salt reservoir cap.
Before filling the salt reservoir with
reactivation salt for the first time, you
must fill it with approx. 2.5 litres of
water to enable the salt to dissolve.
Once the lab washer has been
used, there is always sufficient water
in the reservoir.
^Place the funnel provided in position.
^Fill carefully with salt.
As it is poured in, displaced water will
run out.
Water softener
17

^Remove the funnel and wipe any
residual salt off the seal and the
screw threads on the socket.
^Screw the cap back on firmly.
^Run the "Rinse" programme to
remove any traces of salt from the
cabinet.
The programme sequence may be
delayed for a few minutes after the
start of the "Rinse" programme. This
is not a fault. The water softener is
being reactivated.
Add salt indicator
Reactivation takes place automatically
during a programme.
The programme sequence indicator
light a"Recharging" lights up whilst
this is happening.
^Add salt when the Add salt b
"Recharge Softener" indicator lights
up.
Water softener
18

This lab washer can be fitted with a top
and bottom basket or a mobile unit.
Various inserts and special baskets are
also available for a wide variety of
laboratory glassware and utensils.
Select baskets and inserts which are
appropriate for the application.
Notes on the individual areas of
application and examples of loading
are given on the following pages.
Before starting a programme you
should carry out a visual check on
the following:
– Is everything correctly
loaded/connected for cleaning?
– Are the lumen or necks of hollow
laboratory glassware and utensils
positioned so that water can access
them unhindered?
–Are the spray arms clean and do
they rotate freely?
–Are the filters clean? Remove any
coarse soiling and clean them
properly if necessary.
–Is the adapter connecting the water
supply to the spray arms/jets
correctly connected?
–Are all chemical containers filled
sufficiently?
At the end of each programme:
–Carry out a visual check of the load
for cleanliness.
–Check that all hollow laboratory
glassware and utensils are still
securely located on their jets.
,Any laboratory glassware and
utensils that have become
disconnected from the adapters
during processing must be
re-processed.
–Are the lumen of hollow laboratory
glassware and utensils completely
clean and clear of contamination?
– Check that jets and connectors are
securely connected to the baskets or
inserts.
Loading the machine
– Arrange the load so that water can
access all surfaces. This ensures
that they get properly cleaned.
–Do not place items to be cleaned
inside other pieces where they may
be concealed.
–Hollow laboratory glassware and
utensils must be thoroughly cleaned,
internally and externally.
–Ensure that laboratory glassware and
utensils with long narrow hollow
sections can be flushed through
properly before placing them in
inserts or connecting them to jets.
Areas of application
19

–Hollow vessels should be inverted
and placed in the correct baskets
and inserts to ensure that water can
flow in and out of them unrestricted.
–Deep-sided items should be placed
at an angle to make sure water runs
off them freely.
–Tall, narrow, hollow items should be
placed in the centre of the baskets to
ensure better water coverage.
–Lightweight items should be secured
with a cover net (e.g. an A 6) and
small items placed in a mesh tray to
prevent them blocking the spray
arms.
– Mobile units or baskets with an
adapter must engage correctly.
– The spray arms must not be blocked
by items which are too tall or which
hang down in their path.
– It is advisable to use laboratory
utensils made of surgical steel only,
as these are not susceptible to
corrosion.
–Nickel-plated laboratory utensils and
coloured anodised aluminium
laboratory utensils are not suitable
for machine processing.
–Plastic items must be thermally
stable.
Preparing the load
^Empty all containers before loading
into the machine (paying particular
attention to regulations regarding
infectious diseases and epidemics).
^Remove culture medium (agar) from
Petri dishes.
^Pour away blood or other body fluids,
and remove any dried on blood.
^Remove all stoppers, corks, labels,
sealing wax residues, etc.
,Ensure that acids and residual
solvents, especially hydrochloric
acid or chlorides, do not get into the
wash cabinet.
In certain cases, soiling that is difficult
or impossible to remove, e.g. silicone
grease, sticky labels, etc., which could
affect the cleaning results, must be
removed manually before being
machine processed.
It is the user's responsibility to decide
whether items contaminated with
substances such as microbiological
material, pathogens, facultative
pathogens, genetically modified
material etc. should be sterilised before
being machine processed.
Contaminated laboratory glassware
and utensils can be placed directly in
the baskets or inserts in the machine
without pre-treatment (no soaking
required).
Areas of application
20
