Miele G 7966 User manual

Operating instructions
Dishwasher
Always read the operating instructions and the installation sheet
before setting up, installing, and commissioning the appliance. This
prevents both personal injury and damage to the machine.
en-CA M.-Nr. 11 859 220HG07-W

Contents
2
Warnings and safety instructions .................................................................... 6
Guide to the appliance...................................................................................... 16

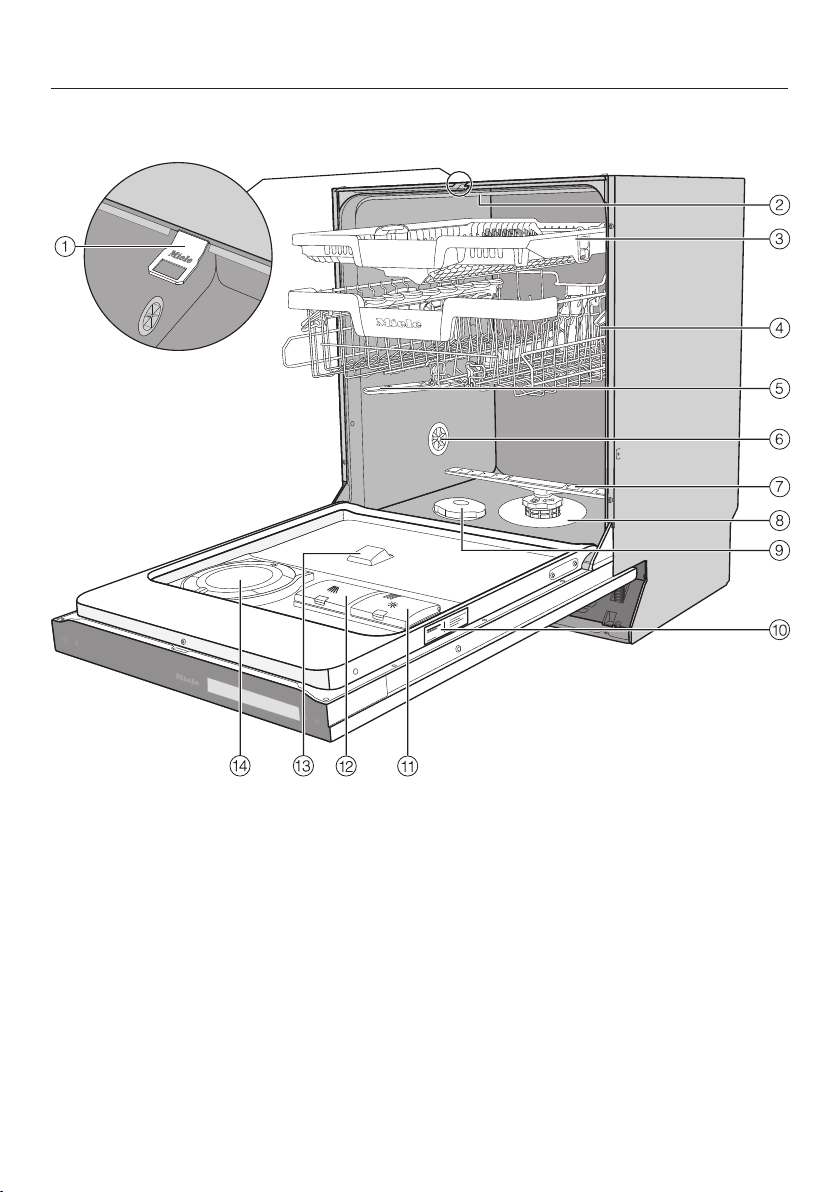

Machine overview................................................................................................ 16
Control panel....................................................................................................... 18
Caring for the environment .............................................................................. 21
Initial commissioning ........................................................................................ 22
Opening the door ................................................................................................ 22
Door opening aid................................................................................................. 23
Closing the door.................................................................................................. 23
Miele@home ........................................................................................................ 24
Basic settings...................................................................................................... 25
Setting the language ...................................................................................... 25
Setting up Miele@home ................................................................................. 25
Setting the time .............................................................................................. 26
Setting the water hardness ............................................................................ 26
Activating AutoDos......................................................................................... 27
Reactivation salt.................................................................................................. 28
Filling the salt reservoir................................................................................... 29
Refilling the salt .............................................................................................. 30
Rinse aid.............................................................................................................. 31
Adding rinse aid ............................................................................................. 32
Filling the rinse aid reservoir........................................................................... 32
Settings .............................................................................................................. 33
Opening the Settings menu................................................................................. 33
Changing settings ............................................................................................... 33
Closing the Settings menu .................................................................................. 33
Language......................................................................................................... 34
Time..................................................................................................................... 34
Water hardness ................................................................................................... 34
AutoDos (automatic dispensing) ......................................................................... 35
Rinse aid.............................................................................................................. 36
Miele@home ........................................................................................................ 36
Remote control.................................................................................................... 39
Remote Update ................................................................................................... 40
SmartStart ........................................................................................................... 41
EcoStart............................................................................................................... 41
Temperature ........................................................................................................ 43
Display brightness............................................................................................... 43
Volume................................................................................................................. 44
Memory ............................................................................................................... 44

Contents
3
Refill indicators.................................................................................................... 44
AutoOpen ............................................................................................................ 45
2nd interim rinse.................................................................................................. 45
Knock2open ........................................................................................................ 45
SaniWash Cycle .................................................................................................. 46
Software version.................................................................................................. 46
Legal Information................................................................................................. 46
Copyrights and licenses for operator and control software ................................ 46
Copyrights and licenses for the communication module.................................... 47
Showroom ........................................................................................................... 47
Factory default..................................................................................................... 47
Caring for the environment .............................................................................. 48
Energy-saving dishwashing................................................................................. 48
Loading the dishwasher.................................................................................... 49
General information............................................................................................. 49
Loading examples ............................................................................................... 51
Upper basket....................................................................................................... 53
Adjusting the upper basket ................................................................................. 55
Lower basket....................................................................................................... 56
Filters................................................................................................................... 59
Cutlery tray .......................................................................................................... 60
Loading the 3D MultiFlex Tray........................................................................ 60
Detergent ........................................................................................................... 61
Active ingredients ............................................................................................... 61
Detergent dispensing .......................................................................................... 62
Automatic dispensing/AutoDos......................................................................... 63
Activating AutoDos......................................................................................... 63
Inserting a PowerDisk..................................................................................... 64
Manual detergent dispensing .............................................................................. 66
Detergent dispensing ..................................................................................... 66
Adding detergent............................................................................................ 66
Operation............................................................................................................ 68
Switching on the dishwasher .............................................................................. 68
Selecting a program ............................................................................................ 68
Display of program cycle time............................................................................. 69
Starting a program .............................................................................................. 69
End of program.................................................................................................... 70
Energy management ........................................................................................... 70
Switching off the dishwasher .............................................................................. 71
Unloading the dishwasher................................................................................... 71

Contents
4
Interrupting a program......................................................................................... 72
Cancelling or changing a program ...................................................................... 72
Options ............................................................................................................... 73
Timer .............................................................................................................. 73
Activating “Remote start”.................................................................................... 77
Program overview ............................................................................................. 78
Extra options...................................................................................................... 82
Selecting extra options........................................................................................ 82
Cleaning and care ............................................................................................. 84
Cleaning the wash cabinet .................................................................................. 84
Cleaning the door and the door seal................................................................... 85
Cleaning the control panel .................................................................................. 86
Cleaning the reflector panel ................................................................................ 86
Cleaning the appliance front ............................................................................... 86
Cleaning the AutoDos ......................................................................................... 87
Cleaning the spray arms...................................................................................... 89
Checking the filters in the wash cabinet ............................................................. 92
Cleaning the filters............................................................................................... 92
Cleaning the drain pump..................................................................................... 94
Frequently Asked Questions ............................................................................ 96
Technical problems ............................................................................................. 96
Fault messages ................................................................................................... 97
Door release ........................................................................................................ 98
Water intake fault................................................................................................. 99
Water drainage fault ............................................................................................ 100
Fault in the AutoDos (automatic dispensing)....................................................... 101
Spray arm fault .................................................................................................... 103
General dishwasher problems............................................................................. 104
Noises.................................................................................................................. 106
Poor cleaning results........................................................................................... 107
Technical Service............................................................................................... 111
Contact in the event of a fault ............................................................................. 111
Warranty .............................................................................................................. 111
Optional accessories ........................................................................................ 112
Installation.......................................................................................................... 114
Water intake ........................................................................................................ 114
Water drainage .................................................................................................... 116

Contents
5
Electrical connection ........................................................................................... 118
Sound emission testing .................................................................................... 120

Warnings and safety instructions
6
This dishwasher complies with all current local and national safety
requirements. Inappropriate use can, however, lead to personal
injury and material damage.
Please observe the installation sheet and read the operating
instructions carefully before setting up the dishwasher and using it
for the first time. They both contain important information on the
installation, safety, use, and maintenance of the machine. This
prevents both personal injury and damage to the dishwasher.
In accordance with standard IEC60335-1, Miele expressly and
strongly advises that you read and follow the instructions in the
section on installing the dishwasher as well as the safety
instructions and warnings.
Miele cannot be held liable for injury or damage caused by non-
compliance with these instructions.
Keep the installation sheet and the operating instructions in a safe
place and pass them on to any future owner.

Warnings and safety instructions
7
Correct application
 This dishwasher is intended for use in domestic households and
similar residential environments.
 This dishwasher is not suitable for outdoor use.
 This dishwasher is intended for use at altitudes of up to 4,000m
above sea level.
 This dishwasher must only be used for cleaning domestic
dishware and cutlery. All other types of use are not permitted.
 This dishwasher is not intended for use by people with reduced
physical, sensory, or mental capabilities or lack of experience and
knowledge, unless they have been given supervision and instruction
concerning its use by a person responsible for their safety. They may
only use the dishwasher without supervision if they have been
shown how to use it in a safe manner. They must be able to
recognize and understand the possible consequences of incorrect
operation.

Warnings and safety instructions
8
Safety with children
 Children under 8 years of age must be kept away from the
dishwasher unless they are constantly supervised.
 Children must not be allowed to clean or maintain the appliance.
 Children should be supervised in the vicinity of the dishwasher.
Never allow children to play with the dishwasher. There is a danger
that children might shut themselves in the dishwasher.
 If the automatic door opening mechanism is active (depending on
the model), keep young children away from the area in which the
dishwasher door opens. There is a danger of injury in the unlikely
event of a fault with the opening mechanism.
 Danger of suffocation. While playing, children may become
entangled in packaging material (such as plastic wrapping) or pull it
over their head, presenting the risk of suffocation. Keep packaging
material away from children.
 Keep children away from detergents. Detergents cause severe
skin burns and severe eye damage. They can cause burning in the
mouth and throat, or inhibit breathing. It is therefore important to
keep children away from the dishwasher when the door is open.
Detergent residues could still be present in the machine. Seek
medical advice immediately if a child has swallowed or inhaled any
detergents.

Warnings and safety instructions
9
Technical safety
 Unauthorized installation, maintenance, and repairs can cause
considerable danger for the user. Installation, maintenance, and
repairs must only be carried out by a qualified technician.
 Damage to the dishwasher can compromise your safety. Before
using the dishwasher and in particular following transport, check it
for any visible damage. Never use a damaged dishwasher.
 The electrical safety of the dishwasher can only be guaranteed
when correctly grounded. It is most important that this basic safety
requirement is fulfilled. If in doubt, the electrical installation should
be checked by a qualified electrician.
Miele cannot be held liable for the consequences of an inadequate
or lack of grounding system (e.g., electric shock).
 Reliable and safe operation of this dishwasher can only be
assured if it has been connected to the domestic electricity supply.
 If the dishwasher is plugged into the domestic electricity supply
using a 3-pin plug with a grounding contact (it must not be hard-
wired), the electrical socket must be easily accessible after the
dishwasher is installed so that it can be disconnected from the
domestic electricity supply at any time.
 There must be no electrical sockets behind the dishwasher
because the building-in niche may be too small. Danger of
overheating and fire risk if the dishwasher were to be pushed up
against a plug.
 The dishwasher must not be installed underneath a cooktop. The
high temperatures radiated by cooktops could damage the
dishwasher below. For the same reason, the dishwasher must not be
installed next to open fires or other appliances that give off heat,
such as heaters etc., not normally found in a kitchen.

Warnings and safety instructions
10
 Ensure that the connection data on the dishwasher’s data plate
(fuse rating, frequency, and voltage) match the domestic electricity
supply. This data must correspond in order to avoid the risk of
damage to the dishwasher. Compare these before connecting the
appliance to the electricity supply. If in any doubt, consult a qualified
electrician.
 Do not connect the dishwasher to the domestic electricity supply
until it has been fully installed and any adjustments have been made
to the door springs.
 The dishwasher may only be operated if the door opening
mechanism is working correctly. Otherwise there could be a risk of
danger while the automatic door opening mechanism (depending on
the model) is active.
To check that the door opening mechanism is working correctly:
- The door springs must be evenly adjusted on both sides. They are
correctly adjusted when the door remains stationary when left half
open (approx. 45° opening angle). It is also important that the
door cannot fall open.
- The door locking pins automatically retract when the door opens
at the end of the drying phase.
 Multi-socket adapters and extension leads do not guarantee the
required safety of the appliance (risk of fire). Do not connect the
dishwasher to the domestic electricity supply using a power bar or
an extension cord.
 The dishwasher must not be used in a non-stationary location
(e.g., on a ship).
 Do not install the dishwasher in a room where there is a risk of
frost. Frozen hoses are at risk of tearing or bursting. The reliability of
the electronic control unit may be impaired at temperatures below
freezing point.
 To avoid any damage to the dishwasher, it must only be operated
when it is connected to a fully vented plumbing system.

Warnings and safety instructions
11
 The water-connection pressure needs to be between 50 and
1,000kPa.
 A damaged dishwasher could be dangerous. If the dishwasher
gets damaged, turn it off at the electricity supply immediately and
contact your Miele dealer or Miele Service.
 The manufacturer’s warranty will be invalidated if the appliance is
not repaired by a Miele authorized service technician.
 We recommend replacing defective components with original
spare parts. If original Miele spare parts are installed correctly, Miele
ensures full compliance with safety requirements and the warranty
remains valid.
 During installation, maintenance, and repair work, the dishwasher
must be disconnected from the domestic electricity supply (turn it off
and withdraw the plug from the socket).
 If the power cable is damaged, it must only be replaced with a
specific cable of the same type (available from Miele Service). For
safety reasons, this must only be done by Miele Service or a service
technician authorized by Miele.
 Do not sit the dishwasher on the hose. The hose needs to be free
of kinks and able to move freely after installation. Do not place the
hose or power cord next to a heat source e.g., hot water pipes. Do
not expose the hose or power cord to corrosive substances (e.g.,
chloride). Damage to the hose or power cord could cause electrical
shock or water damage.
 This dishwasher is supplied with a special lamp (depending on the
model) to cope with particular conditions (e.g., in terms of
temperature, moisture, chemical resistance, abrasion resistance, and
vibration). This lamp must only be used for the purpose for which it
is intended. The lamp is not suitable for room lighting. Replacement
lamps may only be installed by a Miele authorized technician or by
Miele Service.

Warnings and safety instructions
12
Correct installation
 The dishwasher must be installed and connected in compliance
with the supplied installation sheet.
 Be careful before and while installing the dishwasher.
Some metal parts pose a risk of injury/being cut. Wear
protective gloves.
 The dishwasher must be correctly aligned horizontally to ensure
problem-free operation.
 In order to ensure stability, built-under and integrated dishwashers
must only be installed under a continuous countertop which is
secured to adjacent cabinetry.
 The dishwasher must only be built into a tall unit if additional
safety precautions are taken. In order to safely install the appliance
in a tall unit, please use the tall unit installation kit and observe the
installation sheet provided. Otherwise there is the danger of the unit
tipping over.
 The door springs must be evenly adjusted on both sides. They are
correctly adjusted when the door remains stationary when left half
open (approx. 45° opening angle). It is also important that the door
cannot fall open.
The appliance must only be operated with properly adjusted door
springs.
If the door cannot be adjusted properly, contact Miele Service.
The maximum weight of the front panel that can be aligned with the
factory fitted door springs is 10–12kg (depending on model).
Correct use
 Do not use solvents in the wash cabinet. There is a danger of
explosion.

Warnings and safety instructions
13
 Dishwasher detergents can cause burning on the skin and in the
eyes, nose, mouth, and throat. Avoid contact with detergents. Do not
inhale powder detergents. Do not swallow dishwasher detergents.
Seek medical attention immediately if detergent has been swallowed
or inhaled.
 Avoid leaving the dishwasher door open unnecessarily. You could
injure yourself on the opened door or trip over it.
 Do not sit, stand, or lean on the opened door. The dishwasher
could tip over. This could injure you or damage the dishwasher.
 Dishware may be very hot at the end of the program. Allow
dishware to cool until it is comfortable enough to handle before
unloading them.
 Only use detergent and rinse aid formulated for domestic
dishwashers. Do not use liquid dish soap.
 Do not use any commercial or industrial detergents. These may
cause material damage, and there is a risk of a severe explosive
chemical reaction (such as an explosive oxyhydrogen gas reaction).
 Do not fill the rinse aid reservoir with powder or liquid detergent.
This will cause damage to the rinse aid reservoir.
 Do not fill the AutoDos (depending on model) with powder or
liquid detergent. Loose detergent will damage the AutoDos.
 Do not fill the salt reservoir with powder or liquid detergent.
Dishwasher detergent will damage the water softener.
 Use only special, coarse-grained reactivation salt or other pure
evaporated salt. Other types of salt may contain insoluble
components which can cause the water softener to malfunction.

Warnings and safety instructions
14
 In dishwashers with a cutlery basket (depending on model), knives
and forks should be placed with the handles upwards in the basket
for safety reasons. Knives and forks placed with the handles
downwards pose a danger of injury. However, cutlery placed handle
down in the basket will come out cleaner and drier.
 Plastic items which cannot withstand being washed in hot water,
such as disposable plastic containers or plastic cutlery, should not
be cleaned in the dishwasher. The high temperatures in the
dishwasher may cause them to melt or lose shape.
 If you use the timer option (depending on model), the detergent
compartment must be dry. Wipe dry with a cloth first if necessary.
The detergent will clump together if the detergent compartment is
not dry, and this may mean that it is not fully rinsed out.
Accessories and spare parts
 Only use original Miele accessories. If other parts are used,
warranty, performance, and, if applicable, product liability claims will
be invalidated.
 Miele will guarantee to supply functional spare parts for a
minimum of 10years and up to 15years following the
discontinuation of your dishwasher.
Transport
 Damage to the dishwasher can compromise your safety. Before
using the dishwasher, check it for any visible transport damage.
Never use a damaged dishwasher.
 Only transport the dishwasher in an upright position so that no
water flows into the electrical controls, as this would cause faults.
 If you wish to transport the dishwasher, empty it and securely
fasten all loose parts such as baskets, hoses, and power cables.

Warnings and safety instructions
15
Disposal of your old dishwasher
 Remove the door of the dishwasher so that children cannot
become trapped inside.

Guide to the appliance
16
Machine overview
aDoor locking pins
bTop spray arm
c3D MultiFlex Cutlery Tray (depending
on model)
dUpper basket (depending on model)
eMiddle spray arm
fAeration valve
gLower spray arm
hFilter combination
iSalt reservoir
jData plate
kRinse aid reservoir
lDetergent compartment
mAutoDos detergent outlet
nAutoDos (automatic dispensing)
oDoor locking pins
pTop spray arm
q3D MultiFlex Cutlery Tray (depending
on model)
rUpper basket (depending on model)

Guide to the appliance
17
sMiddle spray arm
tAeration valve
uLower spray arm
vFilter combination
wSalt reservoir
xData plate
yRinse aid reservoir
zDetergent compartment
{AutoDos detergent outlet
|AutoDos (automatic dispensing)

Guide to the appliance
18
Control panel
These operating instructions apply to
several different dishwasher models of
different heights.
The different dishwasher models will
be named as follows:
normal = dishwasher measuring
80.5cm high (built-in appliance)
or 84.5cm high (freestanding
appliance)
XXL = dishwasher measuring 84.5cm
high (built-in appliance).

Guide to the appliance
19
Display functions
The display is used to select or set the
following:
- the program
- the options
- the timer
- theSettings
The display can show the following:
- the program name
- the program stage
- the estimated time left for the
program to run
- any relevant fault messages and
information
To save energy, the dishwasher turns
off after a few minutes if you do not
press any sensor buttons during this
time.
Touch the sensor button to turn the
dishwasher back on.
The sensor buttons on the control panel
and in the display react to fingertip
contact.
The touch display can be scratched
by pointed or sharp objects, e.g.,
pens.
Only touch the display with your
fingers.
Touch the required menu option to
select it.
The currently selected setting is marked
in orange and can be changed.
The OKsensor button in the display is
used to confirm a message or setting
and to move to another menu level.
To exit a sub-menu again, use the Back
sensor button.
Touch the Home sensor button at any
time to return to the Programs menu.
If you do not press any sensor buttons
for several seconds, the display will
revert to the previous menu. You will
then have to enter your settings again.

Guide to the appliance
20
Examples of how to operate the
appliance
Main menu
Use the Back sensor button to switch
from the Programs menu to the main
menu.
 
Settings
Programs
In the main menu, you can choose the
Programs menu to select programs as
well as the Settings menu.
You can alter the dishwasher’s controls
to suit changing requirements in the
Settings menu (see “Settings”).
Option lists
You can scroll to the right or the left by
swiping your finger across the display.
 
China &
Crystal
Quick
IntenseWashNormal Pots & Pans
The orange scroll bar at the bottom of
the display indicates that further
options are available.
You can change the order of programs
listed in the Programs menu by pressing
and holding a program name and
dragging it to the place you want.
Normal Estimate

Extra Clean Extra Dry

After selecting a program, the Extra
options menu is displayed. This is
where you can select any options you
want, activate the timer, and view the
energy and water consumption with the
Estimate function.
Numerical values
You can set numerical values in some
menus.
11:45

OK
You can set the numbers by touching
the numerical keypad that you want to
change.
You can then set the numbers using the
sensor buttons.
Use the OK sensor button to accept the
set numerical value.
Keeping the relevant  or sensor
button pressed will increase or
decrease the time automatically.
