Miele G 1830 User manual

Operating instructions
for dishwashers
To avoid the risk of accidents or
damage to the appliance it is
essential to read these instructions
as well as the installation plan before
it is installed and used for the first time.
G
M.-Nr. 06 702 790

Description of the appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Appliance overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Caring for the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Disposal of the packing material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Disposal of your old appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Energy saving washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Before using for the first time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
To open the door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
To close the door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Child safety lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Setting the language. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Setting the time of day . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Before using the appliance for the first time you require: . . . . . . . . . . . . . . . . . . . 16
External water softening system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Filling the salt reservoir . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
"Insufficient salt" message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Rinse aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Adding rinse aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Rinse aid low message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Loading the dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Items not suitable for dishwashers: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Upper basket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Spiked insert. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Hinged cup rack. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Positioning rail (depending on model) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Support rail (depending on model) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Multi-function basket. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Adjusting the upper basket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Lower basket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Variable inserts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Vario inserts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Bottle holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Cutlery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Cutlery tray (depending on model). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Cutlery basket (depending on model) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Contents
2

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Detergent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Adding detergent. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Switching on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Selecting a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Selecting an Extra . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Starting a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
At the end of a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Switching off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Unloading the dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Interrupting a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Changing a programme. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Additional functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Delay start. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Cleaning the wash cabinet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Cleaning the door and the door seal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Cleaning the door front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Cleaning the control panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Checking the filters in the wash cabinet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Cleaning the filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Cleaning the spray arms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Problem solving guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Problem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
The dishwasher does not fill/drain. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
General problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Noises . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Unsatisfactory washing result . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Problem solving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Cleaning the water inlet filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Cleaning the drain pump and non-return valve. . . . . . . . . . . . . . . . . . . . . . . . . . . 58
After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Future updates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
For testing institutes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Programme chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Contents
3

Optional accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Electrical connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Plumbing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Connection to the water supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Drainage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Settings menu J. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
To open the "Settings J" menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Language J. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Detergent type menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Water hardness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
External water softening system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Rinse aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Check filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Adjust sensor wash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Change main menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Save extras . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
System lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
In operation lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Buzzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Keypad tones. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Brightness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Contrast . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Standby . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Miele{home . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Remote control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Showroom programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Factory default setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
To close the "Settings J" menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Contents
4

Appliance overview
aUpper spray arm (not visible)
bCutlery tray (depending on model)
cUpper basket
dMiddle spray arm
eAir inlet for drying
(depending on model)
fLower spray arm
gFilter combination
hData plate
iChild safety lock in door grip (not
visible)
jRinse aid reservoir
kDual compartment detergent
dispenser
lSalt reservoir
Description of the appliance
5

Control panel
aInformation sensor pad K
For displaying additional information
about the menu being displayed.
bOn/Off sensor pad s
For switching the appliance on and
off.
cSelector sensor pads
For selecting options displayed next
to them.
For altering the values displayed
(+/-).
For moving to other screens.
dDisplay
See the following pages for more
information.
eStand-by indicator light
When the dishwasher is switched on,
the indicator light comes on if the
display is switched off.
f+C (Clear) sensor pad
For returning to the previous menu or
deleting values which have been set
previously.
gService interface
Used by service technicians to run
diagnostic checks, or to update
programming data in the future.
hMiele{home
The appliance is compatible with the
Miele|home system.
This instruction book applies to several different dishwasher models.
The specific dishwasher models below are referred to as follows:
G 1830 = G 1XXX
G 2830 = G 2XXX
The model numbers G 1XXX and G 2XXX used in this book refer to the model
designation specified on the data plate of the appliance (and not the
description on the control panel).
The data plate is located at the top right hand side of the door.
Description of the appliance
6

Display
The display is used to select the
following:
–the programme
–extras
–the delay start time
–the "Settings J" menu
During a programme, the display
shows the following:
– the name of the programme
– the current time of day
– the stage the programme is at
– the estimated time left for the
programme to run
– any relevant fault messages and
notes
A dot in the display next to a selector
sensor pad indicates that a function
can be selected with that sensor pad.
The arrows on the right hand of the
display indicate that more options or
more text are available which can be
displayed with the relevant selector
sensor pad.
The OK function is used to confirm a
message or setting and also to move to
the next menu or to another level.
The "Settings J" menu is used to alter
the dishwasher’s electronics to suit
different requirements. See "Settings
menu" for more details.
Description of the appliance
7

This appliance conforms to current
safety requirements. Inappropriate
use can, however, lead to personal
injury and damage to property. To
avoid the risk of accidents and
damage to the appliance, please
read these instructions carefully
before using it for the first time. They
contain important information on its
safety, use and maintenance.
Keep these instructions in a safe
place for future reference, and pass
them on to any future user.
Correct usage
This dishwasher is intended
exclusively for cleaning domestic
crockery and cutlery in a domestic
household. Using it for purposes other
than those for which it was designed,
as well as any alterations or
conversions to the appliance would be
unauthorised and could cause harm.
The manufacturer cannot be held liable
for damage resulting from improper or
incorrect use of the appliance.
Transport
Should you ever need to move the
dishwasher, e.g. when moving
house, note the following:
–Empty the dishwasher,
–Secure any loose parts, e. g. hoses,
mains cable, cutlery baskets, lower
basket
–Transport the dishwasher in the
upright position only.
Delivery
Before setting up the appliance,
check it for any externally visible
damage. Under no circumstances
should you use a damaged appliance.
A damaged appliance could be
dangerous.
Please ensure that the packaging
material is offered for recycling.
Installation
The dishwasher must be installed
and connected in compliance with
the installation plan.
The dishwasher must only be
plugged into the electricity supply
via a suitable switched socket. The
electrical socket must be easily
accessible after the dishwasher is
installed so that it can be disconnected
from the electricity supply at any time.
(See "Electrical connection").
There must be no electrical
sockets behind the dishwasher.
Danger of overheating and fire risk if
the dishwasher were to be pushed up
against a plug.
In order to ensure stability,
built-under and integrated
dishwashers must only be installed
under a continuous worktop which is
secured to adjacent cabinetry.
Warning and Safety instructions
8

The dishwasher must not be
installed under a hob. The high
radiant temperatures which are
sometimes generated by a hob could
damage the dishwasher. For the same
reason it should not be installed next to
open fires or other appliances which
give off heat, such as heaters etc.
If you want to convert your
freestanding dishwasher to a
built-under ("U") model, you will need to
order the appropriate conversion kit. If
you remove the existing plinth, you
must replace it with a U-model plinth.
This is necessary to avoid the risk of
injury caused by protruding metal
parts.
Do not connect the dishwasher to
the mains supply until it has been
fully installed.
Before connecting the appliance,
check that the connection data on
the data plate (voltage and connected
load) match the mains electricity
supply. If in any doubt, consult a
qualified electrician.
The electrical safety of this
appliance can only be guaranteed
when continuity is complete between
the appliance and an effective earthing
system. It is most important that this
basic safety requirement is regularly
tested and where there is any doubt,
the electrical system in the house
should be checked by a qualified
electrician.
The manufacturer cannot be held liable
for the consequences of an inadequate
earthing system (e.g. electric shock).
This equipment may only be used
in mobile installations such as
ships, caravans, aircraft etc. if a risk
assessment of the installation has been
carried out by a suitably qualified
engineer.
A damaged appliance could be
dangerous. Switch off at the mains
and call your Miele supplier or the Miele
Service Department.
The plastic housing of the water
connection contains an electrical
component. The housing must therefore
not be dipped in water.
There are live wires in the water
inlet hose. Never cut the water inlet
hose, even if it is too long.
Do not connect the appliance to
the mains electricity supply by an
extension lead. Extension leads do not
guarantee the required safety of the
appliance (e.g. danger of overheating).
Use
Do not use solvents in the
dishwasher. Danger of explosion.
Do not inhale or ingest dishwasher
detergent! Dishwasher detergents
can cause burning in the nose, mouth
and throat if swallowed, or inhibit
breathing. Consult a doctor immediate-
ly if detergent has been swallowed or
inhaled.
Warning and Safety instructions
9

Avoid leaving the door open
unnecessarily, as you could trip
over it.
Do not sit or lean on the opened
door. This could cause the
dishwasher to tip and be damaged and
you could get injured.
Only use detergent and rinse aid
formulated for domestic
dishwashers. Do not use washing-up
liquid.
In an appliance with a cutlery
basket (depending on model)
cutlery is cleaned and dried more
efficiently if placed in the basket with
the handles downwards. However, to
avoid the risk of injury place knives and
forks etc. with the handles upwards.
Please only use special coarse
grained dishwasher salt for
reactivation, as other salts may contain
insoluble additives which can impair
the functioning of the softener.
Plastic items which cannot
withstand being washed in hot
water, such as disposable plastic
containers, or plastic cutlery and
crockery should not be cleaned in the
dishwasher. The high temperatures in
the dishwasher may cause them to melt
or lose shape.
On models with "Delay start", make
sure that the dispenser is dry
before adding detergent. Wipe dry if
necessary. Detergent will clog if poured
into a damp dispenser and may not be
thoroughly dispensed.
Do not use liquid detergent when
selecting Delay start, as it can run into
the dishwasher before it is required.
Safety with children
This appliance is not a toy! To
avoid the risk of injury do not allow
children to play in or around the
dishwasher, or to operate it. There is
also a danger that children playing
might shut themselves in the
dishwasher.
Keep children away from
detergents. Dishwasher detergents
can cause burning in the mouth, nose
and throat if swallowed, or inhibit
breathing. Keep children away from the
dishwasher when the door is open.
There could still be detergent residues
in the cabinet.
Consult a doctor immediately if your
child has swallowed or inhaled
detergent.
Warning and Safety instructions
10

To avoid damage to the
appliance and other materials
Do not fill the rinse aid reservoir
with powder or liquid detergent.
This will cause serious damage to the
reservoir.
Inadvertently filling the salt
reservoir with powder or liquid
dishwasher detergent always leads to
serious damage to the water softener.
Make sure you have picked up the
correct packet of dishwasher salt
before filling the salt reservoir!
Do not use commercial or industrial
detergents as these may damage
material and there is a risk of severe
chemical reaction.
The Miele Waterproof System offers
protection from water damage,
provided the following conditions are
met:
– The dishwasher is correctly installed
and plumbed in.
–The dishwasher is properly
maintained and parts are replaced
where it can be seen that this is
necessary.
–The stopcock has been turned off
when the appliance is not used for a
longer period of time (e.g. during
holidays).
The Waterproof system will work even if
the appliance is switched off. However,
the appliance must remain connected
to the electricity supply.
In countries where there are areas
which may be subject to infestation
by cockroaches or other vermin, pay
particular attention to keeping the
appliance and its surroundings in a
clean condition at all times. Any
damage caused by cockroaches or
other vermin will not be covered by the
guarantee.
Repairs and maintenance
Repairs may only be carried out by
suitably qualified and competent
technicians in accordance with current
local and national safety requirements.
Repairs and other work by unqualified
persons could be dangerous.
Always disconnect the appliance
from the electrical supply for
maintenance work (switch off at the wall
socket and remove the plug).
If the connection cable is damaged
it must be replaced with a Miele
cable by a Miele approved service
technician only.
Disposal of your old appliance
When disposing of an old
dishwasher first make it unusable.
Disconnect, cut off the cable and the
plug from the cable. Make the door lock
inoperative by unscrewing the Torx
screw, so that children cannot
accidentally shut themselves in. Make
appropriate arrangements for the
disposal of the appliance.
The manufacturer cannot be held
liable for damage caused by
non-compliance with these Warning
and Safety instructions.
Warning and Safety instructions
11

Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for disposal
and can normally be recycled. Ensure
that any plastic wrappings, bags etc.
are disposed of safely and kept out of
the reach of babies and young
children. Danger of suffocation!
Rather than just throwing these
materials away, please ensure that they
are recycled.

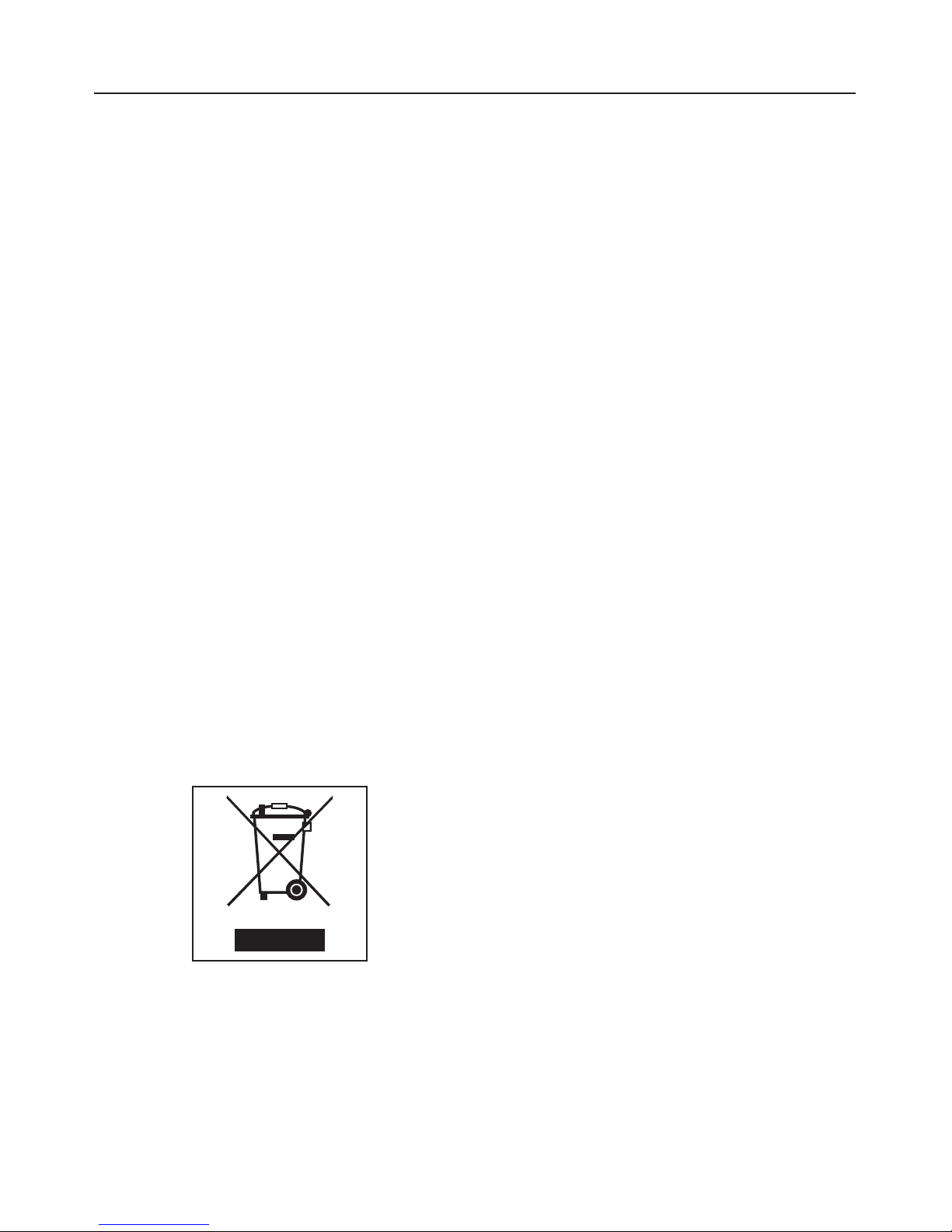

Disposal of your old appliance
Electrical and electronic appliances
often contain materials which, if
handled or disposed of incorrectly,
could be potentially hazardous to
human health and to the environment.
They are, however, essential for the
correct functioning of your appliance.
Please do not therefore dispose of your
old appliance with your household
waste.
Please dispose of it at your local
community waste collection / recycling
centre and ensure that it presents no
danger to children while being stored
for disposal.
It should be unplugged or
disconnected from the mains electricity
supply by a competent person. The
plug must be rendered useless and the
cable cut off directly behind it to
prevent misuse. See the "Warning and
Safety" section of this booklet for further
details.
Energy saving washing
This dishwasher is exceptionally
economical in its use of water and
electricity. You can make the most of
your appliance by following these tips:
^For most economical dishwashing
make full use of the baskets without
overloading the dishwasher.
^Choose the programme to suit the
type of crockery being washed and
the degree of soiling.
^Select the Energy save programme
for energy-saving dishwashing.
^If your household water system is
suitable, this dishwasher can be
connected to a hot water supply.
Select "Without heater" when washing
lightly to normally soiled dishes.
However, because the water is not
heated in this programme, drying
results may not match those of other
programmes.
^Follow the detergent manufacturer’s
recommendations on detergent
dosage.
^When using powder or liquid
detergent you can use 1/3less
detergent if baskets are only half full.
Caring for the environment
12

To open the door
^Press the release catch inside the
door grip and pull forward.
If the door is opened during operation
all functions are automatically
interrupted.
To close the door
^Push the baskets right in.
^Then lift the door upwards and push
until it clicks into position.
Child safety lock
Use the child safety lock to prevent
children opening the dishwasher door.
^To lock the door, push the slide
underneath the door grip to the right.
^To unlock the door, push the slide to
the left.
Before using for the first time
13

Welcome screen
^Switch the dishwasher on with the On/Off sensor pad s.
If the dishwasher is being switched on for the first time, the
welcome screen will appear.
Setting the language
The display will then change automatically to the screen for
setting the language.
A tick Lwill appear beside the language that has been set.
Language F
°#eština m°dansk
°deutsch BOK °
^Select the language you want and confirm this with OK.
Setting the time of day
The display will then change to the screen for setting the time
of day.
Time
+°
12:00 -°
Please set the time OK °
^Set the hours with the +/- sensors and confirm with OK.
Then set and confirm the minutes.
These settings will be saved in memory after the dishwasher
has been through one complete programme.
Before using for the first time
14

After you have confirmed the minute entry, two messages will
appear in the display.
After confirming these messages, the Insufficient salt and
Rinse aid low messages may then appear in the display.
After you have confirmed these messages with OK, the
display will change to show the main menu.
Main menu 12:00
°Sensor wash m
°Quick wash d40°C
°Sensor wash gentlee
You can now select a programme and start it or switch the
dishwasher off.
Before using for the first time
15

Before using the appliance for
the first time you require:
–approx. 1 kg dishwasher salt,
–domestic dishwasher detergent,
–rinse aid formulated for domestic
dishwashers.
Every dishwasher is tested at the
factory.
There will be residual water in the
appliance from this test. It is not an
indication that it has been used
previously.
This dishwasher is fitted with a water
softener sensor which automatically
sets the water softener unit for the
local water hardness level.
External water softening
system
If your dishwasher is connected to an
external water softening system which
uses salt to reactivate, you will still need
to programme the dishwasher to the
correct water hardness level to achieve
good cleaning results.
^Set the water softener unit of the
dishwasher to the water hardness
level of the water which is supplied
from the external water softening
system.
If you do not know what this is, then
set the value at 1.4 mmol/l (8 °d) (see
"Settings menu J, External water
softener").
Filling the salt reservoir
In order to achieve good cleaning
results, the dishwasher needs to
operate with soft water. Hard water
results in the build-up of calcium
deposits on crockery and in the
dishwasher.
Mains water with a hardness level
higher than 0.7 mmol/l (4 °d - German
scale) needs to be softened. This takes
place automatically in the integrated
softener unit.
The softener unit is suitable for a water
hardness level of up to 12.6 mmol/l
(70 °d). It requires dishwasher salt.
If you use "3 in 1" tabs in your
dishwasher you should still add salt
in order to achieve optimum results.
The amount of salt used is reduced
to between 1/4and 1/3of the normal
amount if the "3 in 1" detergent type
is selected.
Before using for the first time
16

You can check the water hardness level
measured by the water softener sensor
in the display (see "Settings menu J,
Water hardness").
If the water in your area is very soft
and constantly lower than
0.7 mmol/l (4 °d) you do not need
to add dishwasher salt. The
"Insufficient salt" message will
appear the first time you switch the
dishwasher on. It will go out
automatically once the sensor has
detected that the water is softer than
0.7 mmol/l.
,Inadvertently filling the salt
reservoir with powder or liquid
dishwasher detergent always leads
to serious damage to the water
softener. Make sure you have picked
up the correct packet of dishwasher
salt before filling the salt reservoir!
,Only use special coarse grained
dishwasher salt for reactivation. Do
not use other salts such as cooking
salt, agricultural grade or gritting
salt. These may contain insoluble
additives which can impair the
functioning of the water softener.
^When filling the salt reservoir only
open the door half-way to ensure
that all the salt gets into the reservoir.
^Press the button on the lid of the salt
reservoir in the direction of the arrow
until the flap springs open.
^Lift up the funnel.
Before using for the first time
17

Do not fill the salt reservoir with
water.
^Add salt only until the reservoir is full
or until water runs out of the opening.
The salt reservoir holds approx. 1 kg
of salt depending on the brand used.
Do not add any more than 1 kg of
salt.
As the salt reservoir is filled, displaced
water may overflow.
^Clean any excess salt from around
the reservoir opening and then close
the flap.
^Run the Quick wash programme
immediately (without any crockery in
the dishwasher) to remove any traces
of salt water from the cabinet.
"Insufficient salt" message
^Fill the salt reservoir with dishwasher
salt for reactivation when the
Insufficient salt message appears.
(If it appears during a programme,
wait until the end of the programme).
^Confirm with OK.
The "Insufficient salt" message will go
out.
After the salt reservoir has been filled,
the "Insufficient salt" message may still
appear in the display if the salt
concentration has not yet reached the
correct level.
If this is the case, confirm again with
OK.
,After filling the salt reservoir, run
the Quick wash programme immedi-
ately (without any crockery in the
dishwasher) to remove any traces of
salt water from the cabinet.
Before using for the first time
18

Rinse aid
Rinse aid is necessary to ensure water
does not cling and leave marks on
crockery during the drying phase and
helps crockery dry faster after it has
been washed.
Rinse aid is poured into the storage
reservoir and the amount set is
dispensed automatically.
,Inadvertently filling the rinse aid
reservoir with powder or liquid
detergent always causes serious
damage to the reservoir. Only pour
rinse aid formulated for domestic
dishwashers into the reservoir.
Alternatively, it is possible to use
– Household vinegar with a max. 5%
acid content
or
– Liquid citric acid up to 50% acid
content.
The resulting rinsing and drying quality
will not, however, be as good as when
rinse aid is used.
,Do not use vinegar with a higher
acid content (e.g. vinegar essence
25% acid). This would damage the
dishwasher.
If you only ever use "2 in 1" or "3 in 1"
products in your dishwasher you do
not need to add rinse aid.
Adding rinse aid
^Press the button on the lid of the
rinse aid reservoir in the direction of
the arrow until the flap springs open.
Before using for the first time
19

^Add rinse aid only until it is visible in
the opening.
The rinse aid reservoir holds approx.
110 ml.
^Close the flap firmly so that it clicks
into place. Otherwise water would
enter the rinse aid reservoir during a
programme.
^Wipe up any spilled rinse aid. This
prevents over-foaming occurring
during the next programme.
You can adjust the rinse aid dosage
for best results (see "Settings
menu J, Rinse aid").
Rinse aid low message
When the Rinse aid low message
appears, the reservoir contains
sufficient rinse aid for 2 - 3 programmes
only.
^Add rinse aid in plenty of time.
If the "2 in 1" or "3 in 1" Tab function
has been selected, the "Rinse aid
low" message will not appear (see
"Settings menu J, Detergent type").
^Confirm with OK.
The Rinse aid low message will go out.
Before using for the first time
20
