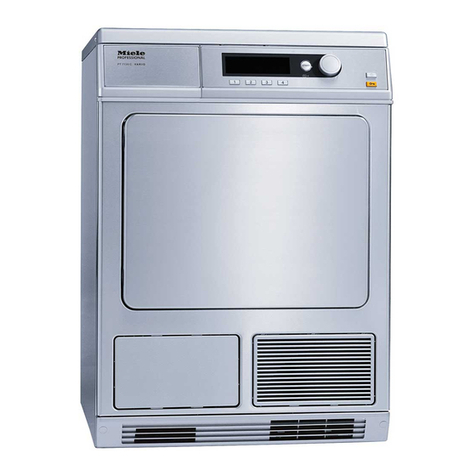

Miele PT 7135 C User manual

Operating and installation instructions
for condenser tumble dryer
PT 7135 C
To avoid the risk of accidents or
damage to the machine it is
essential to read these instructions
before it is installed, commissioned and
used for the first time.
G
M.-Nr. 06 511 380

Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for disposal
and can normally be recycled.
Ensure that any plastic wrappings,
bags etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation!
Rather than just throwing these
materials away, please ensure that they
are offered for recycling.
Disposal of your old machine
Electrical and electronic machines
often contain materials which if handled
or disposed of incorrectly, could be
potentially hazardous to human health
and to the environment. They are,
however, essential for the correct
functioning of your machine. Please do
not therefore dispose of it with your
household waste.
Please dispose of it at your local
community waste collection / recycling
centre and ensure that it presents no
danger to children while being stored
for disposal.
It should be unplugged or
disconnected from the mains electricity
supply by a competent person. The
plug must be rendered useless and the
cable cut off directly behind it to
prevent misuse. See the "Warning and
Safety" section of this booklet for further
details.
Energy saving tips
To avoid unnecessarily long drying
times and high consumption of energy:
–Make sure that your laundry is
thoroughly spun before drying.
The higher the spin, the greater the
savings that can be made in energy
and time during drying.
– Load according to the optimum
amount of laundry recommended for
the programme being used.
Underloading is uneconomical.
Overloading gives a poorer quality of
drying and may cause unnecessary
creasing.
– Make sure the room in which the
dryer is located is well ventilated.
–After every cycle remove the fluff
from the fluff filter in the door and in
the door opening (see "Cleaning and
Care").
–Check the condenser unit from time
to time and clean it when necessary.
Caring for the environment
2

Caring for the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Disposal of the packing material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Disposal of your old machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Energy saving tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Operating the tumble dryer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Before using for the first time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Notes on laundry care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Care symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Tips on drying . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
How to dry correctly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Brief instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Favourite programmes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Selecting/changing a favourite . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Low temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Saving a favourite programme. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Programme chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Changing the programme sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Payment system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Cancelling a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Adding or removing laundry after a programme has started . . . . . . . . . . . . . . . . 25
Contents
3

Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Cleaning the fluff filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Cleaning them whilst dry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Cleaning them with water . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Replacing the filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Cleaning the tumble dryer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Cleaning the heat exchanger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Removing the heat exchanger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Checking the heat exchanger unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Cleaning the heat exchanger unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Replacing the heat exchanger unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Problem solving guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Problem solving guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Fault messages in the display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Other problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Changing the lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
PC / Optical interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Optional accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Installation and connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
View from the front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
View from the side . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
View from the rear. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
View from above . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Washer-dryer stack. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Installation on a concrete plinth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Payment system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Installation site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Transporting the machine to its installation site . . . . . . . . . . . . . . . . . . . . . . . . 42
Levelling the machine. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Room in which the dryer is located . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
External drainage of the condensed water . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Electrical connection U.K. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Contents
4

Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Settings menu J. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Language J. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Anti-crease action . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Buzzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Time of day . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Display contrast . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Display brightness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Standby . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Extending the cooling down time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Settings/Supervisor level menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Contents
5

To avoid the risk of accidents and
damage to the machine please read
these instructions carefully before
using it for the first time. They contain
important information on its safety,
installation, use and maintenance.
Keep these instructions in a safe
place and ensure that new users are
familiar with the content. Pass them on
to any future owner of the machine.
Correct use
The tumble dryer is only intended
for drying fabrics which have been
washed in a water solution, marked on
the manufacturer's care label as being
suitable for tumble drying.
"Dry cleaning kits" for freshening up
garments in a tumble dryer are
increasingly available on the market. If
using, do so at your own risk, and
follow the instructions provided on the
packaging.
Any other applications may be
dangerous. The manufacturer is not
liable for damage resulting from
improper use or operation.
Technical safety
Before setting up the machine,
check it for any externally visible
damage.
Do not install or use a damaged
machine.
Before connecting the machine,
ensure that the connection data on
the data plate (voltage and connected
load) match the mains electricity
supply. If in any doubt, consult a
qualified electrician.
The electrical safety of this machine
can only be guaranteed when
continuity is complete between it and an
effective earthing system which complies
with local and national regulations. It is
most important that this basic safety
requirement is present and regularly
tested, and where there is any doubt the
on-site wiring system should be
inspected by a qualified electrician. The
manufacturer cannot be held liable for
the consequences of an inadequate
earthing system (e.g. electric shock).
Do not connect the machine to the
mains electricity supply by an
extension lead. Extension leads do not
guarantee the required safety of the
machine (e.g. danger of overheating).
The machine is built in accordance
with current safety requirements.
Unauthorised repairs could result in
unforeseen dangers for the user, for which
the manufacturer cannot accept liability.
Repairs should only be undertaken by a
Miele approved technician.
Ensure current is not supplied to the
machine until after maintenance or repair
work has been carried out.
Faulty components must only be
replaced by genuine Miele original
spare parts. Only when these parts are
fitted can the safety standards of the
machine be guaranteed.
In countries where there are areas
which may be subject to infestation
by cockroaches or other vermin, pay
particular attention to keeping the
machine and its surroundings in a
clean condition at all times. Any
damage which may be caused by
cockroaches or other vermin will not be
covered by the machine guarantee.
Warning and Safety instructions
6

If the connection cable is faulty it
must only be replaced with a
genuine Miele connection cable.
In the event of a fault or for
cleaning purposes, the machine is
only completely isolated from the
electricity supply when:
–it is switched off at the wall socket
and the plug is withdrawn, or
–it is switched off at the mains, or
–the mains fuse is withdrawn.
Operation
This equipment may only be used
in mobile installations such as
ships, caravans, aircraft etc. if a risk
assessment of the installation has been
carried out by a suitably qualified
engineer.
The dryer must not be used without
the condenser unit in place.
The dryer must not be used without
the fluff filters in place or if the fluff
filters are damaged in any way.
The fluff filters must be thoroughly
dried after cleaning. If they are
damp or wet when replaced there is a
risk of faults occurring when the
machine is used.
If the water is drained externally
through the drain hose instead of
being collected in the condensed water
container, make sure the drain hose is
securely attached if you hang it in a
sink or basin to avoid the hose slipping
the water causing damage.
Condensed water is not drinking
water. It can cause health
problems in both people and animals.
Warning and Safety instructions
7

Always keep the area around the
machine free of dust and fluff. Dust
drawn into the machine can over time
cause blockages in the condenser unit.
Do not install the machine in a
room where there is a risk of frost
occurring. At temperatures around
freezing point the machine may not be
able to operate properly.
There is a risk of damage if the
condensed water is allowed to freeze in
the pump, hoses and / or condensed
water container.
The ambient room temperature should
be between +2°C and +35°C.
To prevent the risk of fire the
following textiles must not be
dried in this machine:
– fabrics which contain a large
proportion of rubber, foam rubber or
rubber like materials.
– items which contain padding or
fillings (e.g. pillows, jackets).
–items which have been treated with
inflammable cleaning agents.
–items which have been splashed with
hair lacquer, hair spray, nail varnish
remover or similar substances.
–items which have been soiled with
oils or residues containing grease
(kitchen oils, cosmetics etc.).
–items soiled with wax or other
chemicals (e.g. mops and floor
cloths).
–items which have not been
thoroughly cleaned and which are
still soiled with grease or oil, e.g.
workwear. Such clothing may require
a heavy duty detergent to get them
clean. If necessary consult the
detergent manufacturer for advice.
Do not let anyone sit or lean on the
door, as this can cause the
machine to tip up.
Always close the door after use.
This way you will avoid the danger
of:
–children climbing onto or into the
dryer or hiding things in it.
–pets or other small animals climbing
into it.
Warning and Safety instructions
8

For machines with stainless steel
surfaces:
The stainless steel surfaces must not
come into contact with liquid cleaning
and disinfecting agents which contain
chlorine or sodium hypochlorite. These
agents can have a corrosive effect on
stainless steel.
Aggressive vapours containing chlorine
can also be corrosive.
Do not store containers of these agents
near the machine.
Safety with children
This machine is not a toy! To avoid
the risk of injury do not allow
children to play on or near it or to play
with the controls. Supervise its use by
the elderly or infirm, and supervise
children whilst you are operating the
machine.
Using accessories
Accessory parts may only be fitted
when expressly approved by Miele.
If other parts are used, guarantee,
performance and product liability
claims may be invalidated.
Disposal of your old machine
^Before discarding an old machine,
disconnect it from the mains supply,
or switch off at the wall socket and
unplug it.
^To prevent the risk of misuse, render
any plug useless and cut off the
cable directly behind the machine.
Make the door lock unusable.
This should be done by a competent
person.
^The manufacturer cannot be held
liable for damage caused by
non-compliance with these Warning
and Safety instructions.
Warning and Safety instructions
9

Control panel
aDisplay
See the following pages for more information.
bStart button
cPC / Optical interface
This is used by service technicians to run diagnostic checks on your machine
and can also be used to update programming data in the future.
dMulti-function selector
This is used to select menu options (by turning it) and to confirm your selection
(by pressing it).
eabutton
Opens the door.
Operating the tumble dryer
10

Displays
Entry menu
1 Cottons Programme selection ...
2 Minimum iron Settings F...
3 Woollens handcare
4 Smoothing 10:00
When the machine is switched on, the entry menu with 4
favourite programmes (factory default settings which can be
changed) will appear with
Programme selection highlighted.
Multi-function selector
Turning the multi-function selector moves the highlighting to
the next option.
Pressing the multi-function selector selects the highlighted
option.
Programme selection
There are two ways of selecting a programme:
Option 1:
– Select the
Programme selection menu in the display and
confirm your selection by pressing the multi-function
selector.
Option 2:
–Select one of the four programmes on the left hand side of
the display. These are favourite programmes which you
can set to suit your individual requirements or replace with
other programmes of your choice (see "Favourite
programmes" for more details).
Operating the tumble dryer
11

Programme selection menu
Programme Back A
selection Cottons
Minimum iron
Woollens handcare H
^By turning the multi-function selector you can select any
programme. The highlighting will move up or down
depending on the direction the multi-function selector is
turned in.
The VHarrows on the right of the display indicate the
direction and further options.
^Pressing the multi-function selector takes you to the main
menu of the drying programme selected.
Drying programme main menu
Cottons Normal
Duration: 1:16 h
Low temp.
H
Timer Y
H
Save
H
Back A
H
^Turn the multi-function selector to highlight either the
"Drying level" or the "Programme".
–Everything in the display (including
Low temp., Timer,
Save, Back
) can be highlighted and then confirmed by
pressing the multi-function selector.
Settings menu J
The Settings menu Jis used to alter the tumble dryer's
electronics to suit different requirements.
Operating the tumble dryer
12

Before using the machine for the first time ensure that it is
correctly installed and connected. See "Installation and
connection".
Welcome screen
When the tumble dryer is switched on for the first time, the
welcome screen will appear.
The welcome screen will not appear again once a
programme lasting longer than 1 hour has been
completed.
After a few seconds the display will change to the screen for
setting the language.
Language J
^Select the language you want and confirm your selection.
Setting the time of day
^Set the hour with the multi-function selector and confirm
this setting. Then set the minutes. Confirm the selection
again to save the time of day in memory.
Before using for the first time
13

Care symbols
Before drying check the drying symbol
on the care label. If there are no
symbols, dry at your own risk!
q. . . . . . . . . Dry at normal temperature
r. . . . . . . . . . Dry at a low temperature
s. . . . . . . . . . . . . . . Do not tumble dry
Tips on drying
Always observe the maximum
recommended loads given in the
"Programme chart". Never overload the
drum.
Overloading can cause unnecessary
wear and tear to the laundry, give a
disappointing drying result and
cause more creasing.
– Do not put soaking wet items into the
tumble dryer. Spin them thoroughly
after washing using the appropriate
spin speed.
–For delicates and fabrics with the
following care label rselect
Low
temperature
.
–Open jackets so that they can dry
evenly.
–Woollens and wool blends tend to
become matted and shrink if dried in
a tumble dryer. They can, however,
be "fluffed up" using the
Woollens
handcare
programme.
–Down-filled garments have linings
which have a tendency to shrink,
depending on the quality of the item.
They can be partially dried using the
Smoothing programme.
–Pure linen should only be machine
dried if specified as suitable by the
manufacturer on the care label, as
the surface of the fabric may
otherwise become rough. They can
be partially dried using the
Smoothing programme.
–Loopknit garments (e.g. T-shirts and
underwear) tend to shrink depending
on their quality. Do not over-dry these
textiles. When purchasing these
garments it is advisable to take their
shrinkage properties into account.
– Minimum iron fabrics and 100%
cotton shirts or blouses tend to
crease more, the larger the load,
particularly when the weave of the
fabric is very fine.
Reduce the load or use the
Shirts
programme.
–Starched laundry can be dried in the
tumble dryer. To achieve the usual
finish, double the amount of starch
should be used.
–New dark coloured garments should
be washed and dried separately
from light coloured garments to avoid
the danger of colours running and
discolouring other garments or even
plastic components in the machine.
Dark coloured fibres can also settle
on light coloured garments and vice
versa.
Notes on laundry care
14

Brief instructions
The headings numbered (A,B,C...)
show the operating sequence and can
be used as a brief guide to using your
machine.
ASort the laundry
To ensure an even drying result
separate out the washed laundry and
sort it according to:
. . . the drying level required
. . . the type of fibre or weave
. . . size
. . . the moisture content after spinning.
,Make sure that objects e.g.
detergent dispensing balls have
been removed from the laundry.
They could melt, and cause damage
to the dryer or the laundry.
– Check seams and stitching to ensure
that padding and linings are intact.
– Fasten duvet covers and pillow
cases to prevent small items from
being trapped inside them.
–Fasten zips, hooks and eyes etc.
–Tie fabric belts and apron strings.
–Sew in or remove underwiring from
bras.
BLoad the tumble dryer
^Press the abutton to open the door.
^Load the laundry loosely into the
drum.
Do not overload the drum. See the
"Programme chart" for
recommended loads for each
programme.
Overloading can cause unnecessary
wear and tear to the laundry and
give a disappointing drying result.
Check the laundry is right inside the
drum so that it cannot get trapped or
damaged when the door is shut.
^Shut the door either with a gentle
swing, or lean against it and push it
shut.
How to dry correctly
15

CSelect a programme
You can select a programme either by:
–selecting a favourite programme, or
–by going into the
Programme
selection
menu.
^If required, you can then select
Low
temperature
and/or the Timer (Delay
start time) from the relevant
sub-menu.
Please note that the programme
duration shown in the display may vary
according to the programme selected
(see "Estimated time remaining").
The
Start button will flash as soon as a
programme can be started.
Payment systems
If your machine has a payment system,
the amount of credit required will
appear in the display.
Credit will be lost if the door is
opened or the programme cancelled
after it has started.
DStart the programme
^Press the
Start button.
The
Start button will light up.
–
Programme start will appear in the
display, followed by
Drying and the
programme duration.
–With sensor drying programmes the
drying level reached, e.g.
Machine
iron
... Hand iron ... etc., will appear
in the display later on.
You can select the following while
drying is in progress:
–
Timer to call up the current time of
day and the estimated end time of
the programme.
–
Save to save the current programme
as a favourite.
–
Cancel to cancel the current
programme.
How to dry correctly
16

Estimated time remaining
When a programme is selected the
estimated drying time will appear in the
display. Please be aware that it is only
an estimate!
The following factors all affect the
estimated time remaining: residual
moisture content after spinning; type of
fabric; size of load; room temperature;
fluctuations in power supply.
The electronics continually assess
conditions in the machine and adjust
the estimated time remaining for a more
accurate reading. Because of this the
time displayed can alter during the
course of a programme.
In the same way, the
Woollens
handcare
and Smoothing programmes
can finish earlier than expected if a
certain temperature is reached. This
can happen with particularly fine
fabrics or if items were partly dry
beforehand.
Before the end of a programme
There is a cooling down phase at the
end of the drying sequence:
Cooling
down
will appear in the display. The
programme will not finish until the
cooling down phase has been
completed.
There is no cooling down phase at the
end of the following programmes:
Woollens hand care, Smoothing.
At the end of a programme
Anti-crease action (if selected) and
Finish will appear in the display at the
end of the programme.
During the anti-crease phase (if
selected) the drum will turn at intervals
for an hour to help prevent creasing.
ERemove the laundry
^Press the abutton to open the door.
^Remove the laundry.
Check that all items have been
removed from the drum. If items are
left in the dryer, they could be
damaged by overdrying when the
dryer is next used.
The drum lighting will come on when
the door is opened. It will go out a few
minutes later to save energy.
^Close the door.
Maintenance after each drying
programme
^Please see "Cleaning and care" for
details.
How to dry correctly
17

You can programme your four most frequently used drying
programmes to appear in the left hand side of the display.
The
Save option must be activated via the
Settings / Supervisor level menu before they can be
programmed. This must be done by a Miele service
technician.
Selecting/changing a favourite
^Close the door.
Entry menu
1 Cottons Programme selection ...
2 Minimum iron Settings F...
3 Woollens handcare
4 Smoothing 10:00
^Use the multi-function selector to select the programme
you want and confirm your selection.
Main menu
Cottons Normal
Duration: 1:16 h
Low temp.
H
Timer Y
H
Save
H
Back A
H
^You can highlight the programme (
Cottons ) or the drying
level again (
Normal ) by turning the multi-function selector.
^Confirm your selection of the part you want to change by
pressing the multi-function selector once.
Depending on the option highlighted, the following will be displayed:
– Programme selection
Programme Back A
selection Cottons
Minimum iron
Woollens handcare H
^Use the multi-function selector to select the programme
you want and confirm your selection.
Favourite programmes
18

Important: If you do not make a selection in the sub-menu
within approx. 20 seconds, the display will revert to the main
menu.
– Drying levels programme
Cottons Normal+
Drying levels from c
Machine iron - Extra dry
^Use the multi-function selector to select the drying level you
want and confirm your selection.
–The display will show which drying levels can be selected
for each individual programmes.
–Warm air, Cool air programmes
Warm air 0:30 h
10:00 Finish: 10:30
Duration: 0:30 h
^You can use the multi-function selector to increase (up to a
max. of 2 h
cold /1h warm ) or decrease the duration.
The programme end time for the duration selected will also
appear.
– Other programmes
You cannot alter the drying level or duration for the other
programmes.
Favourite programmes
19

Low temperature
Cottons Normal+
Low temp.
Duration: 1:47 h
Low temp. B
H
Timer Y
H
Save
H
Back A
H
^Select
Low temperature for all delicate or minimum iron
fabrics with the rcare label (e.g. acrylic garments).
–Delicate fabrics are dried at a lower temperature.
–The programme duration is longer.
Saving a favourite programme
^Select
Save .
Cottons Normal+
Low temp.
Previous : Cottons Normal
Save to : 12 3 4 Back A
^Use the multi-function selector to select the number you
want and confirm your selection. Your settings have now
been saved with the favourite programme and will appear
in the Entry menu.
Repeat the procedure if you want to customise other favourite
programmes, and save them to short cut buttons which have
not yet been used.
Favourite programmes
20
