Miele T 4472 User manual

Operating instructions
for condenser tumble dryer
T 4472 C
To avoid the risk of accidents or
damage to the machine it is
essential to read these instructions
before it is installed and used for the first time.
G
M.-Nr. 06 465 790

Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for disposal
and can normally be recycled.
Ensure that any plastic wrappings,
bags etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation!
Rather than just throwing these
materials away, please ensure they are
offered for recycling.
Disposal of your old appliance
Electrical and electronic appliances
often contain materials which, if
handled or disposed of incorrectly,
could be potentially hazardous to
human health and to the environment.
They are, however, essential for the
correct functioning of your appliance.
Please do not therefore dispose of your
appliance with your household waste.
Please dispose of it at your local
community waste collection / recycling
centre and ensure that it presents no
danger to children while being stored
for disposal.
It should be unplugged or disconnected
from the mains electricity supply by a
competent person. The plug must be
rendered useless and the cable cut off
directly behind it to prevent misuse.
See the "Warning and Safety" section of
this booklet for further details.
Energy saving tips
To avoid unnecessarily long drying
times and high consumption of energy:
–Make sure that your laundry is
thoroughly spun before drying.
The higher the spin, the greater the
savings that can be made in energy
and time during drying.
– Load according to the optimum
amount of laundry recommended for
the programme being used (see
Programme chart).
Underloading is uneconomical.
Overloading gives a poorer quality of
drying and may cause unnecessary
creasing.
–Make sure the room in which the
dryer is located is well ventilated.
–Make sure the fluff filters are clean
before using the dryer.
–Check the condenser unit from time
to time and clean it when necessary.
Caring for the environment
2

Caring for the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Disposal of the packing material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Disposal of your old appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Energy saving tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Guide to the machine. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Notes on laundry care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Care symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Tips on drying . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
How to dry correctly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Brief instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Extra options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Low temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Short. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Cool air. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Anti-crease. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Delay start. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Programme chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Changing the programme sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Changing a programme while it is running . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
To cancel a programme. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
To interrupt a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Adding or removing laundry after a programme has started . . . . . . . . . . . . . . . . 20
Electronic system lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Emptying the condensed water container. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Cleaning the fluff filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Cleaning them whilst dry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Cleaning them with water . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Cleaning the tumble dryer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Cleaning the condenser unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Removing the condenser unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Checking the condenser unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Cleaning the condenser unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Replacing the condenser unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Contents
3

Problem solving guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
General problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Check lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Changing the lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
After Sales service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Future updates (PC). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Appliance guarantee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Optional accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Front view. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Installation site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Transporting the machine to its installation site . . . . . . . . . . . . . . . . . . . . . . . . 37
Building under a continous worktop / in a row of kitchen units . . . . . . . . . . . . 37
Replacing the lid. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Levelling the machine. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Room in which the dryer is located . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Washer - dryer stack. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Before moving the machine again (e.g. when moving house). . . . . . . . . . . . . 38
External condensed water outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Setting up the drain hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Connection to a sink drain outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
If you no longer wish to use an external condensed water outlet . . . . . . . . . . 40
Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Electrical connection U.K. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Consumption data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Programmable functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Altering the residual moisture level in the Cottons programme. . . . . . . . . . . . . . . 46
Altering the residual moisture level in the Synthetics programme. . . . . . . . . . . . . 47
Memory function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Extending the cooling down time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Airways indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Keypad tones. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Contents
4

To avoid the risk of accidents and
damage to the machine please read
these instructions carefully before
using it for the first time. They
contain important information on its
safety, installation, use and
maintenance.
Keep these instructions in a safe
place and ensure that new users are
familiar with the content. Pass them
on to any future owner of the
machine.
Correct use
The tumble dryer is only intended
for drying fabrics which have been
washed in a water solution, marked on
the manufacturer's care label as being
suitable for tumble drying.
"Dry cleaning kits" for freshening up
garments in a tumble dryer are
increasingly available on the market. If
using, do so at your own risk, and
follow the instructions provided on the
packaging.
Any other applications may be
dangerous. The manufacturer is not
liable for damage resulting from
improper use or operation.
Technical safety
Before setting up the machine,
check it for any externally visible
damage.
Do not install or use a damaged
machine.
Before connecting the machine,
ensure that the connection data on
the data plate (voltage and connected
load) match the mains electricity
supply. If in any doubt, consult a
qualified electrician.
The electrical safety of this
machine can only be guaranteed
when continuity is complete between it
and an effective earthing system which
complies with local and national
regulations. It is most important that this
basic safety requirement is present and
regularly tested, and where there is any
doubt the household wiring system
should be inspected by a qualified
electrician. The manufacturer cannot be
held liable for the consequences of an
inadequate earthing system (e.g.
electric shock).
Do not connect the appliance to
the mains electricity supply by an
extension lead. Extension leads do not
guarantee the required safety of the
appliance (e.g. danger of overheating).
Warning and Safety instructions
5

The machine is built in accordance
with current safety requirements.
Unauthorised repairs could result in
unforeseen dangers for the user, for
which the manufacturer cannot accept
liability. Repairs should only be
undertaken by a Miele approved
technician.
Ensure current is not supplied to the
machine until after maintenance or
repair work has been carried out.
Faulty components must only be
replaced by genuine Miele original
spare parts. Only when these parts are
fitted can the safety standards of the
machine be guaranteed.
If the connection cable is faulty it
must only be replaced by a Miele
approved service technician to protect
the user from danger.
In countries where there are areas
which may be subject to infestation
by cockroaches or other vermin, pay
particular attention to keeping the
machine and its surroundings in a
clean condition at all times. Any
damage which may be caused by
cockroaches or other vermin will not be
covered by the machine guarantee.
Warning and Safety instructions
6

In the event of a fault or for
cleaning purposes, the machine is
only completely isolated from the
electiricty supply when:
–it is switched off at the wall socket
and the plug is withdrawn, or
–it is switched off at the mains, or
–the mains fuse is withdrawn.
Operation
This equipment may only be used
in mobile installations such as
ships, caravans, aircraft etc. if a risk
assessment of the installation has been
carried out by a suitably qualified
engineer.
The dryer must not be used without
the fluff filters in place or if the fluff
filters are damaged in any way.
The fluff filters must be thoroughly
dried after cleaning. If they are still
damp or wet when replaced there is a
risk of faults occurring when the
machine is used.
The dryer must not be used without
the condenser unit in place.
Do not install the machine in a
room where there is a risk of frost
occurring. At temperatures around
freezing point the machine may not be
able to operate properly.
There is a risk of damage if the
condensed water is allowed to freeze in
the pump, hoses and / or condensed
water container.
The ambient room temperature should
be between +2°C and +35°C.
If the water is drained externally
through the drain hose instead of
being collected in the condensed water
container, make sure the drain hose is
securely attached if you hang it in a
sink or basin to avoid the hose slipping
and the water causing damage.
Condensed water is not drinking
water. It can cause health
problems in both people and animals.
Always keep the area around the
machine free of dust and fluff. Dust
drawn into the machine can, over time,
cause blockages in the condenser unit.
Warning and Safety instructions
7

To prevent the risk of fire the
following textiles must not be
dried in this machine:
–fabrics which contain a large
proportion of rubber, foam rubber or
rubber like materials.
–items which contain padding or
fillings (e.g. pillows, jackets).
–items which have been treated with
inflammable cleaning agents.
–items which have been splashed with
hair lacquer, hair spray, nail varnish
remover or similar substances.
– items which have been soiled with
oils or residues containing grease
(kitchen oils, cosmetics etc.).
– items soiled with wax or other
chemicals (e.g. mops and floor
cloths).
– items which have not been
thoroughly cleaned and which are
still soiled with grease or oil, e.g.
workwear. Such clothing may require
a heavy duty detergent to get them
clean. If necessary consult the
detergent manufacturer for advice.
Do not let anyone sit or lean on the
door, as this can cause the
machine to tip up.
Always close the door after use.
This way you will avoid the danger
of:
–children climbing onto or into the
dryer or hiding things in it.
–pets or other small animals climbing
into it.
Safety with children
This machine is not a toy. To avoid
the risk of injury keep children
away from the machine at all times and
supervise them whilst you are using it.
Do not allow children to play on or near
it or to play with its controls. Supervise
its use by the elderly or infirm.
Using accessories
Accessory parts may only be fitted
when expressly approved by Miele.
If non-Miele parts are used with this
machine, guarantee, performance and
product liability claims may be
invalidated.
Disposal of your old machine
Before discarding an old machine,
switch it off at the wall socket and
unplug it. Render the plug useless and
cut off the cable directly behind the
machine. This should be done by a
competent person.
The manufacturer cannot be held
liable for damage caused by
non-compliance with these Warning
and Safety instructions.
Warning and Safety instructions
8

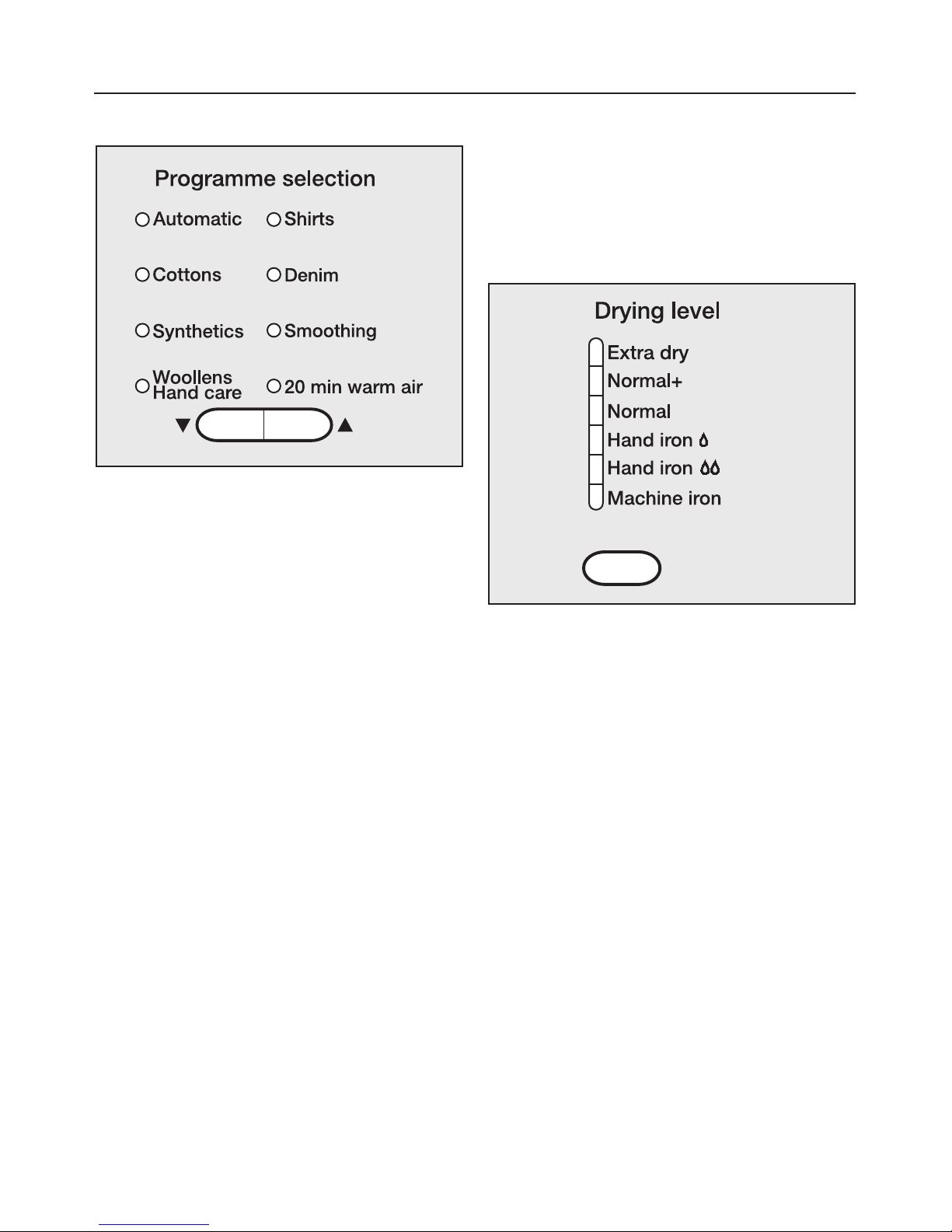

Control panel
aPROGRAMME buttons e-
with indicator lights
For selecting a drying programme.

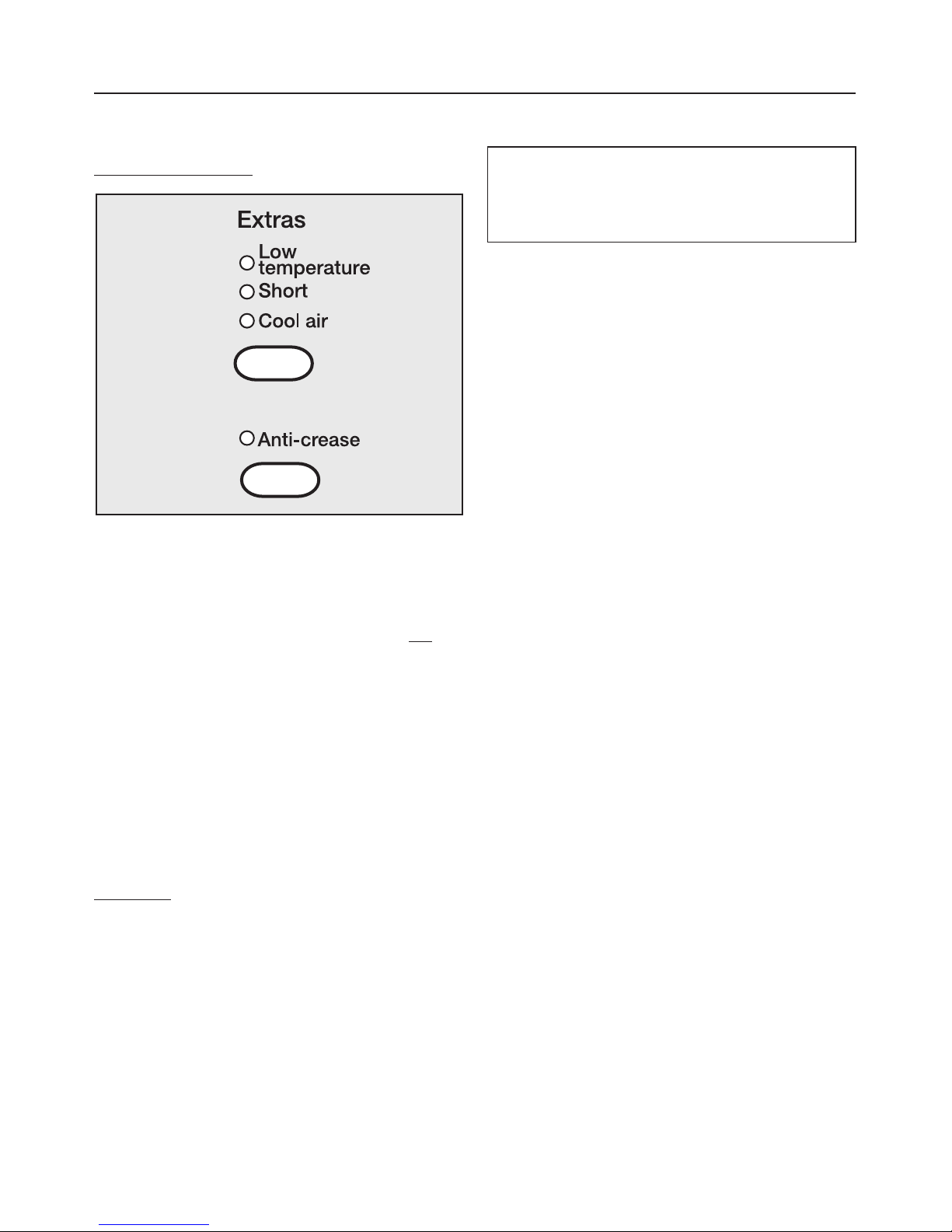

bExtra option buttons
with indicator lights
Various extra options can be added
to the drying programmes.
cDrying level button
with indicator lights
For selecting the drying level.
dDrying sequence indicator lights
Show which stage the programme is
at.
eBuzzer button
An audible tone sounds at the end of
the programme.
fCheck lights
These indicator lights have various
functions. See Problem solving
guide.
gStart/Stop button
For starting the programme selected
and cancelling a programme once it
has started.
The indicator light flashes while a
programme is being selected and
then is on constantly when the
programme has started.
Pressing this button while drying is in
progress will cancel the programme.
hDelay start button
You can delay the start of a
programme (by up to 24 hours).
The indicator light flashes while the
delay start time is being selected,
and is on constantly after it has
begun.
iDoor button
Pressing this button will open the
door, even if the machine is switched
off at the mains.
jI-On/0-Off button
For switching the dryer on and off.
kDisplay
The display fulfills several functions.
See next page for details.
Guide to the machine
9

Features
Display
The display shows:
–the programme duration (time
remaining);
–the delay start time;
–check messages;
–programmable functions.
Estimated time remaining
When a programme is selected the
estimated duration (time remaining) will
appear in the display. Please be aware
that it is only an estimate!
The following factors all affect the
estimated time remaining: Residual
moisture content after spinning; type of
fabric; size of load; room temperature;
fluctuations in power supply.
The electronics continually assess
conditions in the machine and adjust
the estimated time remaining for a more
accurate reading. Because of this the
time displayed can alter during the
course of a programme.
In the same way, the
Woollens hand
care
and Smoothing programmes can
finish earlier than expected if a certain
temperature is reached. This can
happen with particularly fine fabrics or
if items were partly dry beforehand.
Buttons and check lights
The relevant indicator light comes on
each time a button is pressed.
PC / Optical interface
The indicator light marked PC can be
used by Miele Service technicians as
an optical interface to update your
machine in future years.
Electronic system lock
–Prevents the machine being used
without your knowledge.
Programmable functions
– For changing the standard settings.
Drum lighting
If the dryer is switched on, the drum
lighting will come on when the door is
opened. It will go out after a short while
if the door is left open to save energy.
Guide to the machine
10
