Miele T 430 User manual

Operating instructions
for vented tumble dryer
T 430
It is essential to read these opera-
ting instructions before installing or Q\
using the machine to avoid the risk
of accident, or damage to the
machine. M.-Nr. 0457 710
All manuals and user guides at all-guides.com
all-guides.com

Contents
Guide to the appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
For the user
Warning and safety instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Notes on laundry care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Loading and unloading washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Programme selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Programmes for Cottons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Programmes for Minimum iron and timed drying . . . . . . . . . . . . . . . . . . . . . . . . . 12
Consumption data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Problem solving guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
For the installer/electrician
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Installation - venting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Help to protect our environment!
Disposal of the packing material
The packaging used to protect the machine during transport largely consists of
the following recyclable materials:
- Corrugated paper/card
- Polystyrene - CFC-free
- Polyethylene foil - transparent
- Fibreboard (solvent free)
- Untreated wood
- Packaging straps: Polyamide (blue), Polypropylene (black)
Rather than just throwing these materials away please take them to the nearest col-
lection point for specific waste.
Disposal of your old appliance
Old appliances contain materials which can be recycled. Please contact your
local authorities or scrap merchant about potential recycling schemes, before dis-
posing of the appliance.
2
All manuals and user guides at all-guides.com

Guide to the appliance
1 a.c. connection cable (2 m long) with plug
2 Control panel
3 Drum door
4 Exhaust connection rear, right and left
5 Height-adjustable screw feet
3
All manuals and user guides at all-guides.com

Guide to the appliance
Pushbuttons
Door
opens the door
On/Off
for switching the appliance on and off.
Low temperature
low temperatures for delicate fabrics,
e.g. acrylics.
Buzzer
sounds when the drum turns during the
intermittent anti-crease action period.
Start
starts a drying programme
Programme sequence indicator lights
On
Drying
Cooling down
Anti-crease/Finish
Programme selector switch
Cottons
Extra dry
Normal+
Normal
Hand iron r
Hand iron rr
Machine iron
Minimum iron
Normal+
Normal
Hand iron
Timed drying
15 mins cool air
20 mins warm air
Drying stage display
This shows the stage of drying
reached. For programmes “Normal +”
and “Extra dry” the indicator light re-
mains at the “Normal” position.
4
All manuals and user guides at all-guides.com

Guide to the appliance
Environmentally conscious
drying
The sensitive system automatically ad-
justs drying to suit the water quality.
The water conductivity is measured,
and registered by the control which
then compensates to achieve a uniform
residual moisture level. The Novotronic
control offers programmes with elec-
tronic moisture measuring and 2 timed
programmes. The automatic reversing
action turns the drum clockwise and
anti-clockwise to loosen the laundry
and prevent damp patches and thus to
ensure even drying results.
Energy saving tips
Make sure that your laundry is thor-
oughly spun before drying. You will
save up to 35% energy and time if
laundry is spun at full spin speed in-
stead of at 600 rpm.
Load according to the optimum amount
of washing for the programme to be se-
lected. Underloading is uneconomical.
Overloading gives a poorer quality of
drying and may cause unnecessary
creasing.
Before using for the first time
Important:
The appliance must be properly in-
stalled and connected to the elec-
tricity supply.
5
All manuals and user guides at all-guides.com

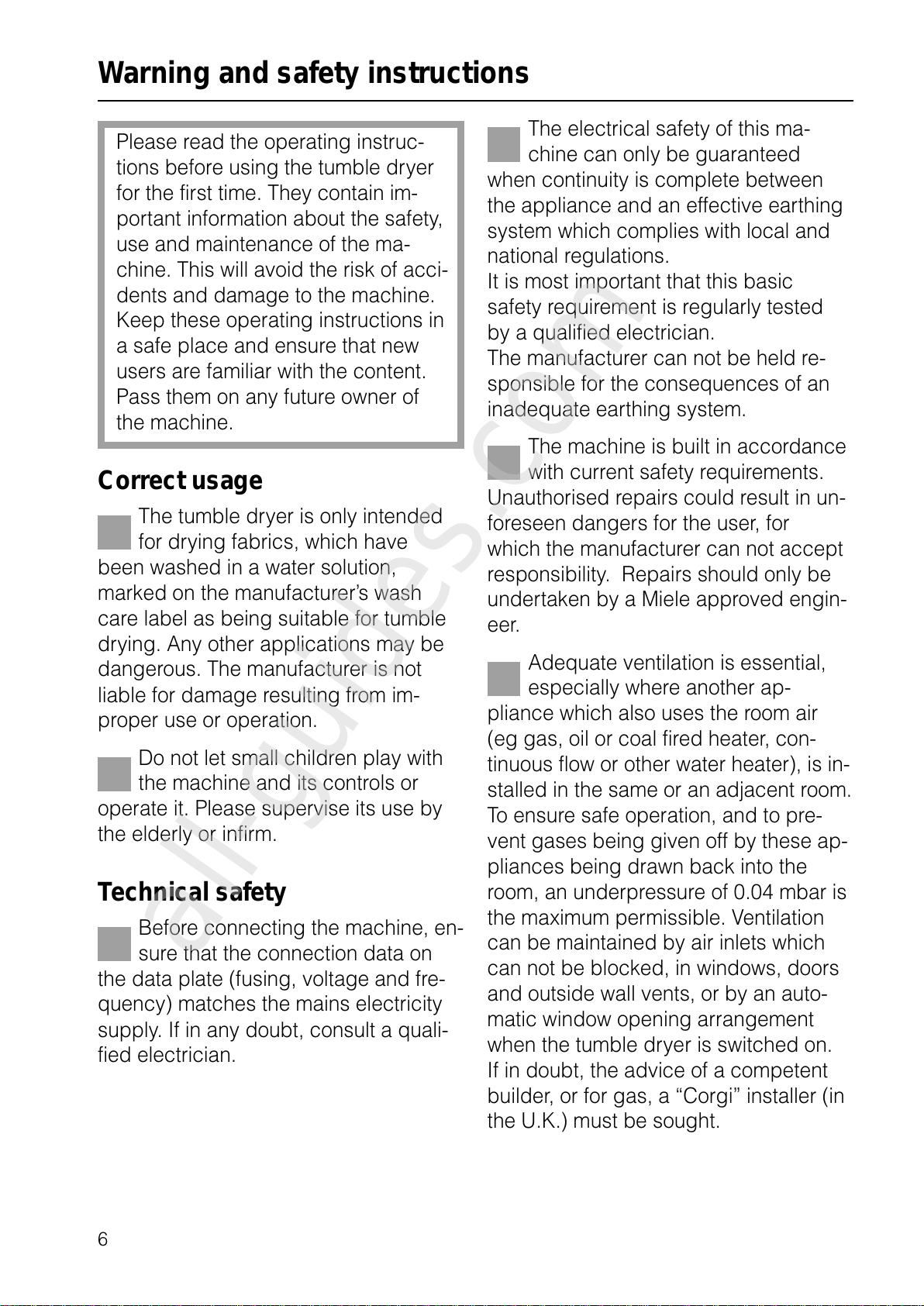

Warning and safety instructions
Please read the operating instruc-
tions before using the tumble dryer
for the first time. They contain im-
portant information about the safety,
use and maintenance of the ma-
chine. This will avoid the risk of acci-
dents and damage to the machine.
Keep these operating instructions in
a safe place and ensure that new
users are familiar with the content.
Pass them on any future owner of
the machine.
Correct usage
The tumble dryer is only intended
for drying fabrics, which have
been washed in a water solution,
marked on the manufacturer’s wash
care label as being suitable for tumble
drying. Any other applications may be
dangerous. The manufacturer is not
liable for damage resulting from im-
proper use or operation.
Do not let small children play with
the machine and its controls or
operate it. Please supervise its use by
the elderly or infirm.
Technical safety
Before connecting the machine, en-
sure that the connection data on
the data plate (fusing, voltage and fre-
quency) matches the mains electricity
supply. If in any doubt, consult a quali-
fied electrician.
The electrical safety of this ma-
chine can only be guaranteed
when continuity is complete between
the appliance and an effective earthing
system which complies with local and
national regulations.
It is most important that this basic
safety requirement is regularly tested
by a qualified electrician.
The manufacturer can not be held re-
sponsible for the consequences of an
inadequate earthing system.
The machine is built in accordance
with current safety requirements.
Unauthorised repairs could result in un-
foreseen dangers for the user, for
which the manufacturer can not accept
responsibility. Repairs should only be
undertaken by a Miele approved engin-
eer.
Adequate ventilation is essential,
especially where another ap-
pliance which also uses the room air
(eg gas, oil or coal fired heater, con-
tinuous flow or other water heater), is in-
stalled in the same or an adjacent room.
To ensure safe operation, and to pre-
vent gases being given off by these ap-
pliances being drawn back into the
room, an underpressure of 0.04 mbar is
the maximum permissible. Ventilation
can be maintained by air inlets which
can not be blocked, in windows, doors
and outside wall vents, or by an auto-
matic window opening arrangement
when the tumble dryer is switched on.
If in doubt, the advice of a competent
builder, or for gas, a “Corgi” installer (in
the U.K.) must be sought.
6
All manuals and user guides at all-guides.com
all-guides.com

Warning and safety instructions
In the event of a fault or for clean-
ing purposes, the machine is only
completely isolated from the electricity
supply either when:
– the plug is withdrawn, or
– it is switched off at the mains
– the mains fuse is withdrawn.
Faulty components must only be
exchanged for Miele original spare
parts. Only when these parts are fitted
can the safety standards of the ma-
chine be guaranteed.
Use
There is a danger of fire with fab-
rics, which:
– contain rubber, foam rubber or rub-
ber-like materials
– have been treated with inflammable
cleaning agents
– have been splashed with hair lac-
quer, hair spray, nail varnish remover
or similar.
Always close the door after use.
This way you will avoid the danger
of anyone sitting or leaning on the door,
which can cause the machine to tip up.
Vented dryers must be installed
with a suitable venting system. If
the machine is not correctly ducted it
will draw damp exhaust air back into
the drum, increasing running time and
energy consumption quite consider-
ably. If moist air is passed back into the
room this may lead to long-term dam-
age of walls.
Do not install the machine in a
room where the temperature may
drop below freezing. At very cold tem-
peratures the machine may be difficult
to start. Laundry will not dry and the
"anti-crease"-indicator will flash to indi-
cate a problem.
The exhaust air must not be
vented into a chimney or vent flue
which is in use. Neither should it be
connected to ducting which ventilates
rooms with fireplaces.
It would be dangerous if smoke or ex-
haust fumes were drawn back into the
room.
Using accessories
Accessory parts may only be fitted
when expressly approved by
Miele. If other parts are used, guaran-
tee, performance and product liability
claims may be invalidated.
Disposing of your old machine
Before discarding an old machine
unplug it. Render the plug useless.
Cut off the cable directly behind the ap-
pliance to prevent misuse.
7
All manuals and user guides at all-guides.com

Notes on laundry care
Before drying, check the drying symbol
on the textile care label.
Significance of symbols:
q = Dry at normal temperature
r = Dry at low temperature
s = Do not tumble dry
If no symbol is featured dry at your own
risk applying the following principles:
– Cottons and minimum iron items
should be dried at a normal tempera-
ture at the appropriate programme
setting.
– For delicate fabrics, e.g. acrylic
fibres, the low temperature setting
should be selected.
The following fabrics should not be
dried in a tumble dryer:
– Woollens and wool blends
These fabrics tend to become
matted and shrink.
– Items filled with down
The fine fabric interior tends to
shrink, depending on the quality in-
volved.
– Pure linen
These items should only be machine-
dried if specified as suitable by the
manufacturer on the textile care
label, as the surface of the fabric
may otherwise tend to “roughen”.
Note
Some woven and loopknit materials
tend to shrink to varying extents de-
pending on their quality. This tendency
is exaggerated by over-drying.
When purchasing woven materials, it is
advisable to take their shrinkage
properties into account.
Starched washing can also be dried in
the tumble dryer. In order to achieve
the usual finish, double the amount of
starch should be used.
Select the most suitable programme for
hand or machine ironing.
Minimum iron items should be spun for
10 to 30 seconds before being tumble
dried. Such fabrics tend to crease if
overdried. These items should be given
only a short period in the dryer, and
taken out slightly damp. The “Minimum
iron Normal” programme is recom-
mended.
Minimum iron shirts in 100 % cotton
may crease during tumble drying de-
pending on the quality and weave.
Minimum iron fabrics tend to crease
more, the greater the load. This is par-
ticularly true of very delicate fabrics.
The load should be reduced to 1.5 kg
or, if necessary, to 1 kg. The “Hand
iron” setting is recommended for these
types of garment. In extreme cases do
not tumble dry these garments.
Dark-coloured garments should be
dried separately from light-coloured
garments.
8
All manuals and user guides at all-guides.com

Loading the machine Unloading the machine
Load the laundry very loosely into the
drum.
Duvet covers and pillowcases should
be fastened before drying in order to
prevent small items from being rolled in-
side them.
Important: Please check that items
of laundry cannot be trapped by the
door as this will cause damage to
the fabric.
At the end of the programme remove
the washing from the machine. If this is
not done, the machine automatically
proceeds into an intermittent anti-
crease action for 60 minutes. This en-
tails the drum being rotated at short in-
tervals in order to reduce the possibility
of the formation of creases.
Once the laundry has been removed,
check that the drum is empty. Any
items left in the drum could be dam-
aged through overdrying in the next
programme.
Clean the fluff filter after each drying
cycle to prevent excessive energy con-
sumption and longer programme run-
ning times.
The door should always be closed after
use.
All manuals and user guides at all-guides.com

Programme selection
Selecting a programme
This tumble dryer is fitted with an elec-
tronic sensor system. The required de-
gree of dryness is measured and moni-
tored electronically so that the heating
element is switched off as soon as it is
reached. The drying cycle automat-
ically finishes with a cooling down
period. This may be followed by the
anti-crease action cycle.
The following drying programmes are
available:
Cottons
six drying levels from “Extra dry” to
“Machine iron”
Minimum iron
three drying levels from “Normal+” to
“Hand iron”
Timed drying
15 mins cool air and 20 mins warm air
Low temperature
By selecting “Low temperature” the
temperature can be lowered for deli-
cate fabrics (e.g. acrylic).
Correct procedure:
Press the "ON/OFF" button.
Press the "Door" button.
Open the door and load the drum.
Close the door.
Select a programme by turning the
selector switch clockwise or anti-
clockwise.
Select “Low temperature” if required.
Press “Start”.
After drying:
Turn the programme selector switch
to “Finish”.
Switch the machine off.
Clean the fluff filter.
Opening the door during a pro-
gramme
If the door is opened during a pro-
gramme the programme will have to be
started again:
Close the door.
Press “Start”.
The selected programme restarts.
The programme is not continued if:
– There is a power failure lasting more
than 30 minutes.
– The programme has already
reached the “Cooling down” or “Anti-
crease” stage.
To reselect a different pro-
gramme during drying:
Set the programme selector switch
to the required programme.
The new programme starts from the be-
ginning.
To cancel a programme
Turn the programme selector switch
to “Finish”.
10
All manuals and user guides at all-guides.com

Programmes - Cottons
Extra dry
Multi-layer fabrics which would not be
thoroughly dried using the “Normal +”
programme.
max. 5 kg
Note:
Jerseywear tends to shrink depending
on the quality and type of manufactur-
ing involved. The “Extra dry” pro-
gramme should therefore not be se-
lected for these fabrics.
Normal+
Mixed load of cotton fabrics, e.g. towell-
ing and jerseywear, i.e. single-layer
and multi-layer fabrics.
max. 5 kg
Normal
Homogeneous loads of cotton fabrics
(jerseywear, flannelette sheets, towel-
ling).
max. 5 kg
Note:
Should certain items still be slightly
damp, select the “Normal + pro-
gramme”.
Hand iron rr
Cotton or linen fabrics, e.g. table linen,
bedding, starched laundry, etc.
max. 5 kg
Note:
If fabrics are too damp for hand-iron-
ing, please select the “Hand iron r”
programme.
Machine iron
Cotton or linen fabrics, including star-
ched laundry, for machine-ironing.
max. 5 kg
Note:
The laundry should be rolled up to pre-
vent it from drying out until it can be
ironed.
11
All manuals and user guides at all-guides.com
all-guides.com

Programmes - Minimum iron and timed drying
Normal +
Minimum iron items made of synthetics
or blended fabrics, e.g. pullovers,
dresses, trousers, etc., which are not
dried adequately in the “Normal” pro-
gramme.
max. 2,5 kg
Normal
Minimum iron shirts, table cloths, etc.,
made of blended woven or knitted fab-
rics, e.g. cotton/synthetics.
max. 2,5 kg
Hand iron
Minimum iron shirts, table cloths, etc.
made of blended woven or knitted fab-
rics, e.g. cotton/synthetics, which are
still to be hand-ironed.
max. 2,5 kg
Note for all three programmes:
With blended fabrics consisting of wool
and synthetics, consult the manufac-
turer’s instructions, as the wool compo-
nent may become matted.
15 minutes cool air
Items which are only to be aired.
max. 5 kg
20 minutes warm air
Individual items, e.g. bathing towels,
bathing trunks.
12
All manuals and user guides at all-guides.com

Consumption data
Drying stage Capacity
(kg)
Final spin speed in
a domestic
washing machine
(rpm)
Electricity
consumption
(kWh)
Drying time incl.
cooling down time
(mins)
Cottons
Extra dry 5 1200
1400
1550
3.32
3.16
3.06
71
68
66
Normal+ 5 1200
1400
1550
3.06
2. 1
2.81
66
63
61
Normal 5 1200
1400
1550
2.78
2.63
2.54
61
5
56
Hand iron rr 51200
1400
1550
2.02
1.88
1.7
47
44
43
Machine iron 5 1200
1400
1550
1.5
1.46
1.36
3
36
35
Minimum iron
Normal+ 2.5 1000 1.48 37
Normal 2.5 1000 1.24 33
Hand iron 2.5 1000 1.07 2
All consumption data have been obtained through standard tests (EN 61121/A11).
Different types of fabric, the load and residual moisture after spinning may affect the figures
given.
13
All manuals and user guides at all-guides.com

Cleaning and care
The fluff which occurs during drying is
collected in the fluff filter in the door.
Clean the filter after every pro-
gramme to save time and energy.
Grip the filter by the recessed
handle and pull upwards to clean.
Remove any remaining fluff from the
hollow part of the door through the
wide slit at the bottom.
The filter can rinsed with water if
necessary.
Dry the filter before putting it back in
place.
Before cleaning the tumble dryer: Al-
ways disconnect the machine from
the power supply.
The dryer can be cleaned with a
cloth using soapy water or a mild
detergent (not scouring powder) and
dried with a soft cloth.
The drum may be cleaned using a
suitable proprietary stainless steel
cleaner following the manufactu-
rer’s instructions.
Do not use abrasive cleaners, or
glass or all-purpose cleaners.
These might cause damage to the
plastic surfaces because of the
chemicals they contain.
The machine must never be hosed
down.
14
All manuals and user guides at all-guides.com

Problem solving guide
Electrical appliances should only be
repaired by qualified personnel. In-
correctly repaired machines may
pose a considerable risk to the
user.
There are, however, minor faults which
can be corrected without contacting
the Service Department.
The tumble dryer fails to start
when switched on.
Check whether the “On” indicator lamp
lights up. If so, failure to start may be
due to an incorrect selection procedure
sequence when switching on the ma-
chine.
Repeat the switch-on procedure in
the correct sequence (see P. 10).
If the “On” indicator lamp does not light
up, check that
the “On/Off” button is depressed
the door is properly closed
the mains plug is plugged in and the
fuse or circuit breaker has not
tripped.
Laundry is not sufficiently dry.
The load consists of dissimilar items in
terms of size and fabric.
Select a longer drying programme
next time.
Small loads or individual items may
cause the programme to terminate pre-
maturely.
Small loads should therefore be
“time-dried”.
Drying times are too long.
Clean the fluff filter in the door.
The laundry was not spun for a suffi-
ciently long time.
Ventilation is inadequate (e.g. in a small
room).
When the machine is in operation,
open a door or the window.
Items made of synthetic fibres
are charged with static elec-
tricity after drying.
Static charge can be reduced by ad-
ding fabric conditioner during the final
rinse cycle in the washing machine, or
a fabric conditioner sheet in the tumble
dryer.
Formation of fluff
Fluff is principally the result of friction
when items are worn and washed. Ma-
chine-drying hardly causes any fluff to
form and, as has been established by
research institutes, has no effect on the
lifetime of fabrics.
15
All manuals and user guides at all-guides.com

Problem solving guide
The “Anti-crease”indicator
lamp in the sequence indica-
tor display starts flashing.
Release the “On/Off” button and
then press it in again.
Press the“Start” button.
If the indicator lamp starts flashing
again, this indicates a fault in the ma-
chine. Please then contact your Miele
Dealer or the Miele Service Dept.
The drum door opens during
the drying cycle.
The machine has overheated. The tem-
perature limiter opens the drum door
and thus causes the machine to switch
off automatically.
Possible reasons for overheating:
The fluff filter in the door is clogged
up.
The vent duct is blocked.
The vent aperture (e.g. louvred win-
dow vent, wall vent) is blocked.
Before restarting the programme, pro-
ceed as follows:
Clean the affected part of the ma-
chine.
Press the “Start” button.
Should the drum door open again, this
must be due to a technical fault and
the Service Dept. should be contacted.
The interior drum lighting fails
to function.
The bulb may be defective.
Replace it as follows:
Switch off the machine or disconnect
from the mains supply.
Open the door.
Use a 1 mm spanner to unscrew
the plastic cover inside the drum
above the door (see illustration).
The light bulb must not exceed the
maximum wattage quoted on the
data plate and the plastic light cover.
Replace the bulb and the plastic
cover.
The cover must be fixed securely, as
otherwise moisture may seep in and
cause a short-circuit.
The temperature-resistant bulb should
only be ordered from your Miele Dealer
or the Service Dept.
16
All manuals and user guides at all-guides.com
all-guides.com

Problem solving guide After-sales service

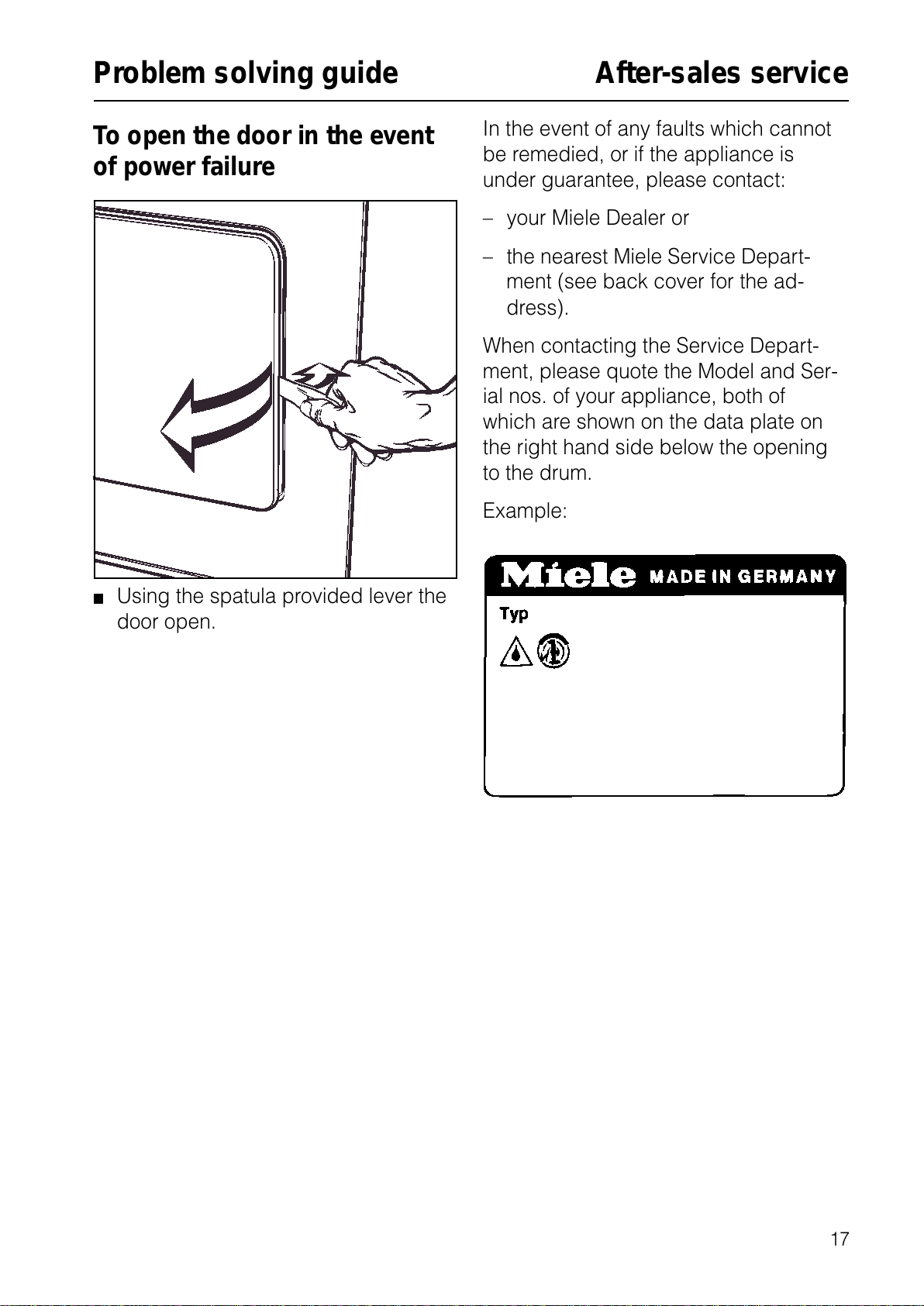

To open the door in the event
of power failure
Using the spatula provided lever the
door open.
In the event of any faults which cannot
be remedied, or if the appliance is
under guarantee, please contact:
– your Miele Dealer or
– the nearest Miele Service Depart-
ment (see back cover for the ad-
dress).
When contacting the Service Depart-
ment, please quote the Model and Ser-
ial nos. of your appliance, both of
which are shown on the data plate on
the right hand side below the opening
to the drum.
Example:
17
All manuals and user guides at all-guides.com

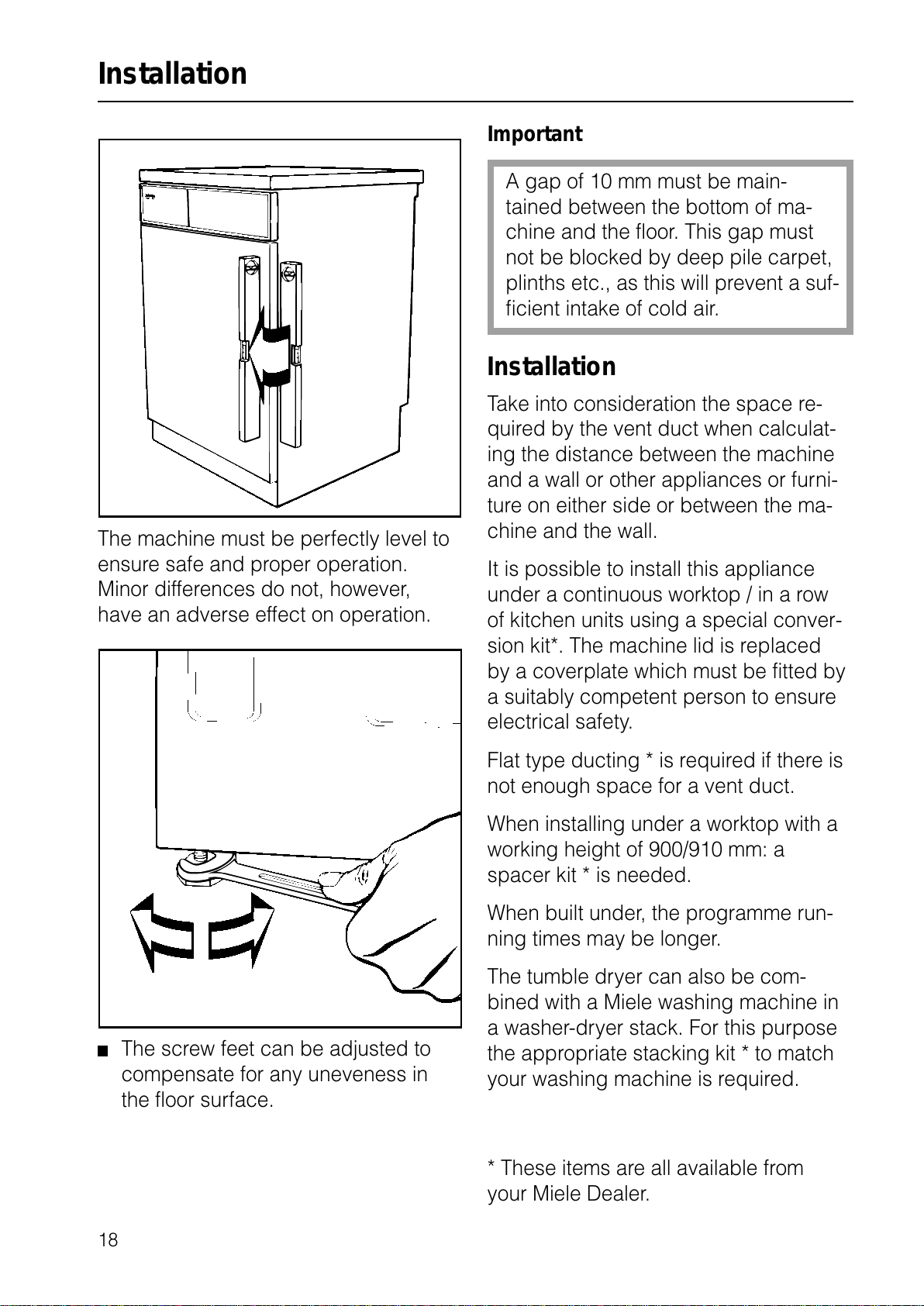

Installation
The machine must be perfectly level to
ensure safe and proper operation.
Minor differences do not, however,
have an adverse effect on operation.
The screw feet can be adjusted to
compensate for any uneveness in
the floor surface.
Important
A gap of 10 mm must be main-
tained between the bottom of ma-
chine and the floor. This gap must
not be blocked by deep pile carpet,
plinths etc., as this will prevent a suf-
ficient intake of cold air.
Installation
Take into consideration the space re-
quired by the vent duct when calculat-
ing the distance between the machine
and a wall or other appliances or furni-
ture on either side or between the ma-
chine and the wall.
It is possible to install this appliance
under a continuous worktop / in a row
of kitchen units using a special conver-
sion kit*. The machine lid is replaced
by a coverplate which must be fitted by
a suitably competent person to ensure
electrical safety.
Flat type ducting * is required if there is
not enough space for a vent duct.
When installing under a worktop with a
working height of 00/ 10 mm: a
spacer kit * is needed.
When built under, the programme run-
ning times may be longer.
The tumble dryer can also be com-
bined with a Miele washing machine in
a washer-dryer stack. For this purpose
the appropriate stacking kit * to match
your washing machine is required.
* These items are all available from
your Miele Dealer.
18
All manuals and user guides at all-guides.com

Installation - venting
The moist air from the dryer must be
vented via a ducting system, or
through direct venting to the outside.
When installing avoid:
– very long venting systems
– too many bends or corners
– tight corners
otherwise . . .
. . . the drying result will be less effective,
. . . it will take longer and use more energy.
Suitable materials for venting pipe-
work:
– galvanised steel piping
– plastic piping
– flexible aluminium piping
Install the venting pipework in such
a way that the expelled air cannot
be drawn into the machine again.
Connection must not be made to a
flue used by gas or solid fuel boilers
or heaters.
An adapter for the venting pipework is
included as a standard accessory. It is
fitted into the vent outlet and enables
simple connection of a flexible pipe.
Before installation disconnect the
tumble dryer from the electrical sup-
ply, (switch off at the wall socket, or
isolate at the mains fuse box).
The venting connection can be made:
– to the rear or
– to the left or right side of the machine
Installation to the rear
The machine is supplied with the con-
nection at the rear open.
Installation to the left or right side of
the machine
Each side venting connection has a
framed cover cap.
Only the cover cap should be
removed, and not the frame.
Use the cover cap to close the rear
outlet.
Fit the venting pipework.
1
All manuals and user guides at all-guides.com

Installation - venting

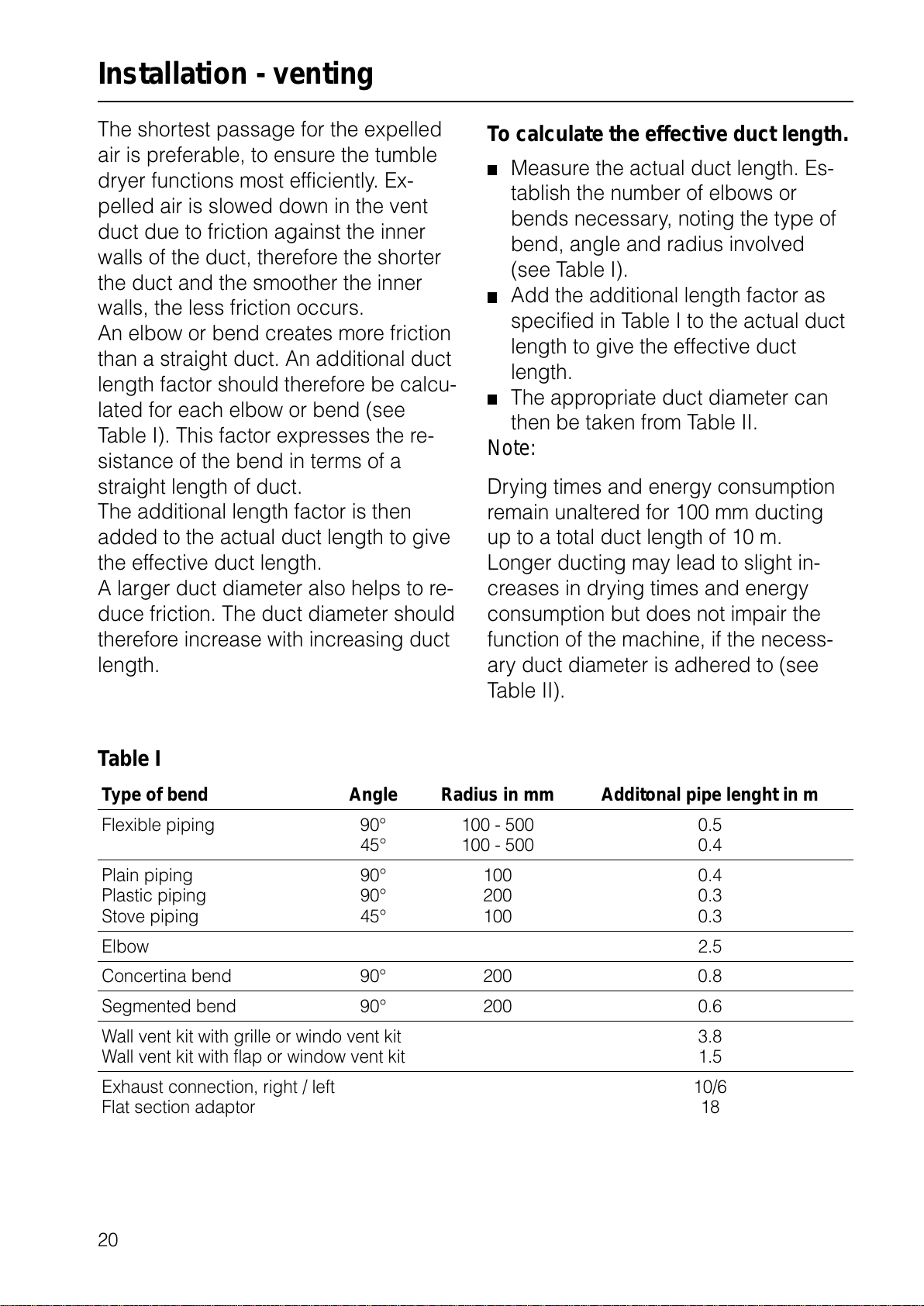

The shortest passage for the expelled
air is preferable, to ensure the tumble
dryer functions most efficiently. Ex-
pelled air is slowed down in the vent
duct due to friction against the inner
walls of the duct, therefore the shorter
the duct and the smoother the inner
walls, the less friction occurs.
An elbow or bend creates more friction
than a straight duct. An additional duct
length factor should therefore be calcu-
lated for each elbow or bend (see
Table I). This factor expresses the re-
sistance of the bend in terms of a
straight length of duct.
The additional length factor is then
added to the actual duct length to give
the effective duct length.
A larger duct diameter also helps to re-
duce friction. The duct diameter should
therefore increase with increasing duct
length.
Table I
To calculate the effective duct length.
Measure the actual duct length. Es-
tablish the number of elbows or
bends necessary, noting the type of
bend, angle and radius involved
(see Table I).
Add the additional length factor as
specified in Table I to the actual duct
length to give the effective duct
length.
The appropriate duct diameter can
then be taken from Table II.
Note:
Drying times and energy consumption
remain unaltered for 100 mm ducting
up to a total duct length of 10 m.
Longer ducting may lead to slight in-
creases in drying times and energy
consumption but does not impair the
function of the machine, if the necess-
ary duct diameter is adhered to (see
Table II).
Type of bend Angle Radius in mm Additonal pipe lenght in m
Flexible piping 0°
45° 100 - 500 100 - 500 0.5 0.4
Plain piping
Plastic piping
Stove piping
0°
0°
45°
100
200
100
0.4
0.3
0.3
Elbow 2.5
Concertina bend 0° 200 0.8
Segmented bend 0° 200 0.6
Wall vent kit with grille or windo vent kit
Wall vent kit with flap or window vent kit 3.8 1.5
Exhaust connection, right / left
Flat section adaptor 10/6 18
20
All manuals and user guides at all-guides.com
