Miele KM 411 User manual

Operating instructions
Open Grill
KM 411
KM 411-3
To avoid the risk of accidents or
damage to the appliance it is
essential to read these
instructions before it is installed
and used for the first time. M.-Nr. 05 689 710
en-GB

Guide to the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
KM411...........................................................3
KM 411-3 .........................................................4
Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Caring for the environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Before using for the first time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
General notes ....................................................11
Cleaning and heating up for the first time ...............................11
Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Switching on and off ...............................................12
Safety cut-out.....................................................12
Before grilling.....................................................13
Grilling ..........................................................14
Safety cut-out.....................................................16
After grilling ......................................................16
Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
General notes ....................................................17
E-Cloth ..........................................................17
Rack, Lava rock container, Heating element.............................18
Lava rocks .......................................................18
Grill trough .......................................................19
Stainless steel surround.............................................20
Control panel .....................................................20
Problem solving guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Electrical connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Data plate .......................................................24
Contents
2

KM 411
aGrill rack
bHeating element (can be raised up;
rating 2800 W)
cLava rocks
dLava rock container
eOperating indicator light
fDrain tap
gControl
hGrill trough
iMains connection cable
jPlug
Depending on country of destination,
the appliance may be supplied with
or without a plug. The plug shown is
for illustration only.
Guide to the appliance
3

KM 411-3
aGrill rack
bHeating element (can be raised up;
rating 2800 W)
cLava rocks
dLava rock container
eDrain tap
fControl
gGrill trough
hMains connection cable
iPlug
Depending on country of destination,
the appliance may be supplied with
or without a plug. The plug shown is
for illustration only.
Guide to the appliance
4

The use of the appliance by the
elderly or infirm or those who have
not used the appliance before
should be supervised by a
competent and responsible person
to avoid the risk of injury.
This appliance complies with all
relevant legal safety requirements.
Incorrect use can, however, lead to
personal injury and damage to the
appliance.
To avoid the risk of accidents and
damage to the appliance, read
these instructions carefully before
using it for the first time. They
contain important notes on the
installation, safety, operation and
care of the appliance.
Keep these instructions in a safe
place for reference and pass them
on to any future user.
Building in and connection
If the appliance is supplied without a
plug, or if the plug is removed, it must
be connected to the mains electricity
supply by a suitably qualified and
competent person in strict accordance
with current local and national safety
regulations. The manufacturer cannot
be held liable for damage caused by
incorrect installation or connection.
~The electrical safety of this
appliance can only be guaranteed
when continuity is complete between it
and an effective earthing system which
complies with current local and national
safety regulations. It is most important
that this basic safety requirement is
present and tested regularly, and
where there is any doubt, the
household wiring system should be
inspected by a qualified electrician.
The manufacturer cannot be held liable
for the consequences of an inadequate
earthing system (e.g. electric shock).
~Do not connect the appliance to the
mains electricity supply by an extension
lead. Extension leads do not guarantee
the required safety of the appliance
(e.g. danger of overheating).
~This equipment may only be used in
mobile installations such as ships,
caravans, aircraft etc. if a risk
assessment of the installation has been
carried out by a suitably qualified
engineer.
Warning and Safety instructions
5

A cooker hood above the grill
~This appliance should not be used
in conjunction with a hood that uses
paper or carbon filters.
~The open grill should not be used
with a recirculating cooker hood.
~When placing this appliance below
an extractor, the outlet system of the
extractor must be metallic throughout
its length and heat proof.
~The extractor outlet ducting must
comply with national and local building
regulations.
~Should any additional mechanical
ventilation be present then the effect of
this additional ventilation on the
combustion and flame performance of
any existing appliances must be
determined before any cooking
appliances are used.
~Distance from the grill to the hood
should be no less than 650 mm.
~All fat filters in the extractor must be
cleaned regularly. Fat build up in the
filter is a potential fire hazard.
~Your Miele sales agent or the Miele
technical service department will be
pleased to provide information on the
correct installation of any Miele
appliance.
Correct usage
~For safety reasons this appliance
must only be operated after it has been
built in. This is necessary to ensure that
all electrical components are shielded.
~This appliance is intended for
domestic use only and is not to be used
for commercial purposes.
~Use this appliance for the
preparation of food only. Any other
usage is at the owner's risk and could
be dangerous. The manufacturer
cannot be held liable for damage
caused by incorrect or improper use of
the appliance.
~Do not use the appliance to heat up
the room and never switch it on with the
heating element in the raised position.
Due to the high temperatures radiated,
objects near the appliance could catch
fire. The life of the appliance could also
be reduced.
~This appliance must not be set up or
operated in the open air
~When using the grill, the grill trough
must always be filled with water.
Warning and Safety instructions
6

Safety with children
~The appliance is only intended for
use by adults who have read these
operating instructions.
~This appliance is not a toy! To avoid
the risk of injury keep children well
away and do not let them play with it or
use the controls. They will not
understand the potential dangers
posed by it. They should be supervised
whenever you are working in the
kitchen.
~Older children may use the
appliance only when its operation has
been clearly explained to them, and
they are able to use it safely,
recognising the dangers of misuse.
Supervise its use by the elderly or
infirm.
~The appliance gets hot when in use
and remains hot for quite a while after
being switched off. To safeguard
against burning, keep children well
away from the appliance at all times.
~Do not store anything which might
arouse a child's interest in storage
areas above or next to the appliance.
Otherwise they could be tempted into
climbing onto the appliance with the
risk of burning themselves.
~To prevent the risk of children
burning themselves with potentially hot
fat or oil please make sure that they
cannot access the drain tap and open
it.
~Packaging, e.g. cling film,
polystyrene and plastic wrappings must
be kept out of the reach of babies and
young children. Danger of suffocation.
Dispose of or recycle all packaging
safely as soon as possible.
~Old appliances must be
disconnected from the power supply,
any plug rendered useless and the
cable cut off directly behind the
appliance to ensure it presents no
danger to children while being stored
for disposal.
Warning and Safety instructions
7

Protecting the appliance from
damage
~When grilling or keeping food warm,
do not use pots and pans or similar on
the open grill and never cover the rack
(e.g. with aluminium foil) or use
disposable aluminium foil containers.
The resulting build-up of heat could
damage the rack.
~Do not drop anything on the glass
surface. Even a light object could
cause damage in certain
circumstances.
~Do not use a steam cleaner to clean
this appliance. The steam could reach
electrical components and cause a
short circuit. Pressurised steam could
also cause permanent damage to the
surface and to other components, for
which the manufacturer cannot accept
liability.
~KM 411-3
Take care when cleaning the control
panel. It is susceptible to scratching
and acidic agents. To prevent the risk
of residual marks please wipe any
soiling off as soon as possible.
~In countries where there are areas
which may be subject to infestation by
cockroaches or other vermin, pay
particular attention to keeping the
appliance and its surroundings in a
clean condition at all times. Any
damage which may be caused by
cockroaches and other vermin will not
be covered by the appliance
guarantee.
Protection from burning and
scalding
~Never leave the grill unattended
while grilling is taking place.
Overheated oil or residues of food or fat
on the lava rocks could flare up and
even set the cooker hood alight.
~Should anything catch fire despite
this do not attempt to put the flames out
with water. Instead extinguish the
flames using a suitable fire blanket,
damp towel or similar to smother the
flames.
~For added protection, it is advisable
to use heat-resistant pot holders or
gloves when using the appliance. Do
not let them get damp or wet, as this
causes heat to transfer through the
material more quickly with the risk of
burning yourself.
~Do not use the appliance as a
resting place for anything else. This
could lead to a danger of the article
beginning to melt or catching fire, if
residual heat were still present or if the
appliance was switched on by mistake.
~Do not cover the appliance, e.g.
with a cloth, kitchen foil, etc. This could
be a fire hazard if the appliance was
switched on by mistake.
~Clean the lava rocks regularly and
replace them when necessary. Rocks
which are saturated catch fire easily.
The grill trough and the lava rock
container should be cleaned after each
use to keep them free of oil and fat.
Warning and Safety instructions
8

Appliance faults
~In the event of damage or a defect,
switch off the appliance immediately.
Disconnect completely from the
electricity supply. If the appliance has
not yet been fully installed, the
electricity cable must be disconnected
from the supply point. If connected via
a plug and socket, switch off at the
socket and withdraw the plug. Contact
the Service Department.
Do not reconnect the appliance to the
mains electricity supply until after it has
been repaired.
~If there is any damage to the glass
surface the appliance must be
disconnected from the mains electricity
supply immediately and not used until it
has been repaired. Danger of electric
shock.
~Repairs must only be carried out by
a suitably qualified and competent
person. Repairs and other work by
unqualified persons could be very
dangerous and could damage the
appliance. The manufacturer cannot be
held liable for unauthorised work. Never
open the housing of the appliance.
~While the appliance is under
guarantee, repairs should only be
undertaken by a service technician
authorised by the manufacturer.
Otherwise the guarantee is invalidated.
Further safety notes
~When using an electric socket near
the appliance, care should be taken
that the cable of the electrical
appliance does not come into contact
with the hot appliance. The insulation
on the cable could become damaged,
giving rise to an electric shock hazard.
~Always ensure that food is
sufficiently cooked or reheated. Many
factors will affect the overall cooking
time, including the size and amount of
food and its temperature. Some foods
may contain micro-organisms which are
only destroyed by thorough cooking;
therefore when cooking or reheating
foods such as poultry, it is particularly
important that the food is completely
cooked through. If in doubt, select a
longer cooking or reheating time.
~If the appliance is installed in a room
without air conditioning in areas with
high levels of humidity, there is a risk of
moisture settling on the heater elements
if it is not used for longer periods of
time.
When next used this could cause the
fuse to trip. To prevent this risk it is
advisable to switch the appliance on
every 6 months for 15 minutes using the
highest power setting.
Make sure there are no flammable
objects near the appliance during this
process and do not leave the appliance
unattended.
The manufacturer cannot be held
liable for damage caused by
non-compliance with these Warning
and Safety instructions.
Warning and Safety instructions
9

Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for disposal
and can normally be recycled.
Packaging, e.g. cling film, polystyrene
and plastic wrappings must be kept out
of the reach of babies and young
children. Danger of suffocation.
Dispose of or recycle all packaging
materials safely as soon as possible.
Disposal of your old appliance
Electrical and electronic appliances
often contain materials which, if
handled or disposed of incorrectly,
could be potentially hazardous to
human health and to the environment.
They are, however, essential for the
correct functioning of your appliance.
Please do not therefore dispose of your
old appliance with your household
waste.
Please dispose of it at your local
community waste collection / recycling
centre and ensure that it presents no
danger to children while being stored
for disposal.
It should be unplugged or
disconnected from the mains electricity
supply by a competent person. If
connected by a plug, the plug must be
rendered useless and the cable cut off
directly behind the appliance to prevent
misuse.
Caring for the environment
10

General notes
Please stick the extra data plate for the
appliance supplied with this
documentation in the space provided in
the "After sales service" section of this
booklet.
Cleaning and heating up for
the first time
Before using for the first time clean the
grill trough and the rack with a solution
of hot water and washing up liquid. Dry
thoroughly with a soft cloth (see
"Cleaning and care").
Clean all other appliance surfaces with
a damp cloth only, and then wipe dry.
Metal components have a protective
coating which may give off a slight
smell when the appliance is heated up
for the first time. The smell and any
vapours will dissipate after a short time
and do not indicate a faulty connection
or appliance.
Before using for the first time
11

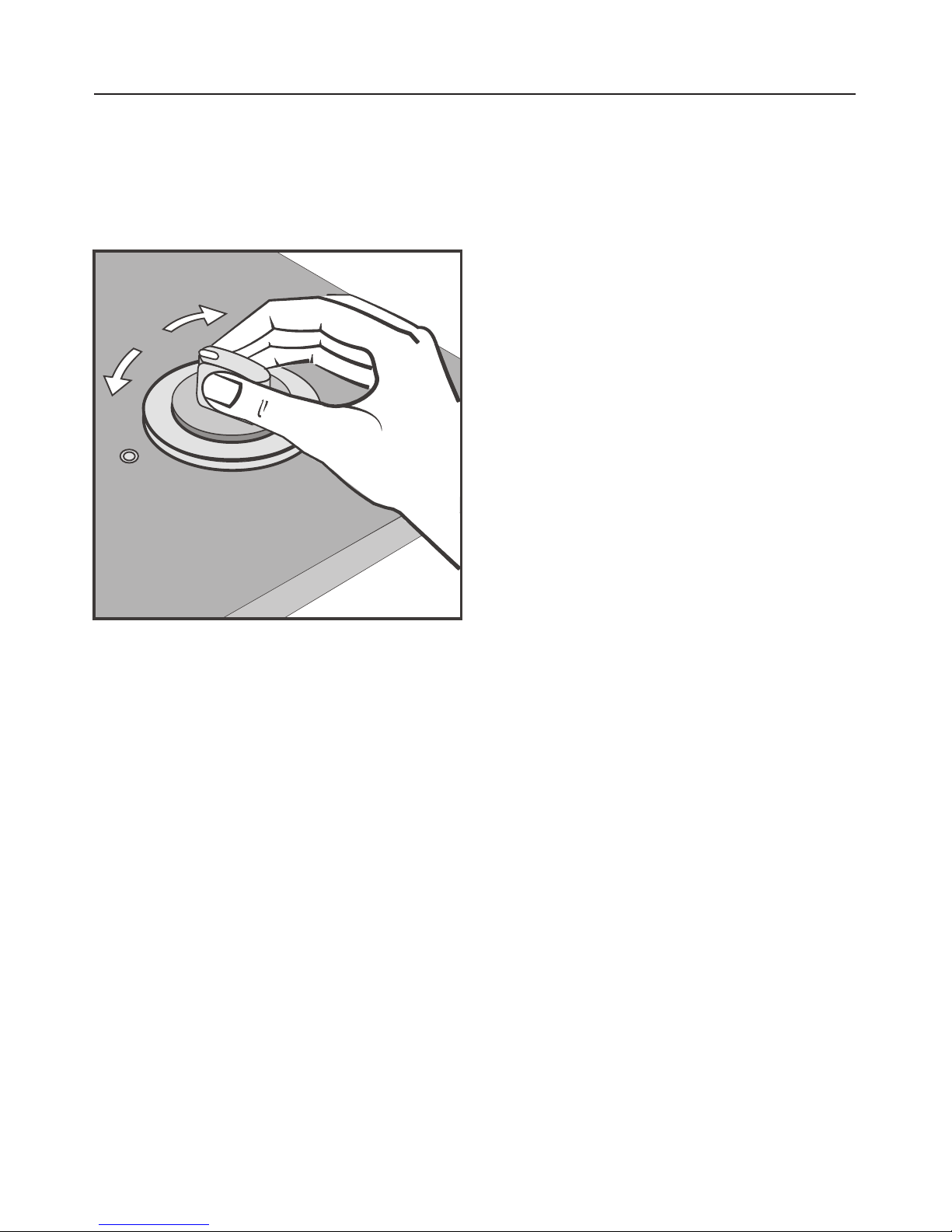

Switching on and off
To switch the grill on or off the control
can be turned in a clockwise or
anti-clockwise direction. "0" is off.
The operating indicator light to the left
of the control comes on when the grill
has been switched on. It goes off after
the grill is switched off.
Safety cut-out
A safety cut-out ensures that the
heating element is only heated when it
is lying horizontally and not when it is
raised up.
Use
12
0
12
10
8
.
.
.

Before grilling
The grill can be used with or without the
lava rocks. Without the lava rocks the
rising steam keeps the food being
grilled moist. Grilling with the lava rocks
creates a particularly intensive aroma.
Prepare the grill as follows, before
switching it on:
^Make sure the drain tap is closed.
^Take off the rack, lift up the heating
element, and if not being used, take
the lava rock container out.
^Fill the grill trough
– up to marker line awith approx. 2.5
litres of water when grilling without
lava rocks.
– up to edge bwith approx. 1.2 litres
of water when grilling with lava
rocks.
^If using lava rocks put the container
back in the grill trough.
^Lower the heating element again,
and put the rack on it.
Use
13

Grilling
When grilling, watch the level of
water in the trough. If necessary,
add more water.
Do not use pots and pans or similar
on the open grill and never cover the
rack (e.g. with aluminium foil) or use
disposable aluminium foil
containers. The resulting build-up of
heat could damage the rack.
Correct procedure:
^Switch the appliance on.
^Pre-heat the grill at setting "12" for
approx. 5 minutes.
^Grill the food for a few minutes at the
highest setting.
^Then switch down to "10" or "9" (with
food that tends to burn).
^Turn the food once or more during
grilling.
Use
14

Tips on grilling
–To avoid spitting during grilling, dab
moist food dry with paper kitchen
towel.
–Salt food after grilling, and not before
as it could dry out too much.
–Marinating often improves the flavour
of food to be grilled.
–Brush food that has not been
marinated with a little oil. Only use
oils that can be heated to a high
temperature.
Food Time in
minutes
Meat and sausages
Sausage 6 - 8
Fillet steak 8 - 10
Burgers 12 - 16
Chicken drumsticks 16 - 18
Pork chops 14 - 18
Lamb chops 8 - 10
Liver 4 - 8
Turkey steak 8 - 10
Kebabs 14 - 18
Cutlets / schnitzel 8 - 12
T-Bone steak 20 - 25
Fish
Trout 12 - 16
Salmon steak 10 - 12
Mackerel 10 - 12
Vegetables
Medium sized jacket
potatoes wrapped in
foil
40-60
Vegetable kebabs 5 - 6
Sweetcorn 20 - 25
Onions 14 - 16
Fruit
Pineapple slices 2 - 3
Apple slices 2 - 3
The times given are only a guide,
based on a pre-heated grill at settings
9 to 12. The lower power settings are
suitable for keeping food warm.
Use
15

Safety cut-out
A safety cut-out automatically switches
the appliance off if the water level
drops too low.
^Add some cold water.
As soon as the appliance has cooled
down, the grill element switches back
on again and you can continue grilling.
After grilling
Proceed as follows:
^Switch the grill off.
^Clean the grill after each use while it
is still warm to the touch (see
“Cleaning and care”).
^After grilling check the appearance
of the lava rocks. If the rocks look
dark they are saturated with oil and
must be cleaned or replaced.
Use
16

General notes
Clean the appliance regularly,
preferably after each use. Allow the
appliance to cool down to a safe
temperature before cleaning.
Do not use a steam cleaner to clean
this appliance. The steam could
reach electrical components and
cause a short circuit. Pressurised
steam could cause permanent
damage to the surface and to
components, for which the
manufacturer cannot accept liability.
Do not use any sharp pointed
objects which could damage the
seal between the glass surface and
the surrounding frame and between
the frame and the worktop.
Do not use any of the following as
they can damage the surface:
cleaning agents containing sand,
soda, alkalines, acids or chlorides,
grill and oven sprays, dishwasher
cleaner, stain or rust removers,
scouring agents or cream cleaners,
abrasive sponges and brushes.
Aggressive cleaning agents and
sponges can, however, be used on
the grill element itself.
When using cleaning agents for
stainless steel and glass surfaces
you must follow the manufacturers
instructions on the packaging.
After cleaning use a soft dry cloth to
remove any moisture to prevent a
build up of limescale deposits.
Wipe any soiling off the control
panel immediately to prevent the risk
of residual marks.
E-Cloth
A microfibre "E-Cloth" is available from
the Miele UK Spare Parts Department,
which is suitable for cleaning surfaces
such as stainless steel, glass, plastic
and chrome without the use of
chemicals.
Cleaning and care
17

Rack, Lava rock container,
Heating element
Clean the rack and lava rock container
after each use with a solution of hot
water and washing up liquid.
Soak to loosen any burnt on food which
can then be removed with a brush.
Use a gentle scourer on any residue left
on the heating element.
Dry throughly after cleaning.
Do not use cleaning agents for
stainless steel on the lava rock
container.
Lava rocks
Clean the lava rocks regularly.
Put the rocks into a suitable container
and fill with a solution of hot water and
washing up liquid. Leave to soak for a
while. Stir the rocks several times. Then
pour the washing up liquid solution
away and rinse the rocks two to three
times with clean water. Place the rocks
out to dry on a suitable towel.
Cleaning and care
18

Grill trough
^After grilling, allow the water in the
trough to cool down before draining
it.
^Place a suitably large container
under the drain tap underneath the
grill.
^Open the drain tap by turning it
anti-clockwise aas far as it will go.
^After the water has drained out, close
the tap by turning it clockwise bas
far as it will go. Check that you
cannot turn it any further.
^Fill the grill trough with a solution of
hot water and washing up liquid and
wash out thoroughly.
^Drain the suds solution into a suitable
container and then clean the drain
outlet with a bottle brush. Finally rinse
the grill trough out with hot water and
and then dry both the reservoir and
the drain outlet thoroughly.
Ensure that the underside of the grill
is always easily accessible for
draining water. Always wait until the
water has cooled down before
draining to avoid the danger of
being scalded!
Do not use cleaning agents for
stainless steel on the grill trough.
Cleaning and care
19

Stainless steel surround
Clean the stainless steel surround with
hot water and a little washing up liquid
applied with a soft sponge. Wipe dry
using a soft cloth. Soak stubborn soiling
first to loosen it.
Stainless steel surfaces can be cleaned
using a Miele E-Cloth or a proprietary
non-abrasive cleaning agent designed
specifically for use on stainless steel.
To help prevent re-soiling, a proprietary
conditioning agent for stainless steel,
such as Neoblank (available from the
Miele Spare Parts Department) can also
be used.
Follow the manufacturer's instructions
on the label and apply sparingly with an
even pressure following the direction of
the grain.
Control panel
Clean the surface and control with a
damp cloth only, and then wipe dry.
For the glass control panel you can use
a proprietary glass cleaning agent
afterwards. Follow the manufacturer's
instructions.
Cleaning and care
20
