Miele CS 1312 User manual

Operating and Installation
Instructions
Electric Barbecue
CS 1312
CS 1322
To prevent accidents and
machine damage,
read these instructions
before
installation or use. M.-Nr. 07 346 950
en-US

IMPORTANT SAFETY INSTRUCTIONS.................................3
Guide to the Electric Barbecue.......................................7
CS 1312 ..........................................................7
CS 1322 ..........................................................8
Before using for the first use ........................................9
Use ............................................................10
Prepare the appliance ..............................................10
Turning On/Off ....................................................10
Grilling ..........................................................11
After grilling ......................................................11
Grilling times .....................................................12
Safety Feature ...................................................13
Overheat protection ................................................13
Safety cut-out feature...............................................13
Cleaning and care ................................................14
Frequently asked questions .......................................16
Technical Service.................................................17
Additional Accessories ............................................19
IMPORTANT INSTALLATION SAFETY INSTRUCTIONS ..................22
Installation ......................................................25
Installation dimensions CS 1312 ......................................26
Installation dimensions CS 1322 ......................................27
Installation of multiple appliances .....................................29
Attach the spring clips and support bars ...............................32
Sealing ..........................................................36
Tiled surfaces ....................................................36
Electrical connection..............................................37
Help protect our environment.......................................38
Contents
2

WARNING- When using your
appliance follow basic
precautions, including the
following:
Read all instructions before
installation or use to prevent
injury and appliance damage.
This appliance conforms to all
uniform safety codes and
regulations.
These instructions contain
important information on
installation, safety, use and
maintenance of this appliance.
They will help you avoid injury
and damage to the appliance.
Keep these operating instructions
in a safe place and pass them on
to any future user.
SAVE THESE INSTRUCTIONS
Correct usage
~This appliance is not designed for
commercial use. It is intended for use in
domestic households and in similar
working and residential environments
such as:
–shops, offices and similar work
environments
–by customers in hotels, motels, Bed
& Breakfasts or similar residential
environments.
~This appliance is not intended for
outdoor use.
~Only use this appliance for
residential cooking, and for the
purposes described in this manual.
Other uses are not permitted and can
be dangerous.
~Persons who lack physical, sensory
or mental abilities, or experience with
the appliance should not use it without
supervision or instruction by a
responsible person.
Children
~Children should not be left
unattended in an area where the
appliance is in use. Never allow
children to sit or stand on any part of
the appliance.
Caution: Do not store items of interest
to children in cabinets above the
appliance. Children climbing on the
appliance to reach these items could
be injured.
~The appliance is hot during use and
remains so for some time after being
switched off. Keep children away from
the appliance.
~Ensure that any packing material, is
disposed of safely and kept out of the
reach of children. Danger of
suffocation!
~Be sure that children cannot access
the drain valve on the appliance,
potentially releasing hot water.
IMPORTANT SAFETY INSTRUCTIONS
3

Technical Safety
~Installation, repair and maintenance
work should only be performed by a
Miele authorized service technician.
Work by unqualified persons could be
dangerous and may void the warranty.
~Be sure your appliance is properly
installed and grounded by a qualified
technician.
~Before installing the appliance,
check for externally visible damage.
Do not operate a damaged appliance.
~To guarantee the electrical safety of
this appliance, continuity must exist
between the appliance and an effective
grounding system. It is imperative that
this basic safety requirement be met. If
there is any doubt, have the electrical
system of the house checked by a
qualified electrician.
~Before installation, make sure that
the voltage and frequency listed on the
rating label correspond with the
household electrical supply. This data
must correspond to prevent injury and
appliance damage. Consult a qualified
electrician if in doubt.
~Do not use an extension cord to
connect this appliance to electricity.
Extension cords do not guarantee the
required safety of the appliance.
~Install the appliance so that the
power cord does not come into contact
with any portion of the electric
barbecue which may become hot
during use.
~Before servicing, disconnect the
appliance from the main power supply.
~Do not operate any appliance with a
damaged cord or plug, or if the
appliance has been damaged in any
manner. Contact Miele’s Technical Ser-
vice Department.
~Under no circumstances open the
outer casing of the appliance.
~While the appliance is under
warranty repairs should only be
performed by an authorized service
technician. Otherwise the warranty is
void.
~In the event of any damage to the
appliance, it must be turned off immedi-
ately and disconnected from the main
power supply. Contact Miele’s
Technical Service Department.
Do not use the appliance until it has
been repaired. Ensure power is not
supplied to the appliance until repair
work is completed.
~Defective components should be
replaced by Miele original spare parts
only. Only with these parts can the
manufacturer guarantee the safety of
the appliance.
IMPORTANT SAFETY INSTRUCTIONS
4

Safety
~DO NOT TOUCH SURFACE UNITS
OR AREAS NEAR UNITS
Surface units may be hot even though
they are dark in color. Areas near
surface units may become hot enough
to cause burns. During and after use,
do not touch, or let clothing or other
flammable materials contact surface
units or areas near units until they have
had sufficient time to cool.
~Protect your hands with oven mitts
or potholders when using the
appliance. Use only dry, heat resistant
potholders. Moist or damp potholders
used on hot surfaces can result in
steam burns. Do not let the potholder
touch the hot heating elements. Do not
use towels or other bulky items near the
appliance.
~Do not heat unopened containers.
Built-up pressure may cause the
container to burst and result in injury.
~Never use the appliance to heat a
room. Due to the high temperatures
radiated, objects left near the appliance
could catch fire.
~Do not use the appliance until it has
been properly installed in the
countertop.
~Do not store items on the appliance
when not in use. Items could melt or
catch fire from residual heat or if the
appliance is turned on inadvertently.
~Never cover the appliance with a
cloth. A fire may result.
~Be aware of loose fitting or hanging
garments when operating the
appliance, they may present a fire
hazard.
~Never leave an appliance
unattended at high settings or when
cooking with oil or fat. Overheated oil
could ignite. Always heat oil slowly,
monitoring it as it heats.
~Do not store aerosols, combustibles
or any other easily flammable materials
underneath or adjacent to the
appliance.
~Do not use water on grease fires.
Smother or use a dry chemical or
foam-type extinguisher on any fire or
flame.
~Do not use aluminum dishes, pans,
pots or foil on the electric barbecue.
Never cover the electric barbecue
grate with aluminum foil. Aluminum will
cause overheating and may damage
the grate.
~Clean the lava rocks on a regular
basis and change them when needed.
Fat-saturated stones can easily catch
fire.
~The water trough must always be
filled with water when the appliance is
being used.
~Make certain that the power cords of
small appliances do not come in
contact with the appliance. The
insulation of the cable could become
damaged. Danger of electric shock!
IMPORTANT SAFETY INSTRUCTIONS
5

~To prevent burns and breathing
difficulty, allow the appliance to cool
before cleaning. Some cleaners may
produce toxic fumes if applied to a hot
surface.
~When wiping spills on a hot
appliance with a wet sponge or cloth,
be careful to avoid steam burns.
~Do not let flammable materials,
i.e. cooking grease, accumulate on the
appliance.
~Do not use a steam cleaner to clean
this appliance. Steam could penetrate
electrical components and cause a
short circuit.
~Do not use the appliance without the
splash guard and protection plates
fitted (if required). See "Installation".
SAVE THESE INSTRUCTIONS
AND REVIEW THEM
PERIODICALLY
IMPORTANT SAFETY INSTRUCTIONS
6

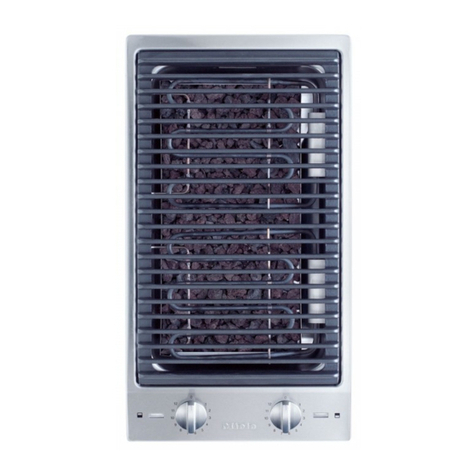

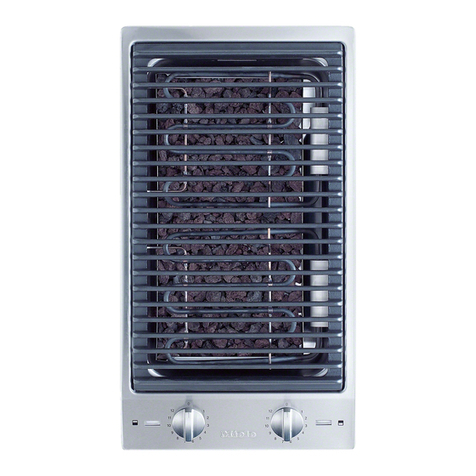

CS 1312
aGrate
bHeating element, front
cHeating element, rear
dLava rock container
eDrain valve
fCooking zone indicators
gDisplay
Control knobs:
hfront
irear
Indicators
jOn/Off indicator
Guide to the Electric Barbecue
7

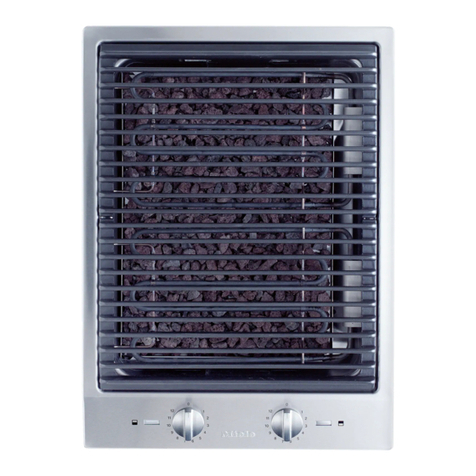

CS 1322
aGrates
bHeating element, front
cHeating element, rear
dLava rock container
eDrain valve
fCooking area indicators
gDisplay
Control knobs:
hfront
irear
Indicators
jOn/Off indicator
Guide to the Electric Barbecue
8

Clean the appliance
^Clean the water trough and grates
with a mild solution of warm water
and liquid dish liquid, then dry with a
soft cloth (see "Cleaning and care").
^Wipe the other surfaces down with a
damp cloth and dry.
Heat the appliance
Metal components of the appliance
have a protective coating which may
give off a slight odor the first time the
appliance is heated.
The smell will dissipate after a short
time and does not indicate a faulty
connection or appliance defect.
Before using for the first use
9

Prepare the appliance
You can use the electric barbecue with
or without the lava rocks.
Without the lava rocks: food will stay
more moist, from the rising steam.
With the lava rocks: the food will have a
more pronounced grilled aroma and
flavor.
^Check that the drain valve is closed.
^Remove the grate, raise the heating
element, and remove the lava rock
container (if desired).
^Fill the water trough:
–if grilling without lava rocks with
water up to mark a, with approx.
2 quarts (1.8 liters) of water (CS1312)
4 quarts (4.0 liters) of water (CS1322)
–if grilling with lava rocks with approx
1 quart (1.2 liters) of water (CS1312)
2 quarts (1.8 liters) of water (CS1322
^Return the filled lava rock container
to the water trough (if desired).
^The heating element can now be
turned down.
^Replace the grates.
Turning On/Off
The electric barbecue is divided into
two heating areas, which can be used
and adjusted separately. For large
quantities, you can use the entire
surface for cooking. For smaller
quantities, you can, for example, cook
in the front and keep food warm at the
back, using a lower setting.
^To turn a heating area on, press the
appropriate control knob down and
turn it clockwise ato the desired
setting.
^To turn a heating area off, turn the
control knob counterclockwise bto
"0".
When the appliance is turned on, the
On/Off indicator Ncomes on. It goes out
when it is turned off.
Do not turn a heating area on
without pressing the control knob
down, and do not turn the knob past
"12" to reach "0".
Use
10

Grilling
While grilling, watch the level of
water in the trough. If necessary,
add more water.
Do not use aluminum dishes, pans,
pots or foil on the electric barbecue.
Never cover the grate with aluminum
foil. Aluminum will cause
overheating and may damage the
grate.
^Turn one or both operating knobs to
power level "12".
Pre-heat the electric barbecue with
the rack(s) in place for approx.
10 minutes.
Make sure the operating knob(s) are
set precisely to power level 12.
If the knobs are not set to the exact
position, the heating will not work
with maximum power.
^Set the power level.
^Grill food as desired.
Tips
–To minimize splattering, dry moist
foods with paper towels before
grilling.
–Marinate food before grilling, to
enhance the flavors.
–To prevent sticking, non-marinated
items should be brushed lightly with
oil before grilling. Only use oils that
can tolerate high temperatures.
–You can shorten the grilling time for
potatoes in foil and corn on the cob,
by pre-cooking the potatoes for
approx. 15 - 40 minutes (depending
on the size) and the corn for approx.
10 - 15 minutes.
After grilling
^Turn the appliance off.
^After each use, clean the appliance
while it is still somewhat warm to the
touch (see "Cleaning and care").
^After grilling with the lava rocks
check the condition of the rocks. If
they are dark in color, they are
saturated with fat and need to be
cleaned or replaced. See "Cleaning
and Care - Lava rocks".
Use
11

Grilling times
Food item Grilling time
in minutes
Meat and sausage
Boneless steak 8 - 10
Chicken breasts 16 - 18
Cutlets 8 - 12
Filet steak 4 - 10
Hamburgers 12 - 16
Kebabs 14 - 18
Lamb chop 4 - 8
Sausages 6 - 8
Spare Ribs 15 - 20
T-Bone Steak 10 - 20
Turkey cutlet 8 - 10
Fish / seafood
Salmon steak 10 - 12
Shrimp 2 - 4
Trout 12 - 16
Tuna steak 6 - 8
Food item Grilling time
in minutes
Vegetables
Corn (parboiled) 5 - 8
Eggplant 6 - 8
Potatoes in foil
(parboiled)
10-20
Tomato halves 2 - 4
Onions 14 - 16
Pepper strips 2 - 3
Vegetable kebabs 5 - 6
Fruit
Apple slices 2 - 3
Peach halves 2 - 3
Pineapple slices 2 - 3
Other
Toast/bread 2 - 3
Tofu 4 - 6
The times shown in the table serve as
guide only and apply for grilling at
power level 9 -12 on a pre-heated
electric barbecue. The grilling time
depends on the type, preparation, and
thickness of the food item.
Use
12

Overheat protection
If there is not enough water in the water
trough, the overheat protection
automatically switches the appliance
off.
^Pour in cold water.
Once the appliance has cooled down
and the heating element switches back
on, you can continue grilling as normal.
Safety cut-out feature
The safety cut-off ensures that the
heating element will only work if it is
lowered.
Safety Feature
13

,Under no circumstances should
you use a steam cleaner to clean
this appliance. Pressurized steam
could cause permanent damage to
the surface and to components.
Never use strong cleaners e.g. oven
sprays, stain or rust removers.
Scouring pads and abrasive
cleaning agents should only be
used on the heating element.
Do not use any sharp pointed
objects which could damage the
seal between the ceramic surface
and the surrounding frame, and
between the frame and the
countertop.
When using cleaning agents for
stainless steel always follow the
manufacturer’s instructions on the
packaging.
After cleaning use a soft, dry cloth to
remove any moisture. This way you
will prevent the build up of limescale
deposits.
Stainless steel
Clean stainless steel surfaces with
warm water and liquid dish soap
applied with a non-abrasive sponge
and then wipe dry with a soft cloth.
Soak baked or hardened spills first to
loosen them.
Stainless steel surfaces can be cleaned
using a non-abrasive stainless steel
cleaner.
To help prevent resoiling, a conditioner
for stainless steel can also be used.
Apply sparingly with even pressure.
Do not use stainless steel cleaner on
or around the printing, it may rub
off. Use only a soft sponge with
some dish liquid and warm water to
clean this area.
Grates and lava rock container
After each use, clean the grates and
lava rock container with warm water
and liquid dish soap. Pre-soak any
heavy soiling, then remove with a
brush. Dry throughly.
Do not use stainless steel
conditioner on the lava rock
container.
Heating element
Grill residue can best be removed from
the heating element using a scouring
pad.
Cleaning and care
14

Lava rocks
Clean the lava rocks on a regular basis.
To do so, put the rocks in a container
with mild solution of warm water and
liquid dish soap. Let them soak briefly,
stirring occasionally. Drain water and
rinse rocks. Repeat this process 2 to 3
times with fresh water. Lay the rocks on
a large kitchen towel to dry.
Cleaning the lava rocks removes the
used layer to expose a fresh
surface. The rate at which the lava
rocks become worn depends on the
frequency and duration of use.
If the amount of lava rocks in the
lava rock container has deceased
by half, the container must be
refilled.
Water trough
^Let the water cool to a safe
temperature to prevent burns.
^Place a container (large enough to
hold all water in the trough) under the
drain valve.
^Slowly open the drain valve by
turning it counterclockwise,a.
^Once the water has drained, close
the drain valve by turning it
clockwise,buntil the water flow
stops.
^Fill the water trough with a mild
solution of liquid dish soap and warm
water, and rinse it out thoroughly.
Use a bottle brush to clean the drain
^Allow the solution to drain.
^Rinse with warm water and dry.
Do not use stainless steel
conditioner on the water trough.
Make sure that the underside of the
appliance is always accessible for
draining away the water. Remember
to let the water cool before draining
to prevent burns.
Cleaning and care
15

,Repairs should only be carried out by an authorized technician in
accordance with local and national safety regulations. Unauthorized repairs
could cause injury or appliance damage.
What if the appliance does not heat up after it is turned on?
Possible fault Solution
The overheat protection was triggered. See "Overheat protection"
The fuse or breaker was tripped. Contact a qualified electrician or Miele
Technical Service for assistance.
What if food does not brown properly after pre-heating for 10 minutes at
power level 12?
The operating knob is not set precisely
to power level 12 and the appliance is
not heating at maximum power.
Correct the setting.
Frequently asked questions
16

In the event of a fault which you cannot
easily fix yourself, please contact the
Miele Technical Service Department at
the address on the back of this booklet.
When contacting Technical Service
please quote the serial number and
model of the appliance.
Adhere rating label sticker supplied
with the appliance below.
Technical Service
17

MieleCare
(USA only)
MieleCare, our Extended Service
Contract program; gives you the
assurance of knowing that your
appliance investment is covered by 5
years of worry free ownership.
MieleCare is the only Extended Service
Contract in the industry that guarantees
repairs by a Miele Authorized Service
Provider using genuine Miele parts.
Only genuine Miele parts installed by
factory trained professionals can
guarantee the safety, reliability and
longevity of your Miele appliance.
Please note that unless expressly
approved in writing by the Miele Ser-
vice department, Extended Service
Contracts offered by other providers for
Miele products will not be recognized
by Miele. Our goal is to prevent
unauthorized (and untrained) service
personnel from working on your Miele
products, possibly doing further
damage to them, you and/or your
home.
To learn more about MieleCare
Extended Service Contracts, please
contact your appliance dealer or visit
us online at:
http://mieleusa.com/mielecare
Technical Service
18

Miele offers a variety of additional accessories for its appliances.
All accessories can be ordered from Miele.
Stainless steel and ceramic surface
cleaners
Help to remove soiling, lime spots, mild
staining, fingerprints, etc. while
maintaining the appearance of the
appliance between cleanings.
Lava rocks
Lava rocks come standard with the
electric barbecue, they can also be
reordered as necessary.
Additional Accessories
19

20
