Miele SALAMANDER GRILL CS 1421 User manual

Operating and Installation
Instructions
Salamander Grill
CS 1421
To prevent accidents and
machine damage,
read the Operating Manual
before
installation or use. M.-Nr. 07 472 000
en-CA

Safety instructions and warnings ....................................3
Description of the unit..............................................8
Before using for the first time........................................9
Operation .......................................................10
Raising and lowering the browning unit ................................10
Switching on and off ...............................................10
Browning ........................................................11
Keeping food warm ................................................11
Useful tips .......................................................11
After use.........................................................11
Safety features ...................................................12
Safe retraction ....................................................12
Height recognition .................................................12
Overheat protection ................................................12
Obstruction protection ..............................................12
Care and cleaning ................................................13
Stainless steel ....................................................14
Ledge...........................................................14
Built-in frame .....................................................14
Ceramic surface of the browning unit...................................14
Frequently asked questions .......................................15
Technical Service.................................................16
SAFETY INSTRUCTIONS FOR INSTALLATION.........................18
Installation ......................................................21
Installation dimensions .............................................21
Installation of multiple appliances .....................................23
Attach the spring clips and support bars ...............................26
Installing the appliance .............................................28
Sealing ..........................................................29
Tiled surfaces ....................................................29
Electrical connection..............................................30
Help protect our environment.......................................31
Contents
2

WARNING- When using your
appliance follow basic
precautions, including the
following:
Read all instructions before
installation or use to prevent
injury and appliance damage.
This appliance conforms to all
uniform safety codes and
regulations. The manufacturer
cannot be held responsible for
damage or injury caused by
improper use of this appliance.
Keep these operating instructions
in a safe place and pass them on
to any future user.
SAVE THESE INSTRUCTIONS.
Correct use
~The grill is intended for household
use only, as described in these
instructions. Using it for other purposes
is not permitted, and may be
dangerous. The manufacturer will not
be held liable for damage caused by
incorrect or unauthorized use of the
appliance.
~Individuals who are incapable of
using the appliance safety because of
reduced physical, sensory or mental
capabilities, or because of a lack of
experience or knowledge, must not use
this appliance without supervision or
instruction by a responsible person.
Safety instructions and warnings
3

Children
~Always supervise any children in the
vicinity of the appliance. Do not allow
children to play with the unit.
~Children should use the grill only if
they have received sufficient instruction
to operate it safely. They must be able
to understand and recognize the
potential hazards of improper
operation.
~Take special care that children do
not put their fingers under the retracting
browning unit. There is a risk of injury. .
~The ceramic surface of the browning
unit and the ledge become hot during
operation, and remain so for quite some
time after being switched off. Keep
children away from the appliance until it
has cooled down enough that there is
no longer any danger of burns.
~The heating element of the browning
unit glows very brightly. Therefore, do
not allow children to look directly at the
heating element.
~Do not keep any items that might
attract children in the storage areas
above or behind the appliance.
Otherwise, a child might be tempted to
climb on the grill and risk being burned.
~To avoid injury from burns and
scalding, ensure that children are
unable to pull down hot dishes onto
themselves from the appliance.
~Packing materials (cling wrap,
styrofoam) can be dangerous for
children because of the danger of
suffocation. Keep such materials out of
the reach of children, and dispose of
them as promptly as possible.
Safety instructions and warnings
4

Technical safety
~Only skilled persons duly authorized
by the manufacturer may install this
appliance or perform maintenance and
repair work on it. Work performed by
unqualified persons carries the risk of
serious harm to the user, for which the
manufacturer will not be held liable.
~Before installation, check the
appliance for visible signs of external
damage. NEVER under any
circumstances operate a damaged
appliance. It may endanger your safety.
~The electrical safety of this
appliance can only be guaranteed if it
is grounded in compliance with
applicable safety regulations. Is is very
important to make sure that this
essential safety requirement is met. In
case of doubt, have a qualified
electrician check the wiring. The
manufacturer will not be held liable for
damage or injury, such as electric
shock, caused by a missing or broken
grounding conductor.
~Before plugging in the appliance,
ensure that the electrical rating (voltage
and frequency, as indicated on the mo-
del data plate) corresponds to the
household electrical supply. These
ratings must match, in order to avoid
damaging the appliance. If in doubt,
please consult a qualified electrician.
~Do NOT use a power bar or
extension cord to connect the
appliance to the power supply. They do
not guarantee the required safety of the
appliance (e.g., danger of overheating).
~For safety reasons, this appliance
must not be used as a free-standing
device. It must be properly installed.
~If the plug is removed from the
power cord, the appliance will need to
be installed and connected by a
qualified electrician. Please hire a
qualified electrician who is thoroughly
familiar with all applicable local and
national power authority regulations,
and who will carefully comply with
these requirements. The manufacturer
will not be held liable for damage
caused by incorrect installation or
connection.
~If the power cord is damaged, it
must be replaced by a special cord
(Type H 05 W-F, PVC insulated), which
can be obtained from the manufacturer
or from Customer Service.
~Do not under any circumstances
open the appliance housing.
Tampering with the electrical
connections, or altering the electrical or
mechanical configuration, may
endanger your safety and may impair
the functioning of the appliance.
Safety instructions and warnings
5

~Repair of the appliance during the
warranty period should be performed
only by Customer Service personnel
who are duly authorized by the
manufacturer; otherwise any damage
will not be covered by the warranty.
~Before any maintenance or repair
work is performed, the appliance must
be disconnected from the main power
supply. It is electrically disconnected
only when one of the following
conditions is met:
–the fuses or circuit breakers are
tripped.
– the screw-in type fuses are fully
unscrewed.
– the power cord is disconnected from
the electrical power supply. To
disconnect appliances with plugs,
pull on the plug itself, instead of on
the cord.
~Defective components should be
replaced by Miele original replacement
parts only. Only these parts are
guaranteed by the manufacturer to
comply with safety requirements.
~Do not operate the grill if there is a
defect or if the ceramic surface of the
browning unit is cracked, chipped or
damaged in any way. Immediately
switch it off. Then disconnect it from the
power supply. If you fail to follow these
steps, there is a danger of electric
shock!
Correct use
~The appliance becomes hot during
use and remains so for some time after
being switched off. Caution: Danger of
burns!
~Protect your hands whenever
working with a hot appliance - wear
oven mitts and use potholders, for
example, making sure that they are not
wet or damp. Moisture would only
increase heat conductivity, potentially
causing burns.
~NEVER use the appliance to heat up
sealed containers, such as canned
foods. The resulting build-up of
pressure can cause containers to
explode, with the risk of injury and
burns.
~Do not use the appliance as a
space heater. The high temperatures
can cause easily flammable materials in
the vicinity to catch fire. This will also
reduce the lifespan of the appliance.
Safety instructions and warnings
6

~Do not set up or operate the
appliance in the open air.
~Do not use the ledge for storage. If
the appliance is accidentally switched
on or there is residual heat, there is the
danger that any items located there will
heat up and melt, depending on the
materials involved, and generating a
risk of fire and burns.
~Do not keep heat-sensitive items in
proximity to the appliance. The
appliance radiates heat during
operation. There is the danger that
such items - depending on the
material - will heat up and ignite, or
begin to melt or burn.
~Never leave the grill unattended
while browning or warming food. It
could burn and become inedible.
~If hot fat or oil catches fire, NEVER
use water to douse the flames. Use a
lid or a wet dishtowel, for example, to
smother the fire.
~If the appliance is plugged into a
nearby socket, check to be sure that
the power cord does not come into
contact with the hot appliance. This
could damage the insulation on the
cord. Danger of electrocution!
~Make sure that the dishware used is
heat-resistant. NEVER use plastic
dishes! Fire hazard!
~To avoid scratching, never place
anything on the surface of the browning
unit.
~Use only dishes with smooth
undersurfaces. Rough undersides will
scratch the ceramic surface. Move
dishes by lifting rather than sliding
them. This will help prevent scuffing
and scratching.
~Keep the appliance surfaces clean.
Grains of salt, sugar or sand may cause
scratching.
The manufacturer cannot be held
liable for damage caused by
non-compliance with these
Important Safety instructions.
SAVE THESE INSTRUCTIONS
AND REVIEW THEM
PERIODICALLY
Safety instructions and warnings
7

aBrowning unit, retractable
bLedge, removable
cDisplay
Control knob
dFor setting the power level
eFor selecting the height of the
browning unit
Display
f"ON" light
gResidual heat indicator
Description of the unit
8

Clean the appliance
^Remove any protective foil.
^Wipe down all surfaces with a damp
cloth, then dry.
The metal parts have a protective
coating. This will cause an odour the
first time the appliance is used. Note
that the odour and any vapours will
disappear after a brief period of time
and are not a sign of malfunction or
a defective appliance.
Before using for the first time
9

Raising and lowering the
browning unit
^To raise the browning unit, turn the
left-hand control to Extend ("-").
The browning unit will automatically
extend to its full height, even when you
release the control knob back to "ß".
You can stop the unit at any height by
briefly turning the control knob to "e".
^Turn the left control knob to Retract
("e"), and hold it until the desired
height is reached or the browning
unit is fully retracted.
The browning unit can be fully
retracted only once the residual heat
indicator goes out.
Switching on and off
Do not leave the appliance
unattended while in use.
The appliance is switched on when the
right control knob is turned to the
desired setting, and is switched off
when the knob is turned to "0".
The knob can be turned clockwise or
counter-clockwise to switch the
appliance On and Off.
The ON light comes on when the
appliance is in operation.
As soon as a certain temperature is
reached, the residual heat indicator
comes on as well. The indicator will not
go out until the ceramic glass plate of
the browning unit is safe to touch.
The appliance will not heat up
unless the browning unit is raised to
at least 2 3/4" (70 mm).
Operation
10

Browning
^Raise the browning unit.
^Place the dish you wish to brown on
the ledge.
^Lower the browning unit until the
heating element is 1 3/16"-115/16"
(30 - 50 mm) away from the top of the
food.
^Turn the control knob to setting "12".
The food will brown in 3-5 minutes,
depending on the desired result.
Brown only one dish at a time.
Keeping food warm
Food items can be kept warm for a few
minutes under the browning unit.
^Raise the browning unit.
^Place the dish you wish to keep warm
on the ledge.
^Lower the browning unit until the
heating element is approx. 3 15/16"
(100 mm) away from the top of the
food.
^Turn the operating knob to a medium
setting.
Useful tips
You can use the appliance to melt
cheese over such items as meat,
(toasted) bread, and vegetables. You
can also use the browning element for
desserts, to caramelize the sugar
topping on creme brûlée, for instance.
However, the appliance is not
suitable for reheating food
(store-bought dishes, leftovers).
After use
^Switch the appliance off.
^After each use, clean the appliance
while it is still somewhat warm to the
touch (see "Cleaning and care").
^Do not lower the browning unit until
the residual heat indicator has gone
out.
Operation
11

Safe retraction
To avoid damaging the appliance, your
grill is equipped with a retraction safety
device. The browning unit can be fully
retracted only once the appliance has
cooled sufficiently, i.e., after the
residual heat indicator has gone out.
Height recognition
The unit heats up only when the
browning unit is raised at least 2 3/4"
(70 mm) above the ledge.
Overheat protection
The halogen heating element in the
browning unit is equipped with
overheat protection. This feature
automatically switches off the heating
element if the ceramic cooktop is in
danger of overheating. Once the
ceramic surface has cooled down
sufficiently, the heating element
automatically switches back on. You
will recognize activation of the overheat
protection if the heat keeps switching
on and off at the highest power setting.
Obstruction protection
As soon as the browning unit
encounters any resistance with a
diameter greater than 3/8" (10 mm)
between the browning unit and the
ledge, the process is interrupted and
the browning unit automatically rises
again by about 3/8" (10 mm).
Safety features
12

Warning: NEVER use a steam
cleaner to clean this appliance.
Steam could reach the electrical
components and cause a short
circuit.
Clean the appliance on a regular basis,
preferably after each use. First allow
the appliance to cool down. After any
cleaning with liquid, wipe the appliance
dry. This will help prevent limescale
deposits.
To avoid damge, do not use the
following cleaning products:
–products containing washing soda,
acids/alkalis, ammonia, or bleach,
–products containing scale removers,
–stain and rust removers,
–scouring cleansers, e.g., scouring
powder, scouring liquid, pumice
stones,
–products containing solvents,
–dishwasher cleaner,
– grill or oven spray cleaners,
– glass cleaners,
– scouring brushes and sponges (such
as pot scrubbers), or used sponges
that still contain abrasive cleanser
residue.
– sharp objects (they can damage the
seals between the frame and the
countertop).
Care and cleaning
13

Stainless steel
Use a non-abrasive stainless steel
cleanser for cleaning the appliance. To
help keep the appliance clean longer,
we recommend using a stainless steel
care product (see "Optional
accessories"). Apply the product
sparingly, using a soft cloth.
Do not use stainless steel cleanser
on areas where there is printing. It
will rub away the printing. Instead,
use a soft sponge with some dish
liquid and warm water to clean
printed areas.
Ledge
Clean the ledge after each use, with a
soft sponge, some dish washing liquid
and warm water. Pre-soak any stubborn
residue before cleaning. Dry all
surfaces with a soft cloth.
Note: The ledge is not dishwasher
safe.
The ledge can be removed for easier
cleaning of the ledge and the
underlying frame.
When re-inserting the ledge, check that
it is positioned correctly. If it is not
positioned correctly, the browning unit
will not lower completely.
Built-in frame
Clean the built-in frame regularly.
Always promptly remove food spatters
and liquids. Clean the frame with a soft
cloth, some dish detergent and warm
water, and then dry with a soft cloth.
Ceramic surface of the
browning unit.
First, remove any coarse residue with a
damp cloth.
Next, clean the surface with a special
cleaner for glass ceramic and stainless
steel (see "Optional accessories"), on
paper towel or a clean cloth. Do not
apply cleaner while the surface is still
hot, as this can leave spots. Follow the
instructions indicated by the
manufacturer of the cleaning product.
Finish by rinsing the ceramic surface
with a damp cloth, then dry. Be sure to
remove all cleaning product residue.
Failure to do so can cause residue to
burn into the surface during
subsequent use, damaging the
ceramic.
Care and cleaning
14

Repairs should only be carried out by an authorized technician in accordance
with local and national safety regulations. Unauthorized repairs could cause
injury or appliance damage. The manufacturer cannot be held responsible for
unauthorized work.
The unit will not raise?
Possible fault Solution
Dirt has built up in the gap around the
browning unit or something has
become stuck.
Remove the dirt or the object which has
become stuck.
The fuse or breaker was tripped. Contact a qualified electrician or Miele
Technical Service for assistance.
The unit will not heat up?
Possible fault Solution
The browning unit is not raised
sufficiently, by at least 2 3/4" (70 mm).
Raise the browning unit by at least
23/4" (70 mm).
The ledge is not inserted or positioned
correctly.
Insert the ledge or postion it correctly.
There has been a power outage during
operation, and the heating has been
shut off.
To place the appliance back in
operation, turn the control knob to "0"
and fully lower the browning unit.
The unit will not retract?
Possible fault Solution
The appliance is not sufficiently cooled
down. The residual heat indicator must
be off.
The residual heat indicator must be off
before the unit can be retracted.
The ledge is not positioned correctly. Postion the ledge correctly
When retracted, the browning unit continues to move slightly upwards
Possible fault Solution
An object has come between the
browning unit and the ledge
Remove the object (see "Safety
features / Obstruction protection").
Frequently asked questions
15

In the event of a fault which you cannot
easily fix yourself, please contact the
Miele Technical Service Department at
the address on the back of this booklet.
When contacting Technical Service
please quote the serial number and
model of the appliance. This
information is visible on the silver data
plate supplied with the appliance.
Technical Service
16

Installation Instructions
IMPORTANT: SAVE FOR THE LOCAL ELECTRICAL INSPECTOR'S USE
To prevent accidents
and machine damage
read these instructions
before
installation or use.

Note to the installer:
Please leave this instruction book
with the consumer for the local
electrical inspector’s use.
The minimum distances given in
these Installation Instructions must
be observed in order to ensure safe
operation. Failure to do so increases
the risk of fire.

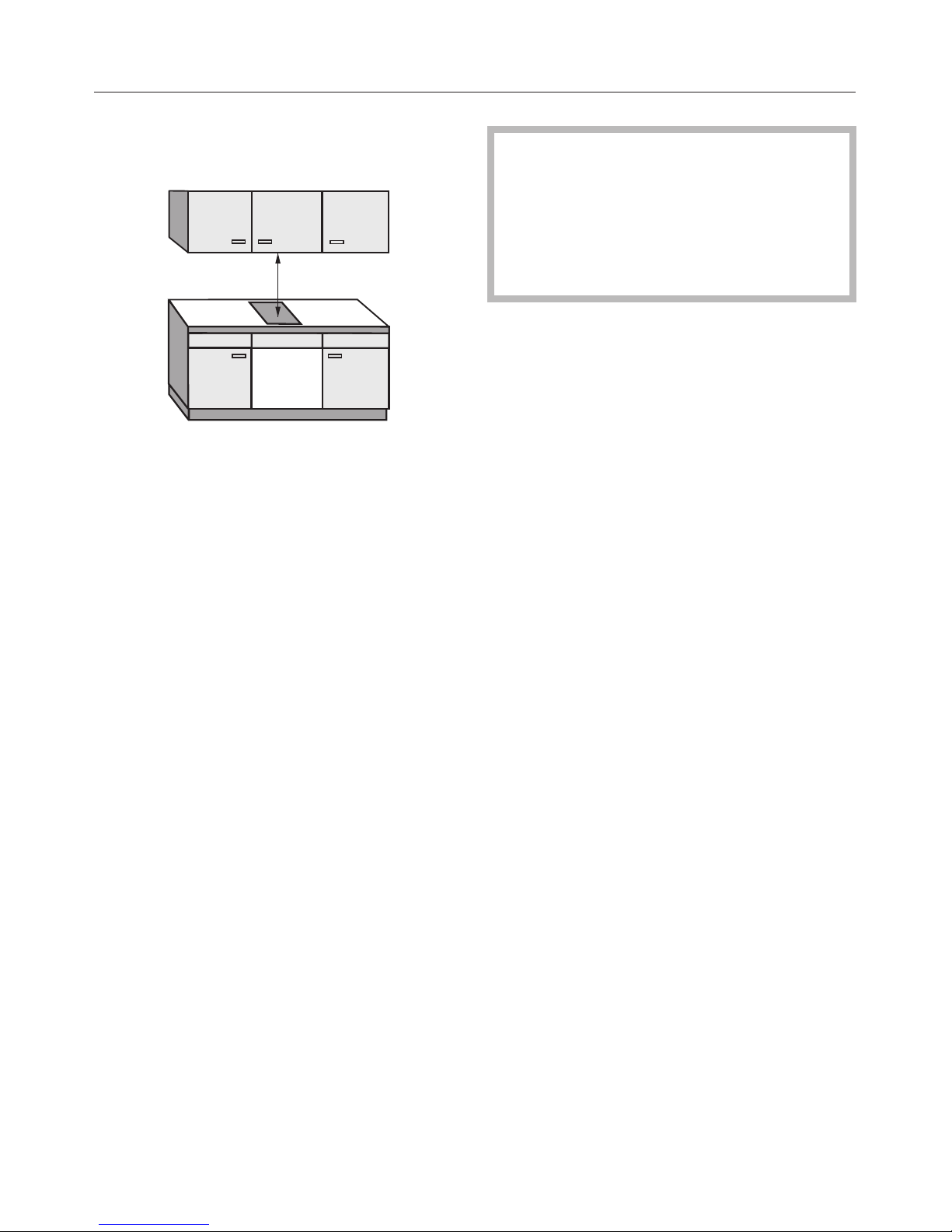

The cabinetry and venting hood
should be installed first to prevent
damage to the cooktop.
~The countertop must be bonded
with heat resistant (212 °F/100 °C)
adhesive to prevent distortion or
dissolving.
~This appliance has not been
designed for maritime use or for use in
mobile installations such as recreational
vehicles or aircraft. However, under
certain conditions it may be possible for
installation in these applications. Please
contact the Miele Technical Service
Department with specific requirements.
~The appliance should not be
installed immediately beside an electric
barbeque (CS 1312/1322) or the Tepan
Yaki (CS 1326). A minimum distance of
57/8" (150 mm) must be maintained
between these units.
~Ensure that the power cord will not
be subject to mechanical strain after
installation.
~Also ensure that the power cord will
not come into contact with any hot
spots on the appliance after installation.
Otherwise, the cable could suffer heat
damage.
~Be sure to comply with the
clearance distances listed below.
~The appliance must not be
permanently sealed into the countertop
when installed. The sealing strip under
the edge of the appliance provides a
sufficient seal for the countertop. See
"Sealing".
Keep this instruction book in a safe
place for refernce and pass it on to
any further user.
SAFETY INSTRUCTIONS FOR INSTALLATION
18

Safety distances above the
appliance
The minimum distance between the
appliance and an installed exhaust
hood must be at least 25 9/16"
(650 mm). However, if the hood
manufacturer requires a larger
distance, the larger distance takes
precedence.
If there are no specifications from the
hood manufacturer, or if easily
flammable materials (e.g., a hanging
cabinet) are installed above the
appliance, the clearance must be at
least 30" (760 mm).
If there is more than one appliance
beneath a hood (e.g. wok burner
and electric cooktop), and they have
different minimum safety distances
always observe the greater
distance.
SAFETY INSTRUCTIONS FOR INSTALLATION
19

Safety distances to the sides
of the appliance
The appliance should only be installed
as shown in the illustrations, while
maintaining the required safety
distances shown. Do not install the
appliance between two tall cabinets,
this is a fire hazard.
A distance of alteast 2" (50 mm) must
be kept between the countertop cut-out
and the rear wall because of the high
temperatures radiated.
The minimum distance abetween the
worktop cut-out and a wall or tall unit to
the right or left of it is:
2" (50 mm) for CS 1112
CS 1122
CS 1212
CS 1221
CS 1223
CS 1326
CS 1411
6" (150 mm) for CS 1312
CS 1322
CS 1421
10" (250 mm) for CS 1011
CS 1012
CS 1028
recommended
not recommended
not allowed
SAFETY INSTRUCTIONS FOR INSTALLATION
20
