Miele ELECTRIC BARBECUE CS 1322 User manual

Operating and Installation
Instructions
Electric Barbecue
CS 1322
To prevent accidents and
machine damage,
read the Operating Manual
before
installation or use. M.-Nr. 07 374 400
en-CA

IMPORTANT SAFETY INSTRUCTIONS.................................3
Description of the unit..............................................7
Before using for the first time........................................8
Use .............................................................9
Prepare the appliance ...............................................9
Turning On/Off .....................................................9
Grilling ..........................................................10
After grilling ......................................................10
Grilling times .....................................................11
Safety Feature ...................................................12
Overheat protection ................................................12
Safety cut-out feature...............................................12
Cleaning and care ................................................13
Frequently asked questions .......................................15
Technical Service.................................................16
Additional Accessories ............................................17
SAFETY INSTRUCTIONS FOR INSTALLATION.........................20
Installation ......................................................23
Installation dimensions .............................................24
Cutout..........................................................25
Installation of multiple appliances .....................................26
Attach the spring clips and support bars ...............................29
Installing the appliance .............................................31
Sealing ..........................................................32
Tiled surfaces ....................................................32
Electrical connection..............................................33
Help protect our environment.......................................34
Contents
2

WARNING- When using your
appliance follow basic
precautions, including the
following:
Read all instructions before
installation or use to prevent
injury and appliance damage.
This appliance conforms to all
uniform safety codes and
regulations. The manufacturer
cannot be held responsible for
damage or injury caused by
improper use of this appliance.
Keep these operating instructions
in a safe place and pass them on
to any future user.
SAVE THESE INSTRUCTIONS
Correct usage
~Only use this appliance for
residential cooking, and for the
purposes described in this manual.
Other uses are not permitted and can
be dangerous. The manufacturer will
not be held liable for damage caused
by unauthorized use or improper
operation of any kind.
~Persons who lack physical, sensory
or mental abilities, or experience with
the appliance should not use it without
supervision or instruction by a
responsible person.
Children
~Children should not be left
unattended in an area where the
appliance is in use. Never allow
children to sit or stand on any part of
the appliance.
Caution: Do not store items of interest
to children in cabinets above the
appliance. Children climbing on the
appliance to reach these items could
be injured.
~The appliance is hot during use and
remains so for some time after being
switched off. Keep children away from
the appliance.
~Ensure that any packing material, is
disposed of safely and kept out of the
reach of children. Danger of
suffocation!
~Be sure that children cannot access
the drain valve on the appliance,
potentially releasing hot water.
IMPORTANT SAFETY INSTRUCTIONS
3

Technical Safety
~Installation, repair and maintenance
work should be performed by a Miele
authorized service technician. Work by
unqualified persons could be
dangerous and may void the warranty.
~Before installing the appliance,
check for externally visible damage.
Do not operate a damaged appliance.
~To guarantee the electrical safety of
this appliance, continuity must exist
between the appliance and an effective
grounding system. It is imperative that
this basic safety requirement be met. If
there is any doubt, have the electrical
system of the house checked by a
qualified electrician. The manufacturer
will not be held responsible for
damages caused by the lack, or
inadequacy, of an effective grounding
system.
~Before installation, make sure that
the voltage and frequency listed on the
data plate correspond with the
household electrical supply. This data
must correspond to prevent injury and
appliance damage. Consult a qualified
electrician if in doubt.
~Do not use an extension cord to
connect this appliance to electricity.
Extension cords do not guarantee the
required safety of the appliance.
~Do not use the appliance until it has
been properly installed in the
countertop.
~Before servicing, disconnect the
appliance from the main power supply.
~Do not operate any appliance with a
damaged cord or plug, or if the
appliance has been damaged in any
manner. Contact Miele’s Technical Ser-
vice Department.
~Under no circumstances open the
outer casing of the appliance.
~While the appliance is under
warranty repairs should only be
performed by an authorized service
technician. Otherwise the warranty is
void.
~In the event of any damage to the
appliance, it must be turned off immedi-
ately and disconnected from the main
power supply. Contact Miele’s
Technical Service Department.
Do not use the appliance until it has
been repaired. Ensure power is not
supplied to the appliance until repair
work is completed.
~Defective components should be
replaced by Miele original spare parts
only. Only with these parts can the
manufacturer guarantee the safety of
the appliance.
IMPORTANT SAFETY INSTRUCTIONS
4

Safety
~The appliance is hot during use and
remains so for some time after being
switched off. Be careful not to touch the
appliance if it may still be hot.
~Protect your hands with oven mitts
or potholders when using the
appliance. Use only dry, heat resistant
potholders. Moist or damp potholders
used on hot surfaces can result in
steam burns. Do not let the potholder
touch the hot heating elements. Do not
use towels or other bulky items near the
appliance.
~Do not heat unopened containers.
Built-up pressure may cause the
container to burst and result in injury.
~Never use the appliance to heat a
room. Due to the high temperatures
radiated, objects left near the appliance
could catch fire.
~Do not store items on the appliance
when not in use. Items could melt or
catch fire from residual heat or if the
appliance is turned on inadvertently.
~Never cover the appliance with a
cloth. A fire may result.
~Be aware of loose fitting or hanging
garments when operating the
appliance, they may present a fire
hazard.
~Never leave an appliance
unattended at high settings or when
cooking with oil or fat. Overheated oil
could ignite. Always heat oil slowly,
monitoring it as it heats.
~Do not use water on grease fires.
Smother or use a dry chemical or
foam-type extinguisher on any fire or
flame.
~Do not use aluminum dishes, pans,
pots or foil on the grill. Never cover the
grill grate with aluminum foil. Aluminum
will cause overheating and may
damage the grill grate.
~Clean the lava rocks on a regular
basis and change them when needed.
Fat-saturated stones can easily catch
fire.
~The water trough must always be
filled with water when the appliance is
being used.
~Make certain that the power cords of
small appliances do not come in
contact with the appliance. The
insulation of the cable could become
damaged. Danger of electric shock!
IMPORTANT SAFETY INSTRUCTIONS
5

~To prevent burns and breathing
difficulty, allow the appliance to cool
before cleaning. Some cleaners may
produce toxic fumes if applied to a hot
surface.
~When wiping spills on a hot
appliance with a wet sponge or cloth,
be careful to avoid steam burns.
~Do not let flammable materials,
i.e. cooking grease, accumulate on the
appliance.
~Do not use a steam cleaner to clean
this appliance. Steam could penetrate
electrical components and cause a
short circuit.
The manufacturer cannot be held
liable for damage caused by
non-compliance with these
Important Safety instructions.
SAVE THESE INSTRUCTIONS
AND REVIEW THEM
PERIODICALLY
IMPORTANT SAFETY INSTRUCTIONS
6

aGrates
bHeating element, front
cHeating element, rear
dLava rock container
eDrain valve
fCooking area indicators
gDisplay
Control knobs:
hfront
irear
Display
jOn/Off indicator
Description of the unit
7

Clean the appliance
^Clean the water trough and the grill
with a mild solution of warm water
and liquid dish liquid, then dry with a
soft cloth (see "Cleaning and care").
^Wipe the other surfaces down with a
damp cloth and dry.
Heat the appliance
Metal components of the appliance
have a protective coating which may
give off a slight odor the first time the
appliance is heated.
The smell will dissipate after a short
time and does not indicate a faulty
connection or appliance defect.
Before using for the first time
8

Prepare the appliance
You can use the electric barbecue with
or without the lava rocks.
Without the lava rocks: food will stay
more moist, from the rising steam.
With the lava rocks: the food will have a
more pronounced grilled aroma and
flavor.
^Check that the drain valve is closed.
^Remove the grate, raise the heating
element, and remove the lava rock
container (if desired).

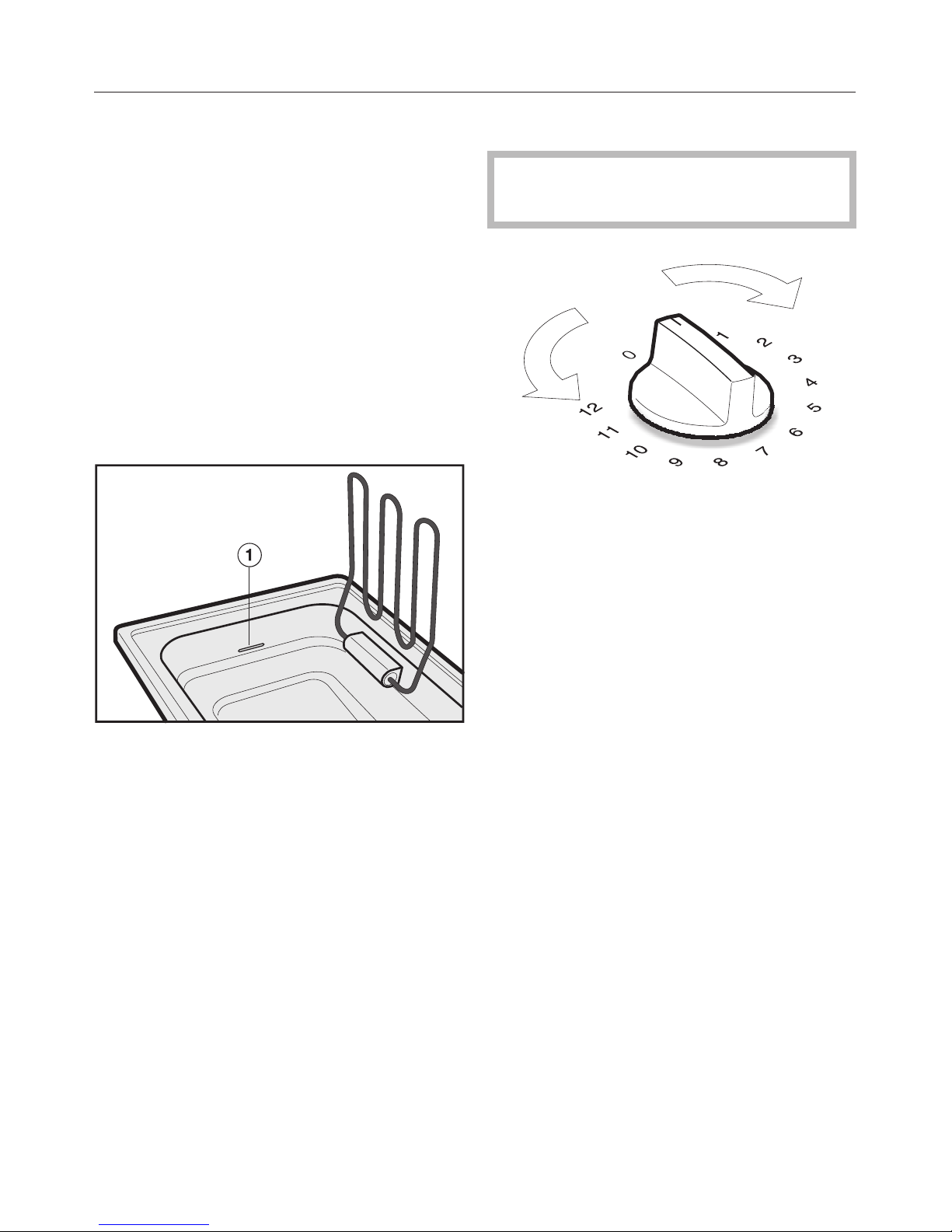

^If grilling without lava rocks fill the
water trough with water up to mark
a, with approx. 4.0 liters of water.
If grilling with lava rocks, fill the
water trough with approx. 1.8 liters of
water.
^Return the filled lava rock container
to the water trough (if desired).
^The heating element can now be
turned down.
^Replace the grates.
Turning On/Off
,Do not leave the appliance
unattended while in use.
The electric barbecue is divided into
two heating areas, which can be used
and adjusted separately. For large
quantities, you can use the entire
surface for cooking. For smaller
quantities, you can, for example, cook
in the front and keep food warm at the
back, using a lower setting.
The heating elements can be switched
on and off by turning the appropriate
knob left or right.
When the appliance is switched on, the
On/Off indicator Ncomes on. It goes out
when it is switched off.
Use
9

Grilling
While grilling, watch the level of
water in the trough. If necessary,
add more water.
Do not use aluminum dishes, pans,
pots or foil on the grill. Never cover
the grill grate with aluminum foil.
Aluminum will cause overheating
and may damage the grill grate.
^Turn one or both operating knobs to
power level "12".
Pre-heat the grill with both racks in
place for approx. 10 minutes.
Make sure the operating knob(s) are
set precisely to power level 12.
If the knobs are not set to the exact
position, the heating will not work with
maximum power.
^Set the power level.
^Grill food as desired.
Tips
–To minimize splattering, dry moist
foods with paper towels before
grilling.
–Marinate food before grilling, to
enhance the flavors.
–To prevent sticking non-marinated
items should be brushed lightly with
oil before grilling. Only use oils that
can tolerate high temperatures.
–You can shorten the grilling time for
potatoes in foil and corn on the cob,
by pre-cooking the potatoes for
approx. 15 - 40 minutes (depending
on the size) and the corn for approx.
10 - 15 minutes.
After grilling
^Turn the appliance off.
^After each use, clean the appliance
while it is still somewhat warm to the
touch (see "Cleaning and care").
^After grilling with the lava rocks
check the condition of the rocks. If
they are dark in color, they are
saturated with fat and need to be
cleaned or replaced. See "Cleaning
and Care - Lava rocks".
Use
10

Grilling times
Food item Grilling time
in minutes
Meat and sausage
Boneless steak 8 - 10
Chicken breasts 16 - 18
Cutlets 8 - 12
Filet steak 4 - 10
Hamburgers 12 - 16
Kebabs 14 - 18
Lamb chop 4 - 8
Sausages 6 - 8
Spare Ribs 15 - 20
T-Bone Steak 10 - 20
Turkey cutlet 8 - 10
Fish / seafood
Salmon steak 10 - 12
Shrimp 2 - 4
Trout 12 - 16
Tuna steak 6 - 8
Food item Grilling time
in minutes
Vegetables
Corn (parboiled) 5 - 8
Eggplant 6 - 8
Potatoes in foil
(parboiled)
10-20
Tomato halves 2 - 4
Onions 14 - 16
Pepper strips 2 - 3
Vegetable kebabs 5 - 6
Fruit
Apple slices 2 - 3
Peach halves 2 - 3
Pineapple slices 2 - 3
Other
Toast/bread 2 - 3
Tofu 4 - 6
The times shown in the table serve as
guide only and apply for grilling at
power level 9 -12 on a pre-heated grill.
The grilling time depends on the type,
preparation, and thickness of the food
item.
Use
11

Overheat protection
If there is not enough water in the water
trough, the overheat protection
automatically switches the appliance
off.
^Pour in cold water.
Once the appliance has cooled down
and the heating element switches back
on, you can continue grilling as normal.
Safety cut-out feature
The safety cut-off ensures that the
heating element will only work if it is
lowered.
Safety Feature
12

,Under no circumstances use a
steam cleaner to clean this
appliance. Pressurized steam could
cause permanent damage to the
surface and to components for
which the manufacturer cannot
accept responsibility.
Never use strong cleaners e.g. oven
sprays, stain or rust removers.
Scouring pads and abrasive
cleaning agents should only be
used on the heating element.
Do not use any sharp pointed
objects which could damage the
seal between the ceramic surface
and the surrounding frame, and
between the frame and the
countertop.
When using cleaning agents for
stainless steel always follow the
manufacturer’s instructions on the
packaging.
After cleaning use a soft, dry cloth to
remove any moisture. This way you
will prevent the build up of limescale
deposits.
Stainless steel
Clean stainless steel surfaces with
warm water and liquid dish soap
applied with a non-abrasive sponge
and then wipe dry with a soft cloth.
Soak baked or hardened spills first to
loosen them.
Stainless steel surfaces can be cleaned
using a non-abrasive stainless steel
cleaner.
To help prevent resoiling, a conditioner
for stainless steel can also be used.
Apply sparingly with even pressure.
Do not use stainless steel cleaner on
or around the printing, it may rub
off. Use only a soft sponge with
some dish liquid and warm water to
clean this area.
Grates and lava rock container
After each use, clean the grates and
lava rock container with warm water
and liquid dish soap. Pre-soak any
heavy soiling, then remove with a
brush. Dry throughly.
Do not use stainless steel
conditioner on the lava rock
container.
Heating element
Grill residue can best be removed from
the heating element using a scouring
pad.
Cleaning and care
13

Lava rocks
Clean the lava rocks on a regular basis.
To do so, put the rocks in a container
with mild solution of warm water and
liquid dish soap. Let them soak briefly,
stirring occasionally. Drain water and
rinse rocks. Repeat this process 2 to 3
times with fresh water. Lay the rocks on
a large kitchen towel to dry.
Clean the pumice stones to remove
the used layer. The stones will wear
down depending on how often they
are used.
Once the volume in the pumice
stone container has fallen by half, it
will need to be re-filled.
Water trough
^Let the water cool to a safe
temperature to prevent burns.
^Place a container (large enough to
hold all water in the trough) under the
drain valve.
^Slowly open the drain valve by
turning it counterclockwise,a.
^Once the water has drained, close
the drain valve by turning it
clockwise,buntil the water flow
stops.
^Fill the water trough with a mild
solution of liquid dish soap and warm
water, and rinse it out thoroughly.
Use a bottle brush to clean the drain
^Allow the solution to drain.
^Rinse with warm water and dry.
Do not use stainless steel
conditioner on the water trough.
Make sure that the underside of the
appliance is always accessible for
draining away the water. Remember
to let the water cool before draining
to prevent burns.
Cleaning and care
14

,Repairs should only be carried out by an authorized technician in
accordance with local and national safety regulations. Unauthorized repairs
could cause injury or appliance damage. The manufacturer cannot be held
responsible for unauthorized work.
What if the appliance does not heat up after it is turned on?
Possible fault Solution
The overheat protection was triggered. See "Overheat protection"
The fuse or breaker was tripped. Contact a qualified electrician or Miele
Technical Service for assistance.
What if the food does not get brown, even though the appliance was
pre-heated for 10 minutes at level 12?
The knob is not exactly set to level 12,
and the appliance is not opretaing at
full power.
Correct the setting.
Frequently asked questions
15

In the event of a fault which you cannot
easily fix yourself, please contact the
Miele Technical Service Department at
the address on the back of this booklet.
When contacting Technical Service
please quote the serial number and
model of the appliance. This
information is visible on the silver data
plate supplied with the appliance.
Technical Service
16

Miele offers a variety of additional accessories for its appliances.
All accessories can be ordered from Miele.
Griddle CSGP 1400
Cast grill plate,
with one smooth side and one ridged
side, for CS 1322
Wire rack for Griddle Plate
CSGP1400
Handle
Stainless steel and ceramic surface
cleaners
Help to remove soiling, lime spots, mild
staining, fingerprints, etc. while
maintaining the appearance of the
appliance between cleanings.
Lava rocks
Lava rocks come standard with the
electric barbecue, they can also be
reordered as necessary.
Additional Accessories
17

18

Installation Instructions
IMPORTANT: SAVE FOR THE LOCAL ELECTRICAL INSPECTOR'S USE
To prevent accidents
and machine damage
read these instructions
before
installation or use.

Note to the installer:
Please leave this instruction book
with the consumer for the local
electrical inspector’s use.
The minimum distances given in
these Installation Instructions must
be observed in order to ensure safe
operation. Failure to do so increases
the risk of fire.
The cabinetry and venting hood
should be installed first to prevent
damage to the appliance.
~The countertop must be bonded
with heat resistant (212 °F/100 °C)
adhesive to prevent distortion or
dissolving.
The wall strips must be heat-resistant
as well.
~To eliminate the risk of burns or fire
by reaching over heated surfaces
cabinet storage space above the
appliance should be avoided. If cabinet
storage is necessary, the risk can be
reduced by installing a venting hood to
project horizontally a minimum of 5"
(127 mm) beyond the bottom of the
cabinets.
~This appliance has not been
designed for maritime use or for use in
mobile installations such as recreational
vehicles or aircraft. However, under
certain conditions it may be possible for
installation in these applications. Please
contact the Miele Technical Service
Department with specific requirements.
~The grill must not be installed
directly next to the CS 1421
(Salamander). It is essential to maintain
a distance of at least 5 7/8" (150 mm)
between these two appliances.
~You must ensure the power cable
for the appliance will not come under
any mechanical strain once installed
e.g., while the water is draining.
~Be sure that after installation the
power cord does not come into contact
with any parts of the appliance which
may become hot.
~The appliance must not be
permanently sealed into the countertop
when installed. The sealing strip under
the edge of the appliance provides a
sufficient seal for the countertop. See
"Sealing".
Keep this instruction book in a safe
place for reference and pass it on to
any future user.
SAFETY INSTRUCTIONS FOR INSTALLATION
20
