Installation
*INSTALLATION*
Safety instructions for installation
Damage risk from incorrect installation.
Incorrect installation can cause damage to the SmartLine element.
The SmartLine element must only be installed by a qualified person.
Risk of electric shock!
Incorrect connection to the mains supply may result in an electric shock.
The SmartLine element must be connected to the electrical supply by a
qualified person only.
Damage from falling objects.
Take care not to damage the SmartLine element when fitting wall units or a
cooker hood above it.
Fit the wall units and the cooker hood before the SmartLine element.
 The veneer or laminate coatings of worktops (or adjacent kitchen
units) must be treated with 100°C heat-resistant adhesive which will
not dissolve or distort. Any backmoulds must be of heat-resistant
material.
 The SmartLine element must not be installed over a fridge, fridge-
freezer, freezer, dishwasher, washing machine, washer-dryer or
tumble dryer.
 This SmartLine element must not be installed above ovens or
cookers unless these have a built-in cooling down fan.
 After installation, the mains connection cable of the SmartLine
element must not come into contact with any moving kitchen
component (e.g. a drawer) or be subject to mechanical loads which
could damage it.
 Observe carefully the safety clearances listed on the following
pages.

11782200-00
Installation
*INSTALLATION*
Safety distances
Safety distance above the SmartLine
element
The safety distance specified by the
manufacturer of the cooker hood must
be maintained between the SmartLine
element and the cooker hood above it.
If combustible objects are installed
above the SmartLine element (e.g.
cabinets, utensil rail, etc.), a minimum
safety distance of 600mm must be
maintained.
When two or more SmartLine
elements which have different safety
distances are installed together
below a cooker hood, you should
observe the greatest specified safety
distance.

11782200-00
Installation
*INSTALLATION*
Safety distances to the sides and
back of the hob
The SmartLine element should
preferably be installed with plenty of
space on the right and left.
The minimum distance specified
below must be observed between the
rear of the SmartLine element and a tall
unit or room wall.
The minimum distance,  specified
below must be adhered to between one
side of the SmartLine element (right or
left) and a tall unit or room wall. A
minimum distance of 300mm must be
observed on the opposite side.
Minimum distance between the back
of the worktop cut-out and the rear
edge of the worktop:
50mm
Minimum distance on the right side
between the worktop cut-out and the
closest adjacent piece of furniture (e.g.
tall unit) or a room wall:
50mm.
Minimum distance on the left side
between the worktop cut-out and the
closest adjacent piece of furniture (e.g.
tall unit) or a room wall:
50mm.
Not allowed
Highly recommended
Not recommended
Not recommended

11782200-00
Installation
*INSTALLATION*
Minimum safety distance underneath
the SmartLine element
To ensure proper ventilation of the
SmartLine element, a minimum safety
distance is required between the
element and an oven, interim shelf or
drawer.
The minimum safety distance from the
lower edge of the SmartLine element to
- Upper edge of oven: 15mm
- Upper edge of interim shelf: 15mm
- Upper edge of drawer: 5mm
- Base of drawer: 75mm
Intermediate shelf
It is not necessary to fit an interim shelf
underneath the SmartLine element but
one may be fitted if you wish.
Leave a gap of 10mm at the back of
the shelf to accommodate the mains
connection cable. We recommend a
gap at the front of the SmartLine
element of 20mm to ensure good
ventilation.

11782200-00
Installation
*INSTALLATION*
Safety distance when installing the appliance near a wall with additional
niche cladding
If a niche cladding is installed, a minimum safety distance must be maintained
between the worktop cut-out and the cladding, since high temperatures can
damage these materials.
If the niche cladding is made from a combustible material (e.g. wood) a minimum
safety distance  of 50mm must be maintained between the worktop cut-out and
the cladding.
If the niche cladding is made from a non-combustible material (e.g. metal, natural
stone, ceramic tiles) the minimum safety distance  between the worktop cut-out
and the cladding will be 50mm less the thickness of the cladding.
Example: 15mm niche cladding
50mm - 15mm = minimum safety distance of 35mm
Flush-fit installation Onset installation
aMasonry
bNiche cladding dimension x = thickness of the niche cladding material
cWorktop
dWorktop cut-out
eMinimum distance to
combustible materials 50mm
non-combustible materials 50mm - dimension x

11782200-00
Installation
*INSTALLATION*
Surface-mounted
Installation notes –
surface-mounted
Sealing between the SmartLine
Element and the worktop
The SmartLine element and worktop
may be damaged if the element
needs to be removed after it has
been sealed with a sealant.
Do not use any sealant between the
SmartLine element and the worktop.
The seal under the edge of the top
part of the appliance provides a
sufficient seal for the worktop.
Tiled worktop
Grout lines and the hatched area
underneath the SmartLine element
frame must be smooth and even. If they
are not, the SmartLine element will not
sit flush with the worktop and the
sealing strip underneath the top part of
the appliance will not provide a good
seal between the appliance and the
worktop.
Sealing strip
Dismantling the SmartLine element
for service purposes may damage
the sealing strip underneath the edge
of the SmartLine element.
Always replace the sealing strip
before reinstalling the SmartLine
element.

11782200-00
Installation
*INSTALLATION*
Installing several
SmartLine elements
The gaps between the individual
SmartLine elements are sealed with a
silicone sealant that is heat-resistant to
at least 160°C. With flush-fit
installation, the gap between the
SmartLine element(s) and the worktop
must also be sealed with a silicone
sealant that is heat-resistant to at least
160°C.
After installation, the SmartLine
elements must be easily accessible
from below, so that the bottom half of
the casing can be removed for
maintenance. If the SmartLine elements
are not accessible from below, the
sealant must be removed so that they
can be removed.
Combination with a downdraft
extractor
If the SmartLine element is installed in
combination with a downdraft extractor,
the latter must be installed first.
Induction wok next to the downdraft
extractor
The induction wok can only be fitted on
the side of the downdraft extractor
opposite the connector.

11782200-00
Installation
*INSTALLATION*

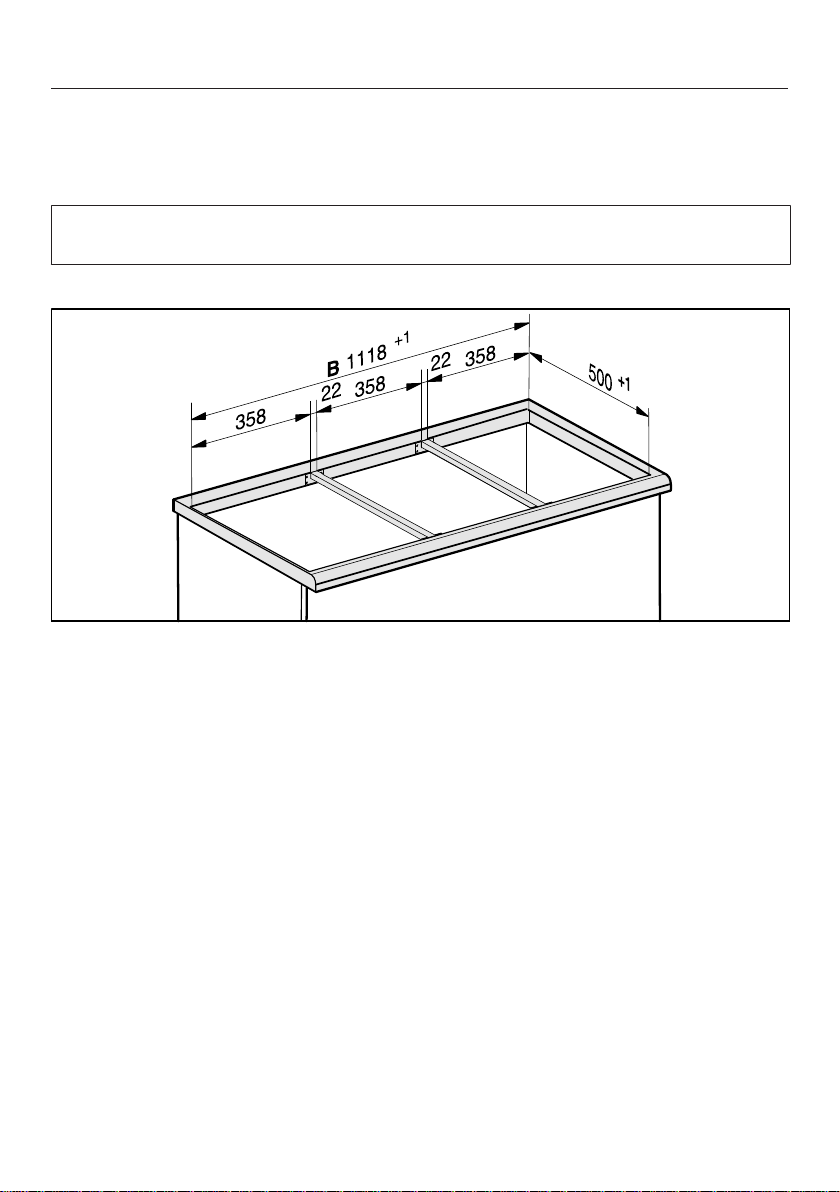

Worktop cutout – surface-mounted
Information for calculating the cutout
The elements overlap the worktop by 10mm.
When installing several elements, a distance of 2mm must be observed between
the individual elements.
Calculating cutout dimensionB
1 element = Width of the element minus 10mm on the right, minus 10mm on the
left
Several elements = Total width of the elements plus 2mm distance between the
elements, minus 10mm on the right, minus 10mm on the left.
Some examples are illustrated below.

11782200-00
Installation
*INSTALLATION*

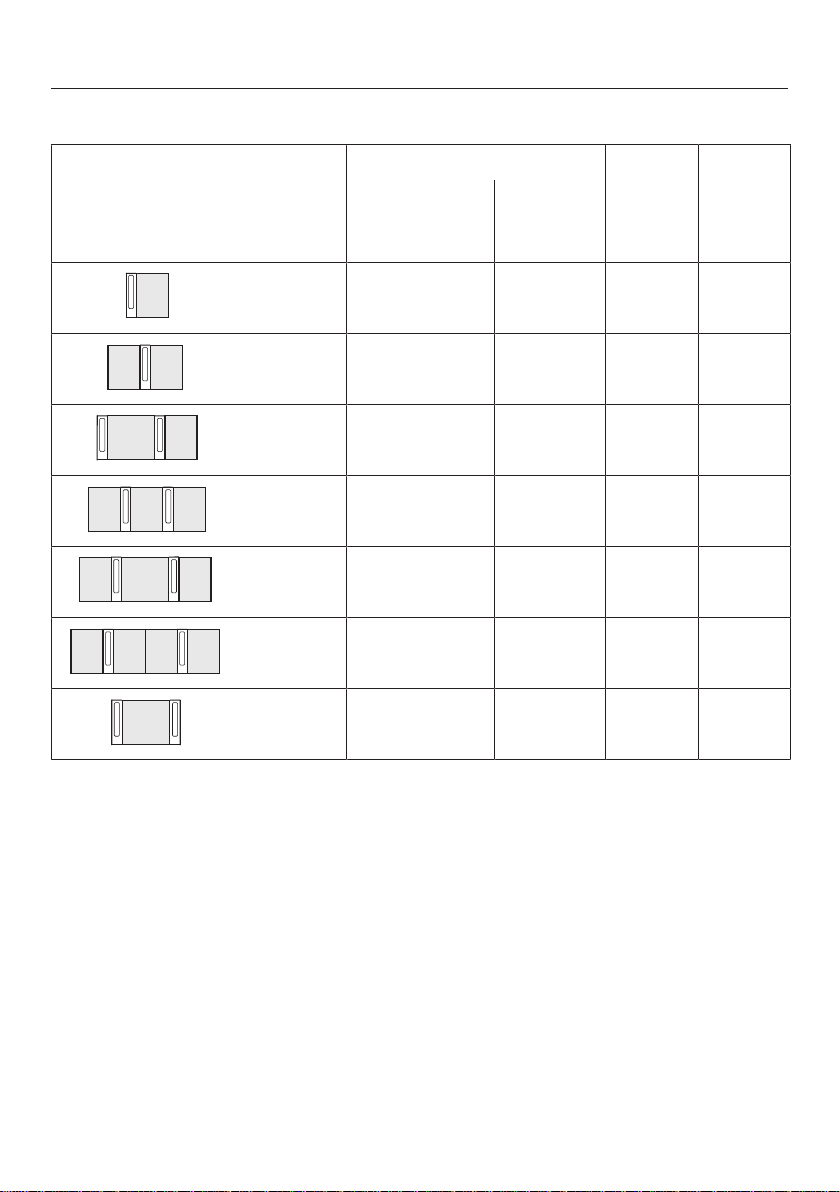

Installation with a downdraft extractor
Combination examples Numberxwidth [mm] Dimension
B
[mm]
Cooking
elements
Downdraft
extractor
1x378 1x120 480+1
2x378 1x120 860+1
1x378
1x620
2x120 1224+1
3x378 2x120 1362+1
2x378
1x620
2x120 1604+1
4x378 2x120 1742+1
1x620 2x120 844+1

11782200-00
Installation
*INSTALLATION*
Installation without a downdraft extractor
Combination examples Numberxwidth [mm] DimensionB
[mm]
Cooking elements
1x378 358+1
2x378 738+1
1x378
1x620
980+1
3x378 1118+1
2x378
1x620
1360+1
4x378 1498+1

11782200-00
Installation
*INSTALLATION*
Spacer bars – surface-mounted
When installing several SmartLine elements, an additional spacer bar must be
fitted in between the individual elements.
The clips supplied with the spacer bars are only required for installing a
CSDA700xFL.
Installing 3elements and 2spacer bars

11782200-00
Installation
*INSTALLATION*

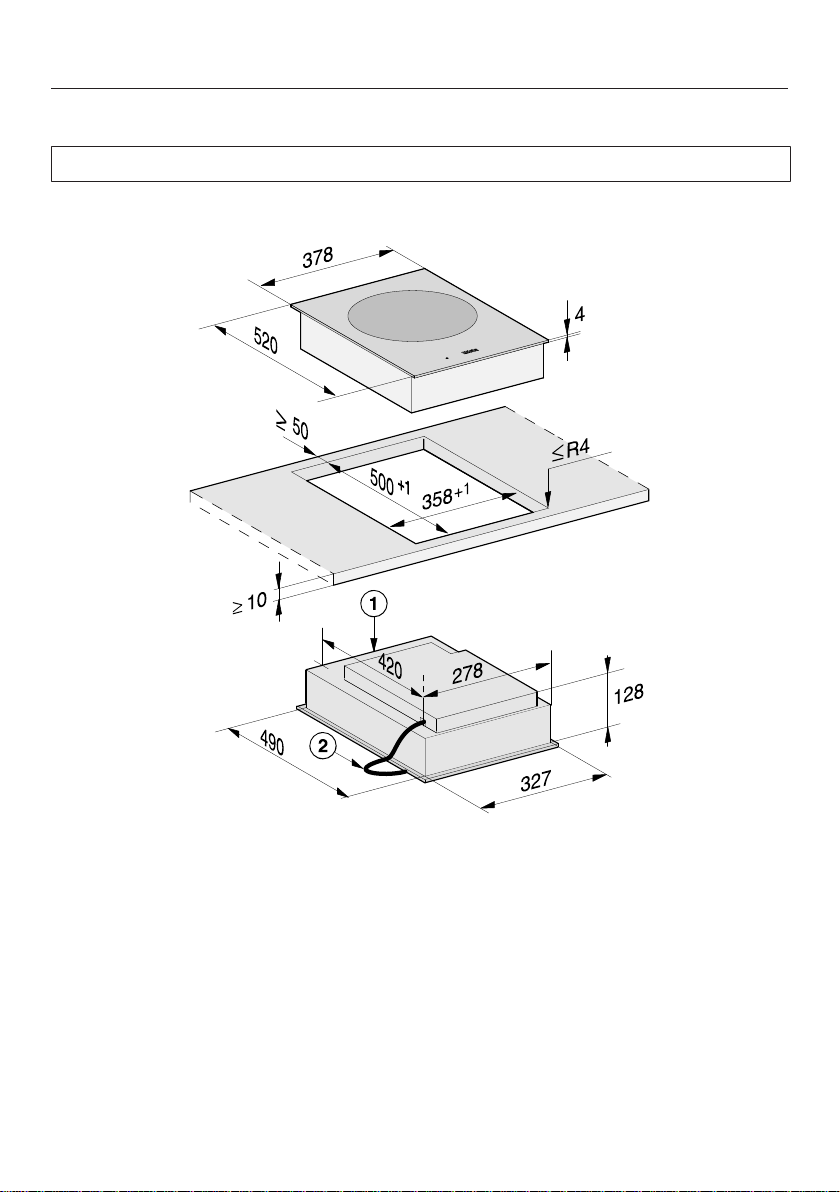

Installation dimensions–Surface-mounted
All dimensions are given in mm.
aFront
bPower cable, L=2000mm

11782200-00
Installation
*INSTALLATION*
Installation – surface-mounted
Preparing the worktop
Create the worktop cutout.
Remember to maintain the minimum
safety distances (see “Installation –
Safety distances”).
Seal any cut surfaces on wooden
worktops with a special varnish,
silicone sealant or resin to prevent the
wood from swelling as a result of
moisture ingress. The sealant must
be heat-resistant.
Make sure that the sealant does not
come into contact with the top of the
worktop.

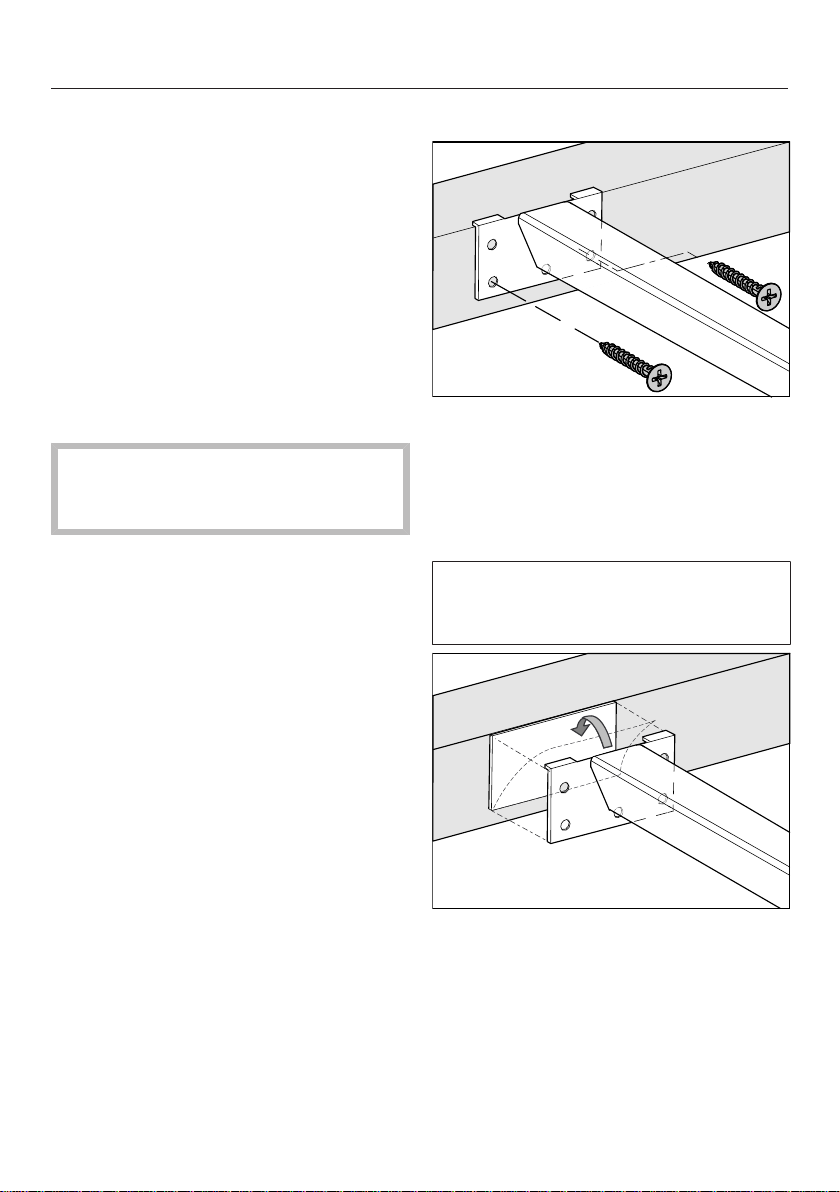

Fitting the spacer bars
Use the middle screw holes if one of the
following SmartLine elements is
installed to the right or left of the spacer
bar: CS7611, CS 7641, CS7101(-1),
CS7102(-1)
Wooden worktops
Position the spacer bars flush onto
the upper edge of the cutout.
Secure the spacer bars with the
3.5x25mm wood screws supplied.
Natural stone worktops
You will need heavy-duty double-
sided tape (not supplied) to secure the
spacer bars.
Stick the tape along the top edge of
the worktop cutout.
Position the spacer bars flush onto
the upper edge of the cutout.
Press the spacer bars firmly into
place.

11782200-00
Installation
*INSTALLATION*
Installing the SmartLine element
Stick the supplied sealing strip under
the edge of the SmartLine element.
Do not apply the sealing strip under
tension.
Feed the mains connection cable
down through the worktop cutout.
Position the SmartLine element in the
worktop cutout. When doing this,
make sure that the seal of the
appliance sits flush with the worktop
on all sides. This is important to
ensure an effective seal all round.
If the seal does not meet the worktop
correctly on the corners, carefully
scribe the corner radii (≤R4) with a
jigsaw.
Do not use any additional sealant
(e.g. silicone) on the SmartLine
element.
Connect the SmartLine element to
the mains electricity supply.
If required, connect the SmartLine
element to the gas supply (see
“Installation – Gas connection”).
Check that the SmartLine element
works.
Seal the gaps between the individual
elements with a silicone sealant that
is heat-resistant to at least 160°C.
Unsuitable sealant can damage
natural stone.
For natural stone worktops and
natural stone tiles, only use silicone
sealant that is specially formulated
for natural stone. Follow the
manufacturer’s instructions.

11782200-00
Installation
*INSTALLATION*
Flush-fit
Installation notes –
flush-fit
Flush-fit installation is only possible in
natural stone (granite, marble), solid
wood and tiled worktops. For
installation in worktops made of other
materials, please consult the relevant
manufacturer as to whether their
worktops are suitable for flush-fit
installation.
The internal width of the base unit
underneath the appliance must be at
least as wide as the inner worktop
cutout (see “Installation – Building-in
dimensions – flush-fit”), so that the
SmartLine element is easily accessible
from underneath after installation and
the bottom half of the casing can be
removed for maintenance. If the
element is not freely accessible from
below after installation, the sealant
must be removed so that the element
can be removed.
Natural stone worktops
The SmartLine element is set directly in
the cutout.
Solid wood worktops, tiled worktops,
glass worktops
The SmartLine element is set on a
wooden frame inside the cutout. The
frame must be provided on site, and is
not supplied with the appliance.
Sealing strip
Dismantling the SmartLine element
for service purposes may damage
the sealing strip underneath the edge
of the SmartLine element.
Always replace the sealing strip
before reinstalling the SmartLine
element.

11782200-00
Installation
*INSTALLATION*
Installing several
SmartLine elements
The gaps between the individual
SmartLine elements are sealed with a
silicone sealant that is heat-resistant to
at least 160°C. With flush-fit
installation, the gap between the
SmartLine element(s) and the worktop
must also be sealed with a silicone
sealant that is heat-resistant to at least
160°C.
After installation, the SmartLine
elements must be easily accessible
from below, so that the bottom half of
the casing can be removed for
maintenance. If the SmartLine elements
are not accessible from below, the
sealant must be removed so that they
can be removed.
Combination with a downdraft
extractor
If the SmartLine element is installed in
combination with a downdraft extractor,
the latter must be installed first.
Induction wok next to the downdraft
extractor
The induction wok can only be fitted on
the side of the downdraft extractor
opposite the connector.

11782200-00
Installation
*INSTALLATION*
Worktop cutout – flush-fit
Natural stone worktop Wooden worktop
* 7+0.5mm with CS7611FL
Information for calculating the cutout
The elements overlap the worktop by 10mm.
When installing several elements, a distance of 2mm must be observed between
the individual elements.
Calculating cutout dimensionA
1 element = Width of the element plus 2mm on the right, plus 2mm on the left.
Several elements = Total width of the elements plus 2mm distance between the
elements, plus 2mm on the right, plus 2mm on the left
Calculating cutout dimensionB = Cutout dimension A minus 12mm on the right,
minus 12mm on the left.
Some examples are illustrated below.

11782200-00
Installation
*INSTALLATION*
Installation with a downdraft extractor
Combination examples Numberxwidth [mm] Dimensi
onA
[mm]
Dimensi
onB
[mm]
Cooking
elements
Downdraft
extractor
1x378 1x120 504+1 480+1
2x378 1x120 884+1 860+1
1x378
1x620
2x120 1248+1 1224+1
3x378 2x120 1386+1 1362+1
2x378
1x620
2x120 1628+1 1604+1
4x378 2x120 1766+1 1742+1
1x620 2x120 868+1 844+1

11782200-00
Installation
*INSTALLATION*

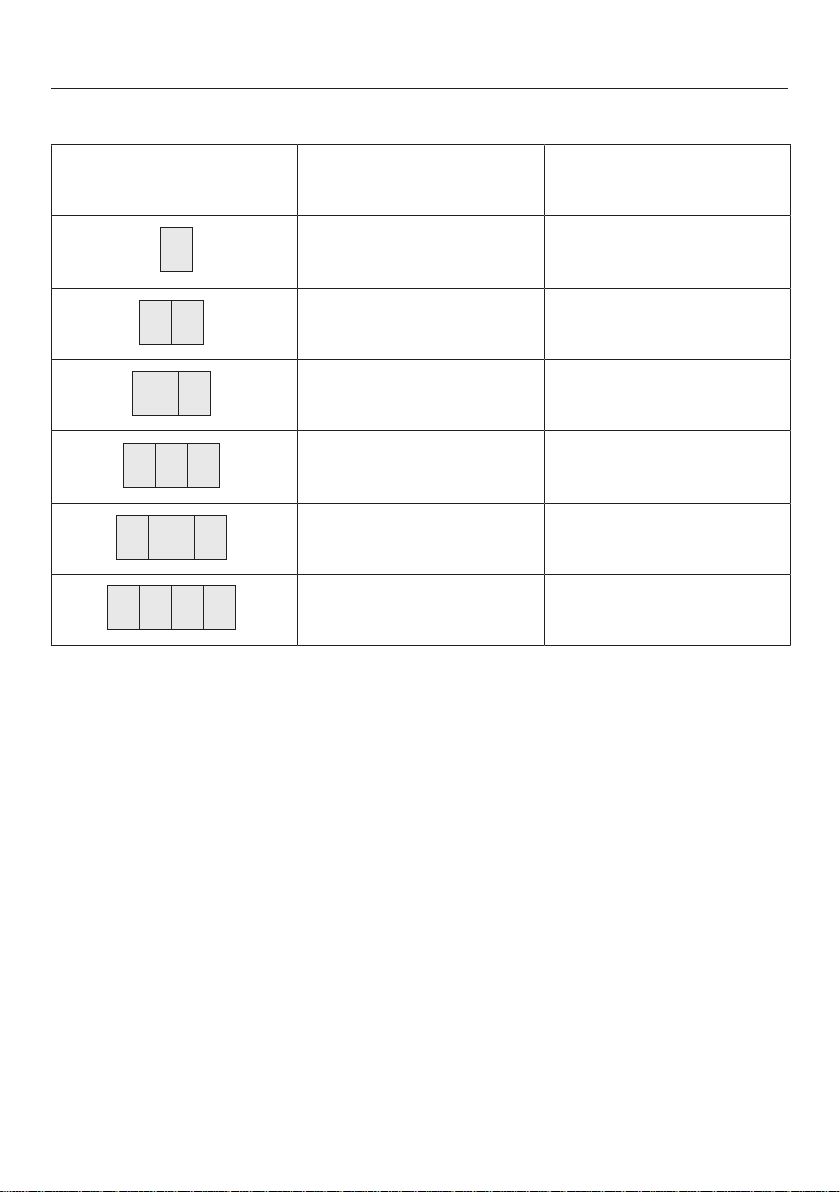

Installation without a downdraft extractor
Combination
examples
Numberxwidth
[mm]
DimensionA
[mm]
DimensionB
[mm]
Cooking elements
1x378 382+1 358+1
2x378 762+1 738+1
1x378
1x620
1004+1 980+1
3x378 1142+1 1118+1
2x378
1x620
1384+1 1360+1
4x378 1522+1 1498+1

11782200-00
Installation
*INSTALLATION*
Spacer bars – flush-fit
When installing several SmartLine elements, an additional spacer bar must be
fitted in between the individual elements.
The clips supplied with the spacer bars are only required for installing a
CSDA700xFL.
Installing 3elements and 2spacer bars
