Miele H 390-2 User manual

Operating instructions
Ovens and cookers
H 370-2, H 380-2
H 373-2, H 383-2, H 390-2
To avoid the risk of accidents
or damage to the appliance it is
essential to read these operating
instructions before it is installed or
used for the first time.
GiZWO
M.-Nr. 05 850 170

Description of the appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Baking tray, grill pan and rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Roasting filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Roast probe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Anti-splash tray. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Telescopic carriage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Handle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Lever. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Catalyser. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Energy efficiency rating according to EN 50304. . . . . . . . . . . . . . . . . . . . . . . . . . 10
Caring for the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Safety feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Safety cut-out. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Before using for the first time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Setting the clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Switching on the catalyser. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Cleaning the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Description of the oven systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Oven - use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Function selector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Temperature and Timer buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
"–" and "+" buttons with indicator light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Selecting an oven setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Recommended temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Using the oven. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Altering the temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Entering your own recommended temperature . . . . . . . . . . . . . . . . . . . . . . . . 26
Rapid heat-up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
To switch off "rapid heat-up" . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Pre-heating the oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Energy-save function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Oven lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Night dimming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Contents
2

Setting the minute minder. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Altering oven settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Using the clock / timer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

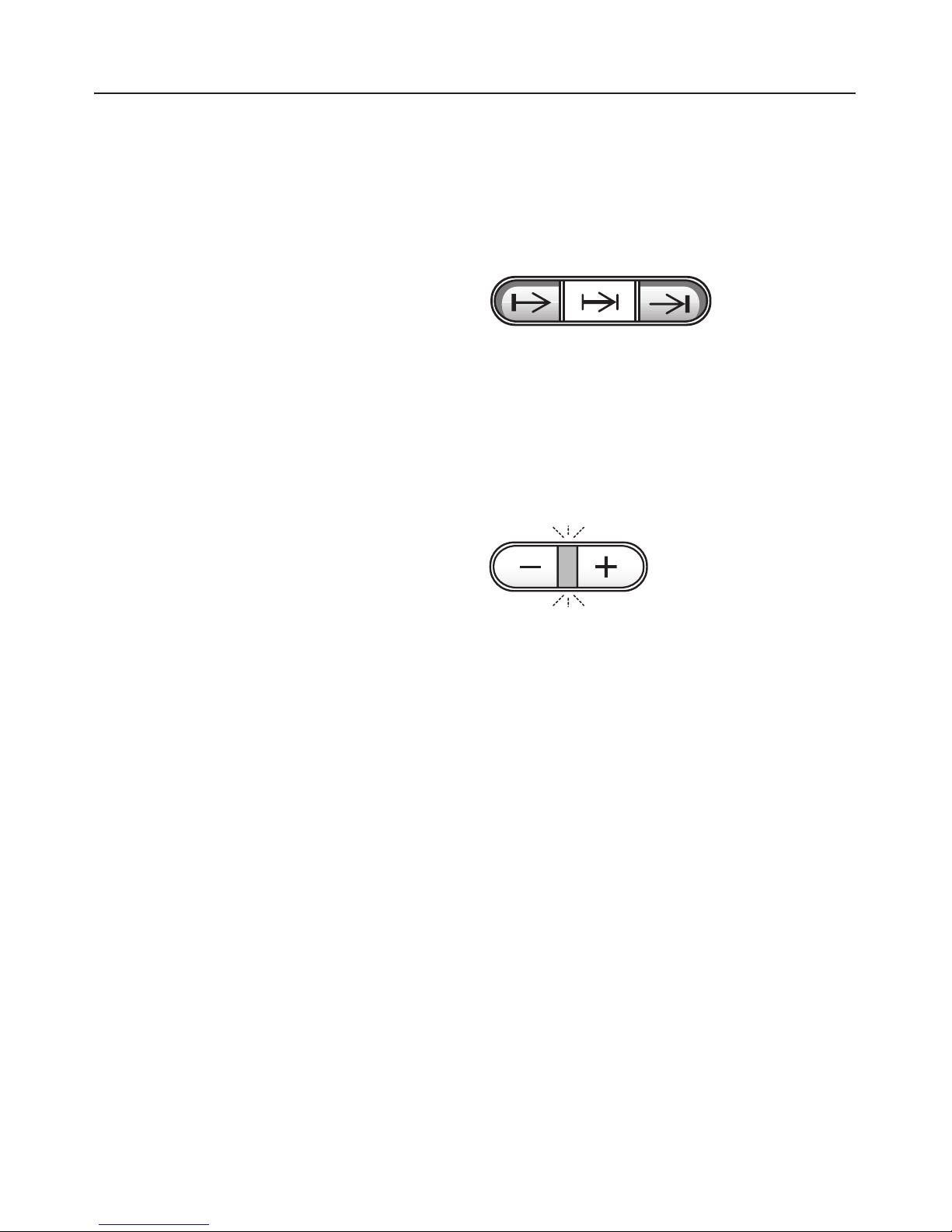

Timer buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
"–" and "+" buttons with indicator light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Using the oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Setting the clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Switching the time of day display on and off. . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Programming cooking times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Programming cooking time in the oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Programming hob zone cooking times. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Switching the cooking process off automatically. . . . . . . . . . . . . . . . . . . . . . . . . . 37
Switching on and off automatically . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
To set the End time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Checking, altering times or cancelling times entered . . . . . . . . . . . . . . . . . . . . . . 39
Baking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Baking chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
oasting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
oasting with the oast Probe. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
oasting chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Grilling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Grill chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
otisserie Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Defrosting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Appliance front and control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
PerfectClean . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Catalytic enamel surfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
To remove the oven door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
To remove the telescopic carriage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
To remove the runners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
To lower the upper heating element . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
To remove the catalytic enamelled back panel, side liners (if fitted) and roof
liner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Contents
3

Correcting minor faults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Extra accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Electrical connection UK, I L, ZA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Electrical connection AUS, NZ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Installation - cooker and hob control unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Installing the oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Important Note: H 390 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Contents
4

General view - "E"Model cooker with hob controls
Control panel *
aOven function selector
bOven: display and pushbuttons
cTimer: display and pushbuttons
d"+/–" Button with indicator light
eHob zone controls *
* depending on model
Oven interior
fHeating element for top heat and
grilling with roof liner
gGrill motor *
hConnection socket for core tempera-
ture probe (roast probe) *
iAir inlet for fan
jTelescopic carriage/Runner heights
1, 2, 3, 4, 5 *
kDoor contact switch
lOven door
Description of the appliance
5

General view - "B" Model oven only
Control panel *
aOven function selector
bOven: display and pushbuttons
cTimer: display and pushbuttons
d"+/–" Button with indicator light
* depending on model
Oven interior
eHeating element for top heat and
grilling with roof liner
fGrill motor *
gConnection socket for core tempera-
ture probe (roast probe) *
hAir inlet for fan
iTelescopic carriage/Runner heights
1, 2, 3, 4, 5 *
jDoor contact switch
kOven door
Description of the appliance
6

Features
Electronic controls
In addition to operating the various
cooking programmes to bake, roast
and grill the electronic controls also of-
fer the following features:
–Clock display
–Minute minder
–Timer to automatically switch cooking
programmes on and off with auto-
matic use made of residual heat
– Settings can be customised
– System lock, to prevent the appli-
ance being used unintentionally
– Safety cut-out
Cooling system
During use the cooling fan will automat-
ically come on when a specific temper-
ature is reached. The cooling fan mixes
hot air from the oven cavity with cool
room air before venting it out into the
kitchen through vents located between
the appliance door and the control
panel.
The controls and door handle will get
slightly warm. They are quite safe to
touch.
The cooling fan will continue to run for a
while after the oven has been switched
off to prevent any humidity building up
in the oven, on the control panel or in
the oven housing unit.
When the temperature in the oven has
fallen sufficiently the cooling fan will
switch off automatically.
Door contact switch
There is a door contact switch above
the right hand door hinge.
If the door is opened during operation,
the door contact switch automatically
switches off the heating elements, and
the fan if a "Fan" setting is being used.
This helps reduce the amount of heat
lost from the oven cavity, e.g. when
checking food.
PerfectClean treated surfaces
The following surfaces are all treated
with PerfectClean enamelling:
– Oven interior
– Runners
– Baking tray
– Grill pan
– Wire rack
PerfectClean enamelled surfaces have
very good anti-stick properties and are
much easier to keep clean than con-
ventional enamel if cleaned regularly.
See "Cleaning and care" for more infor-
mation.
Catalytic liners
The back panel, roof liner and side lin-
ers (if fitted) are coated with dark grey
catalytic enamel. Soiling from oil and fat
is burnt off these surfaces when very
high temperatures are used in the oven.
This makes it easier to clean inaccessi-
ble areas of the oven.
See "Cleaning and care" for more infor-
mation.
Description of the appliance
7

Catalyser
The catalyser is fitted into the oven's
ventilation system.
It filters fat from the escaping vapours
and thus reduces cooking smells.
The catalyser operates automatically for
all functions except "Defrost" and
"Lighting".
Accessories
Most of the following accessories are
supplied with this oven.
These and other accessories are also
available to order from your Dealer or
the Miele Spare Parts Department. See
"Extra Accessories" further on in this
booklet for more details.
Baking tray, grill pan and rack
The baking tray, grill pan and rack are
fitted with non-tip safety notches which
prevent them being pulled right out
when they only need to be partially
pulled out.
When pushing the tray, pan and rack
back in, always ensure that the
safety notches are at the rear of the
oven. (See illustration)
The tray, pan and rack can then only be
taken out of the oven by raising them
upwards and then pulling out.
oasting filter
The roasting filter must be fitted in front
of the fan when cooking anything fatty
or where food is likely to splatter, e.g.
when open roasting and grilling meat.
The droplets of fat caught up in the cir-
culating air are deposited on the roast-
ing filter. This helps to keep the oven
and the area behind the interior back
panel cleaner.
Do not use the roasting filter when
baking. This would increase the
times needed for baking and give
uneven browning results.
Description of the appliance
8

oast probe
(depending on model)
The roast probe enables the roasting
process to be monitored simply and re-
liably. See "Roasting with the roast
probe" for details.
Anti-splash tray
(depending on model)
The anti-splash tray should be placed
inside the deep sided grill pan when
grilling or roasting.
The juices from the food being cooked
collect under the anti-splash tray. This
prevents them from spitting and making
the oven dirty. The juices can then be
used for making gravy and sauces.
Telescopic carriage
(depending on model)
When pushing the baking trays, grill
pan / oven tray or rack into the oven,
make sure that the telescopic car-
riage is pushed completely in.
If you wish to use only the lowest runner
level for cooking, the side rails can be
taken out.
This has the advantage of:
–making more space available inside
the oven, for larger roasting tins.
–keeping the side rails clean.
Description of the appliance
9

otisserie
(depending on model)
See "Grilling with the rotisserie" for de-
tails.
Handle
(depending on model)
To take the racks, baking trays or the
grill pan out of the oven, or to put them
into it. The two prongs at the top go in-
side the rack, tray or pan and the
U-shaped supports underneath.
Lever
Use the lever for lifting off the halogen
lamp cover.
Catalyser
Depending on model your appliance
may be fitted with a catalyser.
The catalyser is built in to the oven's
cooling system.
The catalyser filters fatty vapours and
reduces food smells.
Energy efficiency rating
according to EN 50304
These appliances are rated energy effi-
ciency class Bin accordance with EN
50304. Tests were carried out using the
"Conventional" oven function with the
catalyser switched off.
Hob use and installation
For "E" models (hobs with integrated
hob controls) a separate set of instruc-
tions is supplied with the hob which
covers its use and installation.
Description of the appliance
10
