Miele HR 1954 User manual

Operating Instructions
48" Dual Fuel Range
(Warming Drawer)
To prevent accidents and damage to the range, you must read all
instructions supplied before installing or using the appliance.
en–US, CA M.-Nr. 09 898 121

IMPORTANT SAFETY INSTRUCTIONS
2
WARNING
Children and adults can tip over the range if has not been
secured. This may lead to fatal injuries.
 This range must be secured and connected using the anti-tip
device according to the installation instructions.
 If you have moved the range, slide the locking latch onto the anti-
tip device until you feel it lock into place.
 Do not use the range if the anti-tip device has not been properly
installed and engaged.
 Failure to observe the information contained in the installation
instructions can lead to serious or fatal injuries for children and
adults.
All ranges can tip
Injury to persons
could result
Install anti-tip devices
packed with range
See installation
instructions
WARNING

Contents
3
IMPORTANT SAFETY INSTRUCTIONS................................................................. 2
IMPORTANT SAFETY INSTRUCTIONS................................................................. 4

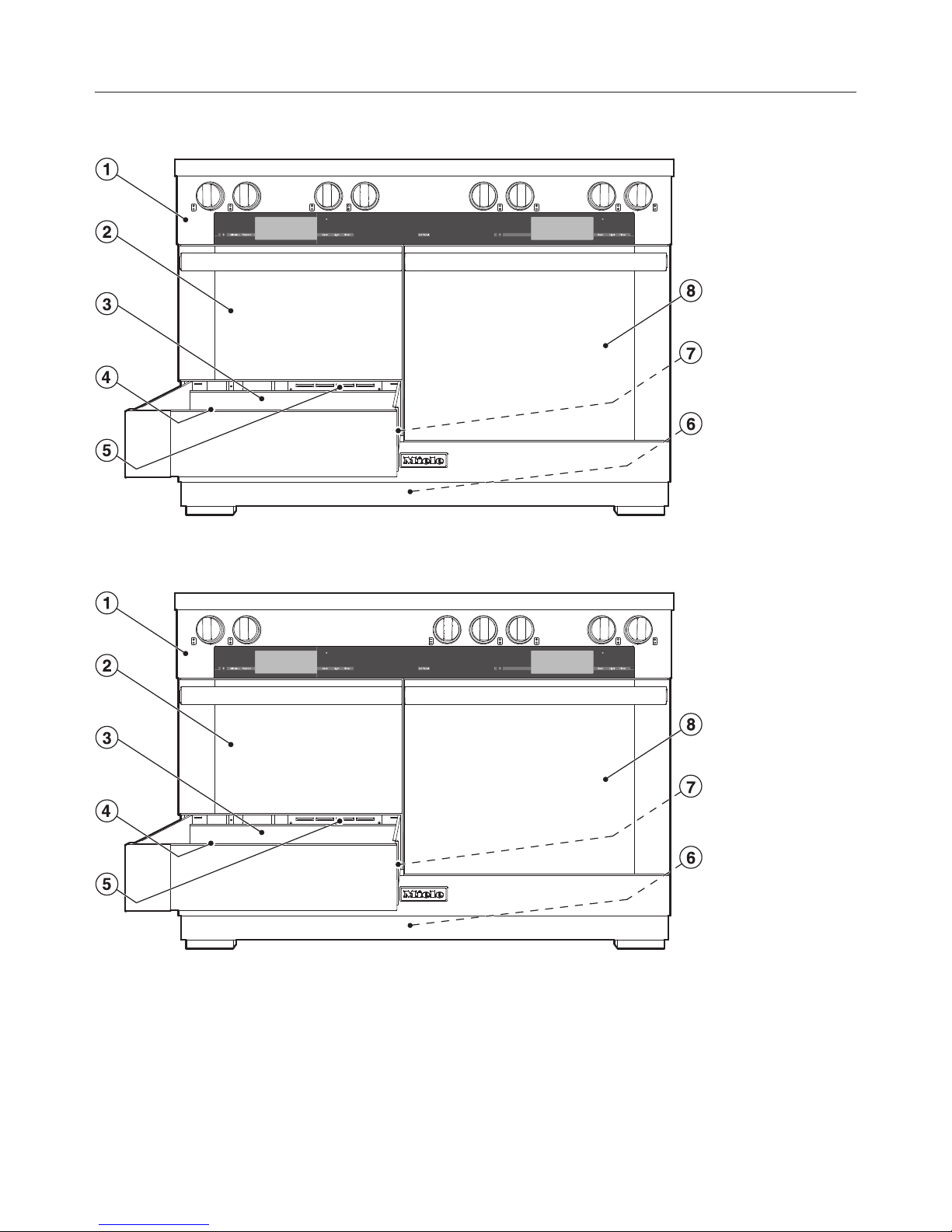

Guide to the range ............................................................................................... 11
HR 1954 ................................................................................................................. 11
HR 1955, HR 1956................................................................................................. 11
Control panel for Warming Drawer .................................................................... 12
Features ................................................................................................................ 13
Model numbers ..................................................................................................... 13
Data plate .............................................................................................................. 13
Items included with this range ............................................................................... 13
Before using for the first time............................................................................. 14
First cleaning.......................................................................................................... 14
Heating the warming drawer for the first time ....................................................... 14
Operation .............................................................................................................. 15
Opening and closing the drawer............................................................................ 15
Basic operation...................................................................................................... 15
Operating modes ................................................................................................... 16
Selecting an operating mode................................................................................. 16
Temperature settings ............................................................................................. 17
Duration.................................................................................................................. 19
Keeping food warm.............................................................................................. 20
Warming dishes.................................................................................................... 22
Tips ........................................................................................................................ 22
Warming times ....................................................................................................... 22
Capacity................................................................................................................. 23
Other uses ............................................................................................................ 24
Cleaning and care................................................................................................ 25
Unsuitable cleaning agents.................................................................................... 25
Frequently asked questions................................................................................ 27
Technical Service ................................................................................................. 29
Copyright and licenses........................................................................................ 30

IMPORTANT SAFETY INSTRUCTIONS
4
When using the appliance, follow basic safety precautions, including the
following:
Read all instructions before installation and use of the range to prevent
accidents and machine damage.
This warming drawer conforms to current safety requirements.
Improper use can, however, lead to personal injury and damage to
property.
To avoid the risk of accidents and damage to the appliance,
please read these instructions carefully before using the appliance
for the first time. They contain important notes on installation,
safety, use and maintenance.
Miele cannot be held liable for damage occurring as a result of
non-compliance with these instructions.
Keep these instructions in a safe place and pass them on to any
future owners.

IMPORTANT SAFETY INSTRUCTIONS
5
Use
 This warming drawer is intended for domestic use and use in
other similar environments.
 The warming drawer is not intended for outdoor use.
 The warming drawer is intended for domestic use only as
described in these instructions. All other use is at the owner's own
risk and could be dangerous.
 Persons who are unable to safely operate the warming drawer due
to limited physical, sensory or mental capabilities, or because of a
lack of experience or knowledge, may only use the appliance if they
are supervised while doing so. These persons may only use the
appliance without supervision if they have been shown how to use it
in a safe manner, and if they are able to recognize and understand
the potential risks of improper use.
Children
 As with any appliance, close supervision is necessary when used
by children.
 Do not leave children unattended: Children should not be alone or
unsupervised in the area where the oven is installed. Do not allow
them to sit or stand on the appliance.
 Children must be kept away from the appliance unless they are
constantly supervised.
 Children ages eight and up may only use the warming drawer
without supervision if they have been shown how to use it in a safe
manner, and if they are able to recognize and understand the
potential risks of improper use.
 Children must not be allowed to clean the warming drawer
without supervision.
 Be sure to supervise any children in the vicinity of the warming
drawer, and do not let them play with it.

IMPORTANT SAFETY INSTRUCTIONS
6
 The warmer drawer gets hot when in use and remains hot for
some time after being switched off. Keep children away from the
appliance until it has cooled down and is no longer a burn hazard.
 Danger of suffocation! Ensure that any plastic wrappings, bags,
etc. are disposed of safely and kept out of the reach of children.
 Burn hazard!
Keep the spaces above and behind the range clear of any items that
could draw the attention of children. Otherwise, they can be tempted
into climbing onto the appliance.

IMPORTANT SAFETY INSTRUCTIONS
7
Technical safety
 Installation, repair and maintenance work should be performed by
a Miele authorized service technician in accordance with national
and local safety regulations and the provided installation
instructions. Contact Miele’s Technical Service Department for
examination, repair or adjustment. Repairs and other work by
unauthorized persons could be dangerous and may void the
warranty.
 Do not carry or lift the range by the oven door handle or the
control panel!
 Maintenance by the user: Never repair or replace any part of the
appliance unless the instructions specifically recommend doing so.
Service work may only be performed by a qualified technician.
 A damaged warming drawer can be dangerous. Always check for
visible signs of damage. Never use a damaged appliance.
 Reliable and safe operation of the range can only be guaranteed if
it is connected to the public power supply.
 The electrical safety of the range can only be guaranteed when it
is properly grounded. Compliance with this essential safety
requirement is absolutely mandatory. If in any doubt, please have
the building's wiring system inspected by a qualified electrician.
 Proper installation: Make sure that your appliance has been
installed correctly and that it has been grounded by a qualified
technician.
 For safety reasons, the warming drawer may only be used when it
has been fully installed.
 To avoid damaging the range, make sure that the connection data
(voltage and frequency) on the data plate correspond to the
building's power supply before connecting the appliance.
When in doubt, consult a qualified electrician.

IMPORTANT SAFETY INSTRUCTIONS
8
 Do not use a power strip or extension cord to connect the range
to electricity. These are a fire hazard and do not guarantee the
required level of appliance safety.
 This appliance must not be installed and operated in mobile
installations (e.g. on a ship).
 Any contact with live connections or tampering with the electrical
or mechanical components of the warming drawer will endanger
your safety and may lead to appliance malfunctions.
Do not open the casing of the warming drawer under any
circumstances.
 Any repairs not performed by a Miele authorized service
technician will void the warranty.
 Defective components should be replaced by Miele original parts
only. Only with these parts can the manufacturer guarantee the
safety of the appliance.
 During installation, maintenance and repair work, e.g. if the oven
lighting is broken (see "Frequently asked questions"), the range must
be completely disconnected from the household electricity supply.
The gas supply must be shut off. Ensure that this is the case by:
– removing the fuse,
– "tripping" the circuit breaker, or
– unplugging the unit. Pull the plug not the cord.
– Shut off the gas supply and, if necessary, disconnect the range
from the gas line. Installation and maintenance of the gas
connection must be performed by qualified installers, service
agencies or gas providers.
 If the range is installed behind a cabinet door, do not close the
door while the appliance is in operation. Heat and moisture can build
up behind the closed door and cause damage to the range and to
the surrounding cabinets and flooring. Do not close the door until
the appliance has completely cooled down.

IMPORTANT SAFETY INSTRUCTIONS
9
 Do not install kitchen cabinets above the range, since reaching
over a hot stovetop to access the cabinets can result in burns. If it is
necessary to install cabinets, you can reduce the risk of burns by
installing a range hood that extends at least 4 3/4" (12 cm) past the
bottom of the cabinets.
Proper use
 You can burn yourself on a hot warming drawer. When using the
appliance, protect your hands by wearing heat-resistant pot holders.
Only use dry pot holders. Wet or damp textiles conduct heat more
effectively and produce steam, which poses a burn hazard.
 Loose fitting or hanging garments present a fire hazard. Wear
proper apparel while operating the appliance.
 Fire hazard! Do not store any plastic containers or flammable
objects in the warming drawer. They can meld or catch fire when the
appliance is switched on.
 Due to the high temperatures radiated by the warming drawer,
nearby flammable objects can catch fire while the appliance is in
use. Do not use the warming drawer to heat the room.
 Never use paper towels or other similar objects in place of the
non-slip mat supplied with the appliance.
 The maximum load capacity of the telescopic drawer rails is 55
lbs (25 kg). If you overload the warming drawer or lean/stand on the
drawer when it is open, you will damage the rails.
 Do not use the warming drawer to heat food in closed containers,
such as cans or sealed jars.
Pressure will build up in the container and cause it to explode.
 The underside of the warming drawer gets hot when the
appliance is in use. Be careful not to touch it when the drawer is
open.

IMPORTANT SAFETY INSTRUCTIONS
10
 Cookware made of plastic or aluminum foil will melt at high
temperatures. When keeping food warm, use only heat-resistant
cookware made of porcelain, glass, etc.
 Liquids that get inside the warming drawer can cause the
appliance to short-circuit. Open and close a loaded drawer carefully
to prevent liquids from spilling.
 The "Keeping food warm" mode is to be used for keeping hot
dishes warm, not for heating up cold food. Make sure that any food
placed in the appliance has a high enough temperature.
 In some foods, bacterial growth may occur if the temperature is
too low. Set the appliance to an adequate warming temperature.
 The non-slip mat is heat-resistant up to 395°F (200°C).
It is possible for the bottom of cookware to exceed this temperature,
especially after it has been used to sear food. Allow the cookware to
cool down for a minute or two before placing it in the warming
drawer.
 Smother the fire or flames, or use a dry chemical extinguishing
agent or foam fire extinguisher.
Cleaning and care
 Do not use a steam cleaner to clean the warming drawer.
The steam may reach electrical components and cause a short
circuit.
 Do not clean the non-slip mat in the dishwasher or washing
machine. Never place it in the oven to dry!
SAVE THESE INSTRUCTIONS AND REVIEW THEM PERIODICALLY

Guide to the range
11
HR 1954
HR 1955, HR 1956
aSpeed Oven / Convection Oven and
Cooktop controls
bSpeed oven
cWarming drawer with non-slip mat
dControls
eAir vents
fData plate
The data plate is located behind the
toe-kick.
gStorage for wireless roast probe
hOven

Control panel for Warming Drawer
12
Sensor buttons
Sensor button Description
On/Off button
Menu Selects the operating mode
Temperature Sets the temperature
Duration Sets the duration
Display
Display Description
For warming cups and glasses
For warming dishes and plates
For keeping food warm
Low Temperature
     Temperature bar
1h Duration of 1 hour
2h Duration of 2 hours
3h Duration of 3 hours
4h Duration of 4 hours

Features
13
Model numbers
A list of the ovens described in these
operating instructions can be found on
the back page.
Data plate
The data plate is behind the toe-kick.
The toe-kick cover is attached to the
base of the range by magnets so it can
be removed and put back again easily.
There you can find the model number,
the serial number and the connection
data (voltage/frequency/maximum rated
load) for your range.
Have this information available when
contacting Miele Technical Service.
Items included with this range
The following items are included with
this appliance:
– Installation instructions for the range
– The operating instructions for the
range:
– Gas Top Part
– Convection Oven
– Speed Oven
– Warming Drawer
– An anti-tip device, including screws
for fastening the range
– Various accessories

Before using for the first time
14
First cleaning
Remove any protective film from the
appliance.
Remove the non-slip mat from the
warming drawer and clean it with
warm water and a small amount of
liquid dish soap, using a clean soft
sponge or damp microfiber cloth to
apply.
Dry the non-slip mat with a soft cloth.
Before heating up the warming
drawer, wipe the interior and exterior
with a damp cloth to remove any dust
or bits of packaging that may have
accumulated in or on the appliance.
Dry all surfaces with a soft cloth.
Return the non-slip mat to the
warming drawer.
Heating the warming drawer
for the first time
With the drawer empty, heat the
appliance for at least two hours.
Touch the On/Off button to switch
on the warming drawer.
Touch "Menu" sensor until the 
symbol lights up.
Touch the "Temperature" sensor
repeatedly until the LED on the far
right lights up.
Touch the "Duration" sensor until
"2h" lights up.
Close the drawer.
The warming drawer switches off
automatically after two hours.
The warming drawer is equipped with
a contact switch. The drawer's heater
and fan will only operate when it is
closed.
Because the metal components are
protected by a conditioning agent,
there will be a slight odor the first time
the drawer is heated up. The harmless
odor will dissipate after a short time
and does not indicate a faulty
connection or appliance defect.
During this time, make sure that the
kitchen is adequately ventilated.

Operation
15
Opening and closing the
drawer
The warming drawer is fitted with an
non-slip mat which prevents dishware
from sliding around when the drawer
is opened and closed.
The warming drawer can be opened
or closed by lightly pressing the
middle of the drawer front.
Basic operation
The On/Off button must remain
free of grime and liquids. Failure to
keep the sensor button clean may
cause it to become unresponsive or
to switch uncontrollably.
Liquids that get inside the warming
drawer can cause a short-circuit.
Open and close a loaded drawer
carefully to prevent liquids from
spilling.
Open the warming drawer.
Touch the On/Off button to switch
on the warming drawer.
Touch the "Menu" sensor until the
desired operating mode lights up.
Touch the "Temperature" sensor
repeatedly until the LED with the
desired temperature lights up.
If you wish to set a warming time,
touch the "Duration" sensor until the
desired number of hours lights up.
Close the warming drawer.

Operation
16
Operating modes
The following modes are available:
–
Warming cups and glasses
–
Warming dishes and plates
–
Keeping food warm
–
Low temperature
Selecting an operating mode
The next time the appliance is
switched on, the previously selected
operating mode will automatically
appear on the control panel as the
active setting.
Touch the "Menu" sensor until the
desired operating mode lights up.
The appliance is equipped with a fan
which distributes the warmed air within
the drawer.
The fan runs continuously in the
"Warming cups and glasses" and
"Warming dishes and plates" modes.
It runs at intervals in the "Keeping food
warm" and "Low Temperature" modes.
Caution!
It takes some time for dishes to
warm up, but they can get very hot!
You can use the appliance to keep food
warm while warming dishes at the
same time. To do so, select the
"Keeping food warm" mode.

Operation
17
Temperature settings
A temperature range is assigned to
each operating mode. The default
recommended temperatures appear in
bold. The temperature can be changed
in 5° increments by pressing the 
sensor.
The next time the drawer is switched
on, the previously selected temperature
is automatically shown in the display as
the current setting (exception: Low
Temperature).

Operation
18
Temperature
display Temperature °F/[°C] *
   
     105/40 140/60 150/65 150/65
     115/45 150/65 160/70 160/70
     120/50 155/70 170/75 170/75
     130/55 170/75 175/80 175/80
     140/60 175/80 185/85 185/85
* approximate temperatures, measured in the center of an empty drawer

Operation
19
Duration
When the appliance is set to
continuous operation, do not leave it
unattended over longer periods of
time. Long warming times lead to the
food drying out, which may cause it
to catch fire.
The appliance is set to continuous
operation (exception: Low temperature).
A limited duration can be selected by
touching the "Duration" sensor: touch
once for 1 hour (1h), twice for 2 hours
(2h) and so on. The maximum duration
is 4 hours.
Touching the sensor for a fifth time
returns the appliance to continuous
operation.

Keeping food warm
20
Do not allow the warming drawer to
fall below the minimum required
temperature keeping food warm
(150°F/65°C).
Use only the "Keeping food warm"
mode to ensure that the
minimum temperature is maintained.
This operating mode is designed to
keep food warm immediately after it
has been cooked, i.e. when it is still hot.
It is not intended for reheating food that
has gone cold!
Select the mode.
Select the desire duration.
Preheat the appliance for 15 minutes
to ensure that the interior has
reached the necessary temperature.
Place the dishes in the drawer while
the appliance preheats.
The dishes will get hot.
Use ovpot holders when handling
hot dishes.
After 15 minutes, remove the
preheated dishes from the warming
drawer and fill them with the hot
food.
Place the dishes in the drawer and
close it carefully to prevent liquid
foods from spilling.
Tips
– Place the hot food in pre-warmed
dishes. To preheat dishes, place
them in the drawer while it is being
preheated.
– Cover roasted or fried foods that are
to remain crispy. Use a higher
temperature to keep this type of food
warm.
– Using aluminum foil or a plate, cover
any liquid or very moist foods on
which a skin can form.
– To avoid spilling the food, do not
overfill dishes.
– Freshly cooked food is hotter than
food which has been kept warm.
Serve food that has been kept warm
on preheated plates.
– Foods begin to lose their nutrients
during the cooking process and
continue to do so while being kept
warm. The longer food is kept warm,
the greater the loss of nutrients.
– We do not recommend keeping food
warm for too long, as it will continue
to cook.
– The food may cool down if the
drawer is opened frequently.
