Miele DAD 4840 User manual

Operating and installation
instructions
Downdraft extractor
To prevent the risk of accidents or damage to the appliance, it is
essential to read these instructions before it is installed and used for
the first time.
en-AU, NZ M.-Nr. 12 048 290

Contents
2
Caring for the environment .............................................................................. 4
Warning and Safety instructions...................................................................... 5

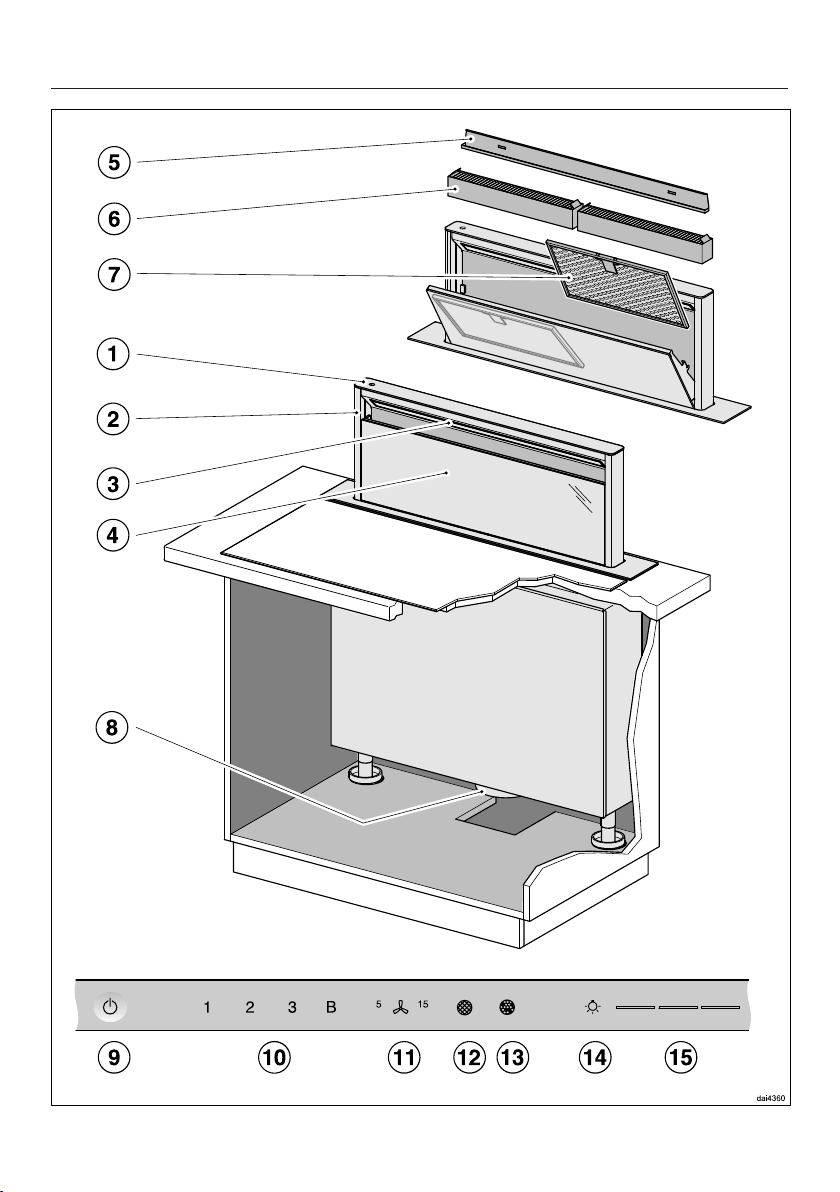

Guide to the rangehood .................................................................................... 14
Description of the functions............................................................................. 16
Recirculation mode Plug&Play ....................................................................... 16
Before using for the first time .......................................................................... 17
Selecting extraction mode or recirculation mode................................................ 17
Setting up Miele@home ...................................................................................... 18
Connecting via the App.................................................................................. 18
Connecting via WPS ...................................................................................... 20
Signing out of Wi-Fi (reset to factory settings) ............................................... 21
Setting up Con@ctivity ........................................................................................ 22
Con@ctivity via the home Wi-Fi network (Con@ctivity 3.0)............................ 22
Con@ctivity via a direct Wi-Fi connection (Con@ctivity 3.0).......................... 23
Reattempting the connection......................................................................... 23
Operation (automatic mode) ............................................................................ 24
Cooking with Con@ctivity (automatic mode) ...................................................... 24
Cooking process ................................................................................................. 25
Leaving automatic mode temporarily.................................................................. 25
Returning to automatic mode......................................................................... 25
Operation (manual mode) ................................................................................. 27
Cooking without Con@ctivity (manual mode) ..................................................... 27
Switching the fan on............................................................................................ 27
Selecting the second Booster level................................................................ 27
Selecting the run-on time.................................................................................... 27
Switching the fan off ........................................................................................... 28
Run-on in Plug&Play operation ...................................................................... 28
Switching on and dimming the cooktop lighting................................................. 28
Switching the cooktop lighting off ...................................................................... 28
Retracting the deflector plate.............................................................................. 29
Automatic retraction....................................................................................... 29
Power management ............................................................................................ 29
Changing settings ............................................................................................. 30
Altering the grease filter operating hours counter ............................................... 30
Altering or deactivating the charcoal filter operating hours counter ................... 31
Deactivating Power management ....................................................................... 31
Buzzer for the sensors......................................................................................... 32

Contents
3
Energy saving tips ............................................................................................. 33
Cleaning and care ............................................................................................. 34
Housing ............................................................................................................... 34
Important information for appliances with stainless steel surfaces ............... 34
Grease filters and edge extraction panel............................................................. 35
Removing the panel ....................................................................................... 36
Cleaning the drip tray ..................................................................................... 37
Inserting the panel.......................................................................................... 37
Resetting the grease filter operating hours counter ....................................... 38
Change grease filters...................................................................................... 38
NoSmell active charcoal filters ............................................................................ 38
Resetting the charcoal filter operating hours counter .................................... 39
Disposing of the charcoal filters ..................................................................... 39
Reactivatable charcoal filters ......................................................................... 39
Problem solving guide ...................................................................................... 40
Installation.......................................................................................................... 41
Before installation................................................................................................ 41
Appliance dimensions ......................................................................................... 42
Installation examples........................................................................................... 44
Connection for air extraction............................................................................... 46
Non-return flap ............................................................................................... 46
Electrical connection ........................................................................................... 47
Service................................................................................................................ 48
Contact in case of fault ....................................................................................... 48
Position of the data plate .................................................................................... 48
Warranty .............................................................................................................. 48
Technical data.................................................................................................... 49
Optional accessory for recirculation mode ......................................................... 49

Caring for the environment
4
Disposal of the packing
material
The transport and protective packaging
has been selected from materials which
are environmentally friendly for
disposal, and can normally be recycled.
Recycling the packaging reduces the
use of raw materials in the
manufacturing process and also
reduces the amount of waste in landfill
sites. Ensure that any plastic
wrappings, bags etc. are disposed of
safely and kept out of the reach of
babies and young children. Danger of
suffocation.
Disposing of your old
appliance
Electrical and electronic appliances
often contain valuable materials. They
also contain specific materials,
compounds and components, which
were essential for their correct function
and safety. These could be hazardous
to human health and to the environment
if disposed of with your domestic waste
or if handled incorrectly. Please do not,
therefore, dispose of your old appliance
with your household waste.
Please dispose of it at your local
community waste collection / recycling
centre for electrical and electronic
appliances. You are also responsible for
deleting any personal data that may be
stored on the appliance prior to
disposal. Please ensure that your old
appliance poses no risk to children
while being stored prior to disposal.

Warning and Safety instructions
5
This rangehood complies with all relevant local and national safety
requirements. However, inappropriate use can lead to personal
injury and damage to property.
Read the operating and installation instructions carefully before
using the rangehood. They contain important information on the
safety, installation, use and maintenance of the appliance. This
prevents both personal injury and damage to the rangehood.
In accordance with standard IEC 60335-1, Miele expressly and
strongly advises that you read and follow the instructions in
“Installation” and in the “Warning and Safety instructions”.
Miele cannot be held liable for injury or damage caused by non-
compliance with these instructions.
Keep these instructions in a safe place and pass them on to any
future owner.
Correct application
 The appliance is not suitable for outdoor use.
 It must only be used to extract vapours and remove odours from
cooking.
Any other usage is at the owner's risk. Miele cannot be held liable for
damage resulting from incorrect or improper use or operation.
 This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given
supervision or instruction concerning its use by a person responsible
for their safety, and are able to recognise the dangers of misuse.

Warning and Safety instructions
6
Safety with children
 Young children must not be allowed to use the rangehood.
 Older children may only use the rangehood if its operation has
been clearly explained to them and they are able to use it safely.
They must be able to understand and recognise the possible
dangers caused by incorrect operation.
 Cleaning work may only be carried out by older children under the
supervision of an adult.
 Children should be supervised near the appliance. Ensure that
they do not play with the appliance.
 Danger of suffocation! Whilst playing, children may become
entangled in packaging material (such as plastic wrapping) or pull it
over their head with the risk of suffocation. Keep packaging material
away from children.

Warning and Safety instructions
7
Technical safety
 Unauthorised installation, maintenance and repairs (including
removal of any cover) can cause considerable danger for the user.
Installation, maintenance and repairs must only be carried out by a
Miele authorised technician.
 A damaged appliance can be dangerous. Check it for visible signs
of damage. Do not use a damaged appliance.
 The electrical safety of this appliance can only be guaranteed
when continuity is complete between it and an effective earthing
system. It is most important that this basic safety requirement is
present and tested regularly and, where there is any doubt, the
household wiring system should be inspected by a qualified
electrician.
 Temporary or permanent operation with a self-sufficient or non-
mains synchronous energy supply system (e.g. isolated networks,
back-up systems) is possible. A requirement for the operation is that
the energy supply system complies with all current local and national
requirements that apply to stand-alone, solar and/or battery
systems.
The protective measures provided in the installation and in this Miele
product must also be assured in their function and operation in
isolated operation or in non-mains synchronous operation, or
replaced with equivalent measures in the installation.
 The connection data (voltage and frequency) on the data plate of
the rangehood must match the mains electricity supply in order to
avoid the risk of damage to the rangehood.
Compare this before connecting the appliance to the mains
electricity. If in doubt, consult a qualified electrician.
 Do not connect the appliance to the mains electricity supply by a
multi-socket unit or an extension lead. Extension leads are a fire
hazard and do not guarantee the required safety of the appliance.

Warning and Safety instructions
8
 For safety reasons, this appliance may only be used after it has
been built in.
 This rangehood must not be installed and operated in mobile
installations (e.g. on a ship).
 Tampering with electrical connections or components and
mechanical parts is highly dangerous to the user and can cause
operational faults.
Only open the housing as described in the instructions given in the
installation sheet and in the “Cleaning and care” section of this
booklet. Under no circumstances should any other parts of the
housing be opened.
 The manufacturer's warranty will be invalidated if the appliance is
not repaired by a Miele authorised service technician.
 If the mains connection cable is damaged, it must only be
replaced by a Miele authorised service technician or suitably
qualified and competent electrician in order to avoid a hazard.
 The lamps are a built-in component of the lighting. Replacement
lamps may only be installed by a Miele authorised technician.
 During installation, maintenance and repair work, the appliance
must be disconnected from the mains electricity supply. It is only
completely isolated from the electricity supply when:
- the mains circuit breaker is switched off, or
- it is switched off at the wall socket and the plug is withdrawn from
the socket. Do not pull the mains connection cable but the mains
plug to disconnect your appliance from the mains electricity
supply.

Warning and Safety instructions
9
Using at the same time as other heating appliances that depend on the air
from the room
Danger of toxic fumes!
Great care should be taken when using the rangehood in the same
room or the same area of the house as another heating appliance
that depends on the air from the room.
Such heating appliances draw in air from the room and duct
exhaust gases out through a chimney or extraction ducting. They
include gas, oil, wood and coal-fired boilers and heaters,
continuous flow or other water heaters, gas cooktops and ovens.
The rangehood draws in air from the kitchen and from
neighbouring rooms. This applies to the following modes of
operation:
- extraction mode
- recirculation mode with a recirculation box installed outside the
room.
If there is insufficient air, an underpressure will occur. The heating
appliance may be starved of oxygen. This impairs combustion.
Harmful gases could be drawn from the chimney or extraction
ducting back into the room.
This could have potentially fatal consequences. Risk of death!

Warning and Safety instructions
10
In order to ensure safe operation and to prevent gases given off by
a heating appliance from being drawn back into the room, when
the rangehood and the heater are both operated simultaneously,
an underpressure in the room of 0.04mbar (4Pa) is the maximum
permissible.
Sufficient ventilation can be maintained by air inlets which cannot
be blocked, e.g. in windows, doors and outside wall vents. The
diameter of the inlet openings must enable sufficient ventilation. A
ventilation brick alone is not generally sufficient to ensure safe
ventilation.
The overall ventilation condition of the dwelling must be taken into
account. If in any doubt, the advice of a competent builder or, for
gas, a qualified gas fitter (registered with an official gas safety
body in accordance with national safety regulations) must be
sought.
If the rangehood is being operated in recirculation mode, whereby
the air is redirected into the room in which it is installed, the above
restrictions do not apply.
