Miele HS11 User manual

de Gebrauchsanweisung Bodenstaubsauger
en Vacuum cleaner operating instructions
fr Mode d'emploi pour aspirateur traîneau
nl Gebruiksaanwijzing stofzuigers
it Istruzioni d'uso per aspirapolvere a traino
M.-Nr. 09 883 730
HS11

Warning and Safety instructions ....................................24
Caring for our environment ........................................29
Guide to the appliance ............................................30
Preparing for use .................................................32
Using the accessories supplied .....................................33
Use ............................................................34
Setting down, transportation and storage.............................35
Maintenance .....................................................35
Purchasing new dustbags and filters ..................................36
Ordering the correct dustbags and filters ...............................36
When to change the dustbag ........................................36
How the dustbag change indicator works...............................36
How to replace the dustbag .........................................37
When to change the dust compartment filter (for motor protection) ...........37
How to change the dust compartment filter .............................37
When to replace the exhaust filter .....................................37
How to replace the AirClean filter .....................................38
How to replace an Active AirClean 50 filter or a HEPA AirClean 50 filter .......38
Replacing one type of exhaust filter with another .........................38
When to change the thread lifters .....................................38
How to replace the thread lifters ......................................39
How to clean the roller on floorhead SBD 285-3 ..........................39
Cleaning and care ................................................39
Problem solving guide ............................................39
After sales service ................................................40
Guarantee .......................................................40
Optional accessories..............................................40
Electrical connection for the UK .....................................42
Electrical connection AU, NZ .......................................42
en - Contents
23

This vacuum cleaner complies with statutory safety
requirements. Improper use can, however, lead to
personal injury and damage to property.
To avoid the risk of accidents and damage to the
vacuum cleaner, please read these instructions carefully
before using it for the first time. They contain important
information on its safety, operation and maintenance.
Keep these instructions in a safe place and ensure that
new users are familiar with the content. Pass them on to
any future owner.
Always disconnect the vacuum cleaner from the mains
supply when you have finished using it, before changing
over accessories, as well as for maintenance work and
cleaning. Switch the vacuum cleaner off at the wall
socket and unplug it.
Correct application
~This vacuum cleaner is intended for cleaning flooring in
domestic households and similar residential environments.
~This vacuum cleaner is intended for daily cleaning of
carpets, rugs and robust hard flooring.
~This vacuum cleaner is not intended for outdoor use.
en - Warning and Safety instructions
24

~The vacuum cleaner must only be used to vacuum dry floor
surfaces. Do not use on people or animals. Any other usage,
modification or alteration is not supported by the
manufacturer and could be dangerous.
~This vacuum cleaner can only be used by people with
reduced physical, sensory or mental capabilities, or lack of
experience or knowledge, if they are supervised whilst
using it or have been shown how to use it in a safe way
and understand and recognise the consequences of
incorrect operation.
Safety with children
~Children under 8 years of age must be kept away from
the vacuum cleaner unless they are constantly supervised.
~Children 8 years and older may only use the vacuum
cleaner unsupervised if they have been shown how to use
it safely and recognise and understand the consequences
of incorrect operation.
~Children must not be allowed to clean or maintain the
vacuum cleaner unsupervised.
~Please supervise children in the vicinity of the vacuum
cleaner and do not let them play with it.
en - Warning and Safety instructions
25

Technical safety
~Before using the vacuum cleaner and its accessories,
check for any visible signs of damage. Do not use a
damaged appliance.
~Ensure that the connection data on the data plate of the
vacuum cleaner (voltage and frequency) match the mains
electricity supply exactly.
~The mains electrical plug must be fitted with a 13 A fuse
(UK).
~While the vacuum cleaner is under guarantee, repairs
should only be undertaken by a Miele authorised service
technician. Otherwise the guarantee will be invalidated.
~Do not pull or carry the vacuum cleaner by the cable,
and be careful not to damage the cable when withdrawing
the plug from the socket.
Keep the cable away from sharp edges and do not let it
get squashed, for example, under a door.
Avoid running the vacuum cleaner over the cable. This
could damage the cable, plug or socket.
The appliance must not be used if any of these have
suffered damage.
~Do not use the vacuum cleaner if the cable is damaged.
If the cable is damaged it must be replaced together with a
complete cable rewind. For safety reasons this work must
be done by the Miele Service Department or a Miele
authorised service technician.
en - Warning and Safety instructions
26

~When vacuuming fine dust, e.g. sawdust, sand, plaster,
flour, talcum powder etc., electrostatic charges build up
naturally. Under certain conditions these charges will be
released. To avoid the unpleasant effects of these
discharges, a metal inlay has been incorporated into the
underside of the handle. Please make sure that you keep
your hand in constant contact with this metal strip during
vacuuming.
~Do not let the vacuum cleaner get wet. Clean only with a
dry cloth or slightly damp cloth when disconnected from
the mains supply.
~Repairs should only be carried out by a Miele authorised
service technician. Repairs and other work by unqualified
persons can cause considerable danger to users.
Correct use
~To avoid the risk of damage, do not use the vacuum
cleaner without the dustbag, dust compartment filter and
exhaust filter in place.
~The dust compartment cover will not close without a
dustbag fitted. Do not force it.
~Do not vacuum up anything which has been burning or
is still glowing e.g. cigarettes, ashes or coal, whether
glowing or apparently extinguished.
~Do not use the vacuum cleaner to vacuum up any water,
liquid or damp dirt. Wait until any freshly cleaned or
shampooed carpets or floor coverings are completely dry
before attempting to vacuum.
en - Warning and Safety instructions
27

~Do not use the vacuum cleaner to vacuum toner dust.
Toner, such as that used in printers and photocopiers, can
conduct electricity.
~Do not vacuum up any inflammable or combustible
liquids or gases and do not vacuum in areas where such
substances are stored.
~Floor attachments, accessories and tubes must not be
used at head level to avoid the risk of injury, e.g. to eyes
and ears.
Accessories
~To avoid the risk of injury when vacuuming with a Miele
Turbobrush, do not touch the rotating roller brush.
~It is not advisable to vacuum directly with the handle,
i.e. without an accessory attached as the rim could get
damaged and you could hurt yourself on sharp edges.
~Only use genuine dustbags, filters and accessories with
the "Original Miele" logo on them. Otherwise the
manufacturer cannot guarantee the safety of the product.
Miele cannot be held liable for damage caused by
incorrect use or operation or by non-compliance with
these Warning and Safety instructions.
en - Warning and Safety instructions
28

Disposal of packing material
The packaging is designed to protect
the vacuum cleaner from damage
during transportation. The packaging
materials used are selected from
materials which are environmentally
friendly for disposal and should be
recycled.
Recycling the packaging reduces the
use of raw materials in the
manufacturing process and also
reduces the amount of waste in landfill
sites.
Ensure that any plastic wrappings,
bags, etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation.
Disposing of the dustbag and
filters
These are made from environmentally
friendly materials. The filters can be
disposed of with the normal household
waste. The dustbag can also be
disposed of in this way if it has been
used exclusively for general household
dust.
Disposing of your old
appliance
Before disposing of your old appliance
remove the dustbag and all the filters
and dispose of them with your normal
household waste.
Electrical and electronic appliances
often contain valuable materials. They
also contain materials which, if handled
or disposed of incorrectly, could be
potentially hazardous to human health
and to the environment. They are,
however, essential for the correct
functioning of your appliance. Please
do not therefore dispose of it with your
household waste.
Please dispose of it at your local
community waste collection/recycling
centre, or contact your dealer for
advice.
Ensure that it presents no danger to
children while being stored for
disposal.
en - Caring for our environment
29

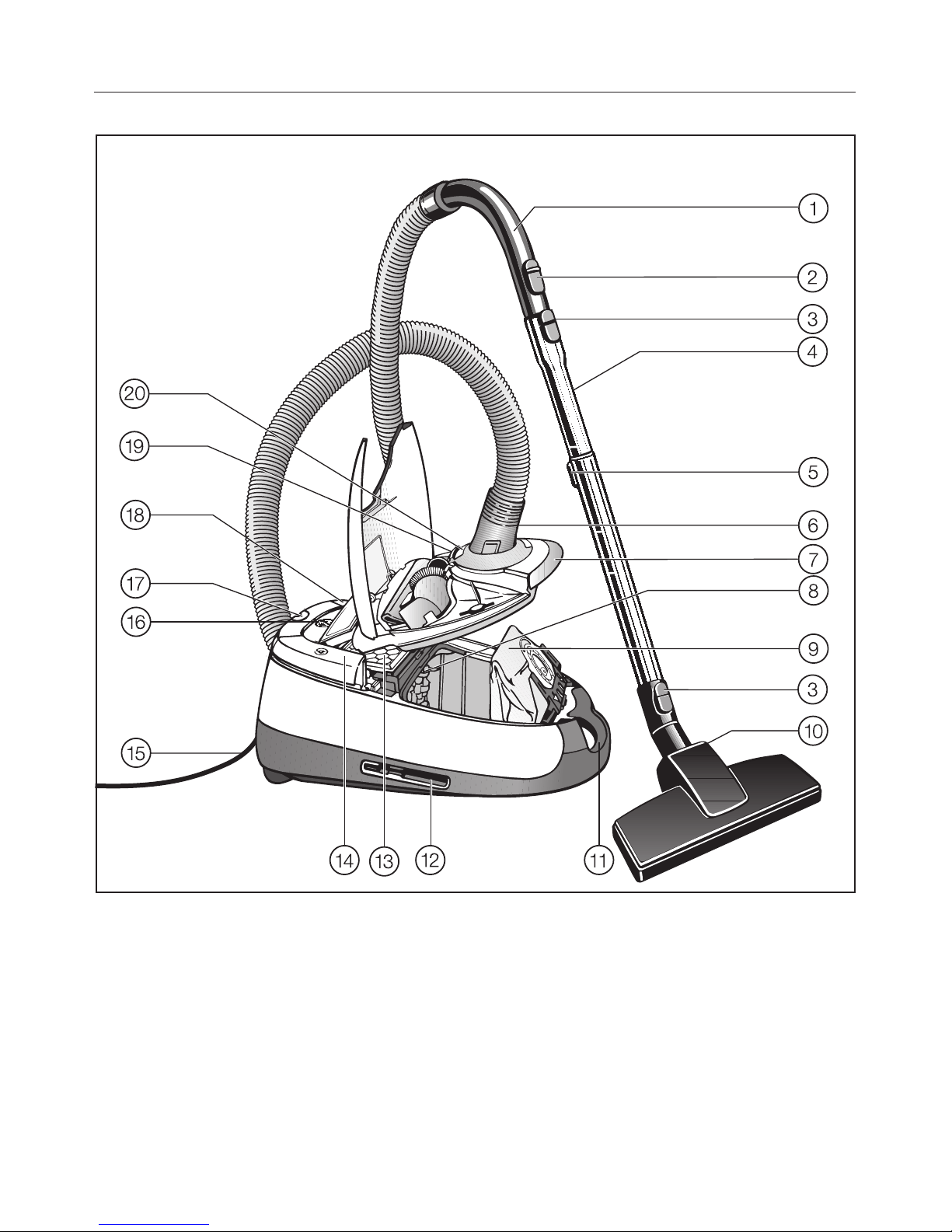

en - Guide to the appliance
30

The illustration shows the maximum number of features available.
aHandle
bAir inlet valve
cRelease buttons
dTelescopic suction tube
eRelease button for the telescopic tube
fHose connection socket
gDust compartment release catch
hDust compartment filter (for motor protection)
iOriginal Miele dustbag
jFloorhead *
kCarrying handle
lPark system for storage (on both sides of the vacuum cleaner)
mExhaust filter *
nFoot switch for automatic cable rewind
oMains cable
pRotary suction power selector
qPark system for pauses during vacuuming
rOn/Off foot control s
sRelease button for accessories compartment
tDustbag change indicator
Features marked *depend on model and may vary or not be available on your
vacuum cleaner.
en - Guide to the appliance
31
